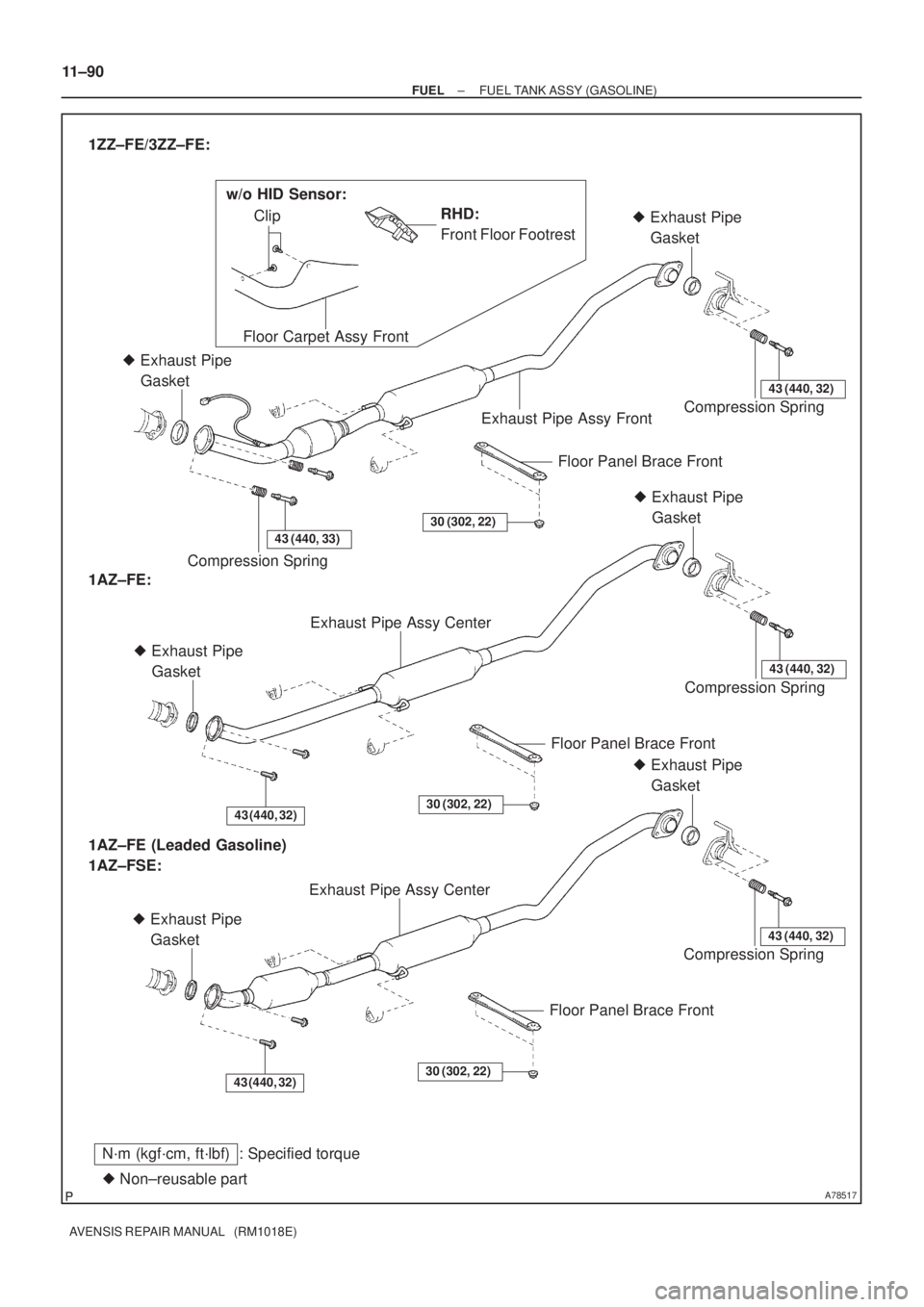

Page 1969 of 5135
A78517
N´m (kgf´cm, ft´lbf) : Specified torque
Non±reusable partRHD:
Front Floor Footrest 1ZZ±FE/3ZZ±FE:
Floor Carpet Assy FrontClip
Compression Spring Exhaust Pipe
Gasket
Exhaust Pipe Assy Front
Floor Panel Brace Front
43 (440, 33)
30 (302, 22)
Exhaust Pipe
Gasket
Compression Spring
43 (440, 32)
Exhaust Pipe Assy Center
43 (440, 32)
Exhaust Pipe
Gasket
Floor Panel Brace Front
30 (302, 22)
Compression Spring
43 (440, 32)
Exhaust Pipe
Gasket
1AZ±FE:
Exhaust Pipe Assy Center
43 (440, 32)
Exhaust Pipe
Gasket
Floor Panel Brace Front
30 (302, 22)
Compression Spring
43 (440, 32)
Exhaust Pipe
Gasket
1AZ±FE (Leaded Gasoline)
1AZ±FSE:
w/o HID Sensor: 11±90
± FUELFUEL TANK ASSY (GASOLINE)
AVENSIS REPAIR MANUAL (RM1018E)
Page 1970 of 5135

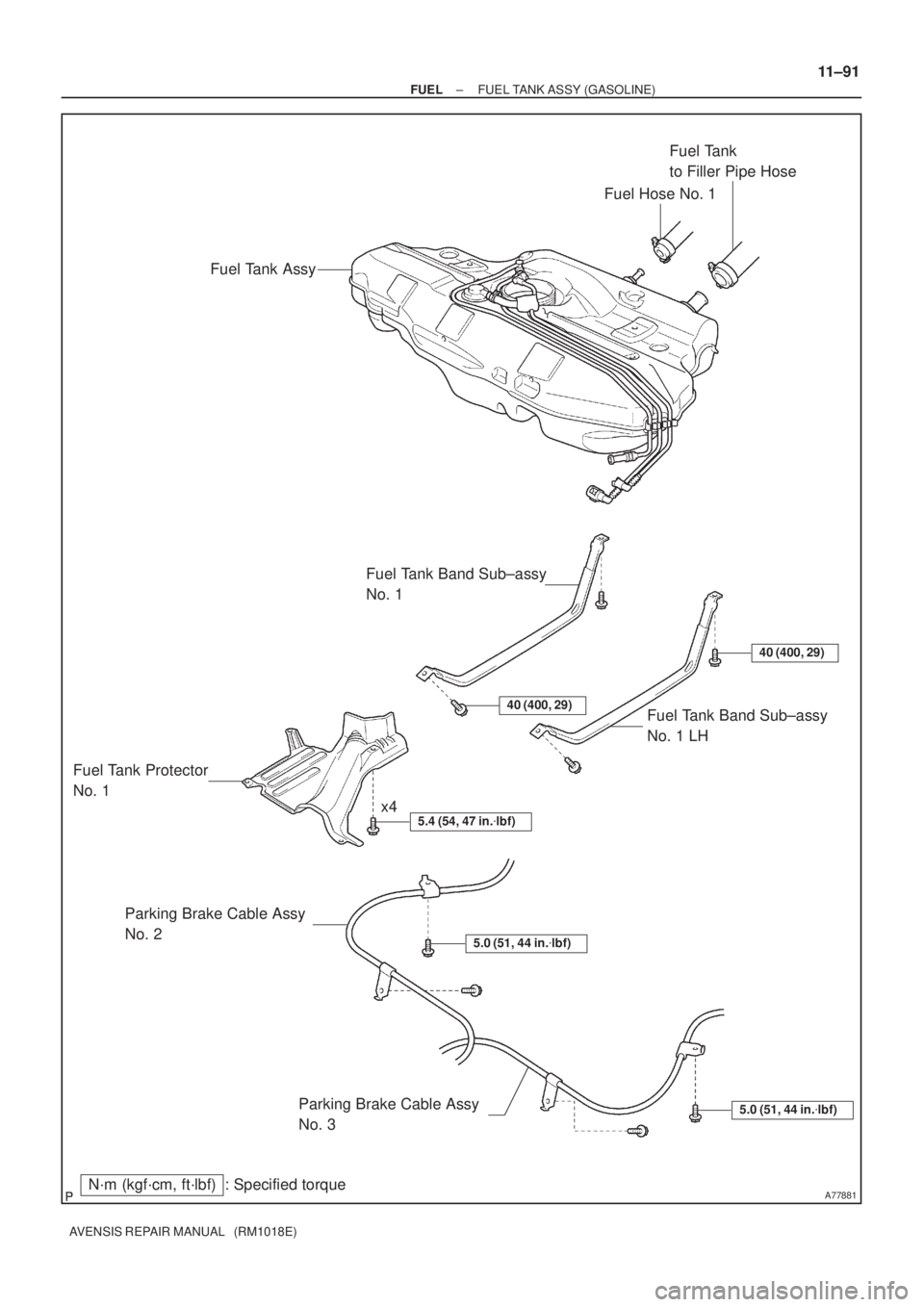

A77881
Fuel Tank AssyFuel Hose No. 1Fuel Tank
to Filler Pipe Hose
Fuel Tank Band Sub±assy
No. 1
Fuel Tank Band Sub±assy
No. 1 LH
Fuel Tank Protector
No. 1
Parking Brake Cable Assy
No. 2
Parking Brake Cable Assy
No. 3
5.0 (51, 44 in.lbf)
5.0 (51, 44 in.lbf)
5.4 (54, 47 in.lbf)x4
40 (400, 29)
40 (400, 29)
N´m (kgf´cm, ft´lbf) : Specified torque
± FUELFUEL TANK ASSY (GASOLINE)
11±91
AVENSIS REPAIR MANUAL (RM1018E)
Page 1971 of 5135
A77882

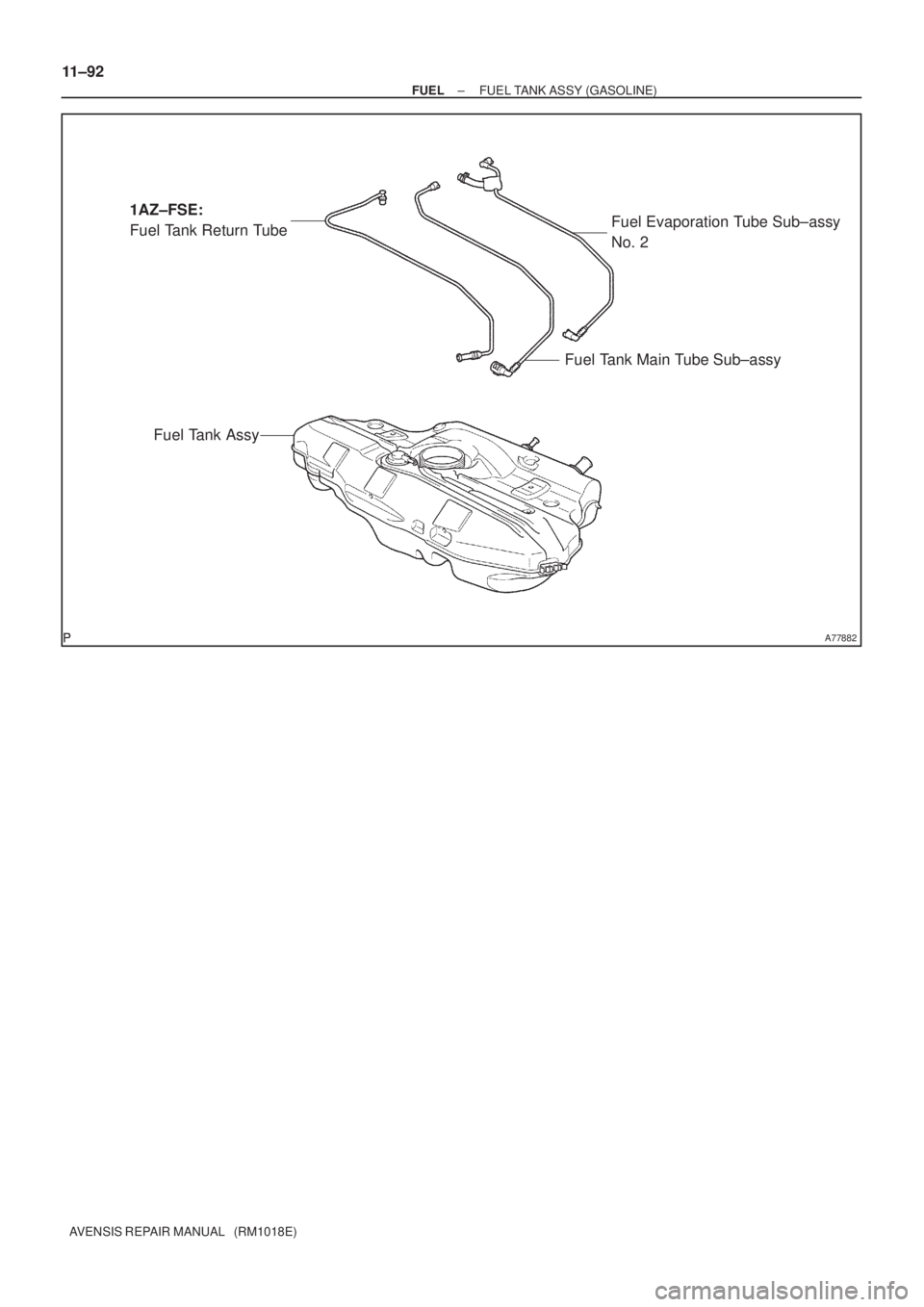

1AZ±FSE:
Fuel Tank Return TubeFuel Evaporation Tube Sub±assy
No. 2
Fuel Tank Main Tube Sub±assy
Fuel Tank Assy
11±92
± FUELFUEL TANK ASSY (GASOLINE)
AVENSIS REPAIR MANUAL (RM1018E)
Page 1972 of 5135
141CE±01
A78459
A76713
A64023
A65078
14±6
±
ENGINE MECHANICAL VALVE CLEARANCE(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
VALVE CLEARANCE(1ZZ±FE/3ZZ±FE)
ADJUSTMENT
1.REMOVE RADIATOR SUPPORT OPENING COVER(See page 14±27)
2.REMOVE ENGINE ROOM COVER SIDE(See page 14±27) 3. REMOVE CYLINDER HEAD COVER NO.2
(a) Remove the 2 nuts and 2 clips and detach cylinder headcover No.2.
4. DISCONNECT IGNITION COIL ASSY
(a) Remove the 5 clamps from the 5 clamp brackets.
(b) Disconnect the 4 ignition coil connectors.
(c) Remove the 2 nuts which are used to secure the engine wire.
(d) Remove the 4 bolts and the 4 ignition coils.
5. DISCONNECT VENTILATION HOSE
(a) Disconnect the ventilation hose from the cylinder head cover.
Page 1973 of 5135

A64058
A64856
A62185
Mark
Mark
Mark
Timing Chain
Cover Surface
Timing
Notch
A01131
± ENGINE MECHANICALVALVE CLEARANCE (1ZZ±FE/3ZZ±FE)
14±7
AVENSIS REPAIR MANUAL (RM1018E)

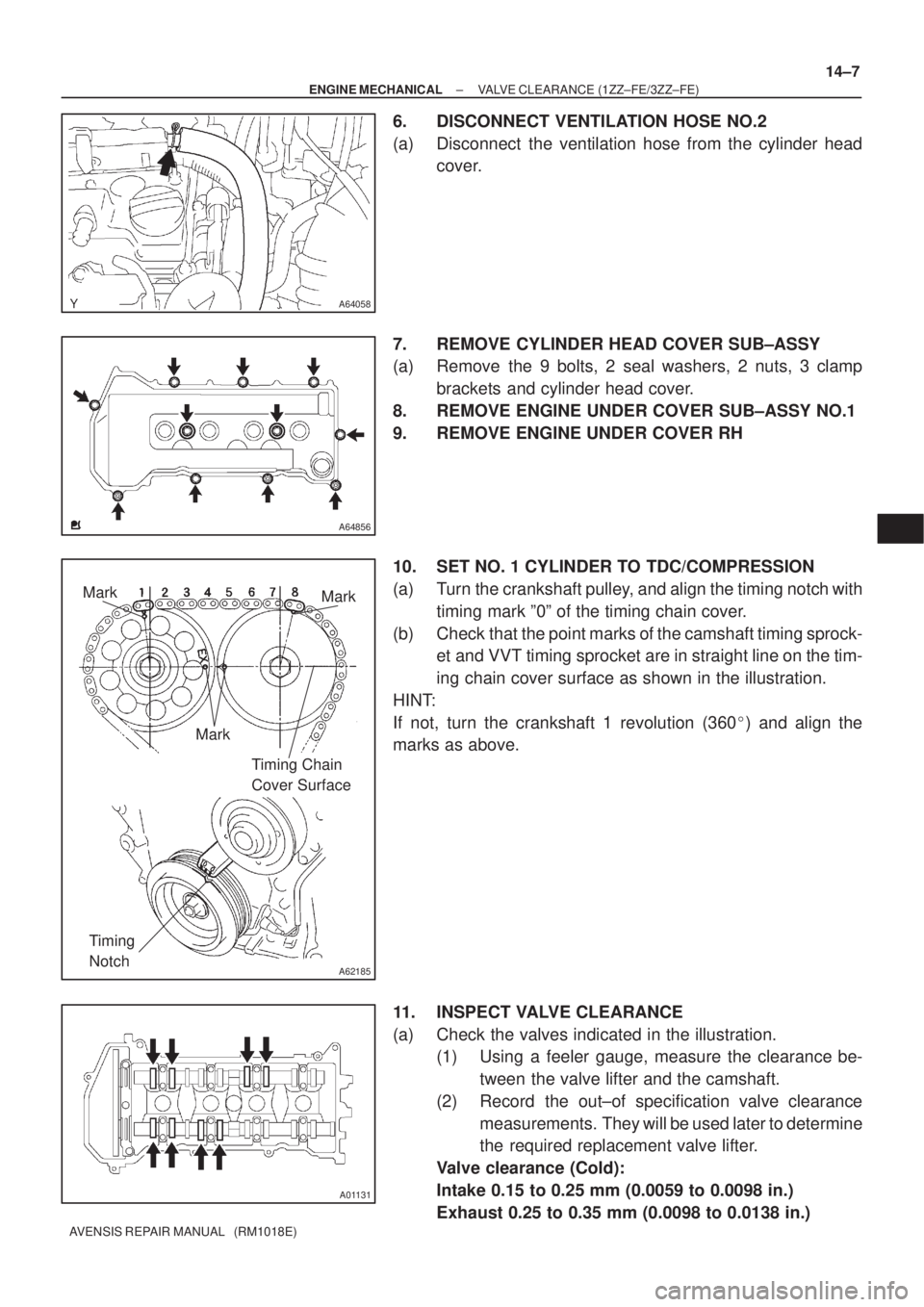

6. DISCONNECT VENTILATION HOSE NO.2
(a) Disconnect the ventilation hose from the cylinder head
cover.
7. REMOVE CYLINDER HEAD COVER SUB±ASSY
(a) Remove the 9 bolts, 2 seal washers, 2 nuts, 3 clamp
brackets and cylinder head cover.
8. REMOVE ENGINE UNDER COVER SUB±ASSY NO.1
9. REMOVE ENGINE UNDER COVER RH
10. SET NO. 1 CYLINDER TO TDC/COMPRESSION
(a) Turn the crankshaft pulley, and align the timing notch with
timing mark º0º of the timing chain cover.
(b) Check that the point marks of the camshaft timing sprock-
et and VVT timing sprocket are in straight line on the tim-
ing chain cover surface as shown in the illustration.
HINT:
If not, turn the crankshaft 1 revolution (360) and align the
marks as above.
11. INSPECT VALVE CLEARANCE
(a) Check the valves indicated in the illustration.
(1) Using a feeler gauge, measure the clearance be-
tween the valve lifter and the camshaft.
(2) Record the out±of specification valve clearance
measurements. They will be used later to determine
the required replacement valve lifter.
Valve clearance (Cold):
Intake 0.15 to 0.25 mm (0.0059 to 0.0098 in.)
Exhaust 0.25 to 0.35 mm (0.0098 to 0.0138 in.)
Page 1974 of 5135

A01132
A60622
A01045
A64005
14±8
± ENGINE MECHANICALVALVE CLEARANCE (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

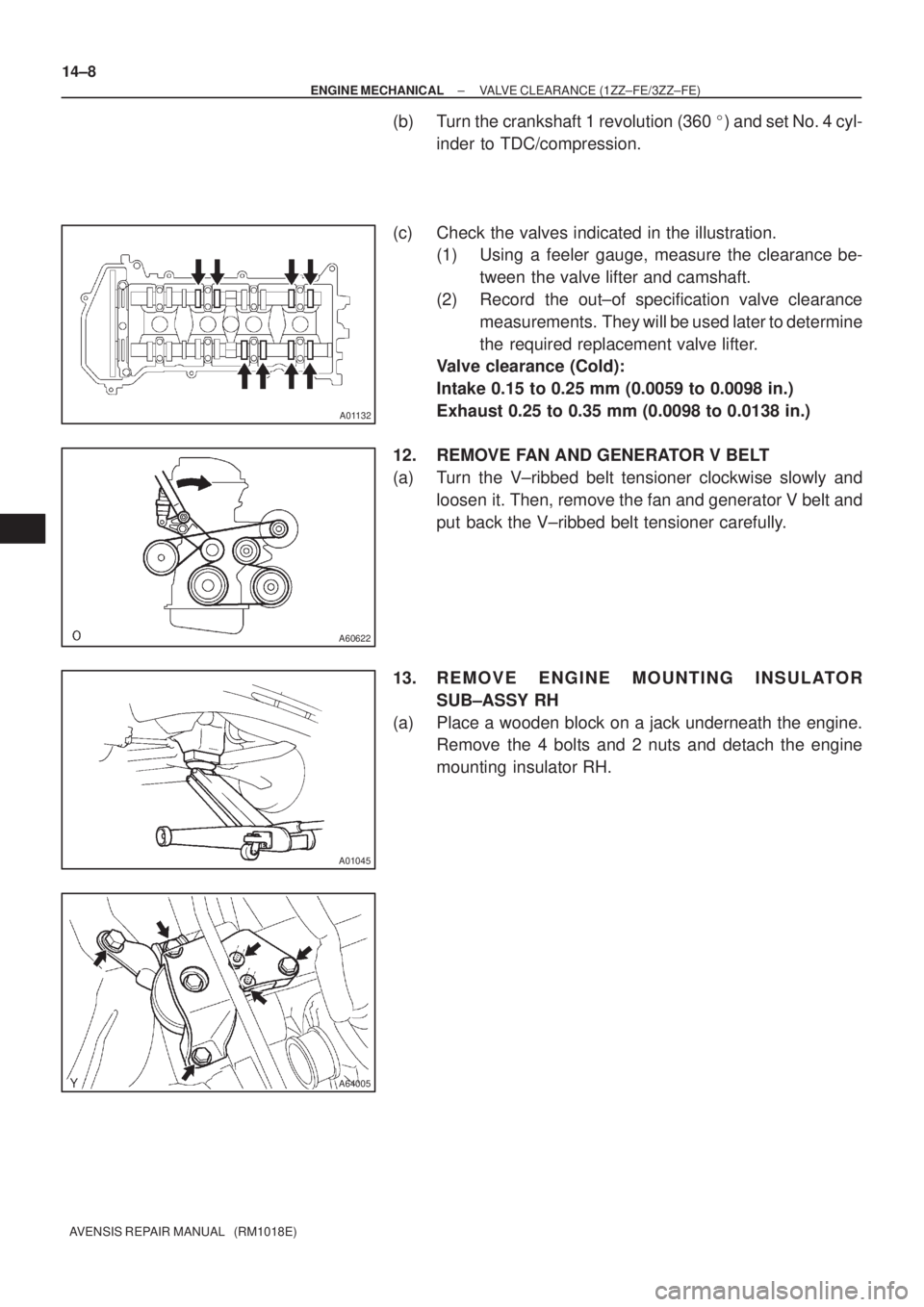

(b) Turn the crankshaft 1 revolution (360 ) and set No. 4 cyl-
inder to TDC/compression.
(c) Check the valves indicated in the illustration.
(1) Using a feeler gauge, measure the clearance be-
tween the valve lifter and camshaft.
(2) Record the out±of specification valve clearance
measurements. They will be used later to determine
the required replacement valve lifter.
Valve clearance (Cold):
Intake 0.15 to 0.25 mm (0.0059 to 0.0098 in.)
Exhaust 0.25 to 0.35 mm (0.0098 to 0.0138 in.)
12. REMOVE FAN AND GENERATOR V BELT
(a) Turn the V±ribbed belt tensioner clockwise slowly and
loosen it. Then, remove the fan and generator V belt and
put back the V±ribbed belt tensioner carefully.
13. REMOVE ENGINE MOUNTING INSULATOR
SUB±ASSY RH
(a) Place a wooden block on a jack underneath the engine.
Remove the 4 bolts and 2 nuts and detach the engine
mounting insulator RH.
Page 1975 of 5135
A11858
A76698
Paint Mark
Match Mark
A62178
Push
A62187
Hold
Tighten
± ENGINE MECHANICALVALVE CLEARANCE (1ZZ±FE/3ZZ±FE)
14±9
AVENSIS REPAIR MANUAL (RM1018E)

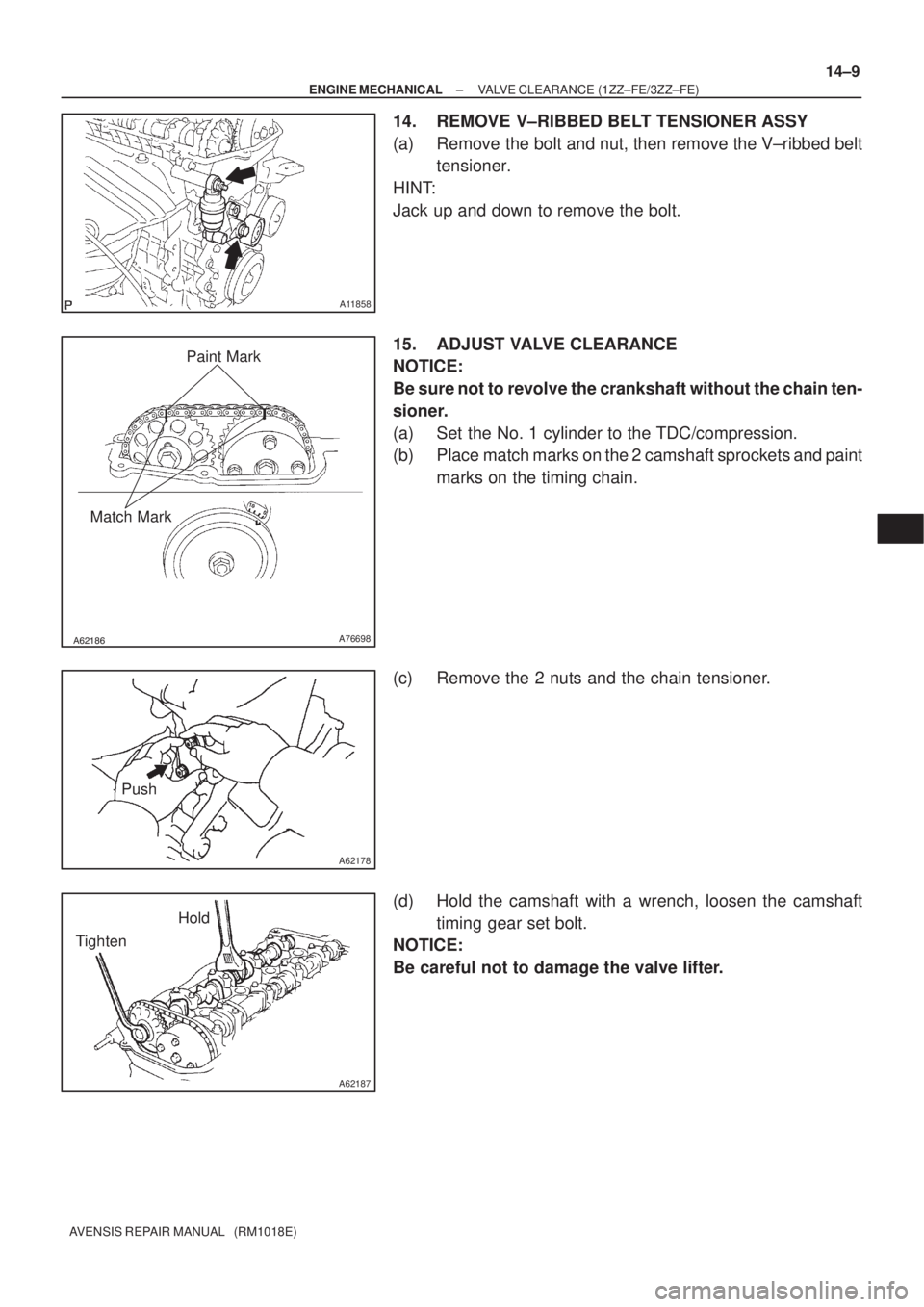

14. REMOVE V±RIBBED BELT TENSIONER ASSY
(a) Remove the bolt and nut, then remove the V±ribbed belt
tensioner.
HINT:
Jack up and down to remove the bolt.
15. ADJUST VALVE CLEARANCE
NOTICE:
Be sure not to revolve the crankshaft without the chain ten-
sioner.
(a) Set the No. 1 cylinder to the TDC/compression.
(b) Place match marks on the 2 camshaft sprockets and paint
marks on the timing chain.
(c) Remove the 2 nuts and the chain tensioner.
(d) Hold the camshaft with a wrench, loosen the camshaft
timing gear set bolt.
NOTICE:
Be careful not to damage the valve lifter.
Page 1976 of 5135
A62188
24 5 3 1
A32124
A6218924 31
A32125
A32556
14±10
± ENGINE MECHANICALVALVE CLEARANCE (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

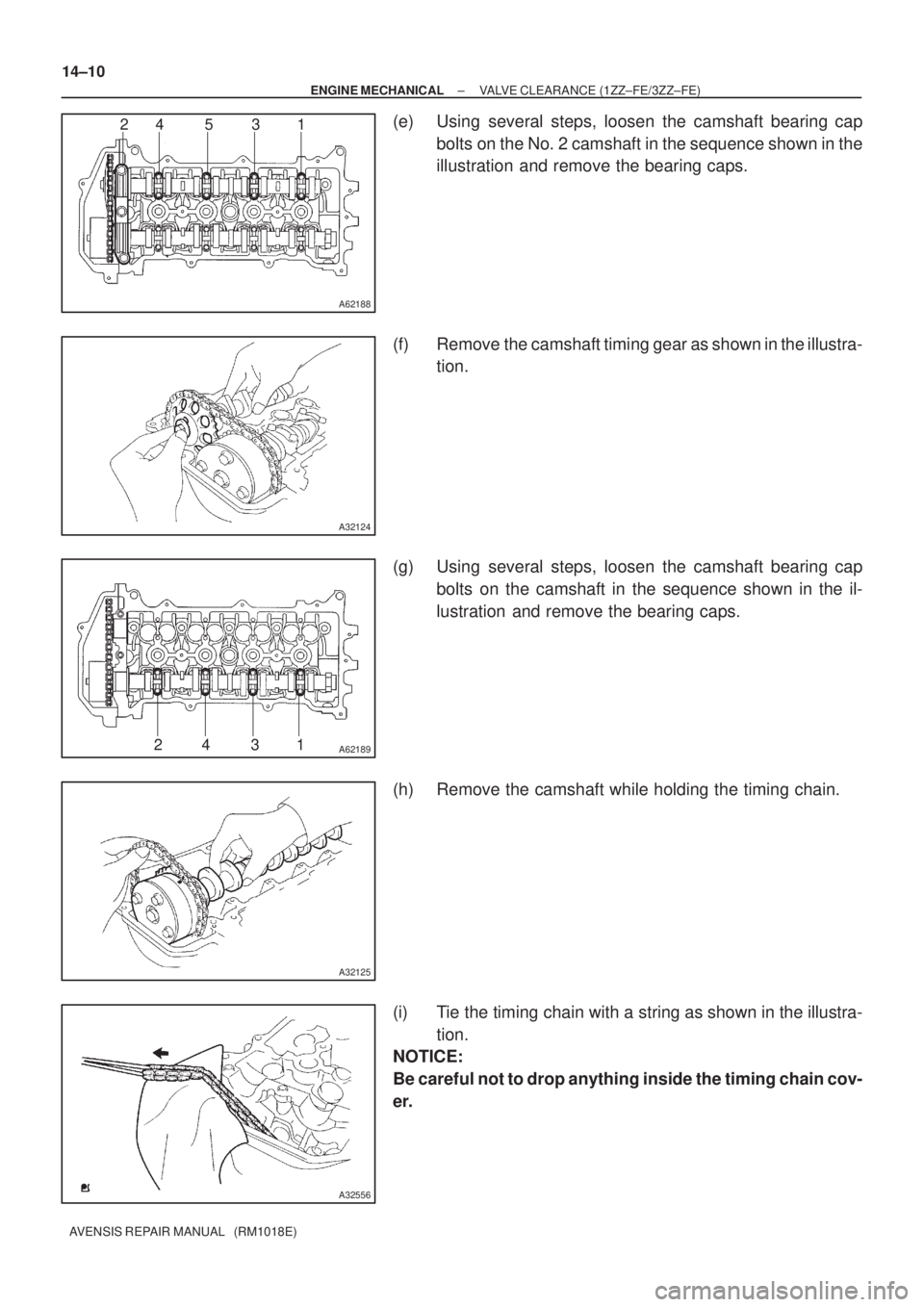

(e) Using several steps, loosen the camshaft bearing cap
bolts on the No. 2 camshaft in the sequence shown in the
illustration and remove the bearing caps.
(f) Remove the camshaft timing gear as shown in the illustra-
tion.
(g) Using several steps, loosen the camshaft bearing cap
bolts on the camshaft in the sequence shown in the il-
lustration and remove the bearing caps.
(h) Remove the camshaft while holding the timing chain.
(i) Tie the timing chain with a string as shown in the illustra-
tion.
NOTICE:
Be careful not to drop anything inside the timing chain cov-
er.
