Page 3401 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 750N8±01 B57104 Centering BoltStandard Bolt B67534 A BC D B67000 ± ENGINE HOOD/DOORBACK DOOR (WAGON MODELS) 75±43 AVENSIS REPAIR MANUAL (RM1018E) ADJUSTMENT HINT: Because a centering bolt is used

Page 3402 of 5135

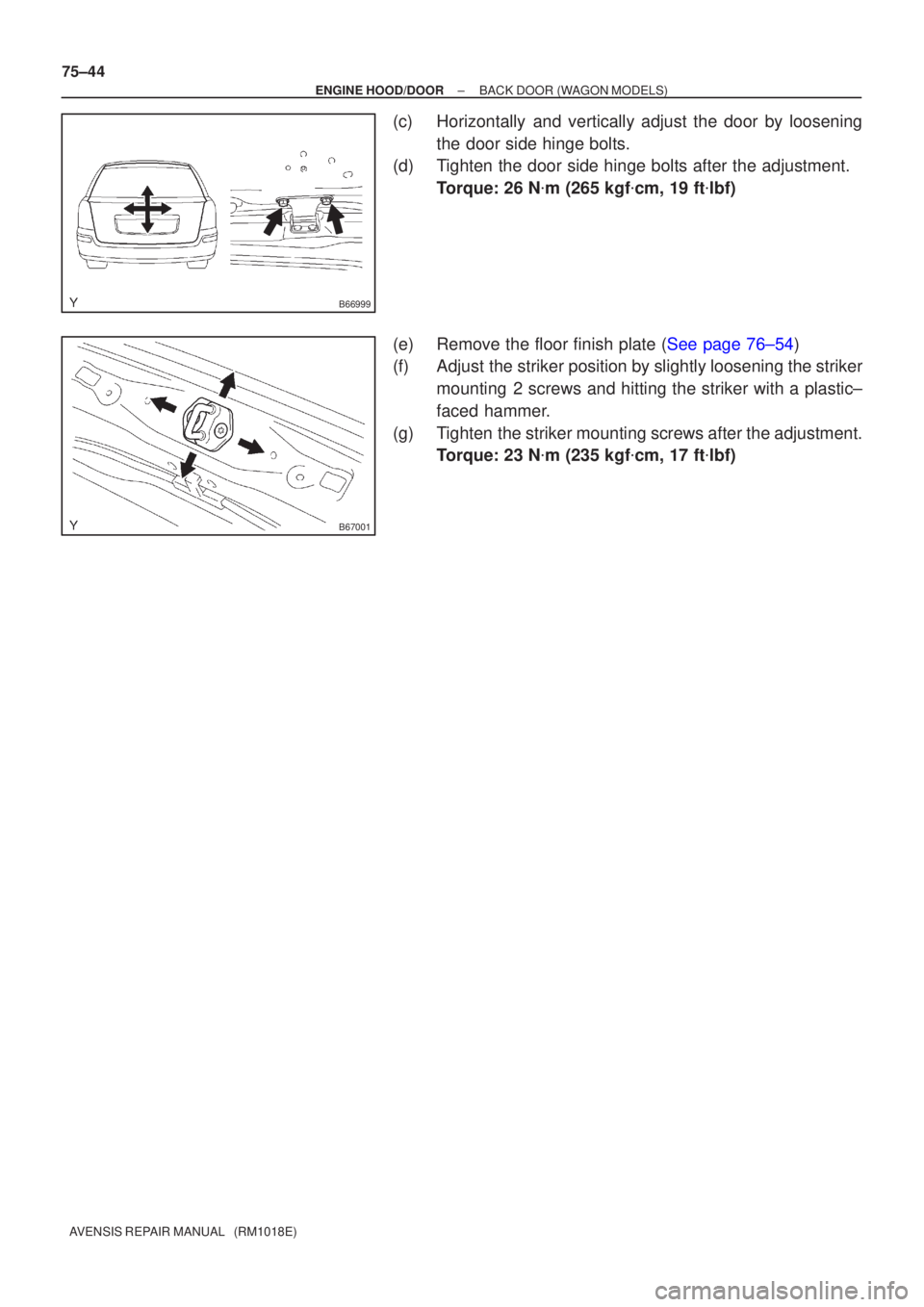

TOYOTA AVENSIS 2005 Service Repair Manual B66999 B67001 75±44 ± ENGINE HOOD/DOOR BACK DOOR(WAGON MODELS) AVENSIS REPAIR MANUAL (RM1018E) (c)Horizontally and vertically adjust the door by loosening the door side hinge bolts. (d)Tighten the

Page 3403 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 750N7±01 B66987 Back Door Trim Panel Assy Upper Back Door Side Garnish LH Wiper Motor AssyRear Spoiler Back Door Garnish Sub±assy Outside RH Back Door Trim Board Assy Door Pull Handle Back Door Lock

Page 3404 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 750N6±01 B66988: Clip B66989: Clip Hook B66990: Clip B66991 75±40 ± ENGINE HOOD/DOOR BACK DOOR(LIFTBACK MODELS) AVENSIS REPAIR MANUAL (RM1018E) OVERHAUL HINT: The installation is in the reverse o

Page 3405 of 5135

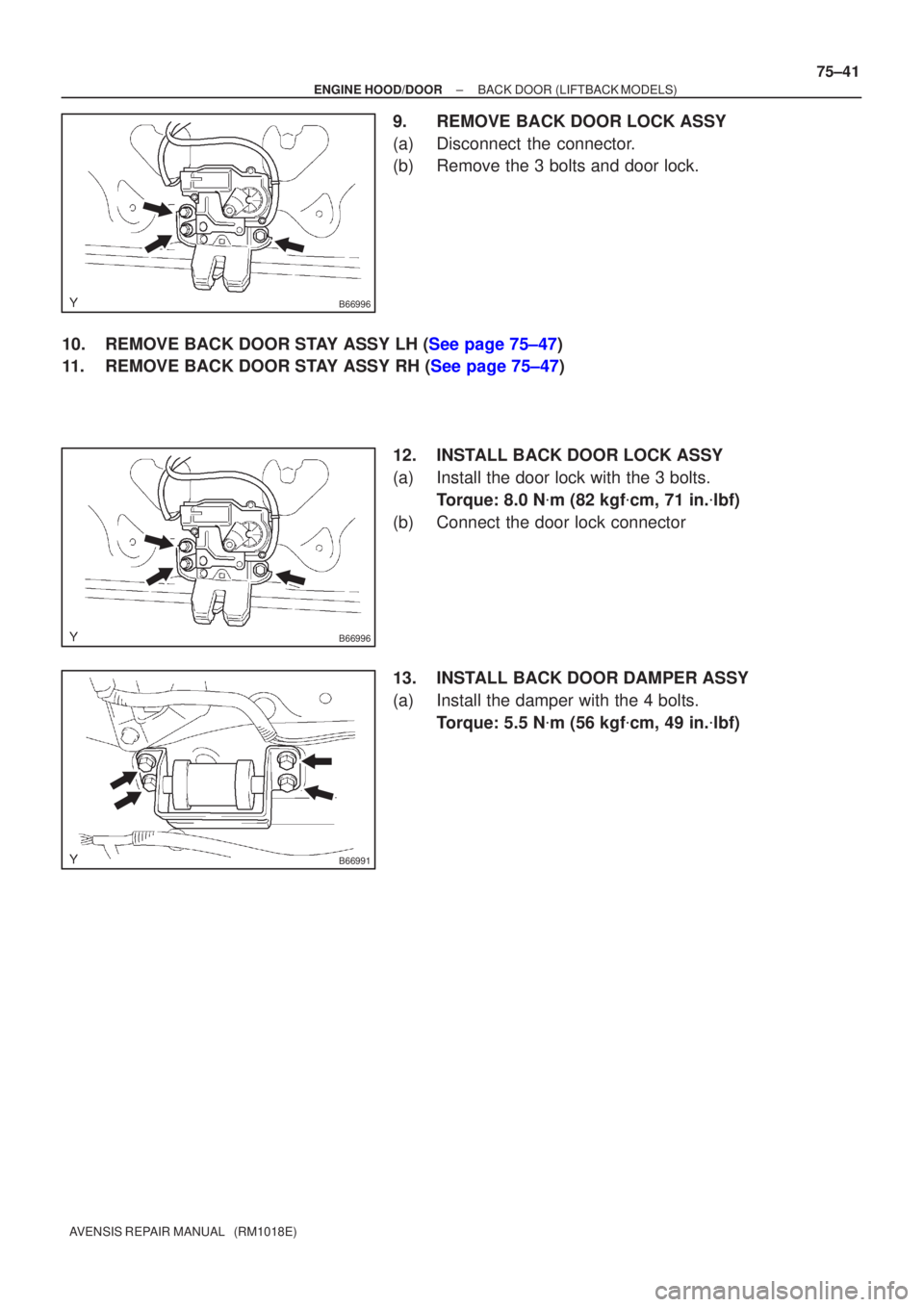

TOYOTA AVENSIS 2005 Service Repair Manual B66996 B66996 B66991 ± ENGINE HOOD/DOOR BACK DOOR (LIFTBACK MODELS) 75±41 AVENSIS REPAIR MANUAL (RM1018E) 9. REMOVE BACK DOOR LOCK ASSY (a) Disconnect the connector. (b) Remove the 3 bolts and doo

Page 3406 of 5135

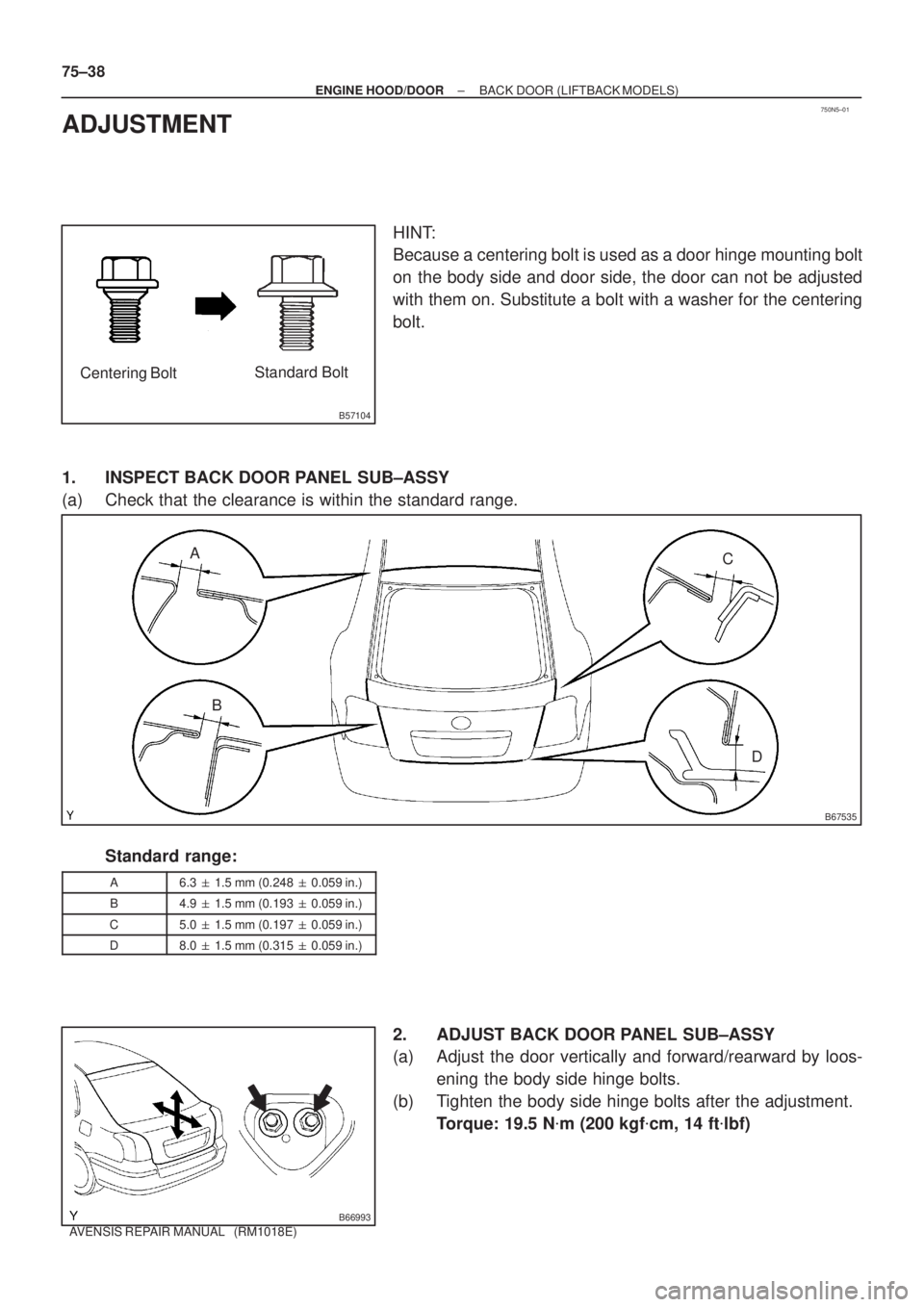

TOYOTA AVENSIS 2005 Service Repair Manual 750N5±01 B57104 Centering BoltStandard Bolt B67535 A BC D B66993 75±38 ± ENGINE HOOD/DOORBACK DOOR (LIFTBACK MODELS) AVENSIS REPAIR MANUAL (RM1018E) ADJUSTMENT HINT: Because a centering bolt is u

Page 3407 of 5135

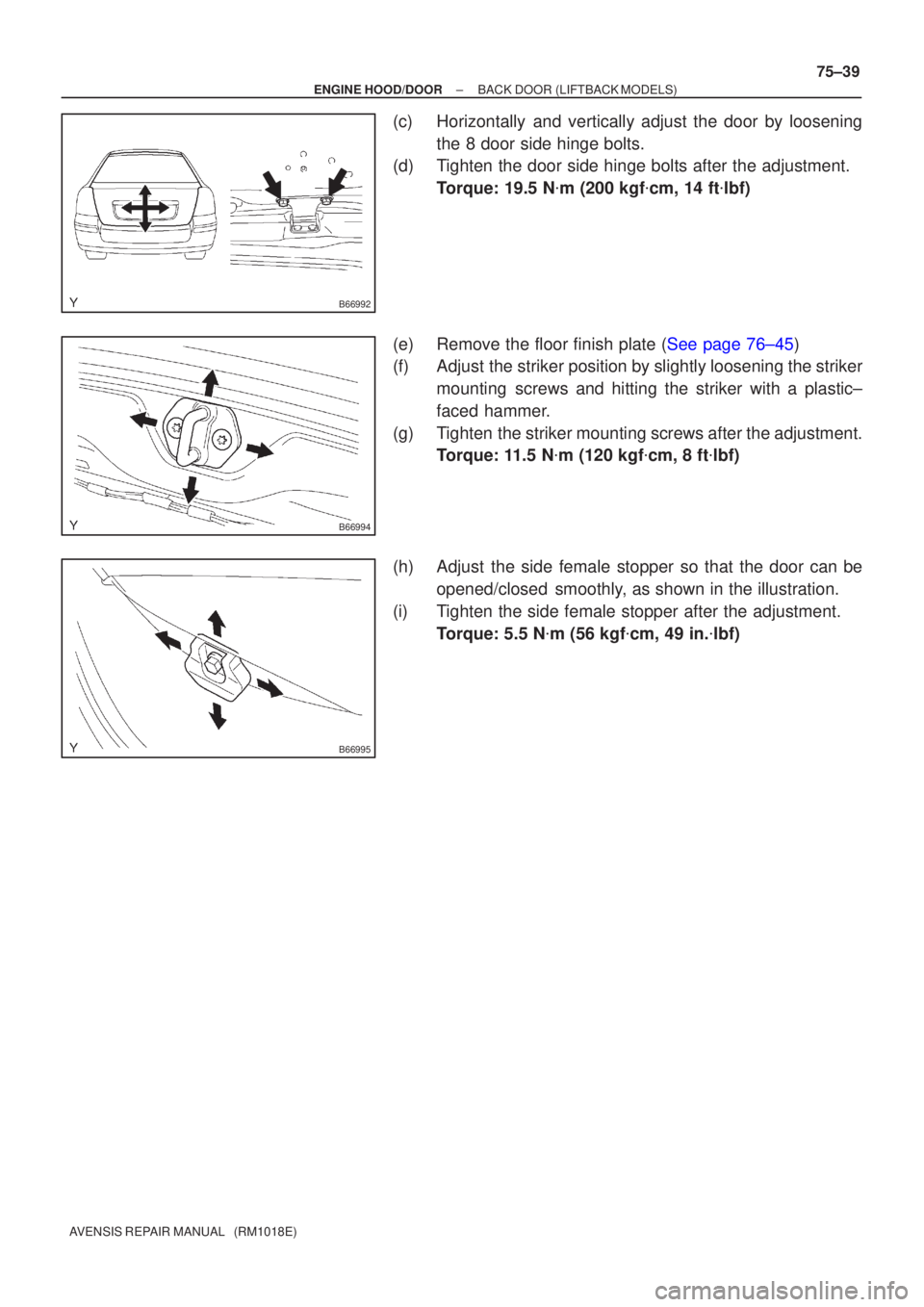

TOYOTA AVENSIS 2005 Service Repair Manual B66992 B66994 B66995 ± ENGINE HOOD/DOOR BACK DOOR(LIFTBACK MODELS) 75±39 AVENSIS REPAIR MANUAL (RM1018E) (c)Horizontally and vertically adjust the door by loosening the 8 door side hinge bolts. (d

Page 3408 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 750N4±01 B66986 Back Door Trim Panel Assy Upper Back Door Trim Board Assy Back Door Side Garnish LHBack Door Garnish Sub±assy Outside RH Floor Finish Plate Center Stop Lamp Assy Back Door Lock St
