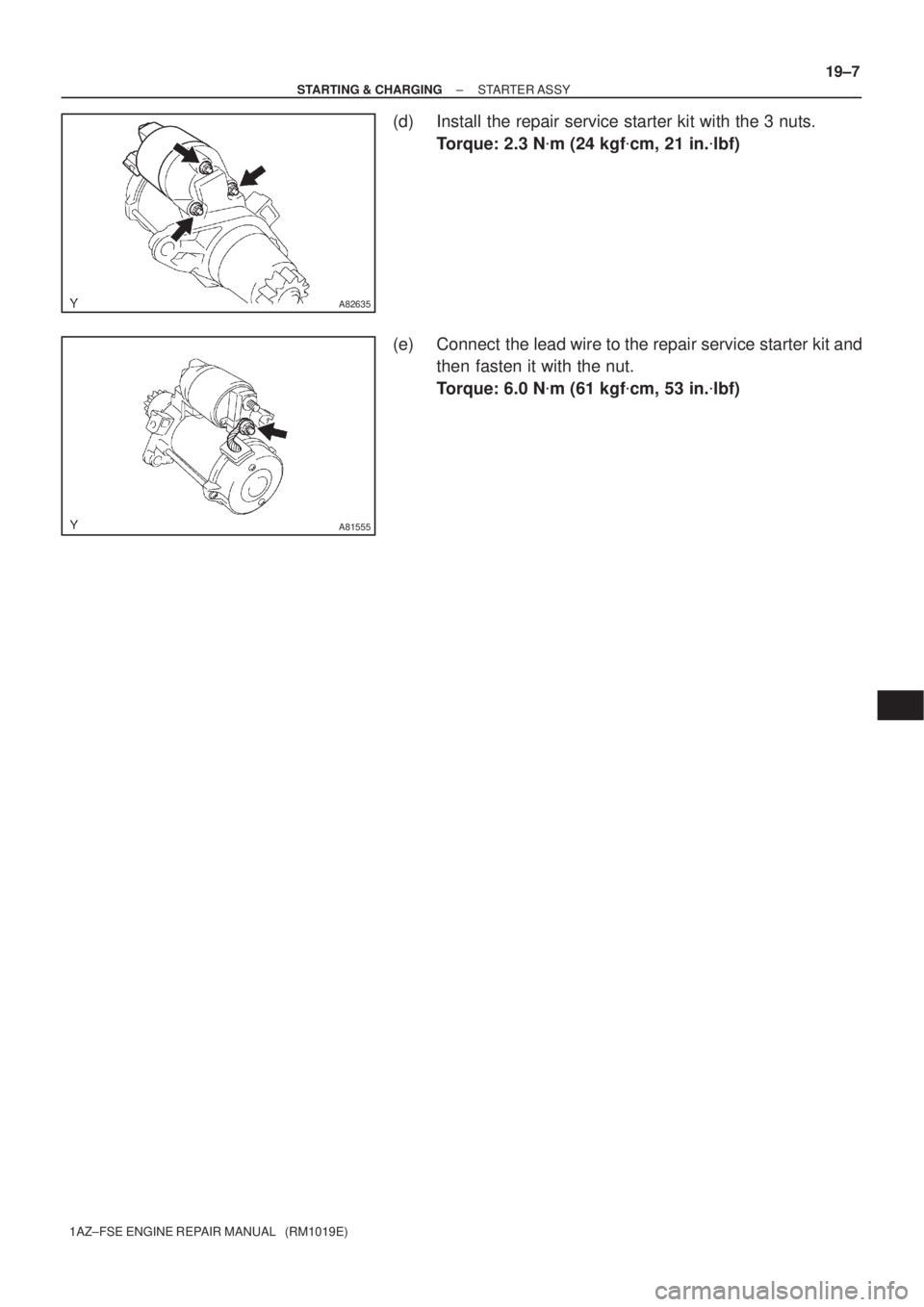

TOYOTA AVENSIS 2005 Service Repair Manual A82635 A81555 ± STARTING & CHARGINGSTARTER ASSY 19±7 1AZ±FSE ENGINE REPAIR MANUAL (RM1019E) (d) Install the repair service starter kit with the 3 nuts. Torque: 2.3 Nm (24 kgfcm, 21 in.lbf) (e)

Page 3474 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 170FM±01 A77229 A77233 A77230 Mark A77231 17±2 ± LUBRICATIONOIL PUMP ASSY 1AZ±FSE ENGINE REPAIR MANUAL (RM1019E) OVERHAUL 1. REMOVE OIL PUMP RELIEF VALVE PLUG (a) Using a 27 mm socket wrench, re

Page 3475 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77232 A38022 A77234 Marks ± LUBRICATIONOIL PUMP ASSY 17±3 1AZ±FSE ENGINE REPAIR MANUAL (RM1019E) 8. INSPECT ROTOR BODY CLEARANCE (a) Using a feeler gauge, measure the clearance between the drive

Page 3476 of 5135

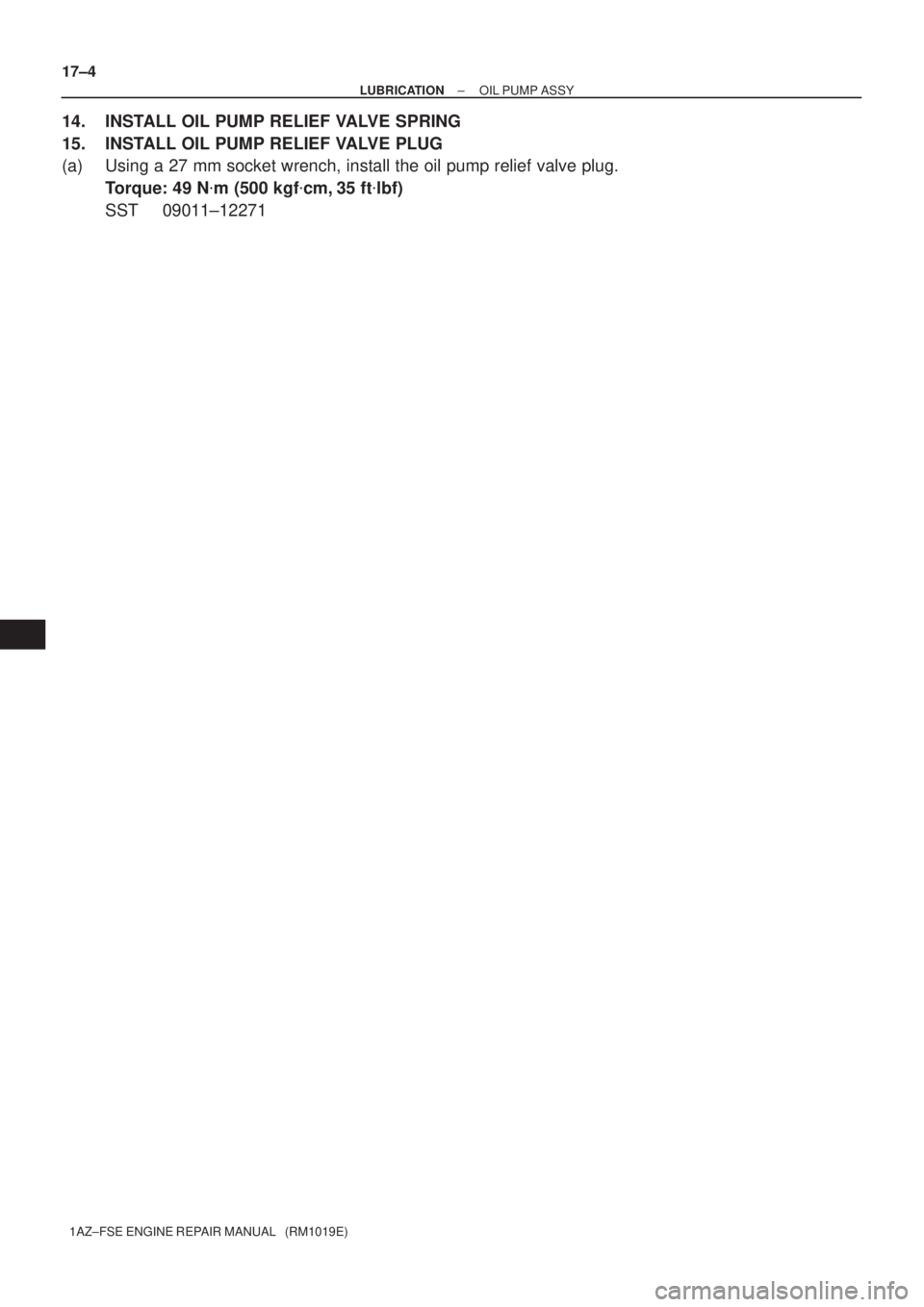

TOYOTA AVENSIS 2005 Service Repair Manual 17±4 ± LUBRICATIONOIL PUMP ASSY 1AZ±FSE ENGINE REPAIR MANUAL (RM1019E) 14. INSTALL OIL PUMP RELIEF VALVE SPRING 15. INSTALL OIL PUMP RELIEF VALVE PLUG (a) Using a 27 mm socket wrench, install the

Page 3477 of 5135

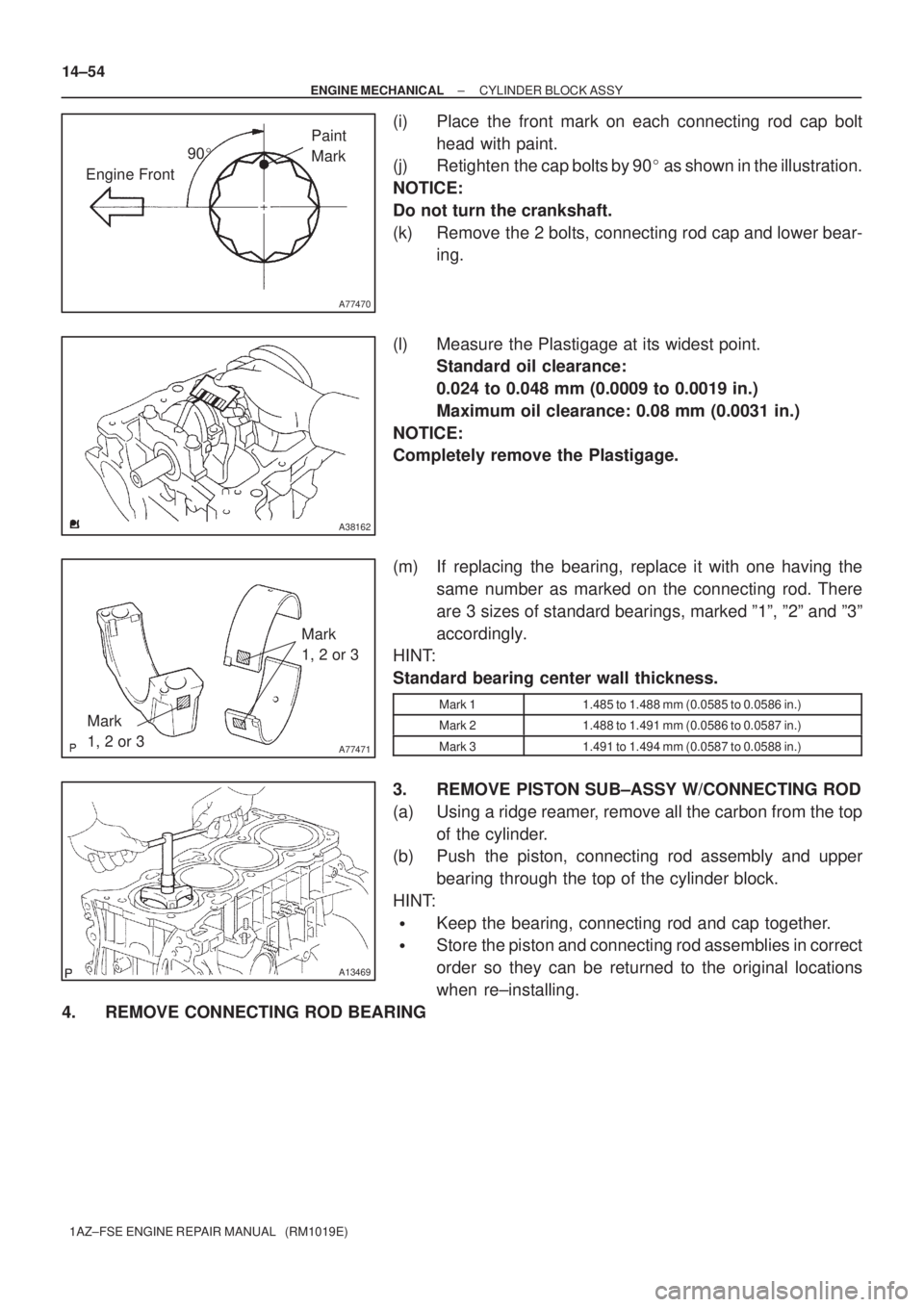

TOYOTA AVENSIS 2005 Service Repair Manual 141BU±01 A13845 A77271 Plastigage A77272 Front Mark ± ENGINE MECHANICALCYLINDER BLOCK ASSY 14±53 1AZ±FSE ENGINE REPAIR MANUAL (RM1019E) OVERHAUL 1. INSPECT CONNECTING ROD THRUST CLEARANCE (a) Us

Page 3478 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77470 90 Engine FrontPaint Mark A38162 A77471 Mark 1, 2 or 3 Mark 1, 2 or 3 A13469 14±54 ± ENGINE MECHANICALCYLINDER BLOCK ASSY 1AZ±FSE ENGINE REPAIR MANUAL (RM1019E) (i) Place the front mar

Page 3479 of 5135

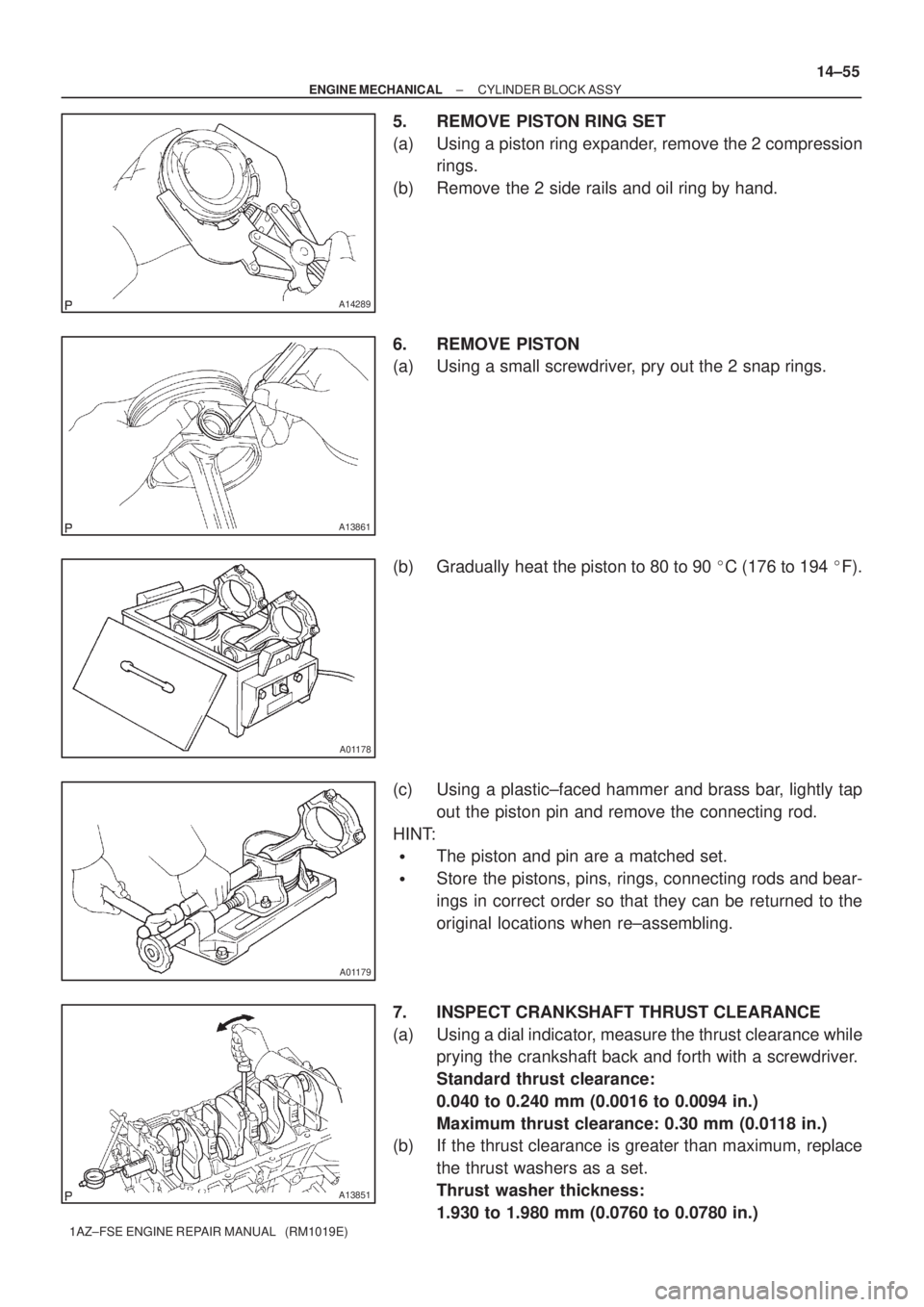

TOYOTA AVENSIS 2005 Service Repair Manual A14289 A13861 A01178 A01179 A13851 ± ENGINE MECHANICALCYLINDER BLOCK ASSY 14±55 1AZ±FSE ENGINE REPAIR MANUAL (RM1019E) 5. REMOVE PISTON RING SET (a) Using a piston ring expander, remove the 2 com

Page 3480 of 5135

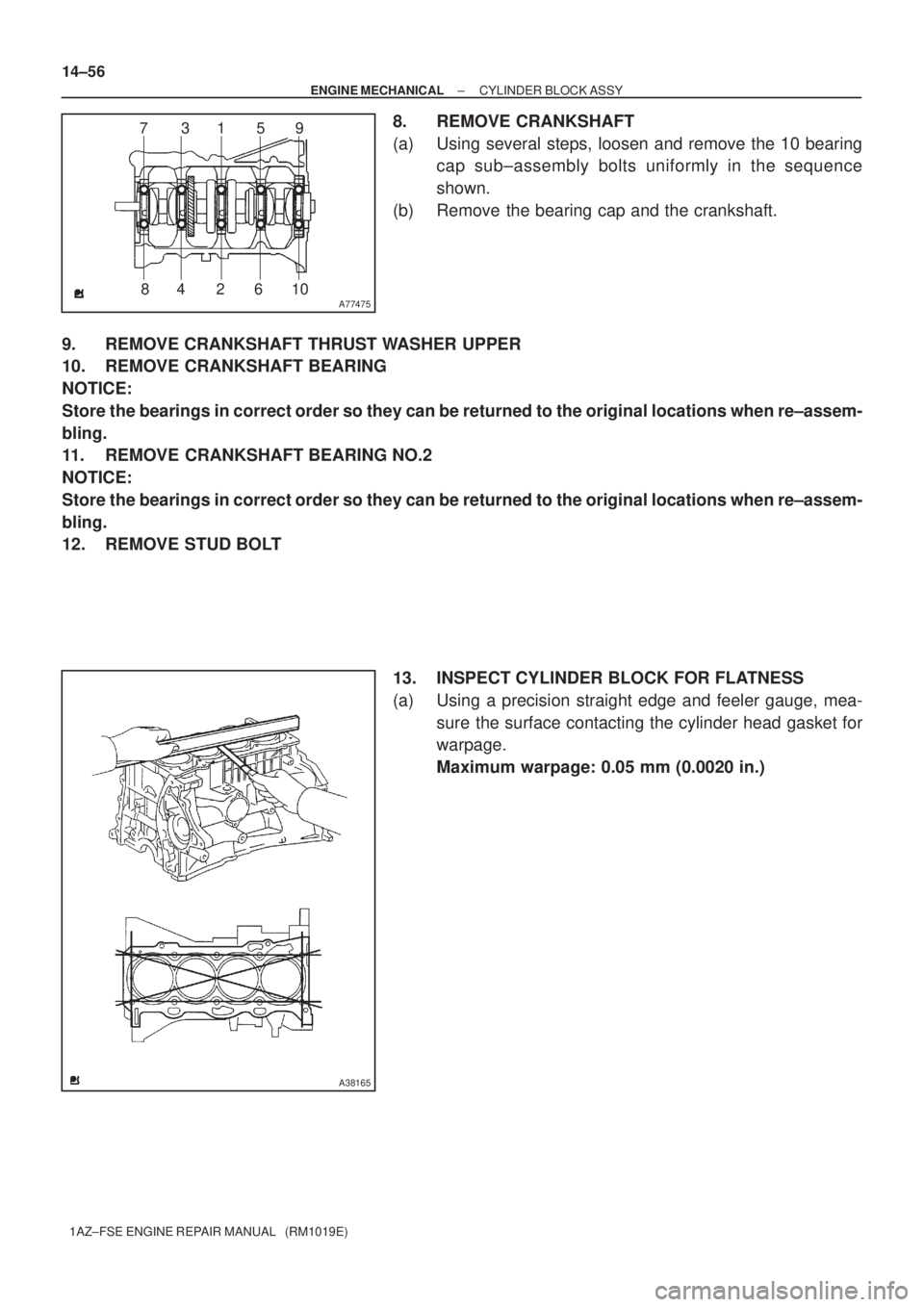

TOYOTA AVENSIS 2005 Service Repair Manual A77475 1 2 3 45 6 7 89 10 A38165 14±56 ± ENGINE MECHANICALCYLINDER BLOCK ASSY 1AZ±FSE ENGINE REPAIR MANUAL (RM1019E) 8. REMOVE CRANKSHAFT (a) Using several steps, loosen and remove the 10 bearing
