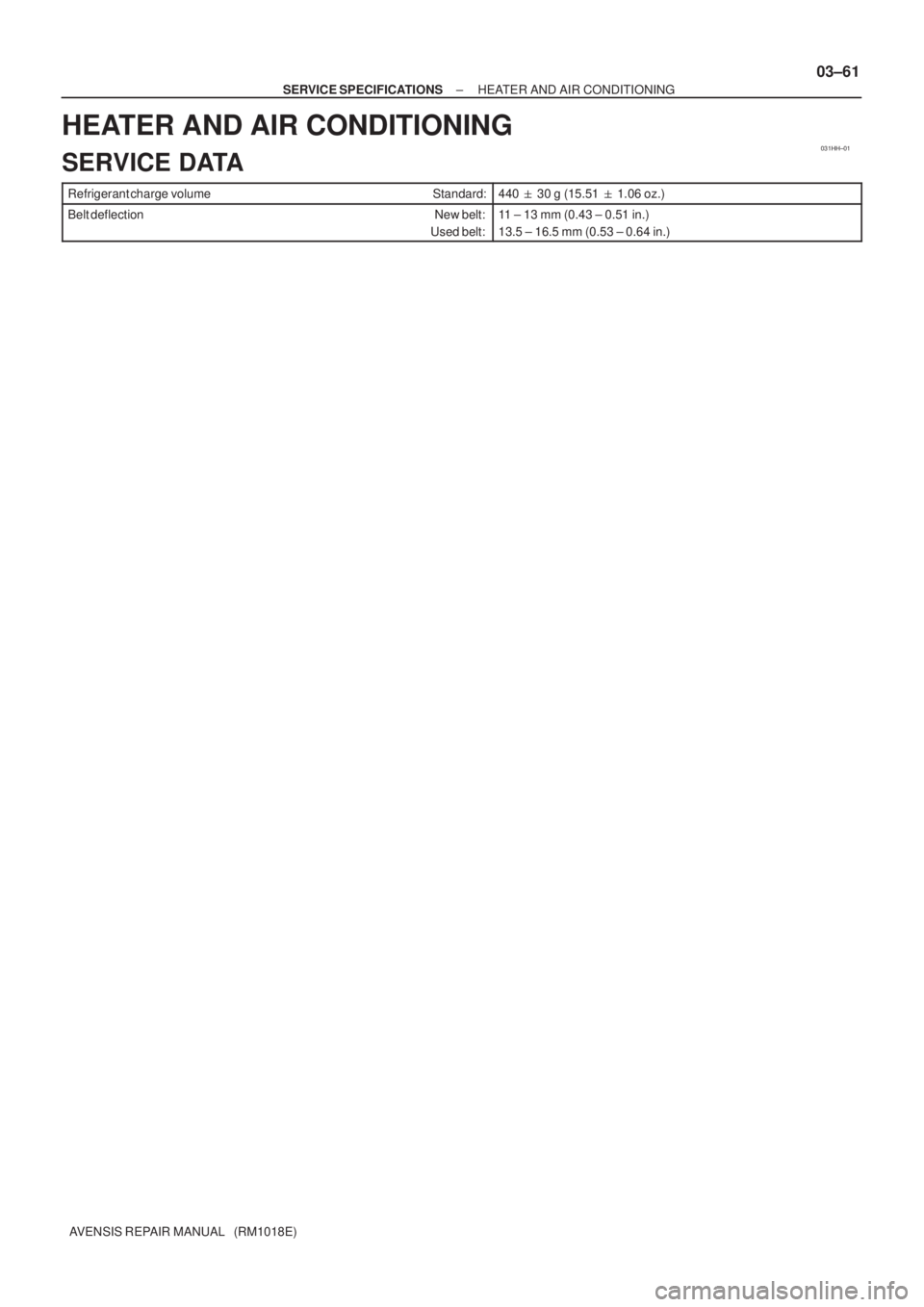

Page 169 of 5135
031HH±01
± SERVICE SPECIFICATIONSHEATER AND AIR CONDITIONING
03±61
AVENSIS REPAIR MANUAL (RM1018E)
HEATER AND AIR CONDITIONING
SERVICE DATA
Refrigerant charge volume Standard:440 30 g (15.51 1.06 oz.)
Belt deflection New belt:
Used belt:11 ± 13 mm (0.43 ± 0.51 in.)
13.5 ± 16.5 mm (0.53 ± 0.64 in.)
Page 170 of 5135
030G7±04
03±60
± SERVICE SPECIFICATIONSPOWER STEERING
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
Part tightenedNmkgfcmftlbf
VANE PUMP ASSY (AZ Series)
Vane pump housing sub±assy rear x Vane pump housing sub±assy front2222416
Power steering oil pressure switch2121415
Pressure port union sub±assy6970451
Power steering suction port union set bolt121229
Vane pump assy x Pump bracket rear4444932
Vane pump assy set bolt26 (37)264 (377)19 (27)
Pressure feed tube assy x Vane pump assy5252538
Pressure feed tube assy clamp set bolt8.08271 in.lbf
VANE PUMP ASSY (1CD±FTV)
Vane pump housing sub±assy rear x Vane pump housing sub±assy front2222416
Pressure port union sub±assy6970451
Power steering suction port union set bolt121229
Vane pump assy set bolt Bolt A:
Bolt B:72
39734
39853
29
Pressure feed tube assy x Vane pump assy41 (44.1)414 (450)30 (33)
Pressure feed tube assy clamp set bolt8.08271 in.lbf
STEERING GEAR ASSY
Engine hanger set bolt3838728
Steering rack x Steering rack end sub±assy60 (83.5)616 (851)45 (62)
Tie rod end sub±assy lock nut7475054
Steering gear assy set bolt4950036
Steering intermediate shaft x Steering pinion shaft3536026
RACK & PINION POWER STEERING GEAR ASSY
Engine hanger set bolt AZ Series:
1CD±FTV:38
37390
37528
27
Tie rod end sub±assy lock nut7475054
Rack & pinion power steering gear assy set bolt4950036
Steering intermediate shaft x Control valve pinion shaft3536026
Front suspension crossmember sub±assy x Frame11 31,35698
Crossmember bracket x Frame Bolt A:
Bolt B:11 3
801,356
81698
59
Crossmember x Engine mounting insulator RR5253038
Center member x Frame4545933
Center member x Engine mounting insulator FR5253038
Front suspension arm sub±assy lower No.1 x Lower ball joint8990866
Front stabilizer link assy set nut7475555
Pressure feed tube assy x Rack & pinion steering gear assy41 (44.1)414 (450)30 (33)
Steering gear outlet return tube x Rack & pinion steering gear assy41 (44.1)414 (450)30 (33)
Outlet return tube clamp set bolt (LHD)8.08271 in.lbf
Tie rod end sub±assy x Steering knuckle4950036
Steering intermediate shaft assy No.2 set bolts3536026
Front wheel hub nut1031,05076
( ): For use without SST(s)
Page 171 of 5135
030G6±04
± SERVICE SPECIFICATIONSPOWER STEERING
03±59
AVENSIS REPAIR MANUAL (RM1018E)
POWER STEERING
SERVICE DATA
POWER STEERING FLUID
Fluid level rise Maximum5 mm (0.20 in.)
Fluid pressure at idle speed with valve closed AZ Series:
1CD±FTV:8,300 to 9,000 kPa (85 to 92 kgf/cm2, 1,204 to 1,305 psi)
8,800 to 9,500 kPa (90 to 97 kgf/cm2, 1,276 to 1,378 psi)
STEERING WHEEL
Steering effort at idle speed (Reference)5.5 N´m (56 kgf´cm, 49 in.´lbf)
VANE PUMP ASSY
Vane pump rotating torque0.27 N´m (2.8 kgf´cm, 2.4 in.´lbf) or less
Vane pump shaft and vane pump housing oil clearance Maximum0.07 mm (0.0028 in.)
Vane plate thickness Minimum1.405 to 1.411 mm (0.05531 to 0.05555 in.)
Clearance between the rotor groove and plate Maximum0.03 mm (0.0012 in.)
Spring free length Minimum36.9 mm (1.453 in.)
STEERING GEAR ASSY
Total preload (Tie rod rotating torque) (Turning)0.29 to 1.96 N´m (3 to 20 kgf´cm, 2.57 to 17.35 in.´lbf)
Total preload (Control valve rotating torque) (Turning)0.6 to 1.1 N´m (6 to 11 kgf´cm, 5.3 to 9.7 in.´lbf)
RACK & PINION POWER STEERING GEAR ASSY
Total preload (Tie rod rotating torque) (Turning)0.49 to 3.43 N´m (5 to 35 kgf´cm, 4.34 to 30.38 in.´lbf)

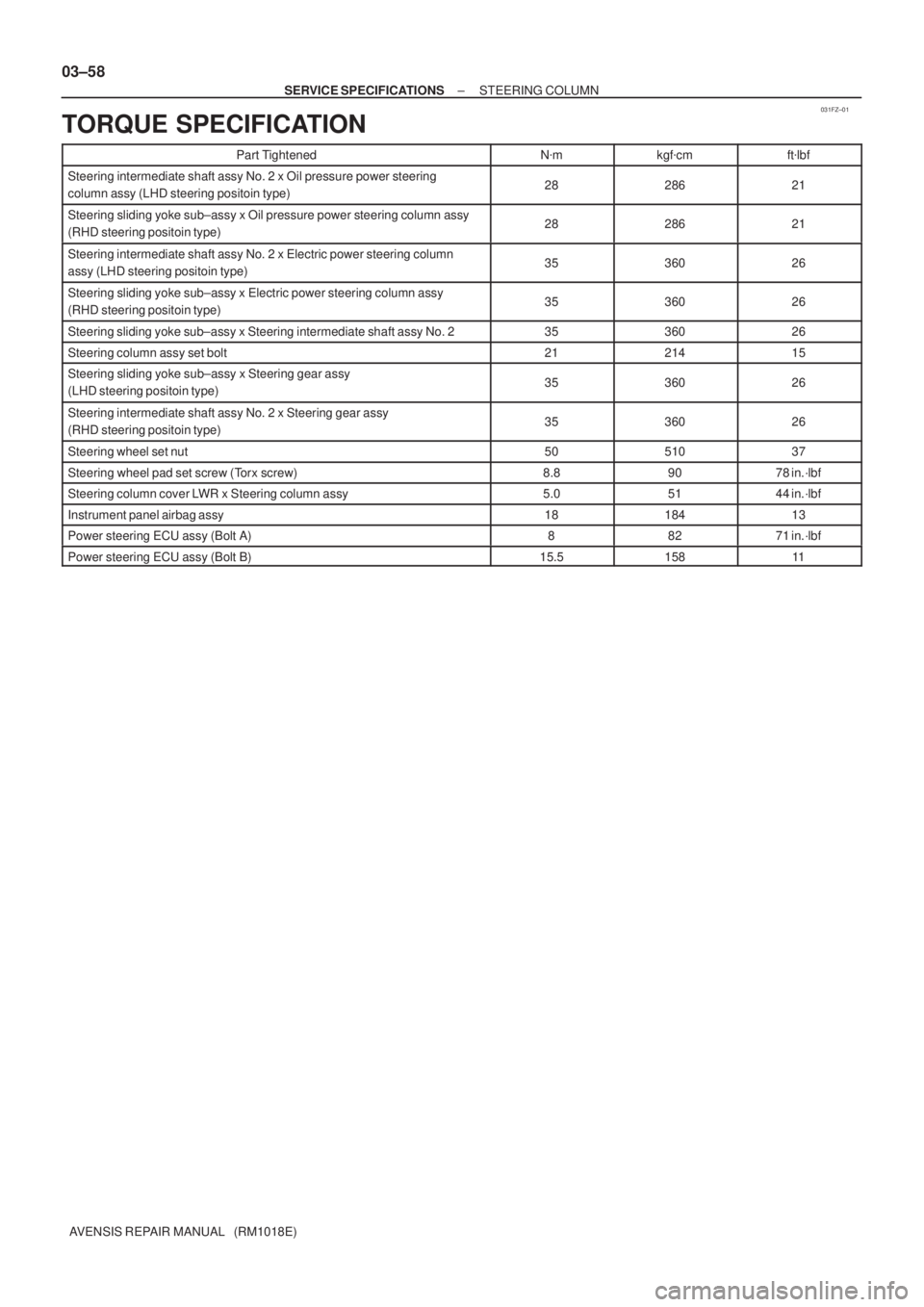

Page 172 of 5135
031FZ±01
03±58
± SERVICE SPECIFICATIONSSTEERING COLUMN
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
Part TightenedNmkgfcmftlbf
Steering intermediate shaft assy No. 2 x Oil pressure power steering
column assy (LHD steering positoin type)2828621
Steering sliding yoke sub±assy x Oil pressure power steering column assy
(RHD steering positoin type)2828621
Steering intermediate shaft assy No. 2 x Electric power steering column
assy (LHD steering positoin type)3536026
Steering sliding yoke sub±assy x Electric power steering column assy
(RHD steering positoin type)3536026
Steering sliding yoke sub±assy x Steering intermediate shaft assy No. 23536026
Steering column assy set bolt2121415
Steering sliding yoke sub±assy x Steering gear assy
(LHD steering positoin type)3536026
Steering intermediate shaft assy No. 2 x Steering gear assy
(RHD steering positoin type)3536026
Steering wheel set nut5051037
Steering wheel pad set screw (Torx screw)8.89078 in.´lbf
Steering column cover LWR x Steering column assy5.05144 in.´lbf
Instrument panel airbag assy1818413
Power steering ECU assy (Bolt A)88271 in.´lbf
Power steering ECU assy (Bolt B)15.515811

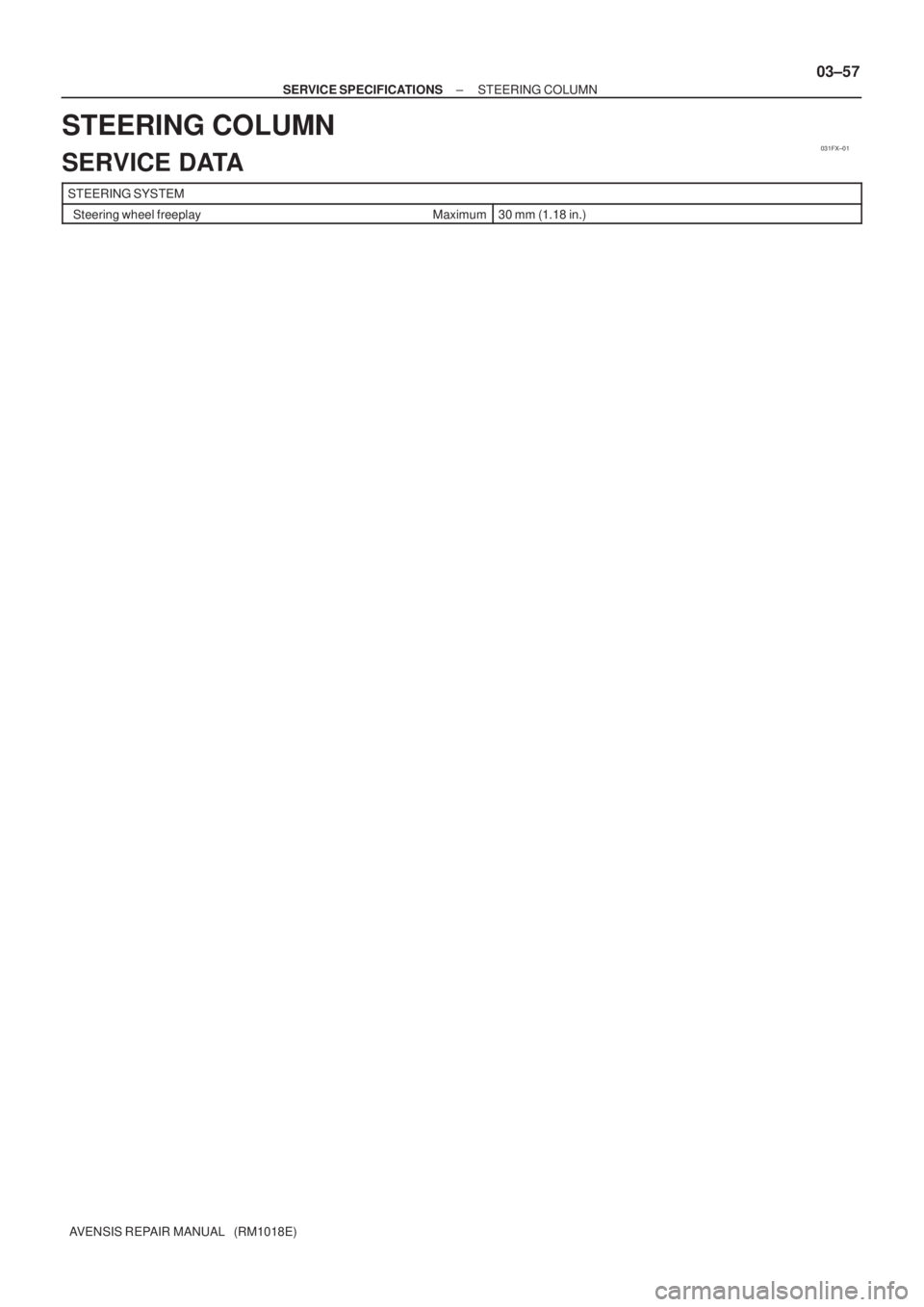

Page 173 of 5135
031FX±01
± SERVICE SPECIFICATIONSSTEERING COLUMN
03±57
AVENSIS REPAIR MANUAL (RM1018E)
STEERING COLUMN
SERVICE DATA
STEERING SYSTEM
Steering wheel freeplay Maximum30 mm (1.18 in.)

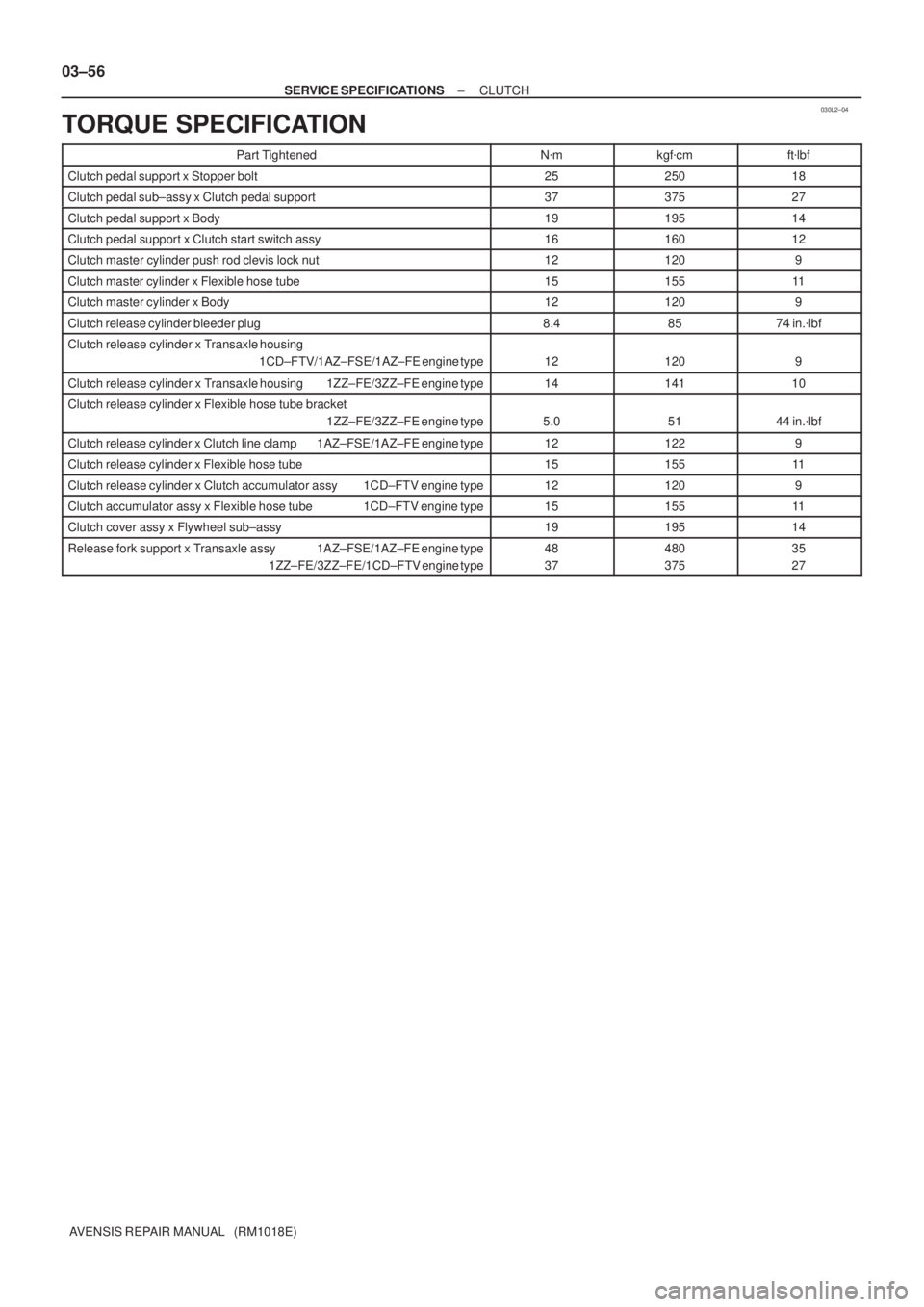

Page 174 of 5135
030L2±04
03±56
± SERVICE SPECIFICATIONSCLUTCH
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
Part TightenedNmkgfcmftlbf
Clutch pedal support x Stopper bolt2525018
Clutch pedal sub±assy x Clutch pedal support3737527
Clutch pedal support x Body1919514
Clutch pedal support x Clutch start switch assy1616012
Clutch master cylinder push rod clevis lock nut121209
Clutch master cylinder x Flexible hose tube1515511
Clutch master cylinder x Body121209
Clutch release cylinder bleeder plug8.48574 in.lbf
Clutch release cylinder x Transaxle housing
1CD±FTV/1AZ±FSE/1AZ±FE engine type
121209
Clutch release cylinder x Transaxle housing 1ZZ±FE/3ZZ±FE engine type1414110
Clutch release cylinder x Flexible hose tube bracket
1ZZ±FE/3ZZ±FE engine type
5.05144 in.lbf
Clutch release cylinder x Clutch line clamp 1AZ±FSE/1AZ±FE engine type121229
Clutch release cylinder x Flexible hose tube1515511
Clutch release cylinder x Clutch accumulator assy 1CD±FTV engine type121209
Clutch accumulator assy x Flexible hose tube 1CD±FTV engine type1515511
Clutch cover assy x Flywheel sub±assy1919514
Release fork support x Transaxle assy 1AZ±FSE/1AZ±FE engine type
1ZZ±FE/3ZZ±FE/1CD±FTV engine type48
37480
37535
27
Page 175 of 5135
030L1±03
± SERVICE SPECIFICATIONSCLUTCH
03±55
AVENSIS REPAIR MANUAL (RM1018E)
CLUTCH
SERVICE DATA
Pedal height from asphalt sheet
LHD steering position type
1CD±FTV engine type w/ intercooler
Others
154.0 ± 164.0 mm (6.063 ± 6.457 in.)
139.6 ± 149.6 mm (5.496 ± 5.890 in.)
Pedal height from asphalt sheet
RHD steering position type
1CD±FTV engine type w/ intercooler
Others
158.4 ± 168.4 mm (6.236 ± 6.630 in.)
148.4 ± 158.4 mm (5.843 ± 6.236 in.)
Clutch pedal free play5.0 ± 15.0 mm (0.197 ± 0591 in.)
Clutch pedal push rod play at pedal top1.0 ± 5.0 mm (0.039 ± 0.197 in.)
Slotted spring pin protrusion1.5 ± 3.5 mm (0.059 ± 0.138 in.)
Clutch release point from pedal full stroke end position25 mm (0.98 in.) or more
Clutch disc rivet head depth Maximum0.3 mm (0.012 in.)
Clutch disc assy runout Minimum0.8 mm (0.031 in.)
Diaphragm spring finger wear Maximum depth:
Maximum width:0.5 mm (0.020 in.)
6.0 mm (0.236 in.)
Flywheel sub±assy runout Maximum0.1 mm (0.004 in.)
Diaphragm tip alignment Maximum0.5 mm (0.020 in.)
Page 176 of 5135
030ND±02
± SERVICE SPECIFICATIONSMANUAL TRANSMISSION / TRANSAXLE
03±53
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
Part TightenedNmkgfcmftlbf
FLOOR SHIFT TRANSMISSION CONTROL CABLE ASSY
Floor shift transmission control cable assy x Body5.05144 in.lbf
Front floor heat insulator No.1 x Body5.55649 in.lbf
FLOOR SHIFT SHIFT LEVER ASSY
Floor shift shift lever assy x Body121229
MANUAL TRANSAXLE ASSY (1ZZ±FE/ 3ZZ±FE)
Filler and drain plugs3940029
Engine hanger set bolt3838728
Engine mounting bracket RR x Transaxle6465347
Engine mounting bracket RR x Engine mounting insulator RR8788764
Engine mounting bracket FR x Transaxle6465347
Engine mounting bracket FR x Engine mounting insulator FR5253038
Manual transaxle assy x Engine Bolt A:
Bolt B:
Bolt C:64
47
23650
480
23047
35
17
Transverse engine engine mounting bracket LH x Transaxle6465347
Engine mounting bracket LH x Engine mounting insulator LH Bolt A:
Nut B:52
80530
81638
59
Starter assy x Manual transaxle assy3738027
Starter wire set nut131309
Clutch release cylinder assy x Transaxle Bolt A:
Bolt B:
Bolt C:25
14
5.0250
141
2119
10
44 in.lbf
Manual transaxle assy x Wire harness clmap Bolt A:
Bolt B:26
19260
19519
14
Manual transaxle assy x Ground cable Bolt A:
Bolt B:26
40260
41019
30
Battery carrier x Body131319
Battery clamp sub±assy x Body Bolt:
Nut:5.0
3.551
3644 in.lbf
31 in.lbf
Air cleaner assy x Body5.05144 in.lbf
Cylinder head cover No.2 x Engine7.07162 in.lbf
Hood set bolt1313310
MANUAL TRANSAXLE ASSY (1AZ±FE/ 1AZ±FSE)
Filler and drain plugs4950036
Engine hanger x Engine3838728
Transmission case protector x Transaxle1818413
Engine mounting bracket RR x Transaxle6465347
Engine mounting bracket RR x Engine mounting insulator RR8788764
Engine mounting bracket FR x Transaxle6465347
Engine mounting bracket FR x Engine mounting insulator FR5253038
Manual transaxle assy x Engine Bolt A:
Bolt B:
Bolt C:64
46
44650
470
44947
34
32
Transverse engine engine mounting bracket LH x Transaxle6465347
Engine mounting bracket LH x Engine mounting insulator LH Bolt A:
Nut B:52
80530
81638
59
Manual transaxle assy x Ground cable Bolt A:
Bolt C:26
40260
41019
30
Manual transaxle assy x Wire harness clamp8.48574 in.lbf
Clutch release cylinder assy x Transaxle Bolt A:
Bolt B:9.0
1292
12080 in.lbf
9
