TOYOTA AVENSIS 2005 Service Repair Manual I30905 I30905 E64835 65±10 ± LIGHTINGLIGHTING SYSTEM AVENSIS REPAIR MANUAL (RM1018E) (b) Inspect illumination operation. (1) Connect the positive (+) lead from the battery to the terminal 8 and n

Page 3114 of 5135

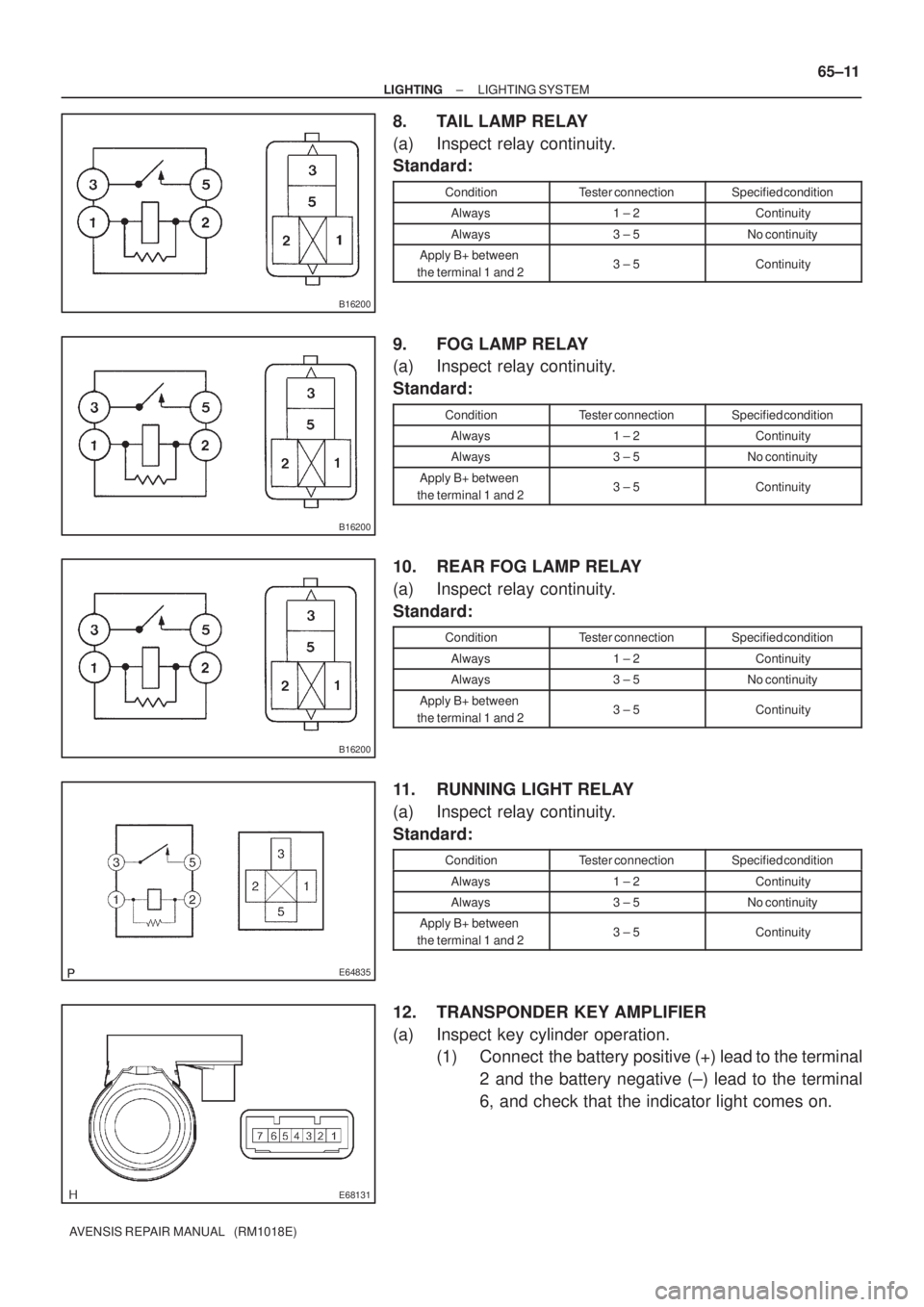

TOYOTA AVENSIS 2005 Service Repair Manual B16200 B16200 B16200 E64835 E68131 ± LIGHTINGLIGHTING SYSTEM 65±11 AVENSIS REPAIR MANUAL (RM1018E) 8. TAIL LAMP RELAY (a) Inspect relay continuity. Standard: ConditionTester connectionSpecified co

Page 3115 of 5135

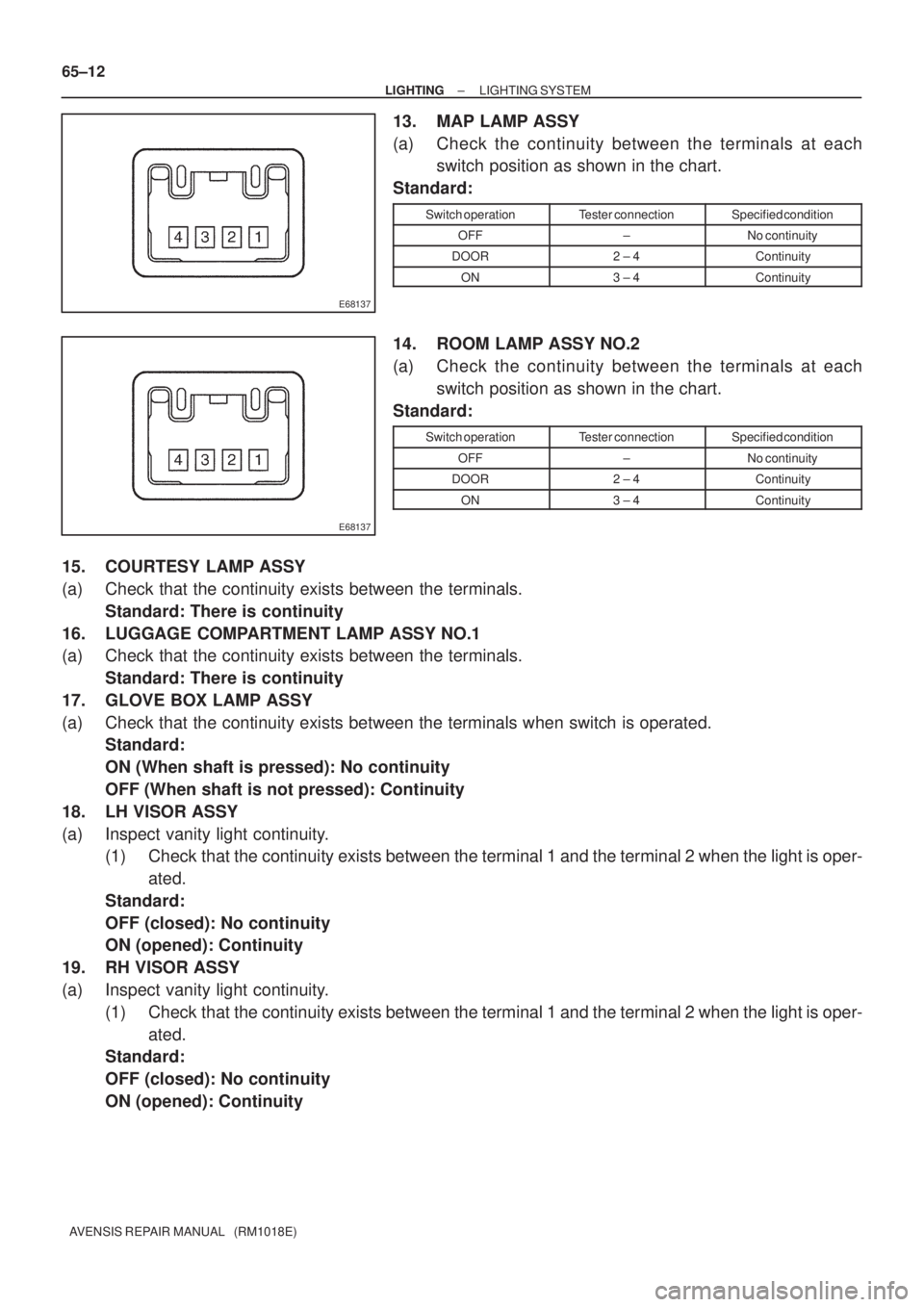

TOYOTA AVENSIS 2005 Service Repair Manual E68137 E68137 65±12 ± LIGHTINGLIGHTING SYSTEM AVENSIS REPAIR MANUAL (RM1018E) 13. MAP LAMP ASSY (a) Check the continuity between the terminals at each switch position as shown in the chart. Standa

Page 3116 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual E68132 E68133 E65594 Free Pushed in4 2 13 ± LIGHTINGLIGHTING SYSTEM 65±13 AVENSIS REPAIR MANUAL (RM1018E) 20. HEADLAMP LEVELING SWITCH (a) Connect the battery positive (+) lead to the terminal 1

Page 3117 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual E68134 206 0 +45 ±45(Low) (High) E68135 21.36 0 +45 ±45(Low) (High) 65±14 ± LIGHTINGLIGHTING SYSTEM AVENSIS REPAIR MANUAL (RM1018E) 24. HEIGHT CONTROL SENSOR SUB±ASSY FR RH (a) Conn

Page 3118 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 670SB±01 I36707 ± AUDIO & VISUAL SYSTEM REAR SPEAKER ASSY NO.2 67±15 AVENSIS REPAIR MANUAL (RM1018E) REAR SPEAKER ASSY NO.2 REPLACEMENT 1. REMOVE REAR DOOR WINDOW REGULATOR HANDLE ASSY (W/O POWER

Page 3119 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 670SA±01 I35188 I35189 (2) (1) (3) H02440 Riveter Mandrel ± AUDIO & VISUAL SYSTEM REAR SPEAKER ASSY 67±13 AVENSIS REPAIR MANUAL (RM1018E) REAR SPEAKER ASSY REPLACEMENT 1.REMOVE REAR D

Page 3120 of 5135

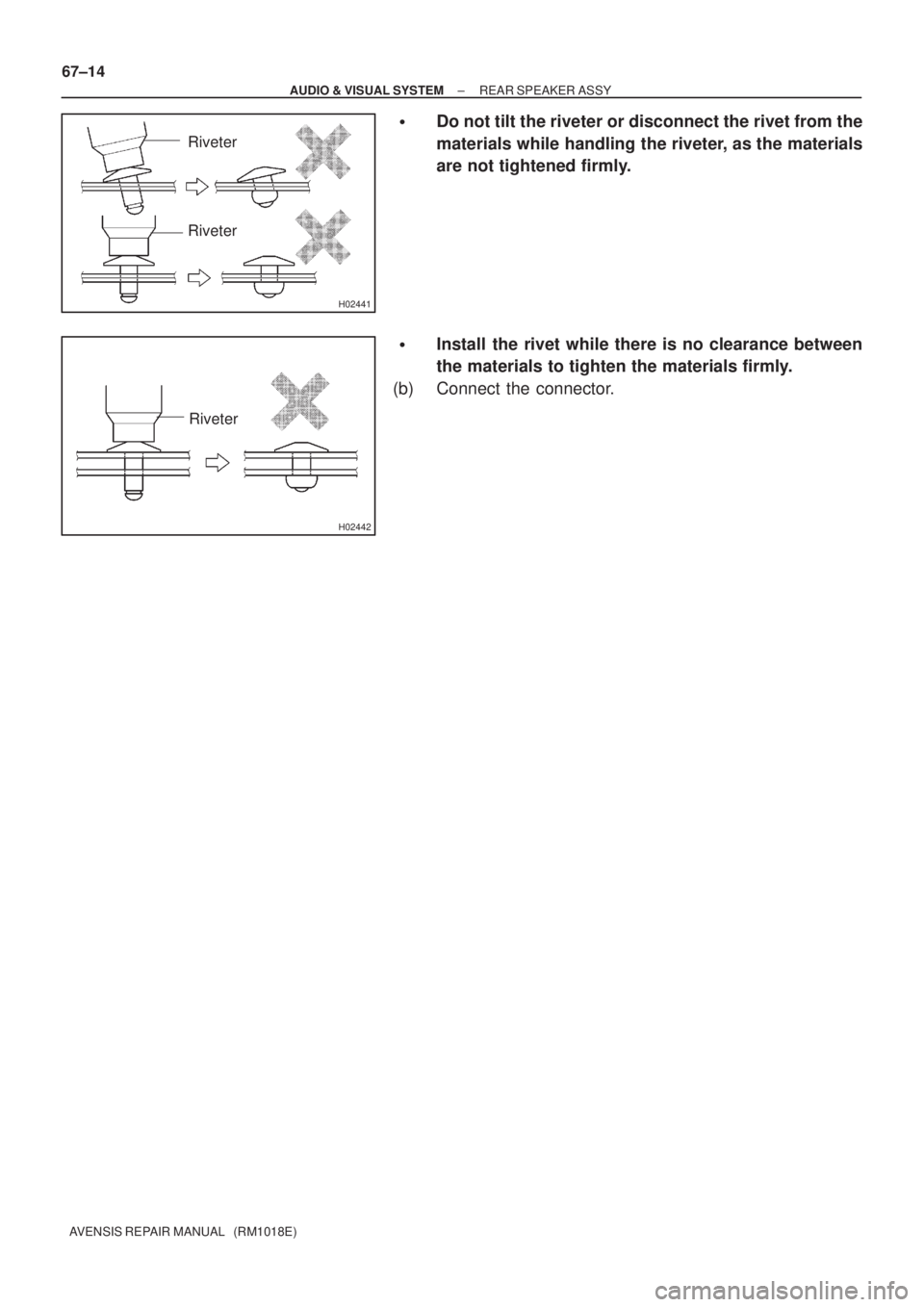

TOYOTA AVENSIS 2005 Service Repair Manual H02441 Riveter Riveter H02442 Riveter 67±14 ± AUDIO & VISUAL SYSTEMREAR SPEAKER ASSY AVENSIS REPAIR MANUAL (RM1018E) Do not tilt the riveter or disconnect the rivet from the materials while handl
