Page 3241 of 5135

700TI±01
B68929
B68929
±
WINDSHIELD/WINDOWGLASS/MIRROR OUTER REAR VIEW MIRROR ASSY LH
70±65
AVENSIS REPAIR MANUAL (RM1018E)

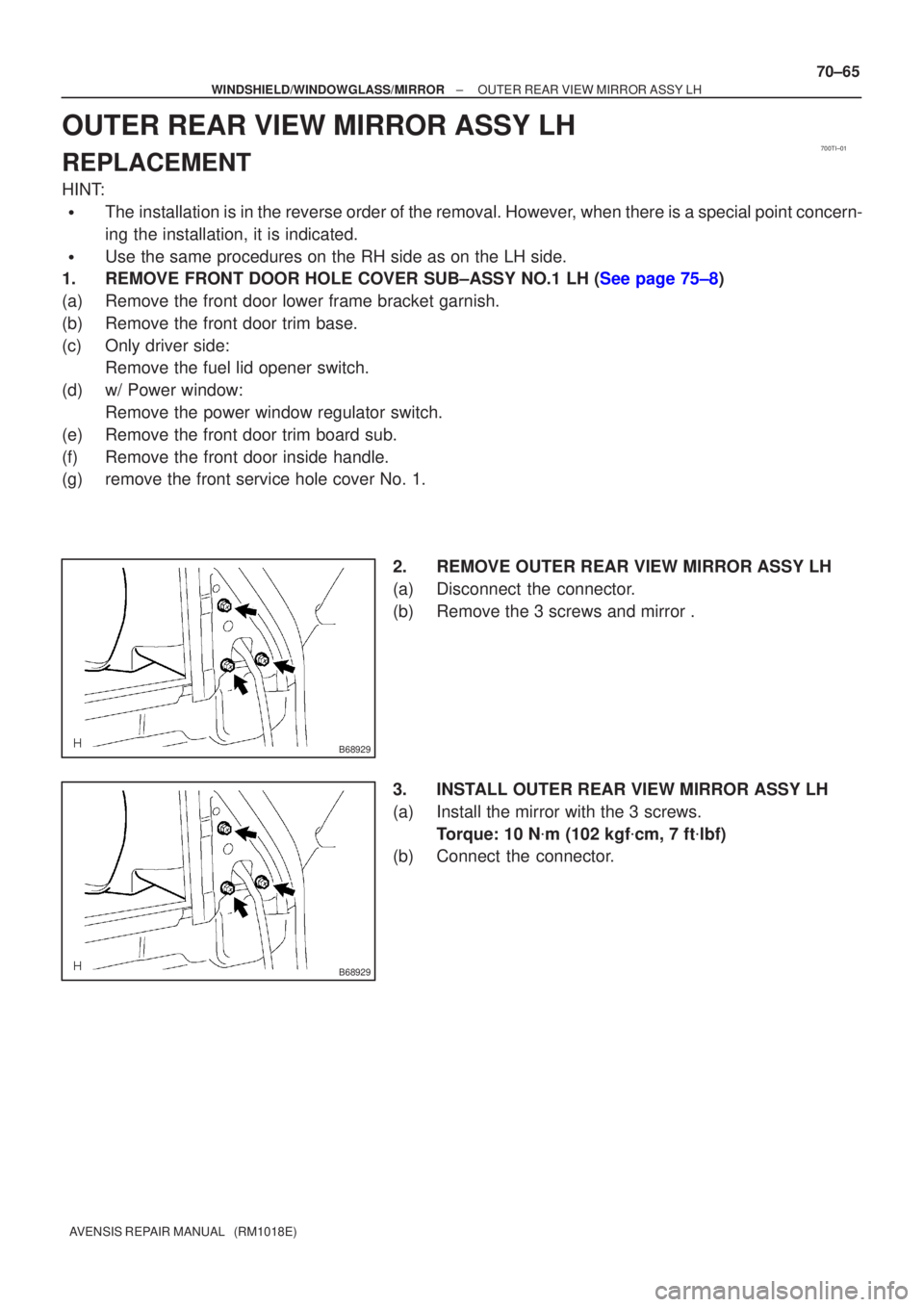

OUTER REAR VIEW MIRROR ASSY LH
REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concern-
ing the installation, it is indicated.
Use the same procedures on the RH side as on the LH side.
1.REMOVE FRONT DOOR HOLE COVER SUB±ASSY NO.1 LH (See page 75±8)
(a) Remove the front door lower frame bracket garnish.
(b) Remove the front door trim base.
(c) Only driver side: Remove the fuel lid opener switch.
(d) w/ Power window: Remove the power window regulator switch.
(e) Remove the front door trim board sub.
(f) Remove the front door inside handle.
(g) remove the front service hole cover No. 1.
2. REMOVE OUTER REAR VIEW MIRROR ASSY LH
(a) Disconnect the connector.
(b) Remove the 3 screws and mirror .
3. INSTALL OUTER REAR VIEW MIRROR ASSY LH
(a) Install the mirror with the 3 screws.Torque: 10 N m (102 kgf cm, 7 ft lbf)
(b) Connect the connector.
Page 3242 of 5135

700TJ±01
B56435
Slide
B61414
Slide
B66957
Butyl TapeMirror Base
a
b c d 70±64
± WINDSHIELD/WINDOWGLASS/MIRRORINNER REAR VIEW MIRROR ASSY
AVENSIS REPAIR MANUAL (RM1018E)

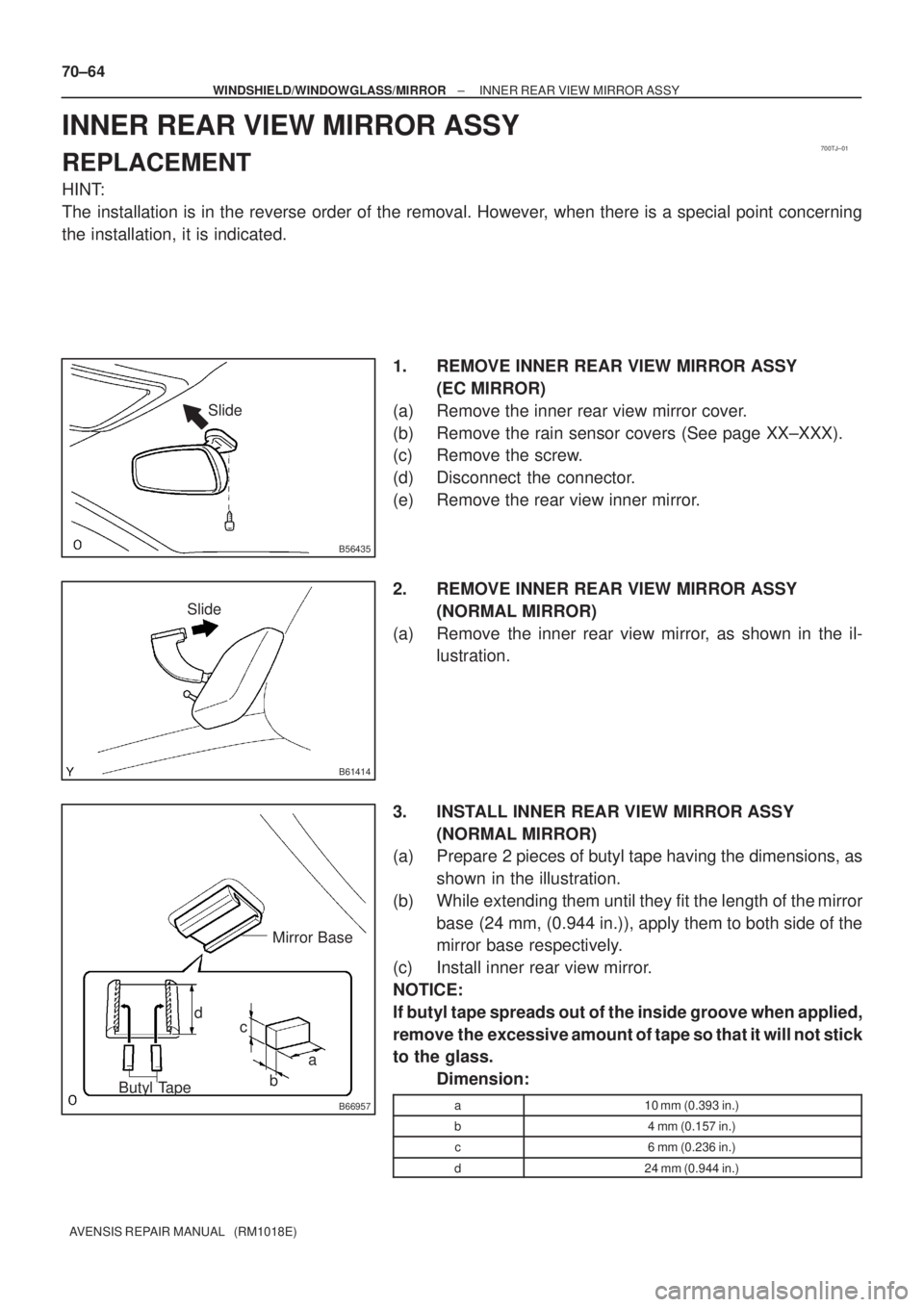

INNER REAR VIEW MIRROR ASSY
REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concerning
the installation, it is indicated.
1. REMOVE INNER REAR VIEW MIRROR ASSY
(EC MIRROR)
(a) Remove the inner rear view mirror cover.
(b) Remove the rain sensor covers (See page XX±XXX).
(c) Remove the screw.
(d) Disconnect the connector.
(e) Remove the rear view inner mirror.
2. REMOVE INNER REAR VIEW MIRROR ASSY
(NORMAL MIRROR)
(a) Remove the inner rear view mirror, as shown in the il-
lustration.
3. INSTALL INNER REAR VIEW MIRROR ASSY
(NORMAL MIRROR)
(a) Prepare 2 pieces of butyl tape having the dimensions, as
shown in the illustration.
(b) While extending them until they fit the length of the mirror
base (24 mm, (0.944 in.)), apply them to both side of the
mirror base respectively.
(c) Install inner rear view mirror.
NOTICE:
If butyl tape spreads out of the inside groove when applied,
remove the excessive amount of tape so that it will not stick
to the glass.
Dimension:
a10 mm (0.393 in.)
b4 mm (0.157 in.)
c6 mm (0.236 in.)
d24 mm (0.944 in.)
Page 3243 of 5135
700TH±01
B59702
Left/Right Adjustment Switch
Mirror
Switch
No Pin UP
OFF
DOWN LEFT RIGHTLEFT
RIGHT
No Pin
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER MIRROR CONTROL SYSTEM
70±59
AVENSIS REPAIR MANUAL (RM1018E)

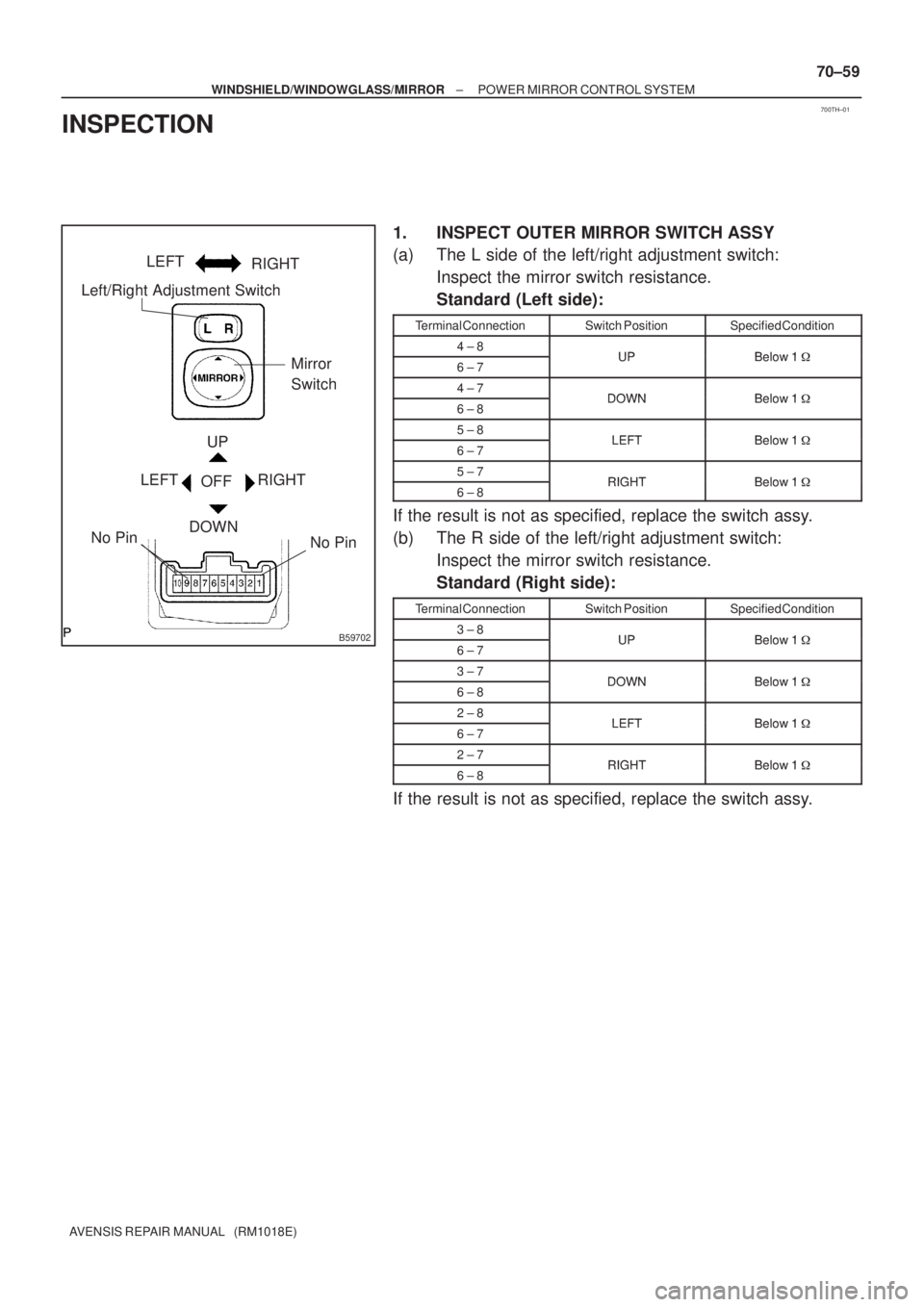

INSPECTION
1. INSPECT OUTER MIRROR SWITCH ASSY
(a) The L side of the left/right adjustment switch:
Inspect the mirror switch resistance.
Standard (Left side):
Terminal ConnectionSwitch PositionSpecified Condition
4 ± 8UPBelow 16 ± 7UPBelow 1
4 ± 7DOWNBelow 16 ± 8DOWNBelow 1
5 ± 8LEFTBelow 16 ± 7LEFTBelow 1
5 ± 7RIGHTBelow 16 ± 8RIGHTBelow 1
If the result is not as specified, replace the switch assy.
(b) The R side of the left/right adjustment switch:
Inspect the mirror switch resistance.
Standard (Right side):
Terminal ConnectionSwitch PositionSpecified Condition
3 ± 8UPBelow 16 ± 7UPBelow 1
3 ± 7DOWNBelow 16 ± 8DOWNBelow 1
2 ± 8LEFTBelow 16 ± 7LEFTBelow 1
2 ± 7RIGHTBelow 16 ± 8RIGHTBelow 1
If the result is not as specified, replace the switch assy.
Page 3244 of 5135

B64822
Left/Right Adjustment SwitchRetract Switch
Mirror
Switch
No Pin
UP
OFF
DOWN LEFT RIGHT
LEFT RIGHT
70±60
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER MIRROR CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

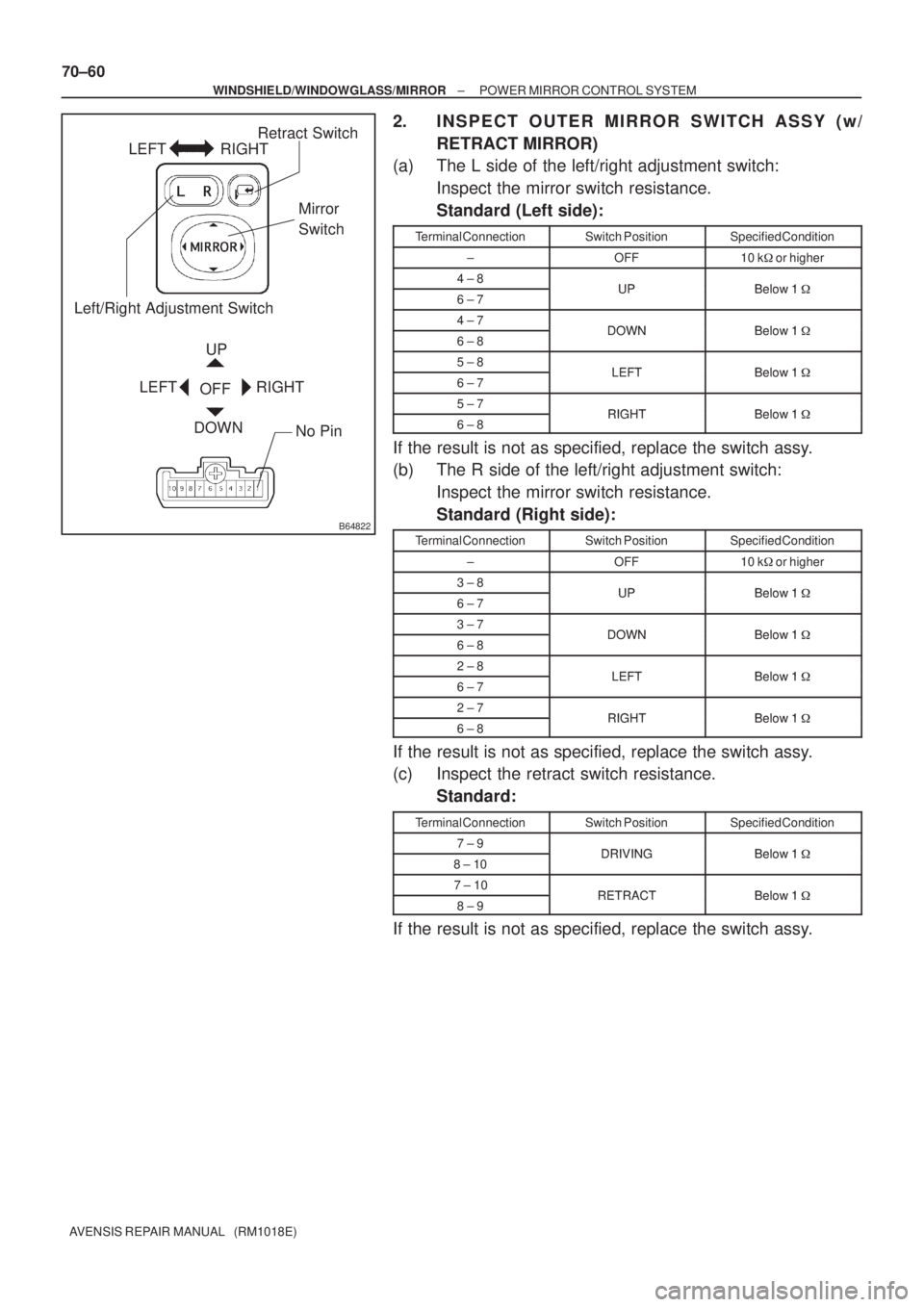

2. INSPECT OUTER MIRROR SWITCH ASSY (w/
RETRACT MIRROR)
(a) The L side of the left/right adjustment switch:
Inspect the mirror switch resistance.
Standard (Left side):
Terminal ConnectionSwitch PositionSpecified Condition
±OFF10 k or higher
4 ± 8UPBelow 16 ± 7UPBelow 1
4 ± 7DOWNBelow 16 ± 8DOWNBelow 1
5 ± 8LEFTBelow 16 ± 7LEFTBelow 1
5 ± 7RIGHTBelow 16 ± 8RIGHTBelow 1
If the result is not as specified, replace the switch assy.
(b) The R side of the left/right adjustment switch:
Inspect the mirror switch resistance.
Standard (Right side):
Terminal ConnectionSwitch PositionSpecified Condition
±OFF10 k or higher
3 ± 8UPBelow 16 ± 7UPBelow 1
3 ± 7DOWNBelow 16 ± 8DOWNBelow 1
2 ± 8LEFTBelow 16 ± 7LEFTBelow 1
2 ± 7RIGHTBelow 16 ± 8RIGHTBelow 1
If the result is not as specified, replace the switch assy.
(c) Inspect the retract switch resistance.
Standard:
Terminal ConnectionSwitch PositionSpecified Condition
7 ± 9DRIVINGBelow 18 ± 10DRIVINGBelow 1
7 ± 10RETRACTBelow 18 ± 9RETRACTBelow 1
If the result is not as specified, replace the switch assy.
Page 3245 of 5135

B68232
(A)
(D) (C)
(B)
1 2 3
4 5 6
7
B64818
LH Side
A: Forward Position
C: Driving Position
E: Retracted Position BA
C
D
E
1 2 36
7
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER MIRROR CONTROL SYSTEM
70±61
AVENSIS REPAIR MANUAL (RM1018E)
3. INSPECT OUTER REAR VIEW MIRROR ASSY LH
(a) Disconnect the mirror connector.
(b) Apply battery voltage and inspect operation of the mirror
face, as shown in the table and illustration.
Standard:
Measurement ConditionMirror Operation
Battery positive (+) 3 (MV)
Battery negative (±) 7 (M+)Turns upward (A)
Battery positive (+) 7 (M+)
Battery negative (±) 3 (MV)Turns downward (B)
Battery positive (+) 7 (M+)
Battery negative (±) 6 (MH)Turns left (C)
Battery positive (+) 6 (MH)
Battery negative (±) 7 (M+)Turns right (D)
If the result is not as specified, replace the mirror assy.
(c) Only retract mirror:
Inspect operation of the electrical retract motor.
NOTICE:
When repeating the inspection, cut off the battery
voltage, and then perform operation in the same pro-
cedures.
With the battery voltage applied, the mirror will not
operate even trying to move only the mirror body.
Standard:
Mirror PositionMeasurement ConditionMirror Operation
A
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
Moves to retracted posi-
tion (stop)
A
(Forward position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
No operation
B
(Between forwardposition
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
Moves to retracted posi-
tion and then stops
(Between forward position
and driving position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
Moves to forward position
and then stops
C
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
Moves to retracted posi-
tion and then stops
C
(Driving position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
No operation
Page 3246 of 5135

B68233
(A)
(D) (C)
(B)
1 2 3
4 5 6
7
70±62
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER MIRROR CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)Mirror Position Mirror OperationMeasurement Condition
D
(Between drivingposition
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
Moves to retracted posi-
tion and then stops
(Between driving position
and retracted position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
Moves to driving position
and then stops
E
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
No operation
E
(Retracted position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
Moves to driving position
and then stops
If the result is not as specified, replace the mirror assy.

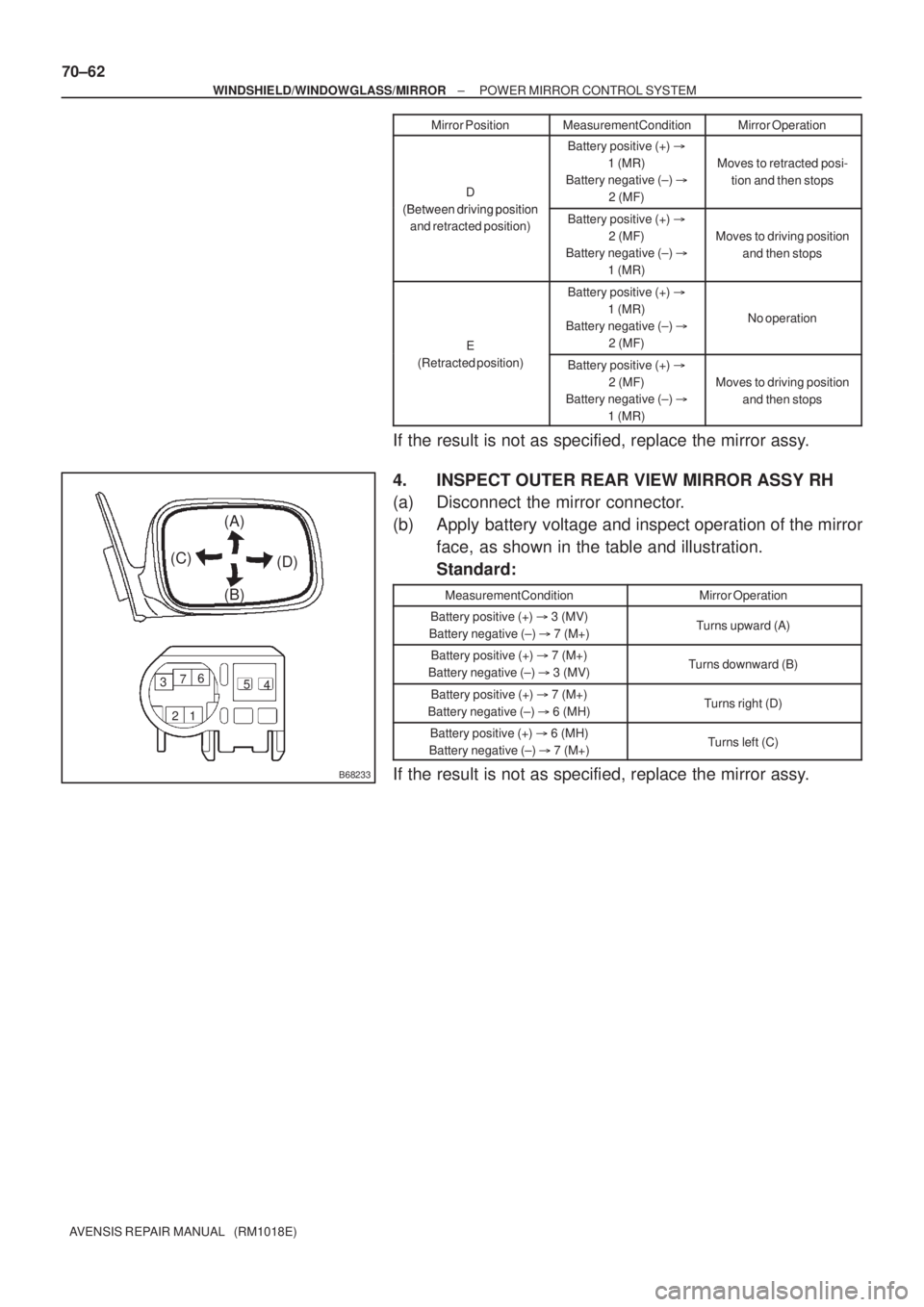

4. INSPECT OUTER REAR VIEW MIRROR ASSY RH
(a) Disconnect the mirror connector.
(b) Apply battery voltage and inspect operation of the mirror
face, as shown in the table and illustration.
Standard:
Measurement ConditionMirror Operation
Battery positive (+) 3 (MV)
Battery negative (±) 7 (M+)Turns upward (A)
Battery positive (+) 7 (M+)
Battery negative (±) 3 (MV)Turns downward (B)
Battery positive (+) 7 (M+)
Battery negative (±) 6 (MH)Turns right (D)
Battery positive (+) 6 (MH)
Battery negative (±) 7 (M+)Turns left (C)
If the result is not as specified, replace the mirror assy.
Page 3247 of 5135

B64819
RH Side
A: Forward Position
C: Driving Position
E: Retracted PositionB A
C
D
E
1 2 36
7
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER MIRROR CONTROL SYSTEM
70±63
AVENSIS REPAIR MANUAL (RM1018E)

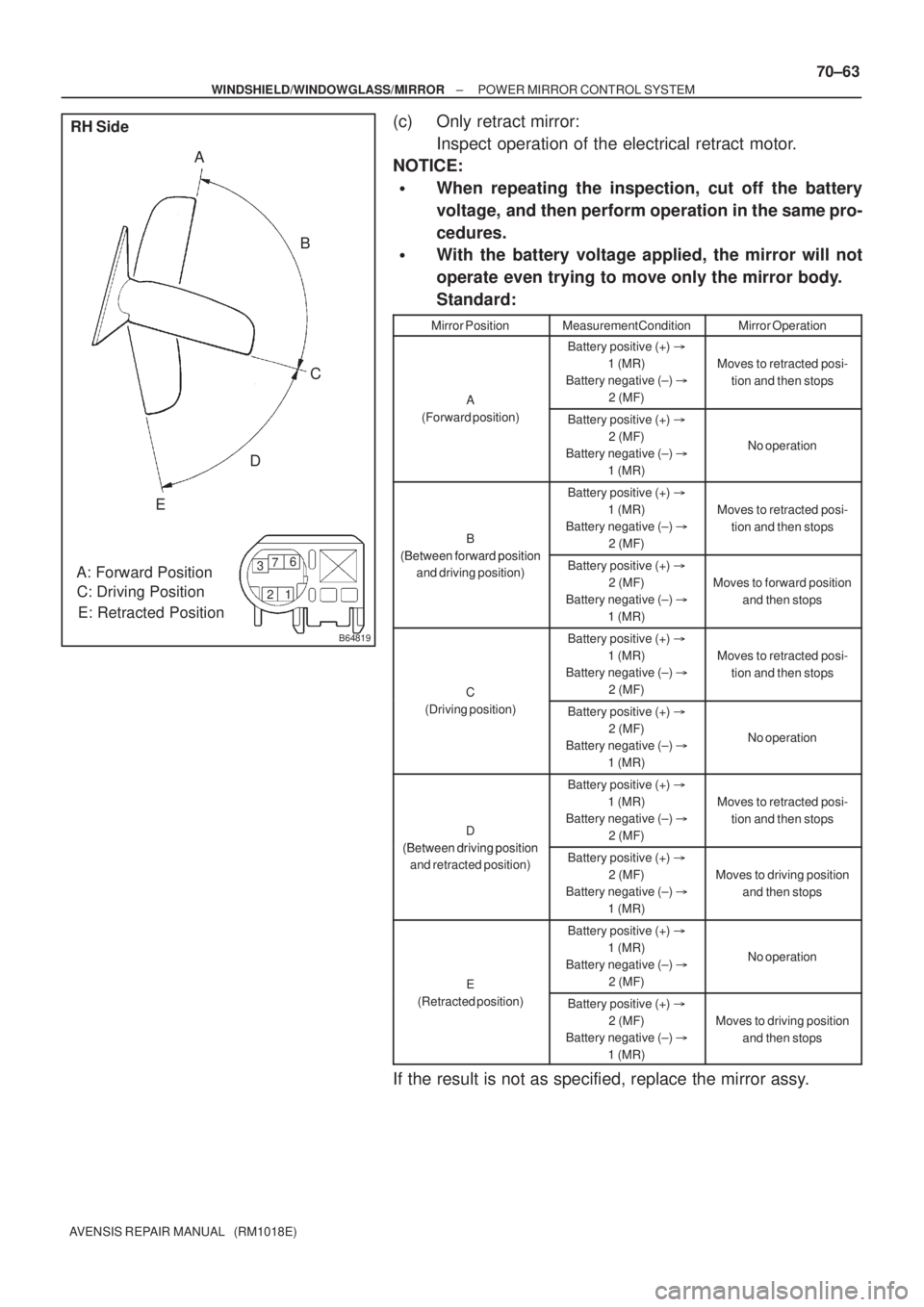

(c) Only retract mirror:
Inspect operation of the electrical retract motor.
NOTICE:
When repeating the inspection, cut off the battery
voltage, and then perform operation in the same pro-
cedures.
With the battery voltage applied, the mirror will not
operate even trying to move only the mirror body.
Standard:
Mirror PositionMeasurement ConditionMirror Operation
A
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
Moves to retracted posi-
tion and then stops
A
(Forward position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
No operation
B
(Between forwardposition
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
Moves to retracted posi-
tion and then stops
(Between forward position
and driving position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
Moves to forward position
and then stops
C
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
Moves to retracted posi-
tion and then stops
C
(Driving position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
No operation
D
(Between drivingposition
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
Moves to retracted posi-
tion and then stops
(Between driving position
and retracted position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
Moves to driving position
and then stops
E
Battery positive (+)
1 (MR)
Battery negative (±)
2 (MF)
No operation
E
(Retracted position)Battery positive (+)
2 (MF)
Battery negative (±)
1 (MR)
Moves to driving position
and then stops
If the result is not as specified, replace the mirror assy.
Page 3248 of 5135
700TG±01
70±58
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER MIRROR CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

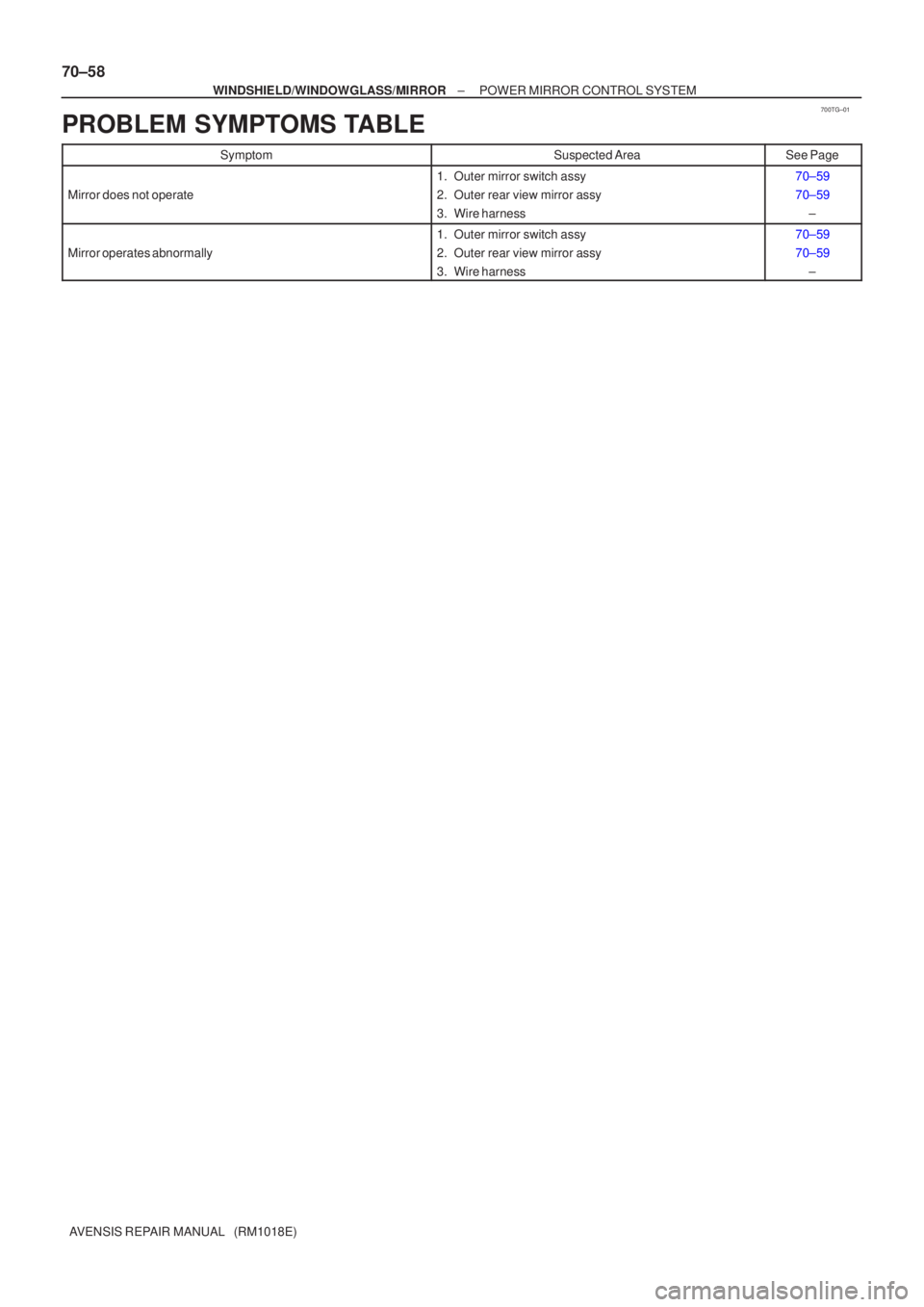

PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
Mirror does not operate
1. Outer mirror switch assy
2. Outer rear view mirror assy
3. Wire harness70±59
70±59 ±
Mirror operates abnormally
1. Outer mirror switch assy
2. Outer rear view mirror assy
3. Wire harness70±59
70±59±
