TOYOTA AVENSIS 2005 Service Repair Manual 5006Z±01
50±20
±
STEERING COLUMN POWER STEERING ECU ASSY
AVENSIS REPAIR MANUAL (RM1018E)
POWER STEERING ECU ASSY
REPLACEMENT
1.PRECAUTION (See page 60±1)
2.DISCONNECT BATTERY NEGATIVE TERMINAL (

Page 2802 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual F44857F44857
LHD:RHD:
Torque Sensor Wire Harness Clamp
Marks
Power Steering ECU Assy
Front
Motor Wire Harness
Torque Sensor
Wire Harness
Front
Torque Sensor
Wire Harness
Motor Wire Harness
Power Steer

Page 2803 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 50±22
±
STEERING COLUMN POWER STEERING ECU ASSY
AVENSIS REPAIR MANUAL (RM1018E)
NOTICE:
When reusing the clamp, check that there is no dam-
age on it.
When reinstalling the wire harness, make su

Page 2804 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 5006Y±01
Screw Case
F44801
Torx Screw
F44804
Airbag Connector
Lock Part Pull Out
F44805
CorrectWrong
±
STEERING COLUMN STEERING COLUMN ASSY
50±9
AVENSIS REPAIR MANUAL (RM1018E)
OVERHAUL
1.PRECAUT

Page 2805 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual F44783
MatchmarksSST
F44784
50±10
±
STEERING COLUMN STEERING COLUMN ASSY
AVENSIS REPAIR MANUAL (RM1018E)
5. REMOVE STEERING WHEEL ASSY
(a) Remove the steering wheel assy set nut.
(b) Place matchma

F44783
MatchmarksSST
F44784
50±10
±
STEERING COLUMN STEERING COLUMN ASSY
AVENSIS REPAIR MANUAL (RM1018E)
5. REMOVE STEERING WHEEL ASSY
(a) Remove the steering wheel assy set nut.
(b) Place matchmarks on the steering wheel assy and steer- ing main shaft assy.
(c) Using SST, remove the steering wheel assy. SST 09950±50013 (09951±05010, 09952±05010, 09953±05020, 09954±05021)
6.REMOVE INSTRUMENT PANEL UNDER COVER SUB±ASSY NO.1 (See page 71±11)
7.REMOVE INSTRUMENT PANEL HOLE COVER (See page 60±54)
8.REMOVE INSTRUMENT PANEL AIR BAG ASSY (See page 60±54)
9. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1 (ELECTRIC POWER STEERING) (See page 71±11)
10. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 (ELECTRIC POWER
STEERING) (See page 71±11)
11. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (ELECTRIC POWER STEERING) (See page 71±11)
12. REMOVE STEERING COLUMN COVER LWR
(a) Remove the 3 screws and steering column cover LWR.
13. REMOVE STEERING COLUMN COVER W/INSTRUMENT CLUSTER FINISH PANEL ASSY
(a) Disengage the 2 clips and remove the steering column cover w/instrument cluster finish panel assy.
14.REMOVE COMBINATION METER ASSY (ELECTRIC POWER STEERING) (See page 71±11)
15. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1 (ELECTRIC POWER STEERING) (See page 71±11)
16. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.2 (ELECTRIC POWER STEERING) (See page 71±11)
17. REMOVE GLOVE COMPARTMENT DOOR ASSY (ELECTRIC POWER STEERING)
(See page 71±11)
18.REMOVE FRONT PILLAR GARNISH LH (ELECTRIC POWER STEERING) (See page 71±11)
19.REMOVE FRONT PILLAR GARNISH RH (ELECTRIC POWER STEERING) (See page 71±11)
20. DISCONNECT PASSENGER AIRBAG CONNECTOR (ELECTRIC POWER STEERING) (See page 71±11)
21. REMOVE INSTRUMENT PANEL SUB±ASSY UPPER W/INSTR PNL PASS L/DOOR AIR BAG ASSY (ELECTRIC POWER STEERING) (See page 71±11)
22.REMOVE HEADLAMP DIMMER SWITCH ASSY (See page 65±27)
23.REMOVE WINDSHIELD WIPER SWITCH ASSY (See page 66±24)
24.REMOVE SPIRAL CABLE SUB±ASSY (See page 60±26)

Page 2806 of 5135

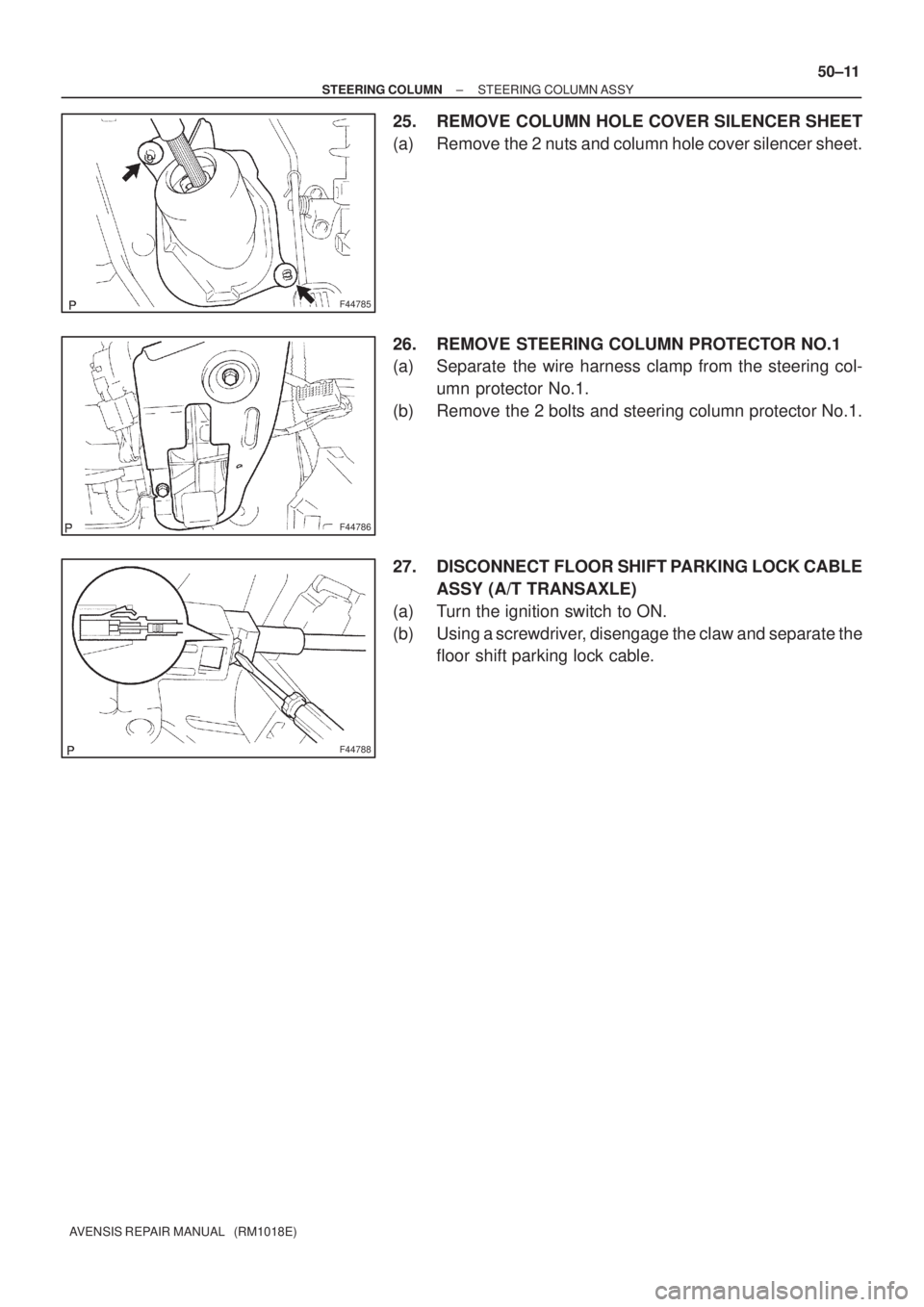

TOYOTA AVENSIS 2005 Service Repair Manual F44785
F44786
F44788
± STEERING COLUMNSTEERING COLUMN ASSY
50±11
AVENSIS REPAIR MANUAL (RM1018E)
25. REMOVE COLUMN HOLE COVER SILENCER SHEET
(a) Remove the 2 nuts and column hole cover silencer sh

Page 2807 of 5135

Page 2808 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual F44789
RHD:
A
B
Matchmarks
F44790
LHD:
Matchmarks
BA
F45269
F44793Matchmarks
±
STEERING COLUMN STEERING COLUMN ASSY
50±13
AVENSIS REPAIR MANUAL (RM1018E)
(c) RHD:
Place matchmarks on the intermedi
