Page 1665 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B67692
T6
Theft Warning ECU Assy
IND
25 W±B
1LSecurity A J16
J/C
18V F19
Rear Window Defogger
Switch Assy
(Security Indicator)
B67862
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
05±1635
AVENSIS REPAIR MANU

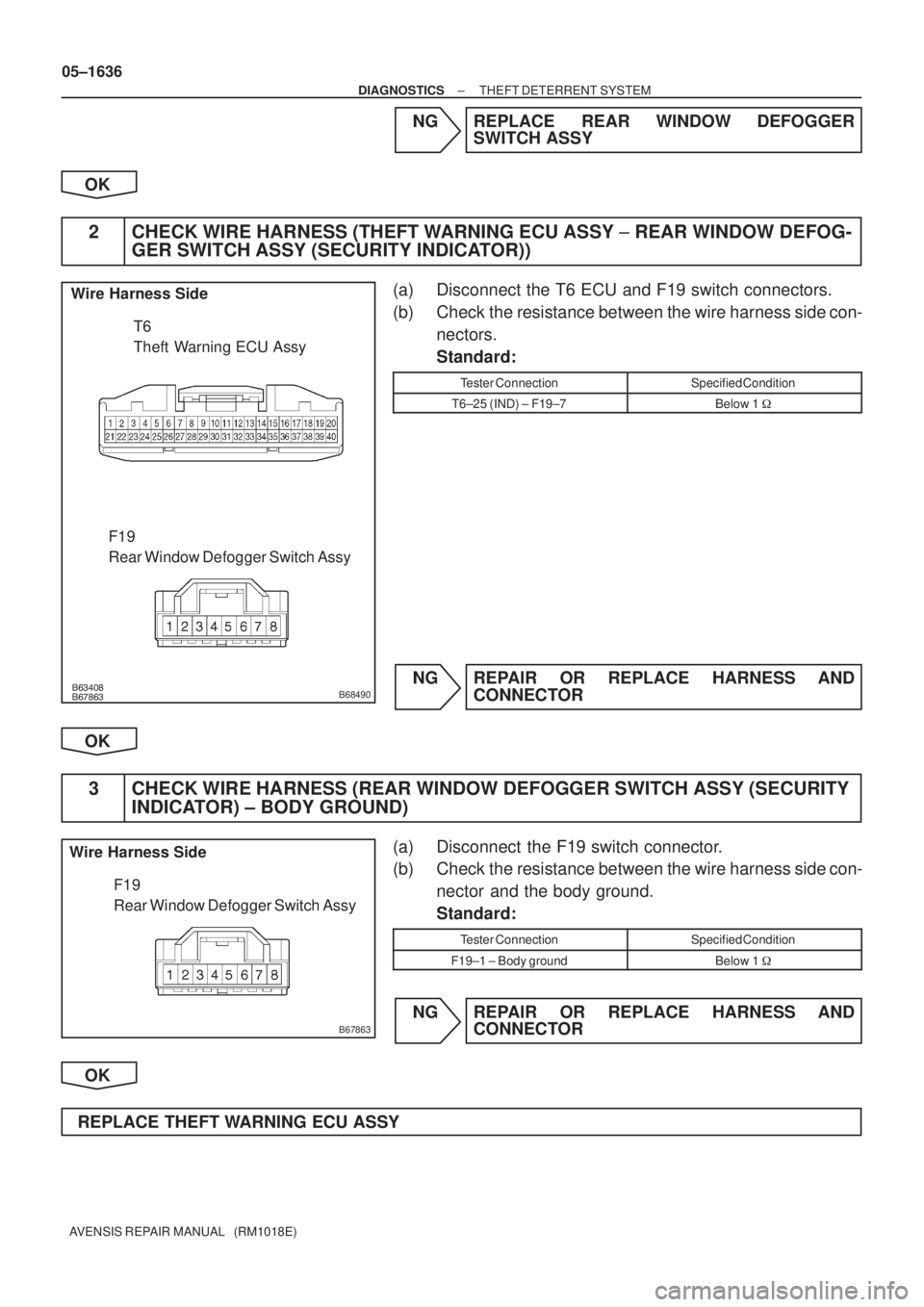

Page 1666 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual
B68490
Wire Harness Side
T6
Theft Warning ECU Assy
F19
Rear Window Defogger Switch Assy
B67863
Wire Harness Side
F19
Rear Window Defogger Switch Assy
05±1636
± DIAGNOSTICSTHEFT DETERREN

Page 1667 of 5135

$TOYOTA AVENSIS 2005 Service Repair Manual 05BAA±01 05±1634 ± DIAGNOSTICS THEFT DETERRENT SYSTEM AVENSIS REPAIR MANUAL (RM1018E) PROBLEM SYMPTOMS TABLE Proceed to the reference page shown in the table below for each malfunction sym\ ptom$

05BAA±01
05±1634
±
DIAGNOSTICS THEFT DETERRENT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
Proceed to the reference page shown in the table below for each malfunction sym\
ptom and troubleshoot
each circuit.
HINT:
Troubleshooting of the theft deterrent system is based on the premise that the door loc\
k control system and
the wireless door lock control system are operating normally. Accordingly, before troubleshooting the theft
deterrent system, first make certain that the door lock control system and the wireless door lock control sys-
tem are operating normally.
SymptomSuspected AreaSee Page
Theft deterrent system cannot be set
1. Security indicator circuit
2. ECU power source circuit
3. Unlock warning switch circuit
4. Door key lock and unlock switch
5. Luggage compartment door key lock and unlock switch (Sedan)
6. Back door key lock and unlock switch (Liftback, Wagon)
7. Door courtesy switch circuit
8. Luggage compartment door courtesy switch circuit (Sedan)
9. Back door courtesy switch circuit (Liftback, Wagon)
10.Engine hood courtesy switch circuit05±1635
05±1637
05±1594 73±3
73±3
73±3
05±1631
05±1631
05±1631
05±1642
Security indicator does not blink when theft deterrent system is
set1. Security indicator circuit05±1635
Alarm sounding state is not canceled when ignition switch is
turned ON±OFF 10 times within 15 seconds1. Ignition switch circuit
2. Unlock warning switch circuit05±1639
05±1594
Theft deterrent system can be set even when any door is open
1. Door courtesy switch circuit
2. Luggage compartment door courtesy switch circuit (Sedan)
3. Back door courtesy switch circuit (Liftback, Wagon)05±1631
05±1631
05±1631
Horns (low pitched, high pitched) do not sound while theft deter-
rent system is in warning operation1. Horn (low pitched, high pitched) circuit05±1644
Hazard warning lamps do not flash while theft deterrent system is
in warning operation1. Hazard warning circuit65±5
Room lamp does not flash while theft deterrent system is in warn-
ing operation1. Room lamp circuit65±5
Theft warning siren sounds even when theft deterrent system is
not set1. Theft warning siren circuit05±1647
Hazard warning lamps flash even when theft deterrent system is
not set1. Hazard warning switch circuit65±5
Room lamp flashes even when theft deterrent system is not set1. Room lamp circuit65±5
Theft warning siren sounds even when theft deterrent system is
not set1. Theft warning siren circuit05±1647
Intrusion (theft warning) sensor does not detect any moving object
while theft deterrent system is set1. Instrution sensor circuit05±1650
Intrusion (theft warning) sensor sets off alarm while theft deterrent
system is not set or there is nothing moving inside vehicle with
theft deterrent system set
1. Intrusion sensor circuit05±1650
Intrusion (theft warning) sensor OFF switch does not operate1. Intrusion sensor circuit05±1650
Intrusion (theft warning) sensor OFF switch continues operating1. Intrusion sensor circuit05±1650

Page 1668 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 05BA9±01
B50657
T6
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
05±1631
AVENSIS REPAIR MANUAL (RM1018E)
TERMINALS OF ECU
1. CHECK THEFT WARNING ECU ASSY
(a) Disconnect the T6 ECU connector.
(b) Check the

Page 1669 of 5135

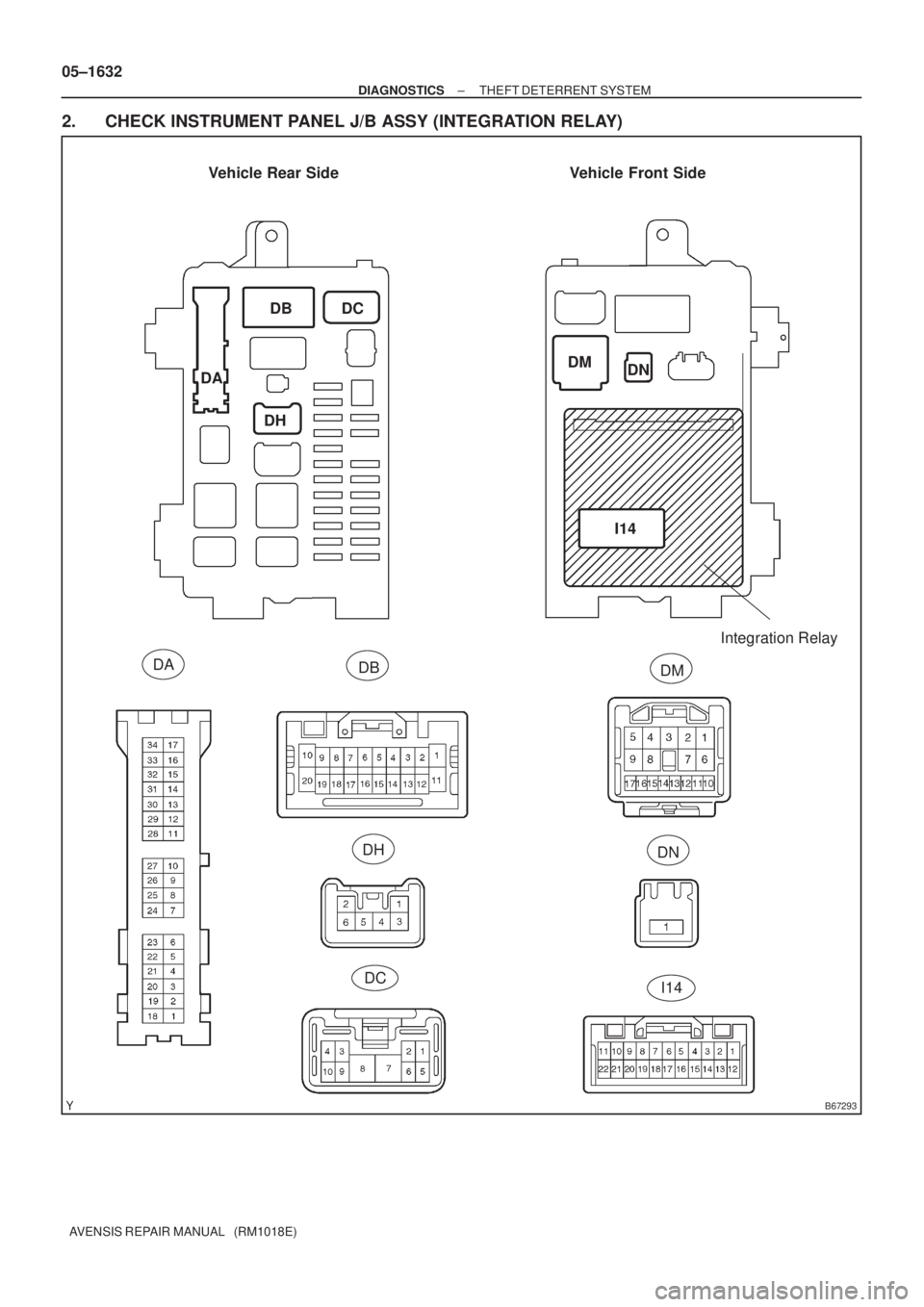

TOYOTA AVENSIS 2005 Service Repair Manual B67293
DADBDM
Vehicle Front Side Vehicle Rear Side
DB
DA
DHDC
I14
DN
DC
DH
I14
DM
DN
Integration Relay
05±1632
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
2. CHECK INSTRUME

Page 1670 of 5135

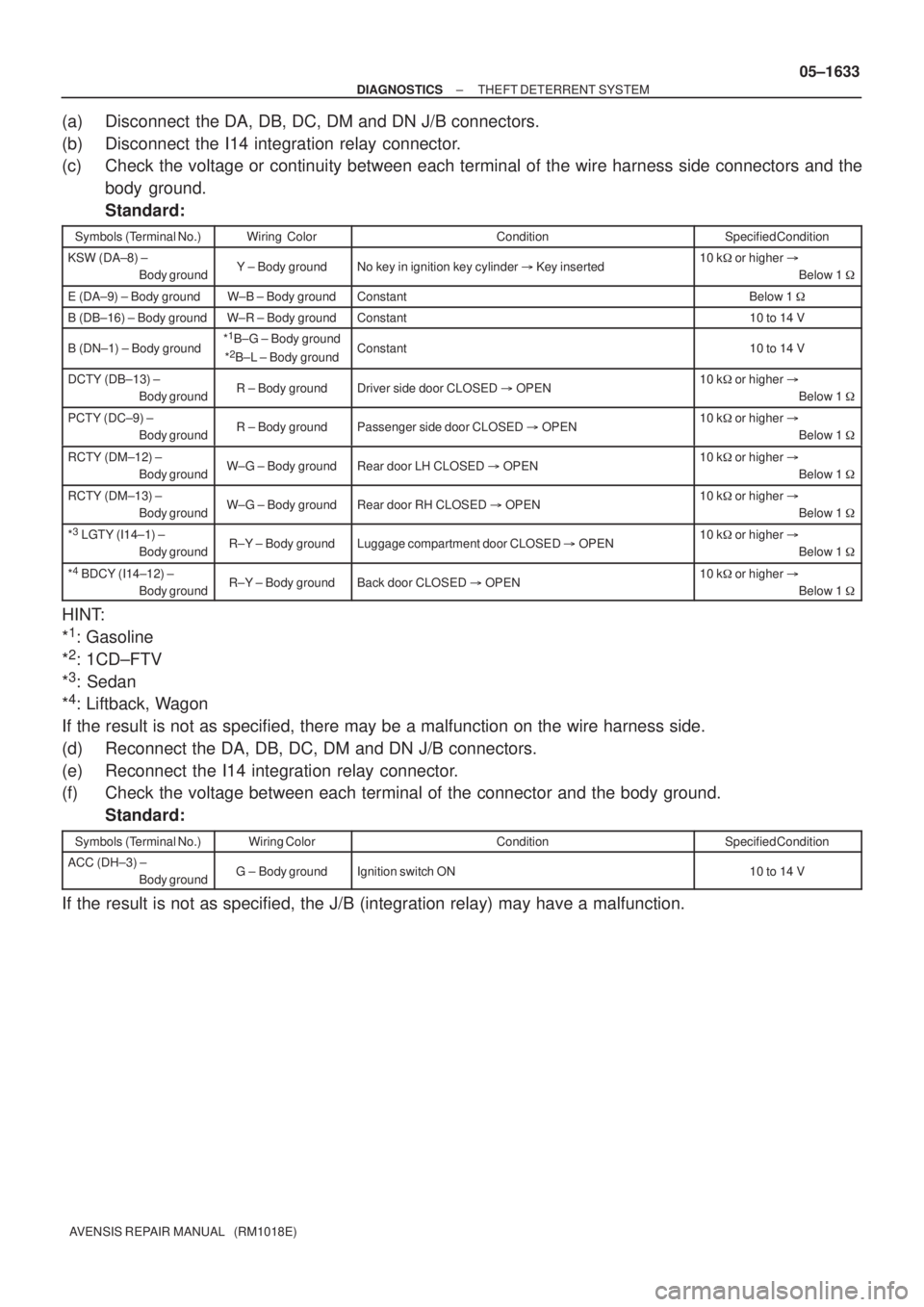

TOYOTA AVENSIS 2005 Service Repair Manual ± DIAGNOSTICSTHEFT DETERRENT SYSTEM
05±1633
AVENSIS REPAIR MANUAL (RM1018E)
(a) Disconnect the DA, DB, DC, DM and DN J/B connectors.
(b) Disconnect the I14 integration relay connector.
(c) Check

Page 1671 of 5135

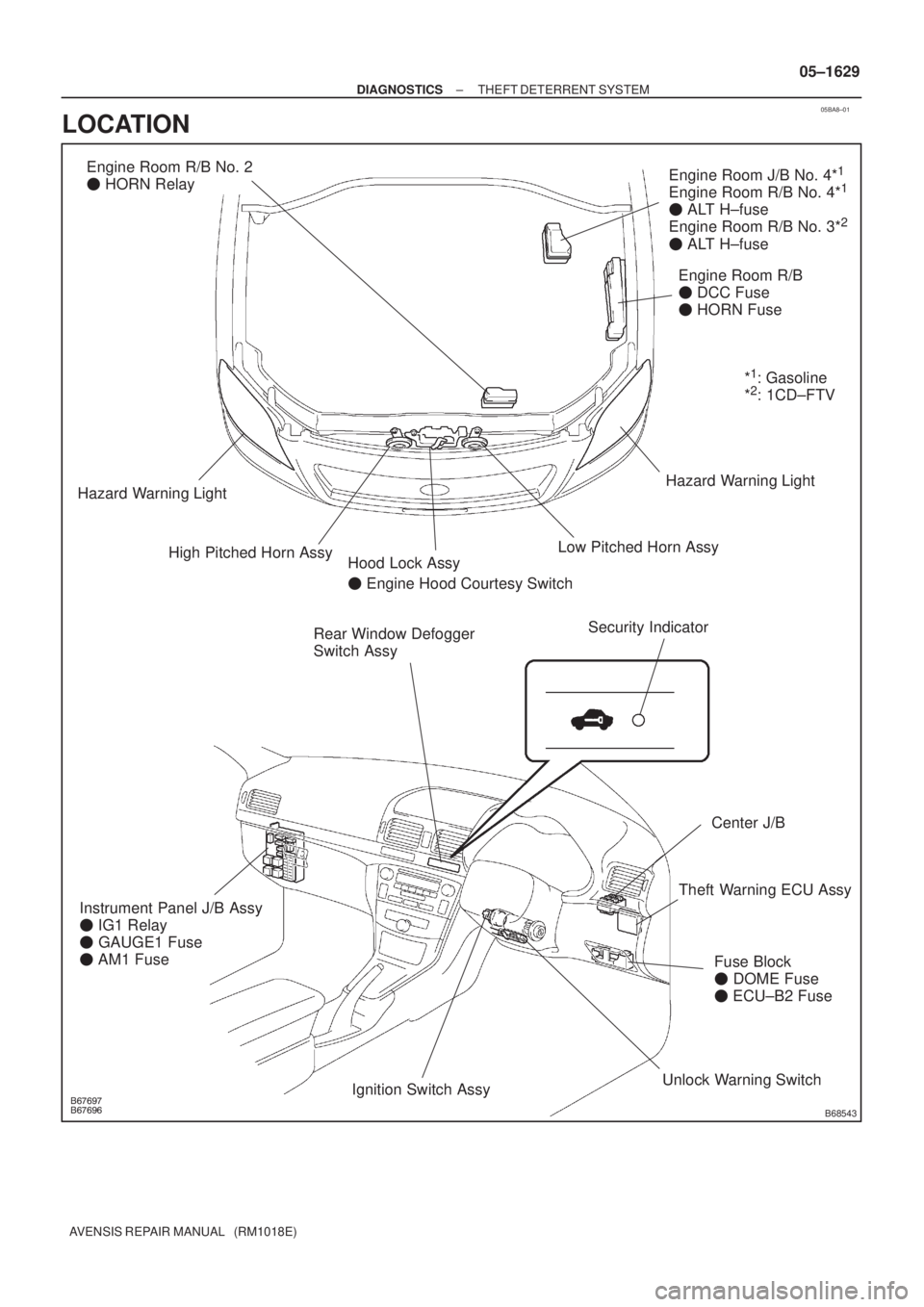

TOYOTA AVENSIS 2005 Service Repair Manual 05BA8±01

B68543
Rear Window Defogger
Switch AssyEngine Room R/B
DCC Fuse
HORN Fuse
Fuse Block
DOME Fuse
ECU±B2 Fuse
Center J/B
Security Indicator
Engine Room J/B No. 4*1
Engine

Page 1672 of 5135

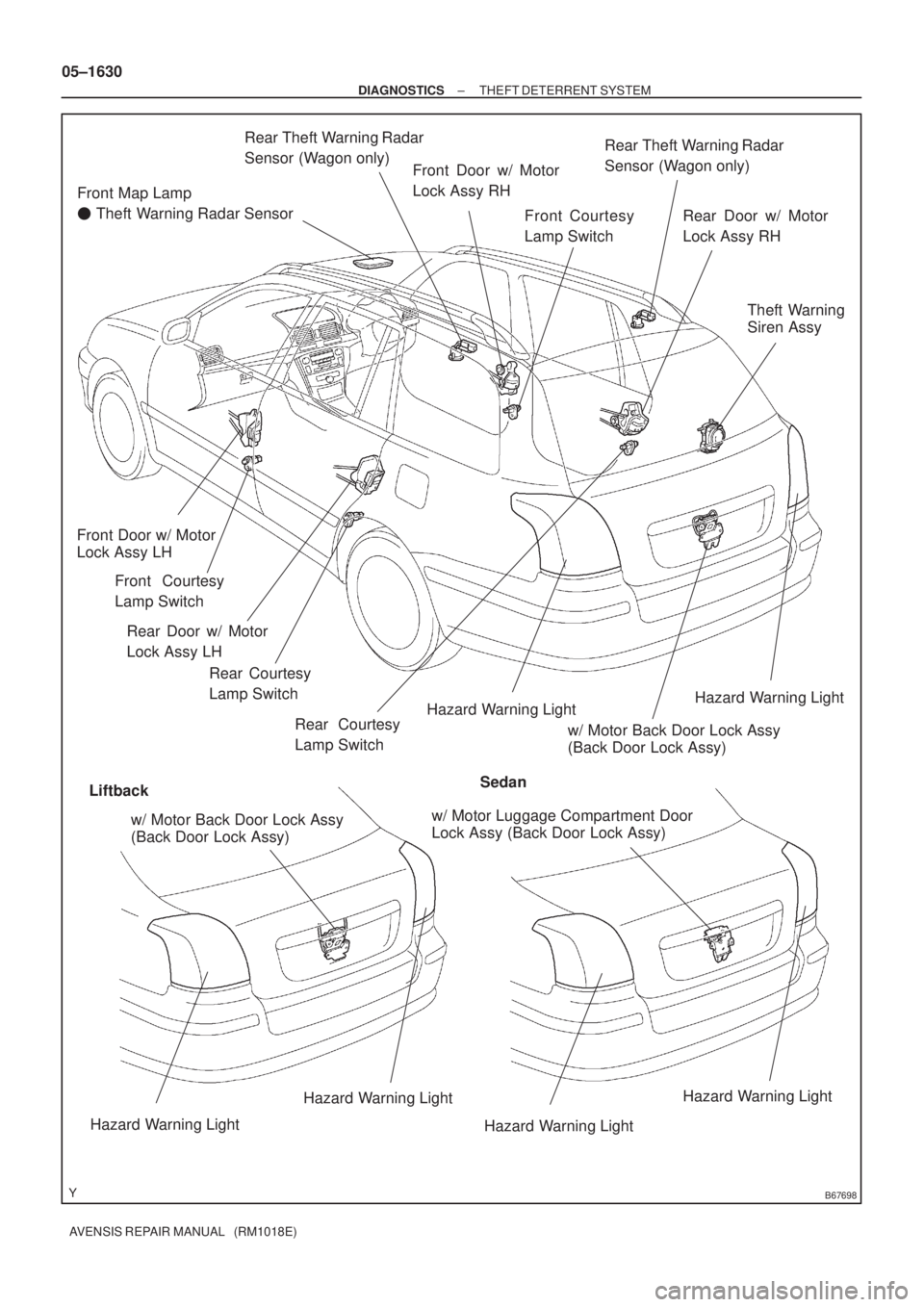

TOYOTA AVENSIS 2005 Service Repair Manual B67698
Front Map Lamp
Theft Warning Radar Sensor
Hazard Warning LightHazard Warning Light
Hazard Warning Light
Hazard Warning LightHazard Warning Light
Hazard Warning Light
LiftbackSedanFront Courte
