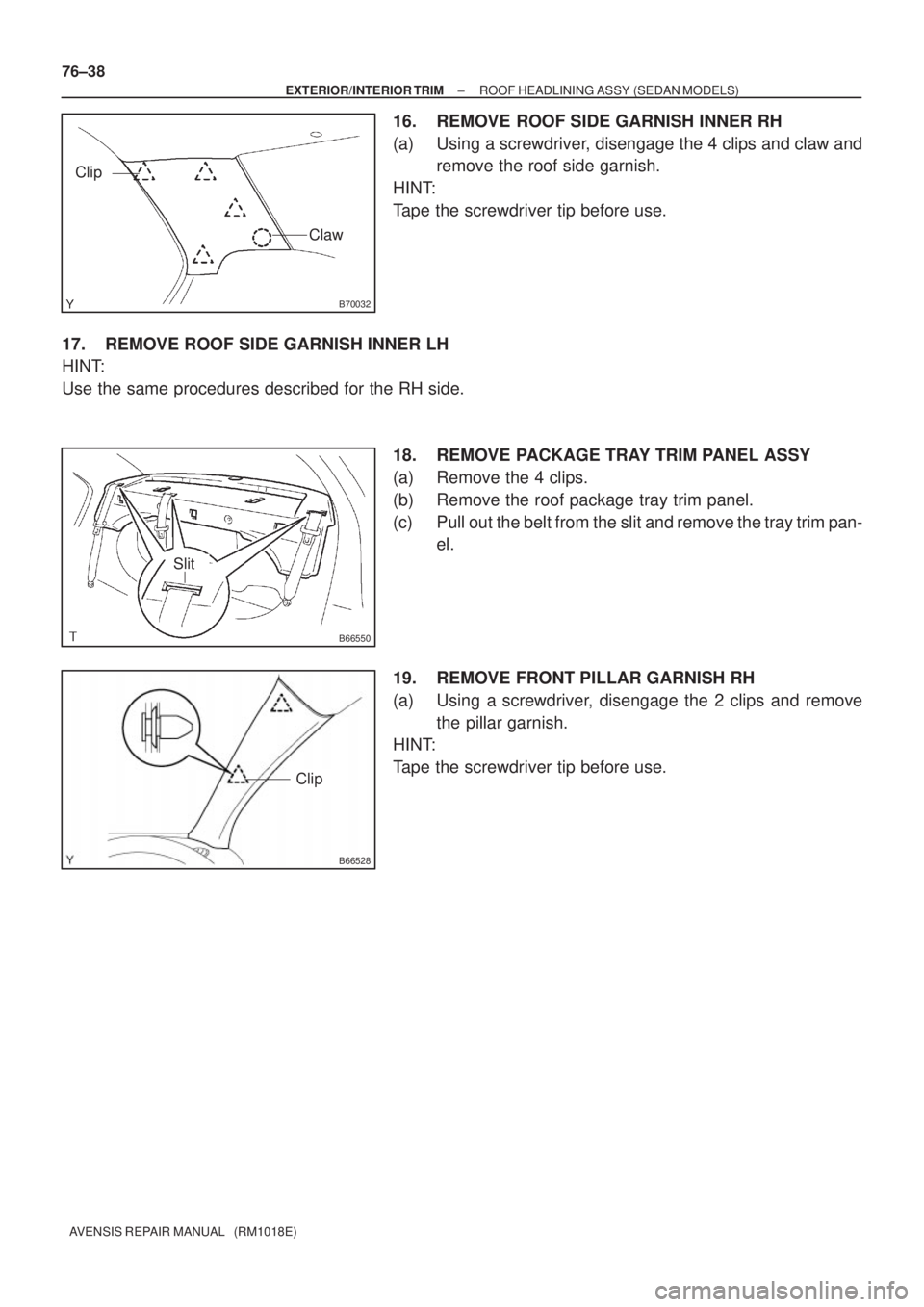

Page 3425 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B70032 Clip Claw B66550 Slit B66528 Clip 76±38 ± EXTERIOR/INTERIOR TRIMROOF HEADLINING ASSY (SEDAN MODELS) AVENSIS REPAIR MANUAL (RM1018E) 16. REMOVE ROOF SIDE GARNISH INNER RH (a) Using a screwdr

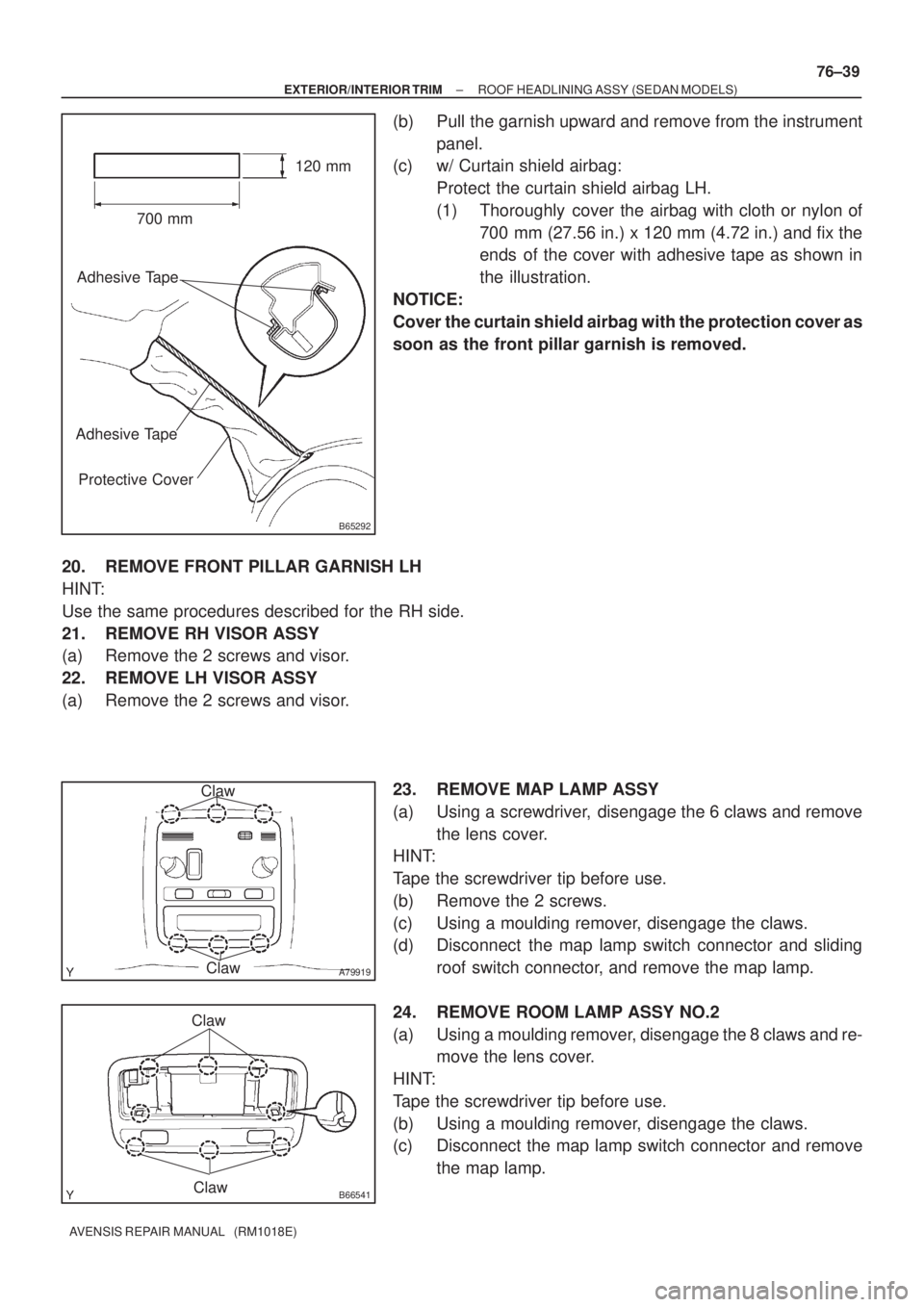

Page 3426 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B65292 700 mm120 mm Adhesive Tape Adhesive Tape Protective Cover A79919 Claw Claw B66541Claw Claw ± EXTERIOR/INTERIOR TRIMROOF HEADLINING ASSY (SEDAN MODELS) 76±39 AVENSIS REPAIR MANUAL (RM1018E)

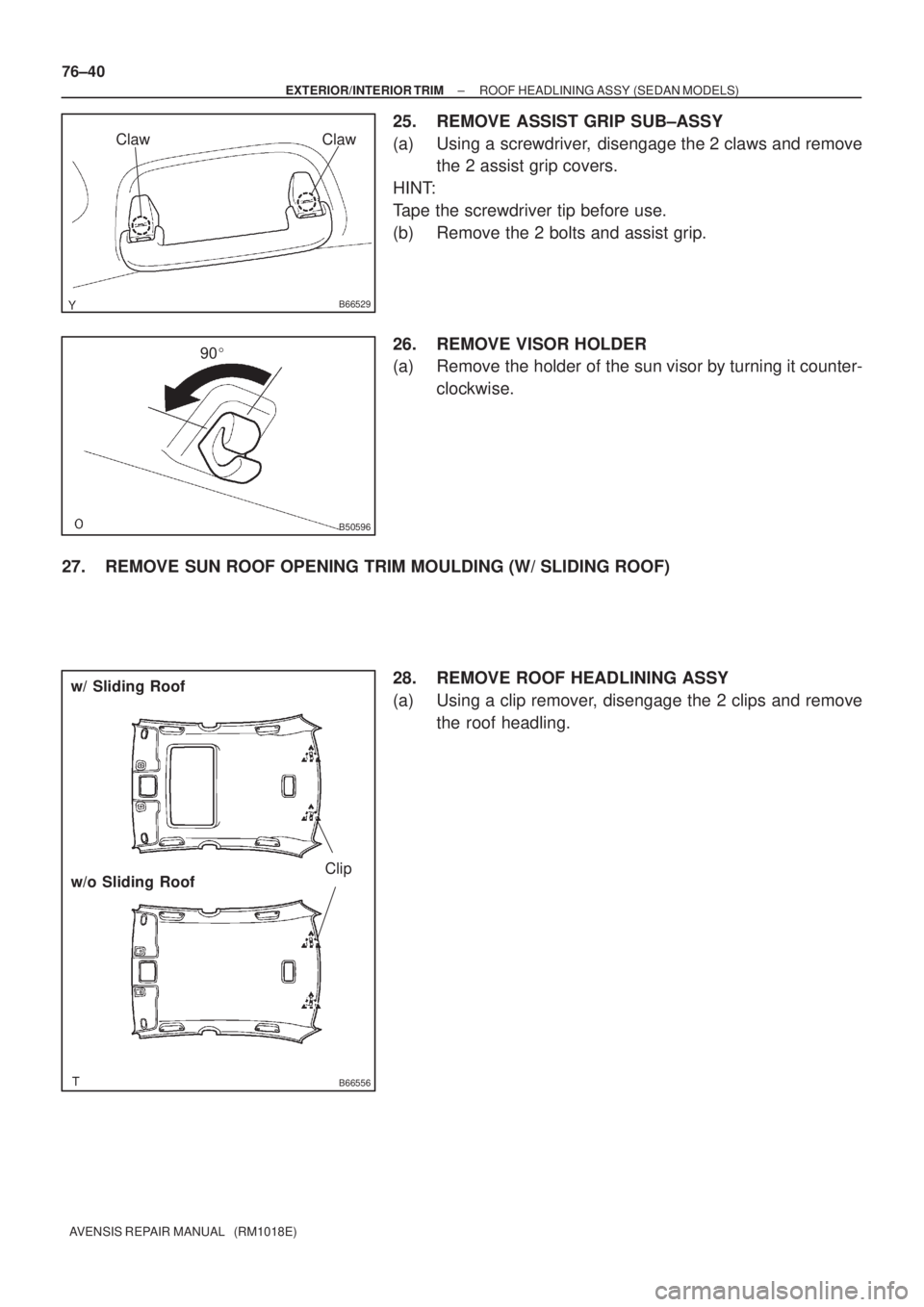

Page 3427 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B66529 ClawClaw B50596 90 B66556 Clip w/ Sliding Roof w/o Sliding Roof 76±40 ± EXTERIOR/INTERIOR TRIMROOF HEADLINING ASSY (SEDAN MODELS) AVENSIS REPAIR MANUAL (RM1018E) 25. REMOVE ASSIST GRIP SUB

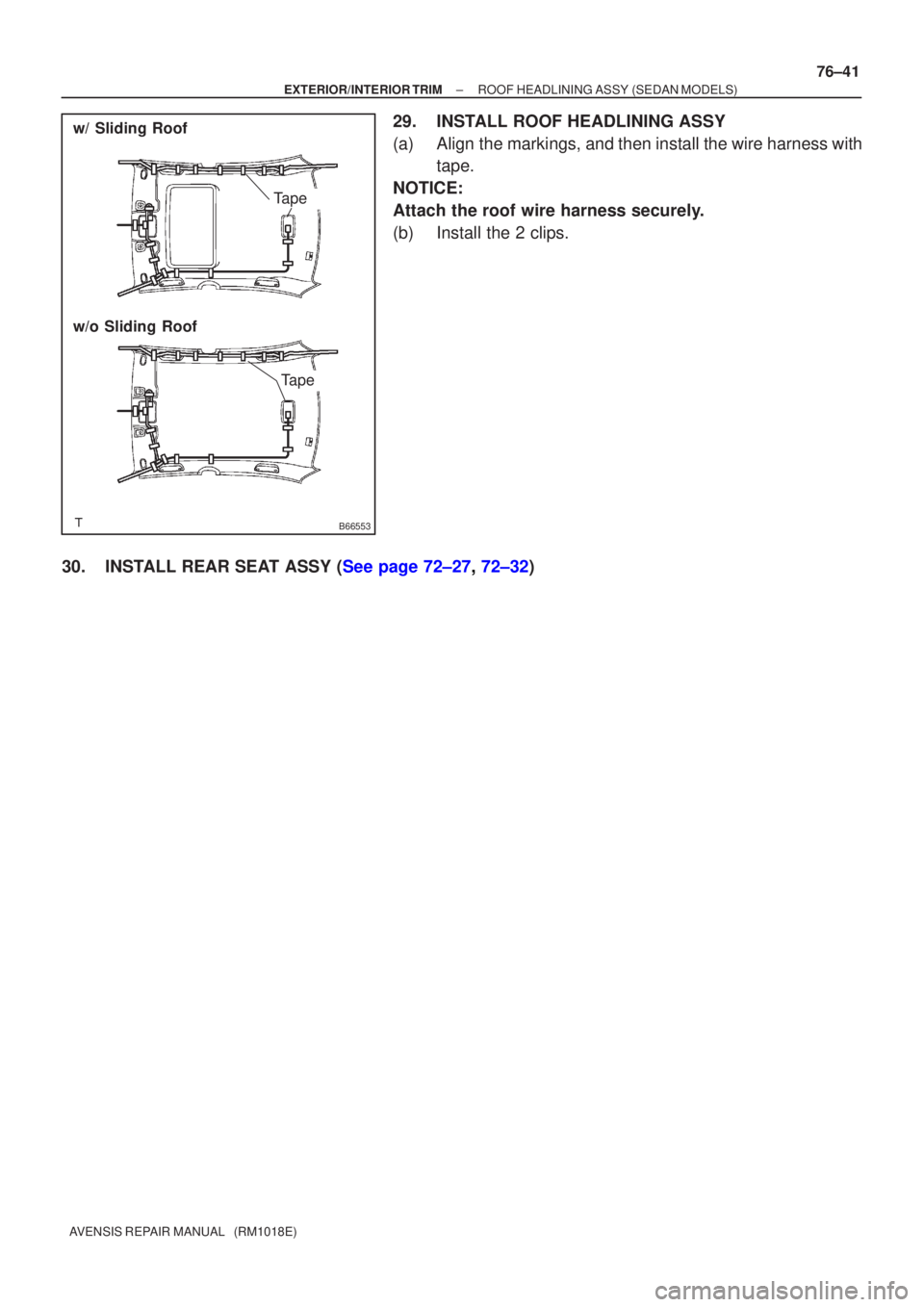

Page 3428 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B66553 Tape w / Sliding Roof w/o Sliding Roof T ape ± EXTERIOR/INTERIO R TRI M ROOF HEADLINING ASS Y(SEDAN MODELS) 76±41 A VENSIS RE PAIR MANUAL (RM1018E) 29 . INS TALL ROOF HEADLINING ASSY (a )

Page 3429 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 760WT±01 B66561 Roof Side Garnish Inner RH Front Pillar Garnish RH Front Door Opening Trim Weatherstrip RH Center Pillar Garnish RH Rear Door Opening Trim Weatherstrip RH Front Door Scuff Plate RH Re

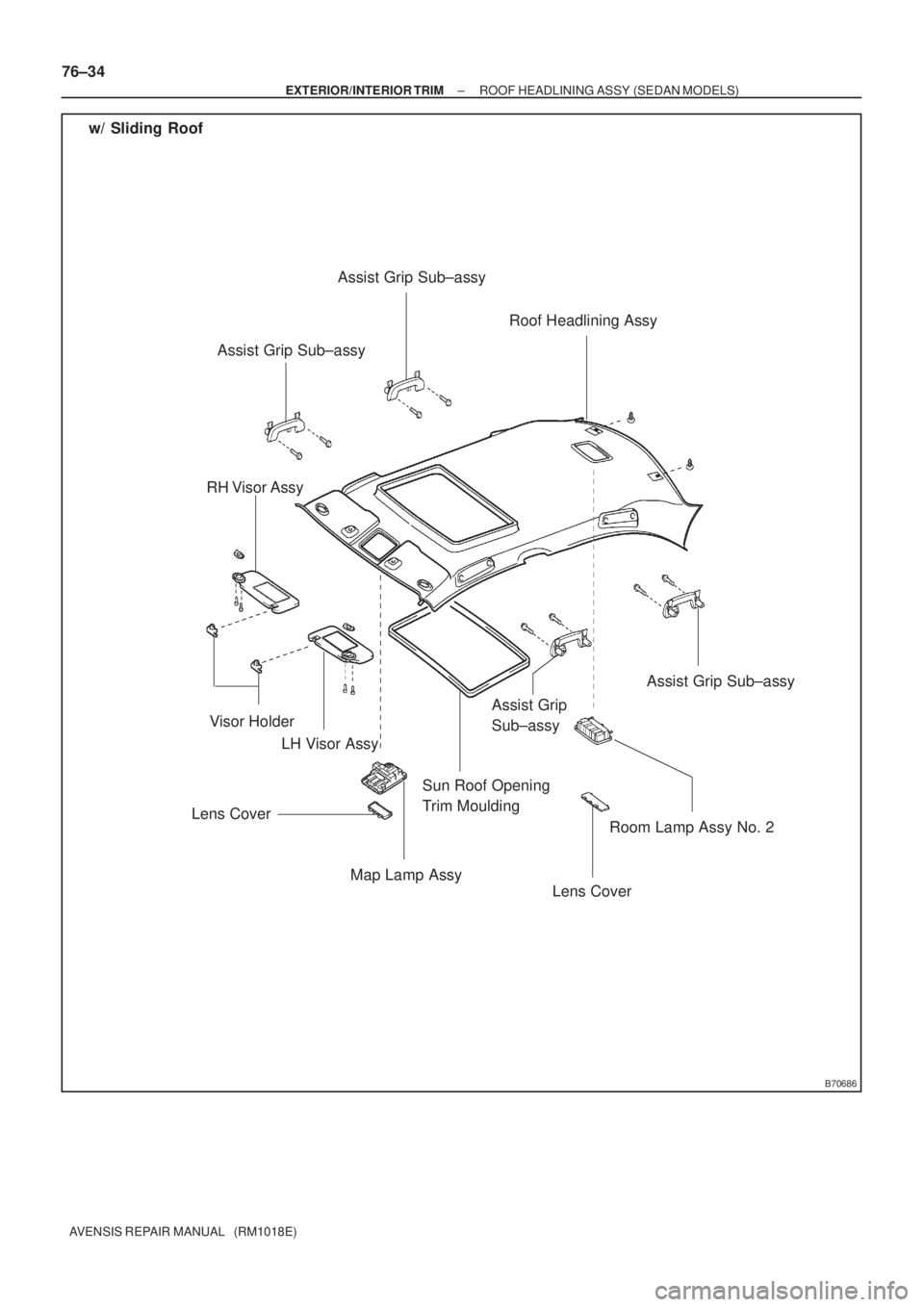

Page 3430 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B70686 LH Visor Assy Visor HolderRoof Headlining Assy RH Visor Assy Map Lamp AssyRoom Lamp Assy No. 2 Lens Cover Assist Grip Sub±assy Lens CoverAssist Grip Sub±assy Assist Grip Sub±assy Assist Gri

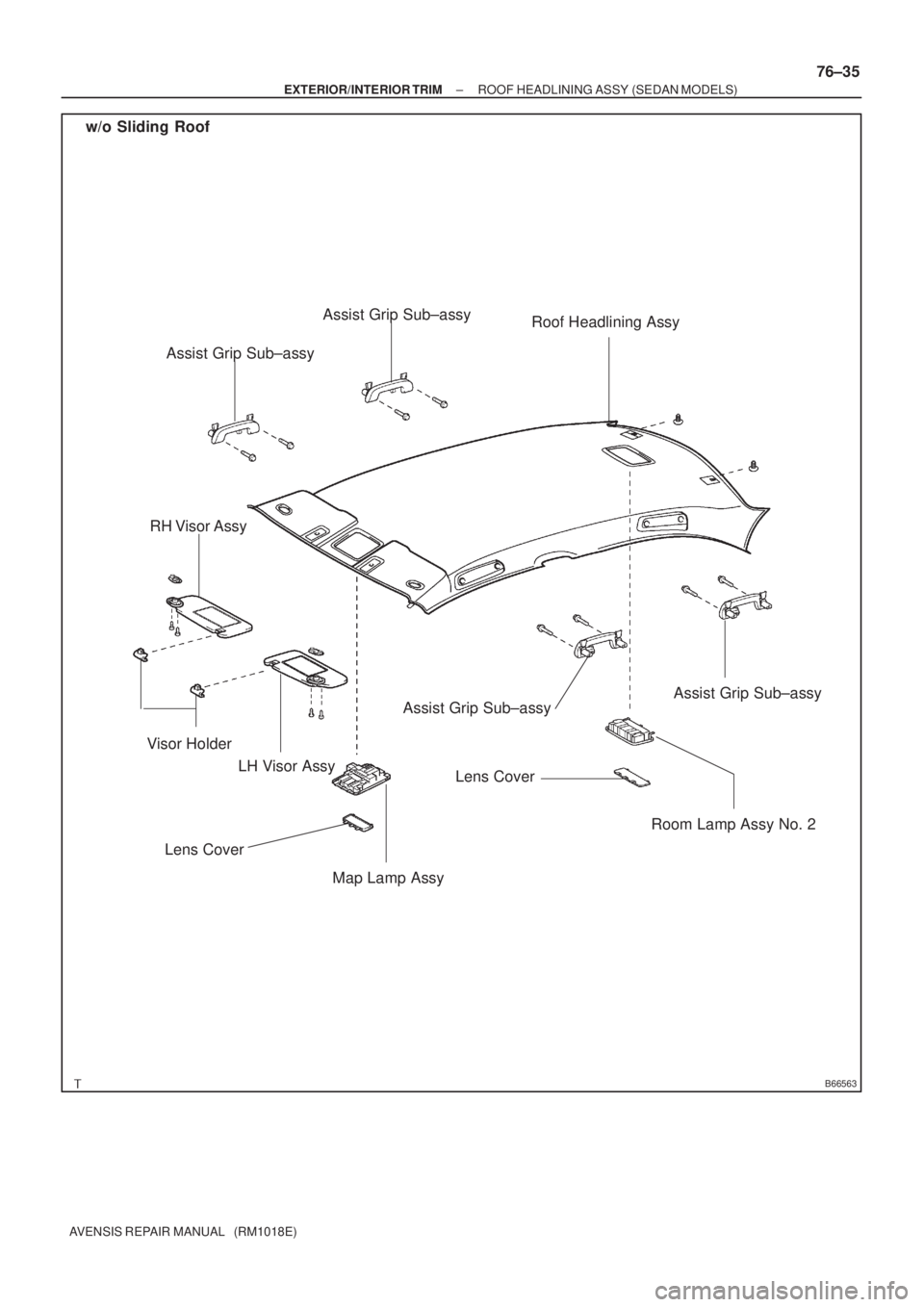

Page 3431 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B66563 LH Visor Assy Visor HolderRoof Headlining Assy RH Visor Assy Map Lamp AssyRoom Lamp Assy No. 2 Lens Cover Assist Grip Sub±assy Lens CoverAssist Grip Sub±assy Assist Grip Sub±assy Assist Grip

Page 3432 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 760WC±01 B67619 Clip 76±32 ± EXTERIOR/INTERIOR TRIMFRONT FLOOR FOOTREST AVENSIS REPAIR MANUAL (RM1018E) FRONT FLOOR FOOTREST REPLACEMENT HINT: The installation is in the reverse order of the remo
