Page 2665 of 5135
330C6±01
F44810
F41838
F44811
F44812
33±4
±
PARKING BRAKE PARKING BRAKE LEVER SUB±ASSY
AVENSIS REPAIR MANUAL (RM1018E)

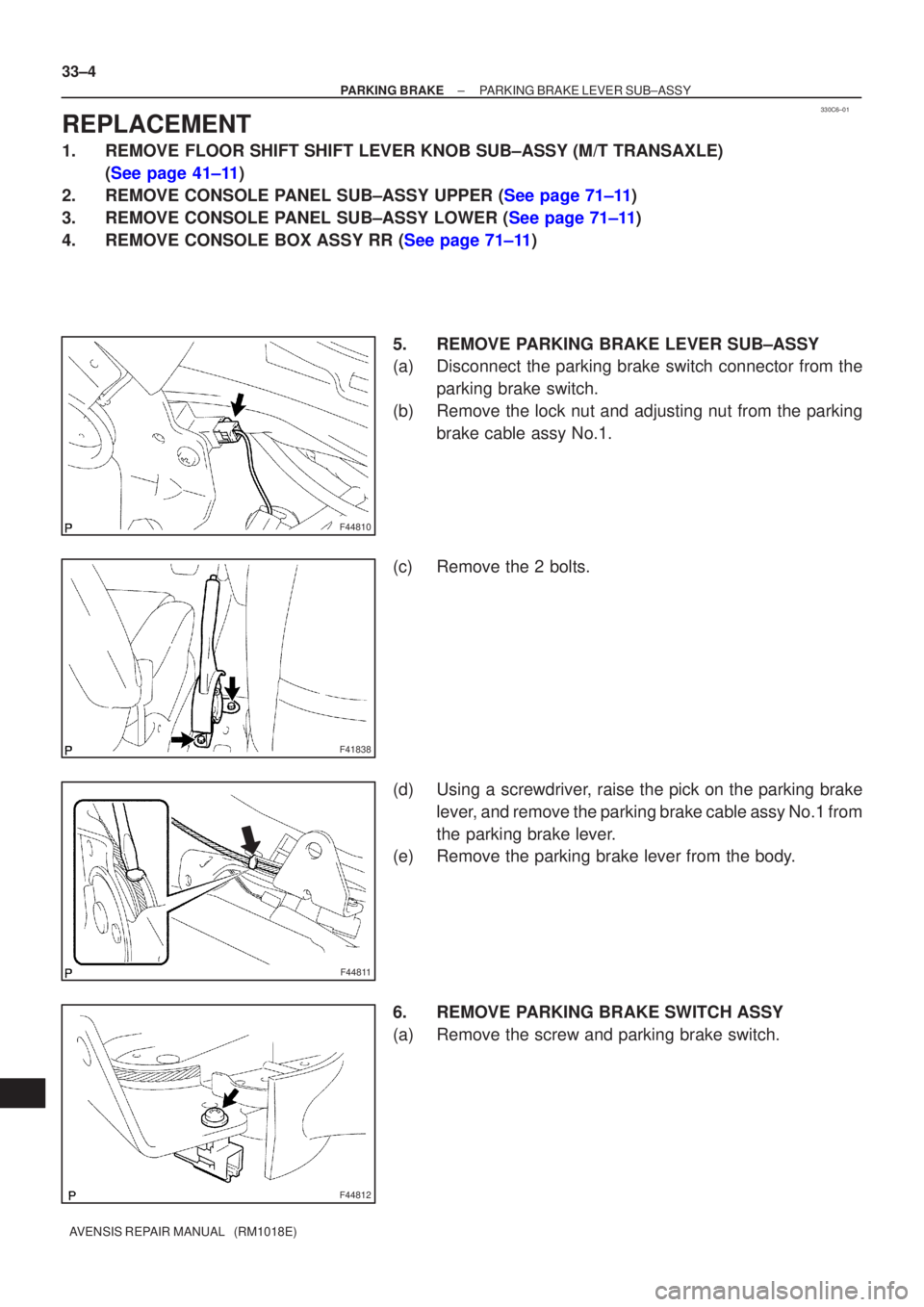

REPLACEMENT
1. REMOVE FLOOR SHIFT SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) (See page 41±11)
2.REMOVE CONSOLE PANEL SUB±ASSY UPPER (See page 71±11)
3.REMOVE CONSOLE PANEL SUB±ASSY LOWER (See page 71±11)
4.REMOVE CONSOLE BOX ASSY RR (See page 71±11)
5. REMOVE PARKING BRAKE LEVER SUB±ASSY
(a) Disconnect the parking brake switch connector from theparking brake switch.
(b) Remove the lock nut and adjusting nut from the parking brake cable assy No.1.
(c) Remove the 2 bolts.
(d) Using a screwdriver, raise the pick on the parking brake lever, and remove the parking brake cable assy No.1 from
the parking brake lever.
(e) Remove the parking brake lever from the body.
6. REMOVE PARKING BRAKE SWITCH ASSY
(a) Remove the screw and parking brake switch.
Page 2666 of 5135
F44812
F44813
F41838
F44810
±
PARKING BRAKE PARKING BRAKE LEVER SUB±ASSY
33±5
AVENSIS REPAIR MANUAL (RM1018E)

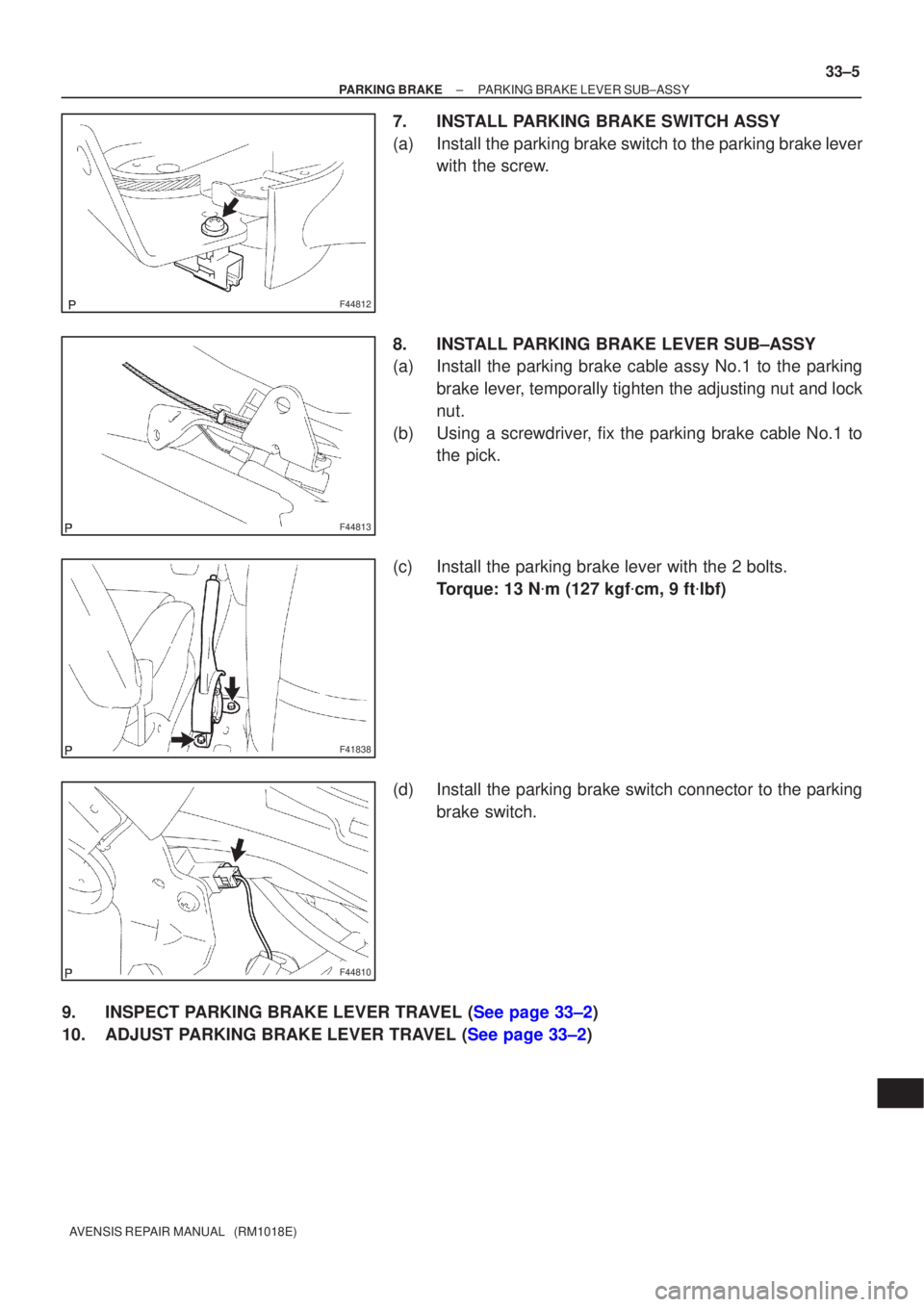

7. INSTALL PARKING BRAKE SWITCH ASSY
(a) Install the parking brake switch to the parking brake lever
with the screw.
8. INSTALL PARKING BRAKE LEVER SUB±ASSY
(a) Install the parking brake cable assy No.1 to the parking brake lever, temporally tighten the adjusting nut and lock
nut.
(b) Using a screwdriver, fix the parking brake cable No.1 to the pick.
(c) Install the parking brake lever with the 2 bolts. Torque: 13 N m (127 kgf cm, 9 ft lbf)
(d) Install the parking brake switch connector to the parking brake switch.
9.INSPECT PARKING BRAKE LEVER TRAVEL (See page 33±2)
10.ADJUST PARKING BRAKE LEVER TRAVEL (See page 33±2)
Page 2667 of 5135
33068±03
F44809
Console Box Assy RR
Lock Nut
Adjusting Nut
Parking BrakeLever Sub±assy Parking Brake Switch Assy
Parking Brake Switch Connector
Parking BrakeCable No.1
Nm (kgfcm, ftlbf)
: Specified torqueScrew
13 (127, 9)
A/T TRANSAXLE:
Floor Shift Shift
Lever Knob
Sub±Assy
Console Panel Sub±Assy Upper
Console Panel Sub±Assy Lower
A/T Transaxle
M/T Transaxle M/T TRANSAXLE:
Console Panel
Sub±Assy Upper
5.0 (51, 44 in.lbf)
M/T Transaxle
± PARKING BRAKEPARKING BRAKE LEVER SUB±ASSY
33±3
AVENSIS REPAIR MANUAL (RM1018E)

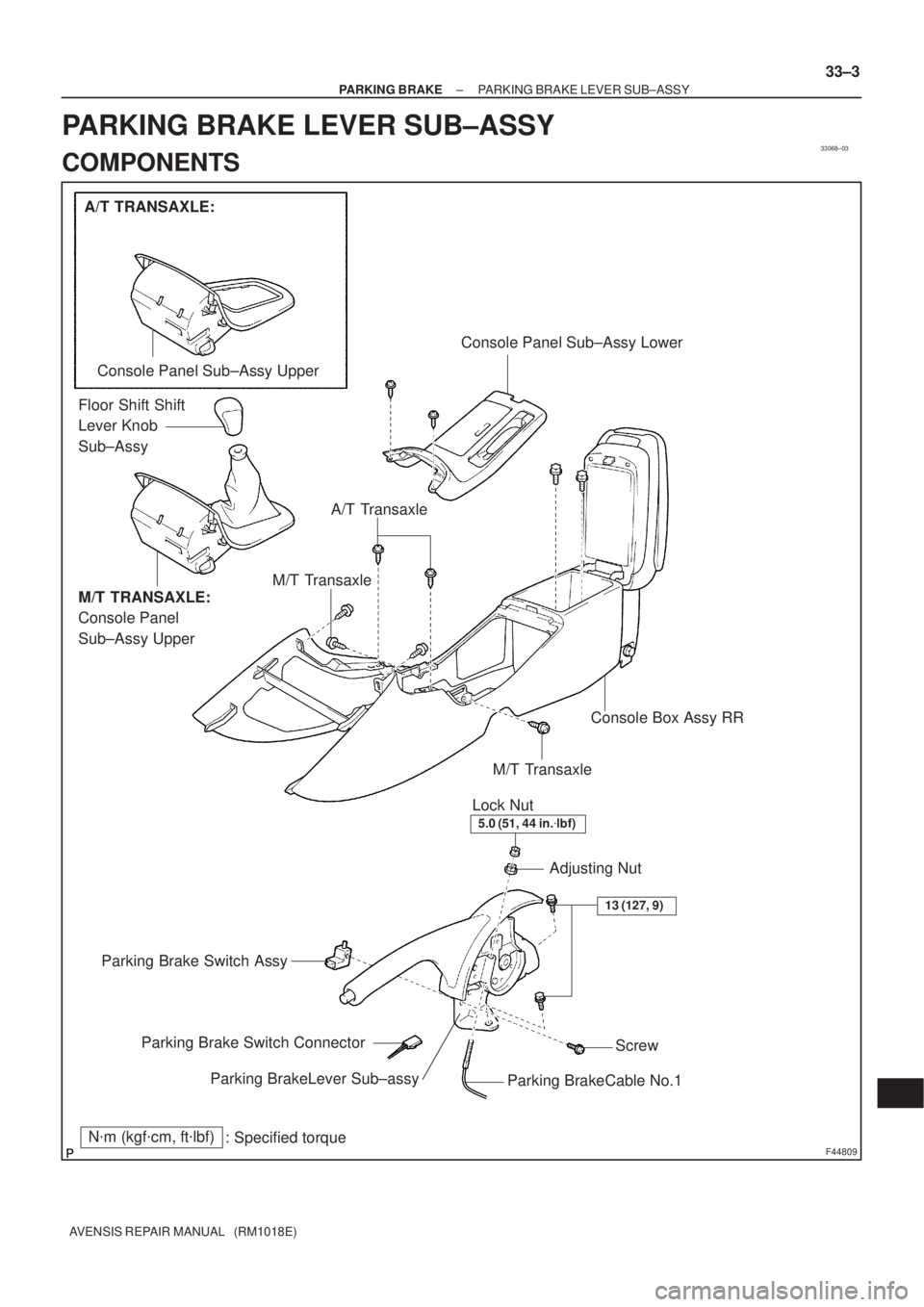

PARKING BRAKE LEVER SUB±ASSY
COMPONENTS
Page 2668 of 5135
3300F±07
F44808
Lock NutAdjusting Nut
33±2
±
PARKING BRAKE PARKING BRAKE SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

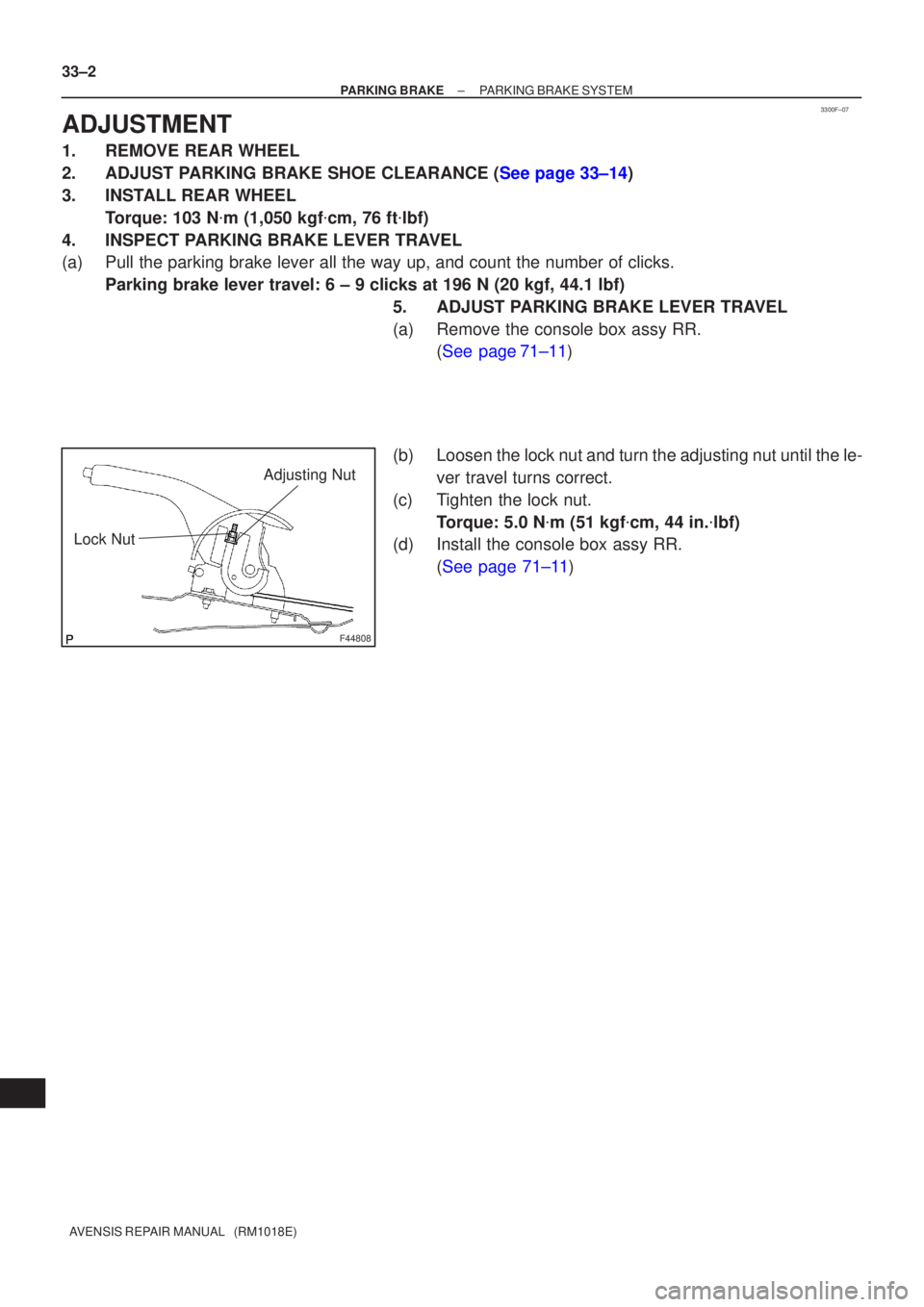

ADJUSTMENT
1. REMOVE REAR WHEEL
2.ADJUST PARKING BRAKE SHOE CLEARANCE (See page 33±14)
3. INSTALL REAR WHEEL Torque: 103 N m (1,050 kgf cm, 76 ft lbf)
4. INSPECT PARKING BRAKE LEVER TRAVEL
(a) Pull the parking brake lever all the way up, and count the number of cli\
cks. Parking brake lever travel: 6 ± 9 clicks at 196 N (20 kgf, 44.1 lbf)\
5. ADJUST PARKING BRAKE LEVER TRAVEL
(a) Remove the console box assy RR.(See page71±11)
(b) Loosen the lock nut and turn the adjusting nut until the le- ver travel turns correct.
(c) Tighten the lock nut. Torque: 5.0 N m (51 kgf cm, 44 in. lbf)
(d) Install the console box assy RR.
(See page 71±11)
Page 2669 of 5135
3300E±07
±
PARKING BRAKE PARKING BRAKE SYSTEM
33±1
AVENSIS REPAIR MANUAL (RM1018E)

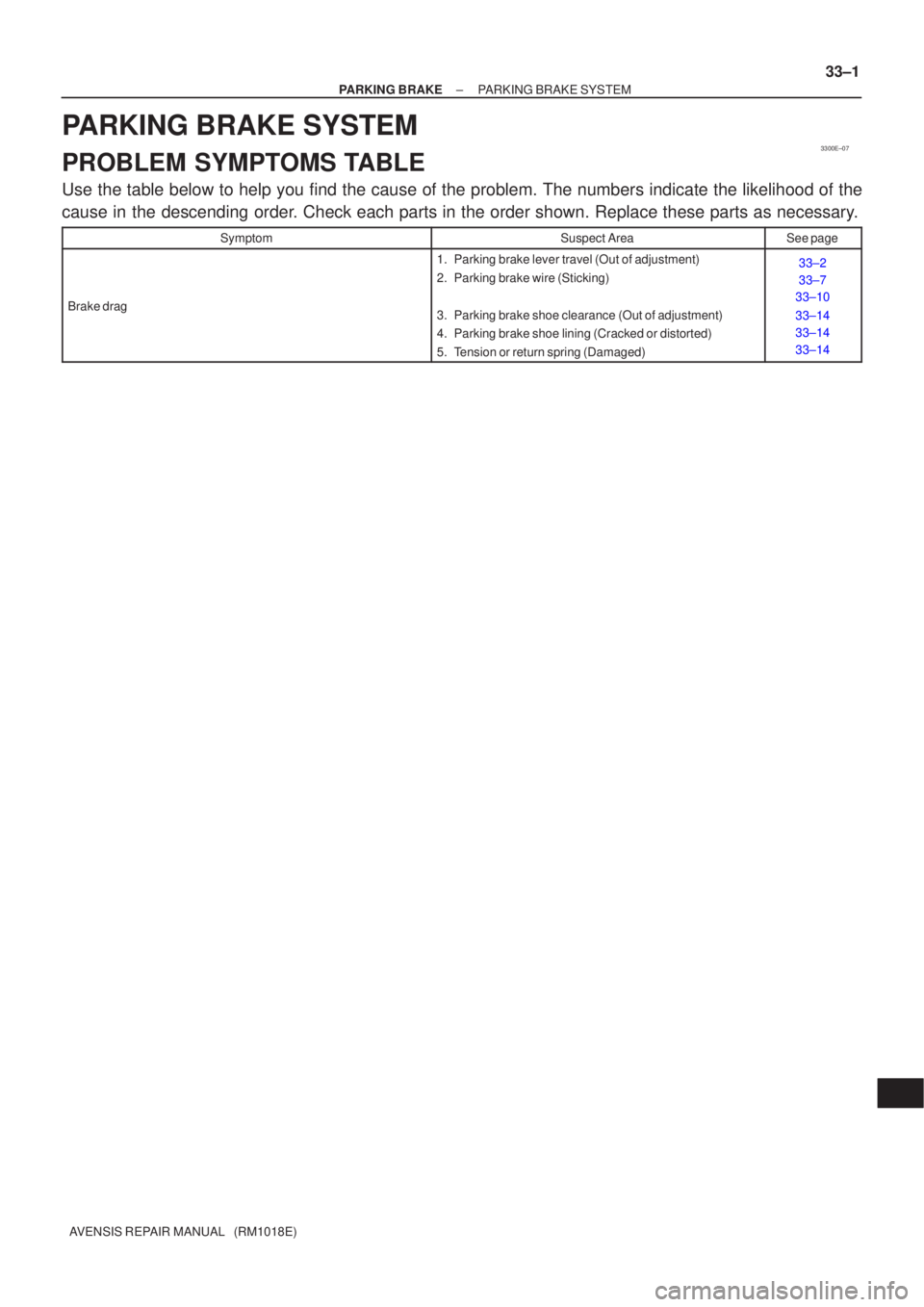

PARKING BRAKE SYSTEM
PROBLEM SYMPTOMS TABLE
Use the table below to help you find the cause of the problem. The numbers \
indicate the likelihood of the
cause in the descending order. Check each parts in the order shown. Replace these parts as necessary.
SymptomSuspect AreaSee page
Brake drag
1. Parking brake lever travel (Out of adjustment)
2. Parking brake wire (Sticking)
3. Parking brake shoe clearance (Out of adjustment)
4. Parking brake shoe lining (Cracked or distorted)
5. Tension or return spring (Damaged)33±2
33±7
33±10
33±14
33±14
33±14
Page 2670 of 5135

320G5±02
F45426
F45427
F42642
±
BRAKE STEERING SENSOR
32±65
AVENSIS REPAIR MANUAL (RM1018E)
STEERING SENSOR
REPLACEMENT
1.PRECAUTION (See page 60±1)
2. REMOVE PLACE FRONT WHEELS FACING STRAIGHT AHEAD
3.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
4.REMOVE HORN BUTTON ASSY (See page 60±17)
5.REMOVE STEERING WHEEL ASSY (See page 50±9)
6.REMOVE STEERING COLUMN COVER LWR (See page 50±9)
7. REMOVE STEERING COLUMN COVER W/INSTRUMENT CLUSTER FINISH PANEL ASSY
(See page 50±9)
8.REMOVE STEERING COLUMN ASSY(See page 50±9)
9.REMOVE STEERING INTERMEDIATE SHAFT ASSY NO.2 (See page 50±9)
10. REMOVE STEERING SENSOR
(a) Place the steering column assy on the V±blocks and rub-ber stick.
(b) Using a extension bar and hammer, remove the steering column bracket spacer and 2 tilt steering support collar
No.1 from the steering column assy.
NOTICE:
During this procedure, do not apply the strong shock
to the steering sensor.
Do not apply any oil or grease on the pin.
(c) Using a screwdriver, remove the bush from the steering column assy.
(d) Disconnect the pick on the steering sensor and steering sensor adapter, then remove the steering sensor from the
column shaft.
(e) Remove the steering sensor adapter.
Page 2671 of 5135

F42641
F42642
F45427
F45426
32±66
±
BRAKE STEERING SENSOR
AVENSIS REPAIR MANUAL (RM1018E)

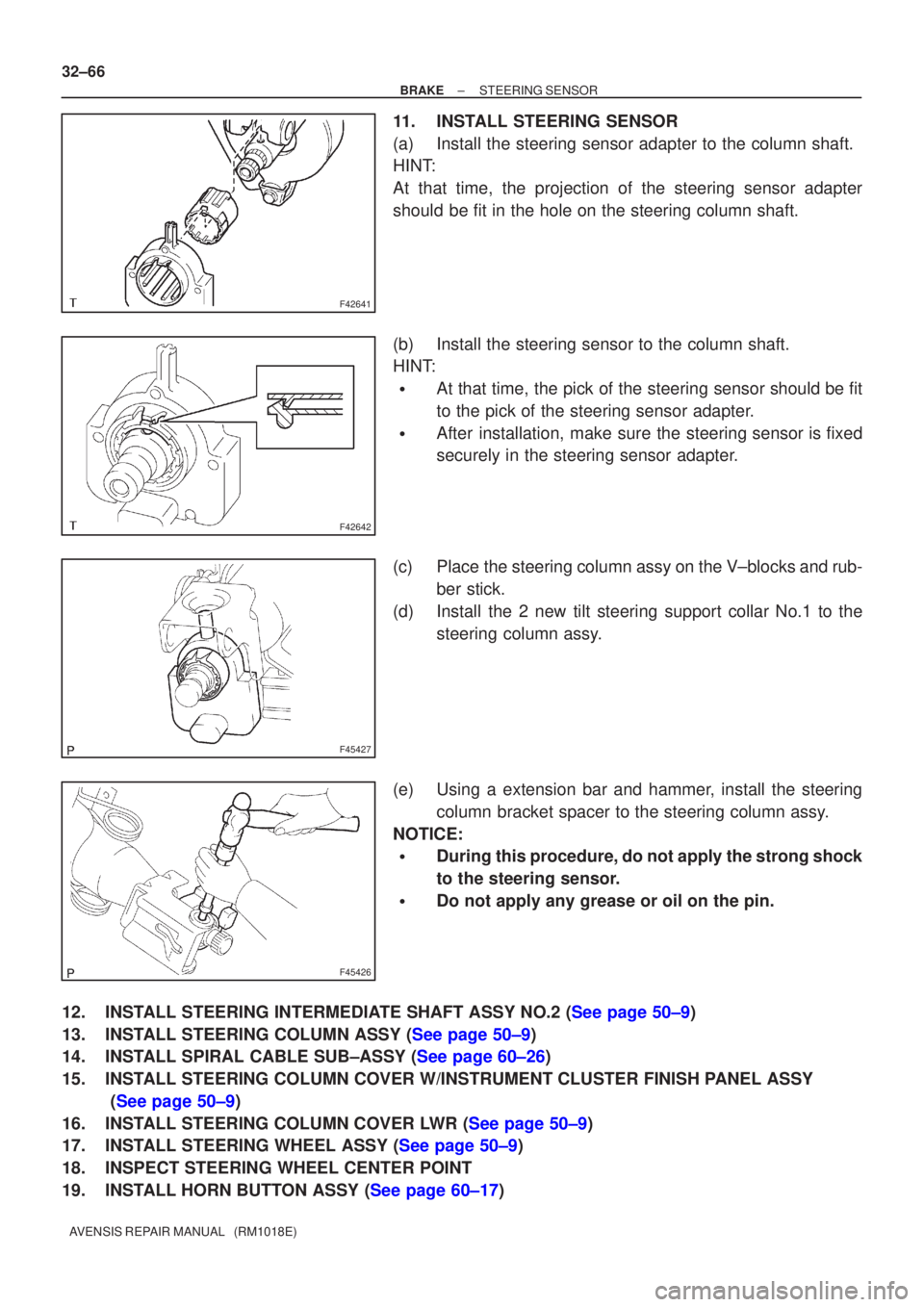

11. INSTALL STEERING SENSOR
(a) Install the steering sensor adapter to the column shaft.
HINT:
At that time, the projection of the steering sensor adapter
should be fit in the hole on the steering column shaft.
(b) Install the steering sensor to the column shaft.
HINT:
At that time, the pick of the steering sensor should be fit
to the pick of the steering sensor adapter.
After installation, make sure the steering sensor is fixed
securely in the steering sensor adapter.
(c) Place the steering column assy on the V±blocks and rub- ber stick.
(d) Install the 2 new tilt steering support collar No.1 to the steering column assy.
(e) Using a extension bar and hammer, install the steering column bracket spacer to the steering column assy.
NOTICE:
During this procedure, do not apply the strong shock
to the steering sensor.
Do not apply any grease or oil on the pin.
12.INSTALL STEERING INTERMEDIATE SHAFT ASSY NO.2 (See page 50±9)
13.INSTALL STEERING COLUMN ASSY (See page 50±9)
14.INSTALL SPIRAL CABLE SUB±ASSY (See page 60±26)
15. INSTALL STEERING COLUMN COVER W/INSTRUMENT CLUSTER FINISH PANEL ASSY (See page 50±9)
16.INSTALL STEERING COLUMN COVER LWR (See page 50±9)
17.INSTALL STEERING WHEEL ASSY (See page 50±9)
18. INSPECT STEERING WHEEL CENTER POINT
19.INSTALL HORN BUTTON ASSY (See page 60±17)
Page 2672 of 5135
±
BRAKE STEERING SENSOR
32±67
AVENSIS REPAIR MANUAL (RM1018E)

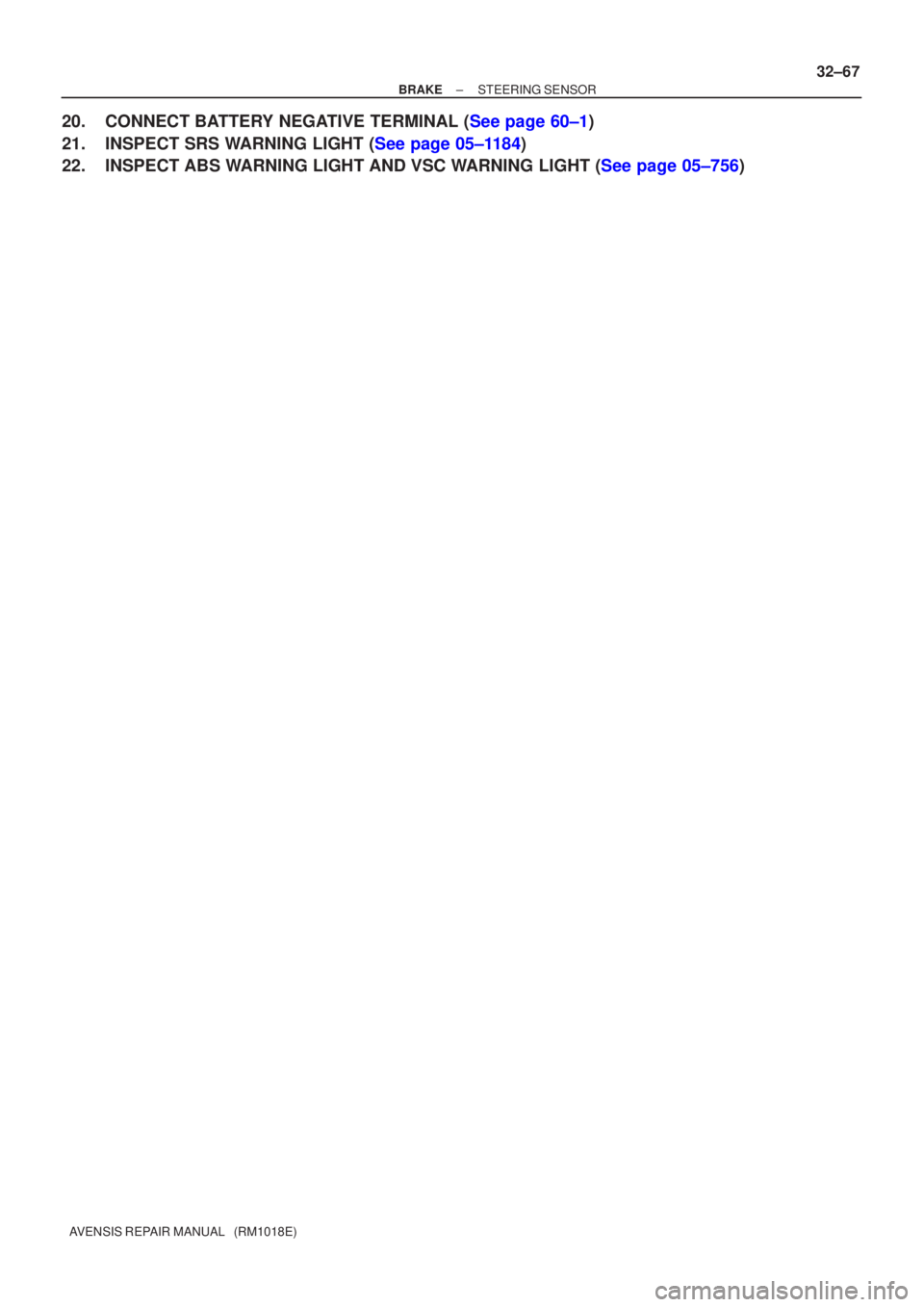

20.CONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
21.INSPECT SRS WARNING LIGHT (See page 05±1184)
22.INSPECT ABS WARNING LIGHT AND VSC WARNING LIGHT (See page 05±756)
