2005 TOYOTA AVENSIS oil capacity

02±22
± PREPARATIONLUBRICATION
AVENSIS REPAIR MANUAL (RM1018E)
SSM
08826±00080Seal Packing Black or equivalent
(FIPG)OIL PUMP ASSY(1CD±FTV)
Lubricant
ItemCapacityClassification
Oil grade (gasoline engine)
±
API grade SJ ºEnergy±Conservingº, SL ºEnergy±
Conservingº multigrade engine oil or ILSAC multi-
grade engine oil
Oil grade (Diesel engine)±ACEA B1, API CF±4 or CF
(You may also use API CE or CD.)
Drain and refill (1ZZ±FE/3ZZ±FE)
w/ oil filter change
w/o oil filter change
3.7 liters (3.9 US qts, 3.3 lmp. qts)
3.5 liters (3.7 US qts, 3.1 lmp. qts)±
Drain and refill (1AZ±FE/1AZ±FSE)
w/ oil filter change
w/o oil filter change
4.2 liters (4.4 US qts, 3.7 lmp. qts)
4.0 liters (4.2 US qts, 3.5 lmp. qts)±
Drain and refill (1CD±FTV)
w/ oil filter change
w/o oil filter change
5.9 liters (6.2 US qts, 5.2 lmp. qts)
5.3 liters (5.6 US qts, 4.7 lmp. qts)±
Dry fill (1ZZ±FE/3ZZ±FE)4.2 liters (4.4 US qts, 3.7 lmp. qts)±
Dry fill (1AZ±FE/1AZ±FSE)4.9 liters (5.2 US qts, 4.3 lmp. qts)±
Dry fill (1CD±FTV)6.7 liters (7.1 US qts, 5.9 lmp. qts)±

± PREPARATIONHEATER & AIR CONDITIONER
02±51
AVENSIS REPAIR MANUAL (RM1018E)
95416±00140Gas Leak Detector
(Halogen Leak Detector)
(DENSO Part No.)REFRIGERANT
AIR CONDITIONING RADIATOR
ASSY
W/PULLEY COMPRESSOR
ASSY(1AZ±FE)
W/PULLEY COMPRESSOR
ASSY(1AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(1CD±FTV)
W/PULLEY COMPRESSOR
ASSY(1ZZ±FE)
W/PULLEY COMPRESSOR
ASSY(2AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(3ZZ±FE)
Equipment
Voltmeter
Anmeter
Ohmmeter
Vinyl tape
Hexagon wrench 4 mm (0.15 in.)
Hexagon wrench 14 mm (0.55 in.)
Gas leak detector
Dial indicator with magnetic base
Radiator cap tester
Torque wrench
Lubricant
ItemCapacityClassification
Compressor oil±ND±OIL 8 or equivalent

02±42
± PREPARATIONMANUAL TRANSMISSION/TRANSAXLE
AVENSIS REPAIR MANUAL (RM1018E)
Equipment
Torque wrench
Hexagon wrench (6 mm)
Lubricant
ItemCapacityClassification
C50, C250
Manual Transaxle oil
(w/ Differential oil)
1.9 litters (2.0 US qts, 1.7 Imp. qts)API GL±4 or GL±5
SAE 75W±90
E354, E357
Manual Transaxle oil
(w/ Differential oil)
2.5 litters (2.6 US qts, 2.2 Imp. qts)API GL±4 or GL±5
SAE 75W±90

170FV±01
A56222
A56223

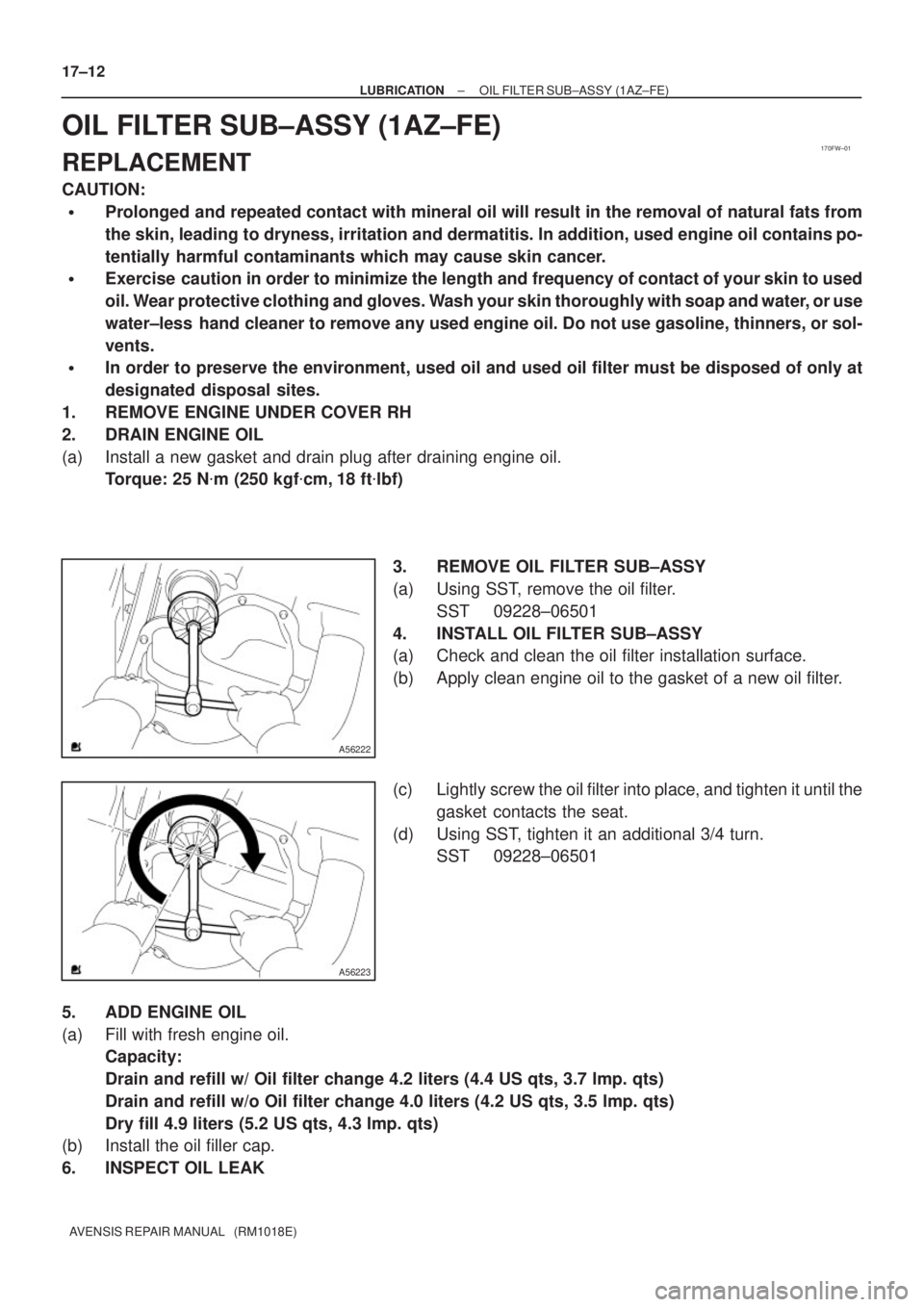

± LUBRICATIONOIL FILTER SUB±ASSY (1AZ±FSE)
17±19
AVENSIS REPAIR MANUAL (RM1018E)
OIL FILTER SUB±ASSY (1AZ±FSE)
REPLACEMENT
CAUTION:

Prolonged and repeated contact with mineral oil will result in the removal of natural fats from
the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains po-
tentially harmful contaminants which may cause skin cancer.

Exercise caution in order to minimize the length and frequency of contact of your skin to used
oil. Wear protective clothing and gloves. Wash your skin thoroughly with soap and water, or use
water±less hand cleaner to remove any used engine oil. Do not use gasoline, thinners, or sol-
vents.

In order to preserve the environment, used oil and used oil filter must be disposed of only at
designated disposal sites.
1. REMOVE ENGINE UNDER COVER RH
2. DRAIN ENGINE OIL
(a) Install a new gasket and drain plug after draining engine oil.
Torque: 25 N
m (250 kgf
cm, 18 ft
lbf)
3. REMOVE OIL FILTER SUB±ASSY
(a) Using SST, remove the oil filter.
SST 09228±06501
4. INSTALL OIL FILTER SUB±ASSY
(a) Check and clean the oil filter installation surface.
(b) Apply clean engine oil to the gasket of a new oil filter.
(c) Lightly screw the oil filter into place, and tighten it until the
gasket contacts the seat.
(d) Using SST, tighten it an additional 3/4 turn.
SST 09228±06501
5. ADD ENGINE OIL
(a) Fill with fresh engine oil.
Capacity:
Drain and refill w/ Oil filter change 4.2 liters (4.4 US qts, 3.7 lmp. qts)
Drain and refill w/o Oil filter change 4.0 liters (4.2 US qts, 3.5 lmp. qts)
Dry fill 4.9 liters (5.2 US qts, 4.3 lmp. qts)
(b) Install the oil filler cap.
6. INSPECT OIL LEAK

170FW±01
A56222
A56223
17±12
± LUBRICATIONOIL FILTER SUB±ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
OIL FILTER SUB±ASSY (1AZ±FE)
REPLACEMENT
CAUTION:

Prolonged and repeated contact with mineral oil will result in the removal of natural fats from
the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains po-
tentially harmful contaminants which may cause skin cancer.

Exercise caution in order to minimize the length and frequency of contact of your skin to used
oil. Wear protective clothing and gloves. Wash your skin thoroughly with soap and water, or use
water±less hand cleaner to remove any used engine oil. Do not use gasoline, thinners, or sol-
vents.

In order to preserve the environment, used oil and used oil filter must be disposed of only at
designated disposal sites.
1. REMOVE ENGINE UNDER COVER RH
2. DRAIN ENGINE OIL
(a) Install a new gasket and drain plug after draining engine oil.
Torque: 25 N
m (250 kgf
cm, 18 ft
lbf)
3. REMOVE OIL FILTER SUB±ASSY
(a) Using SST, remove the oil filter.
SST 09228±06501
4. INSTALL OIL FILTER SUB±ASSY
(a) Check and clean the oil filter installation surface.
(b) Apply clean engine oil to the gasket of a new oil filter.
(c) Lightly screw the oil filter into place, and tighten it until the
gasket contacts the seat.
(d) Using SST, tighten it an additional 3/4 turn.
SST 09228±06501
5. ADD ENGINE OIL
(a) Fill with fresh engine oil.
Capacity:
Drain and refill w/ Oil filter change 4.2 liters (4.4 US qts, 3.7 lmp. qts)
Drain and refill w/o Oil filter change 4.0 liters (4.2 US qts, 3.5 lmp. qts)
Dry fill 4.9 liters (5.2 US qts, 4.3 lmp. qts)
(b) Install the oil filler cap.
6. INSPECT OIL LEAK

± LUBRICATIONOIL FILTER SUB±ASSY (1ZZ±FE/3ZZ±FE)
17±5
AVENSIS REPAIR MANUAL (RM1018E)
4. INSTALL OIL PAN DRAIN PLUG
(a) Clean and install the oil pan drain plug with a new gasket.
Torque: 37 N
m (377 kgf
cm, 27 in.
lbf)
5. ADD ENGINE OIL
Capacity:
With oil filler replacement: 3.7 liters (3.9 US qts, 3.3 lmp. qts)
Without oil filler replacement: 3.5 liters (3.7 US qts, 3.1 lmp. qts)
Dry fill: 4.2 liters (4.4 US qts, 3.7 lmp. qts)
6. CHECK FOR ENGINE OIL LEAKS

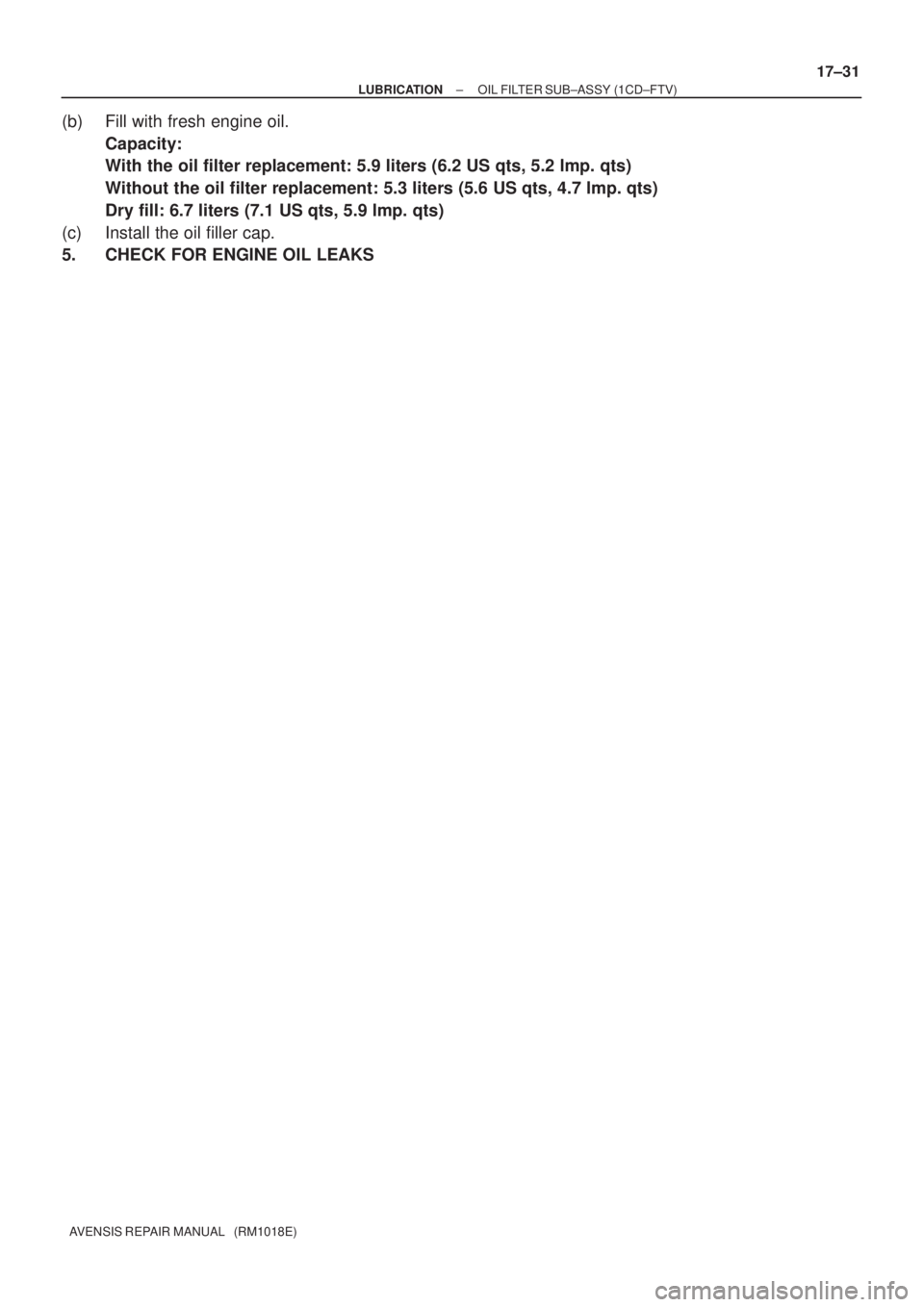

± LUBRICATIONOIL FILTER SUB±ASSY (1CD±FTV)
17±31
AVENSIS REPAIR MANUAL (RM1018E)
(b) Fill with fresh engine oil.
Capacity:
With the oil filter replacement: 5.9 liters (6.2 US qts, 5.2 lmp. qts)
Without the oil filter replacement: 5.3 liters (5.6 US qts, 4.7 lmp. qts)
Dry fill: 6.7 liters (7.1 US qts, 5.9 lmp. qts)
(c) Install the oil filler cap.
5. CHECK FOR ENGINE OIL LEAKS

D26133
SST(s)
D25304
0 to 5 mm
(0 to 0.20 in.)
41±6
±

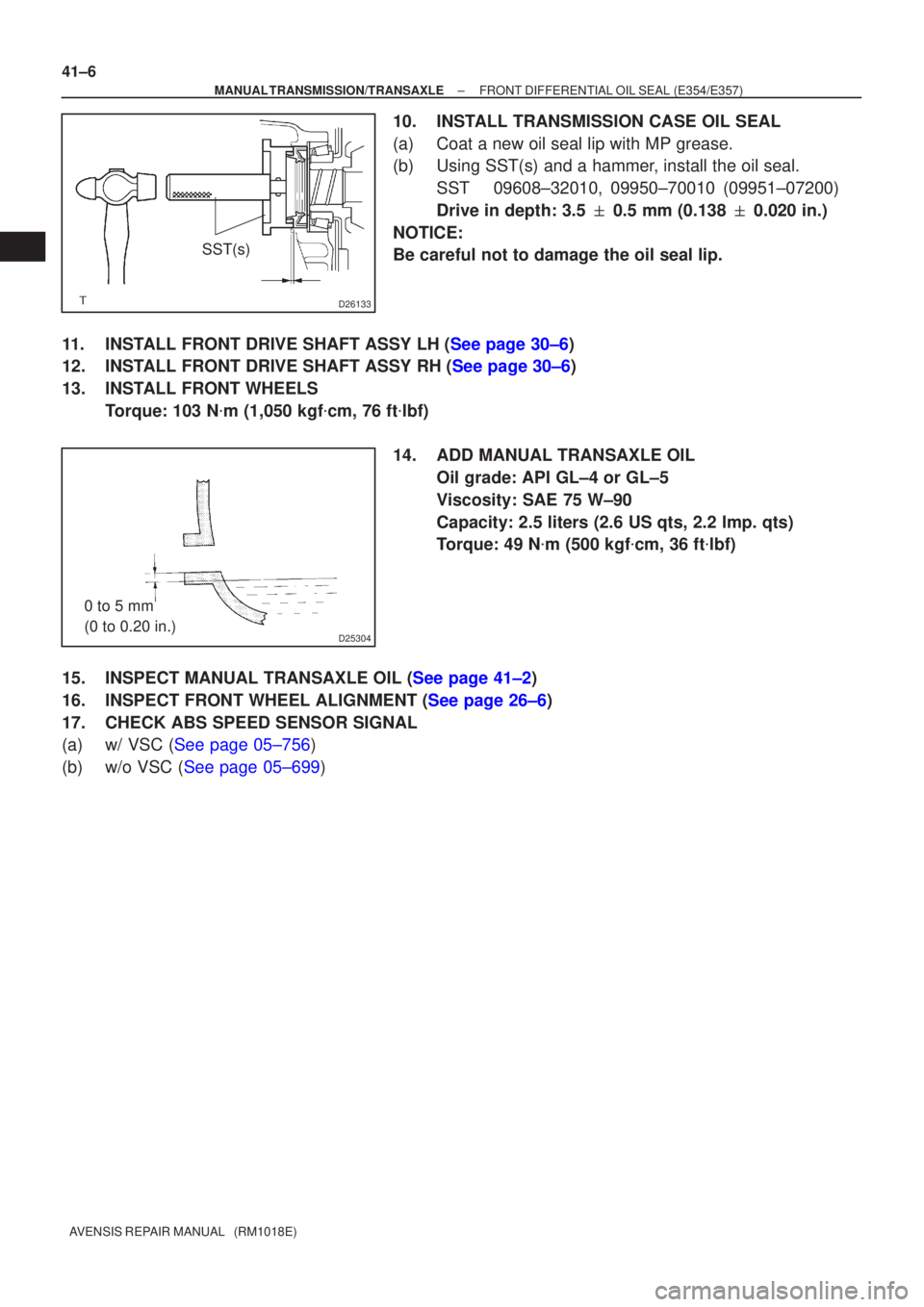

MANUAL TRANSMISSION/TRANSAXLE FRONT DIFFERENTIAL OIL SEAL (E354/E357)
AVENSIS REPAIR MANUAL (RM1018E)
10. INSTALL TRANSMISSION CASE OIL SEAL
(a) Coat a new oil seal lip with MP grease.
(b) Using SST(s) and a hammer, install the oil seal. SST 09608±32010, 09950±70010 (09951±07200)
Drive in depth: 3.5
0.5 mm (0.138
0.020 in.)
NOTICE:
Be careful not to damage the oil seal lip.
11.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
12.INSTALL FRONT DRIVE SHAFT ASSY RH (See page 30±6)
13. INSTALL FRONT WHEELS Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
14. ADD MANUAL TRANSAXLE OIL Oil grade: API GL±4 or GL±5
Viscosity: SAE 75 W±90
Capacity: 2.5 liters (2.6 US qts, 2.2 lmp. qts)
Torque: 49 N
m (500 kgf
cm, 36 ft
lbf)
15.INSPECT MANUAL TRANSAXLE OIL (See page 41±2)
16.INSPECT FRONT WHEEL ALIGNMENT (See page 26±6)
17. CHECK ABS SPEED SENSOR SIGNAL
(a)w/ VSC (See page 05±756)
(b)w/o VSC (See page 05±699)
