± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
FUEL INJECTOR CIRCUIT
CIRCUIT DESCRIPTION
The fuel injectors are located on the intake manifold.
They inject fuel into the cylinders based on the signals from the ECM.
Reference: Inspection using oscilloscope
With the engine idling, check the waveform between terminals #1 to #4 and E01 of the ECM connectors.
HINT:
The correct waveform is as shown in the diagram below.
05C7A±01
Page 458 of 5135
A76891
I13
Ignition SW
46
B±R
B±R
IE4(LHD)
1
1IP1
(RHD)DH
2
DL16 Driver
Side J/BIGN
B±R
1
AM2
IG2 1
2 2
1
1A 1
1Engine
Room
R/B No.1
Engine
Room
J/B No.1
B±G
4A 1
4B 1Engine
Room
J/B No.4B±R1 R±B2 I5
Injector No.1
B±R
Y
W
B1
#1
E13
2
#2
E13
#3 3
E13
4
#4
E13
7
E01
E13
E02 6
E13 W±B
W±BECM
R±B
R±B
R±B R±B
R±B12 I6
Injector No.2
12 I7
Injector No.3
12 I8
Injector No.4
EA1 8
4
13
25IG2
Relay
B W±B B
ECEE 4
4 4
Engine
Room
R/B No.4 B±G
FL MAIN
Battery
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
05±273
AVENSIS REPAIR MANUAL (RM1018E)
WIRING DIAGRAM
Page 459 of 5135
A18294
#4#3#2#1E01
ECM Connector
E13
B16200
A79096
Driver Side J/BIGN Fuse
05±274
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

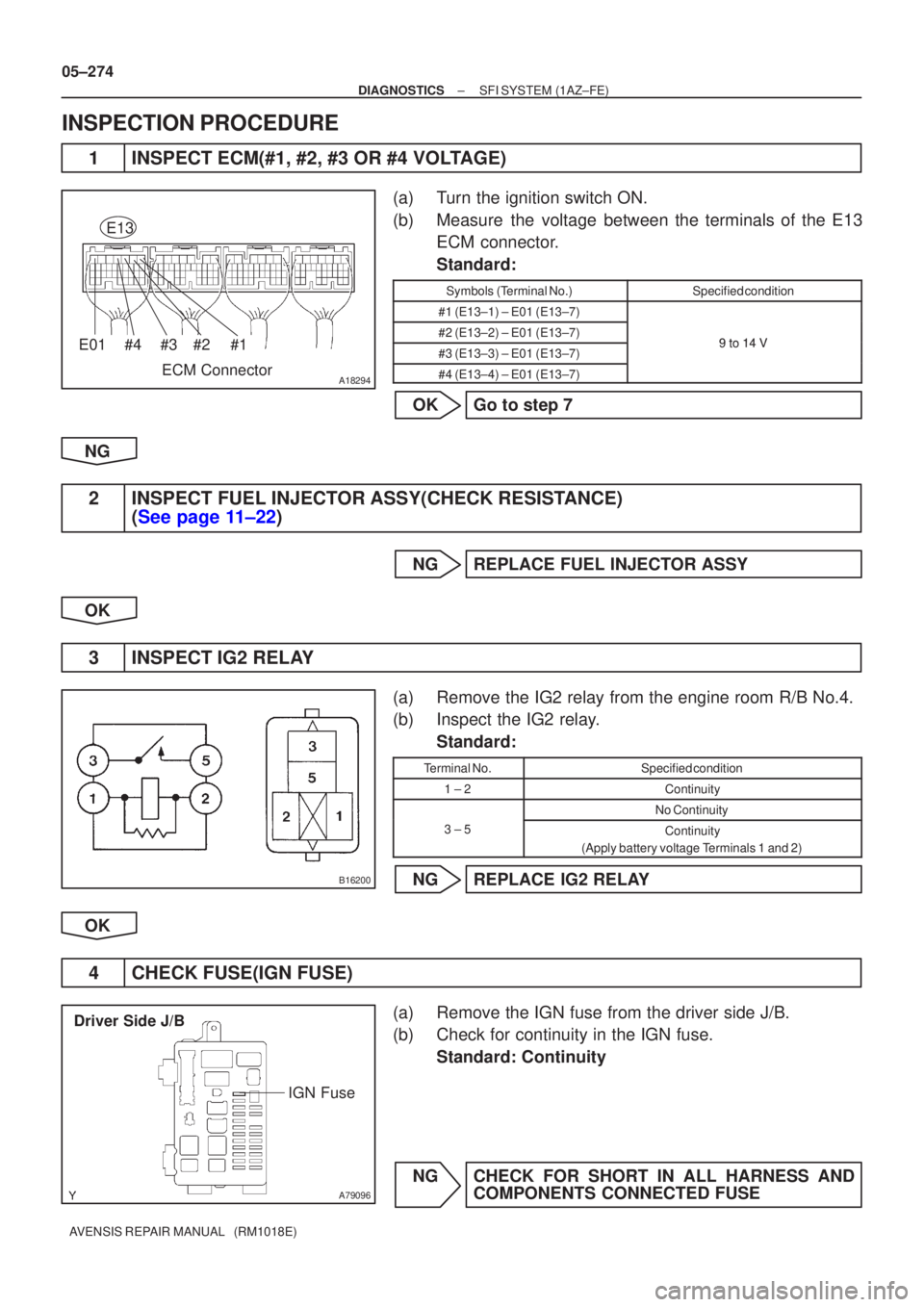

INSPECTION PROCEDURE
1INSPECT ECM(#1, #2, #3 OR #4 VOLTAGE)
(a)Turn the ignition switch ON.
(b)Measure the voltage between the terminals of the E13 ECM connector.
Standard:
Symbols (Terminal No.)Specified condition
#1 (E13±1) ± E01 (E13±7)
#2 (E13±2) ± E01 (E13±7)9to14V#3 (E13±3) ± E01 (E13±7)9 to 14 V
#4 (E13±4) ± E01 (E13±7)
OKGo to step 7
NG
2INSPECT FUEL INJECTOR ASSY(CHECK RESISTANCE) (See page 11±22)
NG REPLACE FUEL INJECTOR ASSY
OK
3 INSPECT IG2 RELAY
(a) Remove the IG2 relay from the engine room R/B No.4.
(b) Inspect the IG2 relay. Standard:
Terminal No.Specified condition
1 ± 2Continuity
No Continuity
3 ± 5Continuity
(Apply battery voltage Terminals 1 and 2)
NG REPLACE IG2 RELAY
OK
4 CHECK FUSE(IGN FUSE)
(a) Remove the IGN fuse from the driver side J/B.
(b) Check for continuity in the IGN fuse. Standard: Continuity
NG CHECK FOR SHORT IN ALL HARNESS AND COMPONENTS CONNECTED FUSE
Page 460 of 5135
A65743
E13
ECM Connector
#4#3#2#1
A79064
Engine Room R/B No.4
IG2 Relay
12
A61031
Wire Harness Side
I5
I6 I7 I8
Injector Connector
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
05±275
AVENSIS REPAIR MANUAL (RM1018E)
OK

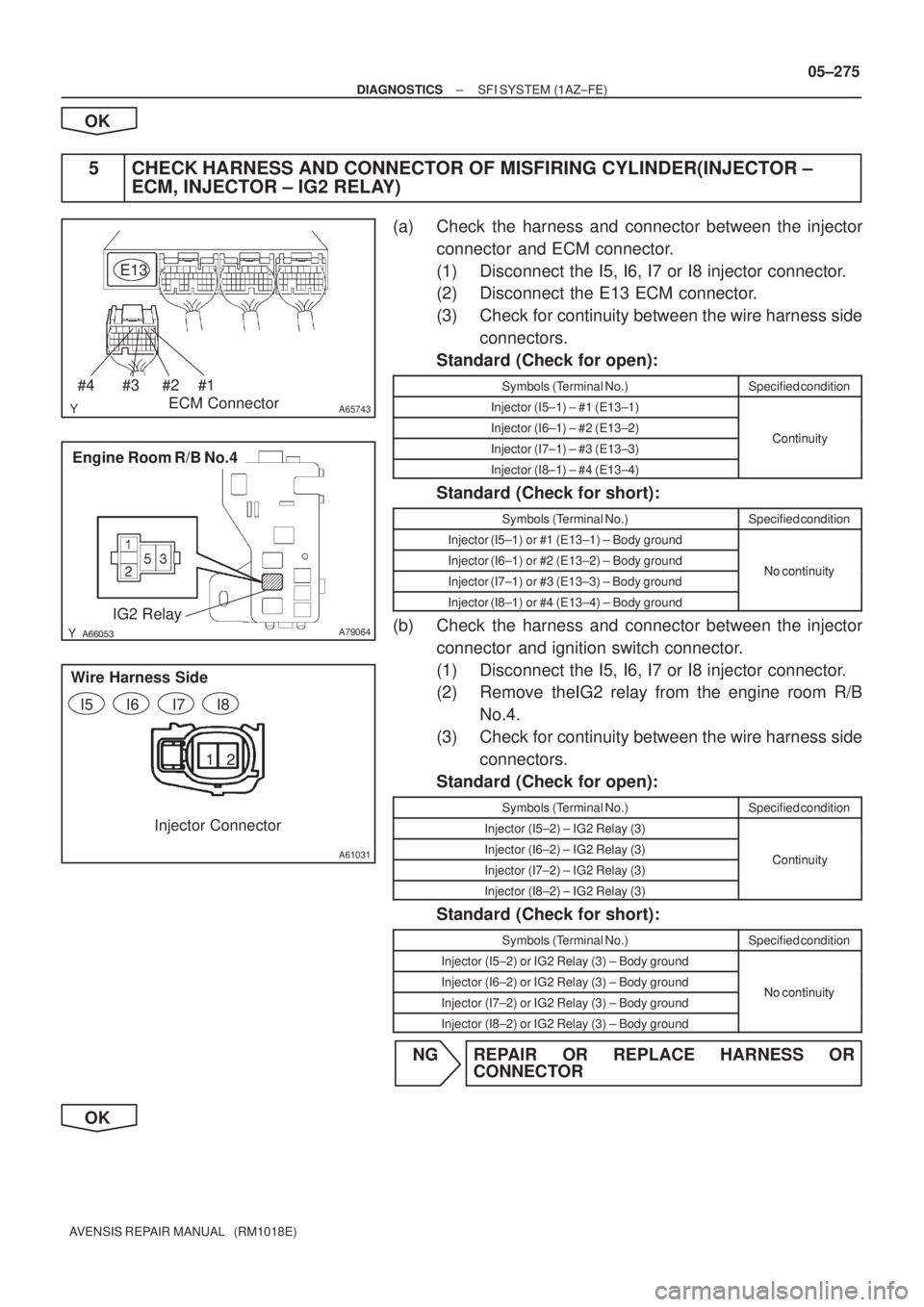

5 CHECK HARNESS AND CONNECTOR OF MISFIRING CYLINDER(INJECTOR ±
ECM, INJECTOR ± IG2 RELAY)
(a) Check the harness and connector between the injector
connector and ECM connector.
(1) Disconnect the I5, I6, I7 or I8 injector connector.
(2) Disconnect the E13 ECM connector.
(3) Check for continuity between the wire harness side
connectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
Injector (I5±1) ± #1 (E13±1)
Injector (I6±1) ± #2 (E13±2)ContinuityInjector (I7±1) ± #3 (E13±3)Continuity
Injector (I8±1) ± #4 (E13±4)
Standard (Check for short):
Symbols (Terminal No.)Specified condition
Injector (I5±1) or #1 (E13±1) ± Body ground
Injector (I6±1) or #2 (E13±2) ± Body groundNo continuityInjector (I7±1) or #3 (E13±3) ± Body groundNo continuity
Injector (I8±1) or #4 (E13±4) ± Body ground
(b) Check the harness and connector between the injector
connector and ignition switch connector.
(1) Disconnect the I5, I6, I7 or I8 injector connector.
(2) Remove theIG2 relay from the engine room R/B
No.4.
(3) Check for continuity between the wire harness side
connectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
Injector (I5±2) ± IG2 Relay (3)
Injector (I6±2) ± IG2 Relay (3)ContinuityInjector (I7±2) ± IG2 Relay (3)Continuity
Injector (I8±2) ± IG2 Relay (3)
Standard (Check for short):
Symbols (Terminal No.)Specified condition
Injector (I5±2) or IG2 Relay (3) ± Body ground
Injector (I6±2) or IG2 Relay (3) ± Body groundNo continuityInjector (I7±2) or IG2 Relay (3) ± Body groundNo continuity
Injector (I8±2) or IG2 Relay (3) ± Body ground
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
Page 461 of 5135
A66267
IG2 Wire Harness Side
Ignition Switch Connector
I13
A79103
Driver Side J/B
IGN Fuse12
A79064
Engine Room R/B No.4
IG2 Relay
05±276
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

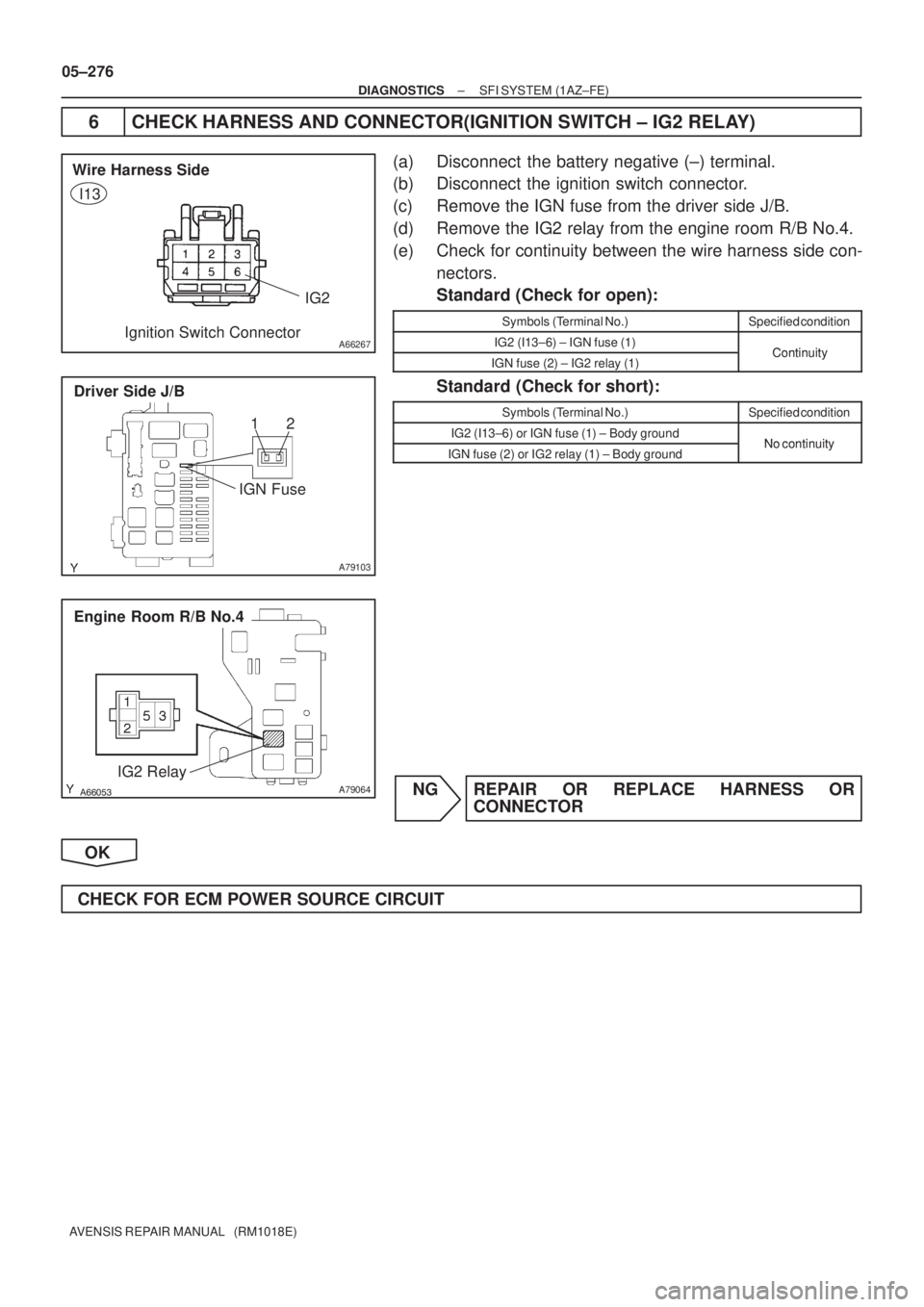

6 CHECK HARNESS AND CONNECTOR(IGNITION SWITCH ± IG2 RELAY)
(a) Disconnect the battery negative (±) terminal.
(b) Disconnect the ignition switch connector.
(c) Remove the IGN fuse from the driver side J/B.
(d) Remove the IG2 relay from the engine room R/B No.4.
(e) Check for continuity between the wire harness side con-
nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
IG2 (I13±6) ± IGN fuse (1)ContinuityIGN fuse (2) ± IG2 relay (1)Continuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
IG2 (I13±6) or IGN fuse (1) ± Body groundNo continuityIGN fuse (2) or IG2 relay (1) ± Body groundNo continuity
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
CHECK FOR ECM POWER SOURCE CIRCUIT
Page 462 of 5135
A65743
E13
ECM ConnectorE02E01
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
05±277
AVENSIS REPAIR MANUAL (RM1018E)

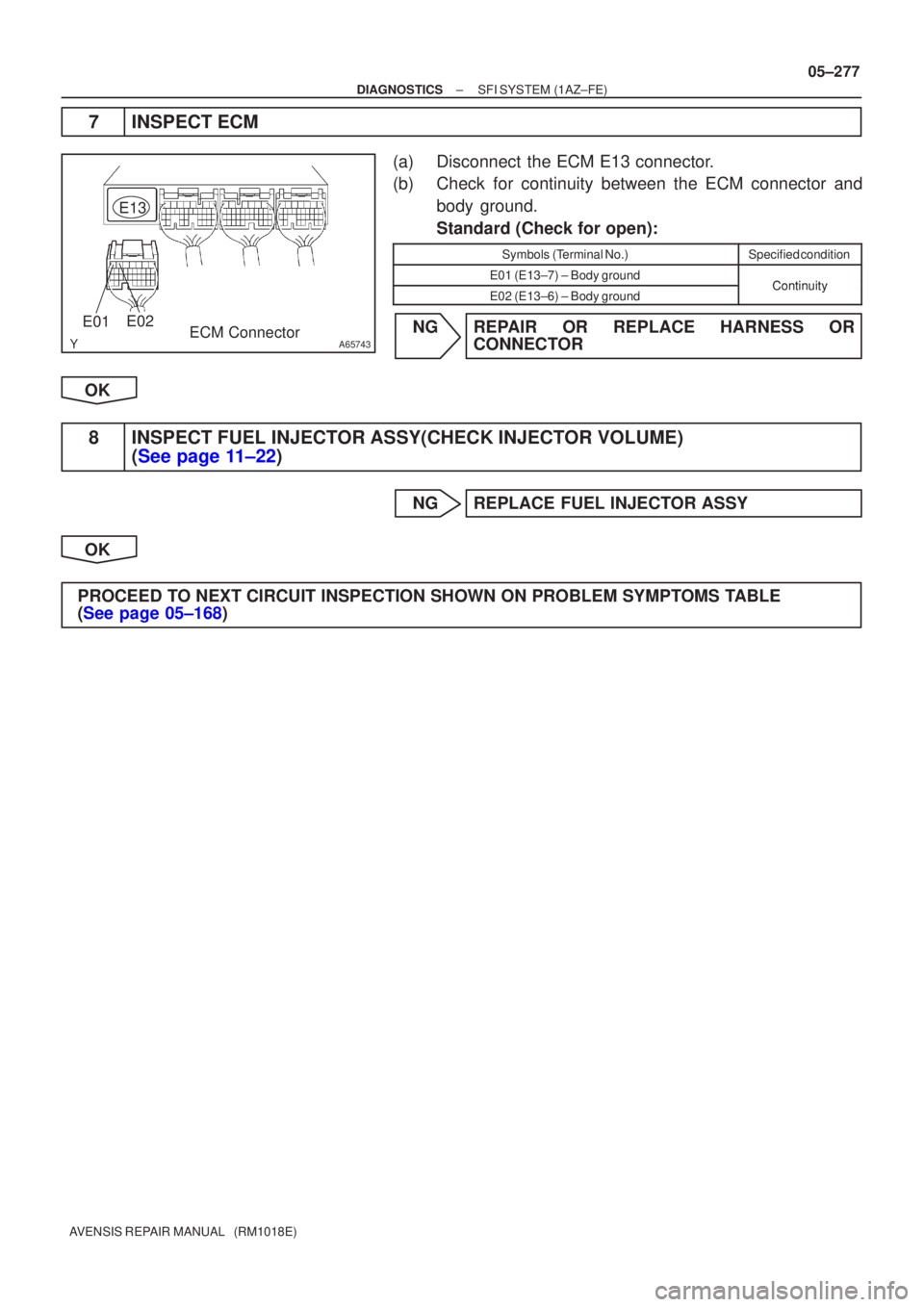

7INSPECT ECM
(a)Disconnect the ECM E13 connector.
(b)Check for continuity between the ECM connector and
body ground.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
E01 (E13±7) ± Body groundContinuityE02 (E13±6) ± Body groundContinuity
NGREPAIR OR REPLACE HARNESS OR CONNECTOR
OK
8INSPECT FUEL INJECTOR ASSY(CHECK INJECTOR VOLUME) (See page 11±22)
NGREPLACE FUEL INJECTOR ASSY
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
(See page 05±168)
Page 463 of 5135
05±362
±
DIAGNOSTICS SFI SYSTEM(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

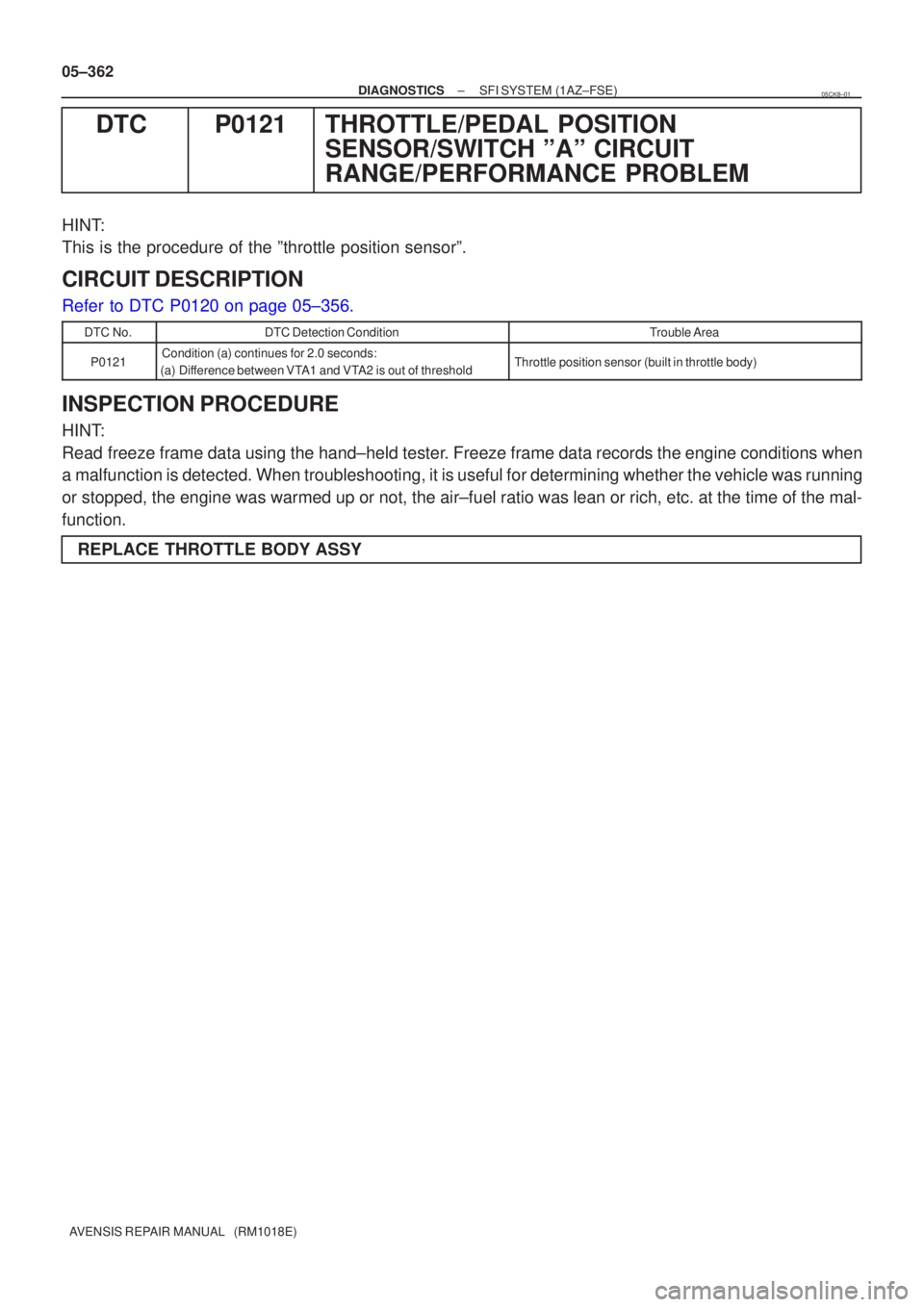

DTCP0121THROTTLE/PEDAL POSITION SENSOR/SWITCH ºAº CIRCUIT
