Page 3409 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 750N3±01 B55944 B55945 ± ENGINE HOOD/DOORLUGGAGE DOOR HINGE TORSION BAR 75±35 AVENSIS REPAIR MANUAL (RM1018E) LUGGAGE DOOR HINGE TORSION BAR REPLACEMENT HINT: The installation is in the reverse

Page 3410 of 5135

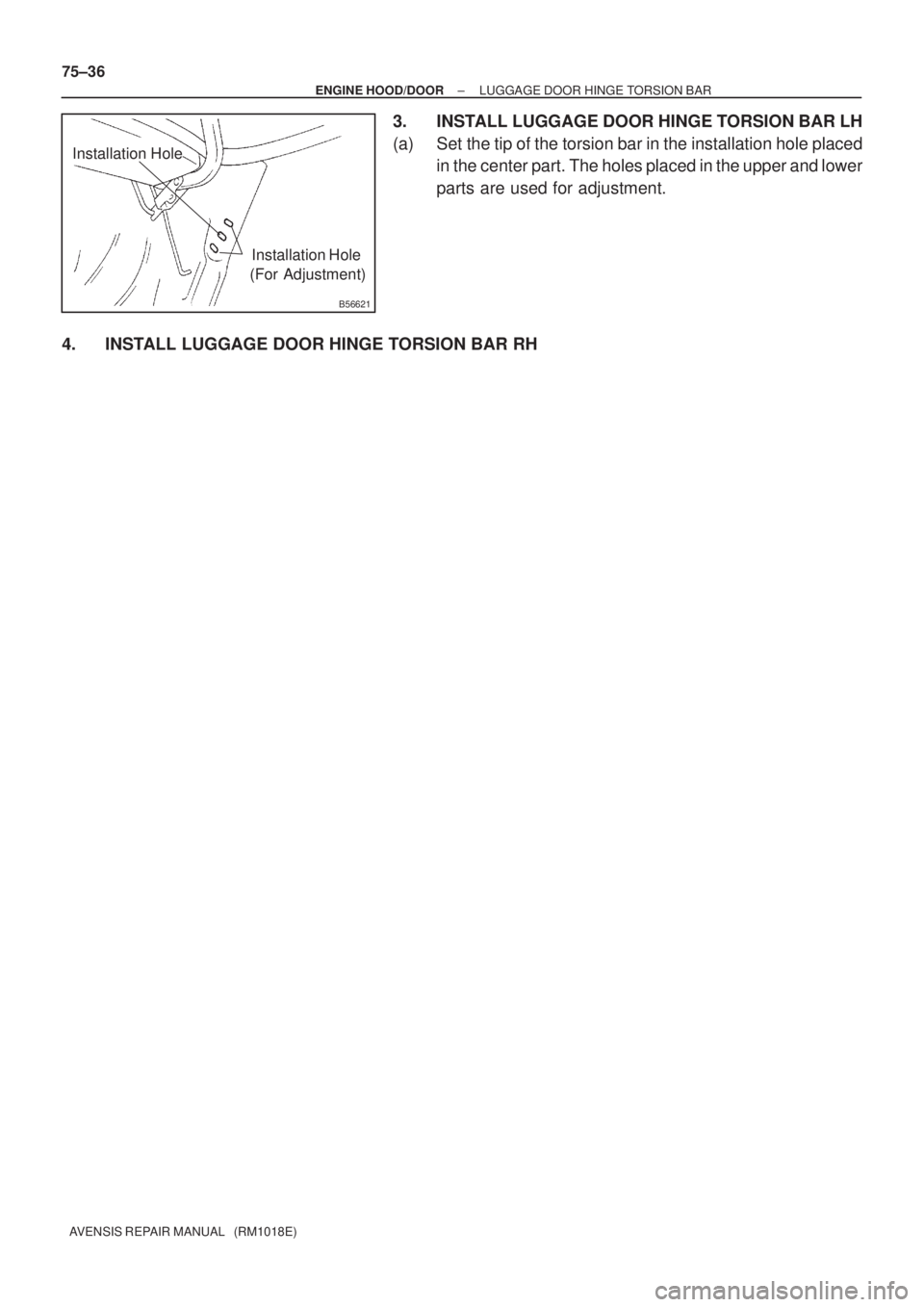

TOYOTA AVENSIS 2005 Service Repair Manual B56621 Installation Hole Installation Hole (For Adjustment) 75±36 ± ENGINE HOOD/DOORLUGGAGE DOOR HINGE TORSION BAR AVENSIS REPAIR MANUAL (RM1018E) 3. INSTALL LUGGAGE DOOR HINGE TORSION BAR LH (a)

Page 3411 of 5135

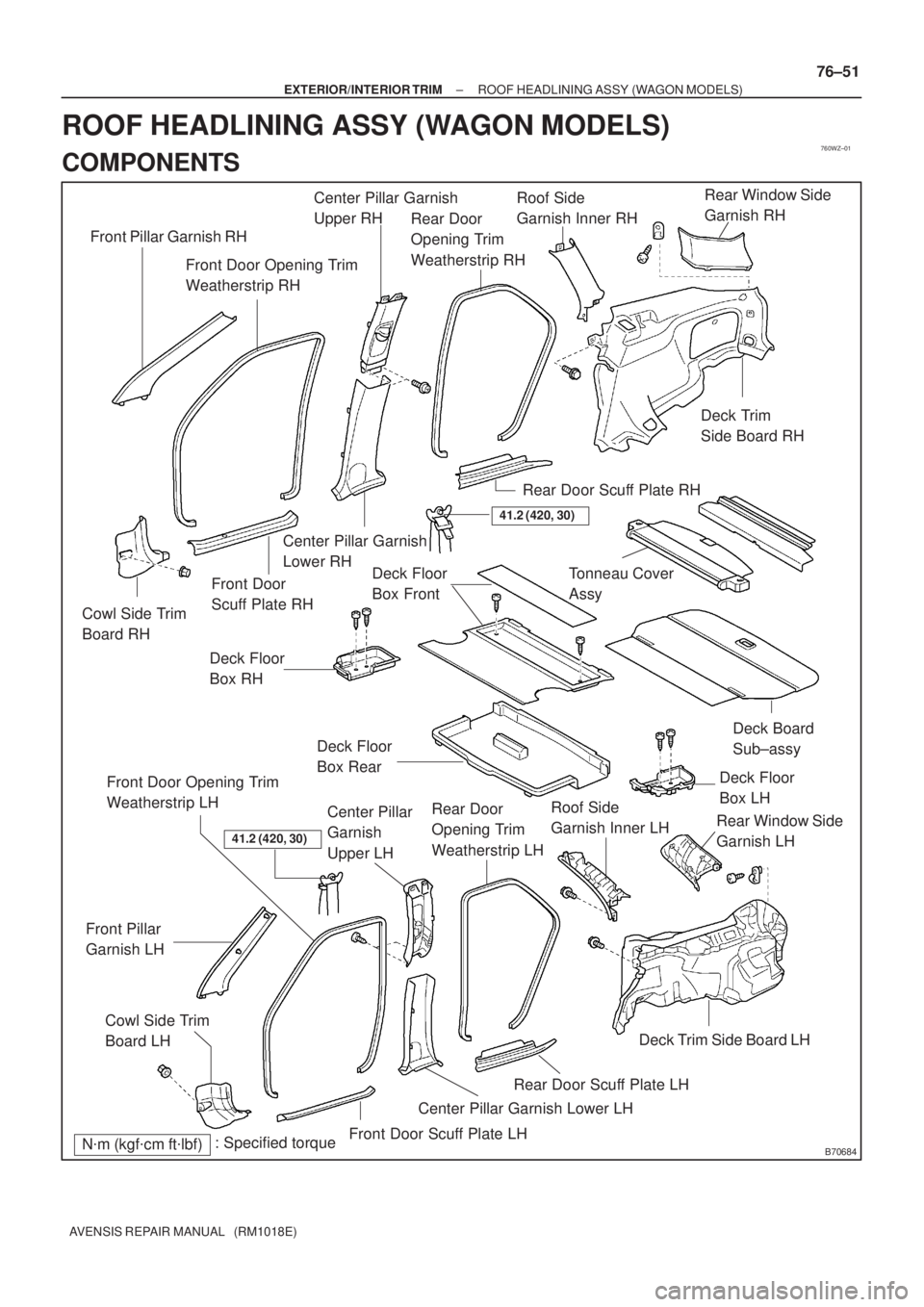

TOYOTA AVENSIS 2005 Service Repair Manual 760WZ±01 B70684 Front Pillar Garnish RH Cowl Side Trim Board RH Front Door Opening Trim Weatherstrip RH Front Door Scuff Plate RH Center Pillar Garnish Lower RH Center Pillar Garnish Upper RH Rear Do

Page 3412 of 5135

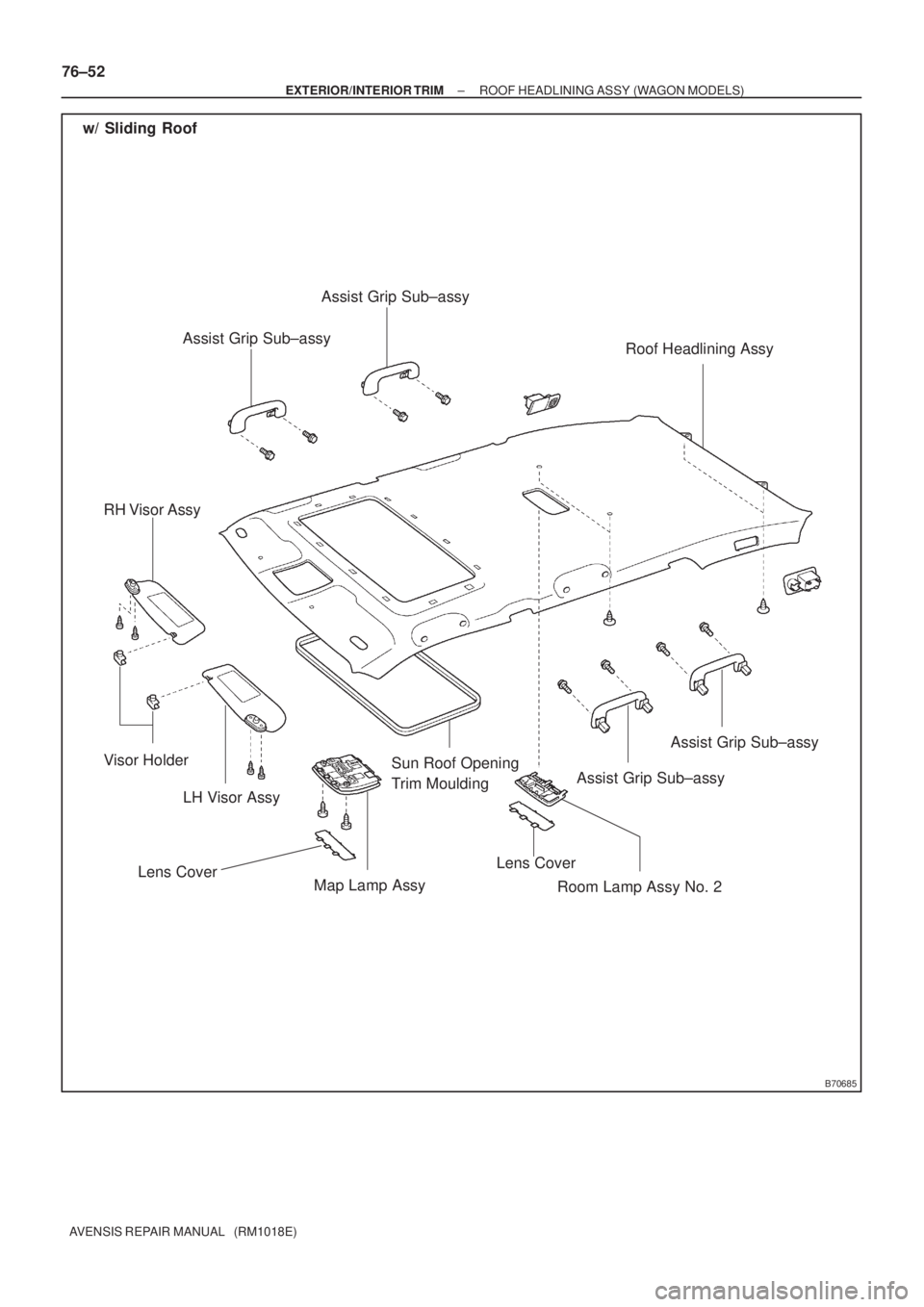

TOYOTA AVENSIS 2005 Service Repair Manual B70685 LH Visor Assy Visor Holder w/ Sliding Roof Roof Headlining Assy RH Visor Assy Map Lamp Assy Room Lamp Assy No. 2Lens Cover Assist Grip Sub±assy Lens Cover Assist Grip Sub±assy Assist Grip Sub

Page 3413 of 5135

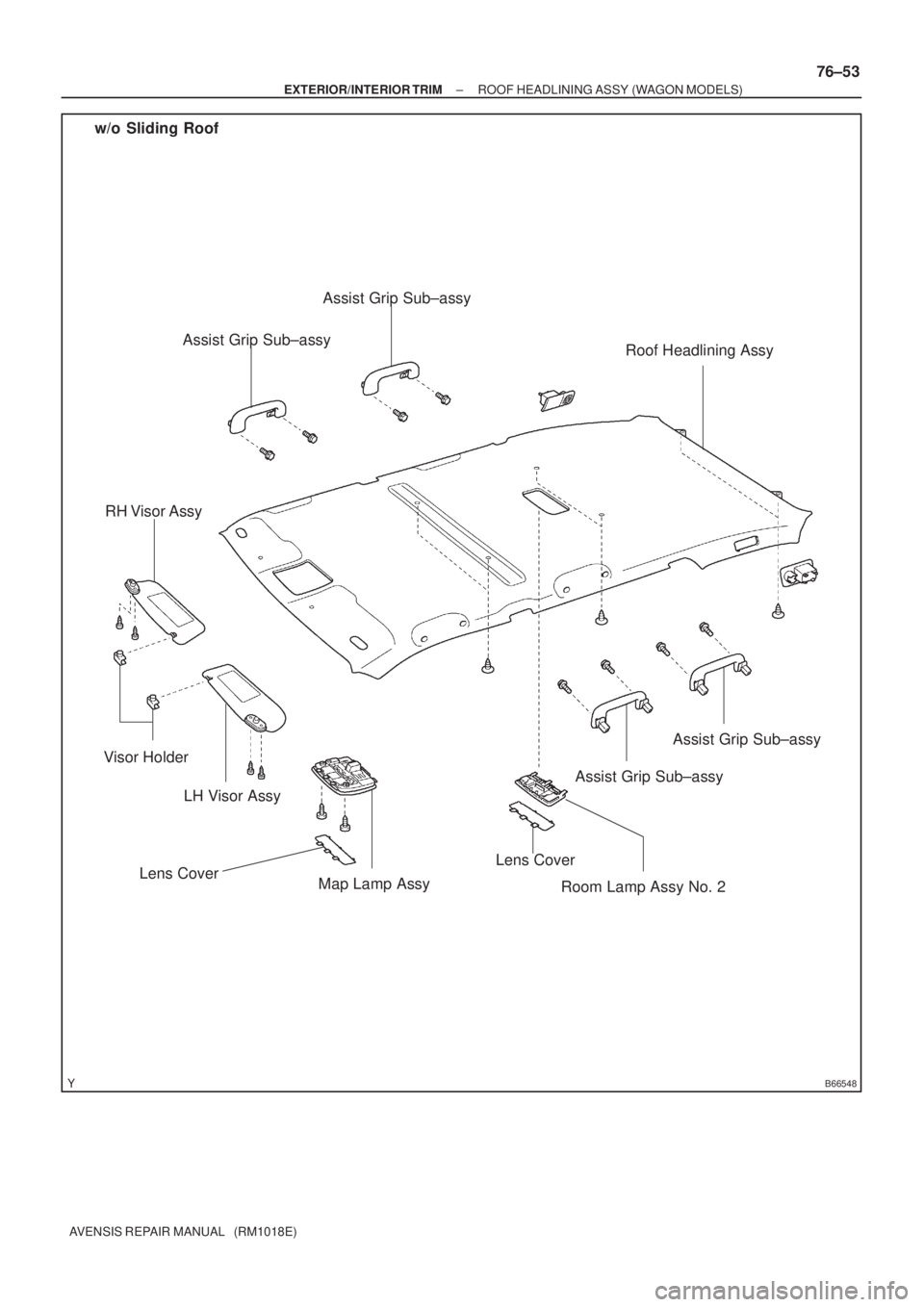

TOYOTA AVENSIS 2005 Service Repair Manual B66548 w/o Sliding Roof LH Visor Assy Visor HolderRoof Headlining Assy RH Visor Assy Map Lamp Assy Room Lamp Assy No. 2Lens Cover Assist Grip Sub±assy Lens Cover Assist Grip Sub±assy Assist Grip Sub

Page 3414 of 5135

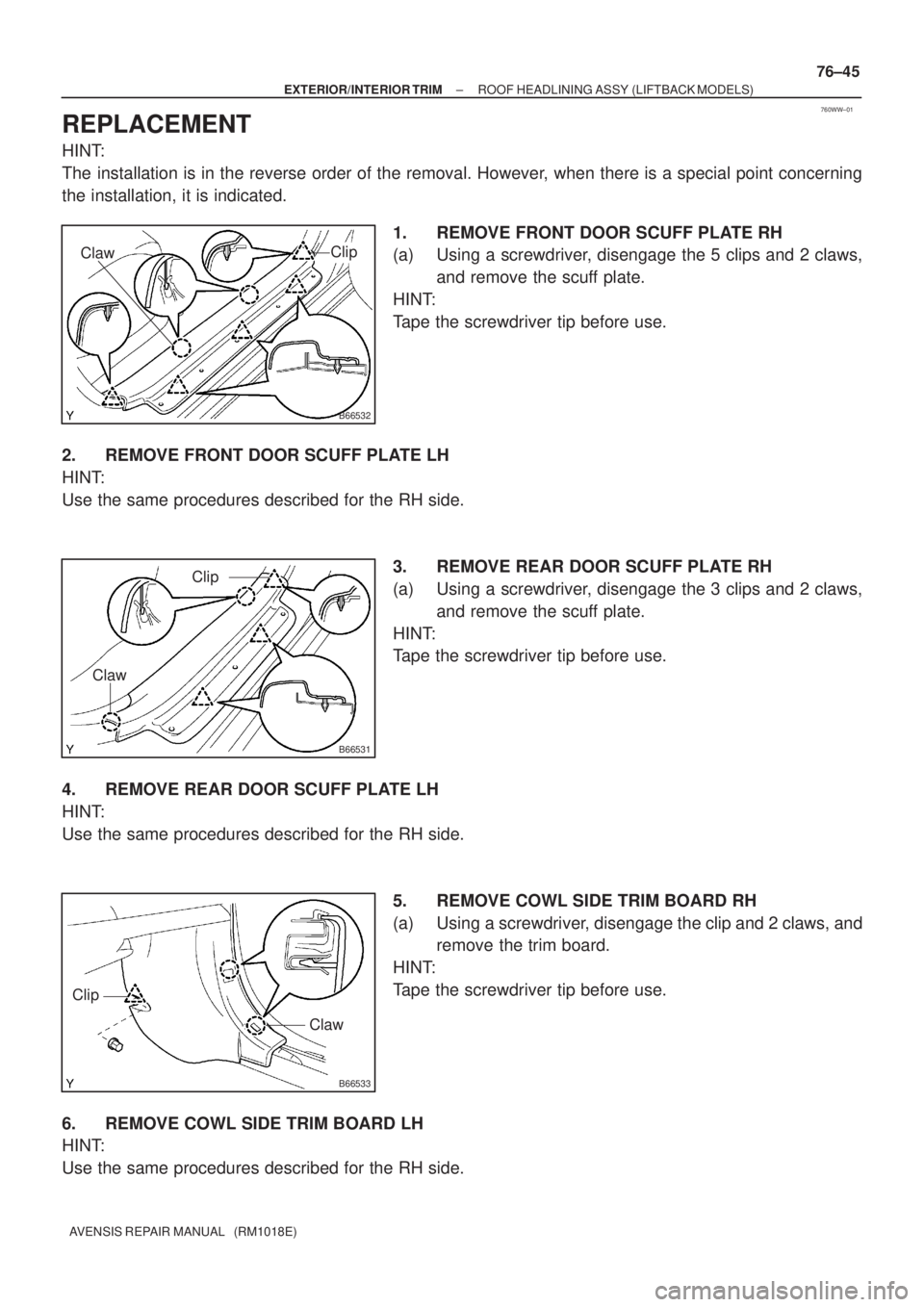

TOYOTA AVENSIS 2005 Service Repair Manual 760WW±01 B66532 Clip Claw B66531 Clip Claw B66533 Clip Claw ± EXTERIOR/INTERIOR TRIMROOF HEADLINING ASSY (LIFTBACK MODELS) 76±45 AVENSIS REPAIR MANUAL (RM1018E) REPLACEMENT HINT: The installation

Page 3415 of 5135

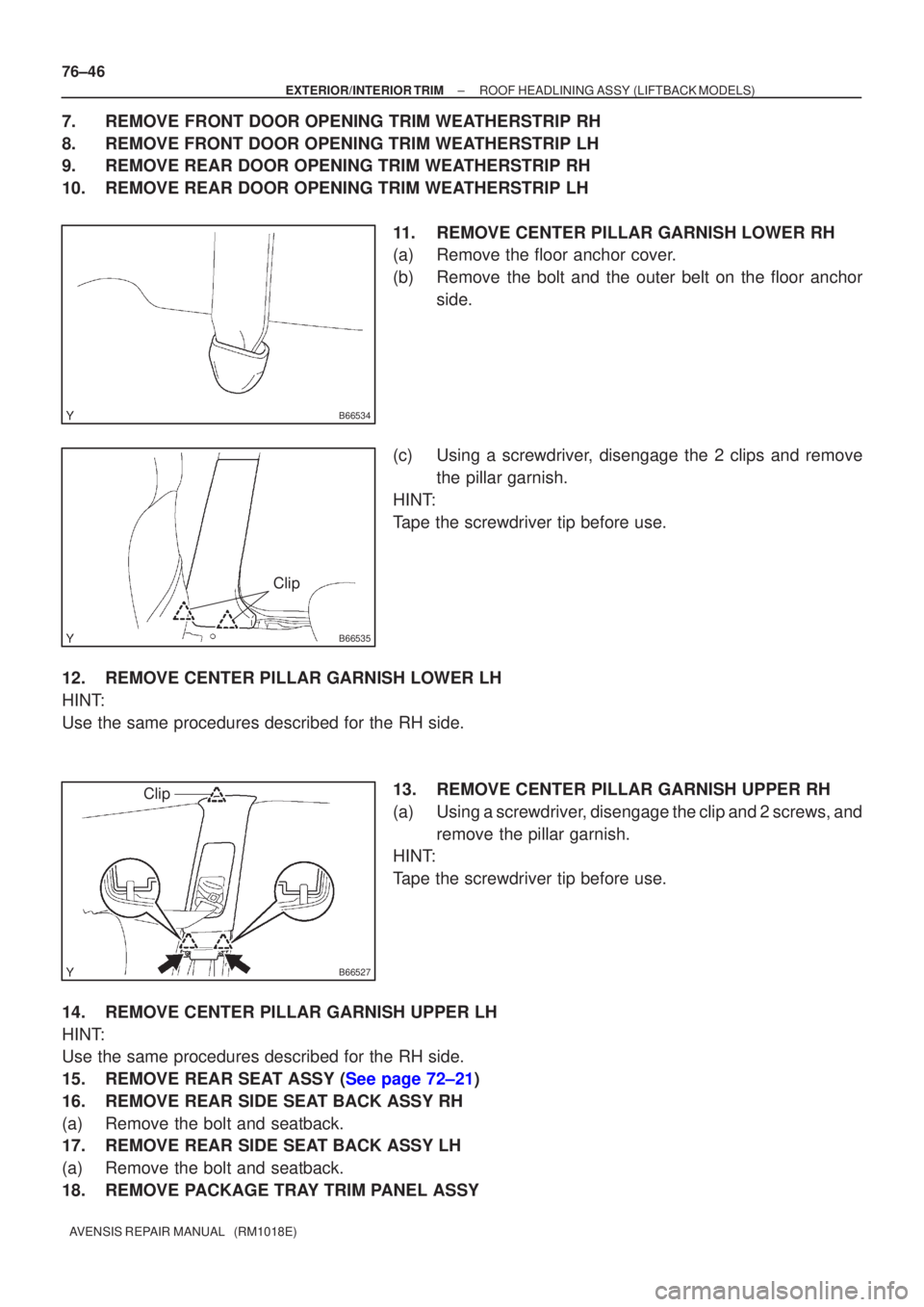

TOYOTA AVENSIS 2005 Service Repair Manual B66534 B66535 Clip B66527 Clip 76±46 ± EXTERIOR/INTERIOR TRIM ROOF HEADLINING ASSY(LIFTBACK MODELS) AVENSIS REPAIR MANUAL (RM1018E) 7.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH 8.REMOVE FRONT

Page 3416 of 5135

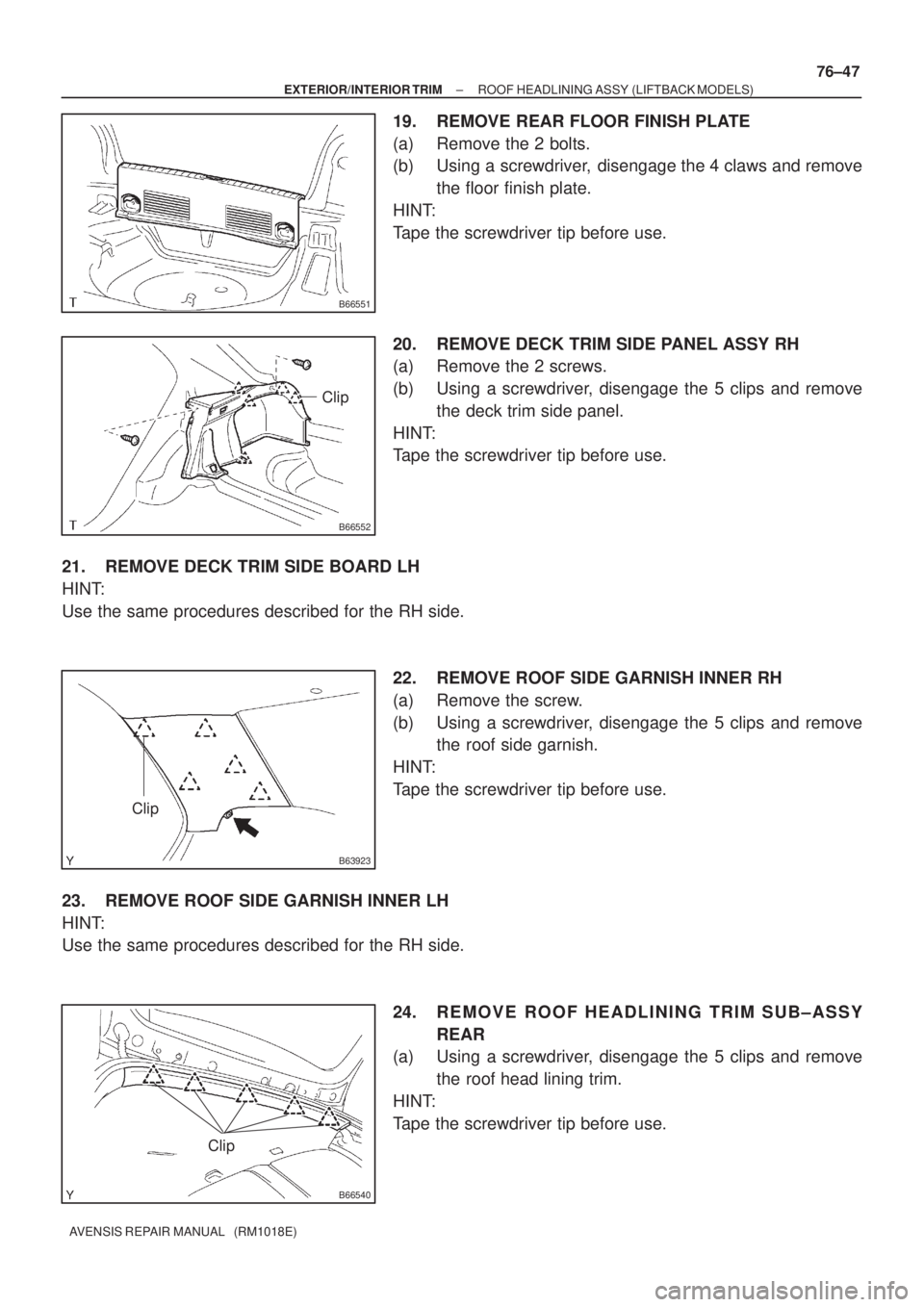

TOYOTA AVENSIS 2005 Service Repair Manual B66551 B66552 Clip B63923 Clip B66540 Clip ± EXTERIOR/INTERIOR TRIMROOF HEADLINING ASSY (LIFTBACK MODELS) 76±47 AVENSIS REPAIR MANUAL (RM1018E) 19. REMOVE REAR FLOOR FINISH PLATE (a) Remove the 2
