Page 2433 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 190NQ±01
A81052
A82936
Type A
Type B
BlueWhite
Red Green DarkClear or
light yellow
B00543
± STARTING & CHARGINGCHARGING SYSTEM (1ZZ±FE/3ZZ±FE)
19±5
AVENSIS REPAIR MANUAL (RM1018E)

Page 2434 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B00540
A75980
Disconnect Wire
from Terminal B
Generator
Voltmeter BatteryAmmeter 19±6
± STARTING & CHARGINGCHARGING SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
(b) Check that it fits

B00540
A75980
Disconnect Wire
from Terminal B
Generator
Voltmeter BatteryAmmeter 19±6
± STARTING & CHARGINGCHARGING SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
(b) Check that it fits properly in the ribbed grooves.
HINT:
Check with your hand to confirm that the belt has not slipped out
of the groove on the bottom of the pulley.
5. VISUALLY CHECK GENERATOR WIRING
(a) Check that the wiring is in good condition.
6. LISTEN FOR ABNORMAL NOISES FROM GENERATOR
(a) Check that there is no abnormal noise from the generator while the engine is running.
7. INSPECT CHARGE WARNING LIGHT CIRCUIT
(a) Turn the ignition switch ON. Check that the charge warning light comes on.
(b) Start the engine and check that the light goes off.
HINT:
If the light does not operate as specified, troubleshoot the charge warning light circuit.
8. INSPECT CHARGING CIRCUIT WITHOUT LOAD
(a) According to the following procedure, connect an amme-
ter and voltmeter as shown in the illustration.
(1) Disconnect the wire from terminal B of the generator
and connect it to the negative (±) lead of the amme-
ter.
(2) Connect the positive (+) lead of the ammeter to ter-
minal B of the generator
(3) Connect the positive (+) lead of the voltmeter to ter-
minal B of the generator.
(4) Ground the negative (±) lead of the voltmeter.
(b) Check the charging circuit.
(1) Keep the engine speed at 2,000 rpm, check the
reading on the ammeter and voltmeter.
Standard amperage: 10 A or less
Standard voltage: 12.9 to 14.9 V
HINT:
If the voltmeter reading is more than standard voltage, re-
place the voltage regulator.
If the voltmeter reading is less than the standard voltage,
check the voltage regulator and generator as follows:
9. INSPECT CHARGING CIRCUIT WITH LOAD
(a) Keep the engine speed at 2,000 rpm, turn on the high beam headlights and turn the heater blower
switch to the ºHIº position.
(b) Check the reading on the ammeter.
Standard amperage: 30 A or more
HINT:
If the ammeter reading is less than standard amperage, repair the generator.
If the battery is fully charged, the indication will sometimes be less than standard amperage.

Page 2435 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 190NP±01
19±4
± STARTING & CHARGINGCHARGING SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
CHARGING SYSTEM (1ZZ±FE/3ZZ±FE)
PRECAUTION
1. Check that the battery cables are connected to

Page 2436 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 190NH±01
A78485
(a)
Terminal
Cap Cover
(b)
A78486
±
STARTING & CHARGING STARTER ASSY(1ZZ±FE/3ZZ±FE)
19±3
AVENSIS REPAIR MANUAL (RM1018E)
STARTER ASSY(1ZZ±FE/3ZZ±FE)
REPLACEMENT
1.REMOVE ENGI

Page 2437 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 190NO±01
A82615Terminal CTerminal 50
A82616Terminal C Terminal 50
A82617
Terminal C Terminal 50
± STARTING & CHARGINGSTARTING SYSTEM (1ZZ±FE/3ZZ±FE)
19±1
AVENSIS REPAIR MANUAL (RM1018E)
STARTIN

Page 2438 of 5135

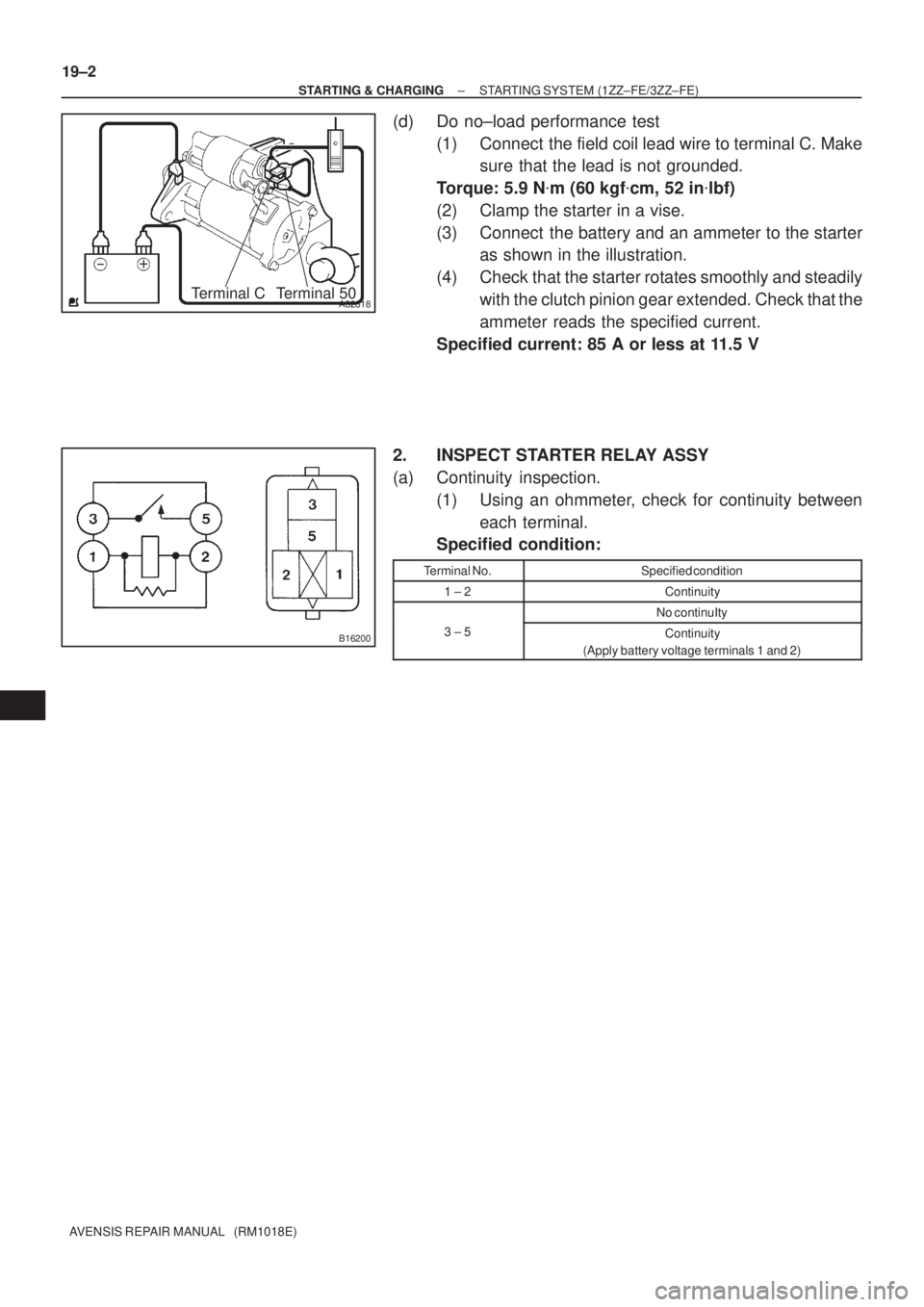

TOYOTA AVENSIS 2005 Service Repair Manual A82618Terminal C Terminal 50
B16200
19±2
± STARTING & CHARGINGSTARTING SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
(d) Do no±load performance test
(1) Connect the field coil lead wi

Page 2439 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 1807L±01
A77896
(a)(b)
(c)
(d)
±
IGNITION CRANKSHAFT POSITION
SENSOR(1AZ±FE/1AZ±FSE)18±17
AVENSIS REPAIR MANUAL (RM1018E)
CRANKSHAFT POSITION SENSOR(1AZ±FE/1AZ±FSE)
REPLACEMENT
1.REMOVE ENGIN

Page 2440 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 1807K±01
A77895
18±16
±
IGNITION CAMSHAFT POSITION SENSOR(1AZ±FE/1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
CAMSHAFT POSITION SENSOR(1AZ±FE/1AZ±FSE)
REPLACEMENT
1.REMOVE RADIATOR SUPPORT OPENIN
