Page 3137 of 5135
660CU±01
I35778
A: 150 mm (5.91 in.)
B: 50 mm (1.97 in.)
C: 480 mm (18.90 in.)
D: 295 mm (11.61 in.)
E: 310 mm (12.21 in.)F: 275 mm (10.83 in.)
G: 130 mm (5.12 in.)
H: 420 mm (16.54 in.)
I: 280 mm (11.02 in.) Front:
AB
C
DE
FG
HI
A
A
A
B
B
B
C 66±22
± WIPER & WASHERWASHER NOZZLE SUB±ASSY
AVENSIS REPAIR MANUAL (RM1018E)
WASHER NOZZLE SUB±ASSY
ADJUSTMENT
1. REMOVE WASHER NOZZLE SUB±ASSY
(a) With the engine running, check that the point where the washer fluid hits the windshield and the rear
window is within the range indicated by the hatched line.

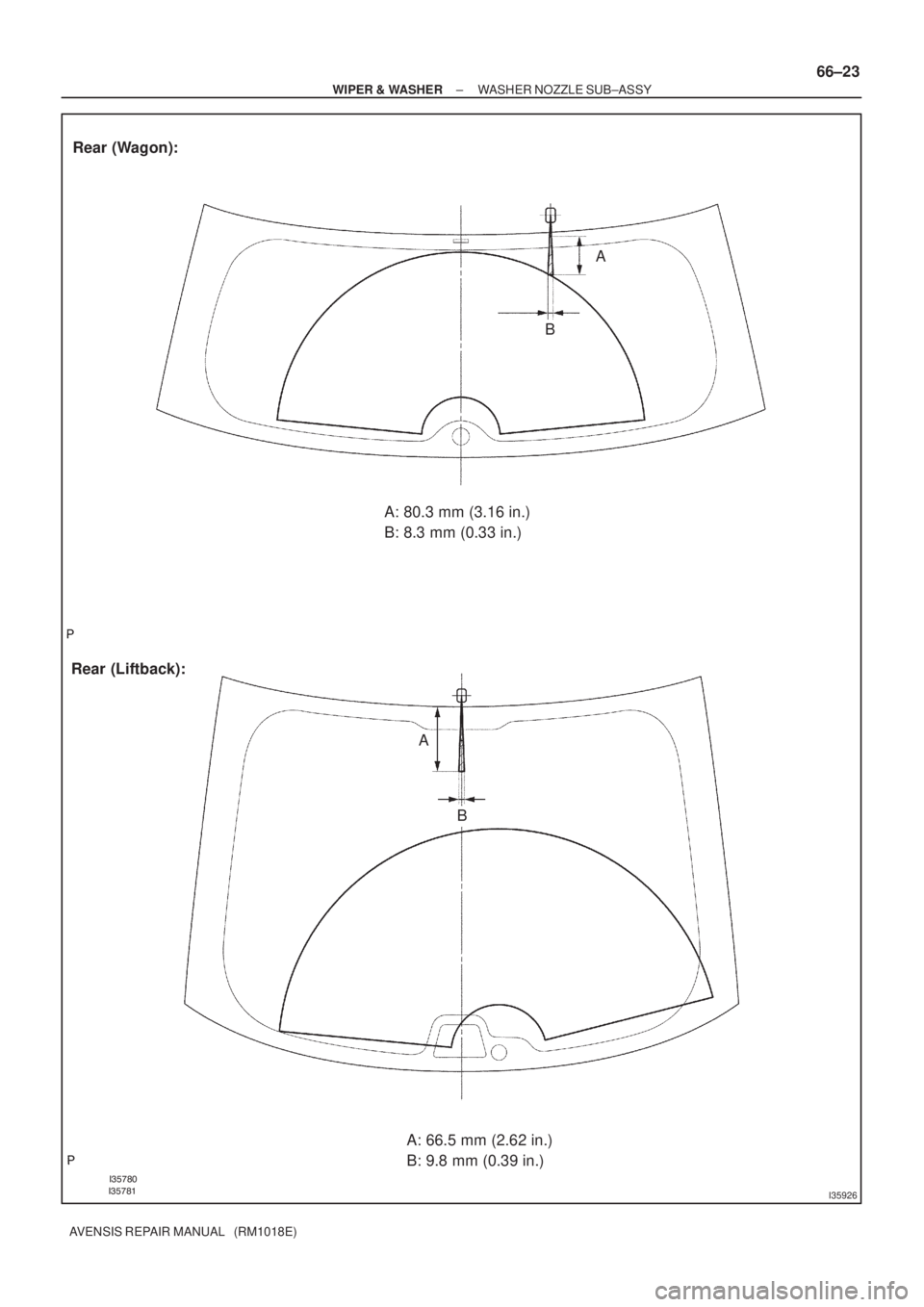

Page 3138 of 5135
I35926
A: 80.3 mm (3.16 in.)
B: 8.3 mm (0.33 in.)
Rear (Liftback):Rear (Wagon):
A: 66.5 mm (2.62 in.)
B: 9.8 mm (0.39 in.)
A
B
A
B
± WIPER & WASHERWASHER NOZZLE SUB±ASSY
66±23
AVENSIS REPAIR MANUAL (RM1018E)
Page 3139 of 5135
660CQ±01
E60751
60
E60704
Push
Pull
Stopper
E59361
Curve 66±20
± WIPER & WASHERREAR WIPER RUBBER
AVENSIS REPAIR MANUAL (RM1018E)

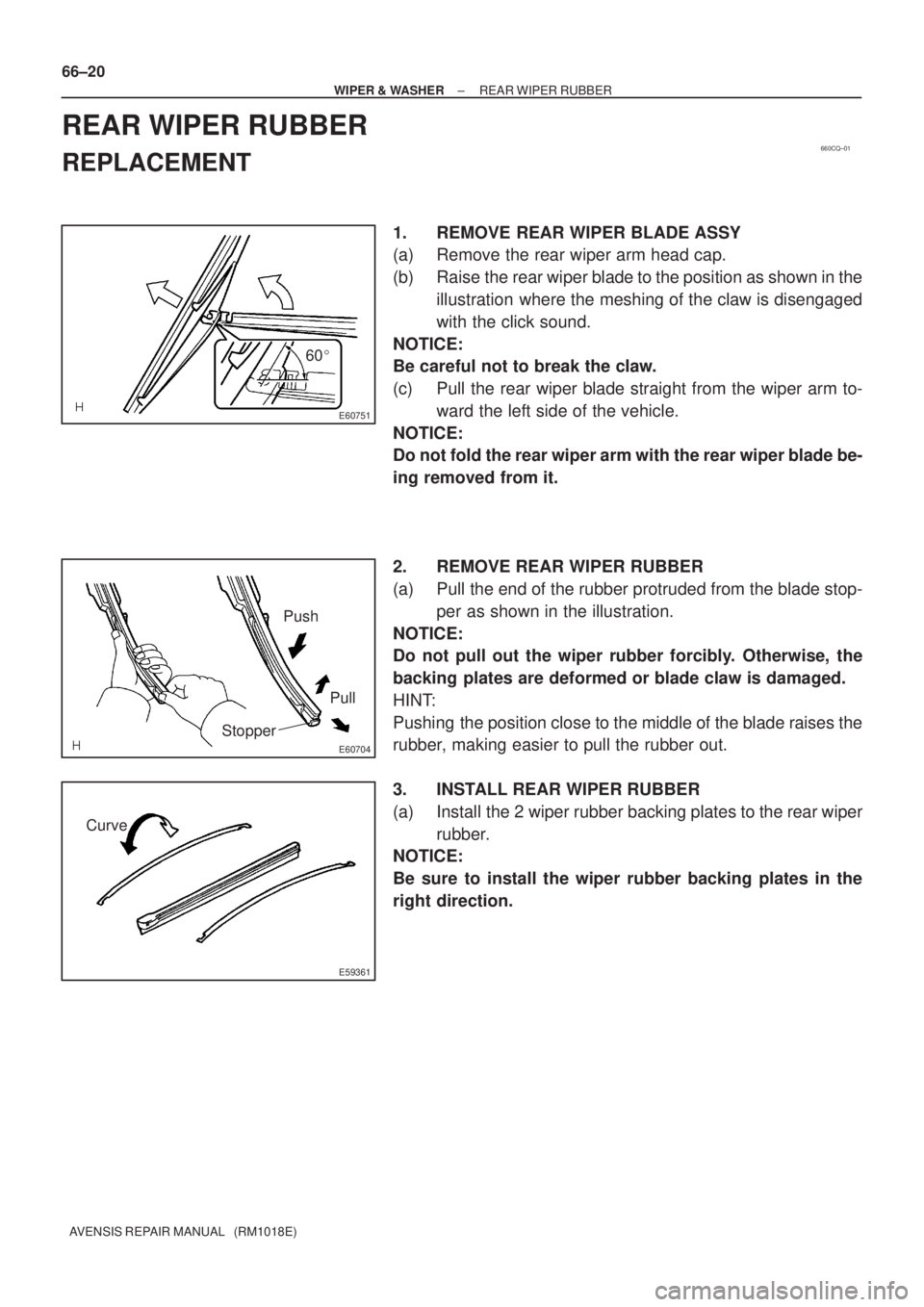

REAR WIPER RUBBER
REPLACEMENT
1. REMOVE REAR WIPER BLADE ASSY
(a) Remove the rear wiper arm head cap.
(b) Raise the rear wiper blade to the position as shown in the
illustration where the meshing of the claw is disengaged
with the click sound.
NOTICE:
Be careful not to break the claw.
(c) Pull the rear wiper blade straight from the wiper arm to-
ward the left side of the vehicle.
NOTICE:
Do not fold the rear wiper arm with the rear wiper blade be-
ing removed from it.
2. REMOVE REAR WIPER RUBBER
(a) Pull the end of the rubber protruded from the blade stop-
per as shown in the illustration.
NOTICE:
Do not pull out the wiper rubber forcibly. Otherwise, the
backing plates are deformed or blade claw is damaged.
HINT:
Pushing the position close to the middle of the blade raises the
rubber, making easier to pull the rubber out.
3. INSTALL REAR WIPER RUBBER
(a) Install the 2 wiper rubber backing plates to the rear wiper
rubber.
NOTICE:
Be sure to install the wiper rubber backing plates in the
right direction.
Page 3140 of 5135
E61233
E60706
± WIPER & WASHERREAR WIPER RUBBER
66±21
AVENSIS REPAIR MANUAL (RM1018E)

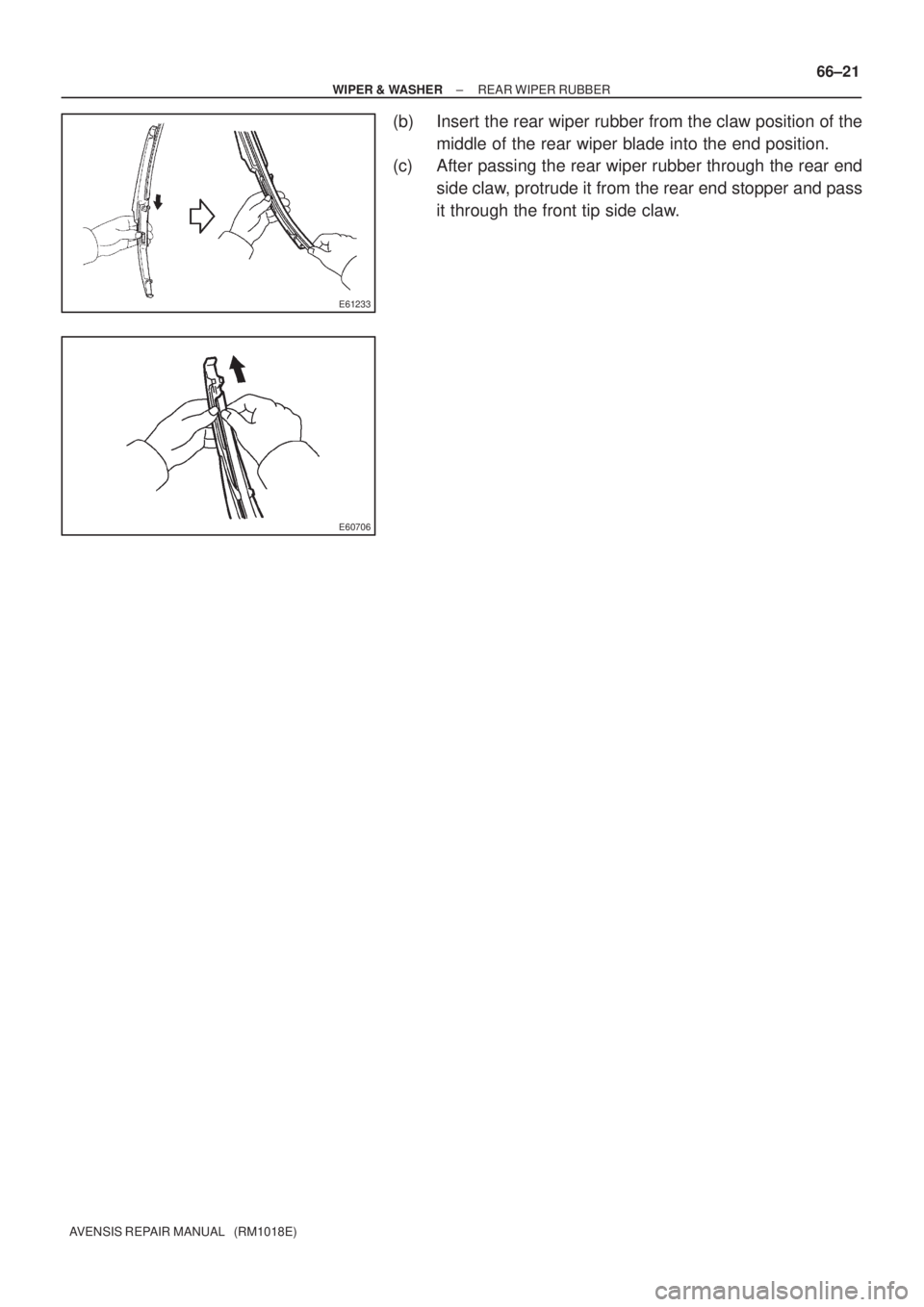

(b) Insert the rear wiper rubber from the claw position of the
middle of the rear wiper blade into the end position.
(c) After passing the rear wiper rubber through the rear end
side claw, protrude it from the rear end stopper and pass
it through the front tip side claw.
Page 3141 of 5135
660CP±01
E59361
Curve
E57398
± WIPER & WASHERWIPER RUBBER LH
66±19
AVENSIS REPAIR MANUAL (RM1018E)

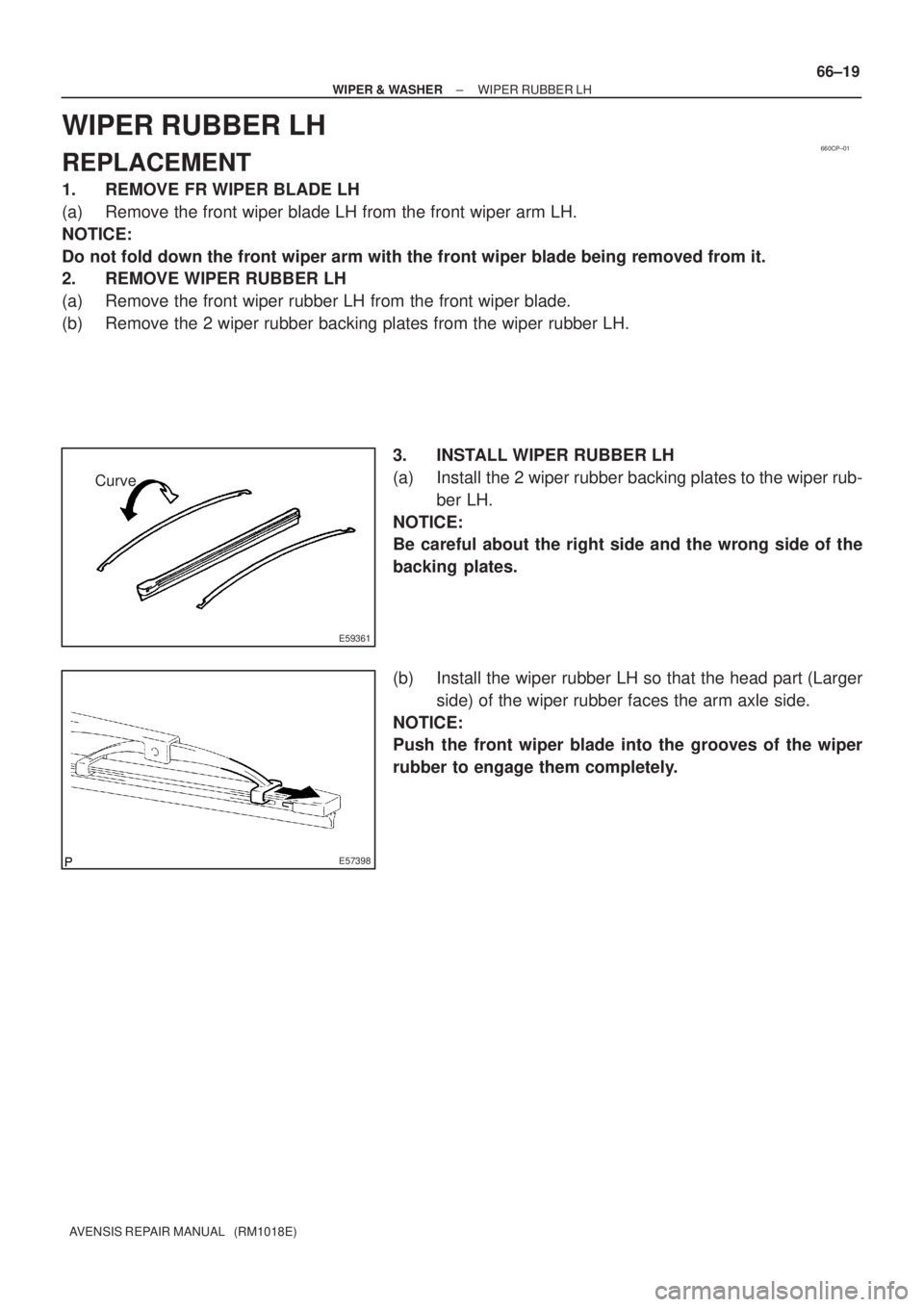

WIPER RUBBER LH
REPLACEMENT
1. REMOVE FR WIPER BLADE LH
(a) Remove the front wiper blade LH from the front wiper arm LH.
NOTICE:
Do not fold down the front wiper arm with the front wiper blade being removed from it.
2. REMOVE WIPER RUBBER LH
(a) Remove the front wiper rubber LH from the front wiper blade.
(b) Remove the 2 wiper rubber backing plates from the wiper rubber LH.
3. INSTALL WIPER RUBBER LH
(a) Install the 2 wiper rubber backing plates to the wiper rub-
ber LH.
NOTICE:
Be careful about the right side and the wrong side of the
backing plates.
(b) Install the wiper rubber LH so that the head part (Larger
side) of the wiper rubber faces the arm axle side.
NOTICE:
Push the front wiper blade into the grooves of the wiper
rubber to engage them completely.
Page 3142 of 5135
660CO±02
I35264
Wagon:
Liftback:
±
WIPER & WASHE R REAR WIPER MO TOR ASSY
66±17
A VENSIS RE PAIR MANUAL (RM1018E)
REA R WIPER MO TOR ASSY
REPLACEMENT
1 . REMOV E REAR WIPER ARM ASSY
(a ) Remove the nut and the rear wiper arm.
2 . REMOVE BACK DOOR TRIM BOARD ASSY ( See page LIFTBACK 75±40, W AGON 75±45 )
3. REMOVE REAR WIPER MOTOR ASSY
(a) Remove the 3 bolts.
(b) Disconnect the connector, and remove the rear wiper mo- tor assy.
4. INSTALL REAR WIPER MOTOR ASSY
(a) Install the rear wiper motor assy with the 3 bolts. Torque: 5.5 N m (56 kgf cm, 49 in. lbf)
(b) Connect the connector.
Page 3143 of 5135
E58837
Wiper Arm Serration
Wiper Pivot Serration
Wire Brush
I35779
Defogger Line
30±50mm
(1.18±1.97 in.)
(1.18±1.97 in.) Wagon:
Liftback:
30±50mm 66±18
± WIPER & WASHERREAR WIPER MOTOR ASSY
AVENSIS REPAIR MANUAL (RM1018E)
5. INSTALL REAR WIPER ARM ASSY
(a) Scrape off the serration part of the wiper arm with a round
file or equivalent.
(b) Clean the rear wiper pivot serration with a brush.
(c) Stop the rear wiper motor assy to the automatic stop posi-
tion. Install the rear wiper arm to the position as shown in
the illustration.
Torque: 5.5 Nm (56 kgfcm, 49 in.lbf)
Page 3144 of 5135
660CN±01
I35256
I352578Clips
I35258
± WIPER & WASHERWINDSHIELD WIPER MOTOR ASSY
66±13
AVENSIS REPAIR MANUAL (RM1018E)
WINDSHIELD WIPER MOTOR ASSY
REPLACEMENT
1. REMOVE FRONT WIPER ARM HEAD CAP
(a) Using a small screwdriver, remove the 2 front wiper arm
head cap.
HINT:
Tape up the screwdriver tip before use.
2. REMOVE FR WIPER ARM RH
(a) Operate the wiper, and stop the windshield wiper motor assy to the automatic stop position.
(b) Remove the nut and the FR wiper arm RH.
3. REMOVE FR WIPER ARM LH
(a) Remove the nut and the FR wiper arm LH.
4. REMOVE COWL TOP VENTILATOR LOUVER
(a) Disengage the 8 clips, and remove the hood cowl top
seal.
(b) Remove the 2 clips, and the cowl top ventilator louver.
5. REMOVE WINDSHIELD WIPER MOTOR & LINK ASSY
(a) Disconnect the connector, and remove the 2 bolts.
(b) Slide the wiper link assy to vehicle's passengers side. Dis-
engage the meshing of the rubber pin, and remove the
wiper motor & link assy.
