2005 TOYOTA AVENSIS Service Repair Manual

heater cooling instrument cluster power steering keyless air condition

Load previous 8 pages

Page 1521 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual I34694
HINT:
Memory Copy/Paste function is not available.Enter ºDIAGNOSIS
SYSTEM MODEº
(See section 4) 05±1448
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

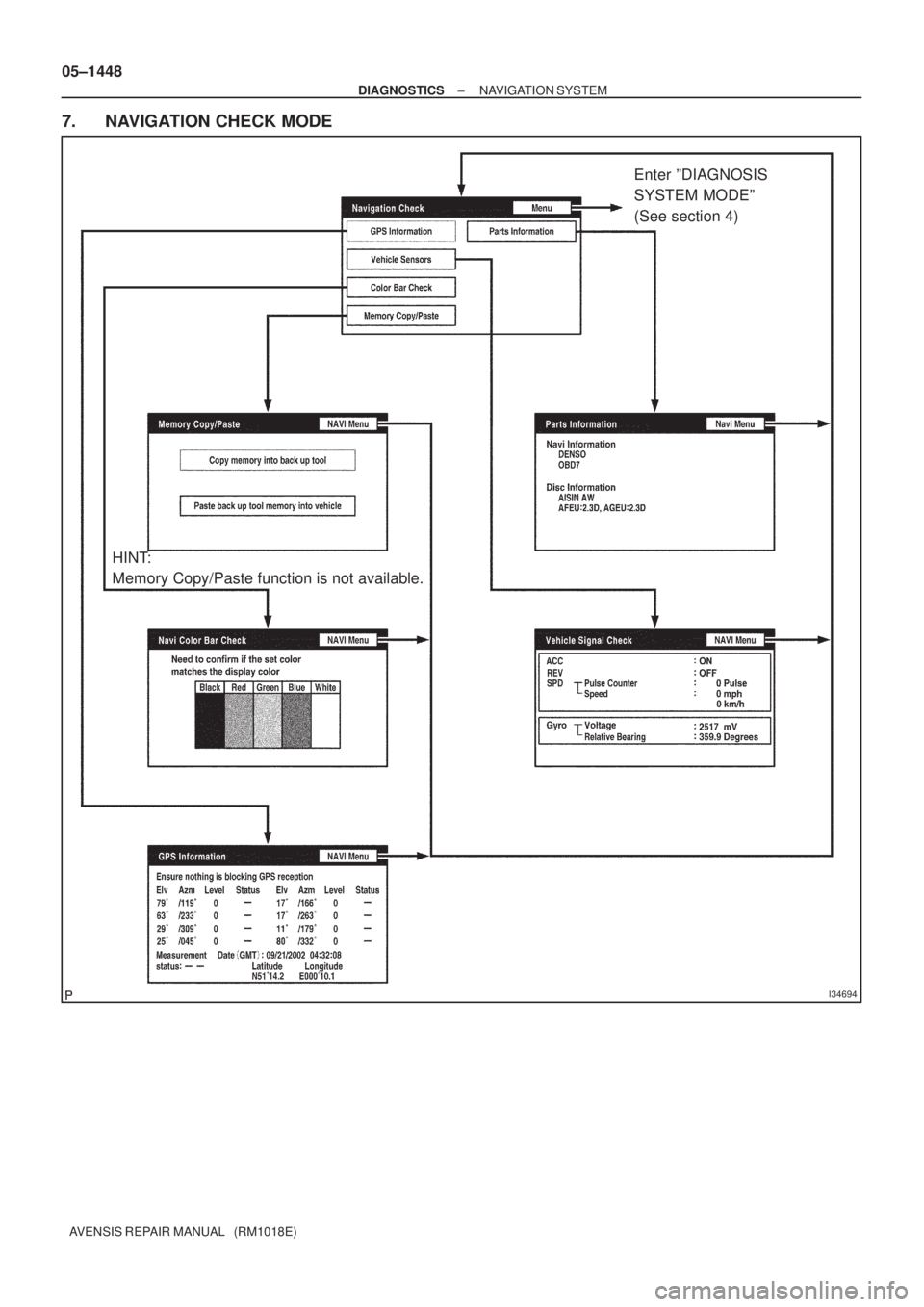

7. NAVIGATION CHEC

Page 1522 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual I34705
*1
*2
*3
*4*5*6
± DIAGNOSTICSNAVIGATION SYSTEM
05±1449
AVENSIS REPAIR MANUAL (RM1018E)

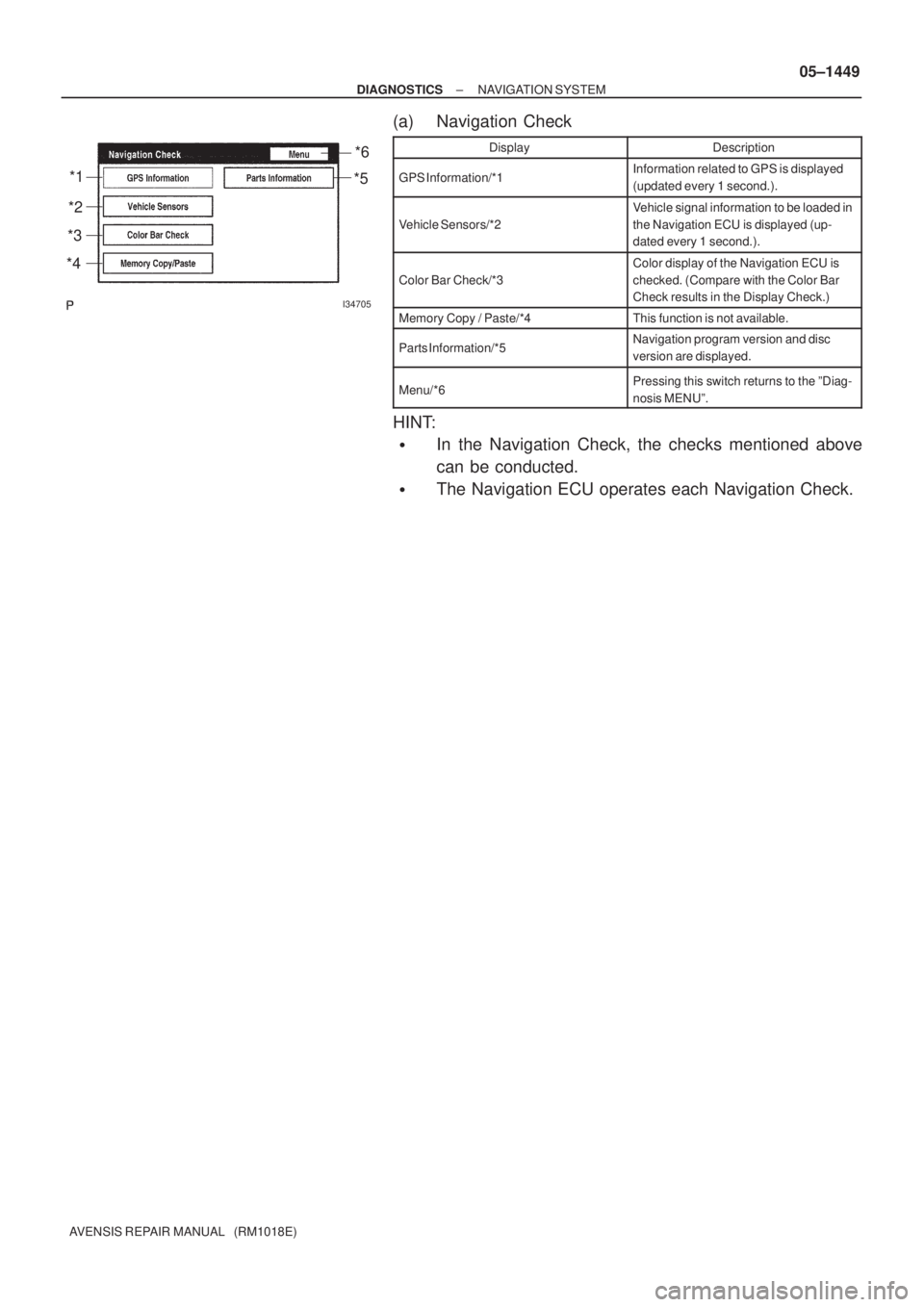

(a) Navigation Check
DisplayDescription
GPS Information/*1Information related to GPS is displayed
(up

Page 1523 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual I34706
*2
*5*2
*5
*6*1
*3*4
*7
05±1450
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

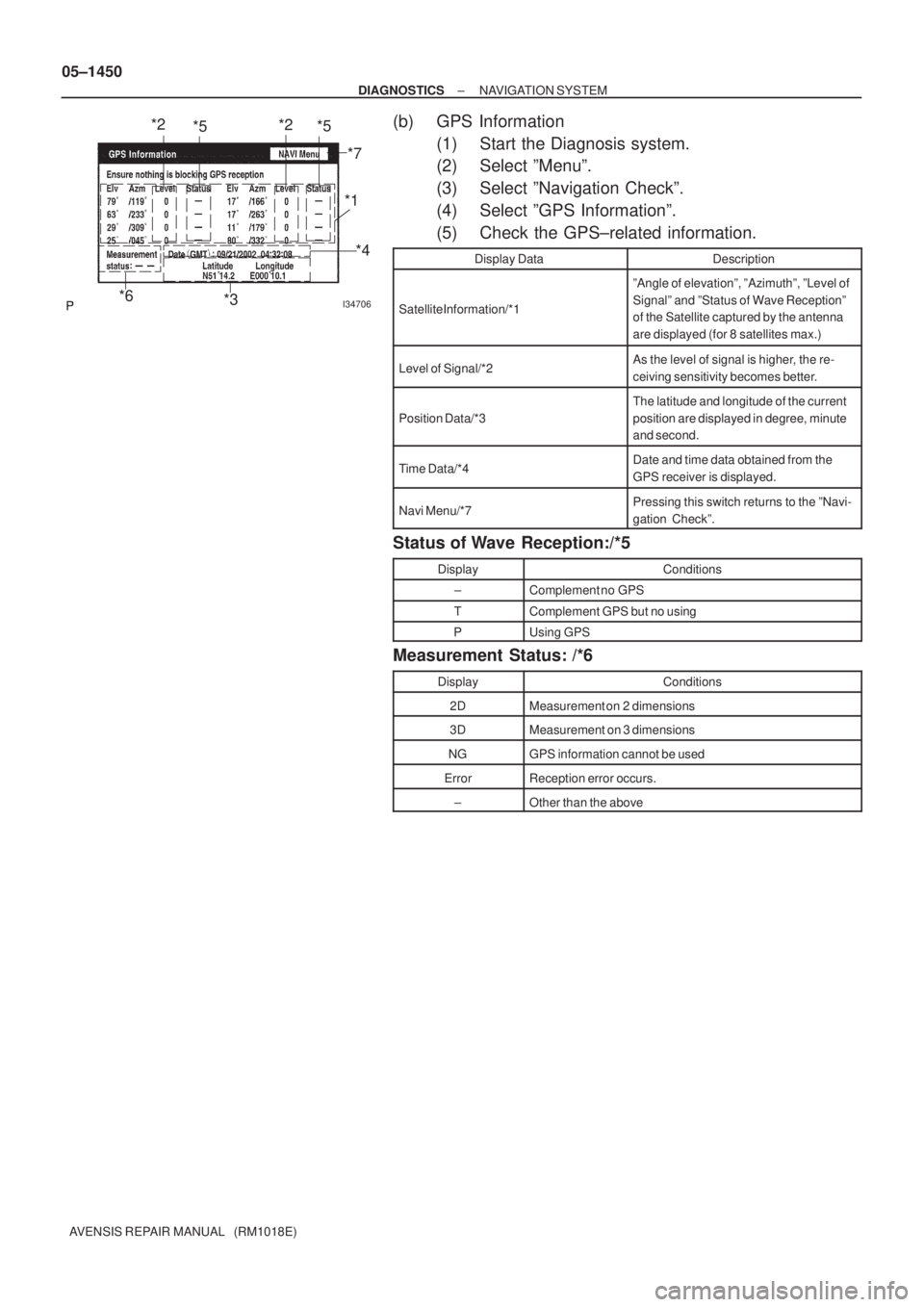

(b) GPS Information
(1) Start the Diagnosis system.
(2) Select ºMenuº.
(3) Select ºNavigati

Page 1524 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual I34707
*1
I34708
*1
I34709
*1
± DIAGNOSTICSNAVIGATION SYSTEM
05±1451
AVENSIS REPAIR MANUAL (RM1018E)

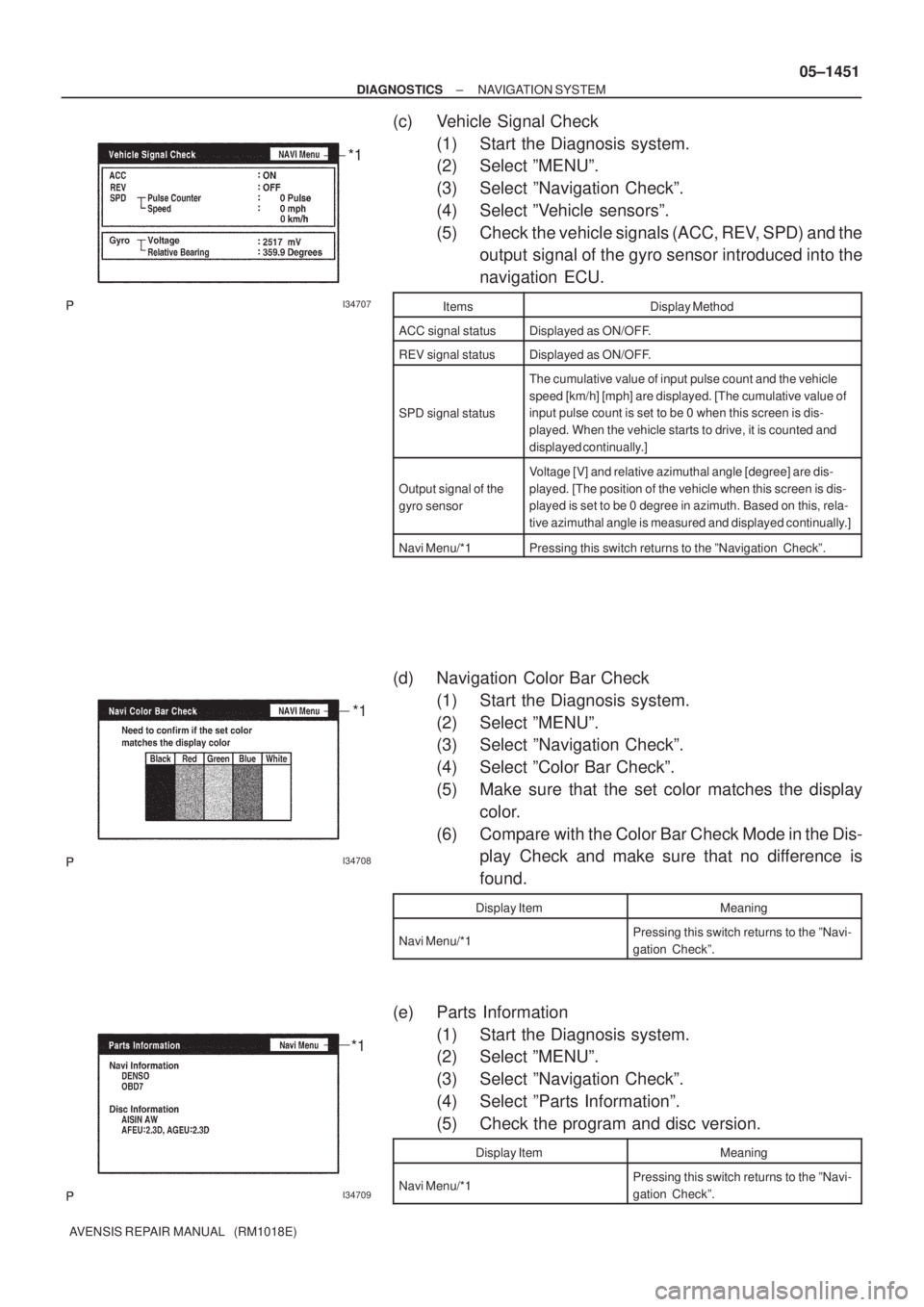

(c) Vehicle Signal Check
(1) Start the Diagnosis system.
(2) Select ºMENUº.
(3) Select ºNavi

Page 1525 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual I34710
*1
05±1452
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

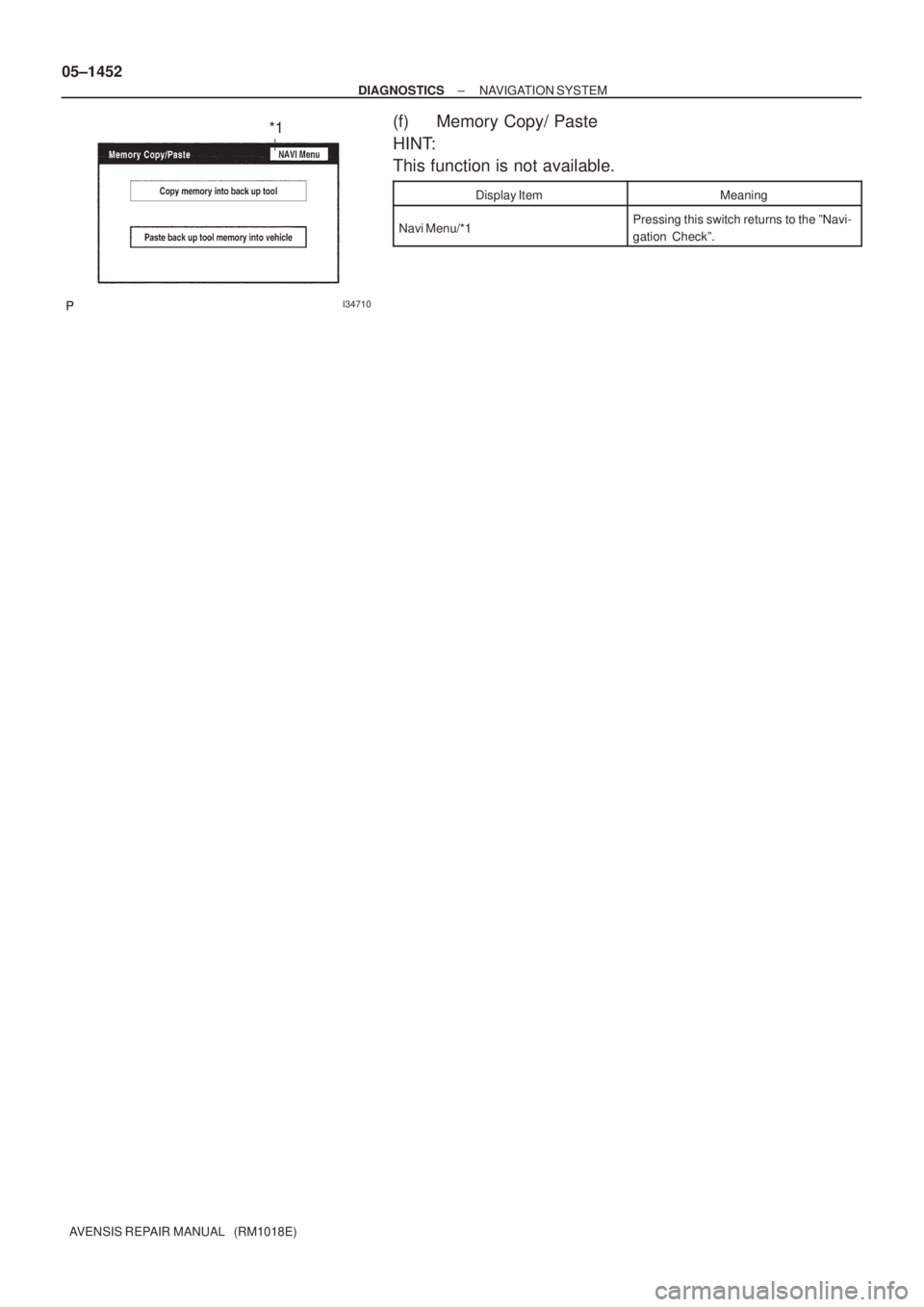

(f) Memory Copy/ Paste
HINT:
This function is not available.
Display ItemMeaning
Navi Menu/*1Pressing this switch r

Page 1526 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 056QC±04
±
DIAGNOSTICS COMBINATION METER
05±1509
AVENSIS REPAIR MANUAL (RM1018E)

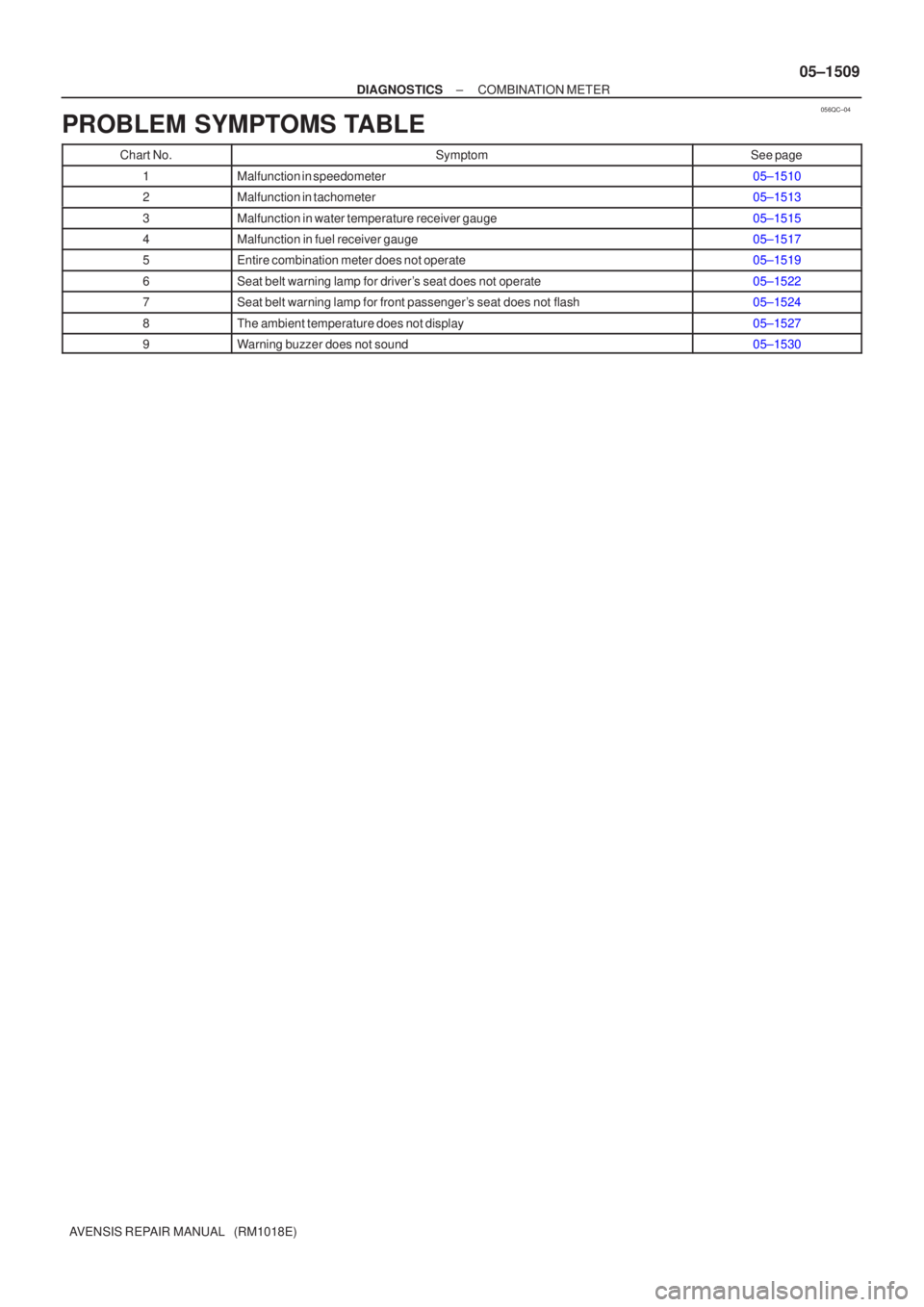

PROBLEM SYMPTOMS TABLE
Chart No.SymptomSee page
1Malfunction in speedometer05±1510
2Malfunction in tachometer05±

Page 1527 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 05C4G±01
I35933
C10 C11
05±1506
± DIAGNOSTICSCOMBINATION METER
AVENSIS REPAIR MANUAL (RM1018E)

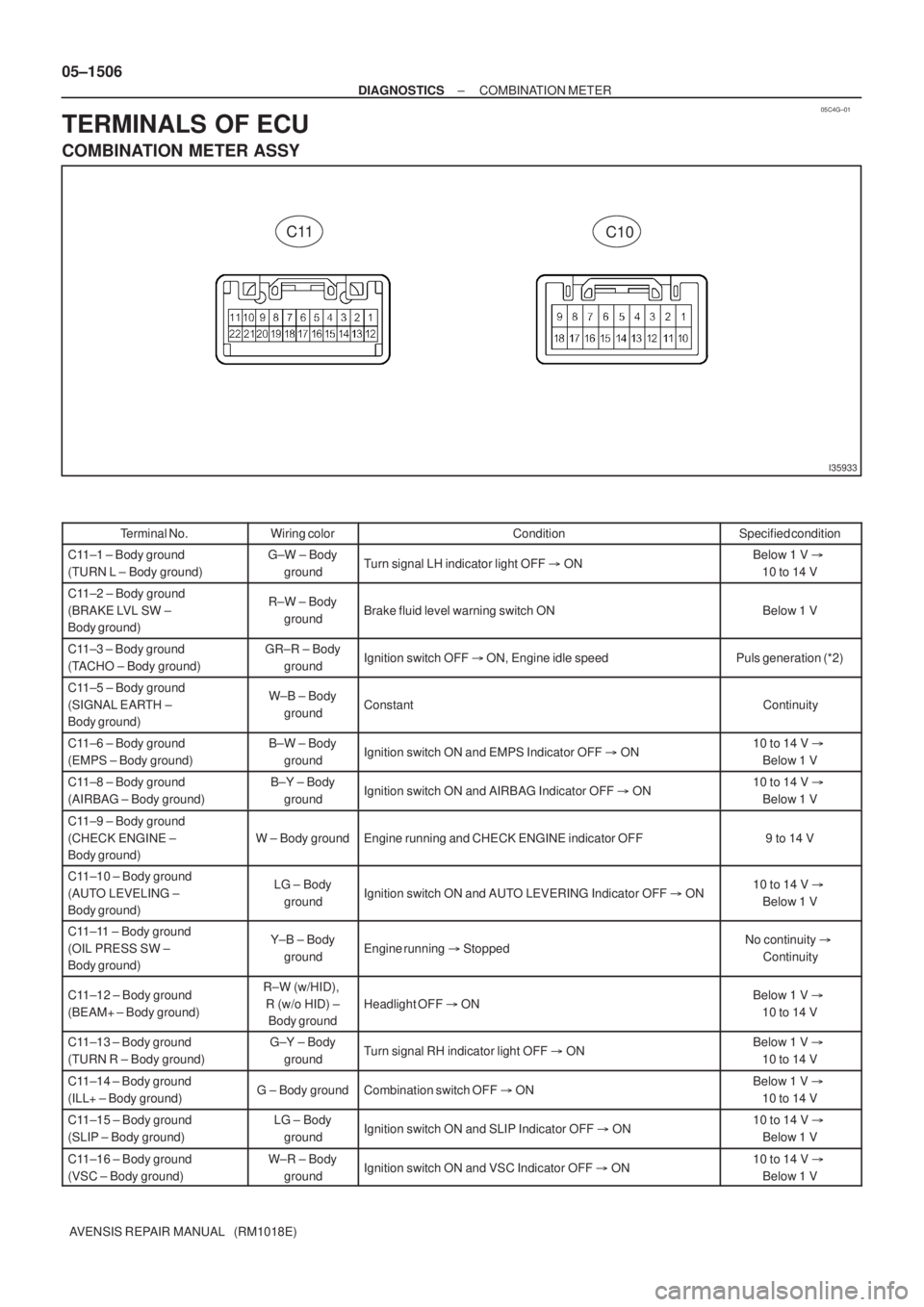

TERMINALS OF ECU
COMBINATION METER ASSY
Terminal No.Wiring colorConditionSpecified condition
C11±1

Page 1528 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual ± DIAGNOSTICSCOMBINATION METER
05±1507

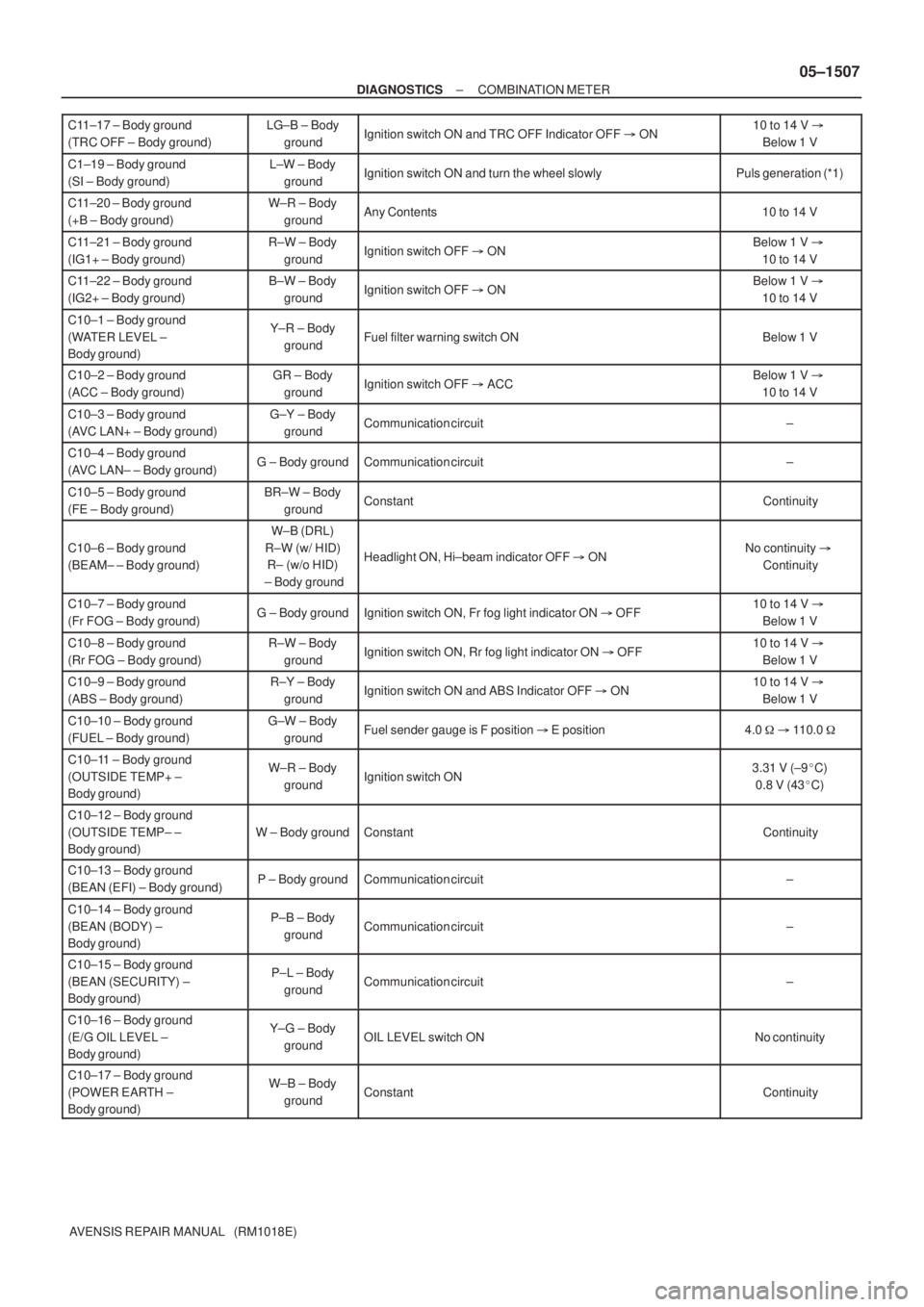

AVENSIS REPAIR MANUAL (RM1018E) C11±17 ± Body ground
(TRC OFF ± Body ground)
LG±B ± Body
groundIgnition switch ON and TRC OFF Indicator OFF ON10 to 14

± DIAGNOSTICSCOMBINATION METER
05±1507
AVENSIS REPAIR MANUAL (RM1018E) C11±17 ± Body ground
(TRC OFF ± Body ground)
LG±B ± Body
groundIgnition switch ON and TRC OFF Indicator OFF ON10 to 14 V
Below 1 V
C1±19 ± Body ground
(SI ± Body ground)L±W ± Body
groundIgnition switch ON and turn the wheel slowlyPuls generation (*1)
C11±20 ± Body ground
(+B ± Body ground)W±R ± Body
groundAny Contents10 to 14 V
C11±21 ± Body ground
(IG1+ ± Body ground)R±W ± Body
groundIgnition switch OFF ONBelow 1 V
10 to 14 V
C11±22 ± Body ground
(IG2+ ± Body ground)B±W ± Body
groundIgnition switch OFF ONBelow 1 V
10 to 14 V
C10±1 ± Body ground
(WATER LEVEL ±
Body ground)Y±R ± Body
groundFuel filter warning switch ONBelow 1 V
C10±2 ± Body ground
(ACC ± Body ground)GR ± Body
groundIgnition switch OFF ACCBelow 1 V
10 to 14 V
C10±3 ± Body ground
(AVC LAN+ ± Body ground)G±Y ± Body
groundCommunication circuit±
C10±4 ± Body ground
(AVC LAN± ± Body ground)G ± Body groundCommunication circuit±
C10±5 ± Body ground
(FE ± Body ground)BR±W ± Body
groundConstantContinuity
C10±6 ± Body ground
(BEAM± ± Body ground)
W±B (DRL)
R±W (w/ HID)
R± (w/o HID)
± Body ground
Headlight ON, Hi±beam indicator OFF ONNo continuity
Continuity
C10±7 ± Body ground
(Fr FOG ± Body ground)G ± Body groundIgnition switch ON, Fr fog light indicator ON OFF10 to 14 V
Below 1 V
C10±8 ± Body ground
(Rr FOG ± Body ground)R±W ± Body
groundIgnition switch ON, Rr fog light indicator ON OFF10 to 14 V
Below 1 V
C10±9 ± Body ground
(ABS ± Body ground)R±Y ± Body
groundIgnition switch ON and ABS Indicator OFF ON10 to 14 V
Below 1 V
C10±10 ± Body ground
(FUEL ± Body ground)G±W ± Body
groundFuel sender gauge is F position E position4.0 110.0
C10±11 ± Body ground
(OUTSIDE TEMP+ ±
Body ground)W±R ± Body
groundIgnition switch ON3.31 V (±9C)
0.8 V (43C)
C10±12 ± Body ground
(OUTSIDE TEMP± ±
Body ground)
W ± Body groundConstantContinuity
C10±13 ± Body ground
(BEAN (EFI) ± Body ground)P ± Body groundCommunication circuit±
C10±14 ± Body ground
(BEAN (BODY) ±
Body ground)P±B ± Body
groundCommunication circuit±
C10±15 ± Body ground
(BEAN (SECURITY) ±
Body ground)P±L ± Body
groundCommunication circuit±
C10±16 ± Body ground
(E/G OIL LEVEL ±
Body ground)Y±G ± Body
groundOIL LEVEL switch ONNo continuity
C10±17 ± Body ground
(POWER EARTH ±
Body ground)W±B ± Body
groundConstantContinuity
