Page 5089 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 05KYD–01
I33809
E13 E12 E11E10E9
– DIAGNOSTICSCRUISE CONTROL SYSTEM (2AZ–FSE)(From
February, 2004)05–315
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
TERMINALS OF ECM
Symbols (Terminals No.)Wiri

Page 5090 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 710NI–01
B80612
Code Shape
<A>φ = 8
(0.31)
L = 18
(0.71)Code Shape Code Shapemm (in.) (L = Length)
<B> <C>
<F> <E> <D>
<G> <H> <I>φ = 6
(0.24)
L = 16
(0.63)φ = 6
(0.24)
L = 20
(0.79)
φ = 6
(0

Page 5091 of 5135
B80614
5 Clips
Claw
B806152 Clips
B660342 Clips
B693472 Claws
(A)(A) 71–6
– INSTRUMENT PANEL/METERINSTRUMENT PANEL SUB–ASSY LOWER (From
February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)

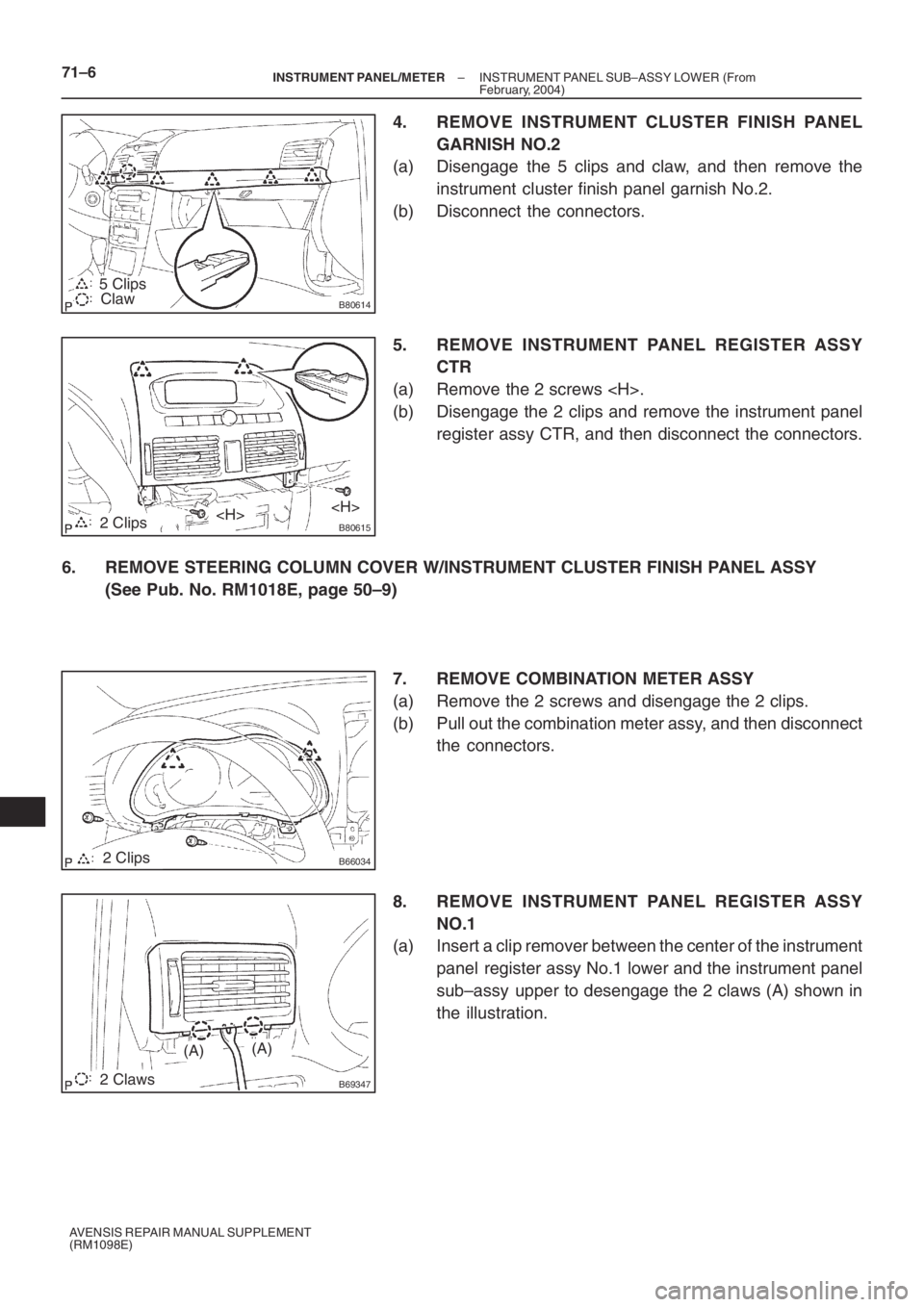

4. REMOVE INSTRUMENT CLUSTER FINISH PANEL
GARNISH NO.2
(a) Disengage the 5 clips and claw, and then remove the
instrument cluster finish panel garnish No.2.
(b) Disconnect the connectors.
5. REMOVE INSTRUMENT PANEL REGISTER ASSY
CTR
(a) Remove the 2 screws .
(b) Disengage the 2 clips and remove the instrument panel
register assy CTR, and then disconnect the connectors.
6. REMOVE STEERING COLUMN COVER W/INSTRUMENT CLUSTER FINISH PANEL ASSY
(See Pub. No. RM1018E, page 50–9)
7. REMOVE COMBINATION METER ASSY
(a) Remove the 2 screws and disengage the 2 clips.
(b) Pull out the combination meter assy, and then disconnect
the connectors.
8. REMOVE INSTRUMENT PANEL REGISTER ASSY
NO.1
(a) Insert a clip remover between the center of the instrument
panel register assy No.1 lower and the instrument panel
sub–assy upper to desengage the 2 claws (A) shown in
the illustration.

Page 5092 of 5135
B693482 Claws
(B)(B)
B831882 Claws
Stoppers
B806172 Clips
– INSTRUMENT PANEL/METERINSTRUMENT PANEL SUB–ASSY LOWER (From
February, 2004)71–7
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)

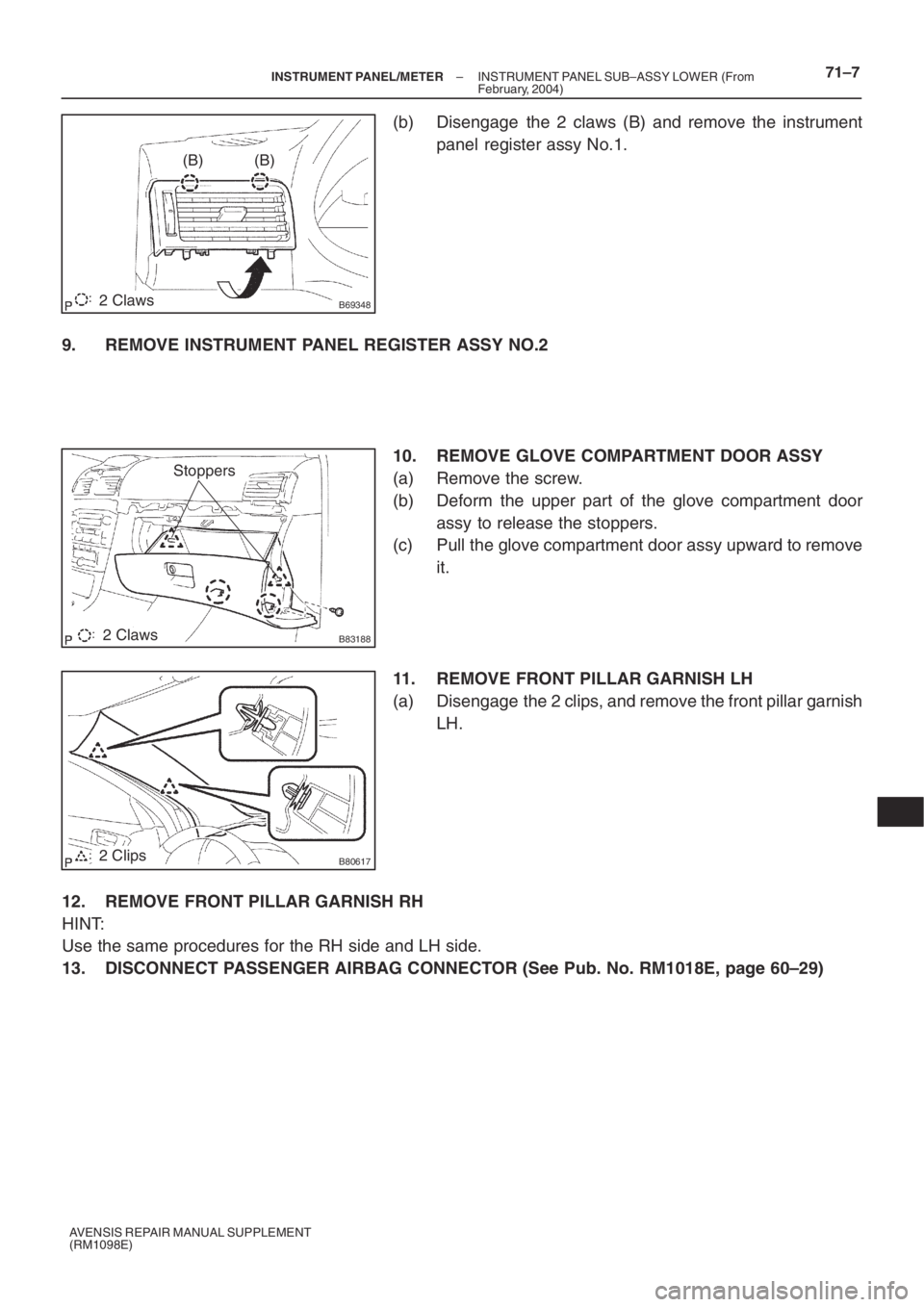

(b) Disengage the 2 claws (B) and remove the instrument
panel register assy No.1.
9. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.2
10. REMOVE GLOVE COMPARTMENT DOOR ASSY
(a) Remove the screw.
(b) Deform the upper part of the glove compartment door
assy to release the stoppers.
(c) Pull the glove compartment door assy upward to remove
it.
11. REMOVE FRONT PILLAR GARNISH LH
(a) Disengage the 2 clips, and remove the front pillar garnish
LH.
12. REMOVE FRONT PILLAR GARNISH RH
HINT:
Use the same procedures for the RH side and LH side.
13. DISCONNECT PASSENGER AIRBAG CONNECTOR (See Pub. No. RM1018E, page 60–29)

Page 5093 of 5135
B660292 Clips
10 Claws

B66022
71–8– INSTRUMENT PANEL/METERINSTRUMENT PANEL SUB–ASSY LOWER (From
February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)

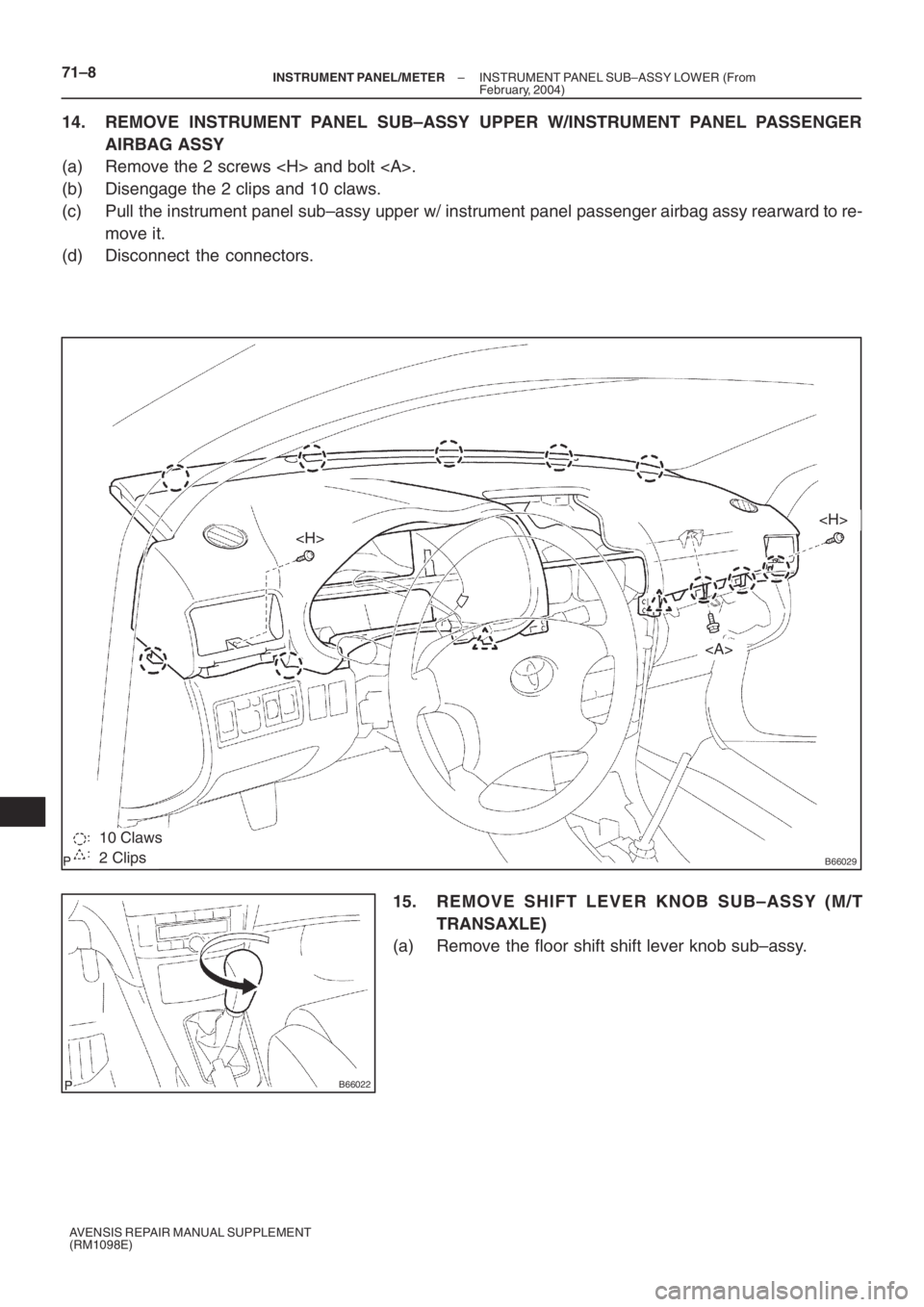

14. REMOVE INSTRUMENT PANEL SUB–ASSY UPPER W/INSTRUMENT PANEL PASSENGER
AIRBAG ASSY
(a) Remove the 2 screws and bolt .
(b) Disengage the 2 clips and 10 claws.
(c) Pull the instrument panel sub–assy upper w/ instrument panel passenger airbag assy rearward to re-
move it.
(d) Disconnect the connectors.
15. REMOVE SHIFT LEVER KNOB SUB–ASSY (M/T
TRANSAXLE)
(a) Remove the floor shift shift lever knob sub–assy.

Page 5094 of 5135
B70029: 4 Clips
A/T Transaxle:
M/T Transaxle:
B80618
w/ Stereo Opening Cover:
w/o Stereo Opening Cover:
: 4 Clips
– INSTRUMENT PANEL/METERINSTRUMENT PANEL SUB–ASSY LOWER (From
February, 2004)71–9
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
16. REMOVE CONSOLE PANEL SUB–ASSY UPPER
(a) Using a moulding remover, disengage the 4 clips.
(b) Disconnect the connectors, and remove the console pan-
el sub–assy upper.
17. REMOVE INSTRUMENT CLUSTER FINISH PANEL
SUB–ASSY CENTER W/BRACKET (W/O RADIO)
(a) Remove the 4 bolts.
(b) Using a moulding remover, disengage the 4 clips.
(c) Disconnect the connector and remove the instrument
cluster finish panel sub–assy center w/ blacket.
18. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET (W/ RADIO) (See Pub. No. RM1018E, page
67–5)
19. REMOVE HORN BUTTON ASSY (See Pub. No. RM1018E, page 60–17)
20. REMOVE STEERING WHEEL ASSY (See Pub. No. RM1018E, page 50–9)
SST 09950–50013 (09951–05010, 09952–05010, 09953–05020, 09954–05021)
21. REMOVE HEADLAMP DIMMER SWITCH ASSY (See Pub. No. RM1018E, page 65–27)
22. REMOVE WINDSHIELD WIPER SWITCH ASSY (See Pub. No. RM1018E, page 66–24)

Page 5095 of 5135
B66045Claw

B660308 Claws
B806162 Clips 71–10
– INSTRUMENT PANEL/METERINSTRUMENT PANEL SUB–ASSY LOWER (From
February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)

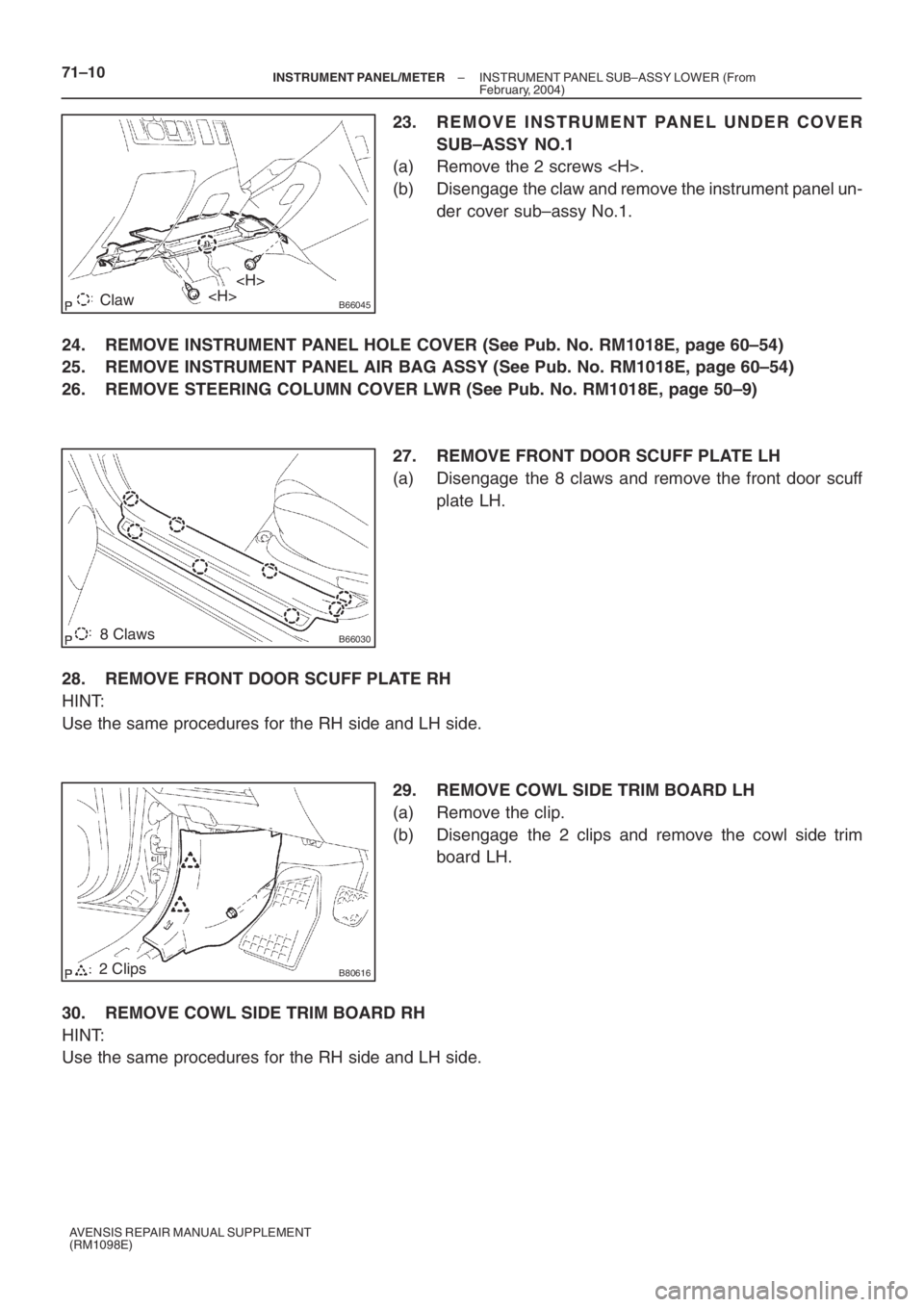

23. REMOVE INSTRUMENT PANEL UNDER COVER
SUB–ASSY NO.1
(a) Remove the 2 screws .
(b) Disengage the claw and remove the instrument panel un-
der cover sub–assy No.1.
24. REMOVE INSTRUMENT PANEL HOLE COVER (See Pub. No. RM1018E, page 60–54)
25. REMOVE INSTRUMENT PANEL AIR BAG ASSY (See Pub. No. RM1018E, page 60–54)
26. REMOVE STEERING COLUMN COVER LWR (See Pub. No. RM1018E, page 50–9)
27. REMOVE FRONT DOOR SCUFF PLATE LH
(a) Disengage the 8 claws and remove the front door scuff
plate LH.
28. REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedures for the RH side and LH side.
29. REMOVE COWL SIDE TRIM BOARD LH
(a) Remove the clip.
(b) Disengage the 2 clips and remove the cowl side trim
board LH.
30. REMOVE COWL SIDE TRIM BOARD RH
HINT:
Use the same procedures for the RH side and LH side.

Page 5096 of 5135
B660423 Clips
B660356 Clips

I35213
B66044
A/T Only:
M/T Only:

– INSTRUMENT PANEL/METERINSTRUMENT PANEL SUB–ASSY LOWER (From
February, 2004)71–11
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)

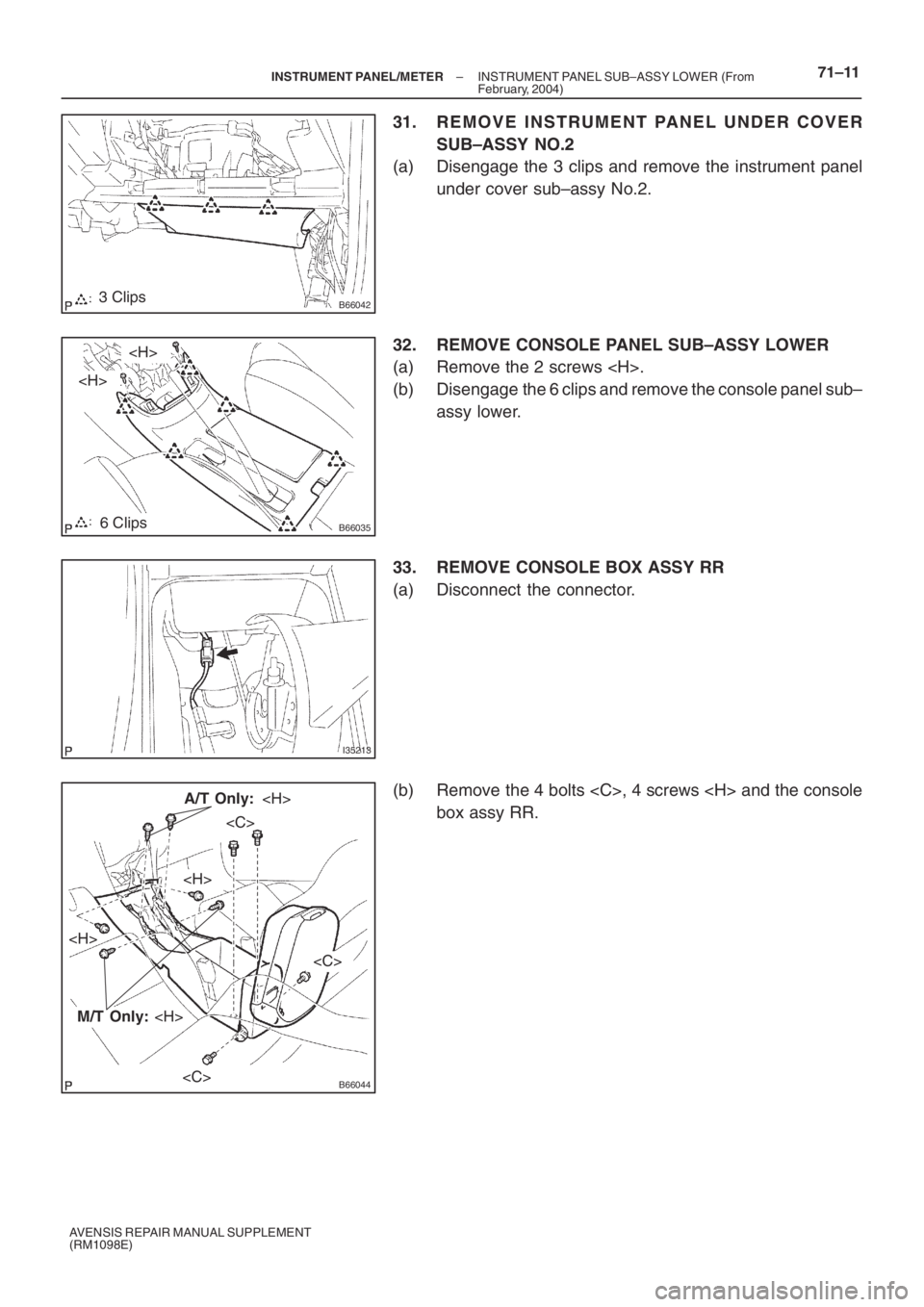

31. REMOVE INSTRUMENT PANEL UNDER COVER
SUB–ASSY NO.2
(a) Disengage the 3 clips and remove the instrument panel
under cover sub–assy No.2.
32. REMOVE CONSOLE PANEL SUB–ASSY LOWER
(a) Remove the 2 screws .
(b) Disengage the 6 clips and remove the console panel sub–
assy lower.
33. REMOVE CONSOLE BOX ASSY RR
(a) Disconnect the connector.
(b) Remove the 4 bolts , 4 screws and the console
box assy RR.
