Page 1249 of 5135
I32395
IGP5
I32395
E
P5
±
DIAGNOSTICS COMBUSTION TYPE POWER HEATER SYSTEM
05±1175
AVENSIS REPAIR MANUAL (RM1018E)

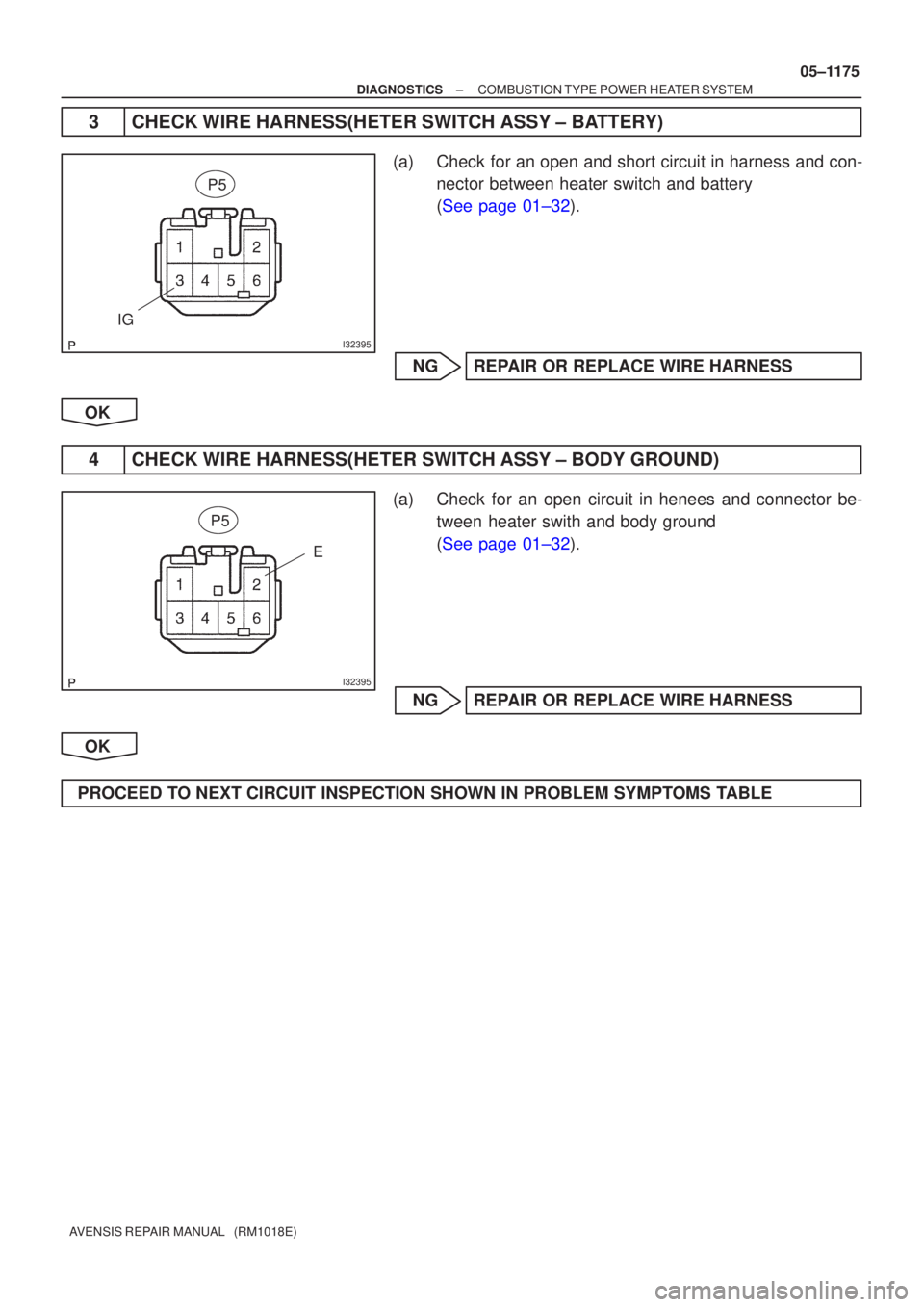

3CHECK WIRE HARNESS(HETER SWITCH ASSY ± BATTERY)
(a)Check for an open and short circuit in harness and con-
nector between heater switch and battery
(See page 01±32).
NG REPAIR OR REPLACE WIRE HARNESS
OK
4 CHECK WIRE HARNESS(HETER SWITCH ASSY ± BODY GROUND)
(a) Check for an open circuit in henees and connector be- tween heater swith and body ground
(See page 01±32).
NG REPAIR OR REPLACE WIRE HARNESS
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
Page 1250 of 5135
H01454
S18
Side Squib LHAirbag Sensor Assy Center
SFL+
SFL± Y±R
Y±G 1
211 12
A26
A26 05±1238
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

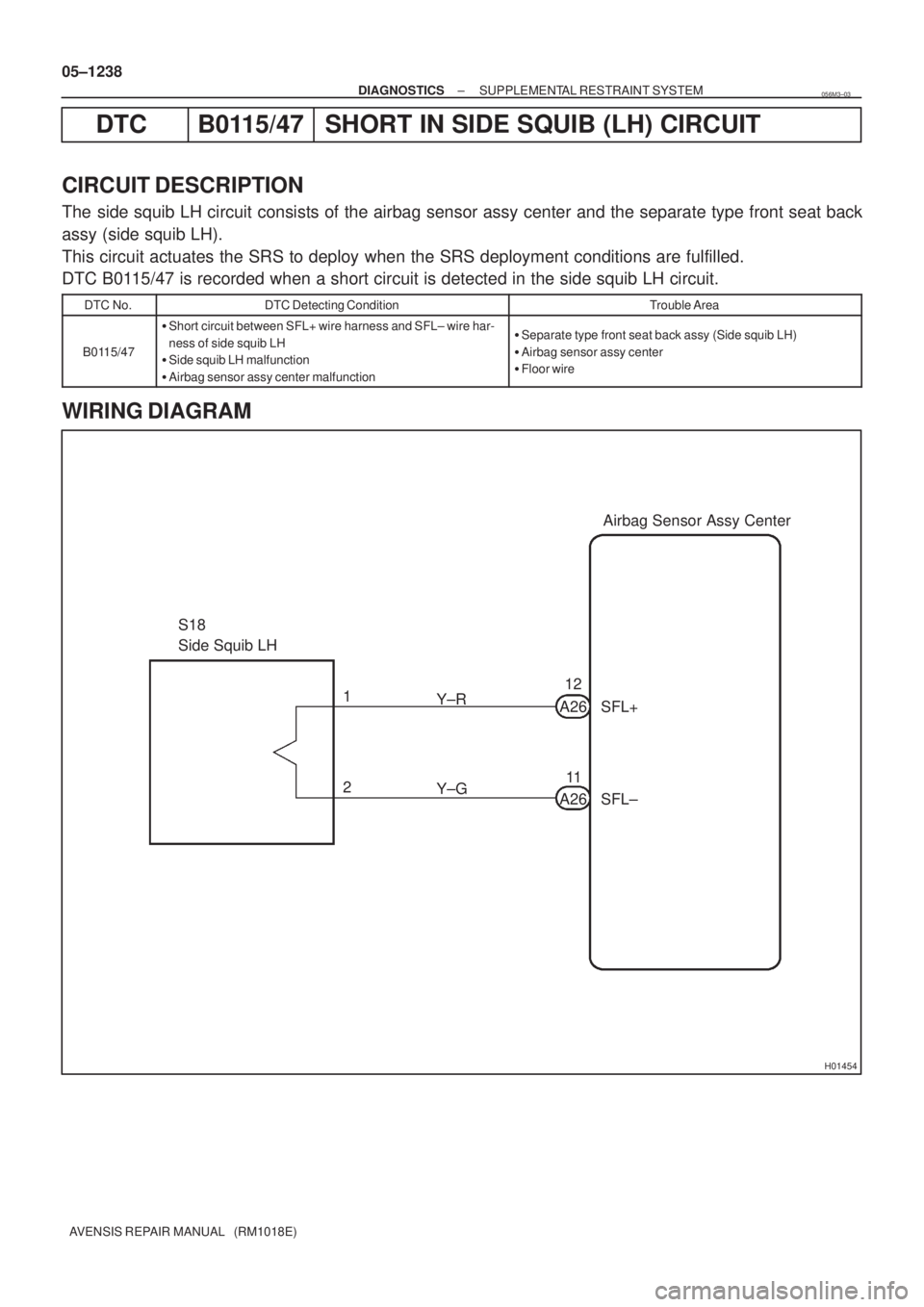

DTC B0115/47 SHORT IN SIDE SQUIB (LH) CIRCUIT
CIRCUIT DESCRIPTION
The side squib LH circuit consists of the airbag sensor assy center and the separate type front seat back
assy (side squib LH).
This circuit actuates the SRS to deploy when the SRS deployment conditions are fulfilled.
DTC B0115/47 is recorded when a short circuit is detected in the side squib LH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0115/47
Short circuit between SFL+ wire harness and SFL± wire har-
ness of side squib LH
Side squib LH malfunction
Airbag sensor assy center malfunctionSeparate type front seat back assy (Side squib LH)
Airbag sensor assy center
Floor wire
WIRING DIAGRAM
056M3±03
Page 1251 of 5135

\bH42853
Side Squib LHAirbag
Sensor
Assy
Center
SFL±
SFL+Floor Wire
A
B
C
D
H42153
Side Squib LH
Airbag
Sensor
Assy
Center
DLC3
CG TC DTC B0115/47
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1239
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
1CHECK FLOOR WIRE(SIDE SQUIB LH CIRCUIT)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Disconnect the connectors from the airbag sensor assy center and the separate type front seat back assy (side
squib LH).
(d)Release the activation prevention mechanism built in the
connector ºBº (See page 05±1184).
(e) Measure the resistance between SFL+ and SFL± of the connector ºCº.
OK:
Resistance: 1 M or Higher
NG REPAIR OR REPLACE FLOOR WIRE
OK
2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(d)Clear the stored DTCs in the memory (See page 05±1184).
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Check the DTCs (See page 05±1184).
OK:
DTC B0115/47 is not output.
HINT:
Codes other than code B0115/47 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
Page 1252 of 5135

H40988
Side Squib LHDTC B0115/47
DLC3
TC
CG Airbag
Sensor
Assy
Center
C
D
05±1240
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
3 CHECK SEPARATE TYPE FRONT SEAT BACK ASSY(SIDE SQUIB LH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c) Connect the connector to the separate type front seat back assy (side squib LH).
(d) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0115/47 is not output.
HINT:
Codes other than code B0115/47 may be output at this time, but
they are not related to this check.
NG REPLACE SEPARATE TYPE FRONT SEAT BACK ASSY
OK
USE SIMULATION METHOD TO CHECK
Page 1253 of 5135

H42849
Side Squib RHAirbag
Sensor
Assy
Center
SFR±
SFR+
Floor Wire No.2
A
B
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1235
AVENSIS REPAIR MANUAL (RM1018E)

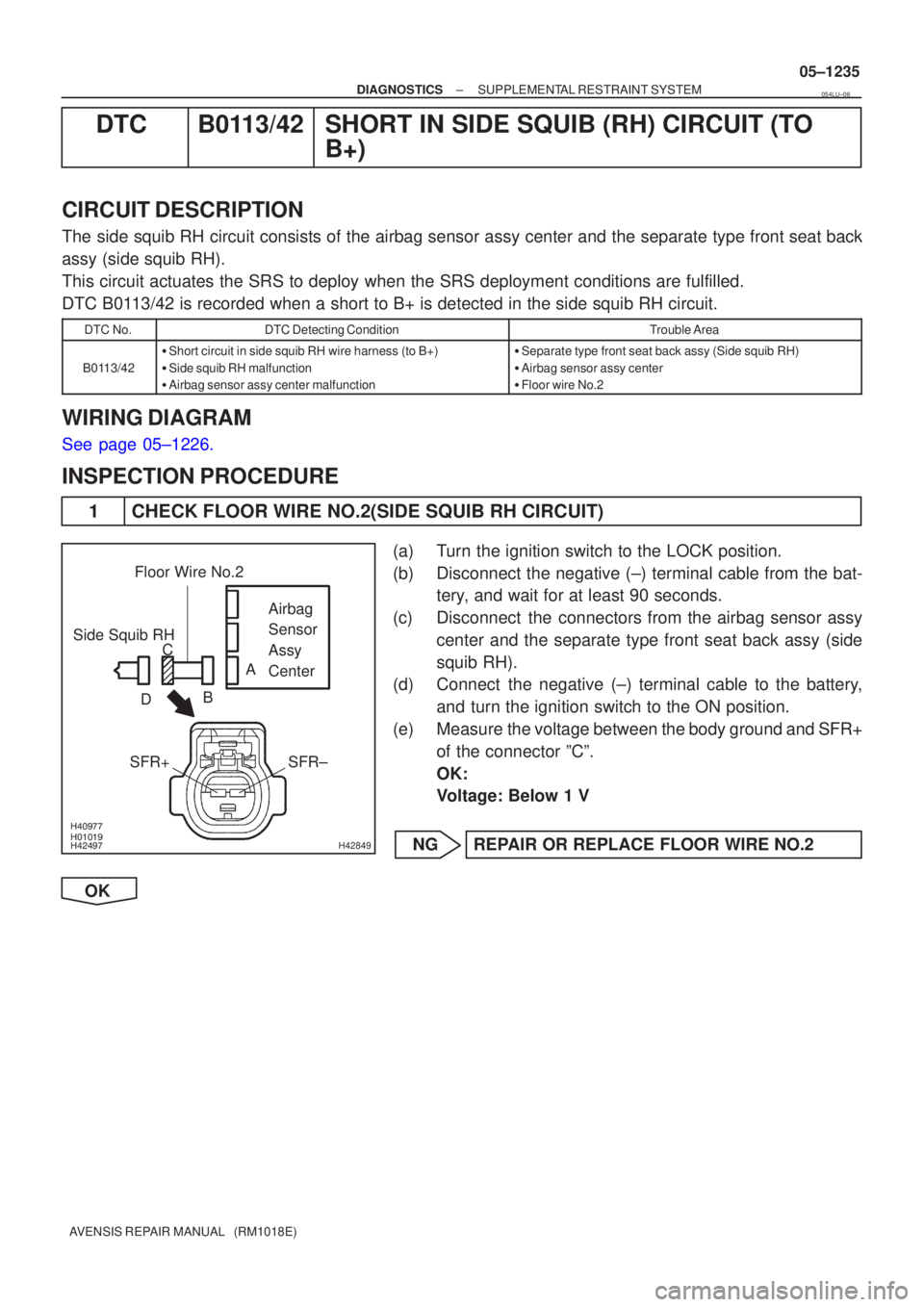

DTC B0113/42 SHORT IN SIDE SQUIB (RH) CIRCUIT (TO
B+)
CIRCUIT DESCRIPTION
The side squib RH circuit consists of the airbag sensor assy center and the\
separate type front seat back
assy (side squib RH).
This circuit actuates the SRS to deploy when the SRS deployment conditio\
ns are fulfilled.
DTC B0113/42 is recorded when a short to B+ is detected in the side squib RH ci\
rcuit.
DTC No.DTC Detecting ConditionTrouble Area
B0113/42
Short circuit in side squib RH wire harness (to B+)
Side squib RH malfunction
Airbag sensor assy center malfunctionSeparate type front seat back assy (Side squib RH)
Airbag sensor assy center
Floor wire No.2
WIRING DIAGRAM
See page 05±1226.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE NO.2(SIDE SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy center and the separate type front seat back assy (side
squib RH).
(d) Connect the negative (±) terminal cable to the battery,
and turn the ignition switch to the ON position.
(e) Measure the voltage between the body ground and SFR+ of the connector ºCº.
OK:
Voltage: Below 1 V
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
054LU±06
Page 1254 of 5135

\b
\b \b\bH42852
Side Squib RHAirbag
Sensor
Assy
Center
SFR±
SFR+
DLC3
CG TC DTC B0113/42
Floor Wire No.2
Service Wire
C
D
05±1236
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c) Connect the connector to the airbag sensor assy center.
(d) Using a service wire, connect SFR+ and SFR± of the con- nector ºCº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(e) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Clear the stored DTCs in the memory (See page 05±1184).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(j)Check the DTCs (See page 05±1184). OK:
DTC B0113/42 is not output.
HINT:
Codes other than code B0113/42 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
Page 1255 of 5135

H40985
Side Squib RHCG DTC B0113/42
DLC3
TC Airbag
Sensor
Assy
Center
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1237
AVENSIS REPAIR MANUAL (RM1018E)
3 CHECK SEPARATE TYPE FRONT SEAT BACK ASSY(SIDE SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the separate type front seat back assy (side squib RH).
(d) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0113/42 is not output.
HINT:
Codes other than code B0113/42 may be output at this time, but
they are not related to this check.
NG REPLACE SEPARATE TYPE FRONT SEAT BACK ASSY
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS
Page 1256 of 5135

H42849
Airbag
Sensor
Assy
Center
Side Squib RH Floor Wire No.2
SFR+ SFR±
A
B
C
D
05±1232
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

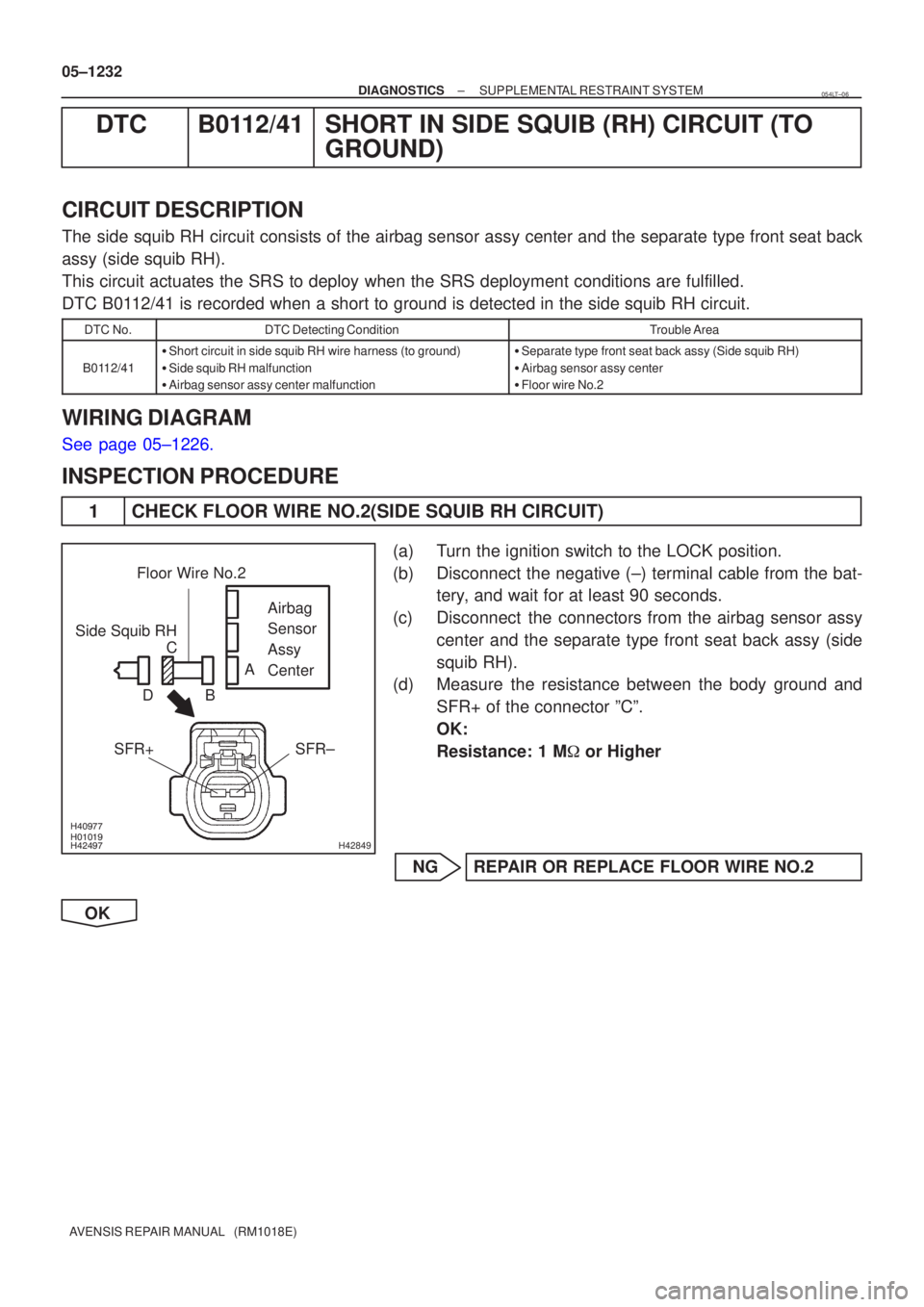

DTC B0112/41 SHORT IN SIDE SQUIB (RH) CIRCUIT (TO GROUND)
CIRCUIT DESCRIPTION
The side squib RH circuit consists of the airbag sensor assy center and the\
separate type front seat back
assy (side squib RH).
This circuit actuates the SRS to deploy when the SRS deployment conditio\
ns are fulfilled.
DTC B0112/41 is recorded when a short to ground is detected in the side squib R\
H circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0112/41
Short circuit in side squib RH wire harness (to ground)
Side squib RH malfunction
Airbag sensor assy center malfunctionSeparate type front seat back assy (Side squib RH)
Airbag sensor assy center
Floor wire No.2
WIRING DIAGRAM
See page 05±1226.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE NO.2(SIDE SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy center and the separate type front seat back assy (side
squib RH).
(d) Measure the resistance between the body ground and
SFR+ of the connector ºCº.
OK:
Resistance: 1 M or Higher
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
054LT±06
