050X4±14
ABS Check SheetInspector 's
Name:
Customer 's Name
Date Vehicle
Brought InVIN
Licence No.
Odometer Reading/ /
/ /
Date Problem First Occurred
Frequency the Problem Occurs/ /
ContinuouslyIntermittently ( times a day)
ABS does not operate.
ABS does not operate efficiently.
ABS Warning LightRemains ONDoes not Light Up
DTC Check1st Time
2nd TimeNormal Code
Malfunction Code (Code )
Normal CodeMalfunction Code (Code )
Symptomskm
miles
Brake Warning
LightRemains ONDoes not Light Up
STOP LIGHT SW
SYSTEM
Freeze Frame Data
#IG ON
VEHICLE SPDON
OFF
NO SYS
ABS
FAIL SF
km/h
MPH Production Date 05±698
± DIAGNOSTICSABS WITH EBD SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
CUSTOMER PROBLEM ANALYSIS CHECK
Page 810 of 5135
050YD±14
05±696
±
DIAGNOSTICS ABS WITH EBD SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
ABS WITH EBD SYSTEM
HOW TO PROCEED WITH TROUBLESHOOTING
1Vehicle Brought to Workshop
2Customer Problem Analysis (See page 05±698)
3Check and Clear DTCs and Freeze Frame Data (See page 05±699)
4Problem Symptom Confirmation
Symptom does not occur: Go to step 5
Symptom occurs: Go to step 6
5Symptom Simulation (See page 01±32)
6DTC Check (See page 05±699)
There is no output: Go to step 7
There is output: Go to step 8
7Problem Symptoms Table (See page 05±708)
Check for fluid leakage and Go to step 10
8DTC Chart (See page 05±704)
9Circuit Inspection (See page 05±709 ± 05±750)
HINT:
When 2 or more DTCs are detected, perform circuit inspection one by one \
until the problem is identified.

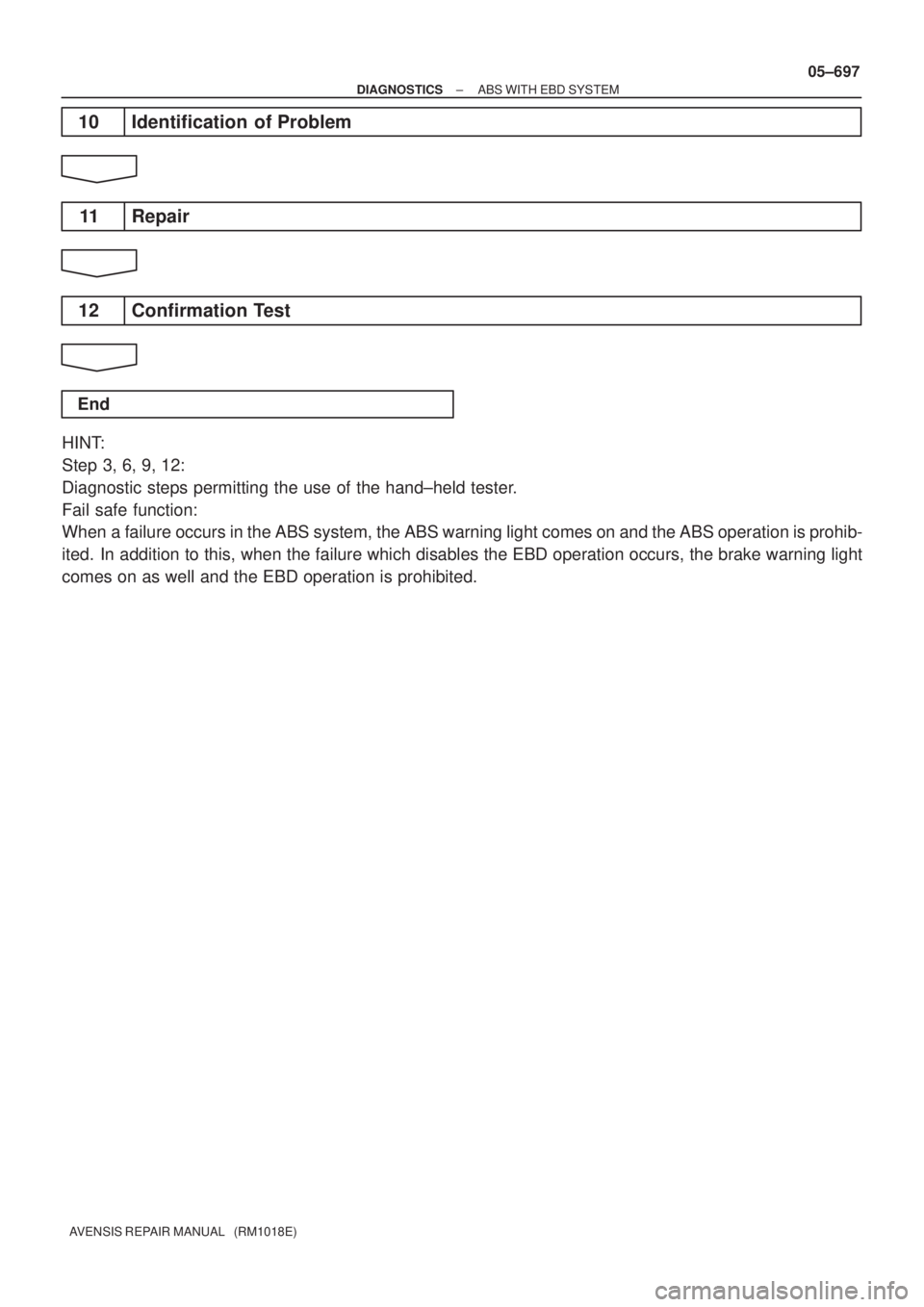

Page 811 of 5135
± DIAGNOSTICSABS WITH EBD SYSTEM
05±697
AVENSIS REPAIR MANUAL (RM1018E)
10 Identification of Problem
11 Repair
12 Confirmation Test
End
HINT:
Step 3, 6, 9, 12:
Diagnostic steps permitting the use of the hand±held tester.
Fail safe function:
When a failure occurs in the ABS system, the ABS warning light comes on and the ABS operation is prohib-
ited. In addition to this, when the failure which disables the EBD operation occurs, the brake warning light
comes on as well and the EBD operation is prohibited.
Page 812 of 5135
056T1±03
F45086
Stop Lamp SwitchDLC3
Yaw Rate Sensor
(Include Lateral Acceleration Sensor) TRC OFF
Switch
Parking Brake Switch
Skid Control
BuzzerSkid Control Sensor
Left Front
Speed Sensor
Brake Actuator
(Include Skid Control ECU)
Combination Meter
(ABS Warning Light)
(Brake Warning Light)
(VSC Warning Light)
(TRC OFF Indicator Light)
(SLIP Indicator Light)
Speed Sensor Rotor
Steering Angle Sensor
ECM
± DIAGNOSTICSABS WITH EBD & BA & TRC & VSC SYSTEM
05±769
AVENSIS REPAIR MANUAL (RM1018E)
LOCATION
Page 813 of 5135

0542Q±04
05±766
±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTIC TROUBLE CODE CHART
HINT:
Using SST 09843±18040, connect the terminal Tc and CG of the DLC3.
If malfunction is not found when inspecting parts, inspect the ECU and grou\
nd points for poor contact.
If a malfunction code is displayed during the DTC check, check the circuit\
listed for that code. For de-
tails of each code, refer to the ºSee pageº for respective ºDTC No.º\
in the DTC chart.
When 2 or more DTCs are detected, perform circuit inspection one by one unti\
l the problem is identi-
fied.
DTC chart of ABS system:
DTC No.
(See Page)Detection ItemTrouble Area
C0200 / 31 (05±774)Right front wheel speed sensor signal malfunction
Right front speed sensor
Right front speed sensor circuit
Right front speed sensor rotor
C0205 / 32
(05±774)Left front wheel speed sensor signal malfunction
Left front speed sensor
Left front speed sensor circuit
Left front speed sensor rotor
C0210 / 33
(05±778)Right rear wheel speed sensor signal malfunction
Right rear speed sensor
Right rear speed sensor circuit
Right rear speed sensor rotor
C0215 / 34
(05±778)Left rear wheel speed sensor signal malfunction
Left rear speed sensor
Left rear speed sensor circuit
Left rear speed sensor rotor
C0226 / 21
(05±782)Open or short circuit in brake actuator Brake actuator
SFRR or SFRH circuit
C0236 / 22
(05±782)Open or short circuit in brake actuator Brake actuator
SFLR or SFLH circuit
C0246 / 23
(05±782)Open or short circuit in brake actuator Brake actuator
SRRR or SRRH circuit
C0256 / 24
(05±782)Open or short circuit in brake actuator Brake actuator
SRLR or SRLH circuit
C0273 / 13
(05±784)Open or short circuit in ABS motor relay circuit ABS motor relay
ABS motor relay circuit
C0278 / 11
(05±787)Open or short circuit in ABS solenoid relay circuit ABS solenoid relay
ABS solenoid relay circuit
C1237 / 37
(05±807)Wrong tire size Tire size
Speed sensor rotor
C1241 / 41
(05±808)Low battery positive voltage or abnormally high battery positive
voltage Battery
Charging system
Power source circuit
C1249 / 58
(05±815)Open circuit in stop light switch circuit Stop lamp switch
Stop lamp switch circuit
C1300 / 62
(05±819)Malfunction in skid control ECU Battery
Skid control ECU
C1330 / 35
(05±774)Open circuit in right front speed sensor circuit Right front speed sensor
Right front speed sensor circuit
C1331 / 36
(05±774)Open circuit in left front speed sensor circuit Left front speed sensor
Left front speed sensor circuit
C1332 / 38
(05±778)Open circuit in right rear speed sensor circuit Right rear speed sensor
Right rear speed sensor circuit
Page 814 of 5135

±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
05±767
AVENSIS REPAIR MANUAL (RM1018E)C1333 / 39
(05±778)
Open circuit in left rear speed sensor circuit Left rear speed sensor
Left rear speed sensor circuit
Always ON
(05±827)Malfunction in skid control ECU
Open circuit in ABS warning light circuit
Battery
Charging system
Power source circuit
Skid control ECU
DTC chart of VSC system:
DTC No.
(See Page)Detection ItemTrouble Area
C0365 / 43 (05±790)Malfunction in lateral acceleration sensor (combined in yaw
rate sensor) Yaw rate sensor
Yaw rate sensor circuit
C0371 / 55
(05±793)Malfunction in yaw rate sensor circuit Yaw rate sensor
Yaw rate sensor circuit
C1224 / 44
(05±797)Open or short circuit in NE signal circuit
NEO circuit
ECM
Skid control ECU
C1201/45
(05±796)VSC shut down due to ECM failure ECM
C1203 / 59
(05±799)ECM communication circuit malfunction
TRC+ or TRC± circuit
ENG+ or ENG± circuit
ECM
C1208 / 54
(05±801)Malfunction in steering angle sensor Steering angle sensor
Steering angle sensor circuit
C1225 / 25
(05±805)Open or short circuit in brake actuator solenoid circuit (SMC1
circuit) Brake actuator
SMC1 circuit
C1226 / 26
(05±805)Open or short circuit in brake actuator solenoid circuit (SMC2
circuit) Brake actuator
SMC2 circuit
C1227 / 27
(05±805)Open or short circuit in brake actuator solenoid circuit (SRC1
circuit) Brake actuator
SRC1 circuit
C1228 / 28
(05±805)Open or short circuit in brake actuator solenoid circuit (SRC2
circuit) Brake actuator
SRC2 circuit
C1246 / 53
(05±812)Malfunction in master cylinder pressure sensor Master cylinder pressure sensor
Master cylinder pressure sensor circuit
C1288 / 88
(05±818)Malfunction in ECM version Steering angle sensor zero point calibration
C1301 / 42
(05±821)Malfunction in CAN communication circuit
(steering angle sensor circuit, yaw rate sensor circuit) Steering angle sensor circuit
Yaw rate sensor circuit
C1350 / 51
(05±825)Pump motor is locked
Open circuit in pump motor ground Brake actuator pump motor
Always ON
(05±831)Malfunction in skid control ECU
Open circuit in VSC warning light circuit
Battery
Charging system
Power source circuit
Skid control ECU
Page 815 of 5135
05±768
± DIAGNOSTICSABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
DTC of sensor check function :
Code No.DiagnosisTrouble Area
C1271/71Low output voltage of right front speed sensor
Right front speed sensor
Sensor installation
Sensor rotor
C1272/72Low output voltage of left front speed sensor
Left front speed sensor
Sensor installation
Sensor rotor
C1273/73Low output voltage of right rear speed sensor
Right rear speed sensor
Sensor installation
Sensor rotor
C1274/74Low output voltage of left rear speed sensor
Left rear speed sensor
Sensor installation
Sensor rotor
C1275/75Change in output voltage of right front speed sensorRight front sensor rotor
C1276/76Change in output voltage of left front speed sensorLeft front speed sensor rotor
C1277/77Change in output voltage of right rear speed sensorRight rear sensor rotor
C1278/78Change in output voltage of left rear speed sensorLeft rear speed sensor rotor
Page 816 of 5135

0577Y±02
F45094
ABS Warning LightBRAKE Warning
Light
VSC Warning Light SLIP Indicator Light
TRC OFF Indicator
Light
C52361
DLC3 Tc
CG
05±756
±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
PRE±CHECK
1.DIAGNOSIS SYSTEM
(a)Check the warning lights. (1)Release the parking brake lever.
(2)When the ignition switch is turned ON, check thatthe ABS warning light, Brake warning light, VSC
warning light, TRC OFF indicator light and SLIP in-
dicator light come on for approx. 3 seconds.
HINT:
When the parking brake is applied or brake fluid level is
low, the Brake warning light comes on.
If the ECU stores DTC, the ABS warning light , VSC warn-
ing light and TRC OFF indicator light come on.
If the indicator check result is not normal, proceed to trou-
bleshooting for the light circuit.
Trouble AreaSee page
ABS warning light circuit05±827
Brake warning light circuit05±840
VSC warning light circuit05±831
TRC OFF indicator light circuit05±844
SLIP indicator light circuit05±848
(b) Without using hand±held tester: Check the DTC.
(1) Using SST, connect terminal Tc and CG of theDLC3.
SST 09843±18040
(2) Turn the ignition switch ON.
(3) Read the DTC from the ABS warning light or VSC warning light on the combination meter.
HINT:
If no code appears, inspect the diagnostic circuit, ABS
warning light circuit or VSC warning light circuit.
Trouble AreaSee page
Tc terminal circuit05±852
ABS warning light circuit05±827
VSC warning light circuit05±831
