Page 3217 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 700S7±01
B66761
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
70±1
AVENSIS REPAIR MANUAL (RM1018E)

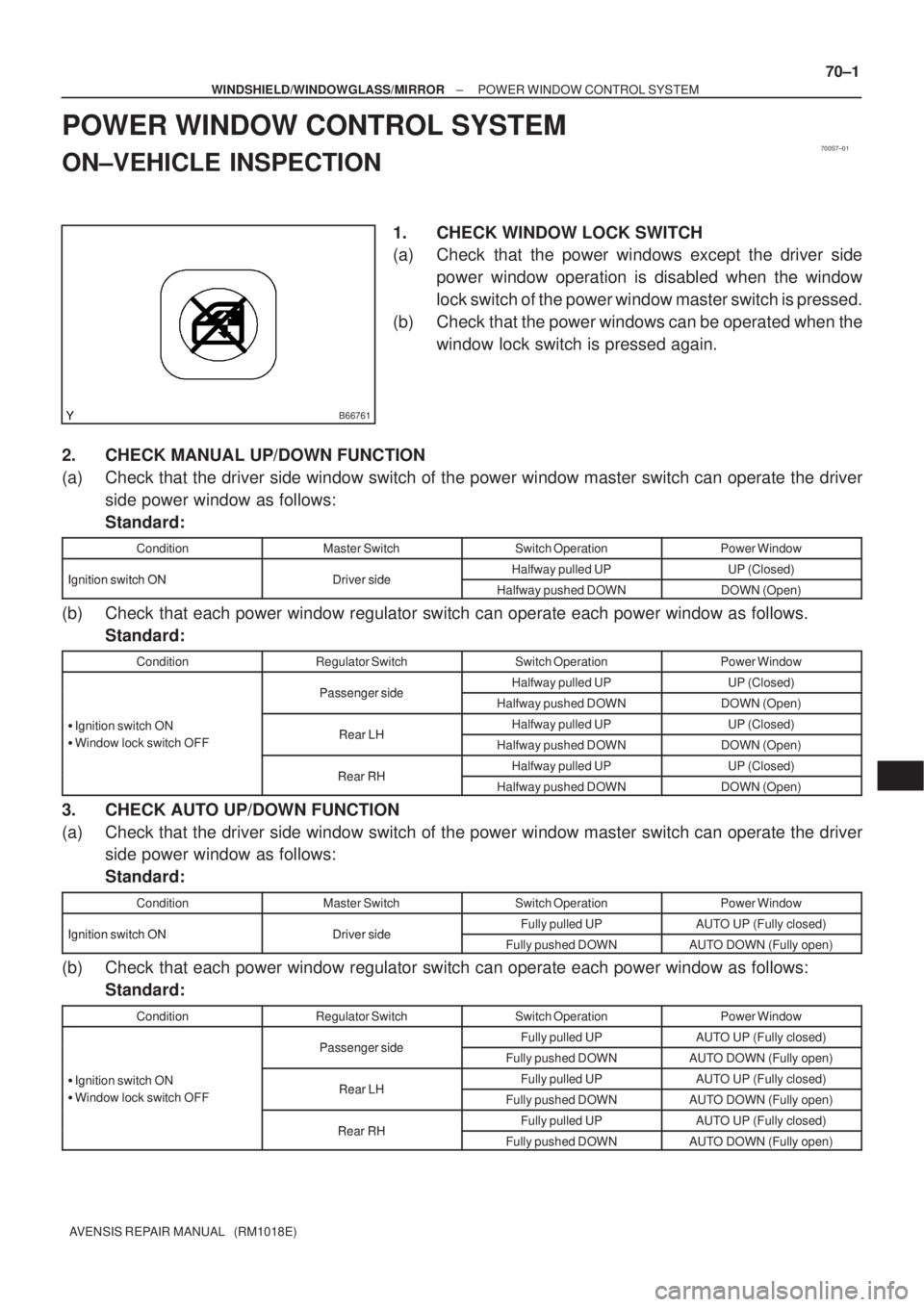

POWER WINDOW CONTROL SYSTEM
ON±VEHICLE INSPECTION
1. CHECK WINDOW LOCK SWITCH
(a)

700S7±01
B66761
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
70±1
AVENSIS REPAIR MANUAL (RM1018E)
POWER WINDOW CONTROL SYSTEM
ON±VEHICLE INSPECTION
1. CHECK WINDOW LOCK SWITCH
(a) Check that the power windows except the driver side
power window operation is disabled when the window
lock switch of the power window master switch is pressed.
(b) Check that the power windows can be operated when the
window lock switch is pressed again.
2. CHECK MANUAL UP/DOWN FUNCTION
(a) Check that the driver side window switch of the power window master switch can operate the driver
side power window as follows:
Standard:
ConditionMaster SwitchSwitch OperationPower Window
Ignition switch ONDriver sideHalfway pulled UPUP (Closed)Ignition switch ONDriver sideHalfway pushed DOWNDOWN (Open)
(b) Check that each power window regulator switch can operate each power window as follows.
Standard:
ConditionRegulator SwitchSwitch OperationPower Window
Passenger sideHalfway pulled UPUP (Closed)Passenger sideHalfway pushed DOWNDOWN (Open)
Ignition switch ONRear LHHalfway pulled UPUP (Closed)Ignition switch ON
Window lock switch OFFRear LHHalfway pushed DOWNDOWN (Open)
Rear RHHalfway pulled UPUP (Closed)Rear RHHalfway pushed DOWNDOWN (Open)
3. CHECK AUTO UP/DOWN FUNCTION
(a) Check that the driver side window switch of the power window master switch can operate the driver
side power window as follows:
Standard:
ConditionMaster SwitchSwitch OperationPower Window
Ignition switch ONDriver sideFully pulled UPAUTO UP (Fully closed)Ignition switch ONDriver sideFully pushed DOWNAUTO DOWN (Fully open)
(b) Check that each power window regulator switch can operate each power window as follows:
Standard:
ConditionRegulator SwitchSwitch OperationPower Window
Passenger sideFully pulled UPAUTO UP (Fully closed)Passenger sideFully pushed DOWNAUTO DOWN (Fully open)
Ignition switch ONRear LHFully pulled UPAUTO UP (Fully closed)Ignition switch ON
Window lock switch OFFRear LHFully pushed DOWNAUTO DOWN (Fully open)
Rear RHFully pulled UPAUTO UP (Fully closed)Rear RHFully pushed DOWNAUTO DOWN (Fully open)

Page 3218 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B51853
Hammer 70±2
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
4. CHECK REMOTE UP/DOWN FUNCTION
(a) Check that each switch of the power window master

B51853
Hammer 70±2
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
4. CHECK REMOTE UP/DOWN FUNCTION
(a) Check that each switch of the power window master switch can operate each power window as follows:
Standard:
ConditionMaster SwitchSwitch OperationPower Window
Passenger sideHalfway pulled UPUP (Closed)Passenger sideHalfway pushed DOWNDOWN (Open)
Ignition switch ONRear LHHalfway pulled UPUP (Closed)Ignition switch ON
Window lock switch OFFRear LHHalfway pushed DOWNDOWN (Open)
Rear RHHalfway pulled UPUP (Closed)Rear RHHalfway pushed DOWNDOWN (Open)
5. CHECK REMOTE AUTO UP/DOWN FUNCTION
(a) Check that each switch of the power window master switch can operate each power window as follows:
Standard:
ConditionMaster SwitchSwitch OperationPower Window
Passenger sideFully pulled UPAUTO UP (Fully closed)Passenger sideFully pushed DOWNAUTO DOWN (Fully open)
Ignition switch ONRear LHFully pulled UPAUTO UP (Fully closed)Ignition switch ON
Window lock switch OFFRear LHFully pushed DOWNAUTO DOWN (Fully open)
Rear RHFully pulled UPAUTO UP (Fully closed)Rear RHFully pushed DOWNAUTO DOWN (Fully open)
6. CHECK POWER WINDOW OPERATION FUNCTION AFTER IGNITION SWITCH IS TURNED OFF
(a) When both of the following conditions are fulfilled, check that the power windows can be operated even
after the ignition switch is turned OFF.
Within 45 seconds after the ignition switch is turned OFF
The front doors are closed
7. CHECK JAM PROTECTION
HINT:
The jam protection function prevents any part of your body from
getting caught by accident between the door frame and the
door glass during power window operation.
NOTICE:
If the power window motor has just been reset, raise and
lower the door glass several times using MANUAL function
before performing the check.
(a) Check that the door glass goes down by approx. 50 mm
(1.97 in.) right when something gets caught between the
door frame and the door glass during power window op-
eration. However, when the opening between the door
frame and the door glass is less than 200 mm (7.87 in.),
the door glass keeps going down until the opening reach-
es 200 mm (7.87 in.) and stops there.
Operative conditions:
AUTO UP
AUTO UP function after the ignition switch is turned OFF
MANUAL UP function after the ignition switch is turned
OFF

Page 3219 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 710G1±01
B66021
71±22
±
INSTRUMENT PANEL/METER MULTI±DISPLAY (CRT DISPLAY) DISPLAY
AVENSIS REPAIR MANUAL (RM1018E)
MULTI±DISPLAY (CRT DISPLAY) DISPLAY
REPLACEMENT
1.REMOVE INSTRUMENT CLUSTER FI

Page 3220 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 710G0±01
B660342 Clips
B660407 Claws
±
INSTRUMENT PANEL/METER COMBINATION METER ASSY
71±21
AVENSIS REPAIR MANUAL (RM1018E)
COMBINATION METER ASSY
OVERHAUL
1.REMOVE STEERING COLUMN COVER LWR (See

Page 3221 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 710FZ±01
B66036
CodeShape<A>
= 8
(0.31)
L = 18
(0.71) CodeShapeCodeShape
mm (in.) (L = Length)
<B><C>
<F>
<E>
<D>
<G><H><I>
= 6
(0.24)
L = 16
(0.63)
= 6
(0.24)
L = 20
(0.79)
= 6
(0.24)

Page 3222 of 5135
G245265 Clips Claw
B660262 Clips
B660342 Clips
B693472 Claws
(A)(A)
71±12
±
INSTRUMENT PANEL/METER INSTRUMENT PANEL SUB±ASSY LOWER
AVENSIS REPAIR MANUAL (RM1018E)

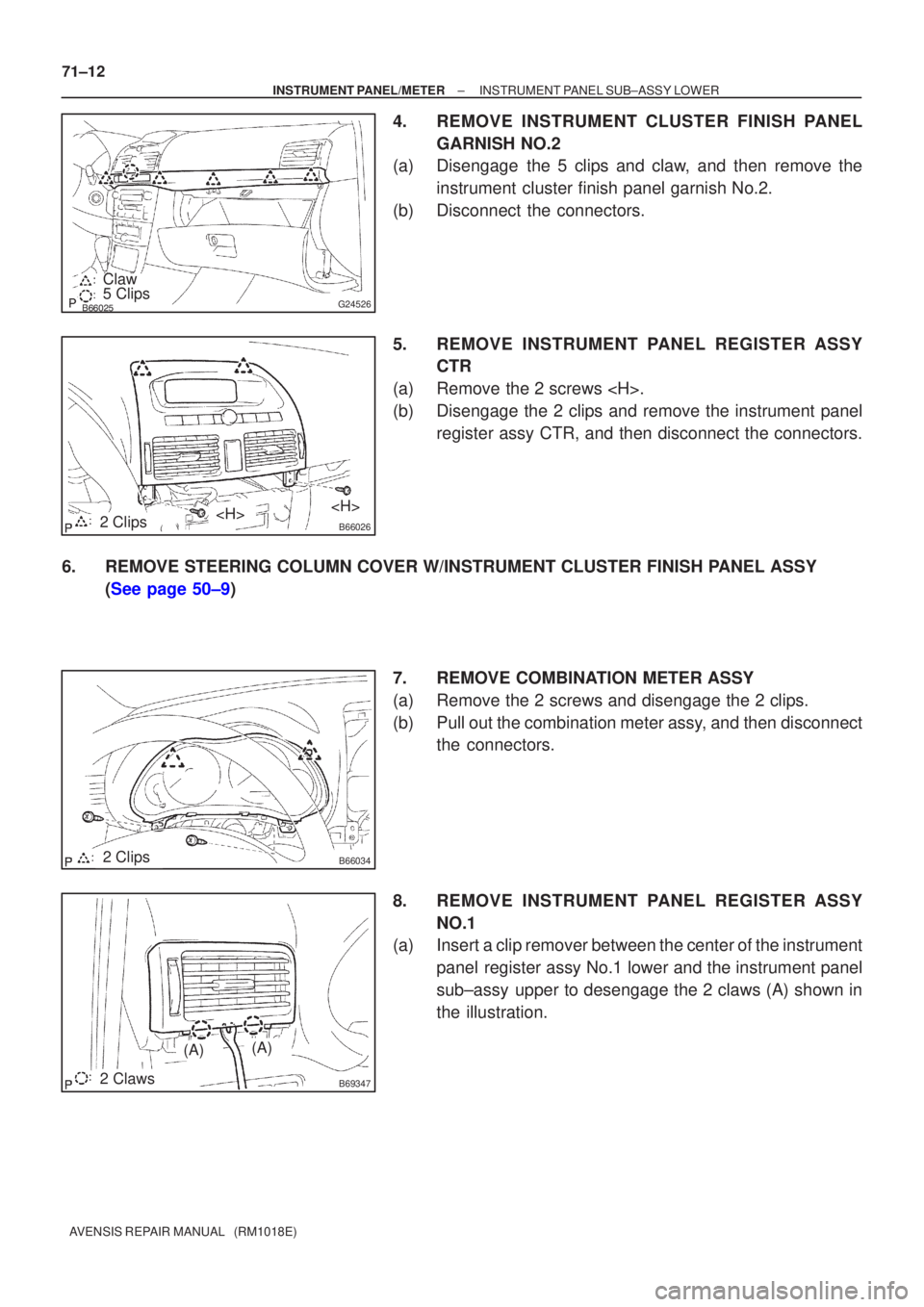

4.REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2
(a)Disengage the 5 clips and claw, and then remove the
instrument cluster finish panel garnish No.2.
(b)Disconnect the connectors.
5.REMOVE INSTRUMENT PANEL REGISTER ASSY CTR
(a)Remove the 2 screws .
(b)Disengage the 2 clips and remove the instrument panel register assy CTR, and then disconnect the connectors.
6.REMOVE STEERING COLUMN COVER W/INSTRUMENT CLUSTER FINISH PANEL ASSY (See page 50±9)
7. REMOVE COMBINATION METER ASSY
(a) Remove the 2 screws and disengage the 2 clips.
(b) Pull out the combination meter assy, and then disconnectthe connectors.
8. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
(a) Insert a clip remover between the center of the instrument
panel register assy No.1 lower and the instrument panel
sub±assy upper to desengage the 2 claws (A) shown in
the illustration.

Page 3223 of 5135
B693482 Claws
(B)(B)
B660412 Clips 2 Claws
B660282 Clips
±
INSTRUMENT PANEL/METER INSTRUMENT PANEL SUB±ASSY LOWER
71±13
AVENSIS REPAIR MANUAL (RM1018E)

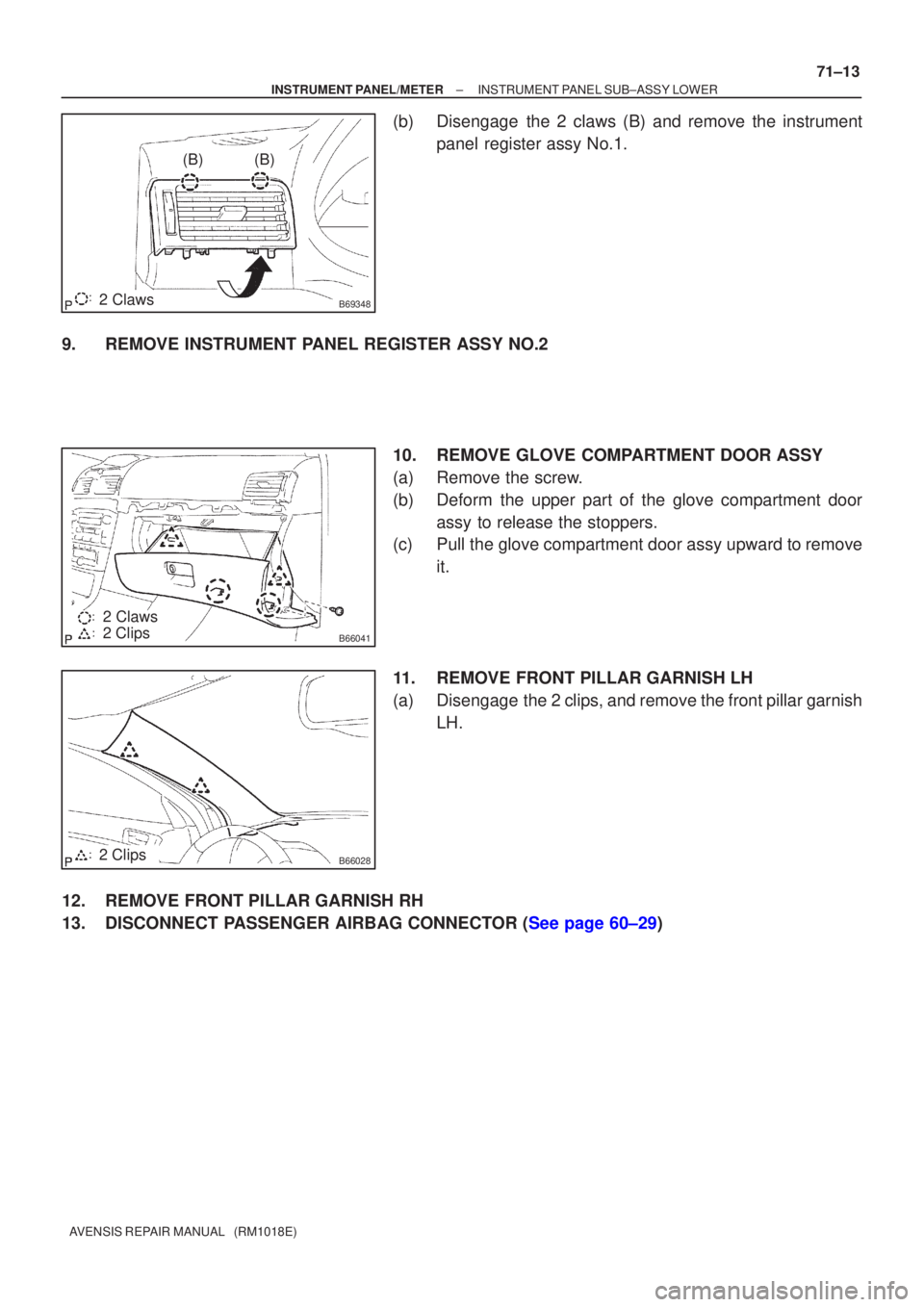

(b)Disengage the 2 claws (B) and remove the instrument
panel register assy No.1.
9.REMOVE INSTRUMENT PANEL REGISTER ASSY NO.2 10.REMOVE GLOVE COMPARTMENT DOOR ASSY
(a)Remove the screw.
(b)Deform the upper part of the glove compartment doorassy to release the stoppers.
(c)Pull the glove compartment door assy upward to remove
it.
11.REMOVE FRONT PILLAR GARNISH LH
(a)Disengage the 2 clips, and remove the front pillar garnish LH.
12.REMOVE FRONT PILLAR GARNISH RH
13.DISCONNECT PASSENGER AIRBAG CONNECTOR (See page 60±29)

Page 3224 of 5135
B660292 Clips
3 Claws

B66022
71±14
± INSTRUMENT PANEL/METERINSTRUMENT PANEL SUB±ASSY LOWER
AVENSIS REPAIR MANUAL (RM1018E)

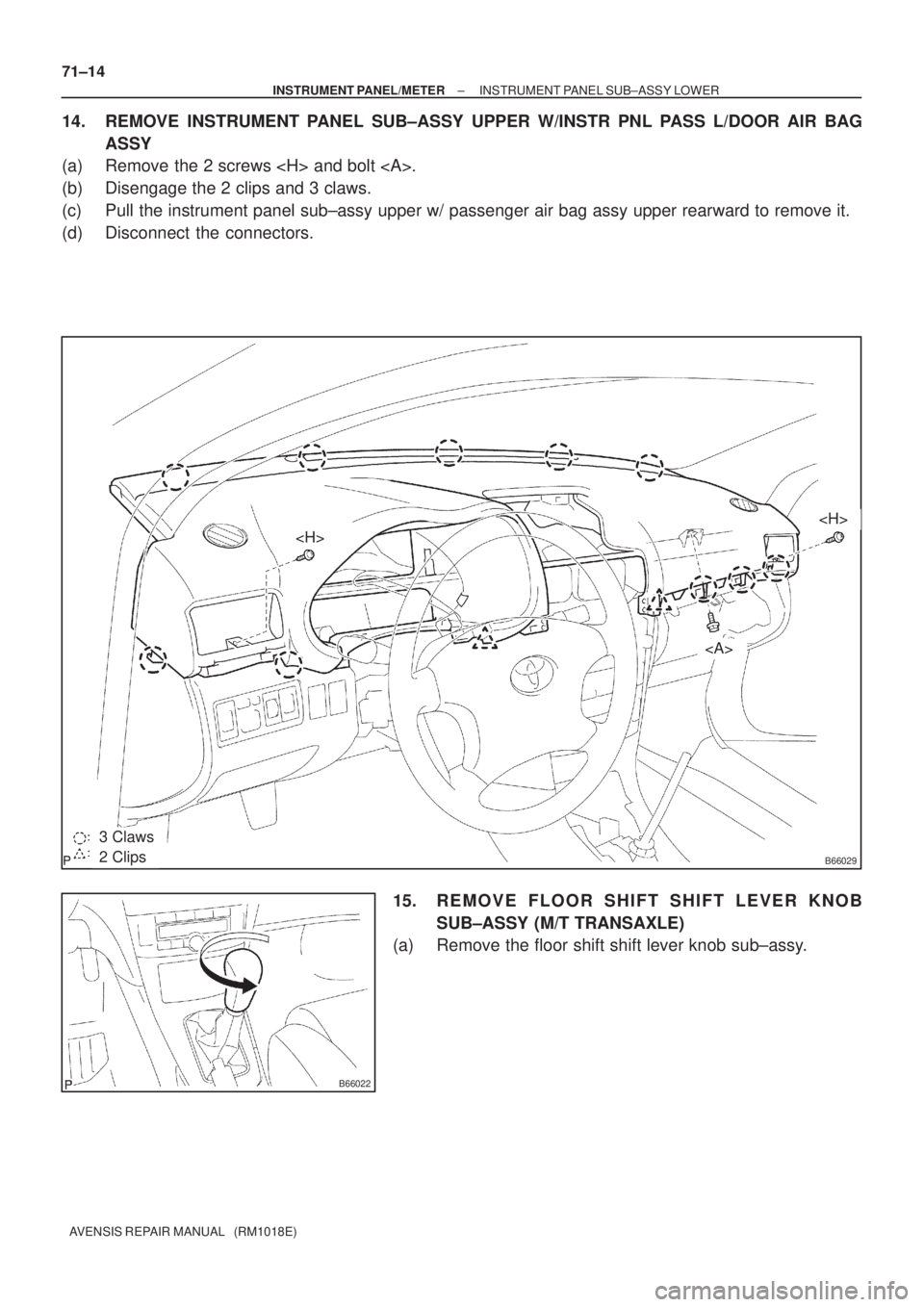

14. REMOVE INSTRUMENT PANEL SUB±ASSY UPPER W/INSTR PNL PASS L/DOOR AIR BAG
ASSY
(a) Remove the 2 screws and bolt .
(b) Disengage the 2 clips and 3 claws.
(c) Pull the instrument panel sub±assy upper w/ passenger air bag assy upper rearward to remove it.
(d) Disconnect the connectors.
15. REMOVE FLOOR SHIFT SHIFT LEVER KNOB
SUB±ASSY (M/T TRANSAXLE)
(a) Remove the floor shift shift lever knob sub±assy.
