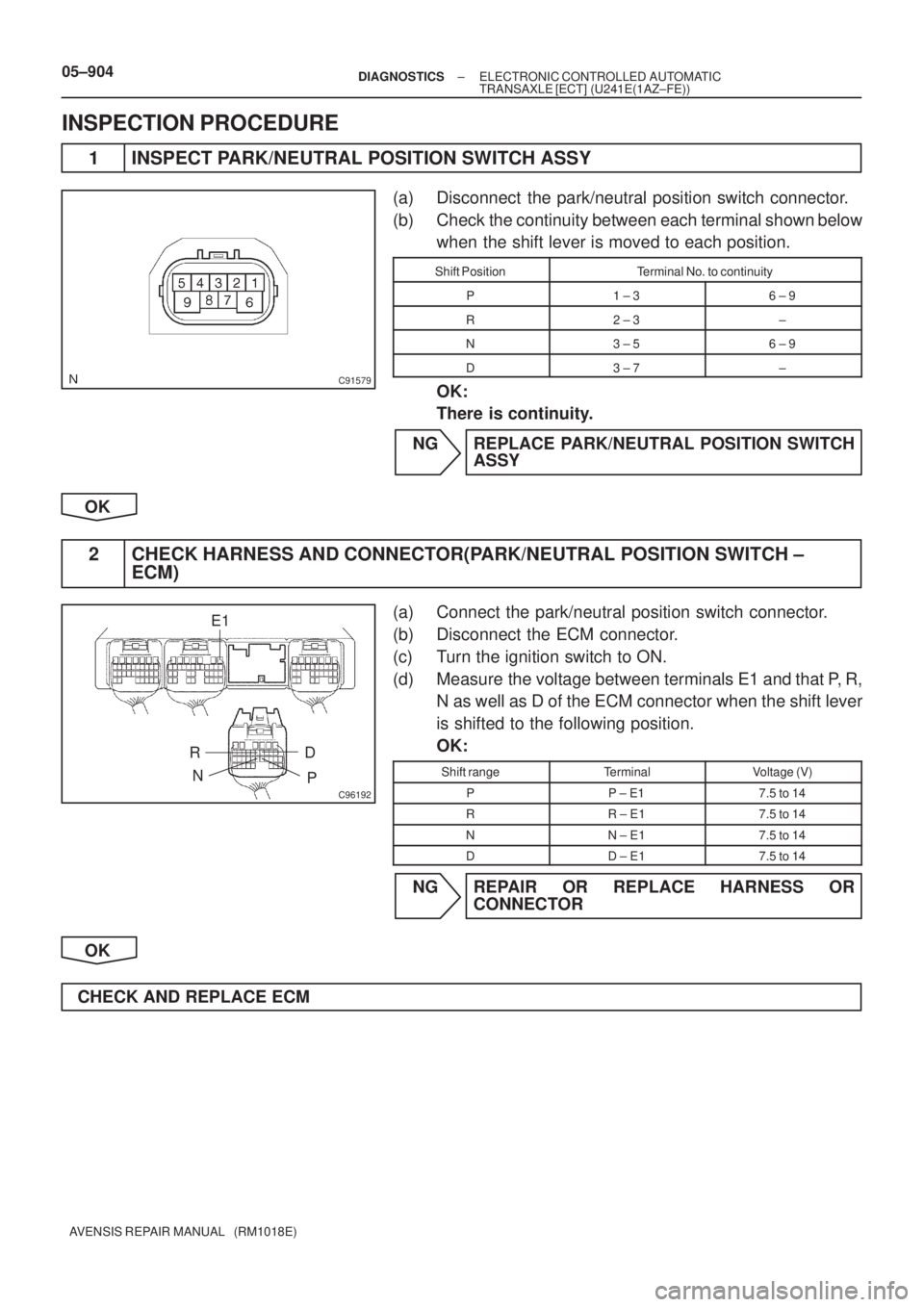

INSPECTION PROCEDURE
1 INSPECT PARK/NEUTRAL POSITION SW TOYOTA AVENSIS 2005 Service Repair Manual C91579
C96192
E1
N R
P D
05±904± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
1 INSPECT PARK/NEUTRAL POSITION SW](/manual-img/14/57441/w960_57441-968.png)
C91579
C96192
E1
N R
P D
05±904± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
1 INSPECT PARK/NEUTRAL POSITION SWITCH ASSY
(a) Disconnect the park/neutral position switch connector.
(b) Check the continuity between each terminal shown below
when the shift lever is moved to each position.
Shift PositionTerminal No. to continuity
P1 ± 36 ± 9
R2 ± 3±
N3 ± 56 ± 9
D3 ± 7±
OK:
There is continuity.
NG REPLACE PARK/NEUTRAL POSITION SWITCH
ASSY
OK
2 CHECK HARNESS AND CONNECTOR(PARK/NEUTRAL POSITION SWITCH ±
ECM)
(a) Connect the park/neutral position switch connector.
(b) Disconnect the ECM connector.
(c) Turn the ignition switch to ON.
(d) Measure the voltage between terminals E1 and that P, R,
N as well as D of the ECM connector when the shift lever
is shifted to the following position.
OK:
Shift rangeTerminalVoltage (V)
PP ± E17.5 to 14
RR ± E17.5 to 14
NN ± E17.5 to 14
DD ± E17.5 to 14
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
CHECK AND REPLACE ECM
Page 970 of 5135
C54864
THOE2
05±900±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT](U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)
TRANSMISSION FLUID TEMPERATURE SENSOR NO.2 CIRCUIT
CIRCUIT DESCRIPTION
The ATF temperature sensor converts the fluid temperature into a resistance v\
alue which is input into the
ECM.
WIRING DIAGRAM
See page 05±882.
INSPECTION PROCEDURE
1 INSPECT TRANSMISSION WIRE(ATF TEMPERATURE SENSOR)
(a) Disconnect the transmission wire connector from the transaxle.
(b) Measure the resistance between terminals THO and E2. OK:
Temperature: C ( F)Resistance: k
10 (50)6.4
110 (230)0.2
(c) Check the continuity between the wire harness side con-
nectors.
OK:
Standard (Check for a short):
SymbolsSpecified condition
THO ± Body groundNo continuityE2 ± Body groundNo continuity
NG REPAIR OR REPLACE TRANSMISSION WIRE
OK
05C8Z±01
Page 971 of 5135
C95813THOE2
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±901
AVENSIS REPAIR MANUAL (RM1018E)

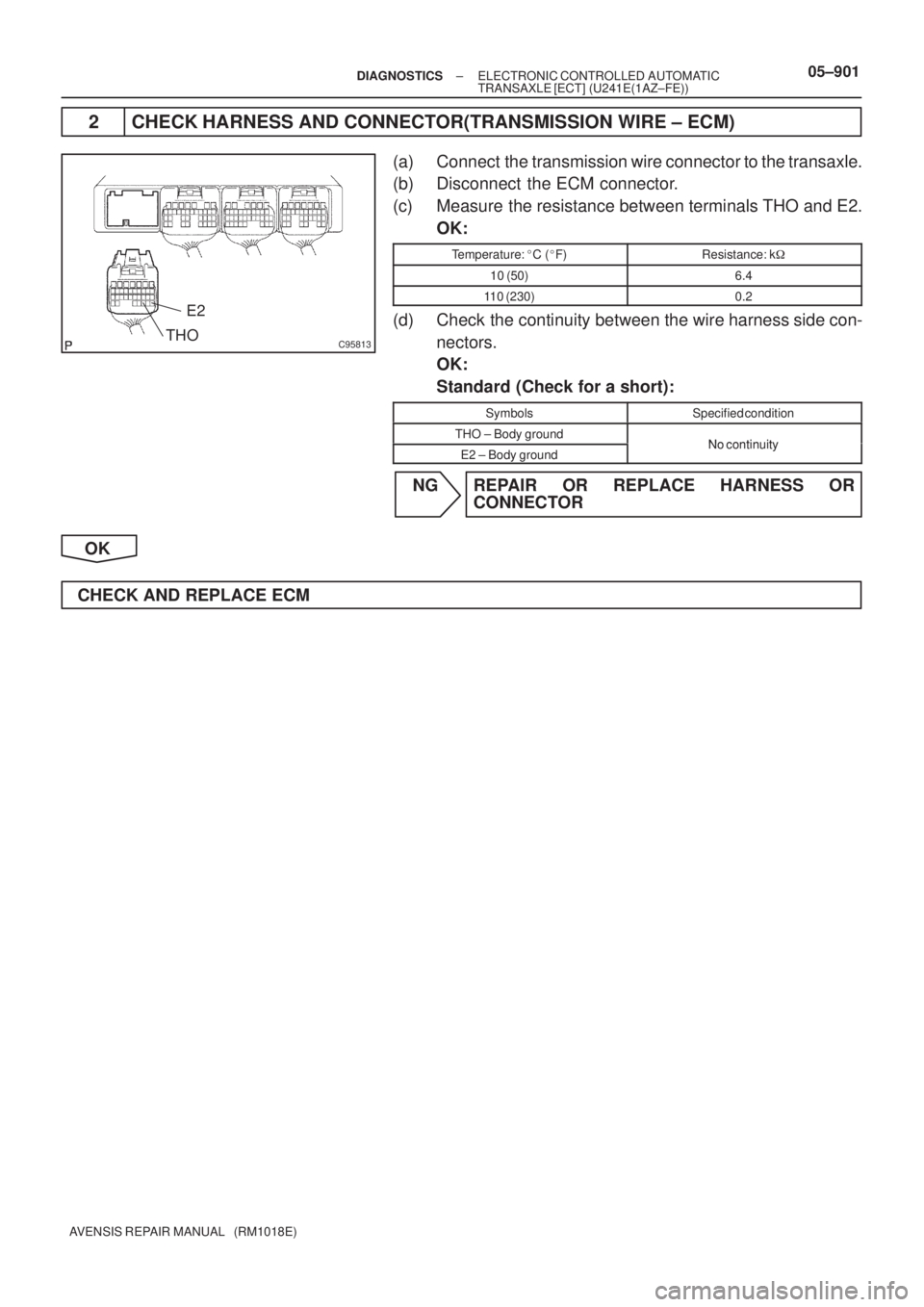

2 CHECK HARNESS AND CONNECTOR(TRANSMISSION WIRE ± ECM)
(a) Connect the transmission wire connector to the transaxle.
(b) Disconnect the ECM connector.
(c) Measure the resistance between terminals THO and E2.
OK:
Temperature: C (F)Resistance: k
10 (50)6.4
110 (230)0.2
(d) Check the continuity between the wire harness side con-
nectors.
OK:
Standard (Check for a short):
SymbolsSpecified condition
THO ± Body groundNo continuityE2 ± Body groundNo continuity
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
CHECK AND REPLACE ECM
Page 972 of 5135
![TOYOTA AVENSIS 2005 Service Repair Manual D26539
E1
ECT SolenoidECM
11
DSL
E12 L±B
3 DSL G
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±897
AVENSIS REPAIR MANUAL (RM1018E)
DTC P2769/64 TORQUE CONVERTER TOYOTA AVENSIS 2005 Service Repair Manual D26539
E1
ECT SolenoidECM
11
DSL
E12 L±B
3 DSL G
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±897
AVENSIS REPAIR MANUAL (RM1018E)
DTC P2769/64 TORQUE CONVERTER](/manual-img/14/57441/w960_57441-971.png)
D26539
E1
ECT SolenoidECM
11
DSL
E12 L±B
3 DSL G
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±897
AVENSIS REPAIR MANUAL (RM1018E)
DTC P2769/64 TORQUE CONVERTER CLUTCH SOLENOID
CIRCUIT LOW (SHIFT SOLENOID VALVE
DSL)
DTC P2770/64 TORQUE CONVERTER CLUTCH SOLENOID
CIRCUIT HIGH (SHIFT SOLENOID VALVE
DSL)
CIRCUIT DESCRIPTION
The shift solenoid valve DSL is turned ON and OFF by signals from the ECM in order to control the hydraulic
pressure operation the lock±up relay valve, which then the controls operation of the lock±up clutch.
DTC No.DTC Detection ConditionTrouble Area
P2769/64ECM detects short in solenoid valve DSL circuit 4 times when
solenoid valve DSL is operated (2 trip detection logic)Short in shift solenoid valve DSL circuit
Shift solenoid valve DSL
ECM
P2770/64ECM detects open in solenoid valve DSL circuit 4 times when
solenoid valve DSL is not operated (2 trip detection logic)Open in shift solenoid valve DSL circuit
Shift solenoid valve DSL
ECM
Fail safe function:
If the ECM detects a malfunction, it turns the shift solenoid valve DSL OFF.
WIRING DIAGRAM
05C8Y±01
Page 973 of 5135
C54864
DSL
C95812DSL E1
05±898± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)
1 INSPECT TRANSMISSION WIRE(DSL)
(a) Disconnect the transmission wire connector from the
transaxle.
(b) Measure the resistance between terminal DSL of the
transmission wire connector and body ground.
OK:
Resistance: 11 to 13 at 20C (68F)
NG Go to step 3
OK
2 CHECK HARNESS AND CONNECTOR(TRANSMISSION WIRE ± ECM)
(a) Connect the transmission wire connector to the transaxle.
(b) Disconnect the ECM connector.
(c) Measure the resistance between terminals DSL and E1
of the ECM connector.
OK:
Resistance: 11 to 13 at 20C (68F)
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
CHECK AND REPLACE ECM
Page 974 of 5135
D03728
(+)
(±)
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±899
AVENSIS REPAIR MANUAL (RM1018E)

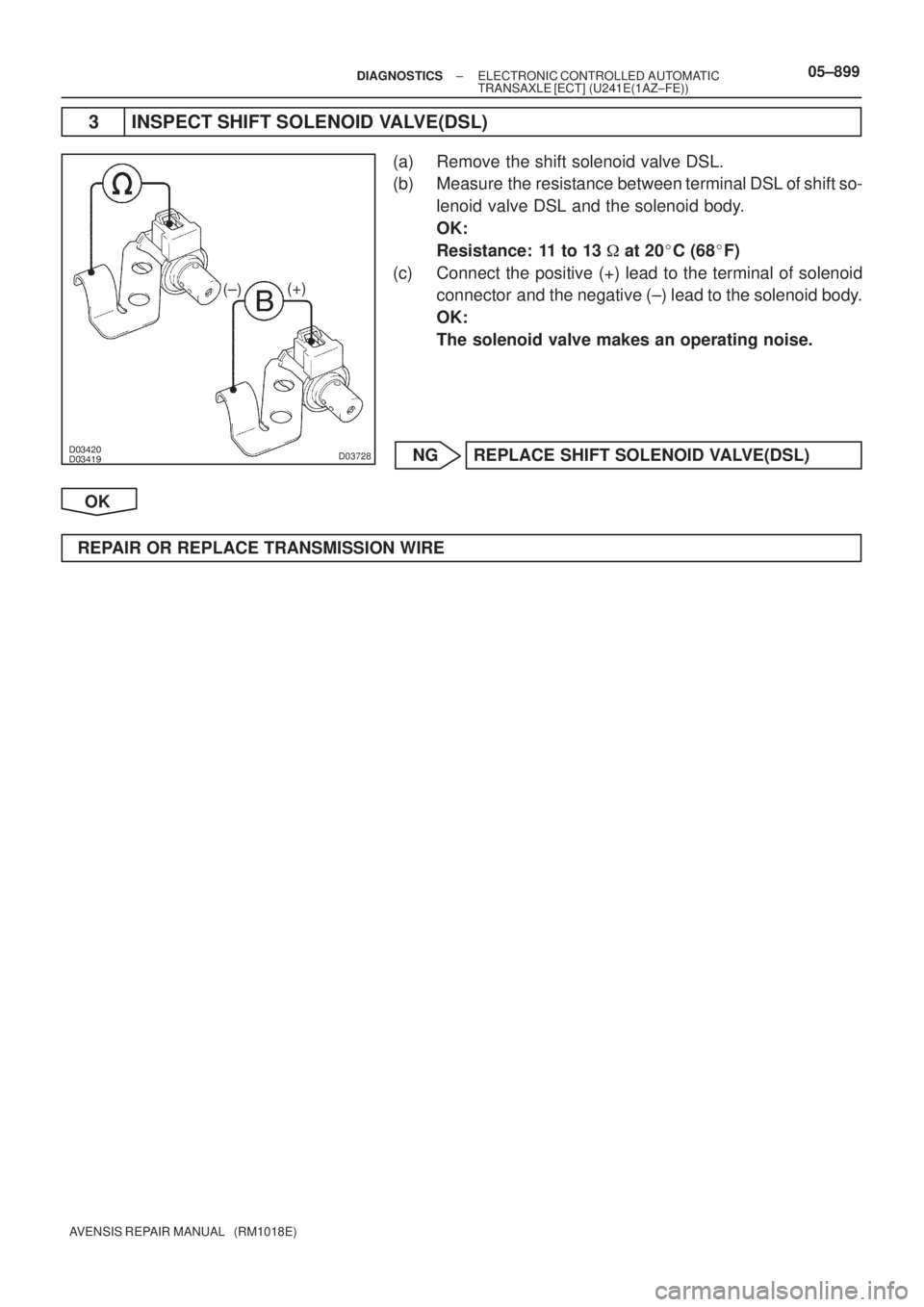

3 INSPECT SHIFT SOLENOID VALVE(DSL)
(a) Remove the shift solenoid valve DSL.
(b) Measure the resistance between terminal DSL of shift so-
lenoid valve DSL and the solenoid body.
OK:
Resistance: 11 to 13 at 20C (68F)
(c) Connect the positive (+) lead to the terminal of solenoid
connector and the negative (±) lead to the solenoid body.
OK:
The solenoid valve makes an operating noise.
NG REPLACE SHIFT SOLENOID VALVE(DSL)
OK
REPAIR OR REPLACE TRANSMISSION WIRE
Page 975 of 5135
![TOYOTA AVENSIS 2005 Service Repair Manual D02290
Line Pressure
Control Pressure
Current Flow to Solenoid
BE4056
ON
OFF
1 cycle 05±894
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM TOYOTA AVENSIS 2005 Service Repair Manual D02290
Line Pressure
Control Pressure
Current Flow to Solenoid
BE4056
ON
OFF
1 cycle 05±894
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM](/manual-img/14/57441/w960_57441-974.png)
D02290
Line Pressure
Control Pressure
Current Flow to Solenoid
BE4056
ON
OFF
1 cycle 05±894
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)
DTC P2716/77 PRESSURE CONTROL SOLENOID ºDº
ELECTRICAL (SHIFT SOLENOID SLT)
CIRCUIT DESCRIPTION
The throttle pressure that is applied to the primary regulator
valve (which modulates the line pressure) causes the solenoid
valve SLT, under electronic control, to precisely and minutely
modulate and generate the line pressure according to the ex-
tent of the accelerator pedal depressed or the output of engine
power.
This controls the line pressure and provides smooth shifting.
Upon receiving a signal of the throttle valve opening angle, the
ECM controls the line pressure by sending a predetermined (*)
duty ratio to the solenoid valve, modulating the line pressure
and generating throttle pressure.
(*): Duty Ratio
The duty ratio is the ratio of the period of continuity in one cycle.
For example, if A is the period of continuity in one cycle, and B
is the period of non±continuity, then
Duty Ratio=A/(A+B) x 100 (%)
DTC No.DTC Detection ConditionTrouble Area
P2716/77
Condition (a) or (b) below is detected 1 sec. or more:
(1 trip detection logic)
(a) SLT±
terminal: 0V
(b) SLT±
terminal: 12V
Open or short in shift solenoid valve SLT circuit
Shift solenoid valve SLT
ECM
05C8X±01
Page 976 of 5135
D26542
E1
ECT SolenoidECM
17
SLT+ E13 P±L
2 O
16
SLT± E13 P
7 SLT+
SLT± G
D25234
SLT+
SLT±
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±895
AVENSIS REPAIR MANUAL (RM1018E)
WIRING DIAGRAM
INSPECTION PROCEDURE
1 INSPECT TRANSMISSION WIRE(SLT)
(a) Disconnect the transmission wire connector from the
transaxle.
(b) Measure the resistance between terminals SLT+ and
SLT± of the transmission wire connector.
OK:
Resistance: 5.0 to 5.6 at 20C (68F)
(c) Measure the resistance between body ground and that
SLT+ as well as SLT± of the transmission wire connector.
OK:
Resistance: 1M or higher
NG Go to step 3
OK
