2005 TOYOTA AVENSIS CD player

05±1406
± DIAGNOSTICSAUDIO SYSTEM
AVENSIS REPAIR MANUAL (RM1018E) DD
*4
Master Reset (Momentary Interruption)After the engine was started, master compo-
nent was disconnected from system.
Check harness for power supply system of
multi±display.

Check harness for communication system
of radio receiver assy.

If this error occurs frequently, replace radio
receiver assy.
DE
*4Slave Reset (Momentary Interruption)After the engine was started, component
shown by sub code had been disconnected
from system.
Check harness for power supply of compo-
nent shown by sub code.

Check harness for communication system
of component shown by sub code.
E0
*1Registration Completion Instruction ErrorºRegistration Completion Instructionº com-
mand from master cannot be received.Since this DTC is provided for engineering
purpose, it may be detected when no actual
failure exists.
E2ON/OFF Instruction Parameter ErrorError occures in ON/OFF controlling com-
mand from master component.Replace radio receiver assy
E3
*1
Registration Request TransmissionRegistration Request command is output
from component shown by sub code.
Receiving Connection Check Instruction,
Registration Request command is output
from sub±master component.Since this DTC is provided for engineering
purpose, it may be detected when no actual
failure exists.
(b) Logical address: 61 (Cassette switch)
DTCDiagnosis itemDescriptionAction to be taken
40Mechanical Error of Media Malfunction due to mechanical failure is
identified.
Or cassette tape is cut or entangled.
Inspect cassette tape.

Replace radio receiver assy.
41EJECT ErrorMalfunction due to mechanical failure.Replace radio receiver assy.
42Tape caught in the radio receiver assyHub lock etc.Inspect cassette tape.
(c) Logical address: 62 (CD player)
DTCDiagnosis itemDescriptionAction to be taken
42No Disc ReadoutDisc cannot be read.
Inspect CD.

Replace radio receiver assy.
44CD player ErrorError is detected in CD player.Replace radio receiver assy.
45EJECT ErrorMagazine cannot be ejected.Replace radio receiver assy.
46Scratched/Reversed DiscScratches or dirt is found on CD surface or
CD is set upside down.Inspect CD.
47CD High Temp.High temperature is detected in CD player.Replace radio receiver assy.
48CD Excess CurrentExcess current is applied CD player.Replace radio receiver assy.

BE2820
Multipath
BE2821
Fade Out 05±1394
± DIAGNOSTICSAUDIO SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
(b) Multipath
Interference caused by reflection of radio waves against
obstructions is called ºMultipathº. Multipath occurs when
radio signals emitted from the broadcast transmitter an-
tenna are reflected against tall buildings or mountains
and interferes with other signals which are to be received
directly.
(c) Fade Out
Because FM frequency is higher than that of AM, FM ra-
dio wave tends to be reflected against obstructions such
as tall buildings or mountains. For this reason, FM signals
often seems to gradually disappear or fade away as the
vehicle goes behind those obstructions. This phenome-
non is called ºfade outº.
4. NOISE PROBLEMS
(a) It is very important for noise troubleshooting to understand a customer's claim clearly. Use the following
table to diagnose the phenomenon.
Radio waveCondition in which noise occursProbable cause
Noise occurs at a specific place.Strong possibility of foreign noise.
AM
Noise occurs when listening to faint broadcasting.The same program may be broadcasted from some local sta-
tions. If the program is the same, one of those may be tuned
in.
Noise occurs only at night.Strong possibility of beat from a distant broadcasting.
FMNoise occurs at a specific place while driving.Strong possibility of multipath noise and fading noise caused
by changes of FM frequency.
HINT:
If the condition where the noise occurs does not meet any of the above, find out the cause based on ºRecep-
tion Problemsº. Refer to the description about Multipath and Fading mentioned previously.
5. COMPACT DISC PLAYER
(a) Compact Disc (hereafter called ºCDº) Players use a laser beam pick±up to read the digital signals re-
corded on the CD and reproduce analog signals of the music, etc. 4.7 in. (12 cm) and 3.2 in. (8 cm)
discs are available for the CD player.
HINT:
Never attempt to disassemble or apply oil to any part of the player unit. Do not insert any object into the maga-
zine except for a disc.
NOTICE:
CD players use an invisible laser beam which could cause hazardous radiation exposure. Be sure
to operate the player correctly as instructed.

N17398
Example :
HeadCapstan
Pinch Roller
BE4331
± DIAGNOSTICSAUDIO SYSTEM
05±1395
AVENSIS REPAIR MANUAL (RM1018E)
6. MAINTENANCE
Tape Player / Head Cleaning:
(a) Raise the slot cover with your finger.
Using a pencil or similar object, push in the guide.
(b) Using a cleaning pen or cotton applicator soaked in clean-
er, clean the head surface, pinch rollers and capstans.
7. MAINTENANCE
CD Player / Disc Cleaning:
If the disc gets dirty, clean the disc by wiping the surface from
the center to outside in the radial directions with a soft cloth.
NOTICE:
Do not use a conventional record cleaner or anti±static pre-
servative.
8. COMMUNICATION SYSTEM
(a) Components in the audio system communicate each other though AVC±LAN. (Radio receiver func-
tion)
(b) The master component of AVC±LAN is the radio receiver assy with a resistance (60 ± 80
), which
is necessary for communication.
(c) When short circuit or open circuit occurs in the AVC±LAN circuit, the audio system does not operate
normally due to the communication cutoff.
9. DIAGNOSIS FUNCTION
(a) The audio system has diagnosis function (The diagnosis result is displayed on the LCD of the radio
receiver assy). (Radio receiver function)
(b) The component code (physical address), or three±digit number (in hexadecimal) is set for each com-
ponent comprising AVC±LAN.
(c) The logical address, or two±digit number (in hexadecimal) is set for each function and component unit
in each component.

N17398
HeadCapstan
Pinch Roller
± DIAGNOSTICSAUDIO SYSTEM
05±1431
AVENSIS REPAIR MANUAL (RM1018E)

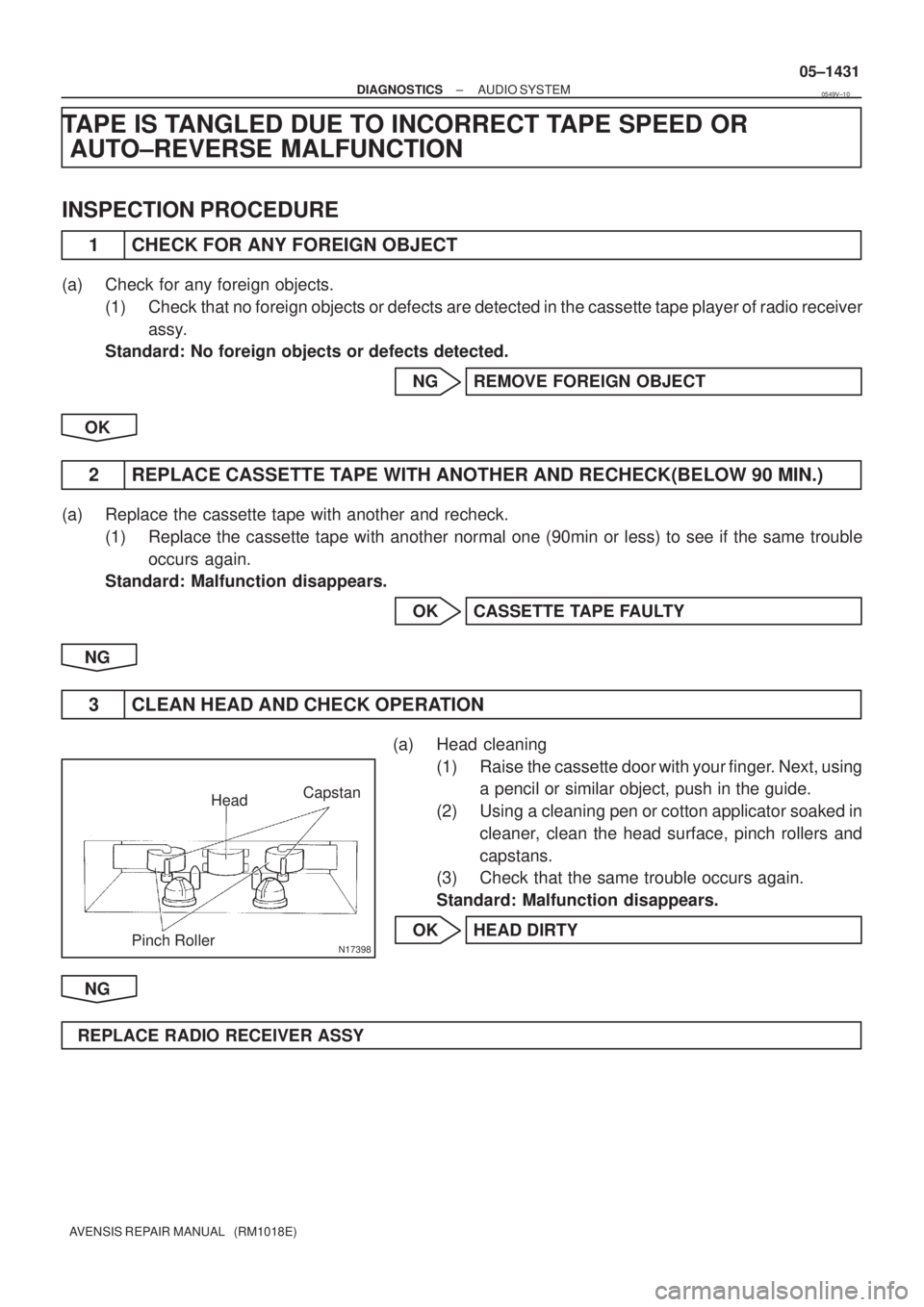

TAPE IS TANGLED DUE TO INCORRECT TAPE SPEED OR
AUTO±REVERSE MALFUNCTION
INSPECTION PROCEDURE
1 CHECK FOR ANY FOREIGN OBJECT
(a) Check for any foreign objects.
(1) Check that no foreign objects or defects are detected in the cassette tape player of radio receiver
assy.
Standard: No foreign objects or defects detected.
NG REMOVE FOREIGN OBJECT
OK
2 REPLACE CASSETTE TAPE WITH ANOTHER AND RECHECK(BELOW 90 MIN.)
(a) Replace the cassette tape with another and recheck.
(1) Replace the cassette tape with another normal one (90min or less) to see if the same trouble
occurs again.
Standard: Malfunction disappears.
OK CASSETTE TAPE FAULTY
NG
3 CLEAN HEAD AND CHECK OPERATION
(a) Head cleaning
(1) Raise the cassette door with your finger. Next, using
a pencil or similar object, push in the guide.
(2) Using a cleaning pen or cotton applicator soaked in
cleaner, clean the head surface, pinch rollers and
capstans.
(3) Check that the same trouble occurs again.
Standard: Malfunction disappears.
OK HEAD DIRTY
NG
REPLACE RADIO RECEIVER ASSY
0549V±10

N17398
HeadCapstan
Pinch Roller
05±1430
± DIAGNOSTICSAUDIO SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

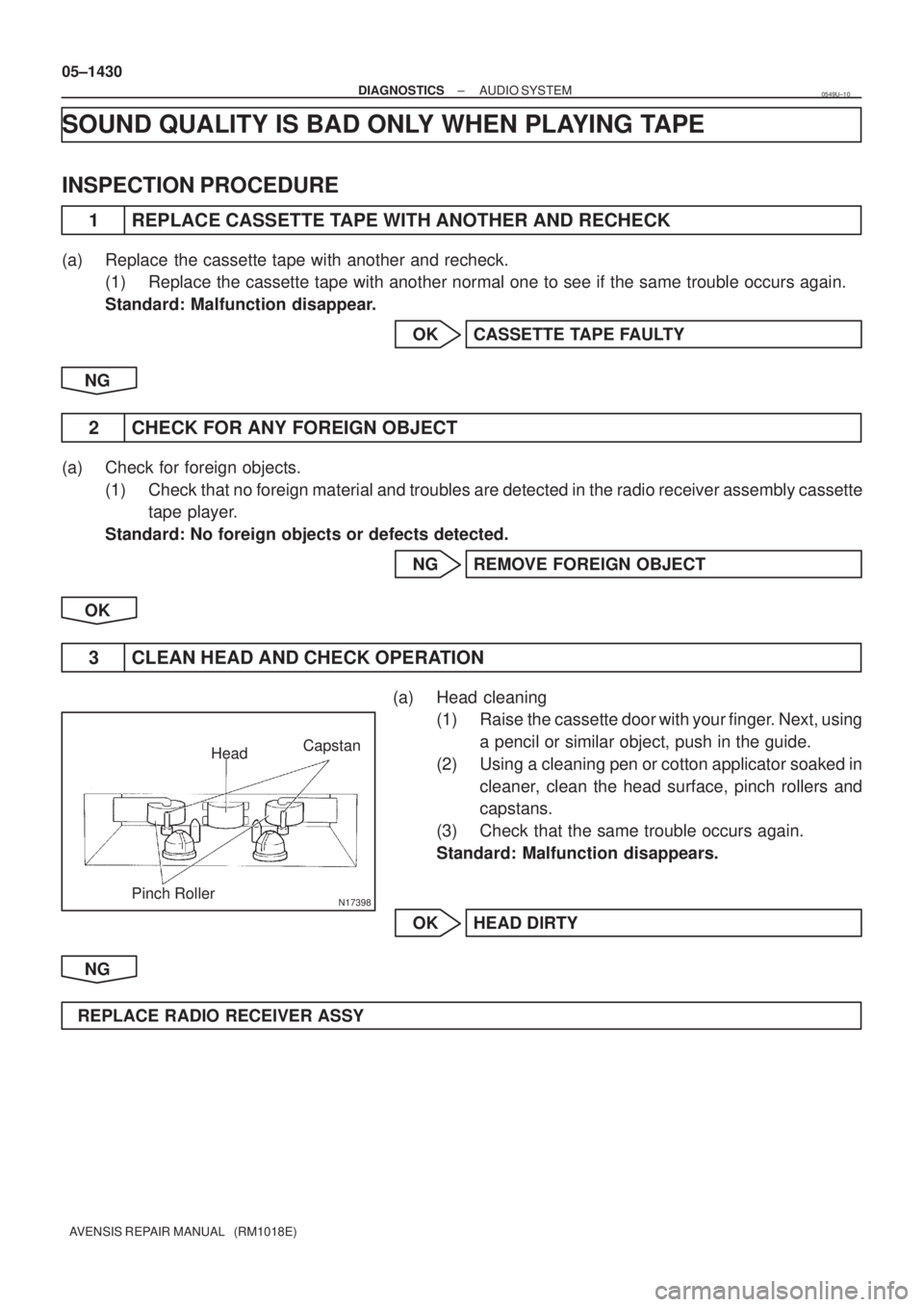

SOUND QUALITY IS BAD ONLY WHEN PLAYING TAPE
INSPECTION PROCEDURE
1 REPLACE CASSETTE TAPE WITH ANOTHER AND RECHECK
(a) Replace the cassette tape with another and recheck.
(1) Replace the cassette tape with another normal one to see if the same trouble occurs again.
Standard: Malfunction disappear.
OK CASSETTE TAPE FAULTY
NG
2 CHECK FOR ANY FOREIGN OBJECT
(a) Check for foreign objects.
(1) Check that no foreign material and troubles are detected in the radio receiver assembly cassette
tape player.
Standard: No foreign objects or defects detected.
NG REMOVE FOREIGN OBJECT
OK
3 CLEAN HEAD AND CHECK OPERATION
(a) Head cleaning
(1) Raise the cassette door with your finger. Next, using
a pencil or similar object, push in the guide.
(2) Using a cleaning pen or cotton applicator soaked in
cleaner, clean the head surface, pinch rollers and
capstans.
(3) Check that the same trouble occurs again.
Standard: Malfunction disappears.
OK HEAD DIRTY
NG
REPLACE RADIO RECEIVER ASSY
0549U±10

05±1428
± DIAGNOSTICSAUDIO SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
CASSETTE TAPE CANNOT BE INSERTED OR PLAYED
INSPECTION PROCEDURE
1 CHECK FOR ANY FOREIGN OBJECT
(a) Check for any foreign objects.
(1) Check that no foreign objects or defects are detected in the cassette tape player of radio receiver
assy.
Standard: No foreign objects or defects detected.
NG REMOVE FOREIGN OBJECT
OK
2 CHECK CASSETTE TAPE
(a) Check the cassette tape.
(1) Check that the cassette tape is a normal tape to which music or voice is recorded.
Standard: Proper cassette tape to which music or voice is recorded.
NG CASSETTE TAPE FAULTY
OK
3 REPLACE CASSETTE TAPE WITH ANOTHER AND RECHECK
(a) Replace the cassette tape with another one and recheck.
(1) Replace the cassette tape with another normal one to see if the same trouble occurs again.
Standard: The function is recovered to be normal.
OK CASSETTE TAPE FAULTY
NG
REPLACE RADIO RECEIVER ASSY
05C53±01

± DIAGNOSTICSAUDIO SYSTEM
05±1427
AVENSIS REPAIR MANUAL (RM1018E)
5 CHECK OF RADIO RECEIVER ASSEMBLY INSTALLATION
(a) Check of radio receiver assembly installation.
(1) Check the installation condition of the radio receiver assembly.
Standard: Installed properly.
NG INSTALL THE RADIO RECEIVER ASSEMBLY
PROPERLY
OK
6 DID THE TEMPERATURE IN THE CABIN CHANGE RAPIDLY?
(a) Did the temperature in the cabin change rapidly?
(1) Check whether or not the rapid temperature change occurred in the cabin.
Standard: The rapid temperature change occurred.
Reference:
The rapid temperature change creates condensation inside the CD player, which may prevent the CD from
being played.
OK CONDENSATION DUE TO TEMPERATURE
CHANGE (LEAVE IT AS IT IS FOR A WHILE
BEFORE USING)
NG
REPLACE RADIO RECEIVER ASSY

05±1454
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E) DTCCountermeasure and inspected parts Condition Diagnosis item
DE
*3Slave Reset (Momentary Interruption)After engine start, slave component has
been disconnected.
Check harness for power supply system of
component shown by sub±code.

Check harness for communication system
of component shown by sub±code.
DF
*5Master ErrorDue to defective condition of component
with a display, master function is switched to
audio equipment.
Error occurs in communication between
sub±master (audio) and master component.
Check harness for power supply of multi±
display (CRT display) display.

Check harness for communication system
of multi±display (CRT display) display.
E0
*1Registration Completion Instruction ErrorºRegistration Completion Instructionº com-
mand from master cannot be received.Since this DTC is provided for engineering
purpose, it may be detected when no actual
failure exists.
E1
*1Audio processor ON errorWhile source equipment is operating, AMP
output is stopped.
Check harness for power supply of radio
receiver assy.

Check harness for communication system
of radio receiver assy.
E2ON/OFF Instruction Parameter ErrorError occurs in ON/OFF controlling com-
mand from multi±display (CRT display) dis-
play.Replace multi±display (CRT display) display.
E3
*1Registration Request TransmissionRegistration Request command is output
from slave component.
Receiving Connection Check Instruction,
Registration Request command is output
from sub±master component.Since this DTC is provided for engineering
purpose, it may be detected when no actual
failure exists.
E4
*1Multiple Frame AbortMultiple frame transmission is aborted.Since this DTC is provided for engineering
purpose, it may be detected when no actual
failure exists.
(b) Logical address: 21 (Switch)
DTCDiagnosis itemConditionCountermeasure and inspected parts
10Panel Switch ErrorError in panel switch input part is detected.
(Error in switch control part, or internal com-
munication error with switch control part is
detected.)
Inspect all switches on panel switch test
screen in display check mode. If any of
them does not function, replace radio re-
ceiver assy.

If all switches function without problem, ob-
serve them for a while.
11Touch Switch ErrorError in touch switch sensor is detected.
(Light level of LED is detected to be less
than a fixed value.)
Inspect all touch switches on touch switch
test screen in display check mode. If any
of lines do not react, replace radio receiver
assy.

If all of vertical and horizontal lines react
normally, observe them for a while.
(c) Logical address: 61 (Cassette tape player's switch)
DTCDiagnosis itemConditionCountermeasure and inspected parts
40Mechanical Error of MediaMalfunction due to mechanical failure is
identified.
Or cassette tape is cut or entangled.
Inspect cassette tape.

Replace radio receiver assy.
(d) Logical address: 62 (CD player)
DTCDiagnosis itemDiagnosis contentCountermeasure and inspected parts
42No Disc ReadoutDisc cannot be read.
Inspect CD.

Replace radio receiver assy.
44CD player ErrorError is detected in CD player.Replace radio receiver assy.
45EJECT ErrorMagazine cannot be ejected.Replace radio receiver assy.
46Scratched/Reversed DiscScratches or dirt is found on CD surface or
CD is set upside down.Inspect CD.
