TOYOTA AVENSIS 2005 Service Repair Manual I35341 I35342 I35343 I35344 I32993 14 mm (0.55 in.) Hexagon Wrench Modulator ± HEATER & AIR CONDITIONERW/RECEIVER CONDENSER ASSY 55±95 AVENSIS REPAIR MANUAL (RM1018E) 11. REMOVE W/RECEIVER CONDENS

Page 3002 of 5135

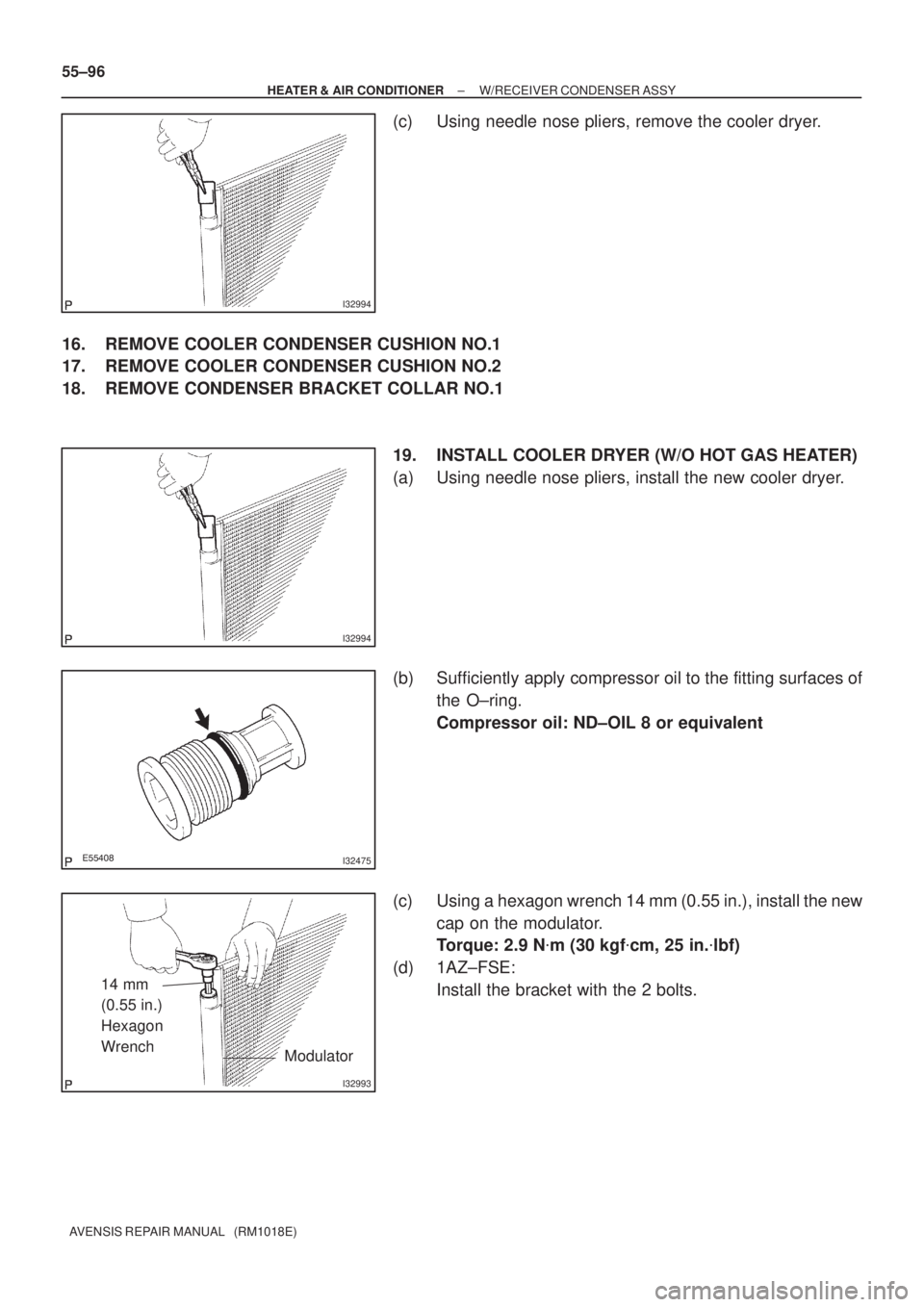

TOYOTA AVENSIS 2005 Service Repair Manual I32994 I32994 I32475 I32993 14 mm (0.55 in.) Hexagon Wrench Modulator 55±96 ± HEATER & AIR CONDITIONERW/RECEIVER CONDENSER ASSY AVENSIS REPAIR MANUAL (RM1018E) (c) Using needle nose pliers,

Page 3003 of 5135

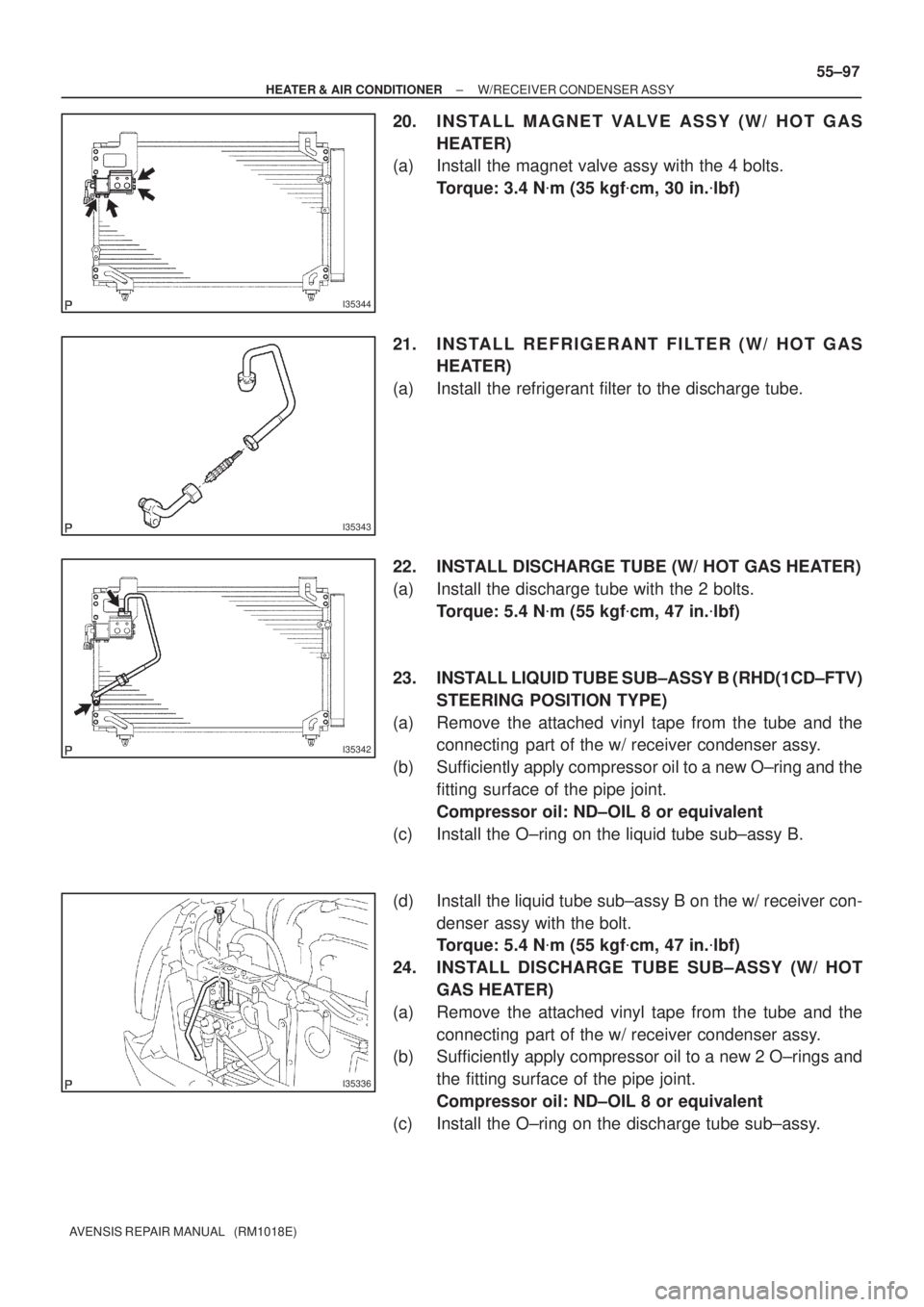

TOYOTA AVENSIS 2005 Service Repair Manual I35344 I35343 I35342 I35336 ± HEATER & AIR CONDITIONERW/RECEIVER CONDENSER ASSY 55±97 AVENSIS REPAIR MANUAL (RM1018E) 20. I N S TA L L M A G N E T VA LV E A S S Y ( W / H O T G A S HEATER) (a) Ins

Page 3004 of 5135

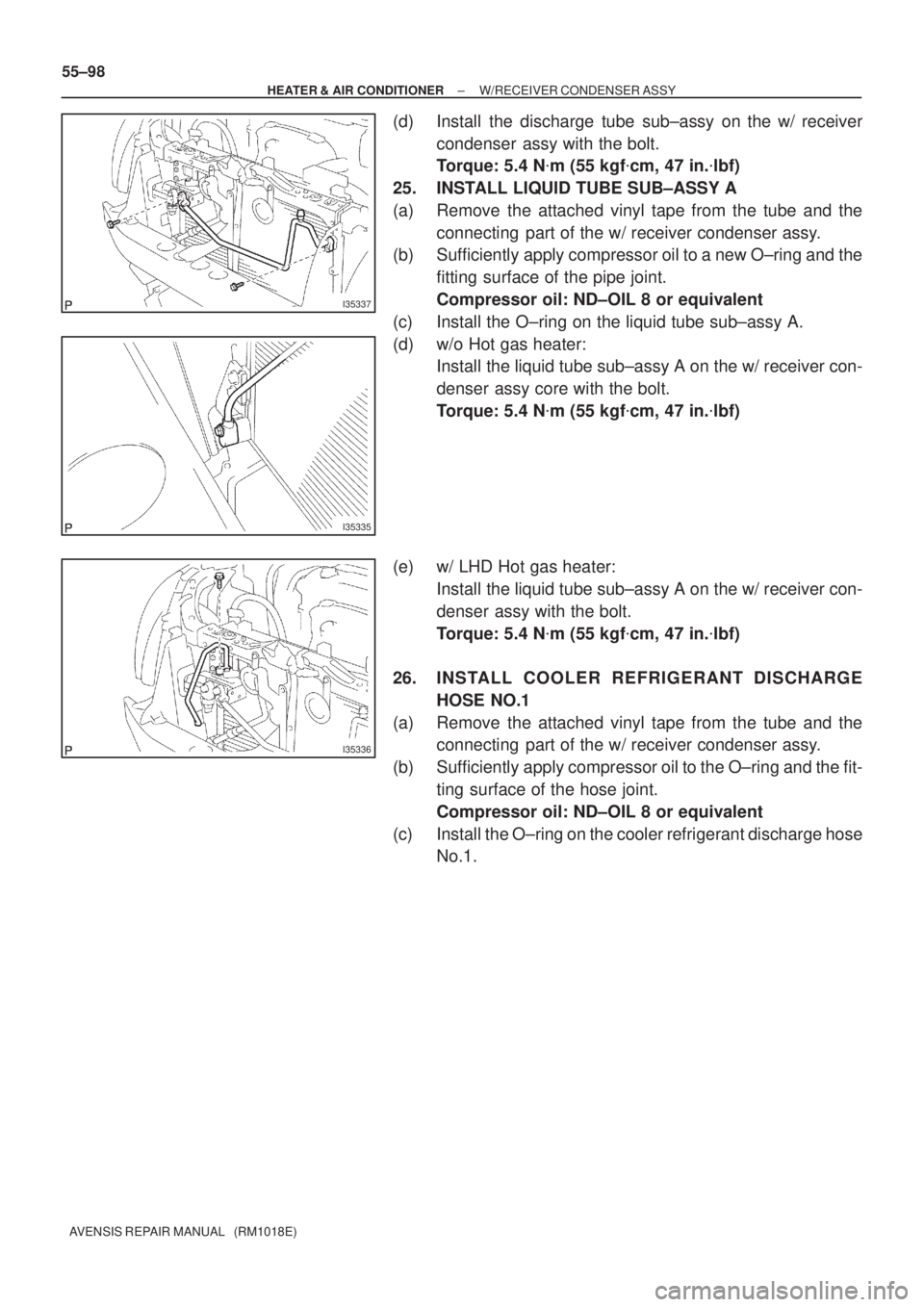

TOYOTA AVENSIS 2005 Service Repair Manual I35337 I35335 I35336 55±98 ± HEATER & AIR CONDITIONERW/RECEIVER CONDENSER ASSY AVENSIS REPAIR MANUAL (RM1018E) (d) Install the discharge tube sub±assy on the w/ receiver condenser assy with the

Page 3005 of 5135

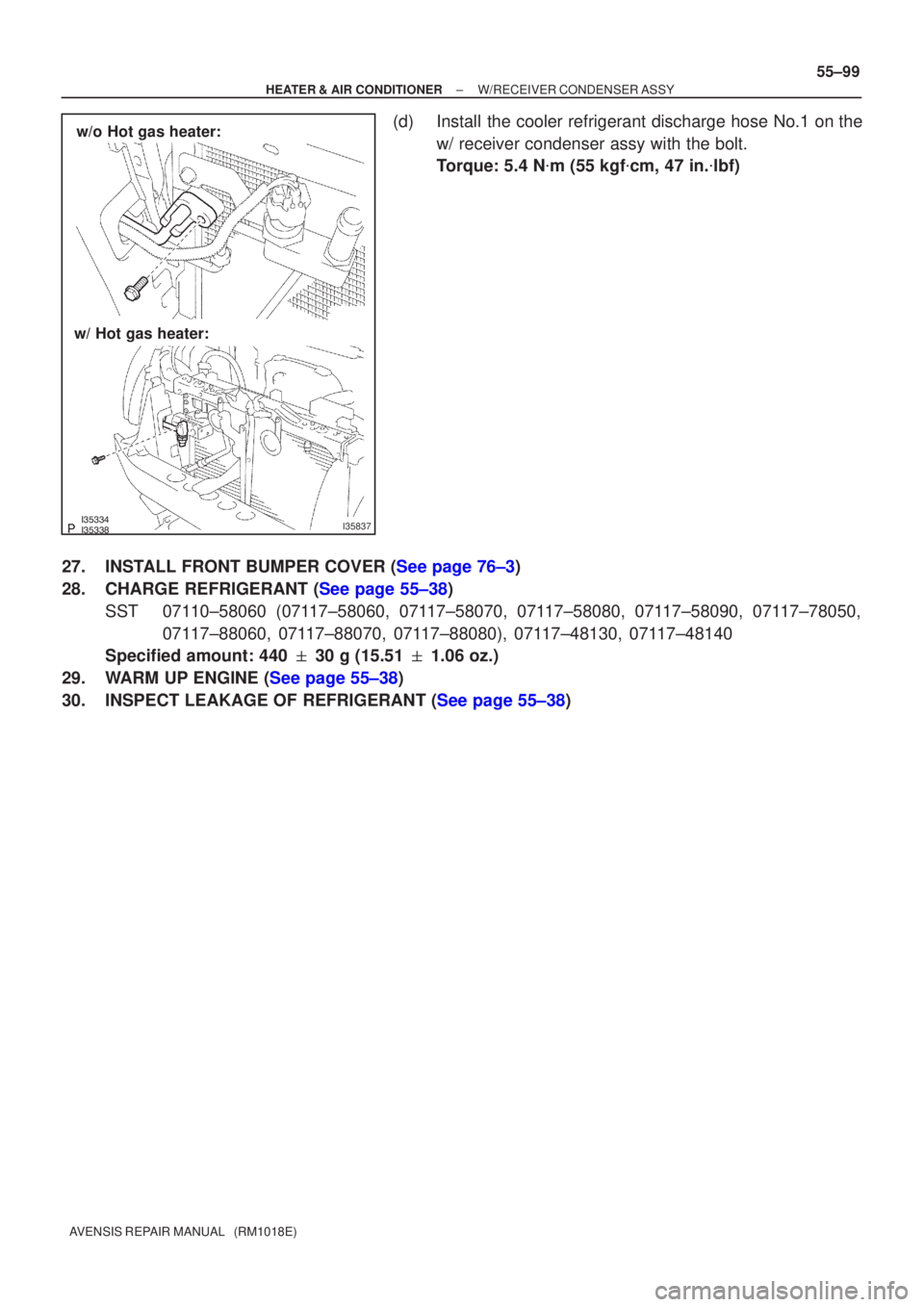

TOYOTA AVENSIS 2005 Service Repair Manual I35837 w/o Hot gas heater: w/ Hot gas heater: ± HEATER & AIR CONDITIONER W/RECEIVER CONDENSER ASSY 55±99 AVENSIS REPAIR MANUAL (RM1018E) (d) Install the cooler refrigerant discharge ho

Page 3006 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 550ZA±01 I35278 Nm (kgfcm, ftlbf) : Specified torque Non±reusable part  Compressor oil ND±OIL 8 or equivalentw/ receiver Condenser Assy Liquid Tube Sub±assy A Cooler Refrigerant Discharge Hose

Page 3007 of 5135

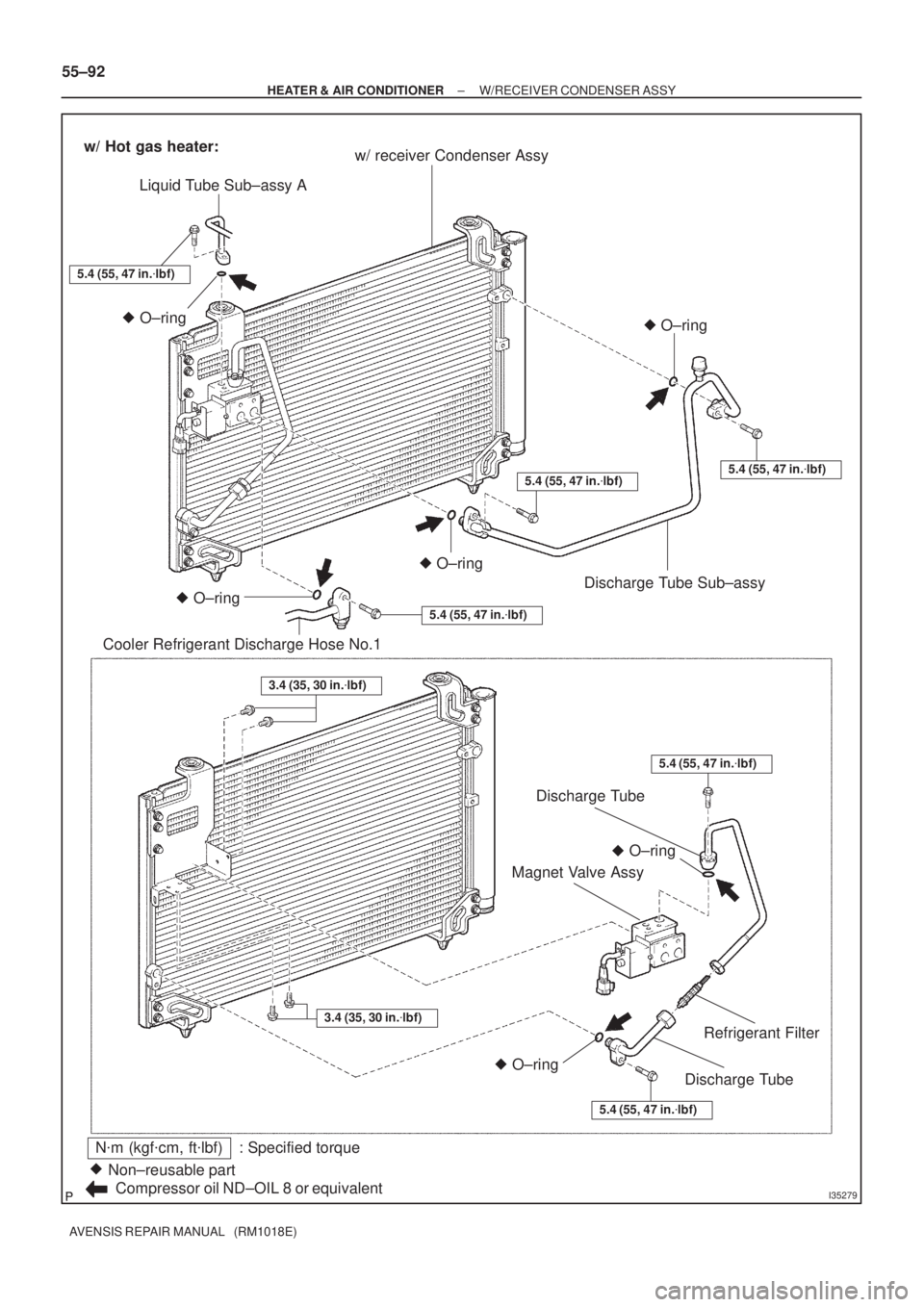

TOYOTA AVENSIS 2005 Service Repair Manual I35279 Nm (kgfcm, ftlbf) : Specified torque Non±reusable part  Compressor oil ND±OIL 8 or equivalentw/ receiver Condenser Assy Liquid Tube Sub±assy A Cooler Refrigerant Discharge Hose No.1O±ri

Page 3008 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 550Z9±01 55±90 ± HEATER & AIR CONDITIONERW/RECEIVER CONDENSER ASSY AVENSIS REPAIR MANUAL (RM1018E) W/RECEIVER CONDENSER ASSY ON±VEHICLE INSPECTION 1. INSPECT W/RECEIVER CONDENSER ASSY (a) If the
