DIAGNOSTIC SCOMBIN ATIO N METER
A VENSIS RE PAIR MANUAL (RM1018E)
2 INSPEC T COMBIN ATION METER ASSY

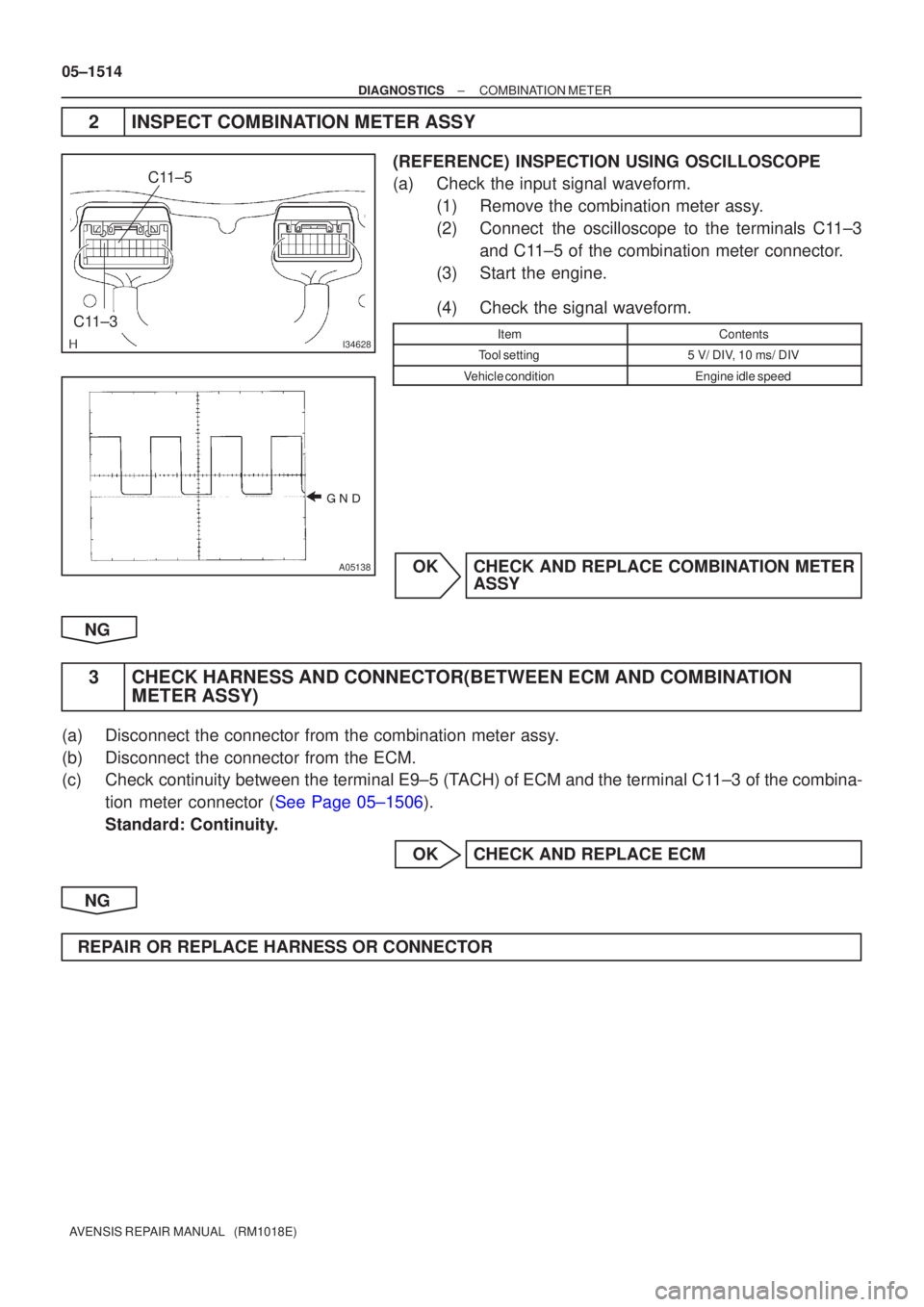

(REFERENCE ) INSPECTION USING OSCILLOSCOPE
(a ) Check the input signal waveform.
(1 ) Remove the combination meter ass y.
(2 ) Connec t the oscilloscope to the terminals C 11±3
an d C 11±5 of the combination meter connecto r.
(3 ) Start the engine.
(4 ) Check the signal waveform.
ItemContents
Too l setting5 V/ DI V, 10 ms/ DIV
V ehicle conditionEngine idle speed
O K CHECK AND REPLACE COMBIN ATION METER
ASSY
NG
3 CHECK HARNESS AND CONNEC TOR(BETWEEN ECM AND COMBIN ATION
METER ASSY)
(a ) Disconnect the connector from the combination meter ass y.
(b ) Disconnect the connector from the ECM.
(c ) Chec k continuity between the terminal E9±5 ( TACH) of ECM and the terminal C 11± 3 of the combina-
tio n meter connector ( See Page 05±1506 ).
Standard: Continuity.
OK CHECK AND REPLACE ECM
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Page 1586 of 5135
I35752
SP1 C11Combination Meter Assy
S135 Skid Control ECU
IE1
L±W
L±W19 16 w/ VSC:
C115
W±B CK CA66
W±B W±B(*1)
W±B(*2) A
J15
J/C
IK IP ILCenter J/B
*1: LHD Models
*2: RHD Models
I35752
SP1 C11Combination Meter Assy
S223 Skid Control ECU
IE1
L±W
L±W19 16 w/o VSC:
C115
W±B CK CA66
W±B W±B(*1)
W±B(*2) A
J15
J/C
IK IP ILCenter J/B
*1: LHD Models
*2: RHD Models 05±1510
± DIAGNOSTICSCOMBINATION METER
AVENSIS REPAIR MANUAL (RM1018E)
MALFUNCTION IN SPEEDOMETER
WIRING DIAGRAM
05C4H±01
Page 1587 of 5135

I34628
C11±19
C 11±5
A05135
±
DIAGNOSTIC SCOMBIN ATIO N METER
05±15 11
A VENSIS RE PAIR MANUAL (RM1018E)
INSPECTIO N PROCEDURE
1 READ V ALUE OF HAND±HELD TESTER(SKID CONTROL ECU)
(a ) Operat e the hand±held tester according to the steps on the display and selec\
t ºD ATA LISTº.
ALL(ECM):
ItemMeasuremen t Item/
Range (Display)Normal ConditionDiagnostic Note
VEHICLE SPEEDV ehicle speed / Min.: 0 km/h,
Max.: 255 km/hAlmost same at the meter speed
(When driving)±
NG GO T O BRAKE SYSTEM
OK
2 INSPECT COMBIN ATION METER ASSY
(REFERENCE) INSPECTION USING OSCILLOSCOPE
(a ) Check the input signal waveform.
(1 ) Remove the combination meter ass y.
(2 ) Connec t the oscilloscope to the terminal C 11±19
an d C 11±5 of the combination meter ass y.
(3 ) Start the engine.
(4 ) Check the signal waveform.
ItemContents
Too l setting5 V/ DI V, 20 ms/ DIV
V ehicle conditionDriving at approx. 20Km/h
HIN T:
A s the vehicle speed becomes highe r, the cycle of the signal
wavefor m becomes shorte r.
O K CHECK AND REPLACE COMBIN ATION METER
ASSY
NG
3 CHECK HARNESS AND CONNEC TOR(BETWEEN SKID CONTROL ECU AND
COMBIN ATION METER ASSY)
(a ) Disconnect the connector from the combination meter ass y.
(b ) Disconnect the connector from the skid control ECU.
(c ) Chec k continuity between the terminal S1±35 (SP1)/S2±23 (SP1) of th\
e skid control ECU and the ter-
mina l C 11±19 of the combination meter connector ( See Page 05±770 ).
Standard: Continuity.
OK CHECK AND REPLACE SKID CONTROL ECU
NG
Page 1588 of 5135
05±1512
± DIAGNOSTICSCOMBINATION METER
AVENSIS REPAIR MANUAL (RM1018E)

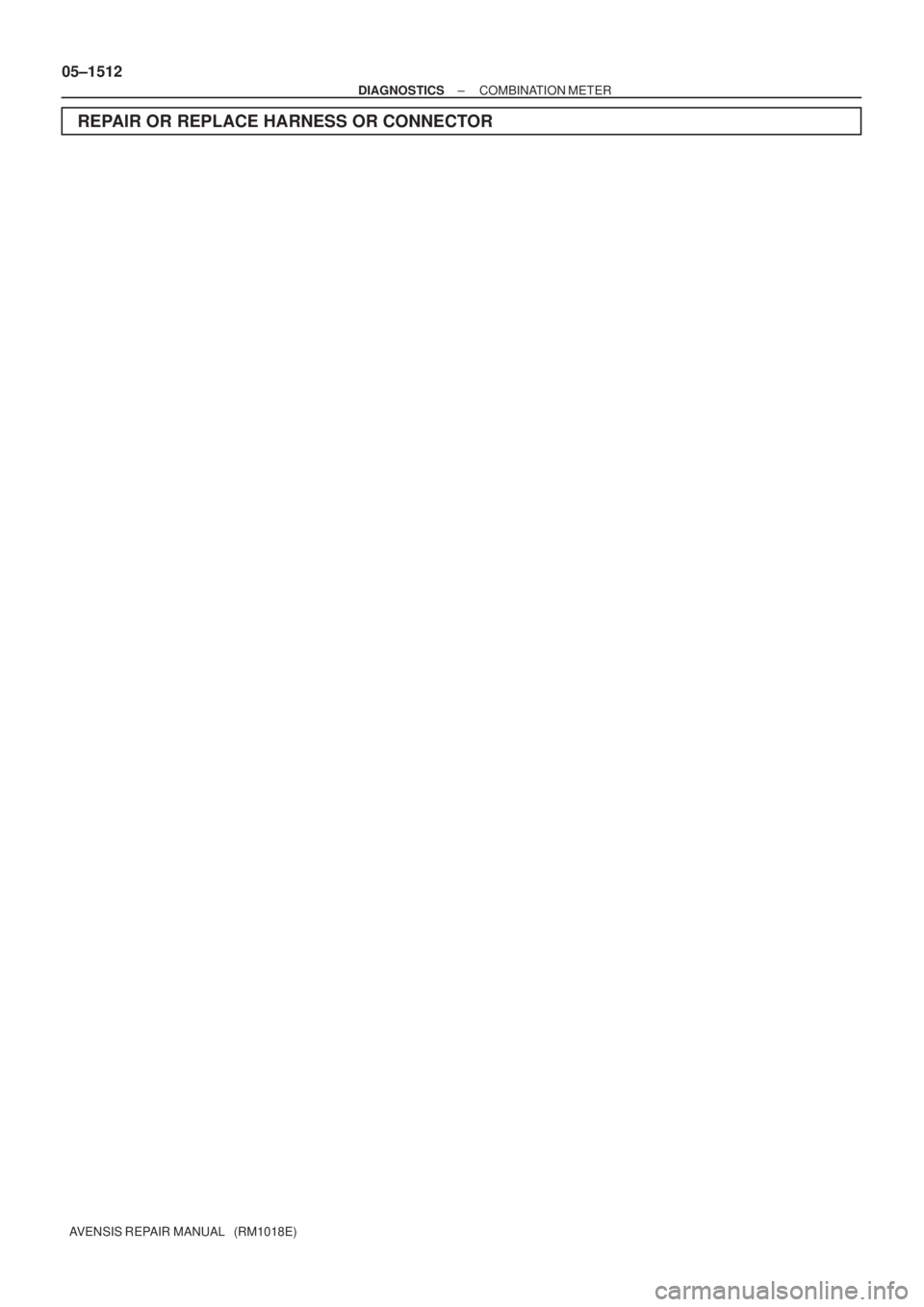

REPAIR OR REPLACE HARNESS OR CONNECTOR
Page 1589 of 5135
B66771
KSW
W±B8 U1
Unlock Warning Switch Assy
W±B
IP5
+B GROUND 1
W±R W±B
2
1Instrument Panel J/B Assy
PRG
RDA 16
2PRG
RDA D6
Door Control Receiver
7Integration
Relay
IC2 I14 3 G±Y
L±W 16
7
To
Battery
DA Y
IO*
1
6 8
Center
J/BIC2 G±Y
L±W
CA CD
AJ16
J/C LHD Models
19 I14
A W±B
IL*
2*1: Gasoline Engine
*2: 1CD±FTV
± DIAGNOSTICSWIRELESS DOOR LOCK CONTROL SYSTEM
05±1575
AVENSIS REPAIR MANUAL (RM1018E)
ONLY WIRELESS CONTROL FUNCTION DOES NOT OPERATE
(PREPARE NEW OR NORMAL TRANSMITTER OF THE SAME
TYPE VEHICLE)
CIRCUIT DESCRIPTION
The door control receiver receives a signal from the transmitter and sends this signal to the integration relay.
Then, the integration relay controls door operation by sending a door LOCK/UNLOCK signal and a luggage
door (back door) unlock signal to each door lock motor.
WIRING DIAGRAM
05BNB±01
Page 1590 of 5135
B66770
KSW
W±B8 U1
Unlock Warning Switch Assy
IP 5
+B GROUND 1
W±R W±B
2 1Instrument Panel J/B Assy
PRG
RDA 16
2PRG
RDA D6
Door Control Receiver
7Integration
Relay
IC2 I14 3
G±Y
L±W 16
7
To
Battery
DA Y*
2
IKIC2 G±Y
L±W
13 6
CF CA19 RHD Models
DJ22
J/C*
2
D
Center J/B
W±B Y*2
*1: 1AZ±FE
*
2: Except 1AZ±FEY*
1
A
J15
J/CI14 05±1576
± DIAGNOSTICSWIRELESS DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
Page 1591 of 5135

±
DIAGNOSTICS WIRELESS DOOR LOCK CONTROL SYSTEM
05±1577
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
HINT:
The switch described in this text is a switch for transmitting signals, whi\
ch is built in the door control transmit-
ter.
1CHECK WIRELESS DOOR LOCK CONTROL FUNCTIONS (See page 73±15)
NG Go to step 2
OK
NORMAL
2 CHECK THAT TRANSMITTER LED LIGHTS UP
(a) Check that the transmitter LED lights up 3 times when the switch is pres\
sed 3 times. NG Go to step 8
OK
3 CHECK WIRELESS DOOR LOCK CONTROL FUNCTIONS (STANDARD OPERA- TION)
(a) Check if the UNLOCK±LOCK operates in standard operation.
NOTICE:
Standardized test procedure: Press the transmitter switch for 1 second, directing the beam to driv-
er 's door outside handle from a distance of 1 m (39.4 in.). The transmitte\
r should be pointed directly
at the door handle, i.e. at 90 angle to the vehicle body.
NG Go to step 4
OK
REPLACE TRANSMITTER SUB±ASSY MODULE SET DOOR CONTROL
4 CONFIRM ROOM LAMP ON
(a) Check that the room lamp lights up.
HINT:
When the room lamp does not light up, proceed to the self±diagnostic mode\
after repairing the room lamp.
Page 1592 of 5135

B52341
Room LampOFF a: 0.25 sec.
b: 0.5 sec.
ON
ab
05±1578
±
DIAGNOSTICS WIRELESS DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
5 SWITCH TO SELF±DIAGNOSTIC MODE
(a) Switch to the self±diagnostic mode by operating the ignition key cylinder. (1)Put the vehicle under the vehicle's initial condition (See page 73±15), insert the key into the igni-
tion key cylinder and remove it.
(2) Within 5 seconds after the key is removed (step 1), insert the key int\
o the ignition key cylinder (ignition key OFF) and perform the following once: Turn the ignition switch to ON and return it
to OFF.
(3) Within 30 seconds after the ignition switch is returned to OFF (step 2)\
, perform the following 9
times: Turn the ignition switch to ON and return it to OFF.
NOTICE:
If operation has failed, the system will return to normal mode.
HINT:
Turning the ignition switch ON after step 3 has been completed will end t\
he self±diagnostic mode.
Do not lock or unlock doors during the self±diagnostic mode.
(b) Check that the system has switched to self±diagnosticmode by the blinking frequency of the room lamp.
NG Go to step 10
OK
