Page 3993 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual D25148
DLC3 12345 768
9 1 0111 21 3 1 514 16
FI2547
05±986± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E)
AVENSIS REPAIR MANUAL (RM1018E)

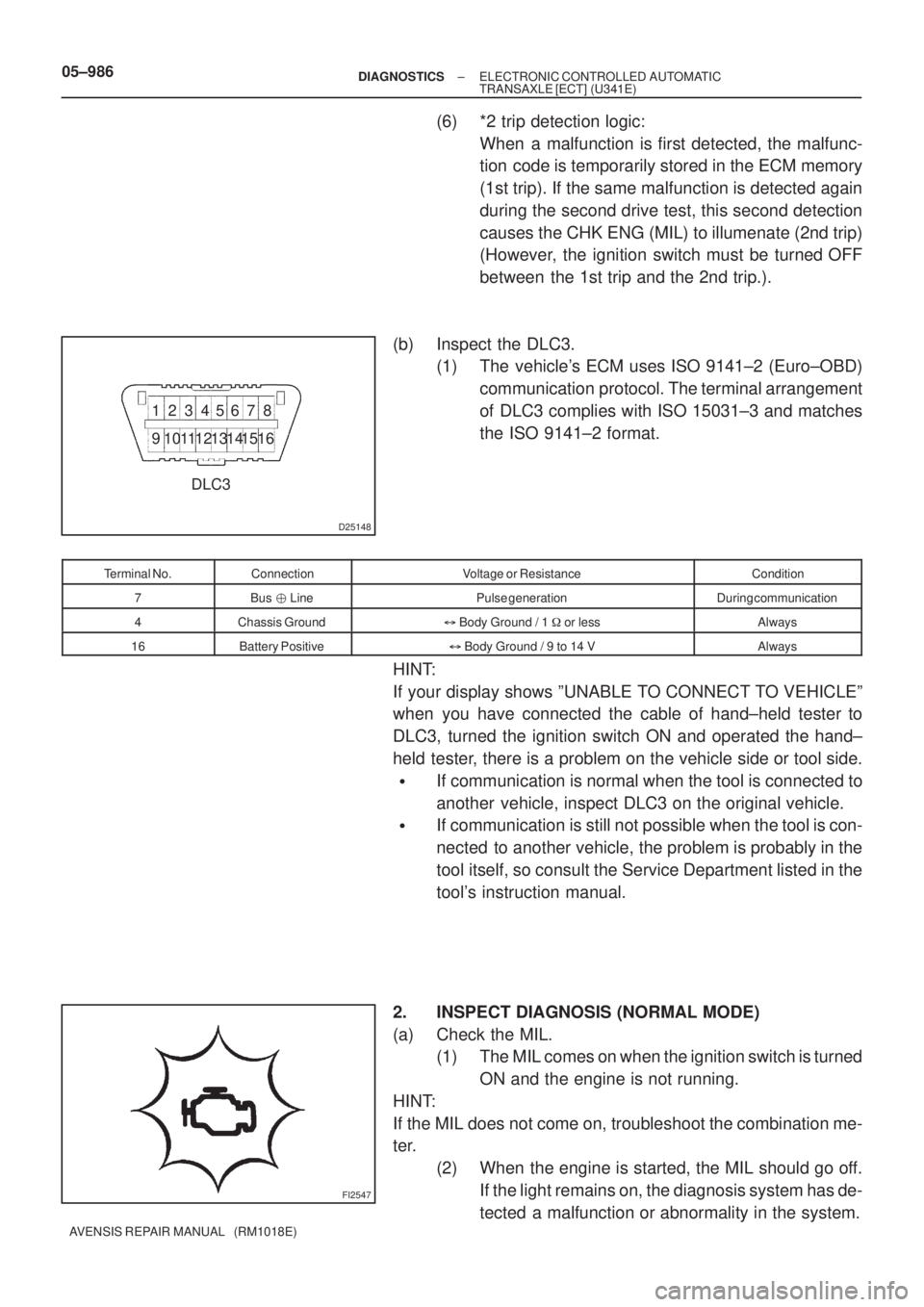

(6) *2 trip detection logic:
When a m

Page 3994 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual BR3904
ON
OFF 0.13 sec.
0.13 sec.
±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT](U341E)05±987
AVENSIS REPAIR MANUAL (RM1018E)

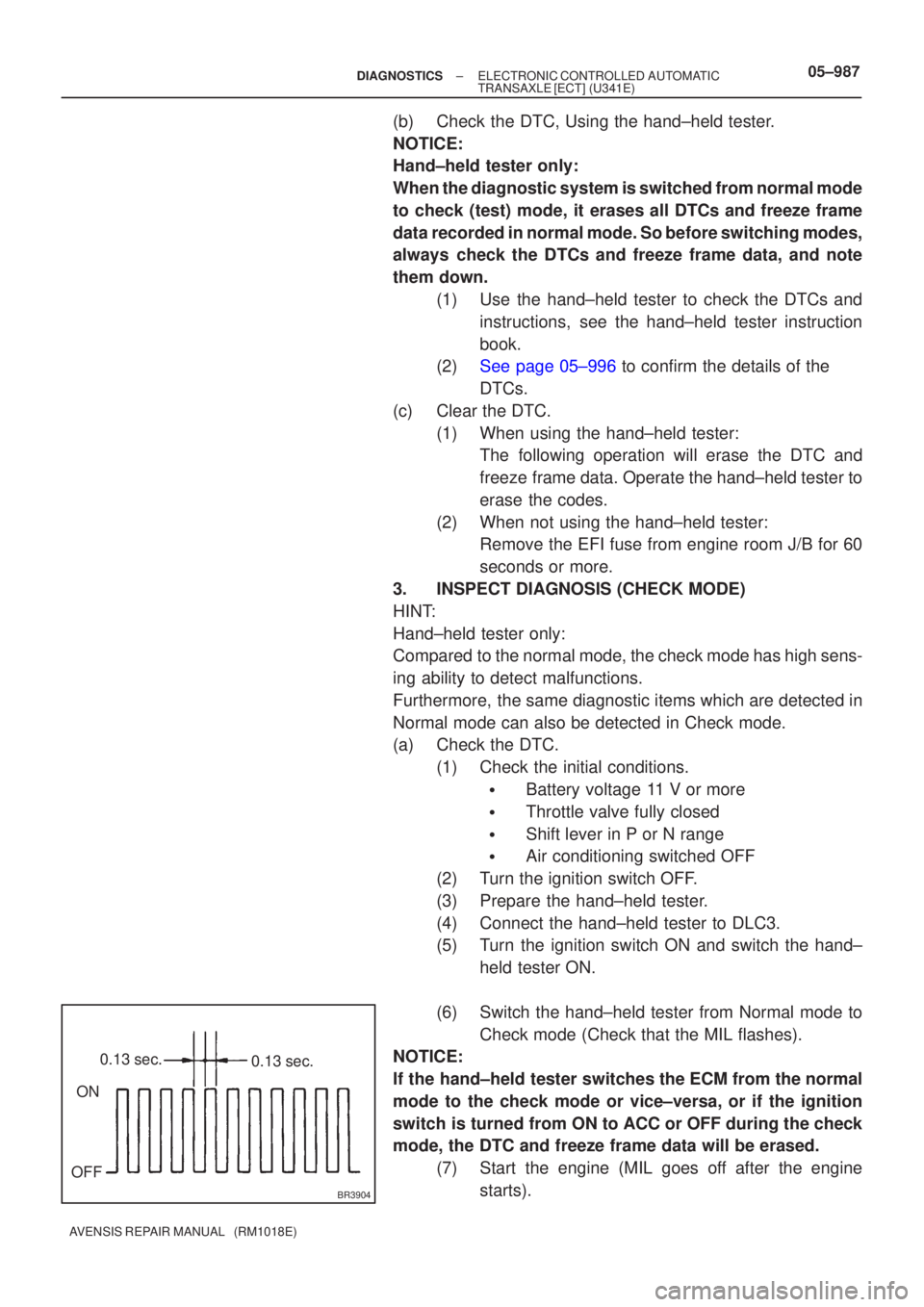

(b)Check the DTC, Using the hand±held tester.
NOTICE:

Page 3995 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 05±988± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E)
AVENSIS REPAIR MANUAL (RM1018E)

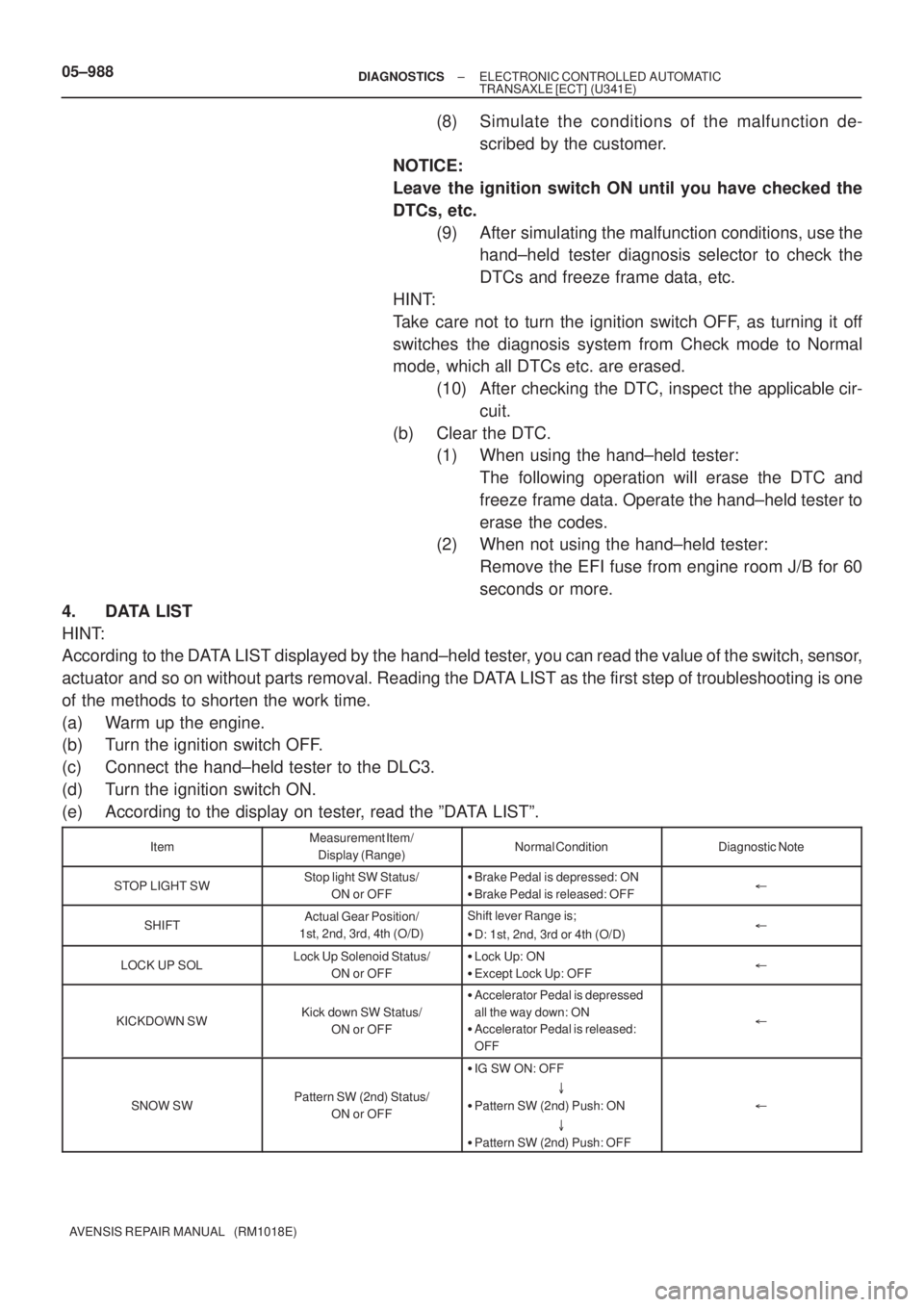

(8) Simulate the conditions of the malfunction de-
scribed by the customer.
NOTICE:
Leave

Page 3996 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual ± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E)05±989

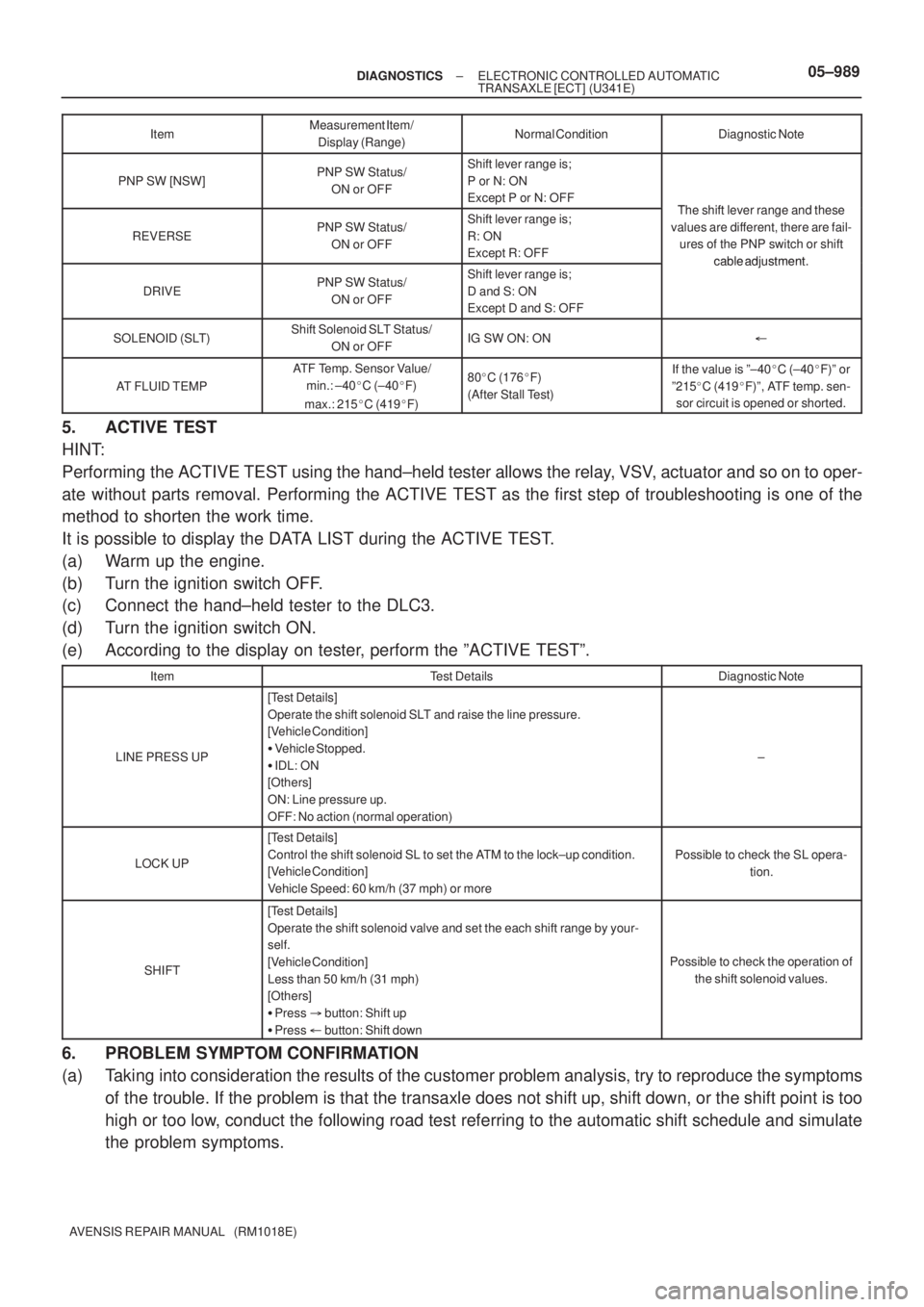

AVENSIS REPAIR MANUAL (RM1018E)ItemDiagnostic Note Normal Condition Measurement Item/
Display (Range)
PNP SW [NSW]PNP SW

± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E)05±989
AVENSIS REPAIR MANUAL (RM1018E)ItemDiagnostic Note Normal Condition Measurement Item/
Display (Range)
PNP SW [NSW]PNP SW Status/
ON or OFFShift lever range is;
P or N: ON
Except P or N: OFF
The shift lever range and these
REVERSEPNP SW Status/
ON or OFFShift lever range is;
R: ON
Except R: OFFThe shift lever range and these
values are different, there are fail-
ures of the PNP switch or shift
cable adjustment
DRIVEPNP SW Status/
ON or OFFShift lever range is;
D and S: ON
Except D and S: OFFcable adjustment.
SOLENOID (SLT)Shift Solenoid SLT Status/
ON or OFFIG SW ON: ON
AT FLUID TEMP
ATF Temp. Sensor Value/
min.: ±40C (±40F)
max.: 215C (419F)80C (176F)
(After Stall Test)If the value is º±40C (±40F)º or
º215C (419F)º, ATF temp. sen-
sor circuit is opened or shorted.
5. ACTIVE TEST
HINT:
Performing the ACTIVE TEST using the hand±held tester allows the relay, VSV, actuator and so on to oper-
ate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one of the
method to shorten the work time.
It is possible to display the DATA LIST during the ACTIVE TEST.
(a) Warm up the engine.
(b) Turn the ignition switch OFF.
(c) Connect the hand±held tester to the DLC3.
(d) Turn the ignition switch ON.
(e) According to the display on tester, perform the ºACTIVE TESTº.
ItemTest DetailsDiagnostic Note
LINE PRESS UP
[Test Details]
Operate the shift solenoid SLT and raise the line pressure.
[Vehicle Condition]
Vehicle Stopped.
IDL: ON
[Others]
ON: Line pressure up.
OFF: No action (normal operation)
±
LOCK UP
[Test Details]
Control the shift solenoid SL to set the ATM to the lock±up condition.
[Vehicle Condition]
Vehicle Speed: 60 km/h (37 mph) or more
Possible to check the SL opera-
tion.
SHIFT
[Test Details]
Operate the shift solenoid valve and set the each shift range by your-
self.
[Vehicle Condition]
Less than 50 km/h (31 mph)
[Others]
Press button: Shift up
Press button: Shift down
Possible to check the operation of
the shift solenoid values.
6. PROBLEM SYMPTOM CONFIRMATION
(a) Taking into consideration the results of the customer problem analysis, try to reproduce the symptoms
of the trouble. If the problem is that the transaxle does not shift up, shift down, or the shift point is too
high or too low, conduct the following road test referring to the automatic shift schedule and simulate
the problem symptoms.

Page 3997 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 05±990±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT](U341E)
AVENSIS REPAIR MANUAL (RM1018E)

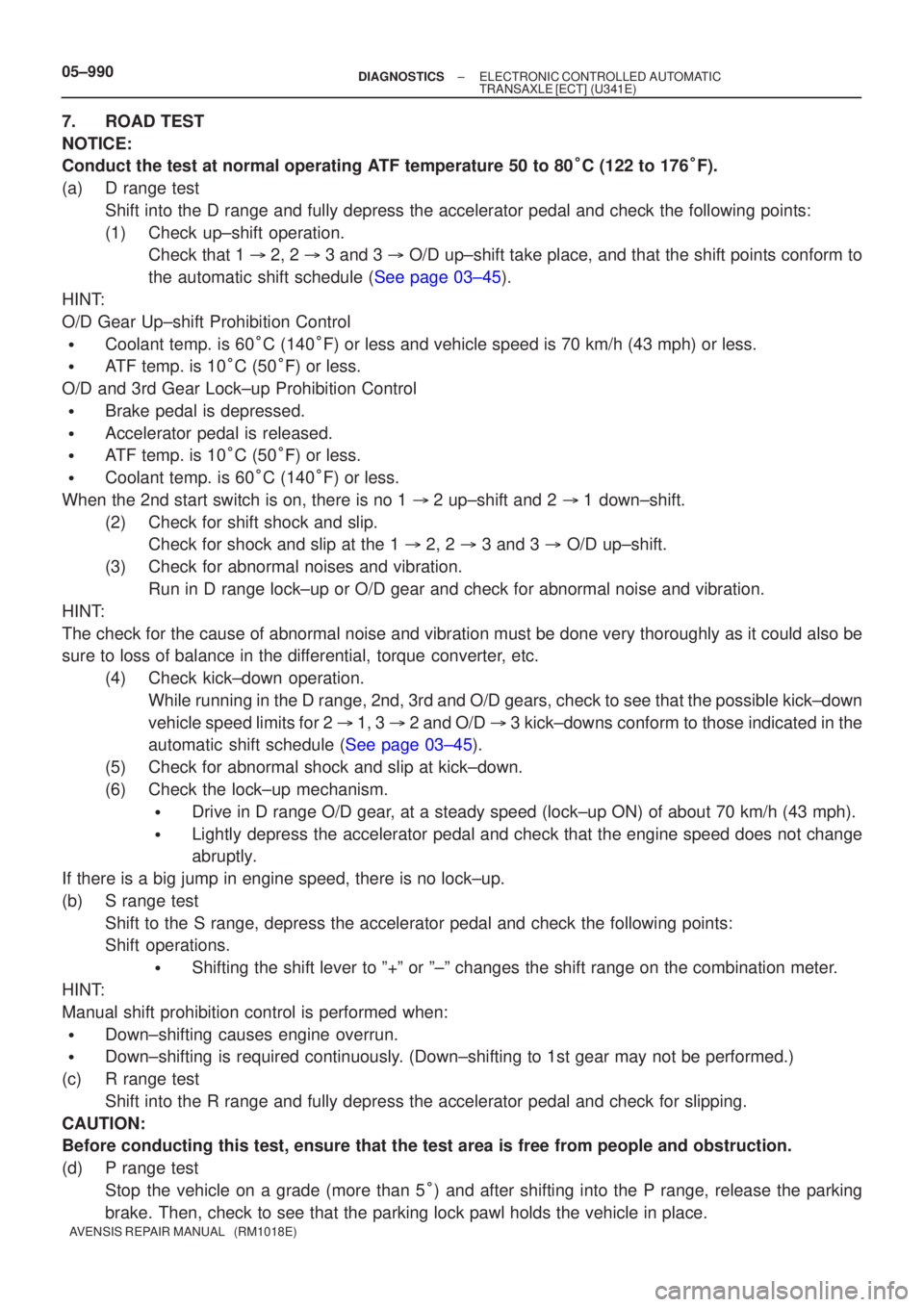

7.ROAD TEST
NOTICE:
Conduct the test at normal operating ATF temperature 50 to 80 C (122

05±990±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT](U341E)
AVENSIS REPAIR MANUAL (RM1018E)
7.ROAD TEST
NOTICE:
Conduct the test at normal operating ATF temperature 50 to 80 C (122 to 176 F).
(a)D range test Shift into the D range and fully depress the accelerator pedal and check\
the following points:
(1)Check up±shift operation.Check that 1 2, 2 3 and 3 O/D up±shift take place, and that the shift points conform to
the automatic shift schedule (See page 03±45).
HINT:
O/D Gear Up±shift Prohibition Control
Coolant temp. is 60 C (140 F) or less and vehicle speed is 70 km/h (43 mph) or less.
ATF temp. is 10 C (50 ) or less.
O/D and 3rd Gear Lock±up Prohibition Control
Brake pedal is depressed.
Accelerator pedal is released.
ATF temp. is 10 C (50 ) or less.
Coolant temp. is 60 C (140 F) or less.
When the 2nd start switch is on, there is no 1 2 up±shift and 2 1 down±shift.
(2)Check for shift shock and slip. Check for shock and slip at the 1 2, 2 3 and 3 O/D up±shift.
(3)Check for abnormal noises and vibration. Run in D range lock±up or O/D gear and check for abnormal noise and v\
ibration.
HINT:
The check for the cause of abnormal noise and vibration must be done ver\
y thoroughly as it could also be
sure to loss of balance in the differential, torque converter, etc. (4)Check kick±down operation.While running in the D range, 2nd, 3rd and O/D gears, check to see that the p\
ossible kick±down
vehicle speed limits for 2 1, 3 2 and O/D 3 kick±downs conform to those indicated in the
automatic shift schedule (See page 03±45).
(5) Check for abnormal shock and slip at kick±down.
(6) Check the lock±up mechanism.
Drive in D range O/D gear, at a steady speed (lock±up ON) of about 70 km/h (43 mph).
Lightly depress the accelerator pedal and check that the engine speed does not change
abruptly.
If there is a big jump in engine speed, there is no lock±up.
(b) S range test Shift to the S range, depress the accelerator pedal and check the follow\
ing points:
Shift operations.
Shifting the shift lever to º+º or º±º changes the shift \
range on the combination meter.
HINT:
Manual shift prohibition control is performed when:
Down±shifting causes engine overrun.
Down±shifting is required continuously. (Down±shifting to 1st gear may not be performed.)
(c) R range test Shift into the R range and fully depress the accelerator pedal and check\
for slipping.
CAUTION:
Before conducting this test, ensure that the test area is free from peop\
le and obstruction.
(d) P range test Stop the vehicle on a grade (more than 5 ) and after shifting into the P range, release the parking
brake. Then, check to see that the parking lock pawl holds the vehicle in plac\
e.

Page 3998 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual D25148
TA CDLC3 12345 768
9 1 0111 21 3 1 514 16
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E)05±991
AVENSIS REPAIR MANUAL (RM1018E)

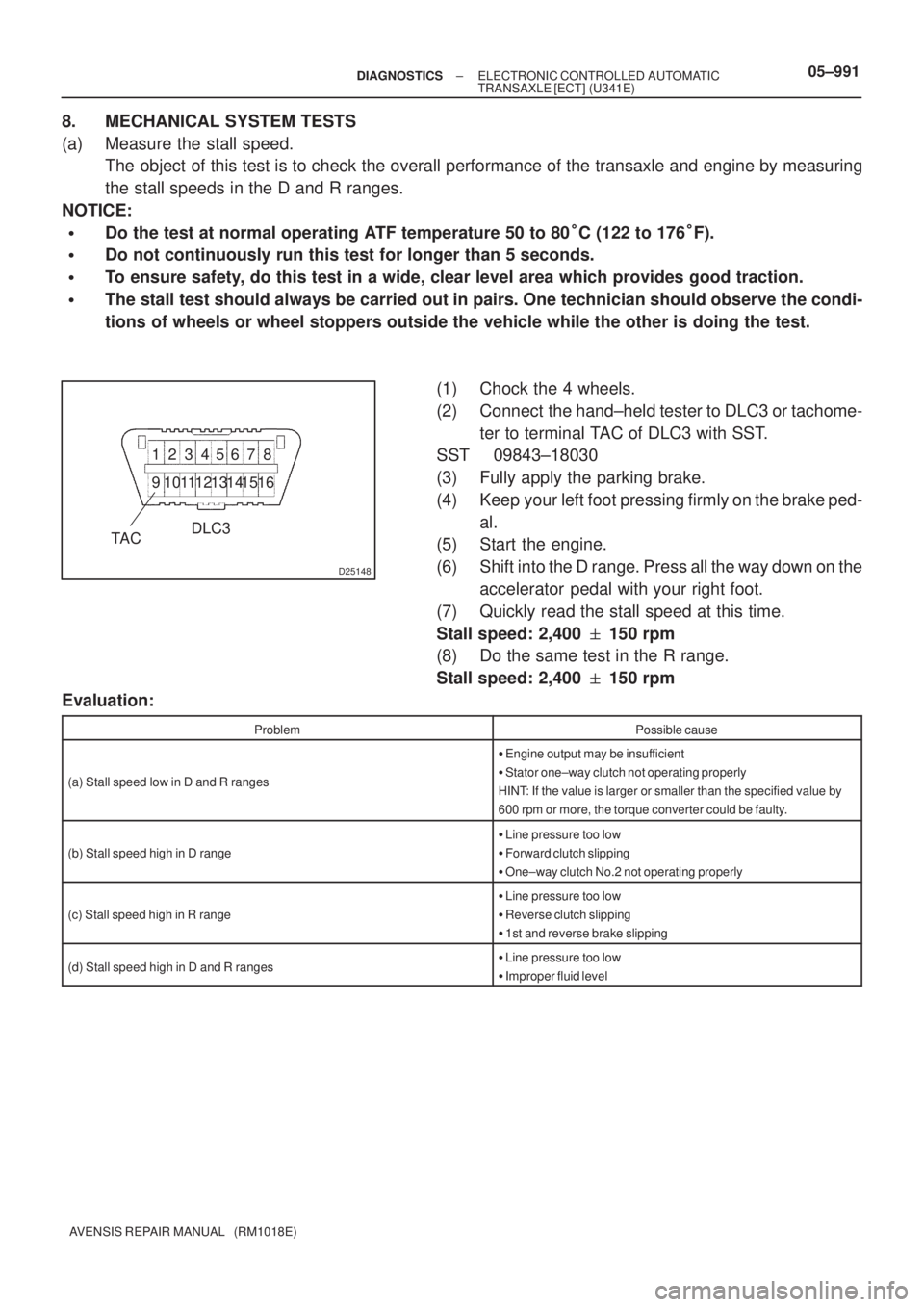

8. MECHANICAL SYSTEM TESTS
(a) Measure t

Page 3999 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual D25148
TA C
12345 768
9 1 0111 21 3 1 514 16 05±992
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E)
AVENSIS REPAIR MANUAL (RM1018E)

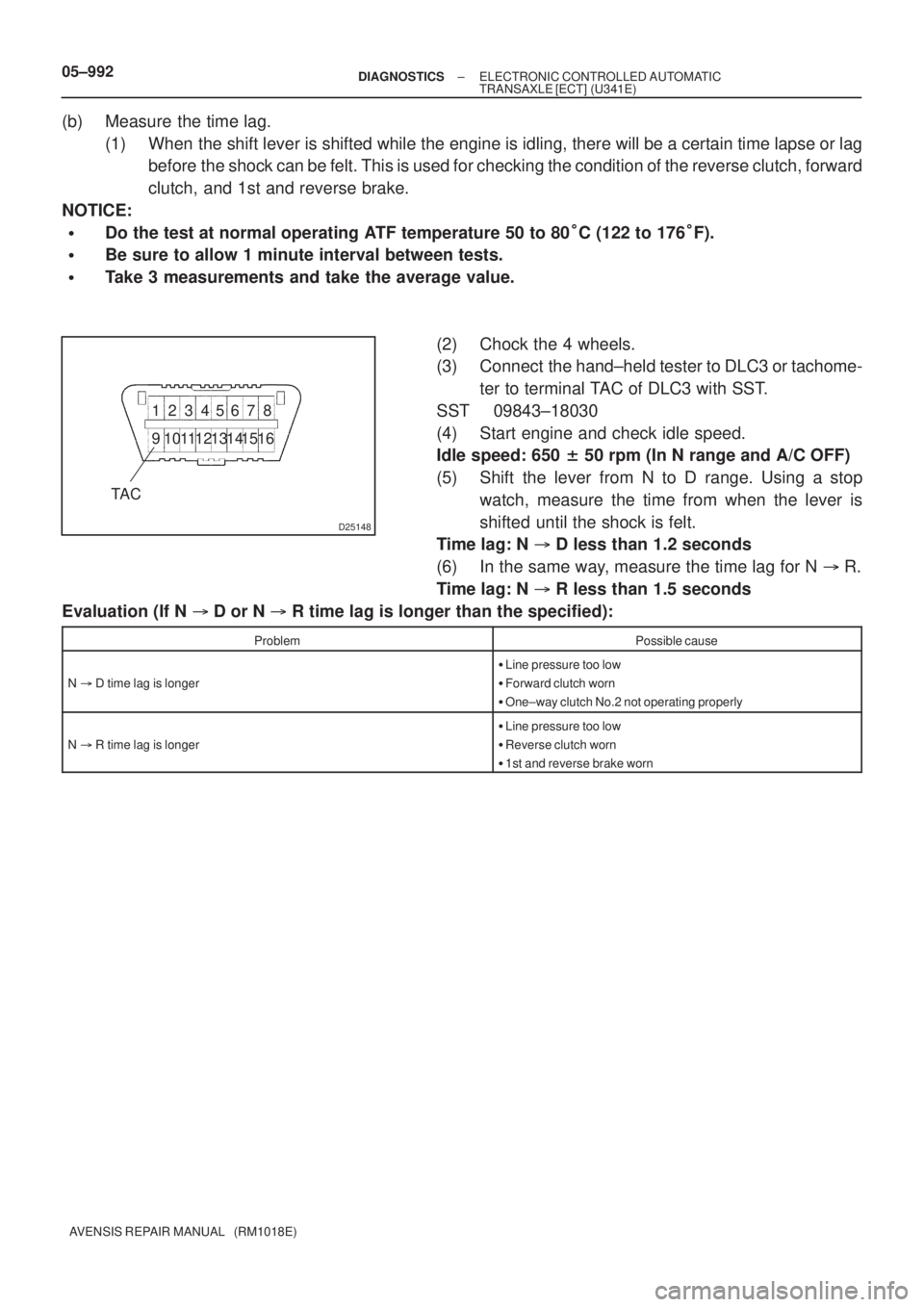

(b) Measure the time lag.
(1) When the shif

Page 4000 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual G24063
SST
SST
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E)05±993
AVENSIS REPAIR MANUAL (RM1018E)

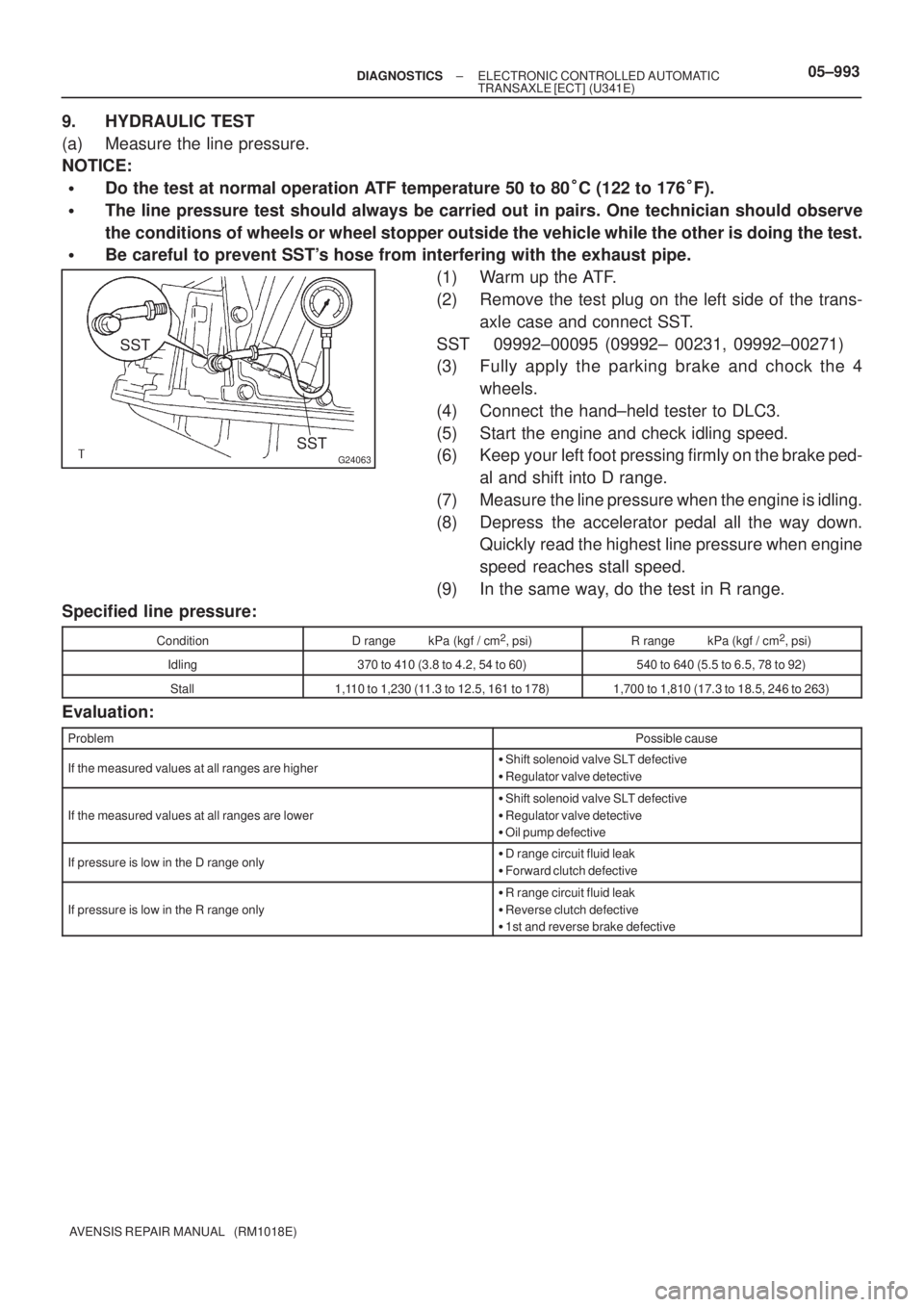

9. HYDRAULIC TEST
(a) Measure the line pressure.
NOTICE:
Do the test at n
