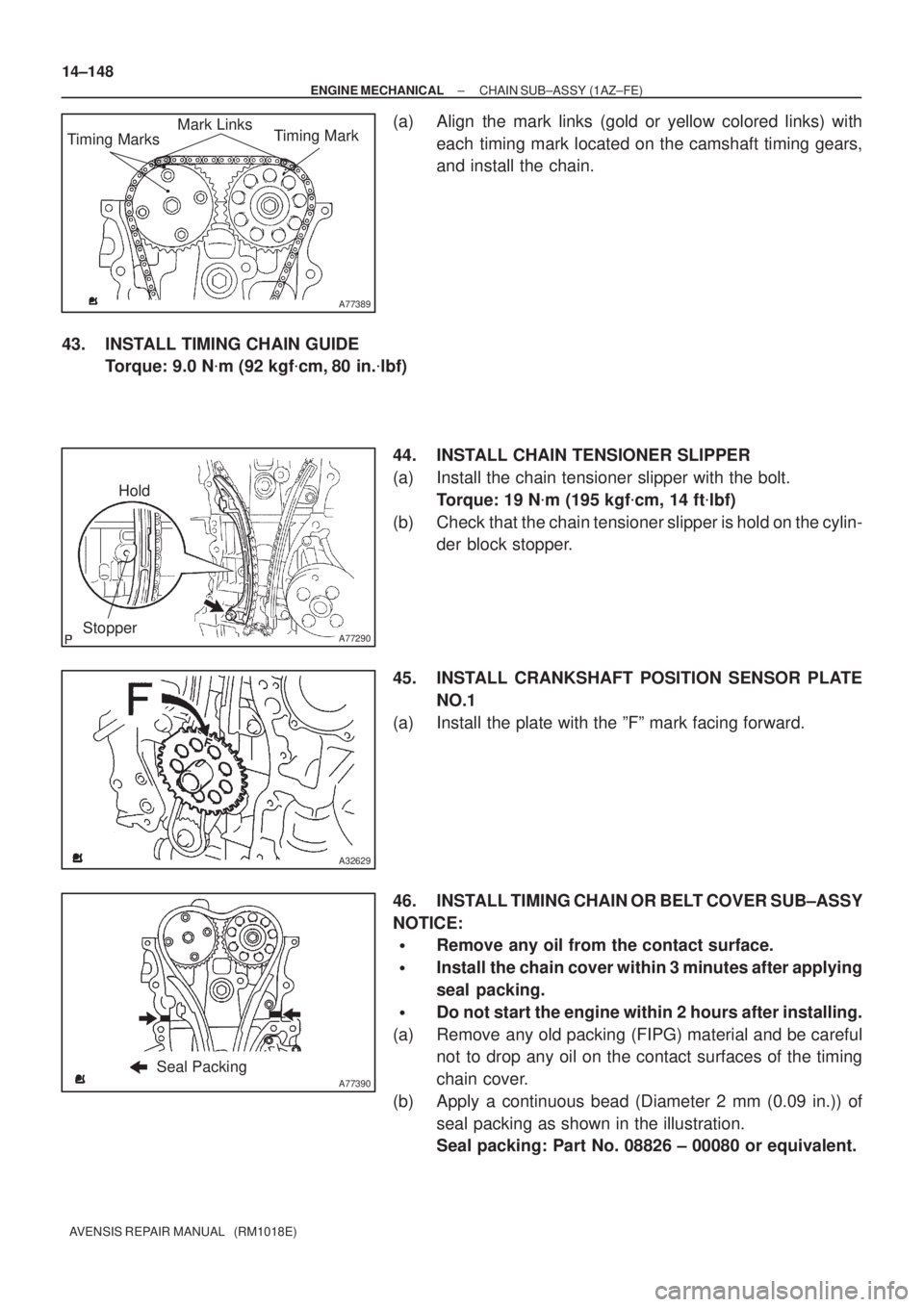

Page 2169 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77389 Timing MarksMark Links Timing Mark A77290 Hold Stopper A32629 A77390Seal Packing 14±148 ± ENGINE MECHANICALCHAIN SUB±ASSY (1AZ±FE) AVENSIS REPAIR MANUAL (RM1018E) (a) Align the mark links

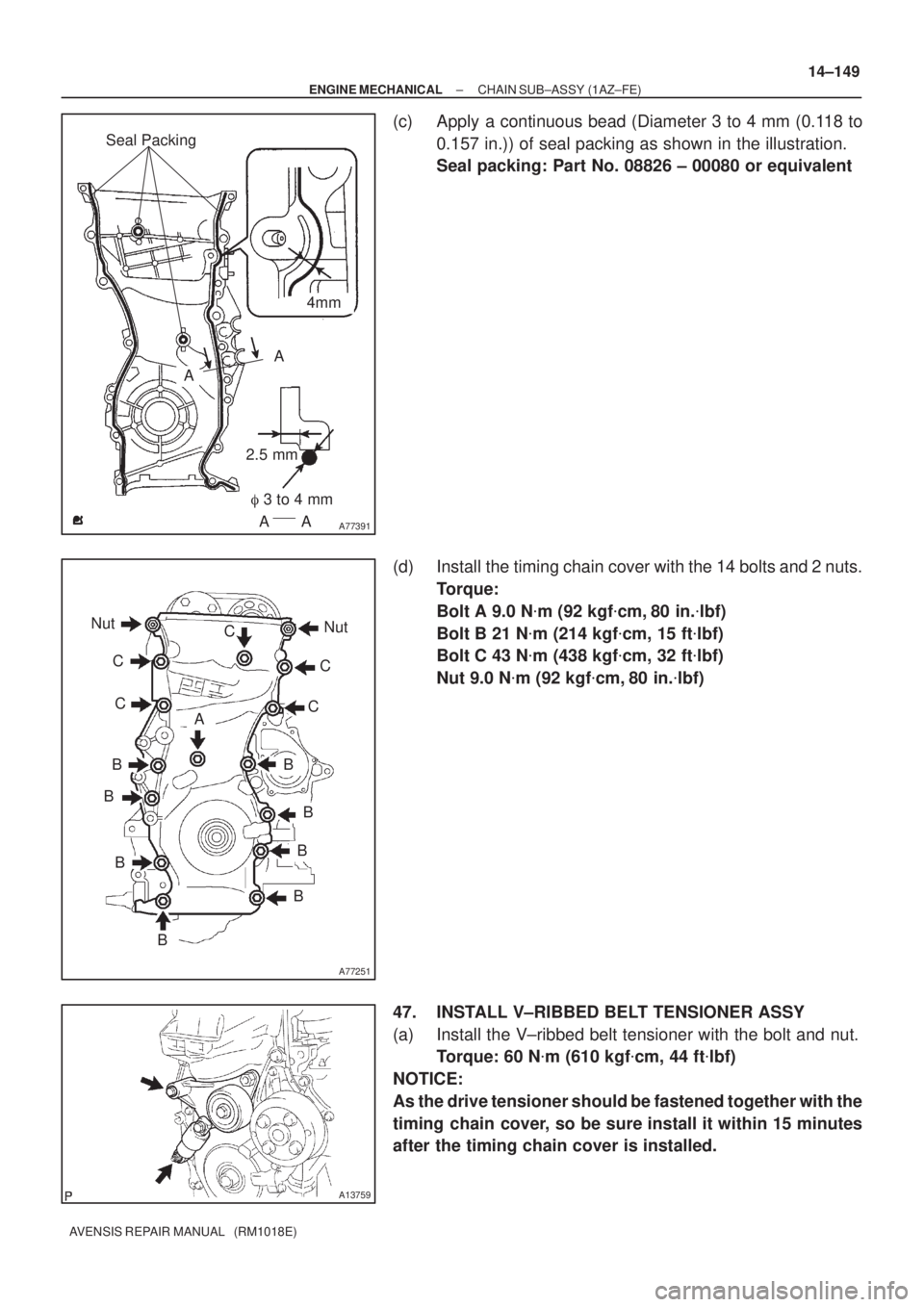

Page 2170 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77391 Seal Packing 4mm 2.5 mm A A AA  3 to 4 mm A77251 Nut Nut C CC C B B B BB B B B AC A13759 ± ENGINE MECHANICALCHAIN SUB±ASSY (1AZ±FE) 14±149 AVENSIS REPAIR MANUAL (RM1018E) (c) Apply a con

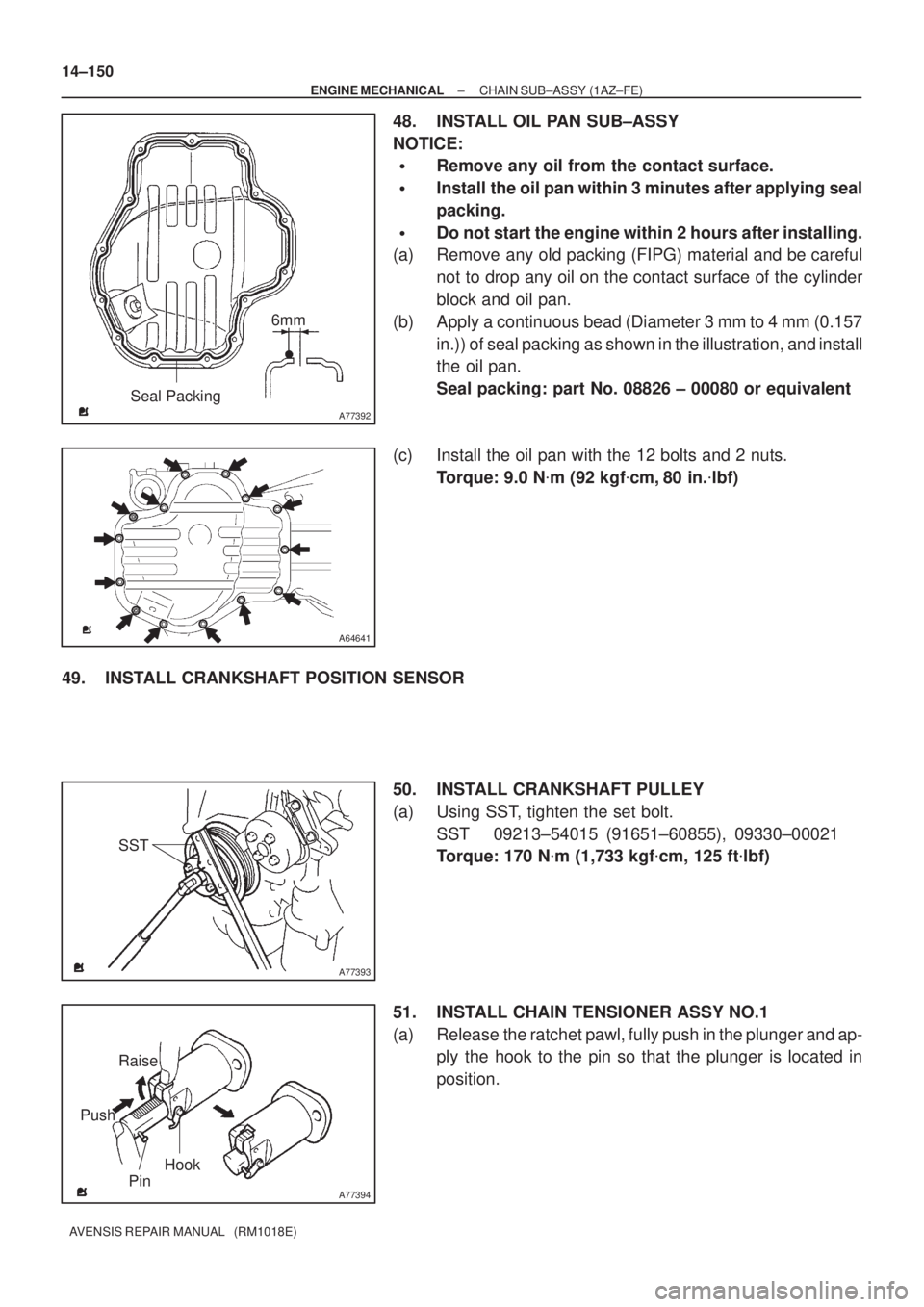

Page 2171 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77392 Seal Packing6mm A64641 A77393 SST A77394 Raise PinHook Push 14±150 ± ENGINE MECHANICALCHAIN SUB±ASSY (1AZ±FE) AVENSIS REPAIR MANUAL (RM1018E) 48. INSTALL OIL PAN SUB±ASSY NOTICE: Remove

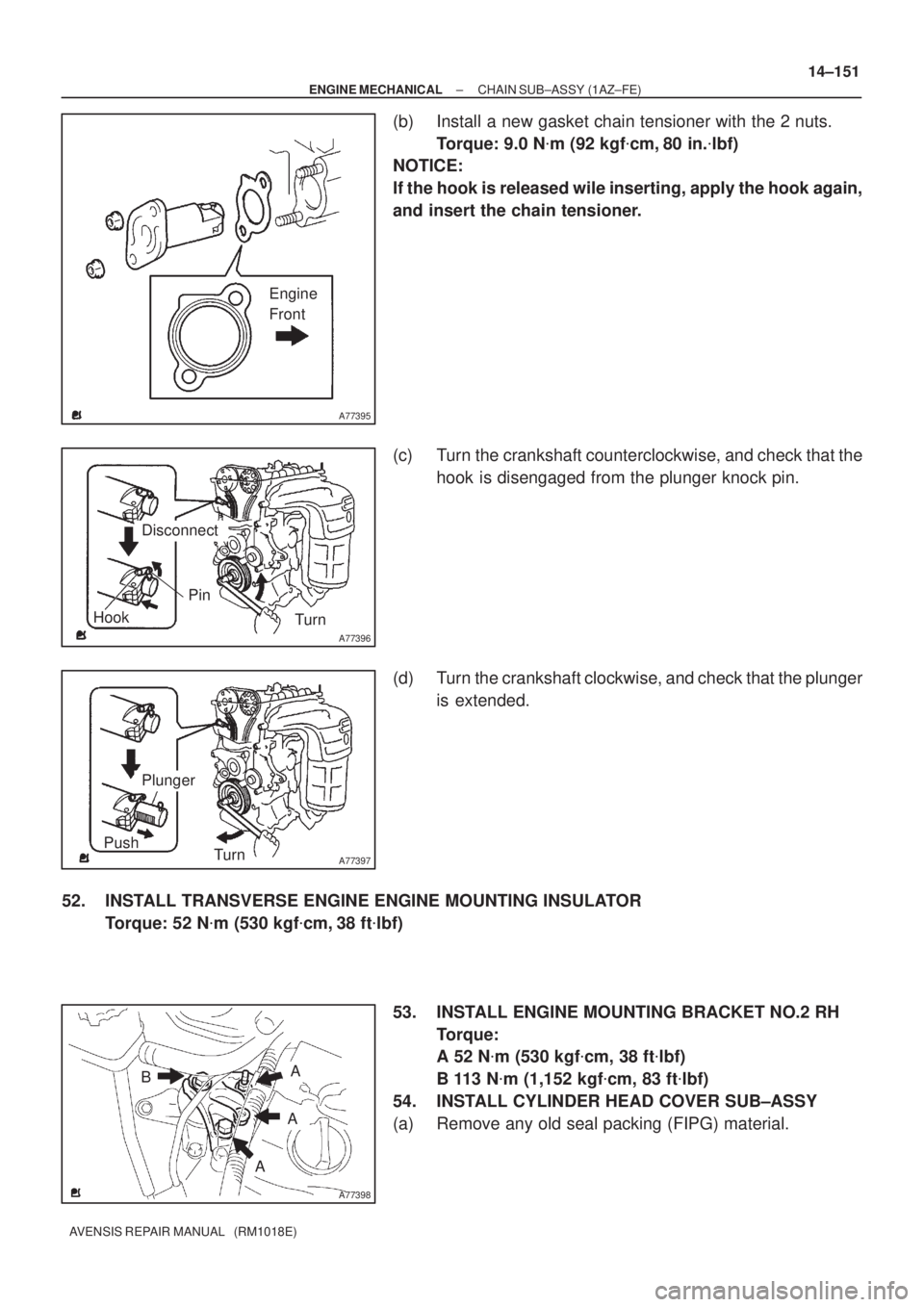

Page 2172 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77395 Engine Front A77396 Hook Pin Turn Disconnect A77397 Push Turn Plunger A77398 A B A A ± ENGINE MECHANICALCHAIN SUB±ASSY (1AZ±FE) 14±151 AVENSIS REPAIR MANUAL (RM1018E) (b) Install a new ga

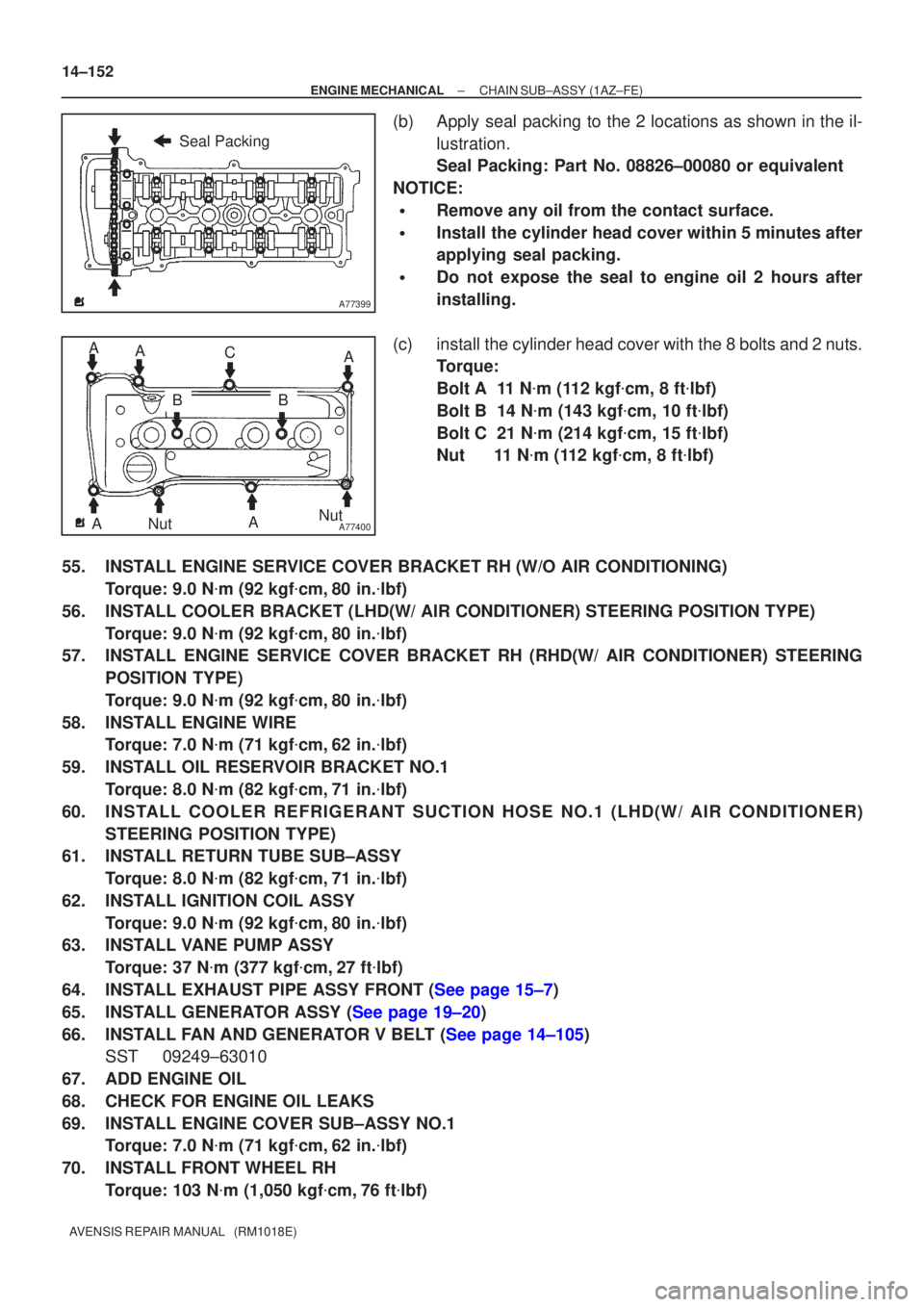

Page 2173 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77399 Seal Packing A77400NutNut A BC A A AAB 14±152 ± ENGINE MECHANICAL CHAIN SUB±ASSY(1AZ±FE) AVENSIS REPAIR MANUAL (RM1018E) (b)Apply seal packing to the 2 locations as shown in the il- lustr

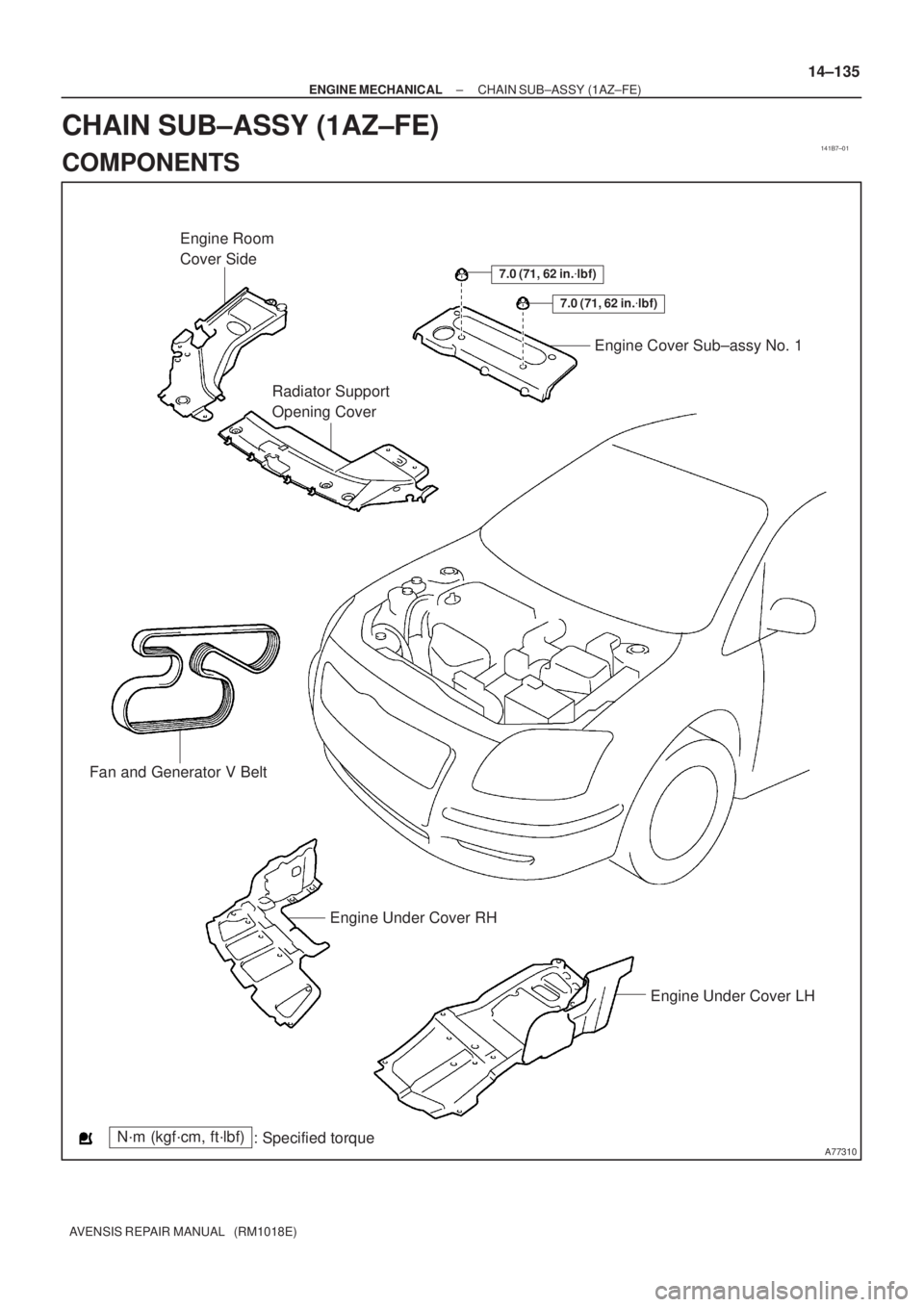

Page 2174 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 141B7±01 A77310 Engine Cover Sub±assy No. 1 Radiator Support Opening Cover Engine Room Cover Side Fan and Generator V Belt Engine Under Cover RH Engine Under Cover LH N´m (kgf´cm, ft´lbf) : Spe

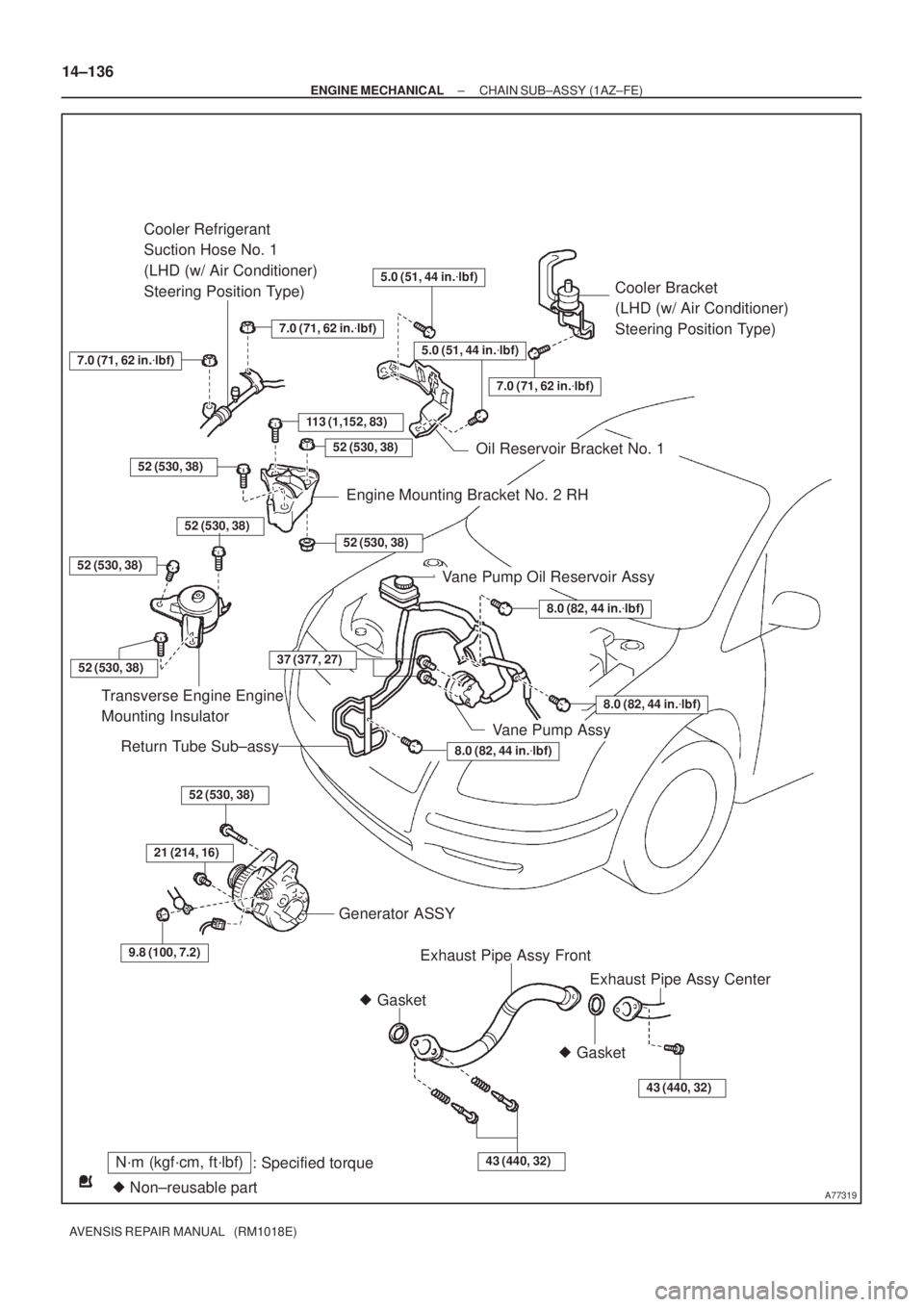

Page 2175 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77319 N´m (kgf´cm, ft´lbf) : Specified torque  Non±reusable part Gasket Cooler Bracket (LHD (w/ Air Conditioner) Steering Position Type) 113 (1,152, 83) Cooler Refrigerant Suction Hose No. 1

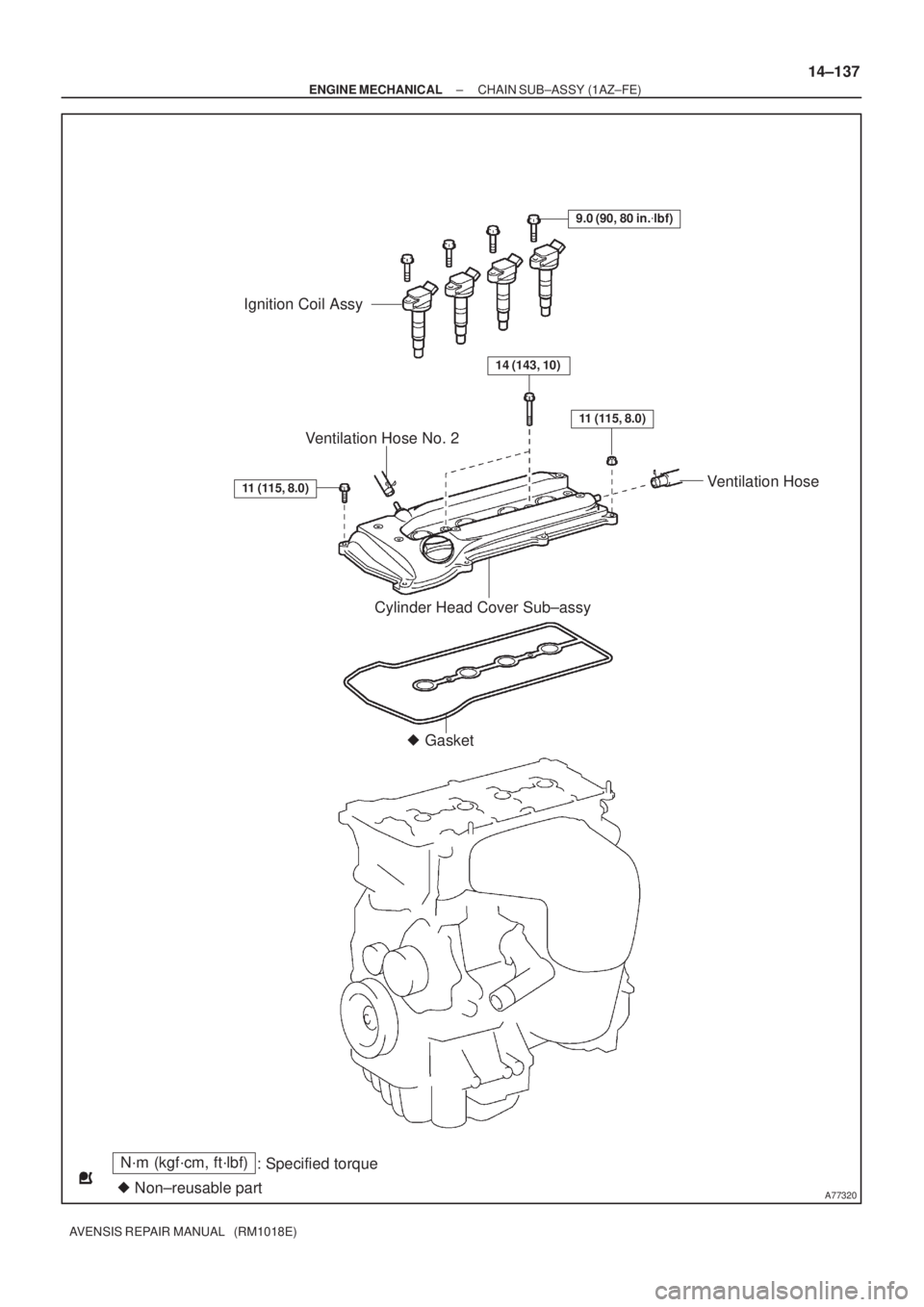

Page 2176 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77320 N´m (kgf´cm, ft´lbf) : Specified torque  Non±reusable part Ignition Coil Assy 9.0 (90, 80 in.lbf) 14 (143, 10) 11 (115, 8.0) Cylinder Head Cover Sub±assy  Gasket 11 (115, 8.0) Ventilati
