Page 249 of 5135
A75743
Mass Air flow meterECM
A54396
A6
Wire Harness Side
Mass Air Flow Meter Connector E2
THA
A75742
ECM
Mass Air flow meter
A18294
THAE2
ECM Connector
E13
05±32
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

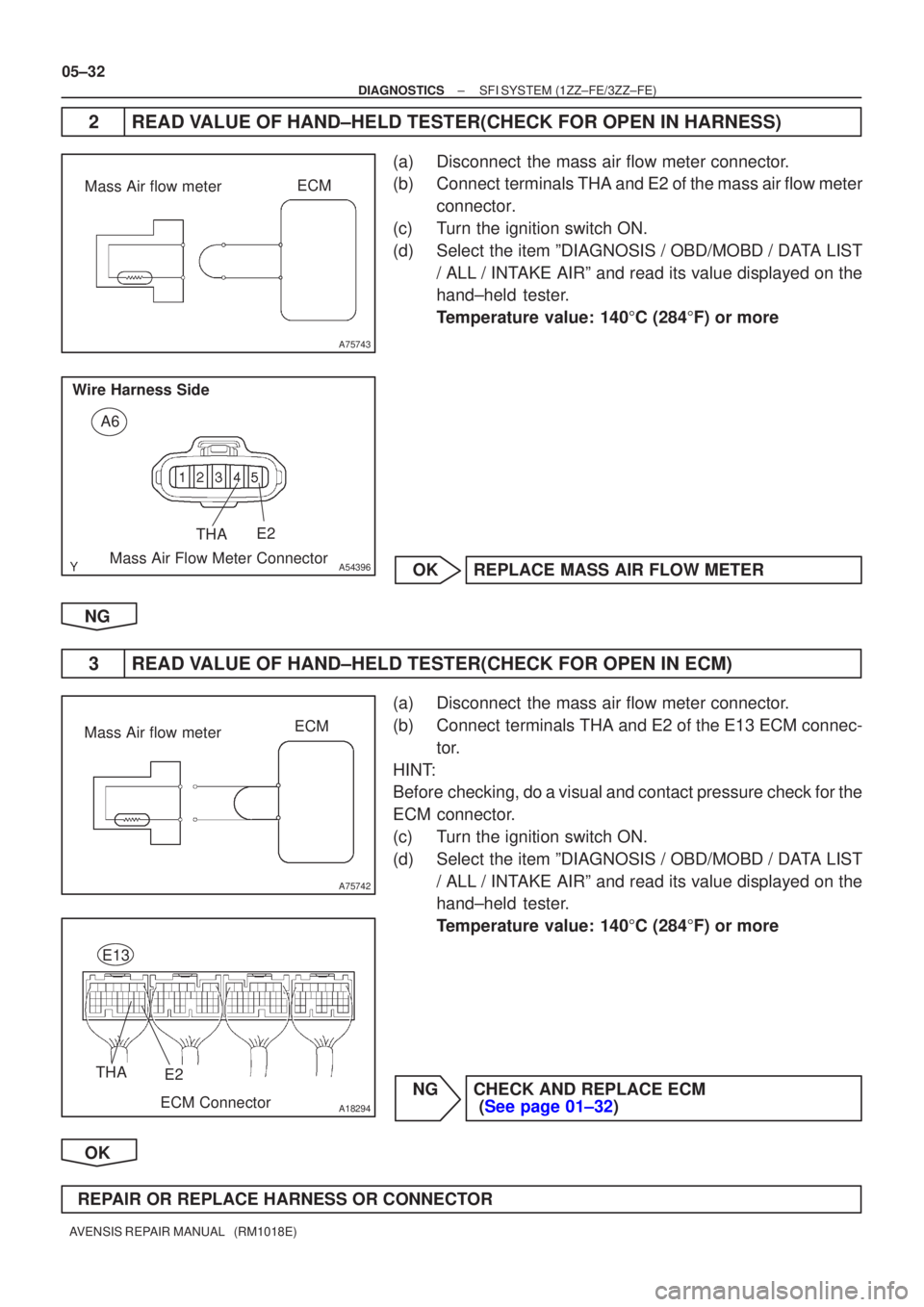

2READ VALUE OF HAND±HELD TESTER(CHECK FOR OPEN IN HARNESS)
(a)Disconnect the mass air flow meter connector.
(b)Connect terminals THA and E2 of the mass air flow meter connector.
(c)Turn the ignition switch ON.
(d)Select the item ºDIAGNOSIS / OBD/MOBD / DATA LIST / ALL / INTAKE AIRº and read its value displayed on the
hand±held tester.
Temperature value: 140 C (284 F) or more
OKREPLACE MASS AIR FLOW METER
NG
3READ VALUE OF HAND±HELD TESTER(CHECK FOR OPEN IN ECM)
(a)Disconnect the mass air flow meter connector.
(b)Connect terminals THA and E2 of the E13 ECM connec- tor.
HINT:
Before checking, do a visual and contact pressure check for the
ECM connector.
(c)Turn the ignition switch ON.
(d)Select the item ºDIAGNOSIS / OBD/MOBD / DATA LIST / ALL / INTAKE AIRº and read its value displayed on the
hand±held tester.
Temperature value: 140 C (284 F) or more
NGCHECK AND REPLACE ECM (See page 01±32)
OK
REPAIR OR REPLACE HARNESS OR CONNECTOR
Page 250 of 5135
A75766
ECM
Mass Air flow meter
A75744
ECM
Mass Air flow meter
A65743
E13
ECM Connector
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
05±33
AVENSIS REPAIR MANUAL (RM1018E)

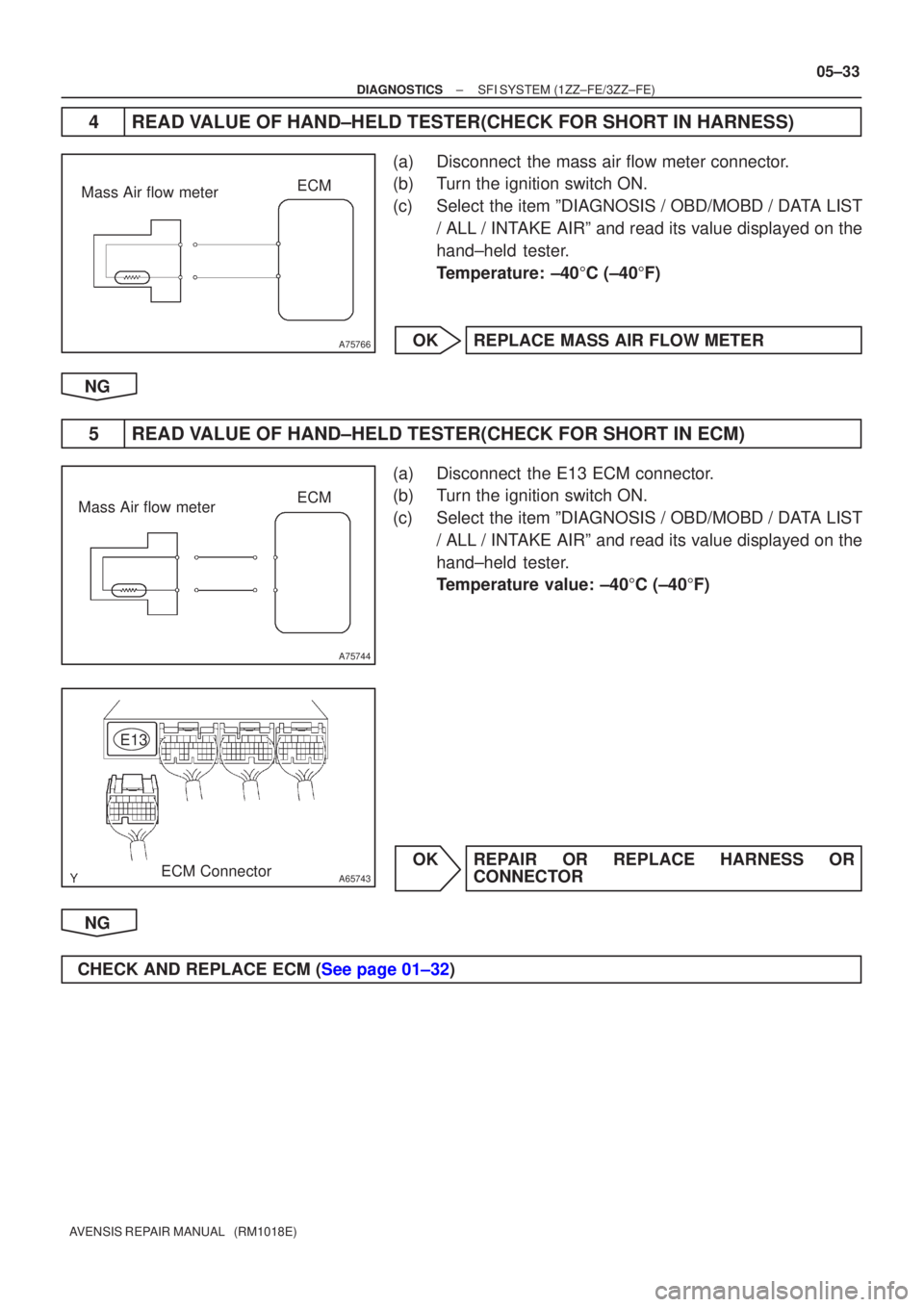

4READ VALUE OF HAND±HELD TESTER(CHECK FOR SHORT IN HARNESS)
(a)Disconnect the mass air flow meter connector.
(b)Turn the ignition switch ON.
(c)Select the item ºDIAGNOSIS / OBD/MOBD / DATA LIST
/ ALL / INTAKE AIRº and read its value displayed on the
hand±held tester.
Temperature: ±40 C (±40 F)
OKREPLACE MASS AIR FLOW METER
NG
5READ VALUE OF HAND±HELD TESTER(CHECK FOR SHORT IN ECM)
(a)Disconnect the E13 ECM connector.
(b)Turn the ignition switch ON.
(c)Select the item ºDIAGNOSIS / OBD/MOBD / DATA LIST / ALL / INTAKE AIRº and read its value displayed on the
hand±held tester.
Temperature value: ±40 C (±40 F)
OKREPAIR OR REPLACE HARNESS OR CONNECTOR
NG
CHECK AND REPLACE ECM (See page 01±32)
Page 251 of 5135
A79095
Battery FL
MAINB±Y
E12BATT
BR
E1 E9
IO1 1 EFI
7 7
3
EHECM Engine Room R/B No.1 and
Engine Room J/B No.1
2 1
1AB±Y
*1: LHD
*2: RHD IE37
*1
*2 1
Engine Room
J/B No.4 4A 1
4B 1B±G
B±G
± DIAGNOSTICSSFI SYSTEM (1ZZ±FE/3ZZ±FE)
05±119
AVENSIS REPAIR MANUAL (RM1018E)
DTC P1600 ECM BATT MALFUNCTION
CIRCUIT DESCRIPTION
Battery positive voltage is applied to terminal BATT of the ECM even the ignition switch is OFF for the DTC
memory and air±fuel ratio adaptive control value memory, etc.
DTC No.DTC Detecting ConditionTrouble Area
P1600Open in back up power source circuitOpen in back up power source circuit
ECM
HINT:
If DTC P1600 is displayed, the ECM does not store other DTCs.
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
Read freeze frame data using
Freeze frame data records the engine conditions when
a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running
or stopped, the engine was warmed up or not, the air±fuel ratio was lean or rich, etc. at the time of the mal-
function.
05B49±02
Page 252 of 5135
A66054
Engine Room R/B No.1EFI Fuse
A18294
BATT (+)E1 (±)
ECM Connector
E9E12
05±120
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

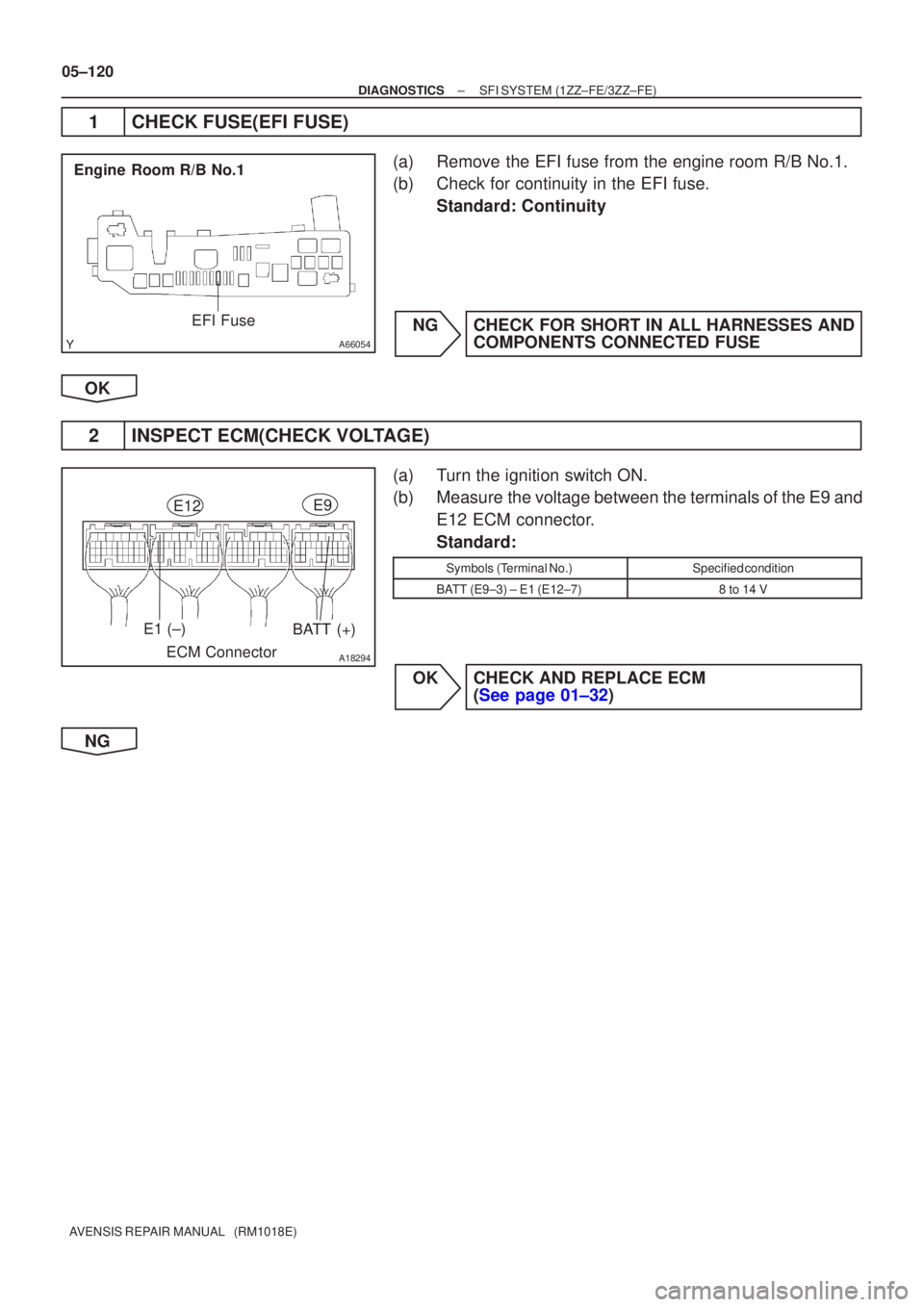

1CHECK FUSE(EFI FUSE)
(a)Remove the EFI fuse from the engine room R/B No.1.
(b)Check for continuity in the EFI fuse. Standard: Continuity
NGCHECK FOR SHORT IN ALL HARNESSES AND COMPONENTS CONNECTED FUSE
OK
2INSPECT ECM(CHECK VOLTAGE)
(a)Turn the ignition switch ON.
(b)Measure the voltage between the terminals of the E9 and E12 ECM connector.
Standard:
Symbols (Terminal No.)Specified condition
BATT (E9±3) ± E1 (E12±7)8 to 14 V
OKCHECK AND REPLACE ECM (See page 01±32)
NG
Page 253 of 5135
A65748
E9
ECM Connector
BATT
A79078
Engine Room R/B No.1
EFI Fuse
2
1
± DIAGNOSTICSSFI SYSTEM (1ZZ±FE/3ZZ±FE)
05±121
AVENSIS REPAIR MANUAL (RM1018E)

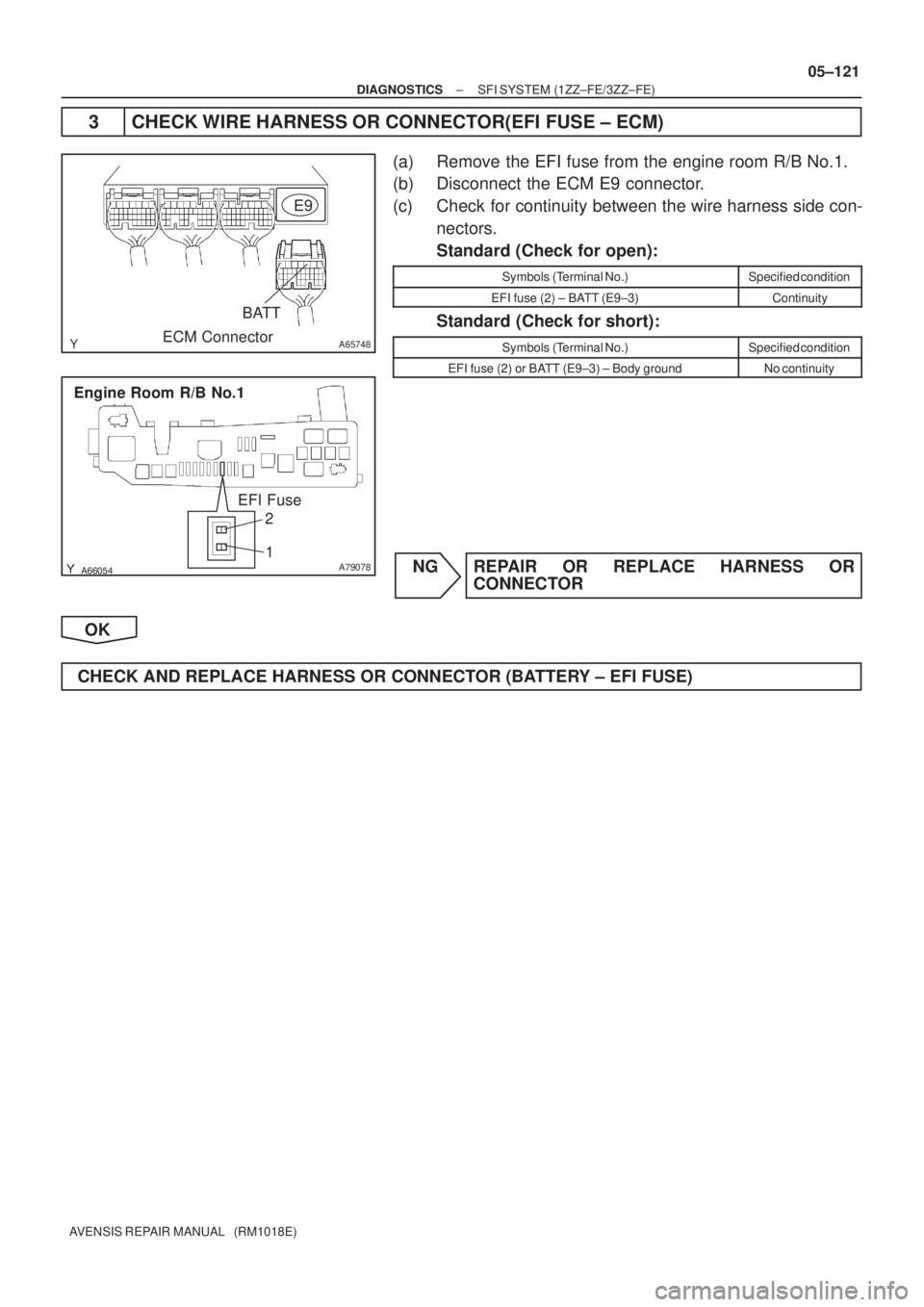

3 CHECK WIRE HARNESS OR CONNECTOR(EFI FUSE ± ECM)
(a) Remove the EFI fuse from the engine room R/B No.1.
(b) Disconnect the ECM E9 connector.
(c) Check for continuity between the wire harness side con-
nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
EFI fuse (2) ± BATT (E9±3)Continuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
EFI fuse (2) or BATT (E9±3) ± Body groundNo continuity
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
CHECK AND REPLACE HARNESS OR CONNECTOR (BATTERY ± EFI FUSE)
Page 254 of 5135
± DIAGNOSTICSSFI SYSTEM (1ZZ±FE/3ZZ±FE)
05±115
AVENSIS REPAIR MANUAL (RM1018E)
DTC P1520 STOP LIGHT SWITCH CIRCUIT
MALFUNCTION
CIRCUIT DESCRIPTION
This signal is used to detect that the brakes have been applied. The STP signal voltage is the same as the
one supplied to the stop lights.
The STP signal is used mainly to control the fuel cut±off engine speed (The fuel cut±off engine speed is re-
duced slightly when the vehicle is braking.).
DTC No.DTC Detecting ConditionTrouble Area
P1520
Condition (a), (b) and (c) continue for 0.5 sec. or more:
(a) Ignition switch ON
(b) Brake pedal released
(c) STP signal is OFF when the STP signal is OFFOpen or short in stop light switch signal circuit
Stop light switch
ECM
05B48±02
Page 255 of 5135
A79094
*1: LHD
*2: RHD
*3: SEDAN
*4: LIFT BACK
*5: WAGON IE36
IR11 G±W
(*1)
G±W
(*2)G±W
G±W(*1)
(*2)
1
2DA DC
DM
1 210Driver Side J/B
E10STPECM
19
G±W
G±W
G±WG±W
G±W
G±W
G±W
G±W J30 C
BJ30 J30
J31
J31
B CC
2
1 R±W
IR1 2 IE3 11
DA22
STOP
DN1Driver
Side J/BCH20
High Mounted
Stop Light
J32
Junction
Connector W±B (*1)(*2) R±W
R±W
(*1)(*2) R±W(*3)
(*3)
C(*4, *5)
(*4, *5)
(*4, *5)
(*4)
(*5)
6 4 1
6 5 21 4 7
3 3 6 (*3)
(*4)
(*5)(*3)
(*4)
(*5)
(*3)
(*4)
(*5)(*3)
(*4)
(*5) R13
Rear
Combination
Light LHR14
Rear
Combination
Light RH Junction
ConnectorN8
Noise
FilterBD1 1
BF1 3
BE1 1L
G±W
G±W
1
2 H20
High
Mounted
Stop Light(*4)
(*4)(*5)
L
W±B
W±B (*4)(*5)
(*5)
(*4) (*4)
(*5)
(*4) (*5)
(*5)(*4, *5) W±B W±B
W±B
W±BW±B W±B
(*3)
W±B
(*3)W±B W±B
W±B
(*4, *5)
W±B Junction
Connector
Junction
Connector Engine
Room
J/B No.4 B±G
B±GALT 2
1
4B 14D
FL MAIN 1
J31 J30 B
CBD1
BF1BG1
J33
J34 BE1
BG14
A
A 2
2
3 4
Battery
BS
BTBX S13
Stop Light
Switch1 05±116
± DIAGNOSTICSSFI SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
WIRING DIAGRAM
Page 256 of 5135
± DIAGNOSTICSSFI SYSTEM (1ZZ±FE/3ZZ±FE)
05±117
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
HINT:
Read freeze frame data using
Freeze frame data records the engine conditions when
a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running
or stopped, the engine was warmed up or not, the air±fuel ratio was lean or rich, etc. at the time of the mal-
function.
1 CHECK OPERATION OF STOP LIGHT
(a) Check if the stop lights go on and off normally when the brake pedal is depressed and released.
NG REPAIR OR REPLACE STOP LAMP SWITCH
CIRCUIT
OK
2 READ VALUE OF HAND±HELD TESTER
(a) Connect the hand±held tester to the DLC3.
(b) Select the item ºDIAGNOSIS / OBD/MOBD / DATA LIST / ALL / STOP LIGHT SWº and read its value
displayed the hand±held tester.
(c) Turn the ignition switch ON and push the hand±held tester main switch ON.
(d) Read the STP signal on the hand±held tester.
Result:
Brake PedalSTP Signal
DepressedON
ReleasedOFF
OK CHECK FOR INTERMITTENT PROBLEMS
NG
