TOYOTA AVENSIS 2005 Service Repair Manual 1509X±01 A80114 (a)(a)(b)(b) (b) 15±10 ± EXHAUSTEXHAUST PIPE ASSY (1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) Removal & Installation and Disassembly & Reassembly 1. REMOVE FLOOR PANEL BRACE FRONT

Page 2362 of 5135

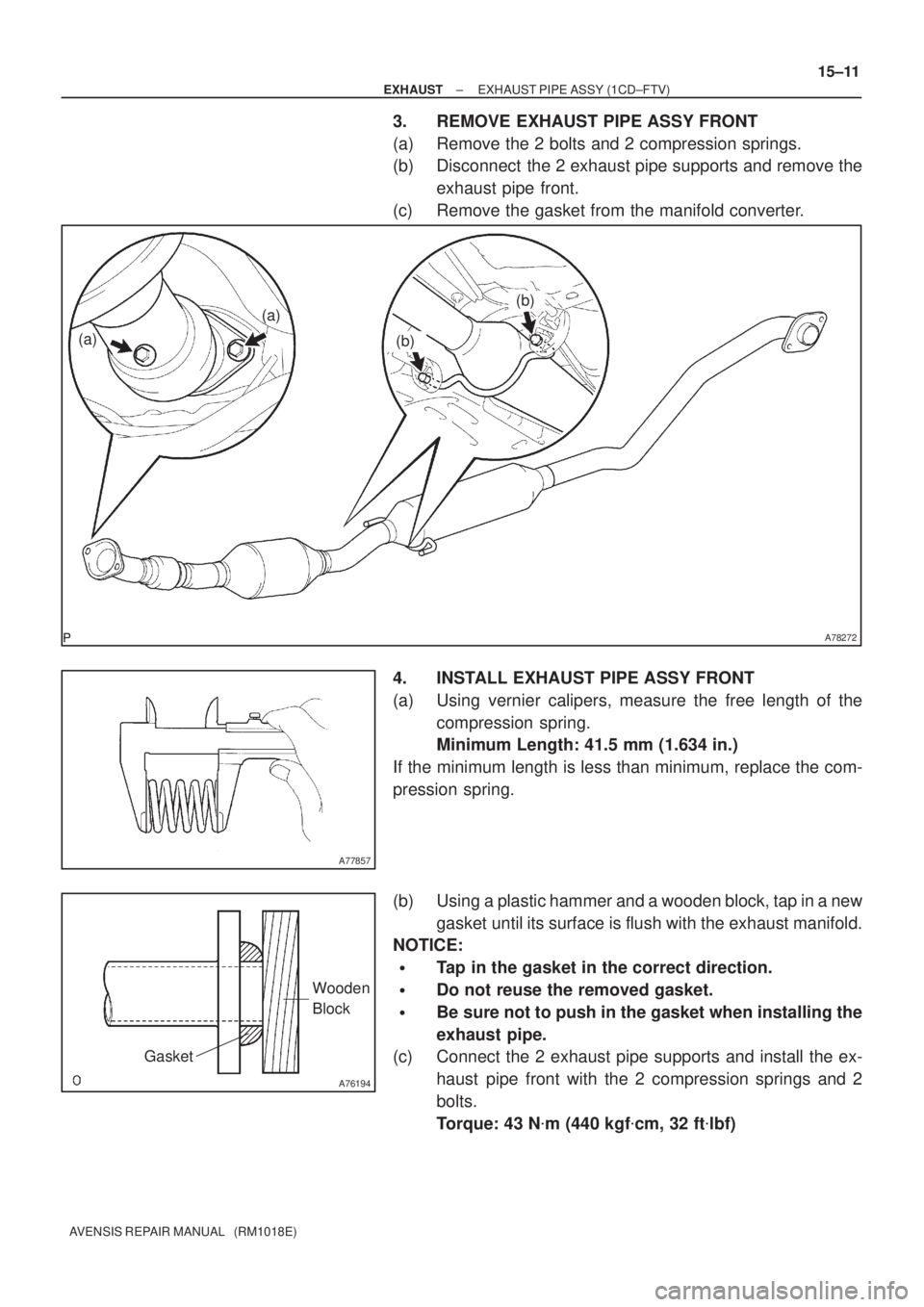

TOYOTA AVENSIS 2005 Service Repair Manual A78272 (a)(b) (b) (a) A77857 A76194 Wooden Block Gasket ± EXHAUSTEXHAUST PIPE ASSY (1CD±FTV) 15±11 AVENSIS REPAIR MANUAL (RM1018E) 3. REMOVE EXHAUST PIPE ASSY FRONT (a) Remove the 2 bolts and 2

Page 2363 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77857 A78440 New Gasket 15±12 ± EXHAUSTEXHAUST PIPE ASSY (1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) 5. INSTALL EXHAUST PIPE ASSY TAIL (a) Using vernier calipers, measure the free length of the co

Page 2364 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 1509W±01 A79443 30 (302, 22)43 (440, 32) Gasket Gasket Floor Panel Brace Front Exhaust Pipe Assy Front Compression Spring N´m (kgf´cm, ft´lbf) : Specified torque  Non±reusable part 43 (440, 32

Page 2365 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 1509V±01 A77867 (a) (a) (b) (b) A77868 ± EXHAUST EXHAUST PIPE ASSY(1AZ±FE/1AZ±FSE) 15±7 AVENSIS REPAIR MANUAL (RM1018E) Removal & Installation and Disassembly & Reassembly 1.REMOVE FLOOR PANEL

Page 2366 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77857 A78440 New Gasket 15±8 ± EXHAUST EXHAUST PIPE ASSY(1AZ±FE/1AZ±FSE) AVENSIS REPAIR MANUAL (RM1018E) 5.INSTALL EXHAUST PIPE ASSY FRONT (a)Compression spring inspection (1)Using vernier cali

Page 2367 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 1509U±01 A77864 Non±reusable part N´m (kgf´cm, ft´lbf) : Specified torque  Exhaust Pipe GasketExhaust Pipe Assy Front Compression SpringExhaust Pipe Assy Center Floor Panel Brace Front  Exhaus

Page 2368 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 1509T±01 A78493 A78494 (c) (d) A78495 A78496 15±2 ± EXHAUST EXHAUST PIPE ASSY(1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) Removal & Installation and Disassembly & Reassembly 1.REMOVE FRONT F
