Page 1857 of 5135

O±ring
Delivery Pipe InjectorCORRECT
WRONG
B10707
A75345
Delivery Pipe
InsulatorGrommetO±ring
Insulator
Delivery Pipe
O±ring
1ZZ±FE
3ZZ±FE
O±ring
Retainer Pipe
Nylon Tube
Housing
A50709
A75344
Fuel Pipe Clamp No.2
11±2
± FUELFUEL SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
(b) Observe the following precautions when removing and
installing fuel injectors.
NOTICE:
Never reuse the O±ring.
(1) When installing a new O±ring on the injector, be
careful not to damage the injector.
(2) Coat the new O±ring with grease or gasoline before
installing. Never use engine oil, gear oil or brake oil.
(c) Install the injector to the delivery pipe and cylinder head
as shown in the illustration. Before installing the injector,
be sure to apply grease or gasoline on the place where
the delivery pipe contacts the O±ring of the injector.
(d) Observe these precautions when disconnecting the fuel
delivery pipe.
HINT:
The structure of the metallic connector is as shown in the il-
lustration on the left.
(1) Remove the fuel pipe clamp No.2.
(2) Find the metallic connector of the fuel tube assem-
bly, slide it towards the vehicle rear and hold it as
it is.
Page 1858 of 5135

A60818
SST
SST
Retainer
(at 4 places)
Insert
A50705
A60083
Fuel Pipe
Clamp No.1
A
A
B12941
B12944
± FUELFUEL SYSTEM (1ZZ±FE/3ZZ±FE)
11±3
AVENSIS REPAIR MANUAL (RM1018E)
(3) Assemble SST to the connection of fuel pipe as
shown in the illustration.
SST 09268±21010
(4) Turn SST, align the retainers inside the connector
with SST chamfered parts and insert SST into the
connector.
(5) Slide SST and the connector together towards the
fuel tube assembly.
(e) Observe these following precautions when disconnecting
the fuel tube connector (quick type).
(1) Remove the fuel pipe clamp No.1.
(2) Check that there is no dirt or mud on the pipe and
around the connector before disconnecting them.
Clean them if necessary.
(3) Disconnect the connector from the hose while
pinching part A with fingers as shown in the illustra-
tion.
(4) When the connector and the pipe are stuck, push
and pull the connector to release and pull the con-
nector out from the pipe carefully.
(5) Inspect that there is no dirt or mud on the sealing
surface of the disconnected pipe. Clean it away if
necessary.

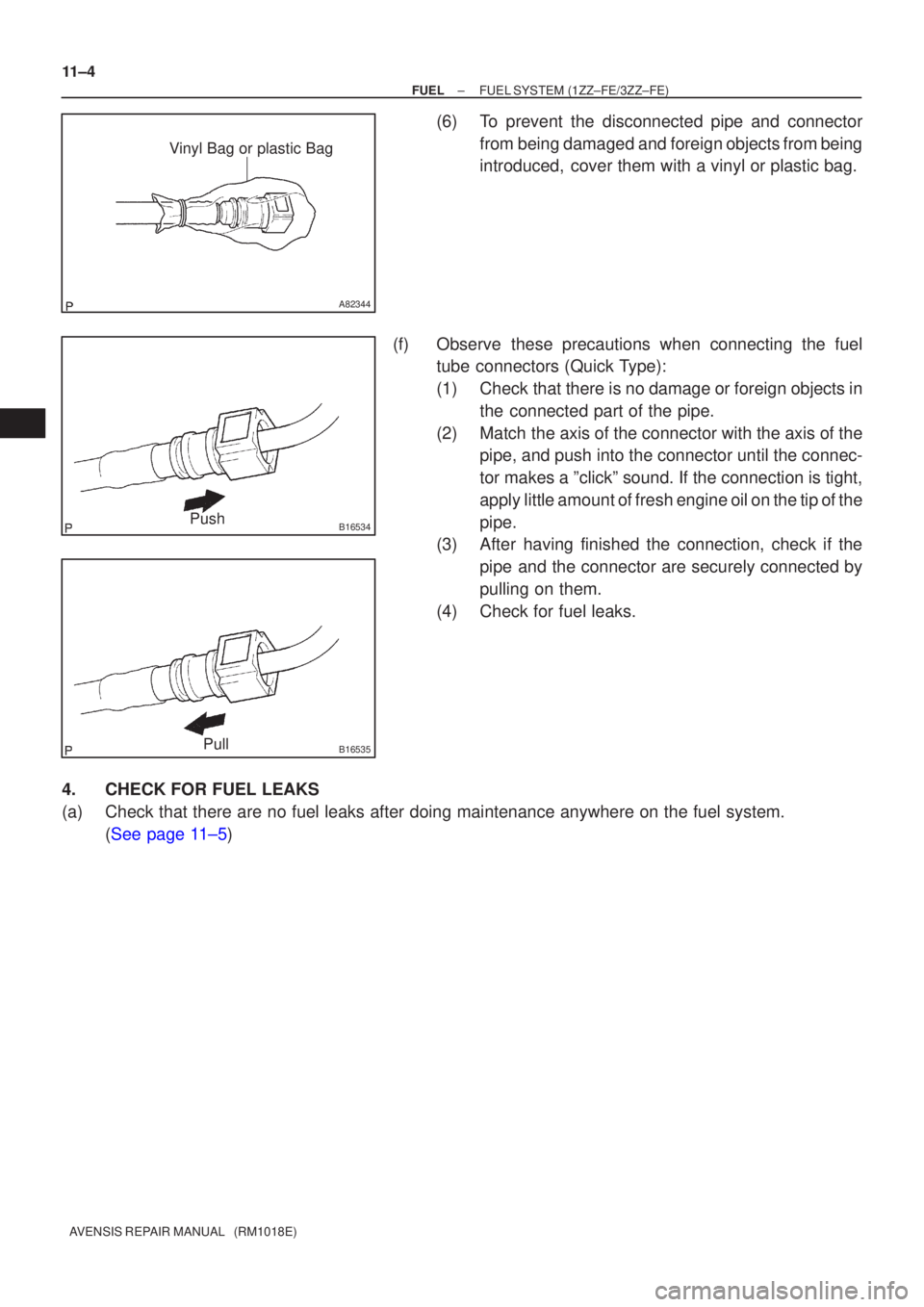

Page 1859 of 5135
A82344
Vinyl Bag or plastic Bag
B16534Push
B16535Pull
11±4
±
FUEL FUEL SYSTEM(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
(6)To prevent the disconnected pipe and connector from being damaged and foreign objects from being
introduced, cover them with a vinyl or plastic bag.
(f)Observe these precautions when connecting the fuel tube connectors (Quick Type):
(1)Check that there is no damage or foreign objects in
the connected part of the pipe.
(2)Match the axis of the connector with the axis of the pipe, and push into the connector until the connec-
tor makes a ºclickº sound. If the connection is tight,
apply little amount of fresh engine oil on the tip of the
pipe.
(3)After having finished the connection, check if the
pipe and the connector are securely connected by
pulling on them.
(4)Check for fuel leaks.
4.CHECK FOR FUEL LEAKS
(a)Check that there are no fuel leaks after doing maintenance anywhere on t\
he fuel system. (See page 11±5)
Page 1860 of 5135
100FM±02
A78489
A78490
10±66
± ENGINE CONTROL SYSTEMACCELERATOR PEDAL ASSY (1AZ±FSE/1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
ACCELERATOR PEDAL ASSY (1AZ±FSE/1CD±FTV)
REPLACEMENT
1. REMOVE ACCELERATOR PEDAL
(a) Using a clip remover, remove the clip.
(b) Open the floor carpet.
(c) Disconnect the accelerator position sensor connector.
(d) Remove the 2 bolts, and then remove the accelerator
pedal.
2. INSTALL ACCELERATOR PEDAL
Torque: 5.4 Nm (55 kgfcm, 48 in.lbf)
Page 1861 of 5135
100FR±01
A79186
±
ENGINE CONTROL SYSTEM ECM
10±65
AVENSIS REPAIR MANUAL (RM1018E)
ECM
REPLACEMENT
HINT:
1CD±FTV Engine Type:
Each injector assembly has a characteristic fuel injecting behavior. The ECM stores compensation codes
which are used to optimize fuel injection for the injectors. When replacing t\
he ECM, the compensation codes
must be set to the new ECM.
1.REMOVE GLOVE COMPARTMENT DOOR ASSY (See page 71±11)
2.REMOVE ECM
(a)Disconnect the 4 ECM connectors (1ZZ±FE, 3ZZ±FE,1AZ±FE, 1CD±FTV).
(b)Disconnect the 5 ECM connectors (1AZ±FSE).
(c)Disconnect the wire harness clamp.
(d)Remove the bolt and screw, then remove the ECM.
(e)Remove the 2 screws and the ECM bracket No. 1 from the ECM.
(f)Remove the 2 screws and the ECM bracket No. 2 from the ECM.
3.INSTALL ECM Torque: 5.5 N m (56 kgf cm, 49 in. lbf)
4.INSTALL GLOVE COMPARTMENT DOOR ASSY (See page 71±11)
5.REGISTRATION OF INJECTOR COMPENSATION CODE (1CD±FTV ENGINE TYPE) (See page 05±528)
Page 1862 of 5135
100FQ±01
A79142
10±64
± ENGINE CONTROL SYSTEMCRANKSHAFT POSITION SENSOR (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
CRANKSHAFT POSITION SENSOR (1CD±FTV)
REPLACEMENT
1. REMOVE ENGINE UNDER COVER RH
2. REMOVE CRANKSHAFT POSITION SENSOR
(a) Disconnect the connector, remove the bolt and the crank-
shaft position sensor.
3. INSTALL CRANKSHAFT POSITION SENSOR
Torque: 8.8 Nm (90 kgfcm, 78 in.lbf)
Page 1863 of 5135
100FP±01
A79139
A79141
± ENGINE CONTROL SYSTEMCAMSHAFT POSITION SENSOR (1CD±FTV)
10±63
AVENSIS REPAIR MANUAL (RM1018E)
CAMSHAFT POSITION SENSOR (1CD±FTV)
REPLACEMENT
1. SEPARATE RETURN TUBE SUB±ASSY
(a) Remove the bolt and separate the return tube sub±assy.
2. REMOVE CAMSHAFT POSITION SENSOR
(a) Remove the bolt and disconnect the wire harness.
(b) Disconnect the connector, remove the bolt and the cam-
shaft position sensor.
3. INSTALL CAMSHAFT POSITION SENSOR
Torque:
8.8 Nm (90 kgfcm, 79 in.lbf) for camshaft position sensor
5.0 Nm (51 kgfcm, 44 in.lbf) for wire harness
4. INSTALL RETURN TUBE SUB±ASSY
Torque: 9.0 Nm (92 kgfcm, 80 in.lbf)
Page 1864 of 5135
100FO±01
A80092
B08171
A64328
2 to 7 mm0 to 4 mm
± ENGINE CONTROL SYSTEMINTAKE SHUTTER ASSY (1CD±FTV)
10±61
AVENSIS REPAIR MANUAL (RM1018E)
Removal & Installation and Disassembly & Reassembly
1. REMOVE RADIATOR SUPPORT OPENING COVER
2. REMOVE ENGINE COVER NO.1
(a) Remove the 5 nuts and the engine cover.
3. REMOVE BATTERY
4. REMOVE AIR HOSE NO.4
(a) Loosen the 2 hose clamps.
(b) Remove the 2 bolts and separate the air tube No. 2.
(c) Remove the air hose No. 4.
5. REMOVE INTAKE SHUTTER ASSY
(a) Disconnect the 2 connectors.
(b) Remove the 3 nuts, then remove the intake shutter and
the gasket.
6. INSTALL INTAKE SHUTTER ASSY
(a) Install a new gasket and the intake shutter with the 3 nuts.
Torque: 21 Nm (214 kgfcm, 15 ftlbf)
7. INSTALL AIR HOSE NO.4
(a) Install the air hose No. 4 to the air tube No. 2.
(b) Install the air tube No. 2 with the 2 bolts.
Torque: 25 Nm (255 kgfcm, 18 ftlbf)
(c) Install the air hose and hose clamp as shown in the il-
lustration.
