± INTRODUCTIONTERMS
01±37
AVENSIS REPAIR MANUAL (RM1018E)
TERMS
ABBREVIATIONS USED IN THIS MANUAL
AbbreviationsMeaning
ABSAnti±Lock Brake System
A/CAir Conditioner
ACAlternating Current
ACCAccessory
ACISAcoustic Control Induction System
ACSDAutomatic Cold Start Device
A.D.D.Automatic Disconnecting Differential
A/FAir±Fuel Ratio
AHCActive Height Control Suspension
ALRAutomatic Locking Retractor
ALTAlternator
AMPAmplifier
ANTAntenna
Approx.Approximately
ASSYAssembly
A/T, ATMAutomatic Transmission (Transaxle)
AT FAutomatic Transmission Fluid
AUTOAutomatic
AUXAuxiliary
AV GAverage
AV SAdaptive Variable Suspension
B+Battery Voltage
BABrake Assist
BACSBoost Altitude Compensation System
BATBattery
BDCBottom Dead Center
B/LBi±Level
B/SBore±Stroke Ratio
BTDCBefore Top Dead Center
BVSVBimetallic Vacuum Switching Valve
CANController Area Network
CBCircuit Breaker
CCoCatalytic Converter For Oxidation
CDCompact Disc
CFCornering Force
CGCenter Of Gravity
CHChannel
CKDComplete Knock Down
COMB.Combination
CPECoupe
CPSCombustion Pressure Sensor
CPUCentral Processing Unit
CRSChild Restraint System
CTRCenter
C/VCheck Valve
CVControl Valve
CWCurb Weight
DCDirect Current

05C3E±01
± DIAGNOSTICSNAVIGATION SYSTEM
05±1453
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTIC TROUBLE CODE CHART
TermsMeaning
Physical addressThree±digit code (shown in hexadecimal) which is given to each component com-
prising the AVC±LAN.
Corresponding to the function, individual symbols are specified.
Logical addressTwo±digit code (shown in hexadecimal) which is given to each function comprising
the inner system of the AVC±LAN.
1. RADIO RECEIVER ASSY (Physical address: 190)
HINT:

*1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage
for starting an engine.

*2: This code is stored in 180 sec. after the power supply connector is pulled out after engine start.

*3: This code may be stored when the ignition switch is turned again after engine start.

*4: This code may be stored when the ignition switch is turned again in 1 min. after engine start.
(a) Logical address: 01 (Communication control)
DTCDiagnosis itemConditionCountermeasure and inspected parts
D5
*1Registered component disconnectedComponent shown by sub±code is or was
disconnected from system with ignition
switch ACC or ON.
Communication with component shown by
sub±code is not ensured when engine is
started.
Check harness for power supply of compo-
nent shown by sub±code.

Check harness for communication system
of component shown by sub±code.
D6
*1Absence of MasterComponent in which this code is recorded
has been disconnected from system with
ignition switch ACC or ON. Or, when this
code was recorded, multi±display (CRT dis-
play) display was disconnected.
Check harness for power supply system of
multi±display (CRT display) display.

Check harness for communication system
of multi±display (CRT display) display.
D8
*2No response to connection checkComponent shown by sub±code is or was
disconnected from system after engine is
started.
Check harness for power supply of compo-
nent shown by sub±code.

Check harness for communication system
of component shown by sub±code.
D9
*1Last Mode ErrorComponent operated (sound and/or image
was provided) before engine stop is or was
disconnected with ignition switch ACC or
ON.
Check harness for power supply of compo-
nent shown by sub±code.

Check harness for communication system
of component shown by sub±code.
DANo Response to ON/OFF InstructionNo response is identified when changing
mode (audio and visual mode change).
Detected when sound and picture does not
change by button operation
Check harness for power supply system of
component shown by sub±code.

Check harness for communication system
of component shown by sub±code.

If error occurs again, replace component
shown by auxiliary code
DB
*1Mode Status ErrorDual alarm is detected.
Check harness for power supply system of
component shown by sub±code.

Check harness for communication system
of component shown by sub±code.
DC
*4Transmission ErrorTransmission to component shown by sub±
code has been failed.
(This code does not necessarily mean actu-
al failure.)If same sub±code is recorded in other com-
ponent(s), check harness for power supply
and communication system of all compo-
nents shown by code.
DD
*4Master Reset (Momentary Interruption)After engine is started, multi±display (CRT
display) display was disconnected from sys-
tem.
Check harness for power supply system of
multi±display (CRT display) display.

Check harness for communication system
of multi±display (CRT display) display.

If this error occurs frequently, replace mul-
ti±display (CRT display) display.

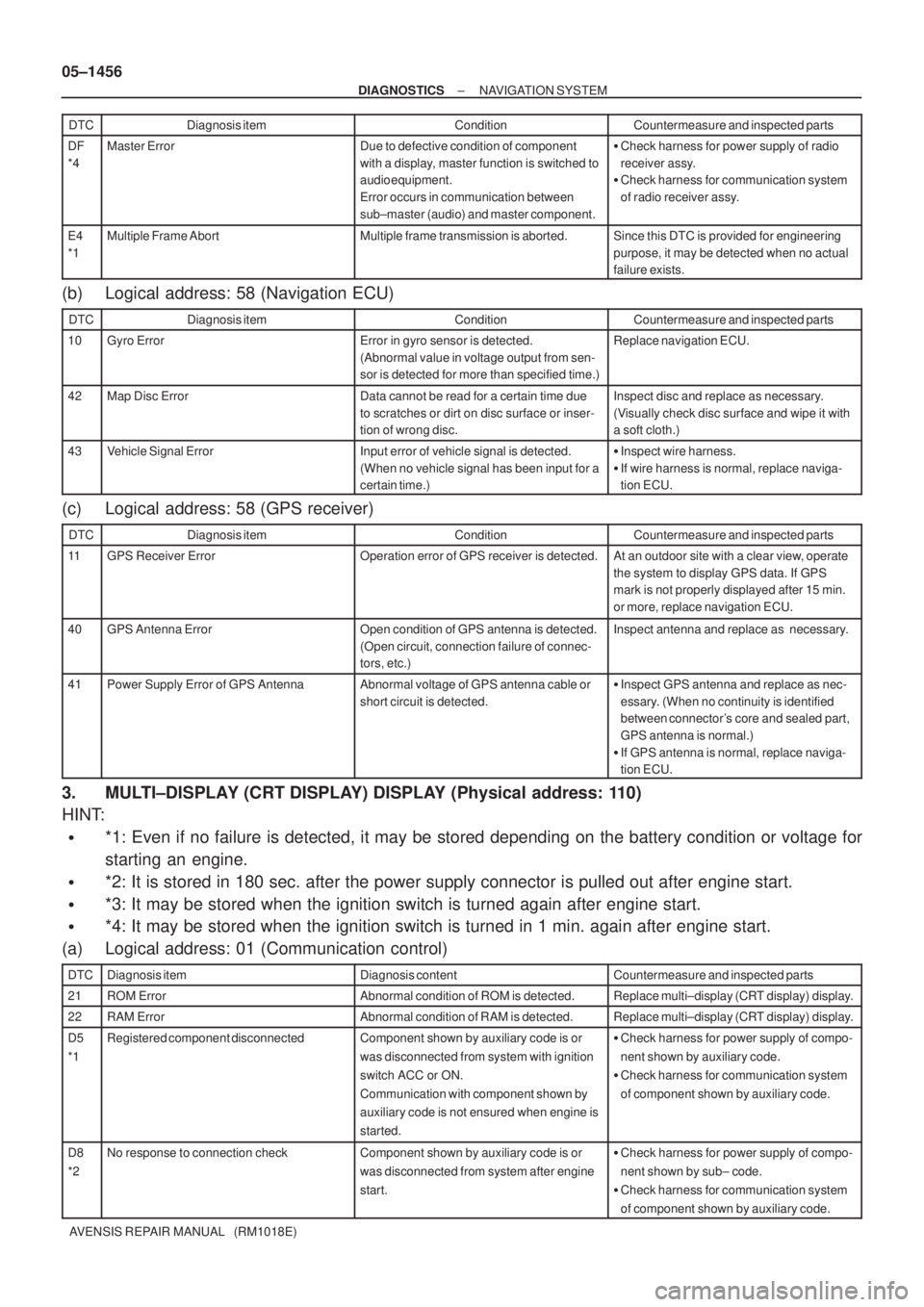

05±1456
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E) DTCCountermeasure and inspected parts Condition Diagnosis item
DF
*4Master ErrorDue to defective condition of component
with a display, master function is switched to
audio equipment.
Error occurs in communication between
sub±master (audio) and master component.
Check harness for power supply of radio
receiver assy.

Check harness for communication system
of radio receiver assy.
E4
*1Multiple Frame AbortMultiple frame transmission is aborted.Since this DTC is provided for engineering
purpose, it may be detected when no actual
failure exists.
(b) Logical address: 58 (Navigation ECU)
DTCDiagnosis itemConditionCountermeasure and inspected parts
10Gyro ErrorError in gyro sensor is detected.
(Abnormal value in voltage output from sen-
sor is detected for more than specified time.)Replace navigation ECU.
42Map Disc ErrorData cannot be read for a certain time due
to scratches or dirt on disc surface or inser-
tion of wrong disc.Inspect disc and replace as necessary.
(Visually check disc surface and wipe it with
a soft cloth.)
43Vehicle Signal ErrorInput error of vehicle signal is detected.
(When no vehicle signal has been input for a
certain time.)
Inspect wire harness.

If wire harness is normal, replace naviga-
tion ECU.
(c) Logical address: 58 (GPS receiver)
DTCDiagnosis itemConditionCountermeasure and inspected parts
11GPS Receiver ErrorOperation error of GPS receiver is detected.At an outdoor site with a clear view, operate
the system to display GPS data. If GPS
mark is not properly displayed after 15 min.
or more, replace navigation ECU.
40GPS Antenna ErrorOpen condition of GPS antenna is detected.
(Open circuit, connection failure of connec-
tors, etc.)Inspect antenna and replace as necessary.
41Power Supply Error of GPS AntennaAbnormal voltage of GPS antenna cable or
short circuit is detected.
Inspect GPS antenna and replace as nec-
essary. (When no continuity is identified
between connector's core and sealed part,
GPS antenna is normal.)

If GPS antenna is normal, replace naviga-
tion ECU.
3. MULTI±DISPLAY (CRT DISPLAY) DISPLAY (Physical address: 110)
HINT:

*1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for
starting an engine.

*2: It is stored in 180 sec. after the power supply connector is pulled out after engine start.

*3: It may be stored when the ignition switch is turned again after engine start.

*4: It may be stored when the ignition switch is turned in 1 min. again after engine start.
(a) Logical address: 01 (Communication control)
DTCDiagnosis itemDiagnosis contentCountermeasure and inspected parts
21ROM ErrorAbnormal condition of ROM is detected.Replace multi±display (CRT display) display.
22RAM ErrorAbnormal condition of RAM is detected.Replace multi±display (CRT display) display.
D5
*1Registered component disconnectedComponent shown by auxiliary code is or
was disconnected from system with ignition
switch ACC or ON.
Communication with component shown by
auxiliary code is not ensured when engine is
started.
Check harness for power supply of compo-
nent shown by auxiliary code.

Check harness for communication system
of component shown by auxiliary code.
D8
*2No response to connection checkComponent shown by auxiliary code is or
was disconnected from system after engine
start.
Check harness for power supply of compo-
nent shown by sub± code.

Check harness for communication system
of component shown by auxiliary code.

05±1458
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

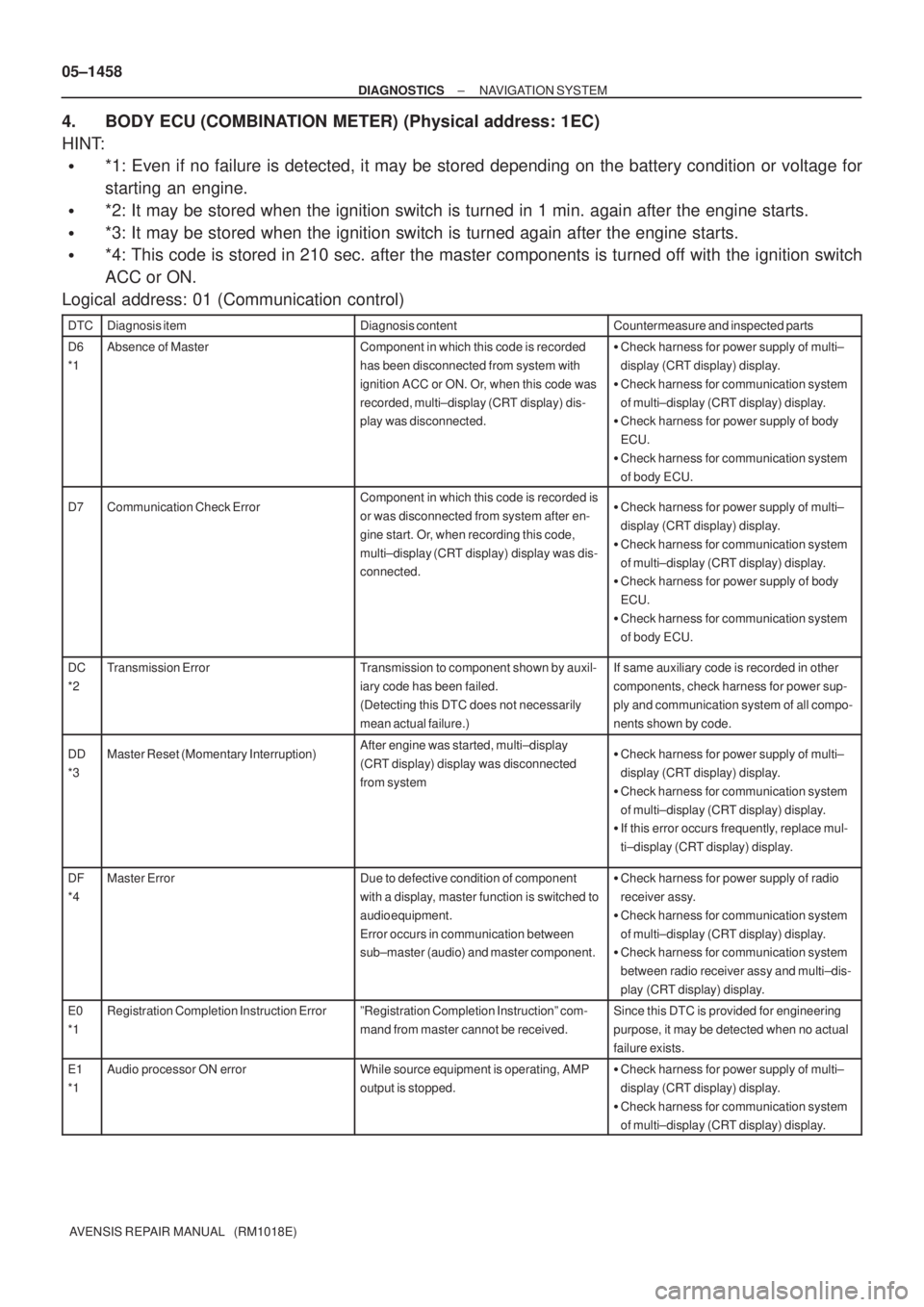

4. BODY ECU (COMBINATION METER) (Physical address: 1EC)
HINT:

*1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for
starting an engine.

*2: It may be stored when the ignition switch is turned in 1 min. again after the engine starts.

*3: It may be stored when the ignition switch is turned again after the engine starts.

*4: This code is stored in 210 sec. after the master components is turned off with the ignition switch
ACC or ON.
Logical address: 01 (Communication control)
DTCDiagnosis itemDiagnosis contentCountermeasure and inspected parts
D6
*1Absence of MasterComponent in which this code is recorded
has been disconnected from system with
ignition ACC or ON. Or, when this code was
recorded, multi±display (CRT display) dis-
play was disconnected.
Check harness for power supply of multi±
display (CRT display) display.

Check harness for communication system
of multi±display (CRT display) display.

Check harness for power supply of body
ECU.

Check harness for communication system
of body ECU.
D7Communication Check ErrorComponent in which this code is recorded is
or was disconnected from system after en-
gine start. Or, when recording this code,
multi±display (CRT display) display was dis-
connected.
Check harness for power supply of multi±
display (CRT display) display.

Check harness for communication system
of multi±display (CRT display) display.

Check harness for power supply of body
ECU.

Check harness for communication system
of body ECU.
DC
*2Transmission ErrorTransmission to component shown by auxil-
iary code has been failed.
(Detecting this DTC does not necessarily
mean actual failure.)If same auxiliary code is recorded in other
components, check harness for power sup-
ply and communication system of all compo-
nents shown by code.
DD
*3Master Reset (Momentary Interruption)After engine was started, multi±display
(CRT display) display was disconnected
from system
Check harness for power supply of multi±
display (CRT display) display.

Check harness for communication system
of multi±display (CRT display) display.

If this error occurs frequently, replace mul-
ti±display (CRT display) display.
DF
*4Master ErrorDue to defective condition of component
with a display, master function is switched to
audio equipment.
Error occurs in communication between
sub±master (audio) and master component.
Check harness for power supply of radio
receiver assy.

Check harness for communication system
of multi±display (CRT display) display.

Check harness for communication system
between radio receiver assy and multi±dis-
play (CRT display) display.
E0
*1Registration Completion Instruction ErrorºRegistration Completion Instructionº com-
mand from master cannot be received.Since this DTC is provided for engineering
purpose, it may be detected when no actual
failure exists.
E1
*1Audio processor ON errorWhile source equipment is operating, AMP
output is stopped.
Check harness for power supply of multi±
display (CRT display) display.

Check harness for communication system
of multi±display (CRT display) display.

010B9±09
± INTRODUCTIONTERMS
01±7
1AZ±FSE ENGINE REPAIR MANUAL (RM1019E)
TERMS
ABBREVIATIONS USED IN THIS MANUAL
AbbreviationsMeaning
ABSAnti±Lock Brake System
A/CAir Conditioner
ACAlternating Current
ACCAccessory
ACISAcoustic Control Induction System
ACSDAutomatic Cold Start Device
A.D.D.Automatic Disconnecting Differential
A/FAir±Fuel Ratio
AHCActive Height Control Suspension
ALRAutomatic Locking Retractor
ALTAlternator
AMPAmplifier
ANTAntenna
Approx.Approximately
ASSYAssembly
A/T, ATMAutomatic Transmission (Transaxle)
AT FAutomatic Transmission Fluid
AUTOAutomatic
AUXAuxiliary
AV GAverage
AV SAdaptive Variable Suspension
B+Battery Voltage
BABrake Assist
BACSBoost Altitude Compensation System
BATBattery
BDCBottom Dead Center
B/LBi±Level
B/SBore±Stroke Ratio
BTDCBefore Top Dead Center
BVSVBimetallic Vacuum Switching Valve
CBCircuit Breaker
CCoCatalytic Converter For Oxidation
CDCompact Disc
CFCornering Force
CGCenter Of Gravity
CHChannel
CKDComplete Knock Down
COMB.Combination
CPECoupe
CPSCombustion Pressure Sensor
CPUCentral Processing Unit
CRSChild Restraint System
CTRCenter
C/VCheck Valve
CVControl Valve
CWCurb Weight
DCDirect Current
DEFDefogger
