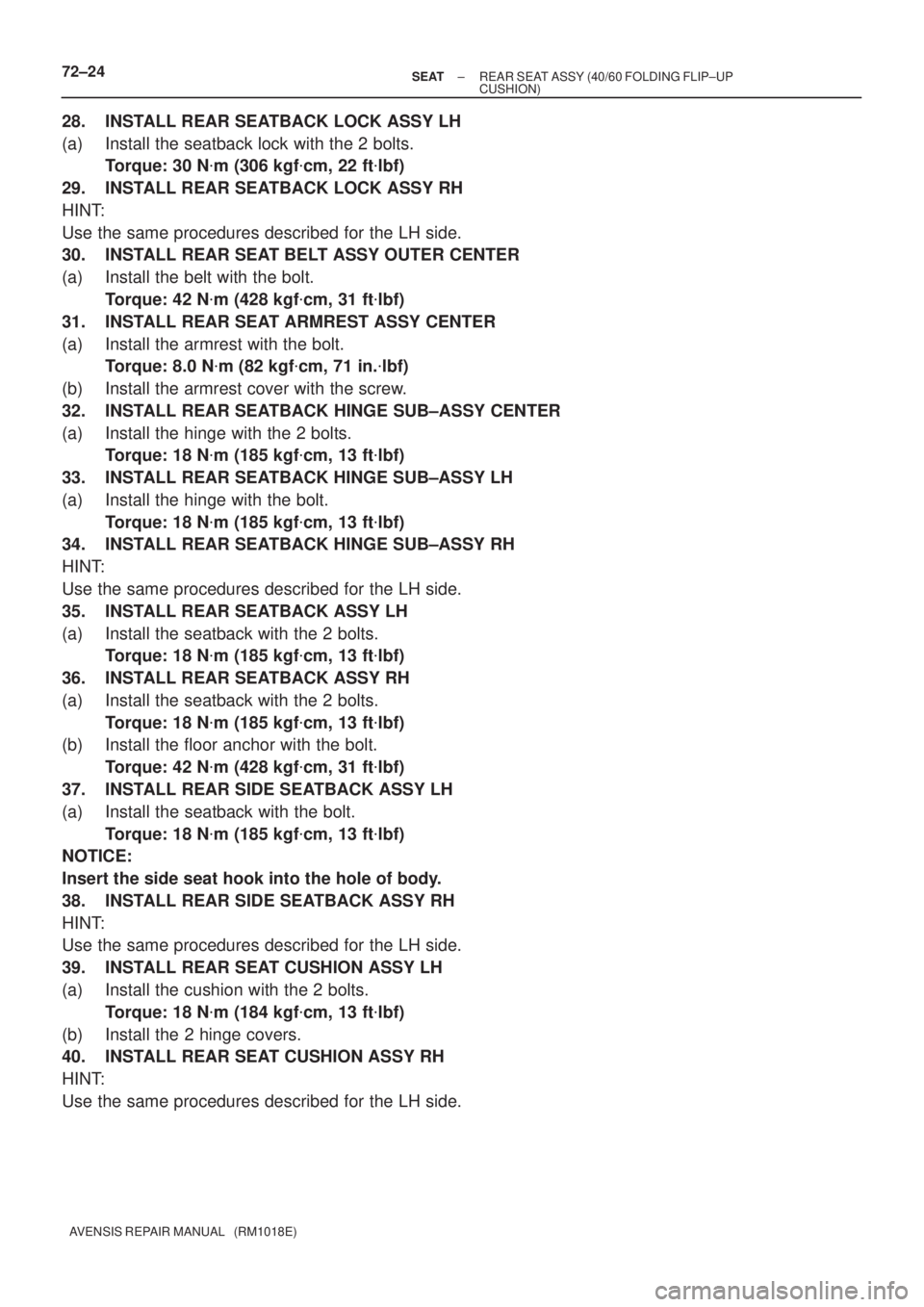

28. INSTALL REAR SEATBACK LOCK ASSY LH
(a) Install the seatback lock with the 2 bolts.
Torque: 30 Nm (306 kgfcm, 22 ftlbf)
29. INSTALL REAR SEATBACK LOCK ASSY RH
HINT:
Use the same procedures described for the LH side.
30. INSTALL REAR SEAT BELT ASSY OUTER CENTER
(a) Install the belt with the bolt.
Torque: 42 Nm (428 kgfcm, 31 ftlbf)
31. INSTALL REAR SEAT ARMREST ASSY CENTER
(a) Install the armrest with the bolt.
Torque: 8.0 Nm (82 kgfcm, 71 in.lbf)
(b) Install the armrest cover with the screw.
32. INSTALL REAR SEATBACK HINGE SUB±ASSY CENTER
(a) Install the hinge with the 2 bolts.
Torque: 18 Nm (185 kgfcm, 13 ftlbf)
33. INSTALL REAR SEATBACK HINGE SUB±ASSY LH
(a) Install the hinge with the bolt.
Torque: 18 Nm (185 kgfcm, 13 ftlbf)
34. INSTALL REAR SEATBACK HINGE SUB±ASSY RH
HINT:
Use the same procedures described for the LH side.
35. INSTALL REAR SEATBACK ASSY LH
(a) Install the seatback with the 2 bolts.
Torque: 18 Nm (185 kgfcm, 13 ftlbf)
36. INSTALL REAR SEATBACK ASSY RH
(a) Install the seatback with the 2 bolts.
Torque: 18 Nm (185 kgfcm, 13 ftlbf)
(b) Install the floor anchor with the bolt.
Torque: 42 Nm (428 kgfcm, 31 ftlbf)
37. INSTALL REAR SIDE SEATBACK ASSY LH
(a) Install the seatback with the bolt.
Torque: 18 Nm (185 kgfcm, 13 ftlbf)
NOTICE:
Insert the side seat hook into the hole of body.
38. INSTALL REAR SIDE SEATBACK ASSY RH
HINT:
Use the same procedures described for the LH side.
39. INSTALL REAR SEAT CUSHION ASSY LH
(a) Install the cushion with the 2 bolts.
Torque: 18 Nm (184 kgfcm, 13 ftlbf)
(b) Install the 2 hinge covers.
40. INSTALL REAR SEAT CUSHION ASSY RH
HINT:
Use the same procedures described for the LH side.
Page 3274 of 5135

720JB±01
B70320
Rear Seat Headrest Assy RHRear Seat
Headrest Assy Center
Hog Ring
Nm (kgfcm, ftlbf) : Specified torque
Non±reusable part Rear Seat Headrest Support Assy
Hog Ring
Rear Seat Headrest Assy LH
Rear Seat Headrest
Support AssyRear Seatback Pad
Rear Seatback Frame Sub±assy LH Rear Seatback Frame Sub±assy RH
Rear Seatback Pad Rear Seatback Cover
42 (420, 31)
30 (306, 22)
Rear Seatback Lock Assy LH Rear Seatback Lock
Assy RH
Rear Seatback Stop Release Button
Rear Seatback Stop Button Grommet Rear Seatback Stop
Release Button
Rear Seatback Stop
Button Grommet
Rear Seatback Board Carpet Assy LHRear Seat Belt Assy Outer Center
Rear Seatback Board
Carpet Assy RH Rear Seat Shoulder Belt Cover
Rear Seatback Cover
18 (185, 13)
30 (306, 22)
42 (420, 31)
Rear Seatback Hinge
Sub±assy Center Cap
Rear Armrest Assy Rear Side Seatback
Assy RH Rear Seatback Hinge RH
Rear Seatback Hinge LH
Rear Side Seatback Assy LH
18 (185, 13)
8.0 (82, 71 in.lbf)
Cover
18 (185, 13)
18 (185, 13)
18 (185, 13)
18 (185, 13)18 (185, 13)
Rear Seatback Frame Sub±assy LH
± SEATREAR SEAT ASSY (40/60 FOLDING FLIP±UP
CUSHION)72±19
AVENSIS REPAIR MANUAL (RM1018E)
REAR SEAT ASSY (40/60 FOLDING FLIP±UP CUSHION)
COMPONENTS
Page 3275 of 5135
B68569 Non±reusable partRear Seat Cushion Pad RH
Rear Seat Cushion Pad LHRear Seat Cushion Under Cover RH Separate Type Rear Seat Cushion Cover RH
Rear Seat
Cushion Frame Sub±assy RH
Rear Seat Cushion Frame Sub±assy LH
Rear Seat Cushion Under Cover LHSeparate Type Rear Seat Cushion Cover LH
Hog Ring Hog Ring
Rear Seat Track Bracket Cover
Rear Seat Track Bracket Cover
18 (185, 13)
18 (185, 13)
Nm (kgfcm, ftlbf) : Specified torque 72±20
± SEATREAR SEAT ASSY (40/60 FOLDING FLIP±UP
CUSHION)
AVENSIS REPAIR MANUAL (RM1018E)
Page 3276 of 5135

720J8±01
B57834
B57832
B57833
72±16

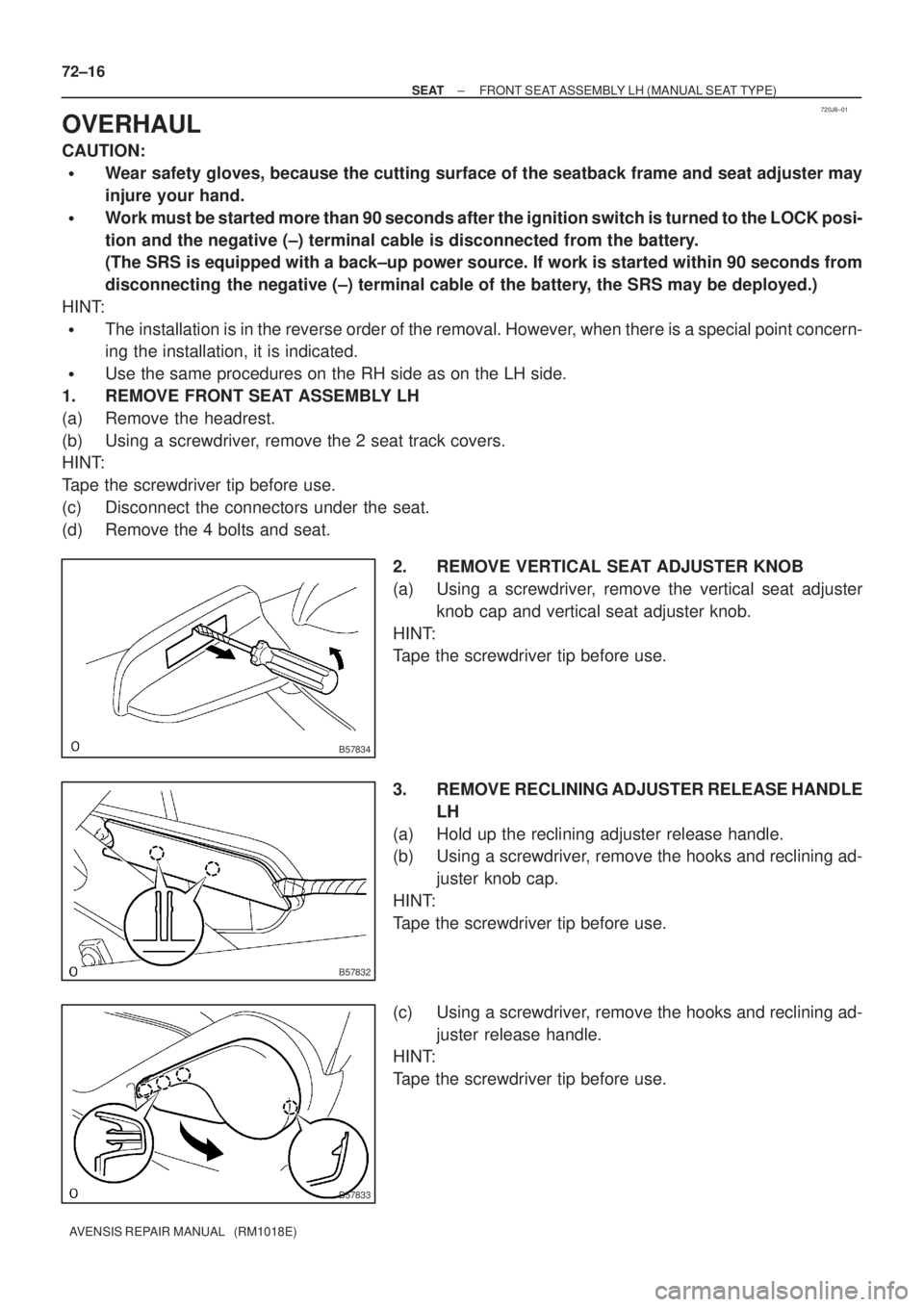

± SEATFRONT SEAT ASSEMBLY LH (MANUAL SEAT TYPE)
AVENSIS REPAIR MANUAL (RM1018E)
OVERHAUL
CAUTION:
Wear safety gloves, because the cutting surface of the seatback frame and seat adjuster may
injure your hand.
Work must be started more than 90 seconds after the ignition switch is turned to the LOCK posi-
tion and the negative (±) terminal cable is disconnected from the battery.
(The SRS is equipped with a back±up power source. If work is started within 90 seconds from
disconnecting the negative (±) terminal cable of the battery, the SRS may be deployed.)
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concern-
ing the installation, it is indicated.
Use the same procedures on the RH side as on the LH side.
1. REMOVE FRONT SEAT ASSEMBLY LH
(a) Remove the headrest.
(b) Using a screwdriver, remove the 2 seat track covers.
HINT:
Tape the screwdriver tip before use.
(c) Disconnect the connectors under the seat.
(d) Remove the 4 bolts and seat.
2. REMOVE VERTICAL SEAT ADJUSTER KNOB
(a) Using a screwdriver, remove the vertical seat adjuster
knob cap and vertical seat adjuster knob.
HINT:
Tape the screwdriver tip before use.
3. REMOVE RECLINING ADJUSTER RELEASE HANDLE
LH
(a) Hold up the reclining adjuster release handle.
(b) Using a screwdriver, remove the hooks and reclining ad-
juster knob cap.
HINT:
Tape the screwdriver tip before use.
(c) Using a screwdriver, remove the hooks and reclining ad-
juster release handle.
HINT:
Tape the screwdriver tip before use.
Page 3277 of 5135

B57829
B57830
± SEATFRONT SEAT ASSEMBLY LH (MANUAL SEAT TYPE)
72±17
AVENSIS REPAIR MANUAL (RM1018E)

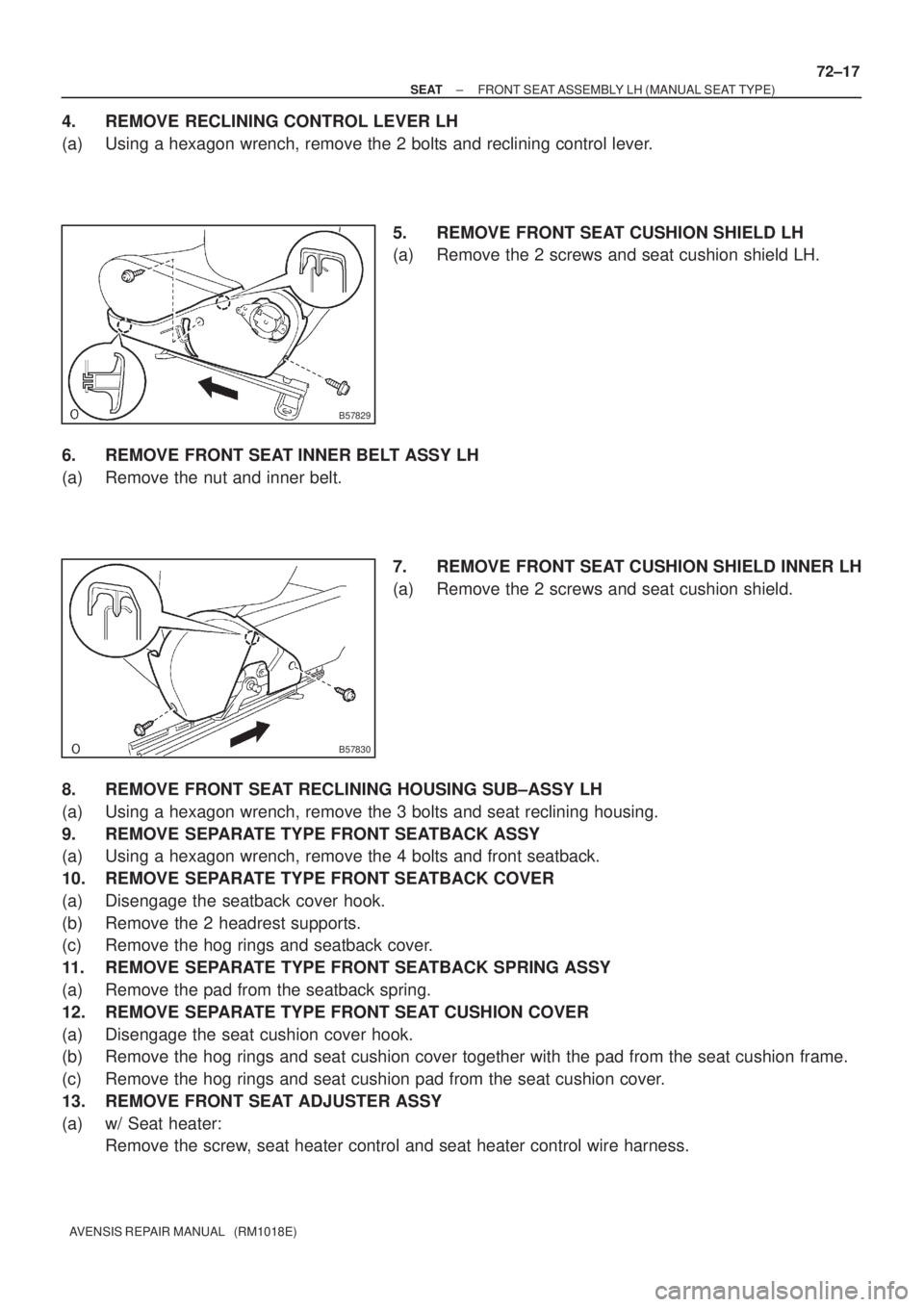

4. REMOVE RECLINING CONTROL LEVER LH
