Page 121 of 5135

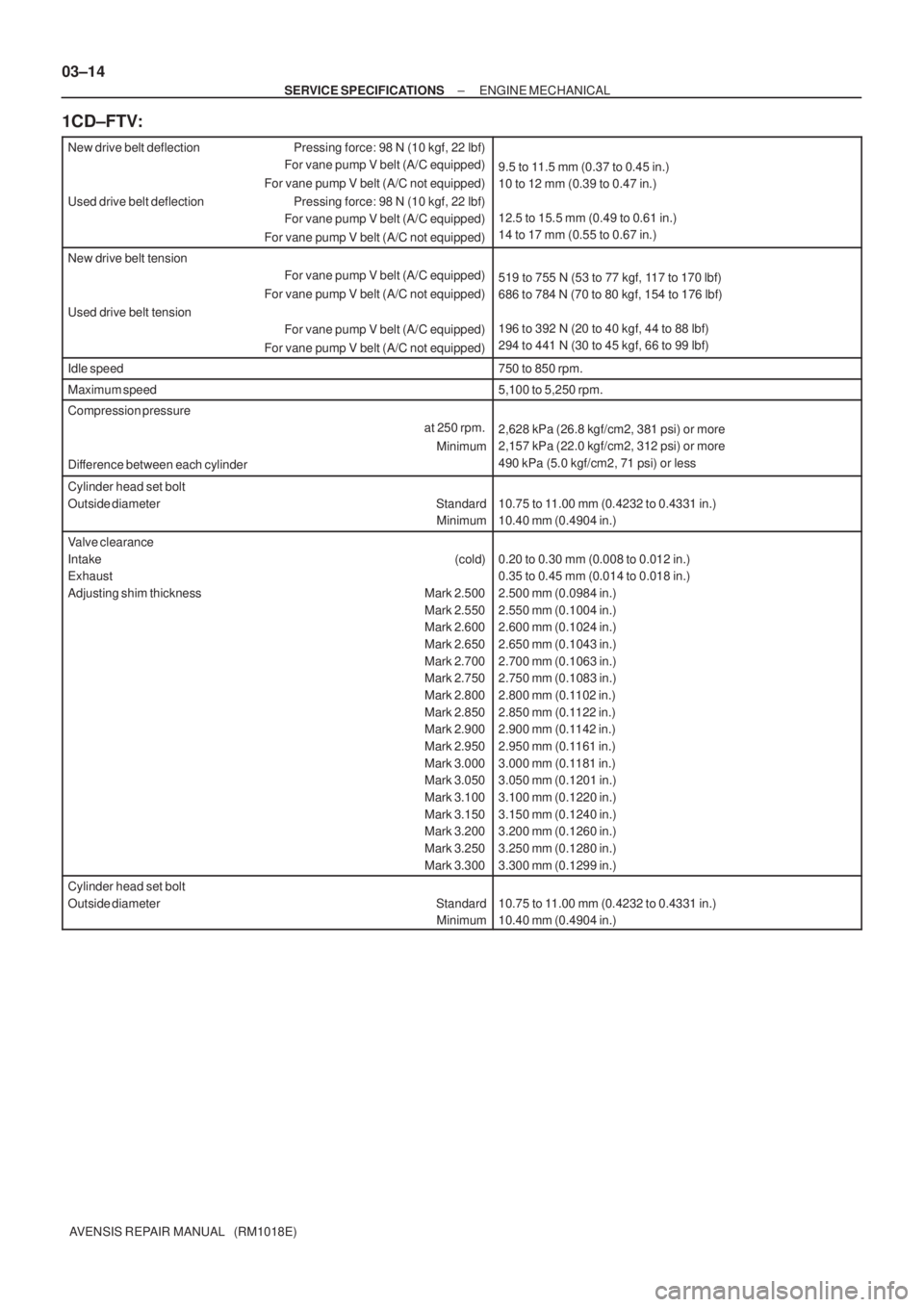

TOYOTA AVENSIS 2005 Service Repair Manual 03±14
± SERVICE SPECIFICATIONSENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E)
1CD±FTV:
New drive belt deflection Pressing force: 98 N (10 kgf, 22 lbf)
For vane pump V belt (A/C equipped)
For va

03±14
± SERVICE SPECIFICATIONSENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E)
1CD±FTV:
New drive belt deflection Pressing force: 98 N (10 kgf, 22 lbf)
For vane pump V belt (A/C equipped)
For vane pump V belt (A/C not equipped)
Used drive belt deflection Pressing force: 98 N (10 kgf, 22 lbf)
For vane pump V belt (A/C equipped)
For vane pump V belt (A/C not equipped)
9.5 to 11.5 mm (0.37 to 0.45 in.)
10 to 12 mm (0.39 to 0.47 in.)
12.5 to 15.5 mm (0.49 to 0.61 in.)
14 to 17 mm (0.55 to 0.67 in.)
New drive belt tension
For vane pump V belt (A/C equipped)
For vane pump V belt (A/C not equipped)
Used drive belt tension
For vane pump V belt (A/C equipped)
For vane pump V belt (A/C not equipped)
519 to 755 N (53 to 77 kgf, 117 to 170 lbf)
686 to 784 N (70 to 80 kgf, 154 to 176 lbf)
196 to 392 N (20 to 40 kgf, 44 to 88 lbf)
294 to 441 N (30 to 45 kgf, 66 to 99 lbf)
Idle speed750 to 850 rpm.
Maximum speed5,100 to 5,250 rpm.
Compression pressure
at 250 rpm.
Minimum
Difference between each cylinder
2,628 kPa (26.8 kgf/cm2, 381 psi) or more
2,157 kPa (22.0 kgf/cm2, 312 psi) or more
490 kPa (5.0 kgf/cm2, 71 psi) or less
Cylinder head set bolt
Outside diameter Standard
Minimum
10.75 to 11.00 mm (0.4232 to 0.4331 in.)
10.40 mm (0.4904 in.)
Valve clearance
Intake (cold)
Exhaust
Adjusting shim thickness Mark 2.500
Mark 2.550
Mark 2.600
Mark 2.650
Mark 2.700
Mark 2.750
Mark 2.800
Mark 2.850
Mark 2.900
Mark 2.950
Mark 3.000
Mark 3.050
Mark 3.100
Mark 3.150
Mark 3.200
Mark 3.250
Mark 3.300
0.20 to 0.30 mm (0.008 to 0.012 in.)
0.35 to 0.45 mm (0.014 to 0.018 in.)
2.500 mm (0.0984 in.)
2.550 mm (0.1004 in.)
2.600 mm (0.1024 in.)
2.650 mm (0.1043 in.)
2.700 mm (0.1063 in.)
2.750 mm (0.1083 in.)
2.800 mm (0.1102 in.)
2.850 mm (0.1122 in.)
2.900 mm (0.1142 in.)
2.950 mm (0.1161 in.)
3.000 mm (0.1181 in.)
3.050 mm (0.1201 in.)
3.100 mm (0.1220 in.)
3.150 mm (0.1240 in.)
3.200 mm (0.1260 in.)
3.250 mm (0.1280 in.)
3.300 mm (0.1299 in.)
Cylinder head set bolt
Outside diameter Standard
Minimum
10.75 to 11.00 mm (0.4232 to 0.4331 in.)
10.40 mm (0.4904 in.)

Page 122 of 5135

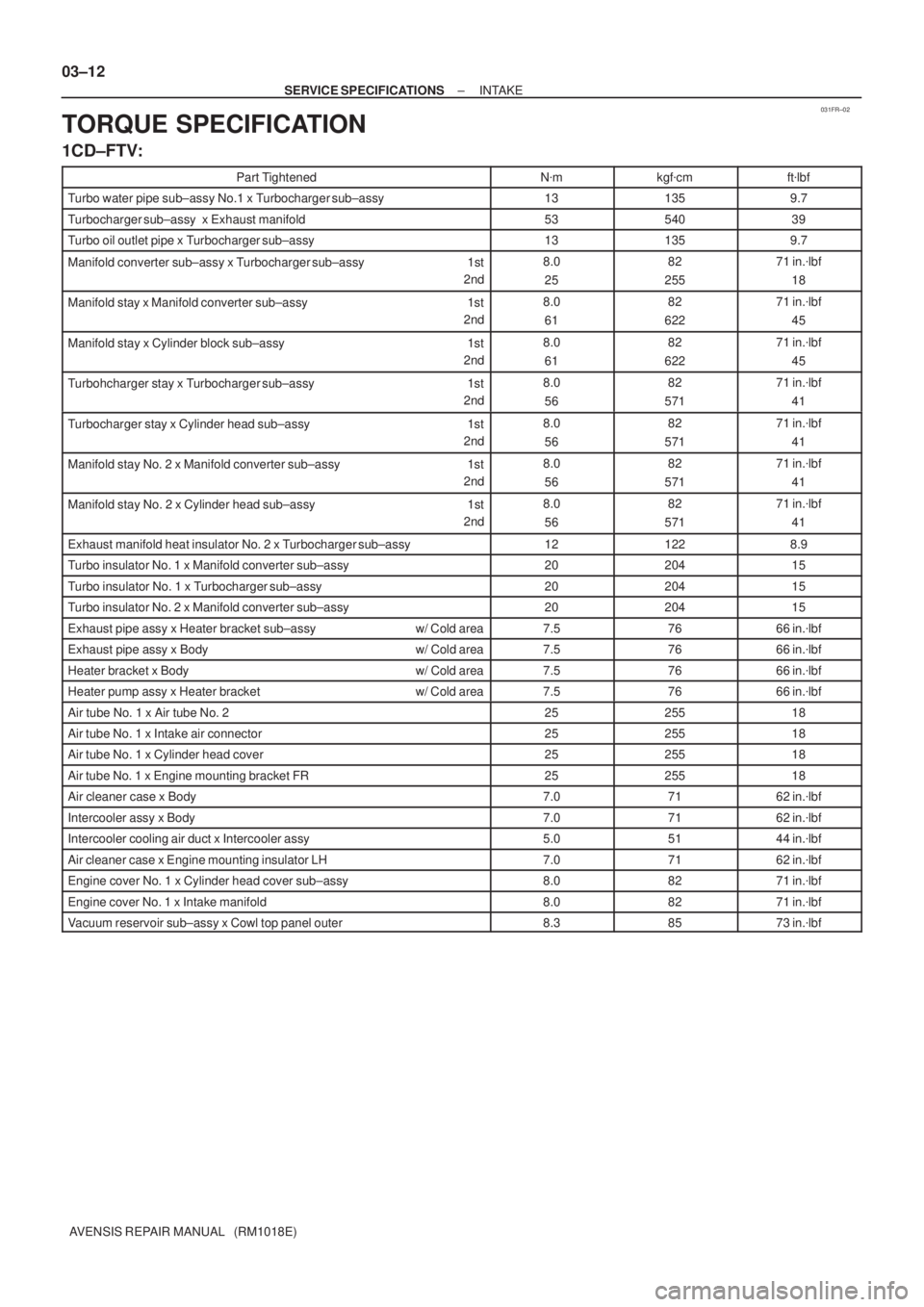

TOYOTA AVENSIS 2005 Service Repair Manual 031FR±02
03±12
± SERVICE SPECIFICATIONSINTAKE
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
1CD±FTV:
Part TightenedNmkgfcmftlbf
Turbo water pipe sub±assy No.1 x Turbocharger sub±assy

Page 123 of 5135

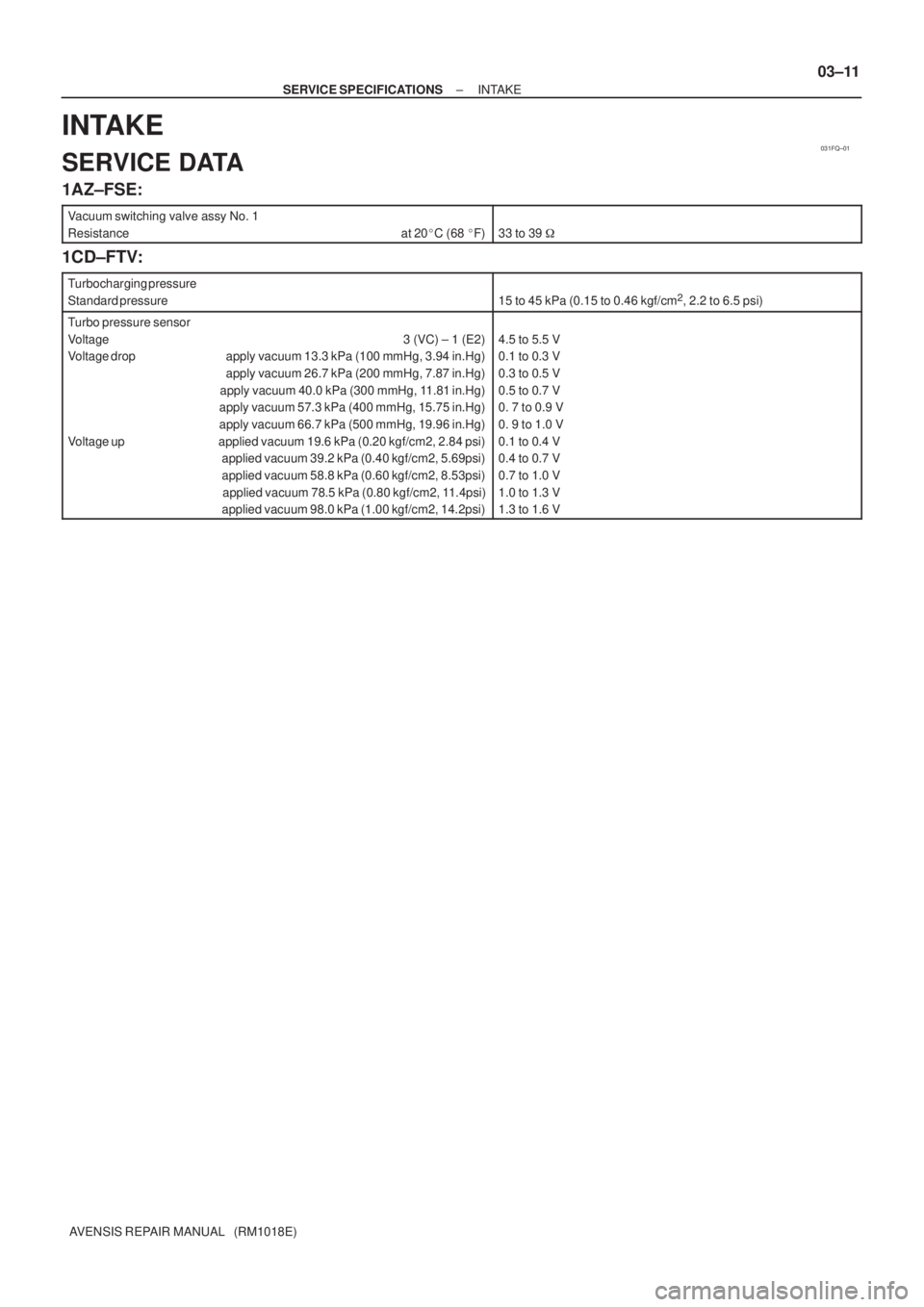

TOYOTA AVENSIS 2005 Service Repair Manual 031FQ±01
± SERVICE SPECIFICATIONSINTAKE
03±11
AVENSIS REPAIR MANUAL (RM1018E)
INTAKE
SERVICE DATA
1AZ±FSE:
Vacuum switching valve assy No. 1
Resistance at 20C (68 F)
33 to 39
1CD±FTV:
Turbo

Page 124 of 5135

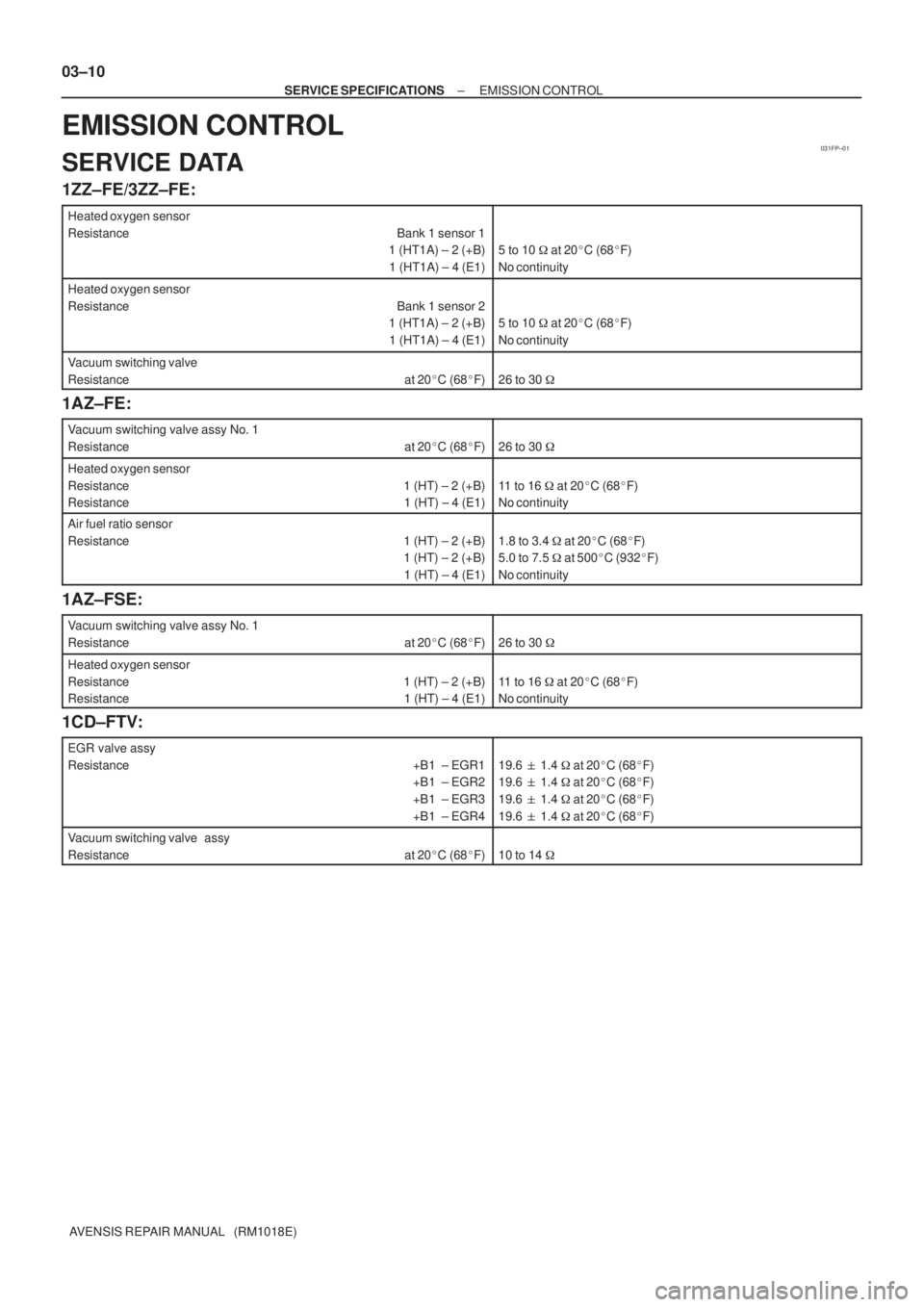

TOYOTA AVENSIS 2005 Service Repair Manual 031FP±01
03±10
± SERVICE SPECIFICATIONSEMISSION CONTROL
AVENSIS REPAIR MANUAL (RM1018E)
EMISSION CONTROL
SERVICE DATA
1ZZ±FE/3ZZ±FE:
Heated oxygen sensor
Resistance Bank 1 sensor 1
1 (HT1A) ±

Page 125 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 031E1±02
03±8
± SERVICE SPECIFICATIONSFUEL
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
1ZZ±FE/3ZZ±FE:
Part TightenedNmkgfcmftlbf
Fuel delivery pipe sub±assy x Cylinder head sub±as

031E1±02
03±8
± SERVICE SPECIFICATIONSFUEL
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
1ZZ±FE/3ZZ±FE:
Part TightenedNmkgfcmftlbf
Fuel delivery pipe sub±assy x Cylinder head sub±assy Bolt A
Bolt B19
9.0194
9214
80 in.lbf
1AZ±FE:
Part TightenedNmkgfcmftlbf
Fuel delivery pipe sub±assy x Cylinder head sub±assy2020415
Fuel pressure pulsation damper assy x Fuel delivery pipe sub±assy9.09280 in.lbf
1AZ±FSE:
Part TightenedNmkgfcmftlbf
Cylinder head cover x Fuel pump assy2525518
Fuel pipe sub±assy No.1 x Fuel delivery pipe sub±assy9.09280 in.lbf
Fuel pipe sub±assy No.1 x Fuel pump assy3030622
Fuel pressure pulsation damper assy x Fuel pump assy3333124
Engine cover bracket x Cylinder head3838828
Engine cover sub±assy No.1 x Cylinder head cover7.07162 in.lbf
Nozzle holder clamp x Cylinder head131279
Fuel delivery pipe sub±assy x Cylinder head1919414
Surge tank stay No.1 x Cylinder block2121015
Intake manifold x Cylinder head Stud bolt
Bolt
Nut9.5
30
3097
306
30684 in.lbf
22
22
GASOLINE:
Part TightenedNmkgfcmftlbf
Fuel tank band sub±assy No. 1 LH x Body4040029
Fuel tank band sub±assy No. 1 RH x Body4040029
Parking brake cable assy No. 3 x Body5.05144 in.lbf
Parking brake cable assy No. 2 x Body5.05144 in.lbf
Fuel tank protector No. 1 x Body5.45447 in.lbf
Fuel tank protector No. 1 x Fuel tank band sub±assy No. 1 RH5.45447 in.lbf
Exhaust pipe assy front x Exhaust manifold (1ZZ±FE/3ZZ±FE)4344033
Exhaust pipe assy front x Exhaust pipe assy tail (1ZZ±FE/3ZZ±FE)4344033
Exhaust pipe assy center x Exhaust pipe assy front (1AZ±FE/1AZ±FSE)4344033
Exhaust pipe assy center x Exhaust pipe assy tail (1AZ±FE/1AZ±FSE)4344033
1CD±FTV:
Part TightenedNmkgfcmftlbf
Nozzle holder clamp x Cylinder head sub±assy2626519
Nozzle leakage pipe assy x Injector assy Hollow screw
Union bolt18
22184
22413
16
Nozzle leakage pipe No. 2 x Cylinder head sub±assy Hollow screw
Bolt21
8.8214
9016
79 in.lbf
Injection pipe sub±assy No. 1 ± No. 4 x Injector assy
Used pipe using SST
Used pipe not using SST
New pipe using SST
New pipe not using SST
42
46
31
34428
469
316
34731
34
23
25
Injection pipe sub±assy No. 1 ± No. 4 x Common rail assy
Used pipe using SST
Used pipe not using SST
New pipe using SST
New pipe not using SST
42
46
31
34428
469
316
34731
34
23
25

Page 126 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual ± SERVICE SPECIFICATIONSFUEL
03±9
AVENSIS REPAIR MANUAL (RM1018E)Part Tightenedftlbf kgfcm Nm
Injection pipe clamp No. 2 x Intake manifold5.05144 in.lbf
Fuel inlet pipe sub±assy x Common rail

Page 127 of 5135

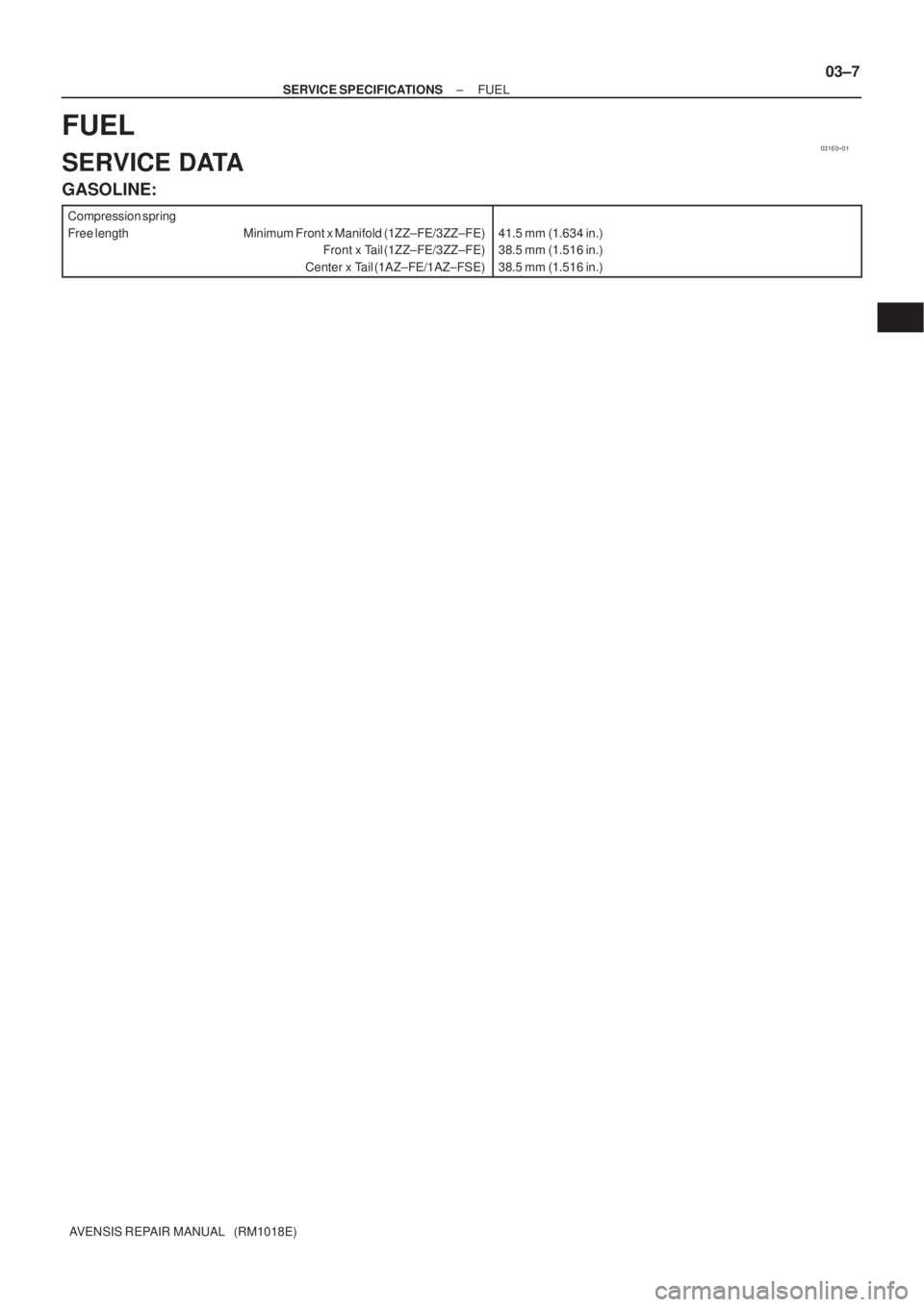

TOYOTA AVENSIS 2005 Service Repair Manual 031E0±01
± SERVICE SPECIFICATIONSFUEL
03±7
AVENSIS REPAIR MANUAL (RM1018E)
FUEL
SERVICE DATA
GASOLINE:
Compression spring
Free length Minimum Front x Manifold (1ZZ±FE/3ZZ±FE)
Front x Tail (1ZZ�

Page 128 of 5135

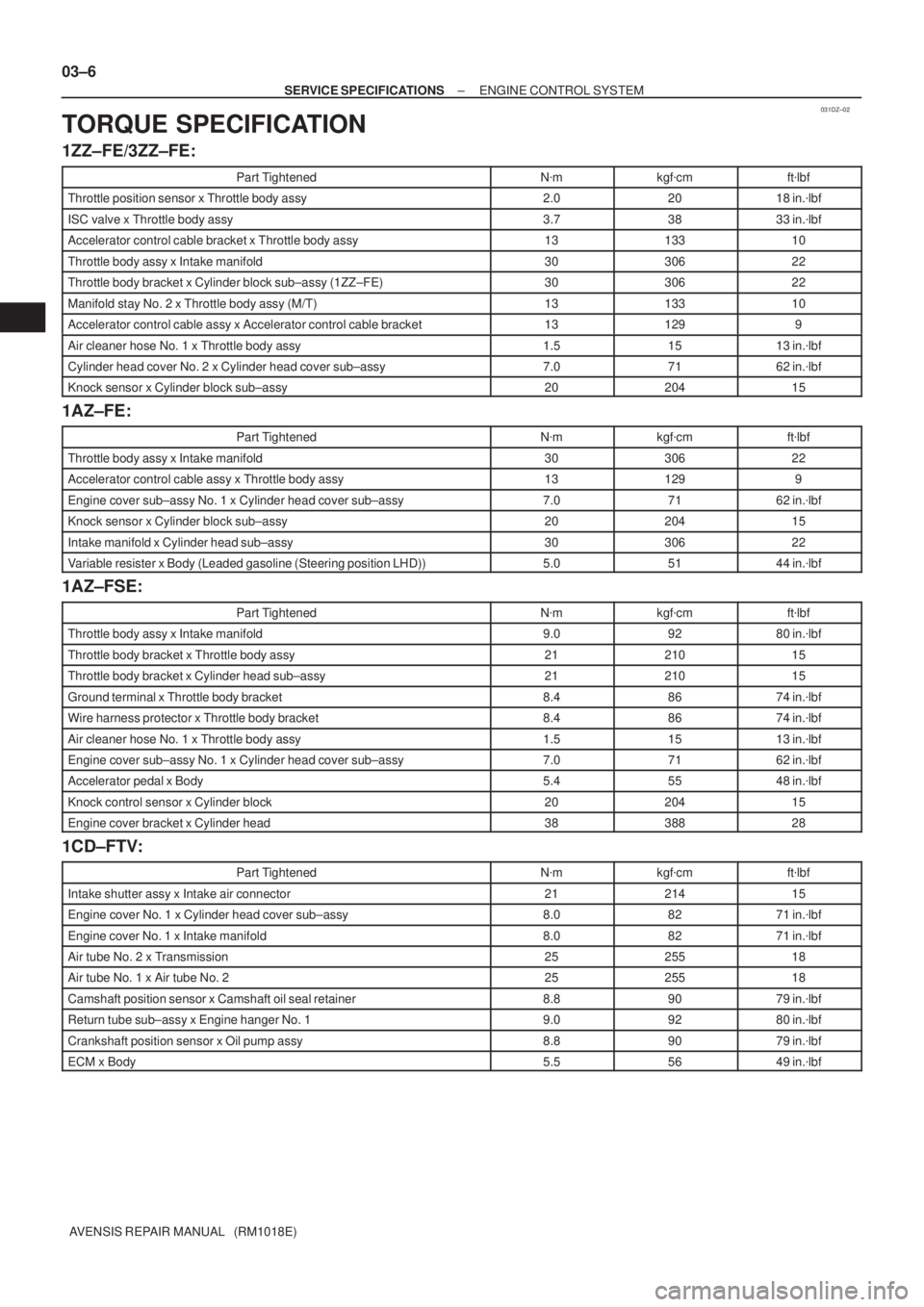

TOYOTA AVENSIS 2005 Service Repair Manual 031DZ±02
03±6
± SERVICE SPECIFICATIONSENGINE CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
1ZZ±FE/3ZZ±FE:
Part TightenedNmkgfcmftlbf
Throttle position sensor x Throttle

031DZ±02
03±6
± SERVICE SPECIFICATIONSENGINE CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
1ZZ±FE/3ZZ±FE:
Part TightenedNmkgfcmftlbf
Throttle position sensor x Throttle body assy2.02018 in.lbf
ISC valve x Throttle body assy3.73833 in.lbf
Accelerator control cable bracket x Throttle body assy1313310
Throttle body assy x Intake manifold3030622
Throttle body bracket x Cylinder block sub±assy (1ZZ±FE)3030622
Manifold stay No. 2 x Throttle body assy (M/T)1313310
Accelerator control cable assy x Accelerator control cable bracket131299
Air cleaner hose No. 1 x Throttle body assy1.51513 in.lbf
Cylinder head cover No. 2 x Cylinder head cover sub±assy7.07162 in.lbf
Knock sensor x Cylinder block sub±assy2020415
1AZ±FE:
Part TightenedNmkgfcmftlbf
Throttle body assy x Intake manifold3030622
Accelerator control cable assy x Throttle body assy131299
Engine cover sub±assy No. 1 x Cylinder head cover sub±assy7.07162 in.lbf
Knock sensor x Cylinder block sub±assy2020415
Intake manifold x Cylinder head sub±assy3030622
Variable resister x Body (Leaded gasoline (Steering position LHD))5.05144 in.lbf
1AZ±FSE:
Part TightenedNmkgfcmftlbf
Throttle body assy x Intake manifold9.09280 in.lbf
Throttle body bracket x Throttle body assy2121015
Throttle body bracket x Cylinder head sub±assy2121015
Ground terminal x Throttle body bracket8.48674 in.lbf
Wire harness protector x Throttle body bracket8.48674 in.lbf
Air cleaner hose No. 1 x Throttle body assy1.51513 in.lbf
Engine cover sub±assy No. 1 x Cylinder head cover sub±assy7.07162 in.lbf
Accelerator pedal x Body5.45548 in.lbf
Knock control sensor x Cylinder block2020415
Engine cover bracket x Cylinder head3838828
1CD±FTV:
Part TightenedNmkgfcmftlbf
Intake shutter assy x Intake air connector2121415
Engine cover No. 1 x Cylinder head cover sub±assy8.08271 in.lbf
Engine cover No. 1 x Intake manifold8.08271 in.lbf
Air tube No. 2 x Transmission2525518
Air tube No. 1 x Air tube No. 22525518
Camshaft position sensor x Camshaft oil seal retainer8.89079 in.lbf
Return tube sub±assy x Engine hanger No. 19.09280 in.lbf
Crankshaft position sensor x Oil pump assy8.89079 in.lbf
ECM x Body5.55649 in.lbf
