Page 2137 of 5135

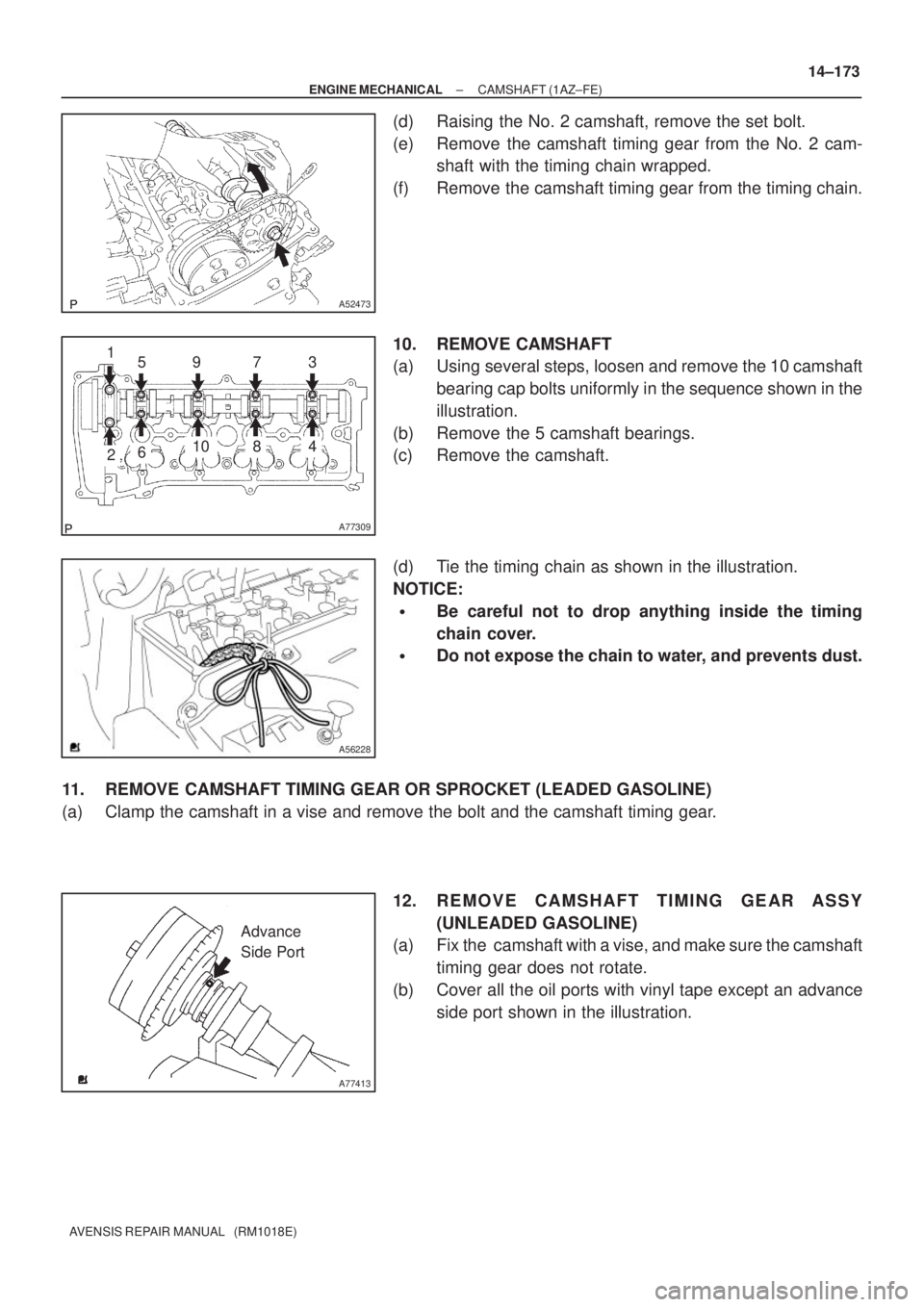

TOYOTA AVENSIS 2005 Service Repair Manual A52473 A77309 15973 481062 A56228 A77413 Advance Side Port ± ENGINE MECHANICALCAMSHAFT (1AZ±FE) 14±173 AVENSIS REPAIR MANUAL (RM1018E) (d) Raising the No. 2 camshaft, remove the set bolt. (e) Rem

Page 2138 of 5135

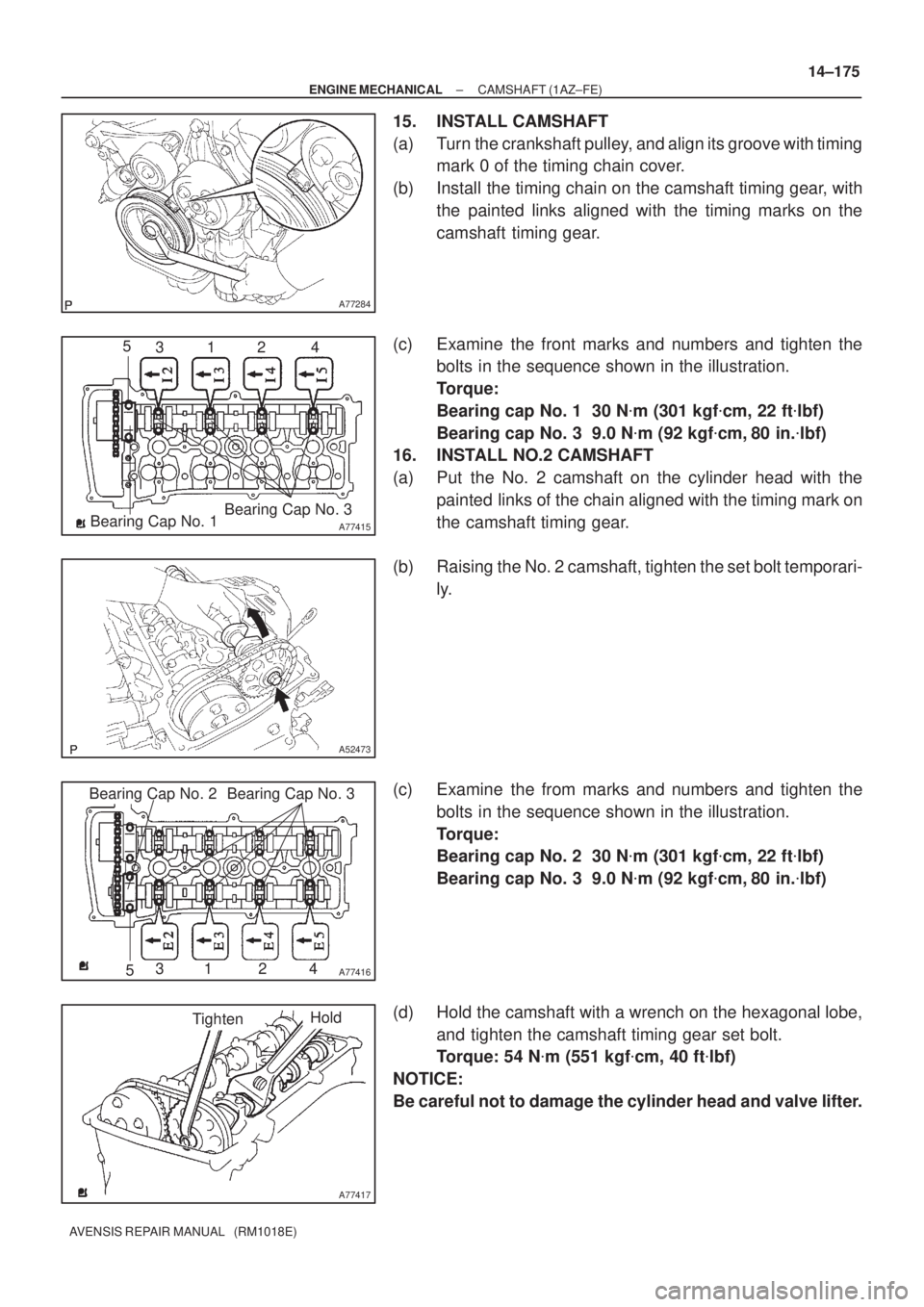

TOYOTA AVENSIS 2005 Service Repair Manual A31032 A32639 A77414 Straight Pin Key Groove 14±174 ± ENGINE MECHANICALCAMSHAFT (1AZ±FE) AVENSIS REPAIR MANUAL (RM1018E) (c) Put air pressure into the oil port with 150 kpa (1.5 kgf/cm2 21 psi),

Page 2139 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77284 A77415Bearing Cap No. 1Bearing Cap No. 3 5 312 4 A52473 A77416 Bearing Cap No. 2 Bearing Cap No. 3 531 2 4 A77417 TightenHold ± ENGINE MECHANICALCAMSHAFT (1AZ±FE) 14±175 AVENSIS REPAIR MANUA

Page 2140 of 5135

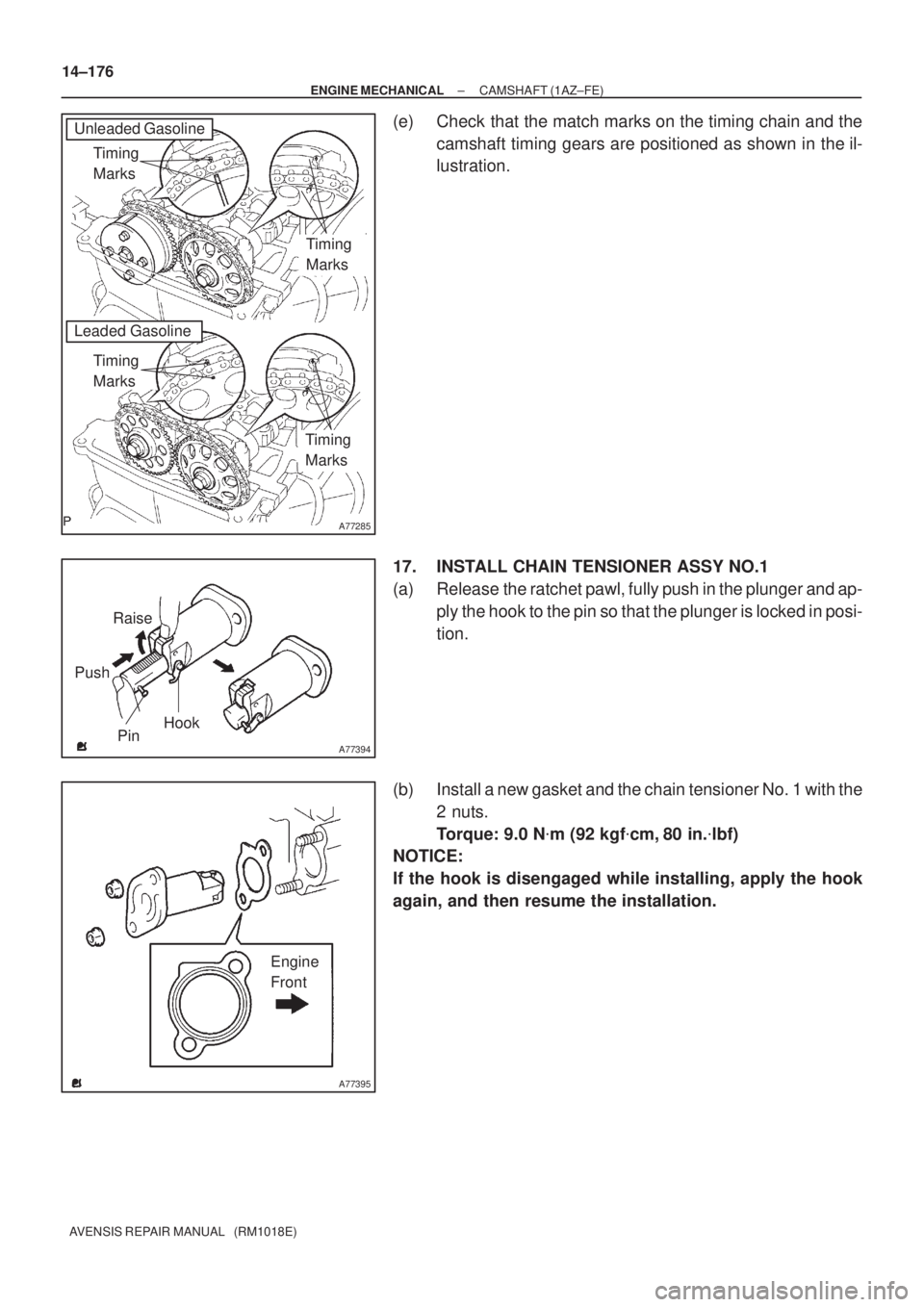

TOYOTA AVENSIS 2005 Service Repair Manual A77285 Unleaded Gasoline Leaded GasolineTiming Marks Timing Marks Timing Marks Timing Marks A77394 Raise PinHook Push A77395 Engine Front 14±176 ± ENGINE MECHANICALCAMSHAFT (1AZ±FE) AVENSIS REP

Page 2141 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77396 HookPin Turn Disconnect A77397 Push Turn Plunger A77399 Seal Packing A77400NutNut A BC A AAAB ± ENGINE MECHANICALCAMSHAFT (1AZ±FE) 14±177 AVENSIS REPAIR MANUAL (RM1018E) (c) Turn the crank

Page 2142 of 5135

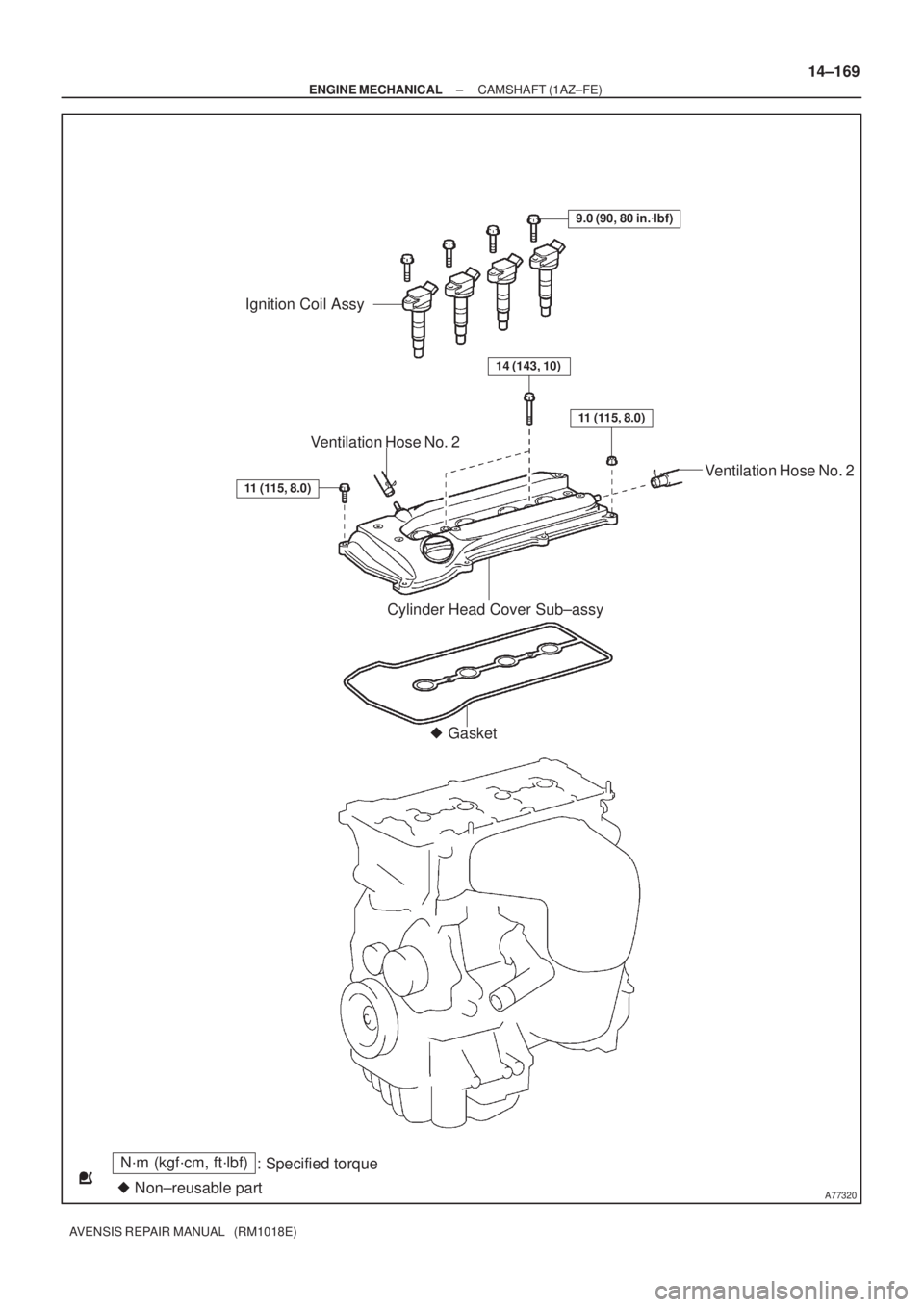

TOYOTA AVENSIS 2005 Service Repair Manual 141BG±01 A77322 7.0 (71.62, in.lbf) 7.0 (71.62, in.lbf) Engine Room Cover Side Radiator Support Opening CoverEngine Cover Sub±assy No. 1 Engine Under Cover RH N´m (kgf´cm, ft´lbf) : Specifi

Page 2143 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77320 N´m (kgf´cm, ft´lbf) : Specified torque  Non±reusable part Ignition Coil Assy 9.0 (90, 80 in.lbf) 14 (143, 10) 11 (115, 8.0) Cylinder Head Cover Sub±assy  Gasket 11 (115, 8.0) Ventilati

Page 2144 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A77323 Leaded Gasoline type: N´m (kgf´cm, ft´lbf) : Specified torque  Non±reusable part 54 (551, 40)  Gasket Crankshaft Timing Geaer or Sprocket Bearing Cap No. 3 Bearing Cap No. 2 Camshaft No.
