Page 2321 of 5135
A61211
: Specified torqueN´m (kgf´cm, ft´lbf)
* Replace only if damagedTiming Belt No. 2 Cover
Transverse Engine
Engine Mounting Bracket
Seal Washer Timing Belt No.1 Cover
Crankshaft Pulley Seal Washer
x 5 Generator V belt
Glow Plug
Screw Grommet Timing Belt GuideTiming Belt * Gasket
x 7
Glow Plug Assy * Gasket Timing Chain Cover Plate
Timing Belt
Tensioner
180 (1,837, 133)
21 (214, 15)
9.0 (92, 80 in.´lbf)
37 (375, 27)
64 (650, 47)
2.2 (22, 19 in.´lbf)
7.4 (76, 66 in.´lbf)
7.4 (76, 66 in.´lbf)
Idler Pulley
40 (408, 30)Glow Plug
No.1 Connector
14±306
± ENGINE MECHANICALTIMING BELT (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
Page 2322 of 5135

141C4±01
A80094
14±286
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.REMOVE FRONT WHEELS
2.REMOVE ENGINE UNDER COVER LH
3.REMOVE ENGINE UNDER COVER SUB±ASSY NO.1
4.REMOVE ENGINE UNDER COVER RH
5.REMOVE RADIATOR SUPPORT OPENING COVER
6.REMOVE ENGINE ROOM COVER SIDE
7.DRAIN ENGINE COOLANT (See page 16±44)
8.DRAIN ENGINE OIL (See page 14±342)
9.DRAIN MANUAL TRANSAXLE OIL Torque: 49 N m (500 kgf cm,36 ft lbf)
10.REMOVE ENGINE COVER NO.1
(a)Remove the 5 nuts and the engine cover.
11.REMOVE BATTERY
12.REMOVE AIR CLEANER ASSY
(a)Disconnect the connector.
(b)Remove the air cleaner cap together with the air cleaner hose.
(c)Remove the air cleaner filter element.
(d)Remove the 3 bolts and the air cleaner case.
13.DISCONNECT UNION TO CONNECTOR TUBE HOSE
14.REMOVE FUEL FILTER ASSY
(a)Disconnect the 2 fuel hose from the fuel filter (STD).
(b)Disconnect the 3 fuel hose from the fuel filter (COLD).
(c)Disconnect the connector (STD).
(d)Disconnect the 2 connectors (COLD).
(e)Remove the 2 bolts and the fuel filter.
15.REMOVE RADIATOR HOSE INLET
16.REMOVE RADIATOR HOSE OUTLET
17.DISCONNECT WATER BY±PASS HOSE NO.2
18.REMOVE ENGINE ROOM RELAY BLOCK NO.3
(a)Remove the 2 bolts and the engine room relay block.
19.REMOVE RADIATOR ASSY (W/ AIR CONDITIONING) (See page 16±51)
20. DISCONNECT HEATER INLET WATER HOSE
21. DISCONNECT HEATER OUTLET WATER HOSE
22. DISCONNECT FUEL HOSE NO.2
23. REMOVE AIR TUBE NO.2
(a) Loosen the hose clamp and disconnect the air hose No.3.
(b) Remove the 2 bolts and the air tube No. 2.
Page 2323 of 5135

A79178
A78277
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
14±287
AVENSIS REPAIR MANUAL (RM1018E)
24.SEPARATE TRANSMISSION CONTROL CABLE ASSY
(a)Remove the 2 clips and 2 washers, separate the control cable assy.
25.REMOVE INJECTOR DRIVER
(a)Remove the 2 nuts which is used to secure the injector driver.
(b)Disconnect the injector driver connector and the harness clamp.
(c)Remove the injector driver.
26.DISCONNECT ENGINE WIRE
(a)Remove the glove compartment door.
(b)Disconnect the engine wire from the ECM and the junc-
tion block.
(c)Pull out the engine wire.
(d)Disconnect the engine wire from engine room junction block.
(e)Remove the bolt and disconnect the wire harness from the body.
27.REMOVE AIR TUBE NO.1
(a)Loosen the hose clamps.
(b)Remove the 2 bolts and nut, and then detach the air tube No. 1.
28.REMOVE CLUTCH ACCUMULATOR ASSY (See page 42±17) SST 09023±00100
29.REMOVE CLUTCH RELEASE CYLINDER ASSY (See page 42±17)
30. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
(See page 14±269)
31. SEPARATE COMPRESSOR AND MAGNETIC CLUTCH (W/ AIR CONDITIONING) (See page 55±86)
HINT:
Secure the hoses off to the side instead of detaching.
32.REMOVE FLOOR PANEL BRACE FRONT (See page 15±10)
33.REMOVE EXHAUST PIPE ASSY FRONT (See page 15±10)

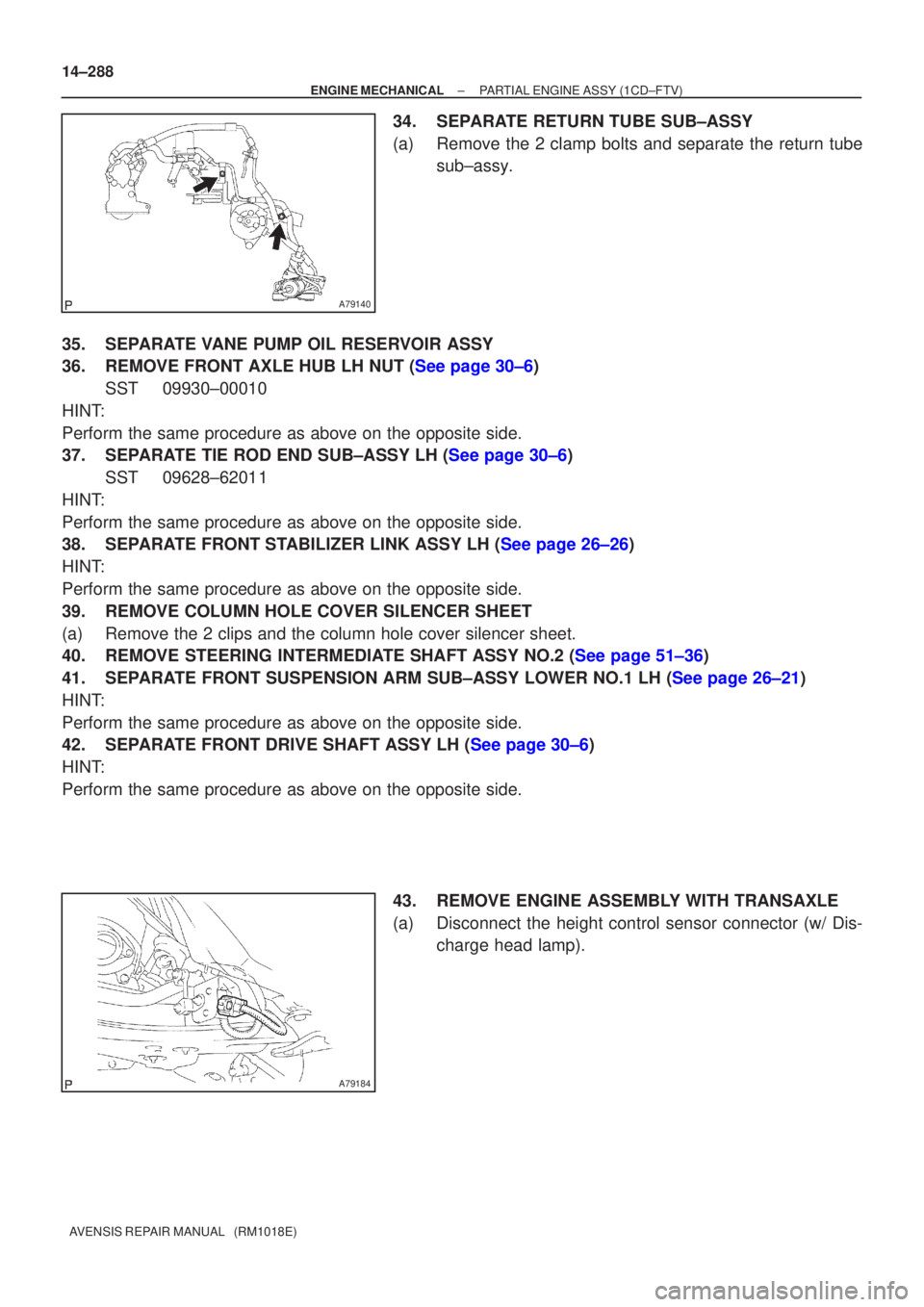

Page 2324 of 5135

A79140
A79184
14±288
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
34.SEPARATE RETURN TUBE SUB±ASSY
(a)Remove the 2 clamp bolts and separate the return tube sub±assy.
35.SEPARATE VANE PUMP OIL RESERVOIR ASSY
36.REMOVE FRONT AXLE HUB LH NUT (See page 30±6) SST09930±00010
HINT:
Perform the same procedure as above on the opposite side.
37.SEPARATE TIE ROD END SUB±ASSY LH (See page 30±6) SST 09628±62011
HINT:
Perform the same procedure as above on the opposite side.
38.SEPARATE FRONT STABILIZER LINK ASSY LH (See page 26±26)
HINT:
Perform the same procedure as above on the opposite side.
39. REMOVE COLUMN HOLE COVER SILENCER SHEET
(a) Remove the 2 clips and the column hole cover silencer sheet.
40.REMOVE STEERING INTERMEDIATE SHAFT ASSY NO.2 (See page 51±36)
41.SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (See page 26±21)
HINT:
Perform the same procedure as above on the opposite side.
42.SEPARATE FRONT DRIVE SHAFT ASSY LH (See page 30±6)
HINT:
Perform the same procedure as above on the opposite side.
43. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
(a) Disconnect the height control sensor connector (w/ Dis-charge head lamp).
Page 2325 of 5135
A79179
A61177
A59793
A59792
A79193
Engine Hanger No.1 UPR
Engine Hanger No.2
Engine Hanger No.1
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
14±289
AVENSIS REPAIR MANUAL (RM1018E)
(b) Set the engine lifter.
(c) Remove the 3 bolts, 3 nuts and the engine mounting insu-
lator sub±assy RH.
(d) Remove the through bolt and nut, detach the engine
mounting insulator LH from the vehicle.
(e) Remove the 8 bolts and the front suspension member
brace rear RH and LH.
(f) Remove the 2 bolts and 2 nuts.
(g) Carefully remove the engine with transaxle from the ve-
hicle.
(h) Install the 2 engine hangers with the 2 bolts.
Part No.:
No. 1 engine hanger UPR (yellow) 12284±27020
No. 1 engine hanger UPR (black) 12284±27030
No. 1 engine hanger 12281±27050
No. 2 engine hanger (yellow) 12282±27060
No. 2 engine hanger (black) 12282±27070
Bolt 91642±81025
Torque: 37 Nm (377 kgfcm, 27 ftlbf)
Page 2326 of 5135

A62711
A79180
A61186
SST
14±290
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
(i)Attach the engine sling and hang the engine with the chain block.
44.REMOVE FRONT SUSPENSION CROSSMEMBER SUB±ASSY
(a)Remove the through bolt and nut, detach the engine mounting insulator FR from the engine mounting bracket.
(b)Remove the through bolt, detach the engine mounting in- sulator RR from the suspension crossmember.
(c)Separate the engine and transaxle assembly from the suspension crossmember and engine mounting member.
45.REMOVE STARTER ASSY (See page 19±24)
46.REMOVE MANUAL TRANSAXLE (See page 41±33)
47.REMOVE CLUTCH DISC ASSY (See page 42±26) 48. REMOVE FLYWHEEL SUB±ASSY
(a) Hold the crank shaft with SST.SST 09213±54015 (90105±08076), 09330±00021
(b) Using a torx socket wrench (T55), remove the 8 torx
screws and the flywheel.
49. REMOVE REAR END PLATE
(a) Remove the 2 bolts and the rear end plate.
50. REMOVE DRIVE SHAFT BEARING BRACKET
51. REMOVE ENGINE MOUNTING BRACKET FR
52. REMOVE ENGINE MOUNTING BRACKET RR
53.REMOVE GLOW PLUG ASSY (See page 19±33)
54.REMOVE GENERATOR V BELT (See page 14±269)
55.REMOVE CRANKSHAFT PULLEY (See page 14±307) SST 09213±54015 (90105±08076), 09330±00021, 09950±50013 (0995\
1±05010, 09952±05010, 09953±05020, 09954±05031)
Page 2327 of 5135

A15985
A78280
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
14±291
AVENSIS REPAIR MANUAL (RM1018E)
56.REMOVE IDLER PULLEY SUB±ASSY (See page 14±307)
57.REMOVE TIMING BELT NO.2 COVER (See page 14±307)
58.REMOVE TIMING BELT NO.1 COVER (See page 14±307)
59.REMOVE TIMING BELT GUIDE
60.REMOVE TRANSVERSE ENGINE ENGINE MOUNTING BRACKET (See page 14±307)
61.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±307)
62.REMOVE TIMING BELT (See page 14±307)
HINT:
If re±use the timing belt, draw an arrow which indicates the engine rev\
olution direction on the belt and put
match marks on the pulleys and the belt before removing. This operation will \
be very helpful when re±instal-
ling the timing belt.
63.REMOVE GENERATOR ASSY
64.REMOVE GENERATOR BRACKET NO.1
(a)Remove the 2 bolts and the generator bracket.
65.REMOVE V±RIBBED BELT TENSIONER ASSY
66.REMOVE OIL FILTER BRACKET SUB±ASSY
(a)Remove the bolt and 2 nuts, and then remove the oil filter
bracket and the gasket.
67.REMOVE TURBO INSULATOR NO.2 (See page 13±11)
68.REMOVE TURBO INSULATOR NO.1 (See page 13±11)
69.REMOVE EXHAUST MANIFOLD HEAT INSULATOR NO.2 (See page 13±11)
70.REMOVE MANIFOLD STAY NO.2 (See page 13±11)
71.REMOVE MANIFOLD STAY (See page 13±11)
72.REMOVE EXHAUST MANIFOLD CONVERTER SUB±ASSY (See page 13±11)
73.REMOVE TURBOCHARGER STAY (See page 13±11)
74.DISCONNECT TURBO WATER HOSE NO.1 (See page 13±11)
75.DISCONNECT TURBO WATER HOSE NO.2 (See page 13±11)
76.SEPARATE TURBO OIL INLET PIPE SUB±ASSY (See page 13±11)
77.REMOVE TURBO OIL OUTLET PIPE NO.2 (See page 13±11)
78.REMOVE TURBOCHARGER SUB±ASSY (See page 13±11) 79. DISCONNECT WATER BY±PASS HOSE NO.3
Page 2328 of 5135
A80118
A80115
A80116
A09660
14±292
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
80.REMOVE EGR PIPE SUB±ASSY NO.1
(a)Remove the bolt and 4 nut, and then detach the EGR pipe and the 2 gasket\
s. 81.REMOVE EXHAUST MANIFOLD
(a)Remove the 8 nuts, the exhaust manifold and the gasket.
82.REMOVE OIL COOLER ASSY (See page 17±32)
83. REMOVE WATER OUTLET SUB±ASSY 84. REMOVE INTAKE AIR CONNECTOR SUB±ASSY
(a) Remove the bolt and 2 nuts, and then remove the intakeair connector and the gasket.
85. REMOVE EGR VALVE ASSY
(a) Remove the bolt and 2 nuts, and then remove the EGR valve and the gasket.
86. REMOVE VACUUM PUMP ASSY
(a) Remove the 2 bolts, the vacuum pump and the 2 O±rings.
