± STARTING & CHARGINGCHARGING SYSTEM (1AZ±FE)
19±15
AVENSIS REPAIR MANUAL (RM1018E)
ON±VEHICLE INSPECTION
1. CHECK BATTERY ELECTROLYTE LEVEL
(a) Check the electrolyte quantity of each cell.
(1) If the electrolyte is under the low level, replace the battery (or add distilled water if possible) and
check the charging system.
2. CHECK BATTERY VOLTAGE
(a) If it has not been 20 minutes since you drove the vehicle
or since the engine was stopped, turn the ignition switch
and the electrical system (headlight, blower motor, rear
defogger etc.) to the on position for 60 seconds. This will
remove the surface charge on the battery.
(b) Turn off the ignition switch and the electrical systems.
(c) Measure the battery voltage between the negative (±)
and positive (+) terminals of the battery.
Standard voltage: 12.5 to 12.9 V at 20C (68F)
HINT:
If the voltage is less than specification, charge the battery.
(d) Check the indicator as shown in the illustration.
HINT:
Indicator colorConditionType AType BCondition
GreenBlueOK
DarkWhiteCharging necessary
Clear or light yellowRedReplace
3. CHECK BATTERY TERMINALS, FUSIBLE LINK AND FUSES
(a) Check that the battery terminals are not loosened or corroded.
(b) Check the fusible links, high±current fuses and regular fuses.
4. INSPECT DRIVE BELT
(a) Visually check the belt for excessive wear, frayed cords
etc.
HINT:
If any defect found, replace the drive belt.
Cracks on the rib side of a belt are considered acceptable.
If the belt has chunks missing from the ribs, it should be
replaced.
Page 2482 of 5135
B00540
A75980
Disconnect Wire
from Terminal B
Generator
Voltmeter BatteryAmmeter 19±16
± STARTING & CHARGINGCHARGING SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
(b) Check that it fits properly in the ribbed grooves.
HINT:
Check with your hand to confirm that the belt has not slipped out
of the groove on the bottom of the pulley.
5. VISUALLY CHECK GENERATOR WIRING
(a) Check that the wiring is in good condition.
6. LISTEN FOR ABNORMAL NOISES FROM GENERATOR
(a) Check that there is no abnormal noise from the generator while the engine is running.
7. INSPECT CHARGE WARNING LIGHT CIRCUIT
(a) Turn the ignition switch ON. Check that the charge warning light comes on.
(b) Start the engine and check that the light goes off.
HINT:
If the light does not operate as specified, troubleshoot the charge warning light circuit.
8. INSPECT CHARGING CIRCUIT WITHOUT LOAD
(a) According to the following procedure, connect an amme-
ter and voltmeter as shown in the illustration.
(1) Disconnect the wire from terminal B of the generator
and connect it to the negative (±) lead of the amme-
ter.
(2) Connect the positive (+) lead of the ammeter to ter-
minal B of the generator
(3) Connect the positive (+) lead of the voltmeter to ter-
minal B of the generator.
(4) Ground the negative (±) lead of the voltmeter.
(b) Check the charging circuit.
(1) Keep the engine speed at 2,000 rpm, check the
reading on the ammeter and voltmeter.
Standard amperage: 10 A or less
Standard voltage: 12.9 to 14.9 V
HINT:
If the voltmeter reading is more than standard voltage, re-
place the voltage regulator.
If the voltmeter reading is less than the standard voltage,
check the voltage regulator and generator as follows:
9. INSPECT CHARGING CIRCUIT WITH LOAD
(a) Keep the engine speed at 2,000 rpm, turn on the high beam headlights and turn the heater blower
switch to the ºHIº position.
(b) Check the reading on the ammeter.
Standard amperage: 30 A or more
HINT:
If the ammeter reading is less than standard amperage, repair the generator.
If the battery is fully charged, the indication will sometimes be less than standard amperage.
Page 2483 of 5135
190NV±01
19±14
± STARTING & CHARGINGCHARGING SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
CHARGING SYSTEM (1AZ±FE)
PRECAUTION
1. Check that the battery cables are connected to the correct terminals.
2. Disconnect the battery cables when the battery is given a quick charge.
3. Do not perform tests with a high voltage insulation resistance tester.
4. Never disconnect the battery while the engine is running.
5. Check that the charging cable is tightened on terminal B of the generator and the fuse box.
Page 2484 of 5135
190NJ±01
A77898
A77899
(a)
(a)
(a)(c)
(d)
Terminal Cap Cover
A77900
A77901
19±12
±
STARTING & CHARGING STARTER ASSY(1AZ±FE/1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
STARTER ASSY(1AZ±FE/1AZ±FSE)
REPLACEMENT
1.REMOVE RADIATOR SUPPORT OPENING COVER (See page 10±26)
2. REMOVE BATTERY CLAMP SUB±ASSY
3. REMOVE BATTERY
4. REMOVE BATTERY TRAY 5. REMOVE BATTERY CARRIER
(a) Remove the 4 bolts, and then remove the battery carrier.
6. REMOVE STARTER ASSY
(a) Remove the 3 wire harness clamps.
(b) Open the terminal cap cover.
(c) Remove the nut and disconnect the starter wire.
(d) Disconnect the starter connector.
(e) Remove the 2 bolts, and then remove the starter.
(f) Remove the bolt, and then remove the wire harnessclamp bracket.
Page 2485 of 5135
± STARTING & CHARGINGSTARTER ASSY (1AZ±FE/1AZ±FSE)
19±13
AVENSIS REPAIR MANUAL (RM1018E)

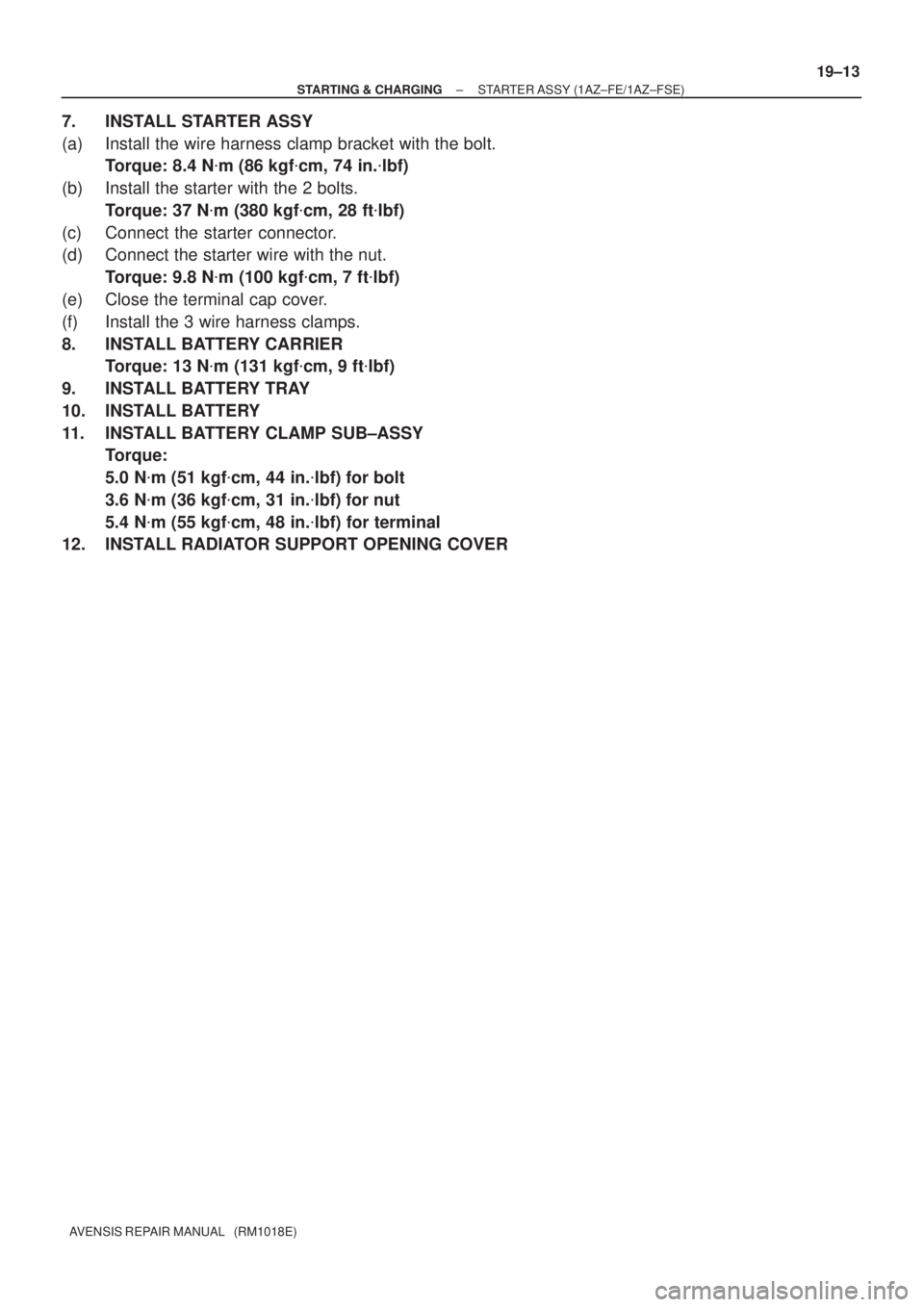

7. INSTALL STARTER ASSY
(a) Install the wire harness clamp bracket with the bolt.
Torque: 8.4 Nm (86 kgfcm, 74 in.lbf)
(b) Install the starter with the 2 bolts.
Torque: 37 Nm (380 kgfcm, 28 ftlbf)
(c) Connect the starter connector.
(d) Connect the starter wire with the nut.
Torque: 9.8 Nm (100 kgfcm, 7 ftlbf)
(e) Close the terminal cap cover.
(f) Install the 3 wire harness clamps.
8. INSTALL BATTERY CARRIER
Torque: 13 Nm (131 kgfcm, 9 ftlbf)
9. INSTALL BATTERY TRAY
10. INSTALL BATTERY
11. INSTALL BATTERY CLAMP SUB±ASSY
Torque:
5.0 Nm (51 kgfcm, 44 in.lbf) for bolt
3.6 Nm (36 kgfcm, 31 in.lbf) for nut
5.4 Nm (55 kgfcm, 48 in.lbf) for terminal
12. INSTALL RADIATOR SUPPORT OPENING COVER
Page 2486 of 5135
190NR±01
A78629
Terminal CTerminal 50
A78630Disconnect
A78631
Disconnect
19±10
± STARTING & CHARGINGSTARTING SYSTEM (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
STARTING SYSTEM (1AZ±FSE)
INSPECTION
1. INSPECT STARTER ASSY
NOTICE:
These tests must be performed within 3 to 5 seconds to
avoid burning out the coil.
(a) Do pull±in test
(1) Disconnect the field coil lead wire from terminal C.
(2) Connect the battery to the magnetic switch as
shown in the illustration on the left. Check that the
clutch pinion gear is extended.
If the clutch pinion gear is not extended, replace the magnetic
switch.
(b) Do hold±in test
(1) Disconnect the negative (±) lead from terminal C
with the above condition (a) is being maintained.
Check that the pinion gear remains extended.
If the clutch pinion gear returns, replace the magnetic switch.
(c) Inspect clutch pinion gear return
(1) Disconnect the negative (±) lead from the switch
body. Check that the clutch pinion gear returns.
If the clutch pinion gear does not return, replace the magnetic
switch.
Page 2487 of 5135
A78632
Terminal 30
Terminal 50
Ammeter
B16200
± STARTING & CHARGINGSTARTING SYSTEM (1AZ±FSE)
19±11
AVENSIS REPAIR MANUAL (RM1018E)

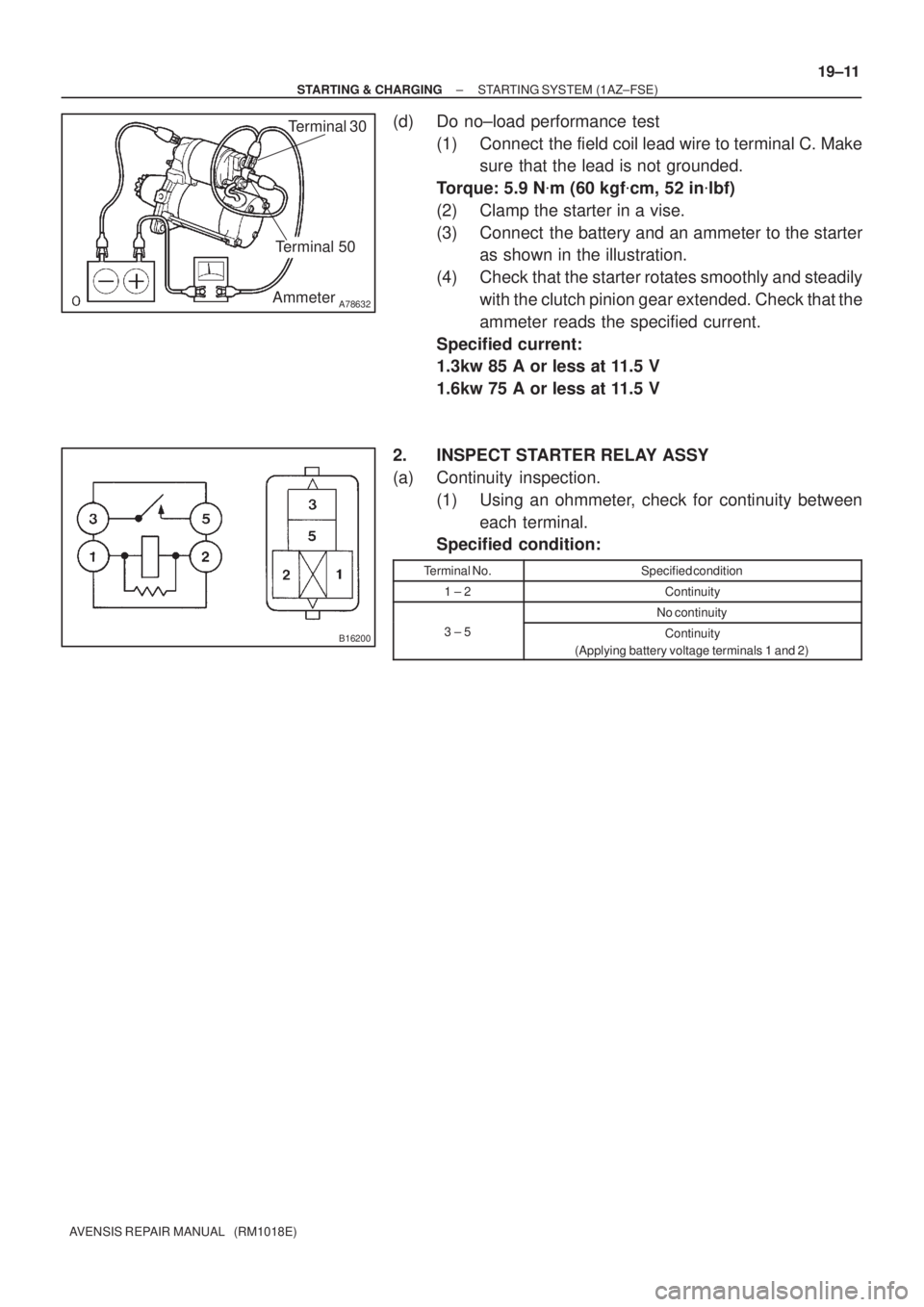

(d) Do no±load performance test
(1) Connect the field coil lead wire to terminal C. Make
sure that the lead is not grounded.
Torque: 5.9 Nm (60 kgfcm, 52 inlbf)
(2) Clamp the starter in a vise.
(3) Connect the battery and an ammeter to the starter
as shown in the illustration.
(4) Check that the starter rotates smoothly and steadily
with the clutch pinion gear extended. Check that the
ammeter reads the specified current.
Specified current:
1.3kw 85 A or less at 11.5 V
1.6kw 75 A or less at 11.5 V
2. INSPECT STARTER RELAY ASSY
(a) Continuity inspection.
(1) Using an ohmmeter, check for continuity between
each terminal.
Specified condition:
Terminal No.Specified condition
1 ± 2Continuity
No continuity
3 ± 5Continuity
(Applying battery voltage terminals 1 and 2)
Page 2488 of 5135
190NU±01
A78629
Terminal CTerminal 50
A78630Disconnect
A78631
Disconnect
19±8
± STARTING & CHARGINGSTARTING SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
STARTING SYSTEM (1AZ±FE)
INSPECTION
1. INSPECT STARTER ASSY
NOTICE:
These tests must be performed within 3 to 5 seconds to
avoid burning out the coil.
(a) Do pull±in test
(1) Disconnect the field coil lead wire from terminal C.
(2) Connect the battery to the magnetic switch as
shown in the illustration on the left. Check that the
clutch pinion gear is extended.
If the clutch pinion gear is not extended, replace the magnetic
switch.
(b) Do hold±in test
(1) Disconnect the negative (±) lead from terminal C
with the above condition (a) is being maintained.
Check that the pinion gear remains extended.
If the clutch pinion gear returns, replace the magnetic switch.
(c) Inspect clutch pinion gear return
(1) Disconnect the negative (±) lead from the switch
body. Check that the clutch pinion gear returns.
If the clutch pinion gear does not return, replace the magnetic
switch.
