Page 2457 of 5135
170FO±01
A79191
A79192
17±30
± LUBRICATIONOIL FILTER SUB±ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
OIL FILTER SUB±ASSY (1CD±FTV)
REPLACEMENT
NOTICE:
Prolonged and repeated contact with engine oil will result in the removal of natural oils from
the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains po-
tentially harmful contaminants which may cause skin cancer.
Precautions should be taken when replacing engine oil to minimize the risk of your skin making
contact with used engine oil. Wear protective clothing and gloves. Wash your skin thoroughly
with soap and water, or use water±less hand cleaner to remove any used engine oil. Do not use
gasoline, thinners, or solvents.
In order to preserve the environment, used oil and oil filter must be disposed of at designated
disposal sites.
1. DRAIN ENGINE OIL
(a) Remove the oil filler cap.
(b) Remove the oil drain plug and drain the oil into a container.
2. REMOVE OIL FILTER SUB±ASSY
(a) Remove the clip and open the engine under cover.
(b) Using SST, remove the oil filter.
SST 09228±10002
3. INSTALL OIL FILTER SUB±ASSY
(a) Check and clean the oil filter installation surface.
(b) Apply clean engine oil to the gasket of a new oil filter.
(c) Lightly screw the oil filter into place, and tighten it until the
gasket contacts the seat.
(d) Using SST, tighten it an additional 3/4 turn.
SST 09228±10002
4. ADD ENGINE OIL
(a) Clean and install the oil drain plug with a new gasket.
Torque: 34 Nm (350 kgfcm, 25 ftlbf)
Page 2458 of 5135
± LUBRICATIONOIL FILTER SUB±ASSY (1CD±FTV)
17±31
AVENSIS REPAIR MANUAL (RM1018E)
(b) Fill with fresh engine oil.
Capacity:
With the oil filter replacement: 5.9 liters (6.2 US qts, 5.2 lmp. qts)
Without the oil filter replacement: 5.3 liters (5.6 US qts, 4.7 lmp. qts)
Dry fill: 6.7 liters (7.1 US qts, 5.9 lmp. qts)
(c) Install the oil filler cap.
5. CHECK FOR ENGINE OIL LEAKS
Page 2459 of 5135
260DP±01
F44614
Front Shock Absorber with Coil Spring
Front Stabilizer Link Assy LH
47 (479, 35)
220 (2,240, 162)
74 (755, 55)
19 (194, 14)
Speed Sensor
Front LH
Front Flexible Hose
Front Suspension Support Dust Cover LH
Front Suspension Support Sub±assy LH
Front Suspension
Support LH Dust Seal
Front Coil Spring
Seat Upper LH
Front Axle Assy
Front Coil Spring Insulator Upper LH
Front Coil Spring LH
Nm (kgfcm, ftlbf) : Specified torque
Non±reusable part
Front Spring
Bumper LH
Front Coil
Spring Insulator
Lower LH
Shock Absorber
Assy Front LH
39 (398, 29)
26±2
± FRONT SUSPENSIONFRONT SUSPENSION
AVENSIS REPAIR MANUAL (RM1018E)
FRONT SUSPENSION
COMPONENTS
Page 2460 of 5135
F44615
Rack & Pinion Power
Steering Gear Assy
49 (500, 36)
Tie Rod End Sub±assy LH
Front Stabilizer Link Assy RH
Transverse Engine
Engine Mounting Insulator
Front Stabilizer Link Assy LH
Front Suspension
Crossmember Sub±assy
Front Suspension
Member Body Mounting
Stopper FR
133 (1,360, 98)
137 (1,400, 101)
Body Mounting Stopper Rear
52 (530, 38)
80 (816, 59)
74 (755, 55)
Front Suspension
Member Brace
Rear LH
80 (816, 59)
133 (1,360, 98)
Cotter Pin
49 (500, 36)
89 (908, 66)
Front Suspension Arm
Sub±assy Lower No.1 LH
80 (816, 59)
133 (1,360, 98)
80 (816, 59)
Front Suspension
Member Brace
Rear RH
133 (1,360, 98)
137 (1,400, 101)
Nm (kgfcm, ftlbf) : Specified torque
Nblt
Non±reusable part
Engine Mounting Member
Sub±assy Center
96 (979, 71)
± FRONT SUSPENSIONFRONT SUSPENSION
26±3
AVENSIS REPAIR MANUAL (RM1018E)
Page 2461 of 5135
F44616
89 (908, 66)
102 (1,040, 75)
220 (2,240, 162)
8 (82, 71 in.lbf)
49 (500, 36)
103 (1,050, 76)
216 (2,200, 159)
Front Shock Absorber with Coil Spring
Front Drive Shaft Assy LHSpeed Sensor Front LH
Cotter Pin
Front Disc
Tie Rod End
Sub±assy LH
Cotter Pin
Front Disc Brake
Caliper Assy LH
Front Suspension Arm
Sub±assy Lower No.1 LH
Lower Ball Joint Assy Front LH
Front Axle Assy LHFront Axle Hub LH Nut
Nm (kgfcm, ftlbf) : Specified torque
Non±reusable part
26±4
± FRONT SUSPENSIONFRONT SUSPENSION
AVENSIS REPAIR MANUAL (RM1018E)
Page 2462 of 5135

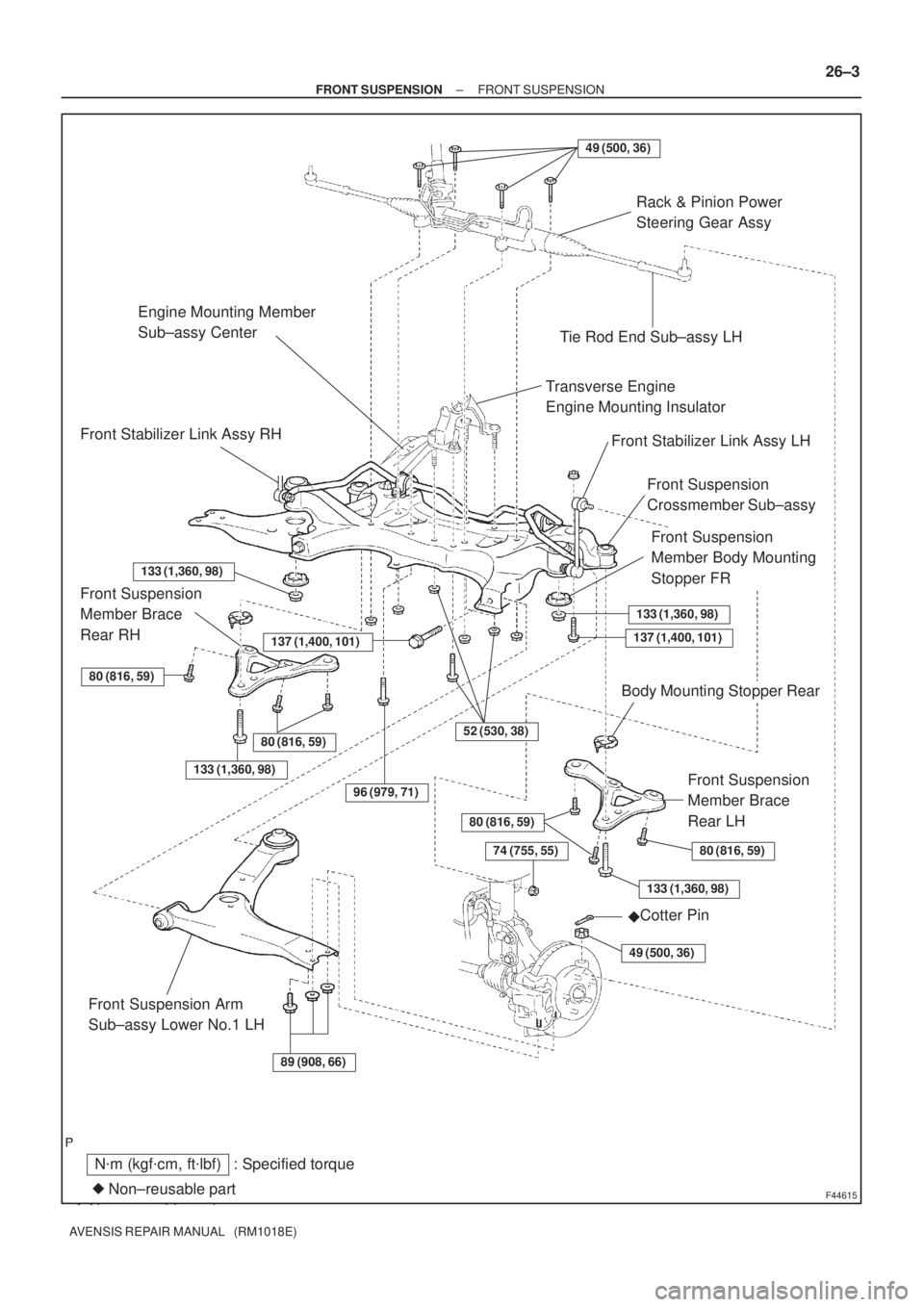

F45154
Rack & Pinion
Power Steering Gear Assy
Tie Rod End
Sub±assy LH
Front Stabilizer Link
Assy LH
Stabilizer Bar Front Front Stabilizer Link
Assy RH
Front Suspension Arm
Sub±assy Lower No.1 RH
Front Suspension
Member Brace
Rear RHFront Stabilizer
Bar Bush No.1
Front Suspension
Crossmember Sub±assy
Front Suspension
Arm Sub±assy
Lower No.1 LH
Body Mounting
Stopper Rear
Front Suspension
Member Body
Mounting Stopper FR
Front Suspension
Member Brace Rear LH
Cotter Pin
89 (908, 66)
133 (1,360, 98)
49 (500, 36)
74 (755, 55)
80 (816, 59)
133 (1,360, 98)
74 (755, 55)
49 (500, 36)
80 (816, 59)
19 (194, 14)
19 (194, 14)
133 (1,360, 98)
80 (816, 59)
133 (1,360, 98)
80 (816, 59)
19 (194, 14)
49 (500, 36)
74 (755, 55)
Nm (kgfcm, ftlbf) : Specified torque
Non±reusable part
5.4 (55, 48 in.lbf)w/ HID:
HID Height
Control Sensor
Front Stabilizer
Bracket No.1 RH
Front Stabilizer
Bracket No.1 LH
96 (979, 71)
80 (816, 59)
52 (530, 38)
± FRONT SUSPENSIONFRONT SUSPENSION
26±5
AVENSIS REPAIR MANUAL (RM1018E)
Page 2463 of 5135
2600K±06
±
FRONT SUSPENSION FRONT SUSPENSION SYSTEM
26±1
AVENSIS REPAIR MANUAL (RM1018E)
FRONT SUSPENSION SYSTEM
PROBLEM SYMPTOMS TABLE
Use the table below to help you find the cause of the problem. The numbers \
indicate the priority of
the likely cause of the problem. Check each part in order. If necessary, replace these parts.
SymptomSuspect AreaSee page
Wander/pulls
4. Tire (Worn or improperly inflated)
5. Wheel alignment (Incorrect)
6. Steering linkage (Loose or worn)
7. Hub bearing (Worn)
8. Steering gear (Out of adjustment or broken)
9. Suspension parts (Worn)28±1
26±6
±
30±2
51±28
51±36
±
Bottoming
1. Vehicle (Overloaded)
2. Spring (Weak)
3. Shock absorber (Worn)±
26±10
26±10
Sways/pitches
1. Tire (Worn or improperly inflated)
2. Stabilizer bar (Bent or broken)
3. Shock absorber (Worn)28±1
26±26
26±10
Front wheel shimmy
1. Tire (Worn or improperly inflated)
2. Wheel (Out of balance)
3. Shock absorber (Worn)
4. Wheel alignment (Incorrect)
5. Ball joint (Worn)
6. Hub bearing (Worn)
7. Steering linkage (Loose or worn)
8. Steering gear (Out of adjustment or broken)28±1
28±1
26±10 26±6
26±24
30±2 ±
51±28
51±36
Abnormal tire wear
1. Tire (Worn or improperly inflated)
2. Wheel alignment (Incorrect)
3. Shock absorber (Worn)
4. Suspension parts (Worn)28±1
26±6
26±10 ±
Page 2464 of 5135
190O2±01
A79177
± STARTING & CHARGINGGLOW PLUG ASSY (1CD±FTV)
19±33
AVENSIS REPAIR MANUAL (RM1018E)
GLOW PLUG ASSY (1CD±FTV)
REPLACEMENT
1. REMOVE ENGINE COVER NO.1
(a) Remove the 5 nuts and the engine cover.
2. REMOVE GLOW PLUG ASSY
(a) Remove the 5 grommets.
(b) Remove the 5 nuts and the glow plug connector.
(c) Remove the 4 glow plugs.
3. INSTALL GLOW PLUG ASSY
Torque:
12.3 Nm (125 kgfcm, 9 ftlbf) for glow plug
2.2 Nm (22 kgfcm, 19 in.lbf) for nut
4. INSTALL ENGINE COVER NO.1
Torque: 8.0 Nm (82 kgfcm, 71 in.lbf)
