Page 3209 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B58265
Up
Down
12 3
4 56
B58557
Up
Down
12 3
4 56
70±8

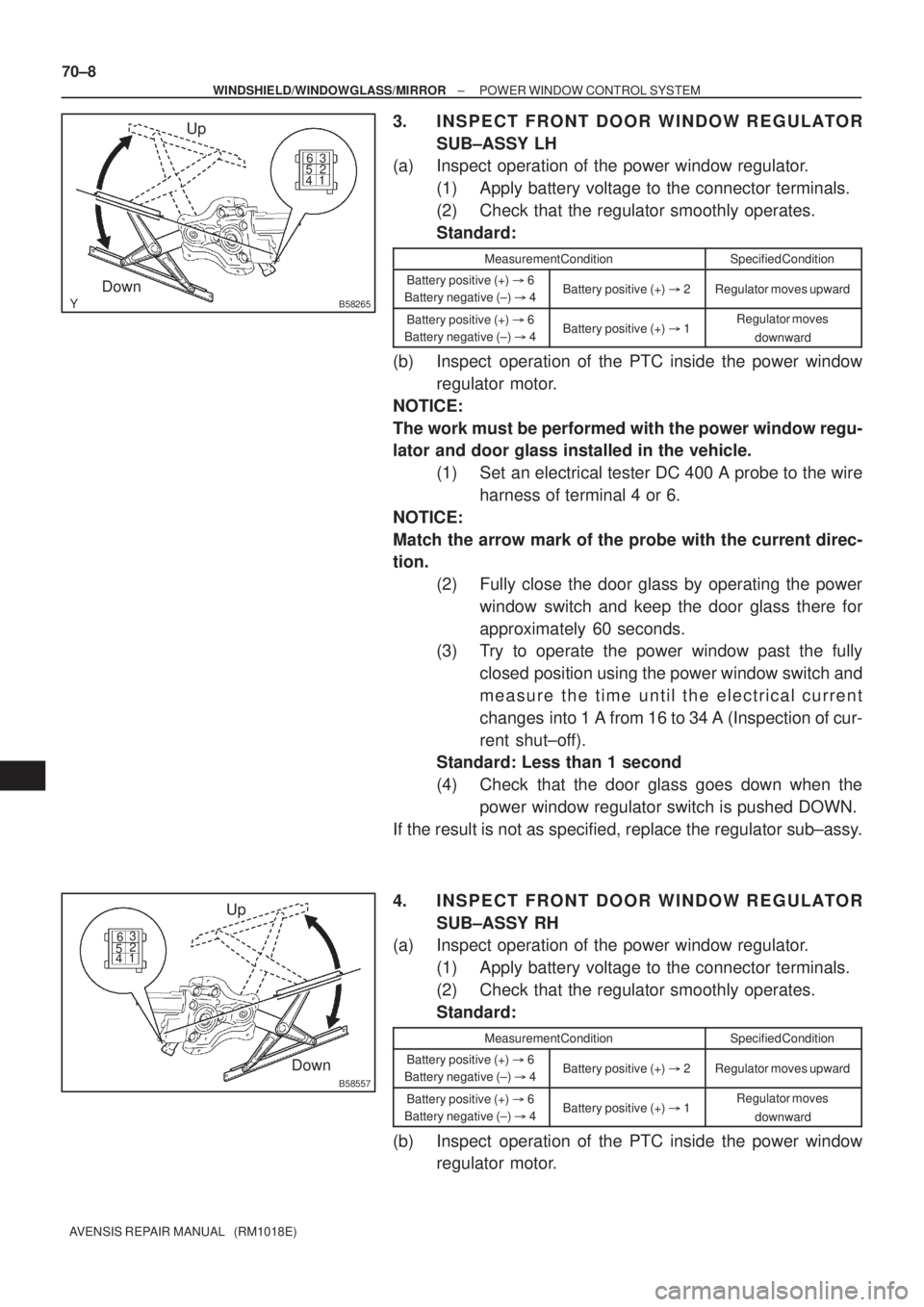

± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
3. INSPECT FRONT DOOR WINDOW REGULATOR
SUB±ASSY L

Page 3210 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B58266
12 3
456
Up
Down

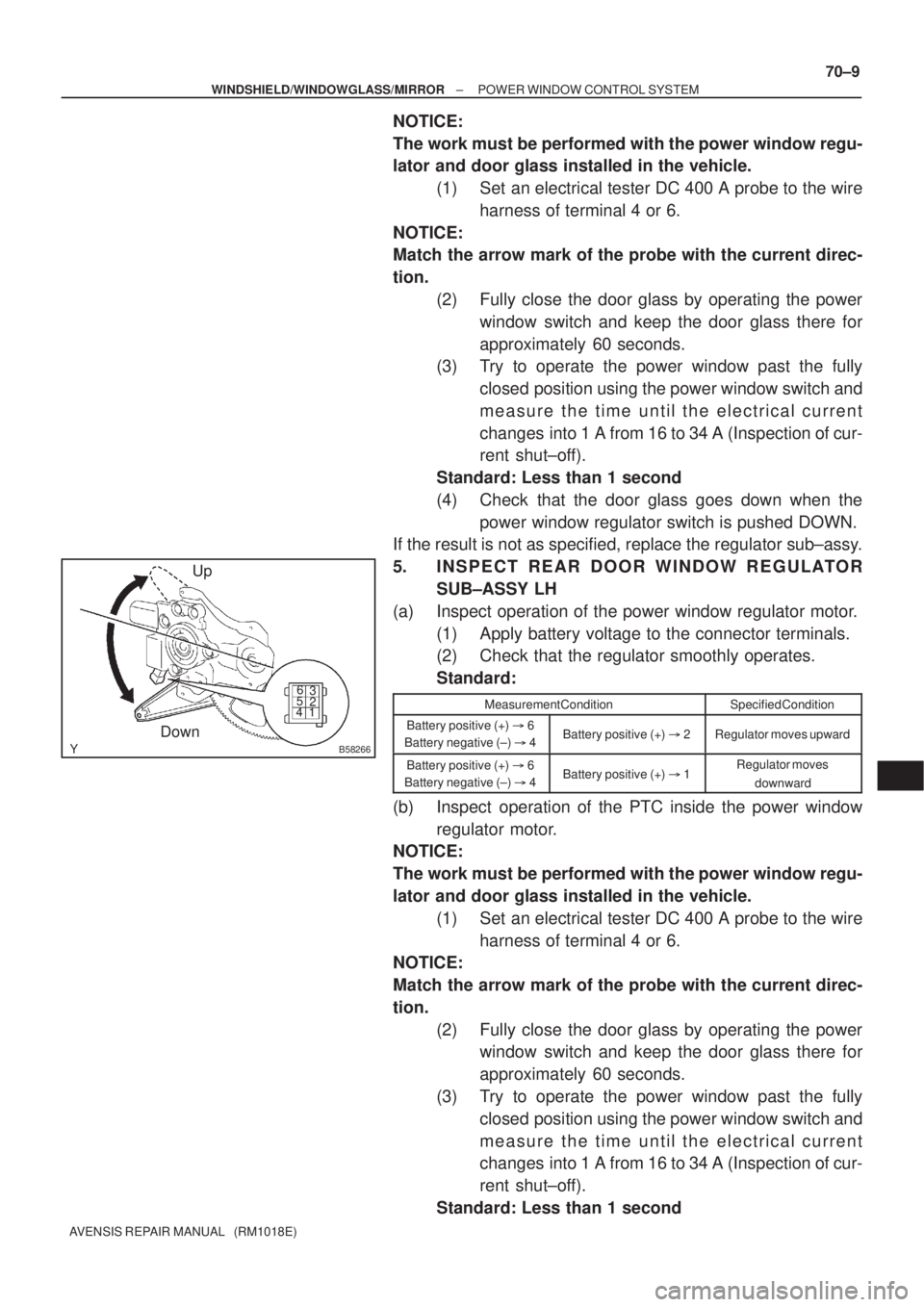

± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
70±9
AVENSIS REPAIR MANUAL (RM1018E)
NOTICE:
The work must be performed with the power window regu-
lator and doo

B58266
12 3
456
Up
Down
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
70±9
AVENSIS REPAIR MANUAL (RM1018E)
NOTICE:
The work must be performed with the power window regu-
lator and door glass installed in the vehicle.
(1) Set an electrical tester DC 400 A probe to the wire
harness of terminal 4 or 6.
NOTICE:
Match the arrow mark of the probe with the current direc-
tion.
(2) Fully close the door glass by operating the power
window switch and keep the door glass there for
approximately 60 seconds.
(3) Try to operate the power window past the fully
closed position using the power window switch and
measure the time until the electrical current
changes into 1 A from 16 to 34 A (Inspection of cur-
rent shut±off).
Standard: Less than 1 second
(4) Check that the door glass goes down when the
power window regulator switch is pushed DOWN.
If the result is not as specified, replace the regulator sub±assy.
5. INSPECT REAR DOOR WINDOW REGULATOR
SUB±ASSY LH
(a) Inspect operation of the power window regulator motor.
(1) Apply battery voltage to the connector terminals.
(2) Check that the regulator smoothly operates.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+) 6
Battery negative (±) 4Battery positive (+) 2Regulator moves upward
Battery positive (+) 6
Battery negative (±) 4Battery positive (+) 1Regulator moves
downward
(b) Inspect operation of the PTC inside the power window
regulator motor.
NOTICE:
The work must be performed with the power window regu-
lator and door glass installed in the vehicle.
(1) Set an electrical tester DC 400 A probe to the wire
harness of terminal 4 or 6.
NOTICE:
Match the arrow mark of the probe with the current direc-
tion.
(2) Fully close the door glass by operating the power
window switch and keep the door glass there for
approximately 60 seconds.
(3) Try to operate the power window past the fully
closed position using the power window switch and
measure the time until the electrical current
changes into 1 A from 16 to 34 A (Inspection of cur-
rent shut±off).
Standard: Less than 1 second

Page 3211 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B58558
Up
Down
12 3
456
B690245
21
35
3
2 1

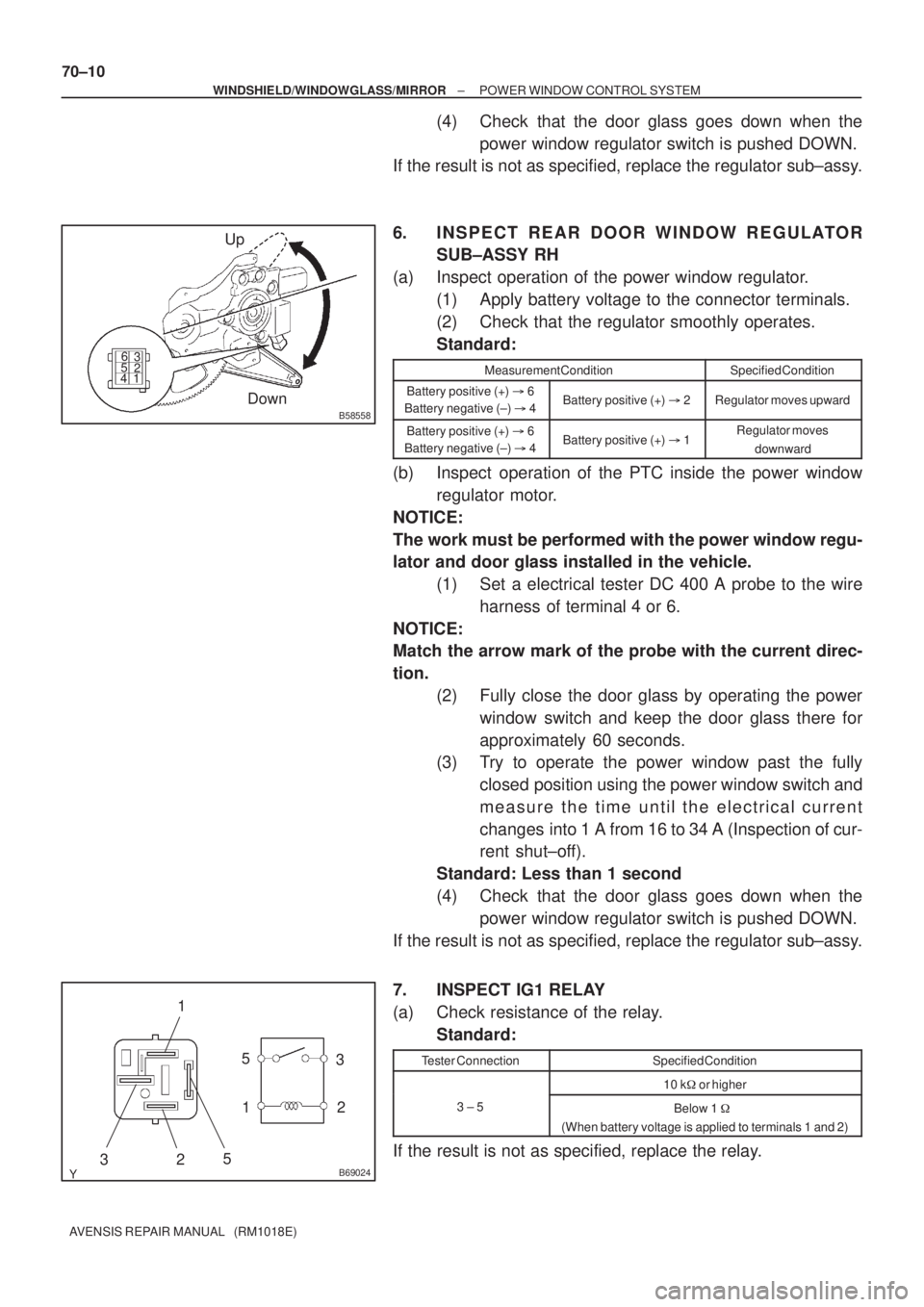

70±10
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
(4) Check that the door glass goes down when the
power

Page 3212 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B66773
DADBDN
Vehicle Front Side Vehicle Rear Side
DB
DA
DHDC
DN
DC
DH
Integration Relay
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
70±11
AVENSIS REPAIR MANUAL (RM1018E)
8. INSPECT

Page 3213 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual
B58556
Front Door
Courtesy Lamp
Switch
Pushed Free
Body Ground

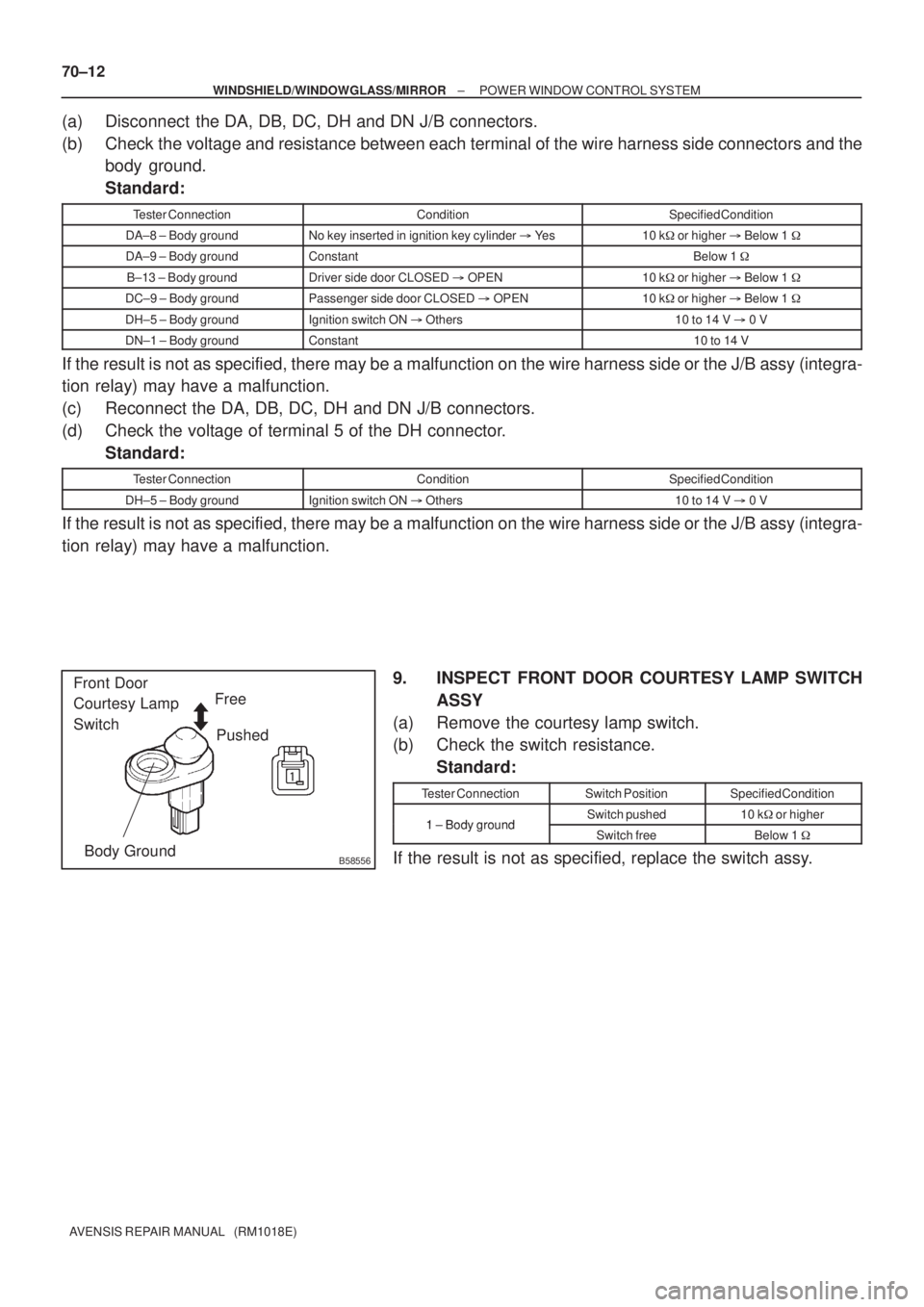

70±12
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
(a) Disconnect the DA, DB, DC, D

Page 3214 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 700S9±01
±
WINDSHIELD/WINDOWGLASS/MIRROR POWER WINDOW CONTROL SYSTEM
70±5
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
All power windows do not operate
1.

Page 3215 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 700S8±01
B67299
Instrument Panel J/B Assy
Integration Relay
IG1 Relay
Instrument Panel J/B Assy
Integration Relay
IG1 Relay
LHD Models
RHD Models
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW

Page 3216 of 5135

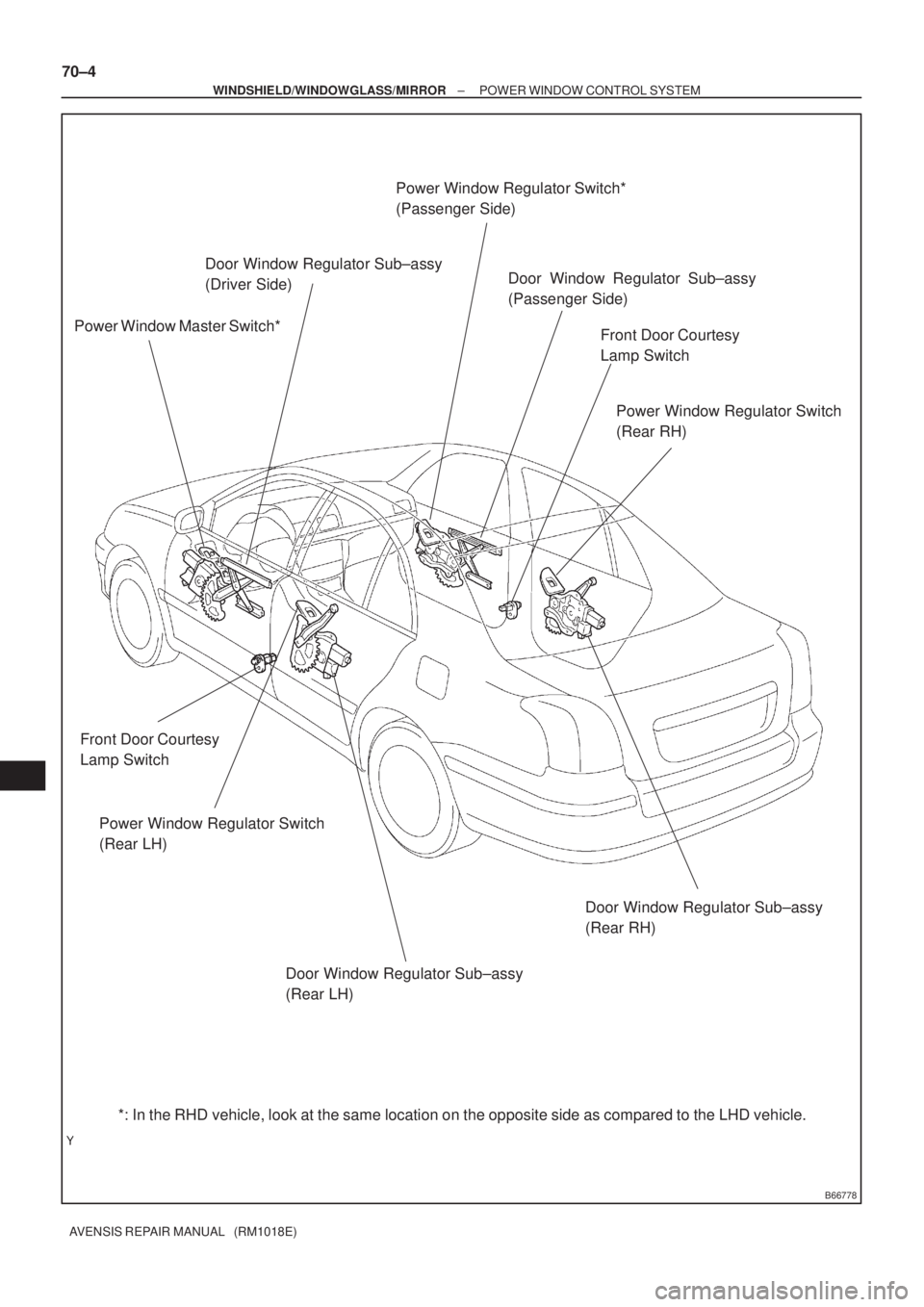

TOYOTA AVENSIS 2005 Service Repair Manual B66778
Door Window Regulator Sub±assy
(Passenger Side) Power Window Regulator Switch*
(Passenger Side)
Door Window Regulator Sub±assy
(Driver Side)
Door Window Regulator Sub±assy
(Rear RH)
Door Wi
