AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
Using the Intelligent Tester II Data List allows switch, sensor, actuator and other item values to be read with-
out removing any parts. Reading the Data List early in troubleshooting is one way to shorten labor time.
NOTICE:
In the table below, the values listed under ”Normal Condition” are reference values. Do not depend
solely on these reference values when deciding whether a part is faulty or not.
(a) Warm up the engine.
(b) Turn the ignition switch off.
(c) Connect the Intelligent Tester II to the DLC3.
(d) Turn the ignition switch to the ON position.
(e) Turn on the tester.
(f) Select the item ”Enter / Power train / Engine and ECT / Data List”.
(g) Follow the instructions on the tester and read the Data List.
ItemMeasurement Item/
Range (display)Normal Condition
A/T Oil Temperature 1
ATF Temp. Sensor Value/
min.: –40C (–40F)
max.: 215C (419F)After Stall Test;
Approx. 80C (176F)
Equal to ambient temperature when cold soak
HINT:
When DTC P0712 is output and Intelligent Tester II output is 150C (302F) or more, there is a short circuit.
When DTC P0713 is output and Intelligent Tester II output is –40C (–40F), there is an open circuit.
Measure the resistance between terminal THO (OT) and body ground.
Temperature DisplayedMalfunction
–40C (–40F)Open circuit
150 (302 Short circuit
HINT:
If a circuit related to the ATF temperature sensor becomes open, P0713 is immediately set (in 0.5 second).
When P0713 is set, P0711 cannot be detected.
It is not necessary to inspect the circuit when P0711 is set.
Page 5050 of 5135
![TOYOTA AVENSIS 2005 Service Repair Manual C54864
OTE2
Transmission Wire Side:
(Connector Front View):
E1
G33706THO
E2
ECM: E13
E12E10E9
05–254–
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)
AV TOYOTA AVENSIS 2005 Service Repair Manual C54864
OTE2
Transmission Wire Side:
(Connector Front View):
E1
G33706THO
E2
ECM: E13
E12E10E9
05–254–
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)
AV](/manual-img/14/57441/w960_57441-5049.png)
C54864
OTE2
Transmission Wire Side:
(Connector Front View):
E1
G33706THO
E2
ECM: E13
E12E10E9
05–254–
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
1 INSPECT TRANSMISSION WIRE(ATF TEMPERATURE SENSOR)
(a) Disconnect the transmission wire connector from the transaxle.
(b) Measure the resistance according to the value(s) in the table below.
Standard:
Tester ConnectionSpecified Condition
1 (OT) – 6 (E2)79 Ω to 156 k Ω
(c) Measure the resistance according to the value(s) in the
table below.
Standard (Check for short):
Tester ConnectionSpecified Condition
1 (OT) – Body ground10 kΩ or higher
6 (E2) – Body ground↑
NG REPAIR OR REPLACE TRANSMISSION WIRE
(See Pub. No. RM1018E, page 40–51)
OK
2 CHECK HARNESS AND CONNECTOR(TRANSMISSION WIRE – ECM)
(a) Connect the transmission wire connector to the transaxle.
(b) Disconnect the ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard:
Tester ConnectionSpecified Condition
E12 – 32 (THO) – E13 – 28 (E2)79 Ω to 156 k Ω
(d) Measure the resistance according to the value(s) in the
table below.
Standard (Check for short):
Tester ConnectionSpecified Condition
E12 – 32 (THO) – Body ground10 kΩ or higher
E13 – 28 (E2) – Body ground↑
NG REPAIR OR REPLACE HARNESS OR
CONNEC TOR ( SEE PAGE 01–32 )
OK
REPLACE ECM
Page 5051 of 5135

141UL–01
A93669
A60622
14–32–
ENGINE MECHANICAL CYLINDER HEAD GASKET (1ZZ–FE/3ZZ–FE)(From
February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
REPLACEMENT
1. DISCHARGE FUEL SYSTEM PRESSURE (See Pub. No. RM1018E on page 11–1)
2. REMOVE RADIATOR SUPPORT OPENING COVER (See page 14–9)
3. REMOVE ENGINE ROOM COVER SIDE (See page 14–9)
4. REMOVE FRONT WHEEL RH
5. REMOVE ENGINE UNDER COVER SUB–ASSY NO.1 (See page 14–9)
6. REMOVE ENGINE UNDER COVER RH (See page 14–9)
7. DRAIN ENGINE COOLANT (See page 16–5)
8. REMOVE CYLINDER HEAD COVER NO.2
(a) Remove the 2 nuts and 2 clips, then detach cylinder headcover No.2.
9. REMOVE AIR CLEANER HOSE NO.1
(a) Disconnect the VSV connector.
(b) Disconnect fuel vapor feed No. 1 hose from the VSV.
(c) Disconnect the fuel vapor feed hose from the VSV.
(d) Disconnect the ventilation hose from air cleaner hose No. 1.
(e) Loosen the 2 air cleaner hose clamp bolts, then remove the air cleaner h\
ose.
10. DISCONNECT WATER BY–PASS HOSE
(a) Disconnect the water by–pass hose from the throttle body.
11. DISCONNECT WATER BY–PASS HOSE NO.2
(a) Disconnect water by–pass hose No. 2 from the throttle body.
12. REMOVE EFI FUEL PIPE CLAMP (See Pub. No. RM1018E on page 11–11)
13. DISCONNECT FUEL TUBE SUB–ASSY (See Pub. No. RM1018E on page 11–11)
14. DISCONNECT UNION TO CONNECTOR TUBE HOSE
(a) Disconnect the union to connector tube hose from the hose to hose tube.
15. DISCONNECT RADIATOR HOSE INLET
(a) Disconnect the radiator hose inlet from the cylinder head.
16. DISCONNECT HEATER INLET WATER HOSE
(a) Disconnect the heater inlet water hose from the cylinder head. 17. REMOVE FAN AND GENERATOR V BELT
(a) Turn the V–ribbed belt tensioner clockwise slowly andloosen it. Remove the fan and generator V belt, then put
back the V–ribbed belt tensioner carefully.
Page 5052 of 5135
A96566
A76713
(c)(c)
A64023
A65078
A64058
– ENGINE MECHANICALCYLINDER HEAD GASKET (1ZZ–FE/3ZZ–FE)(From
February, 2004)14–33
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)

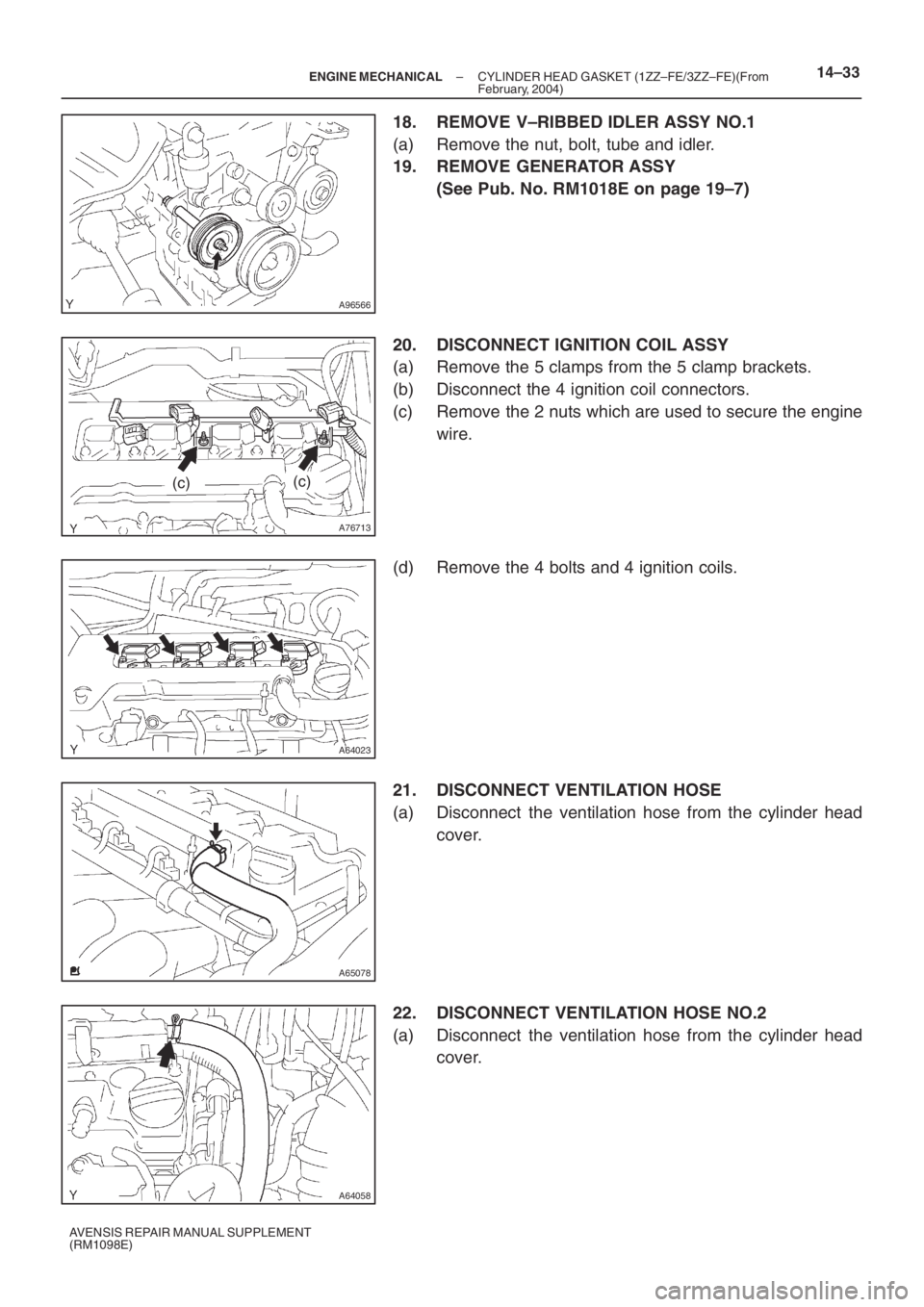

18. REMOVE V–RIBBED IDLER ASSY NO.1
