± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E)
40±67
U241E A/T REPAIR MANUAL (RM840U)

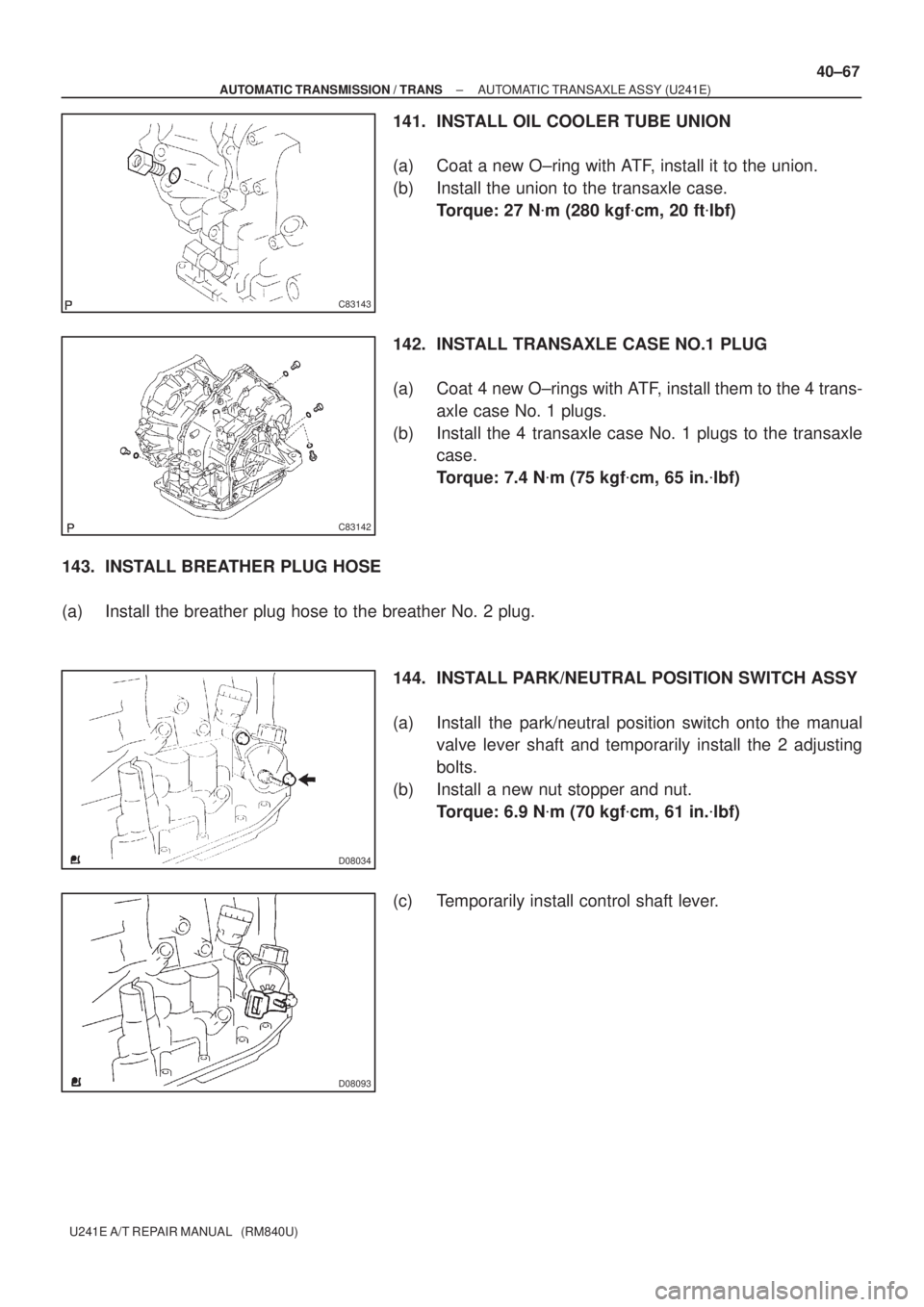

141. INSTALL OIL COOLER TUBE UNION
(a) Coat a new O±ring with ATF, install it to the union.
(b) Install the union to the transaxle case.
Torque: 27 Nm (280 kgfcm, 20 ftlbf)
142. INSTALL TRANSAXLE CASE NO.1 PLUG
(a) Coat 4 new O±rings with ATF, install them to the 4 trans-
axle case No. 1 plugs.
(b) Install the 4 transaxle case No. 1 plugs to the transaxle
case.
Torque: 7.4 Nm (75 kgfcm, 65 in.lbf)
143. INSTALL BREATHER PLUG HOSE
(a) Install the breather plug hose to the breather No. 2 plug.
144. INSTALL PARK/NEUTRAL POSITION SWITCH ASSY
(a) Install the park/neutral position switch onto the manual
valve lever shaft and temporarily install the 2 adjusting
bolts.
(b) Install a new nut stopper and nut.
Torque: 6.9 Nm (70 kgfcm, 61 in.lbf)
(c) Temporarily install control shaft lever.
Page 3690 of 5135
D08094
D09642
D08033
D08032
40±68
± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E)
U241E A/T REPAIR MANUAL (RM840U)

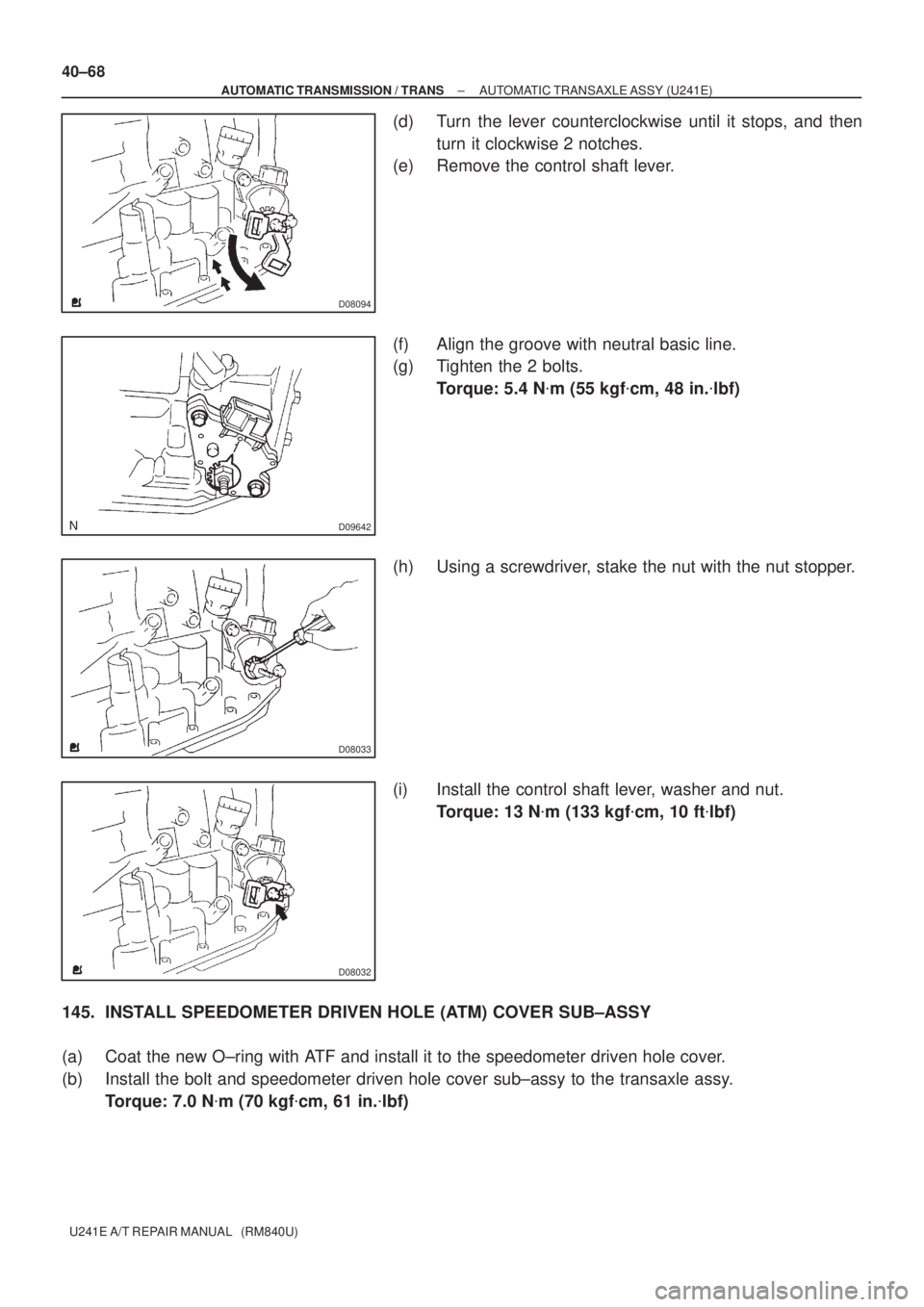

(d) Turn the lever counterclockwise until it stops, and then
turn it clockwise 2 notches.
(e) Remove the control shaft lever.
(f) Align the groove with neutral basic line.
(g) Tighten the 2 bolts.
Torque: 5.4 Nm (55 kgfcm, 48 in.lbf)
(h) Using a screwdriver, stake the nut with the nut stopper.
(i) Install the control shaft lever, washer and nut.
Torque: 13 Nm (133 kgfcm, 10 ftlbf)
145. INSTALL SPEEDOMETER DRIVEN HOLE (ATM) COVER SUB±ASSY
(a) Coat the new O±ring with ATF and install it to the speedometer driven hole cover.
(b) Install the bolt and speedometer driven hole cover sub±assy to the transaxle assy.
Torque: 7.0 Nm (70 kgfcm, 61 in.lbf)
Page 3691 of 5135
980WW±01
± COMPONENTS522410
98±13
U241E A/T REPAIR MANUAL (RM840U)
8202/WIRING & CLAMP
(0011± ) ENGINE ROOM ILLUST NO. 1 OF 9
Page 3692 of 5135
98±14
± COMPONENTS522410
U241E A/T REPAIR MANUAL (RM840U)
8202/WIRING & CLAMP

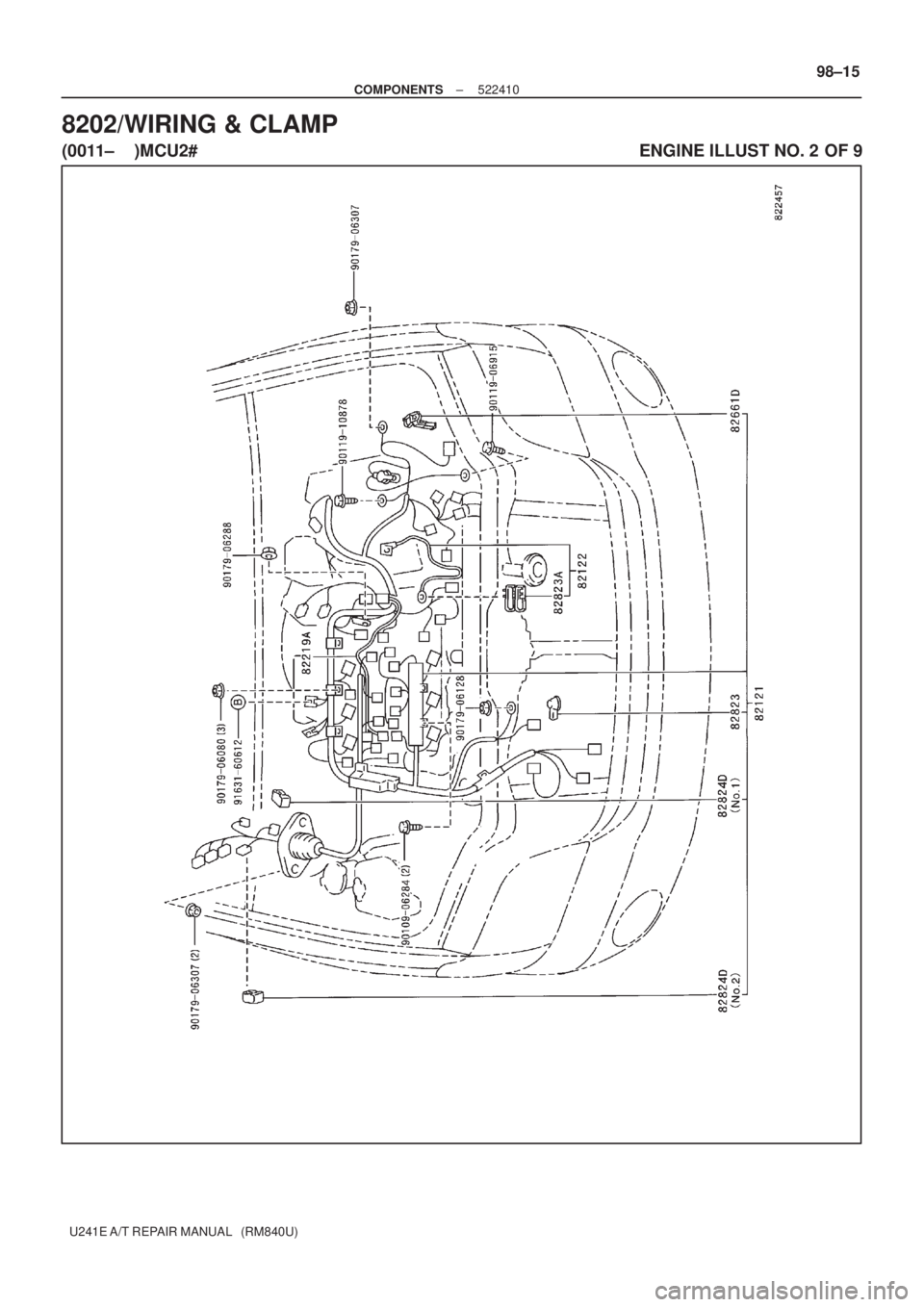

(0011± )ACU2# ENGINE ILLUST NO. 2 OF 9
Page 3693 of 5135
± COMPONENTS522410
98±15
U241E A/T REPAIR MANUAL (RM840U)
8202/WIRING & CLAMP
(0011± )MCU2# ENGINE ILLUST NO. 2 OF 9
Page 3694 of 5135
98±16
± COMPONENTS522410
U241E A/T REPAIR MANUAL (RM840U)
8202/WIRING & CLAMP

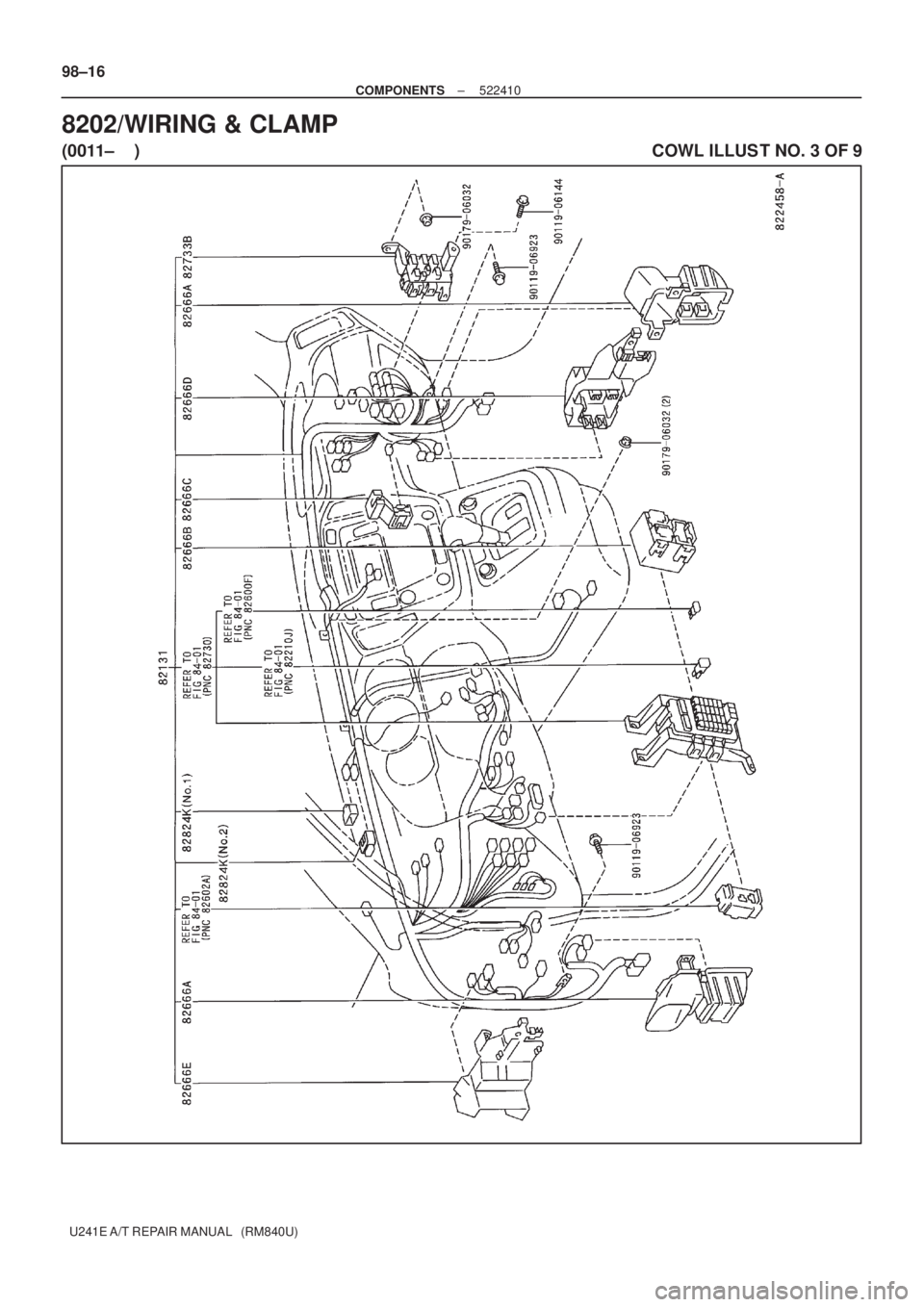

(0011± ) COWL ILLUST NO. 3 OF 9
Page 3695 of 5135
± COMPONENTS522410
98±17
U241E A/T REPAIR MANUAL (RM840U)
8202/WIRING & CLAMP

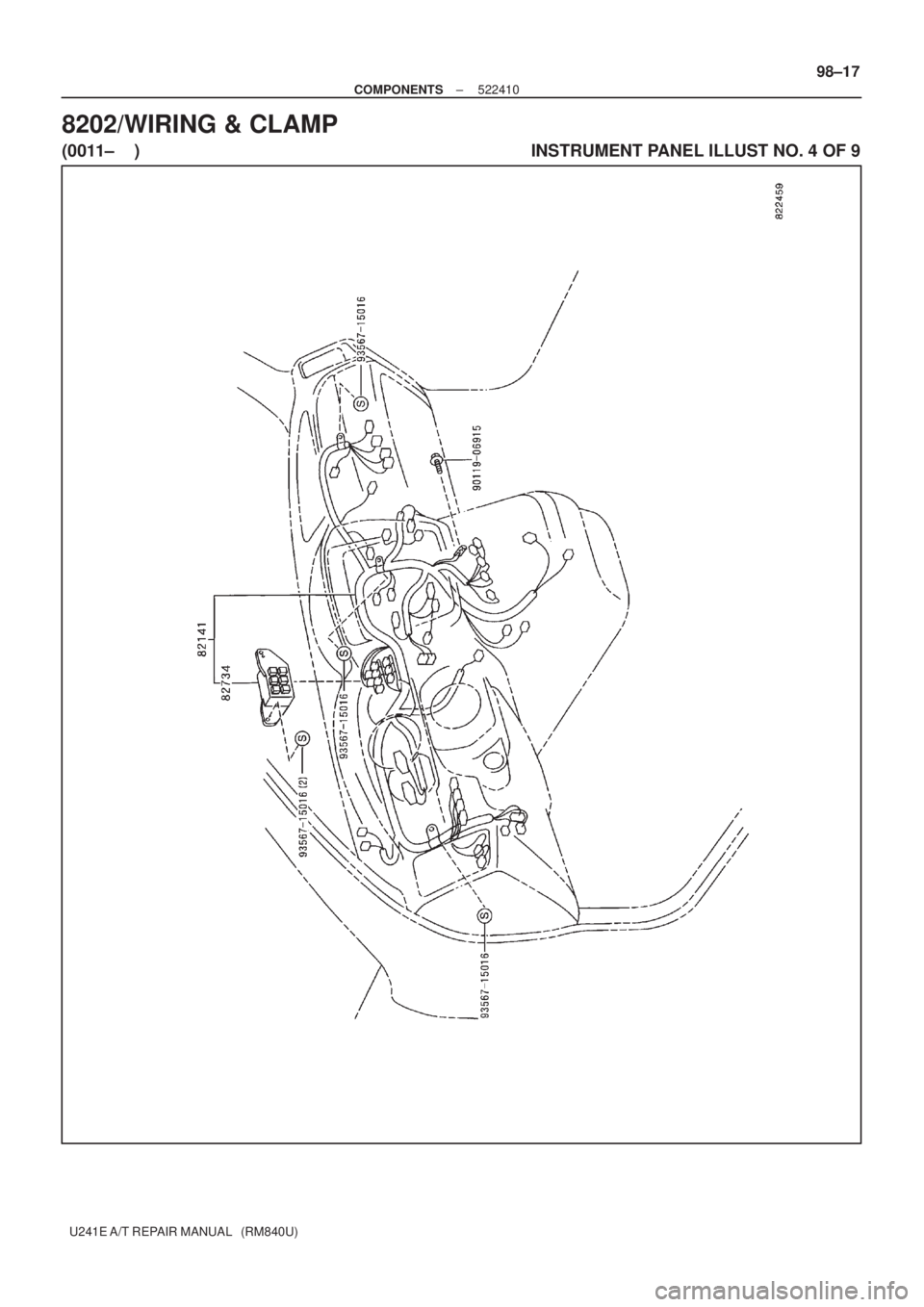

(0011± ) INSTRUMENT PANEL ILLUST NO. 4 OF 9
Page 3696 of 5135
98±18
± COMPONENTS522410
U241E A/T REPAIR MANUAL (RM840U)
8202/WIRING & CLAMP

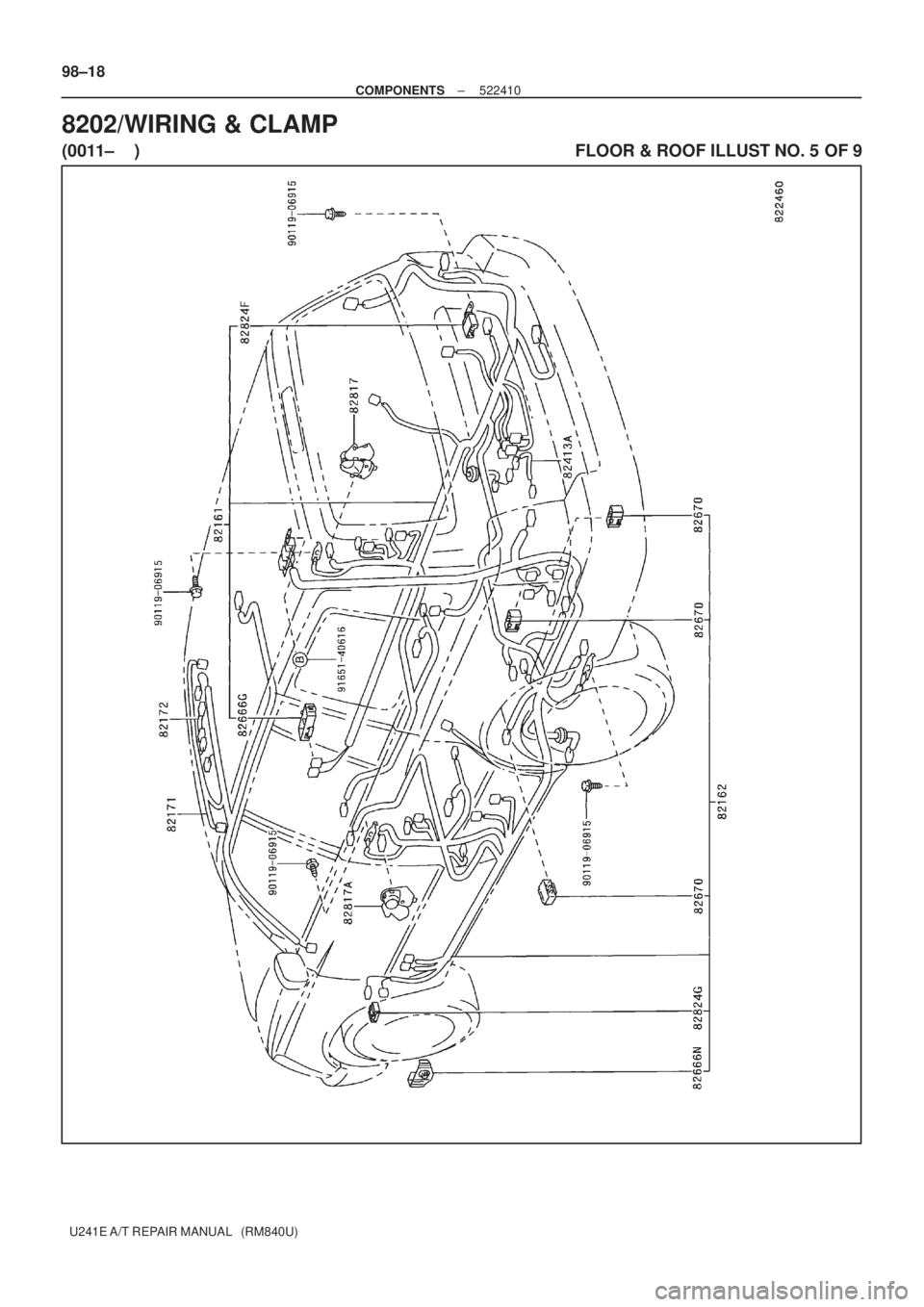

(0011± ) FLOOR & ROOF ILLUST NO. 5 OF 9
