SUPPLEMENTAL RESTRAINT SYSTEM SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

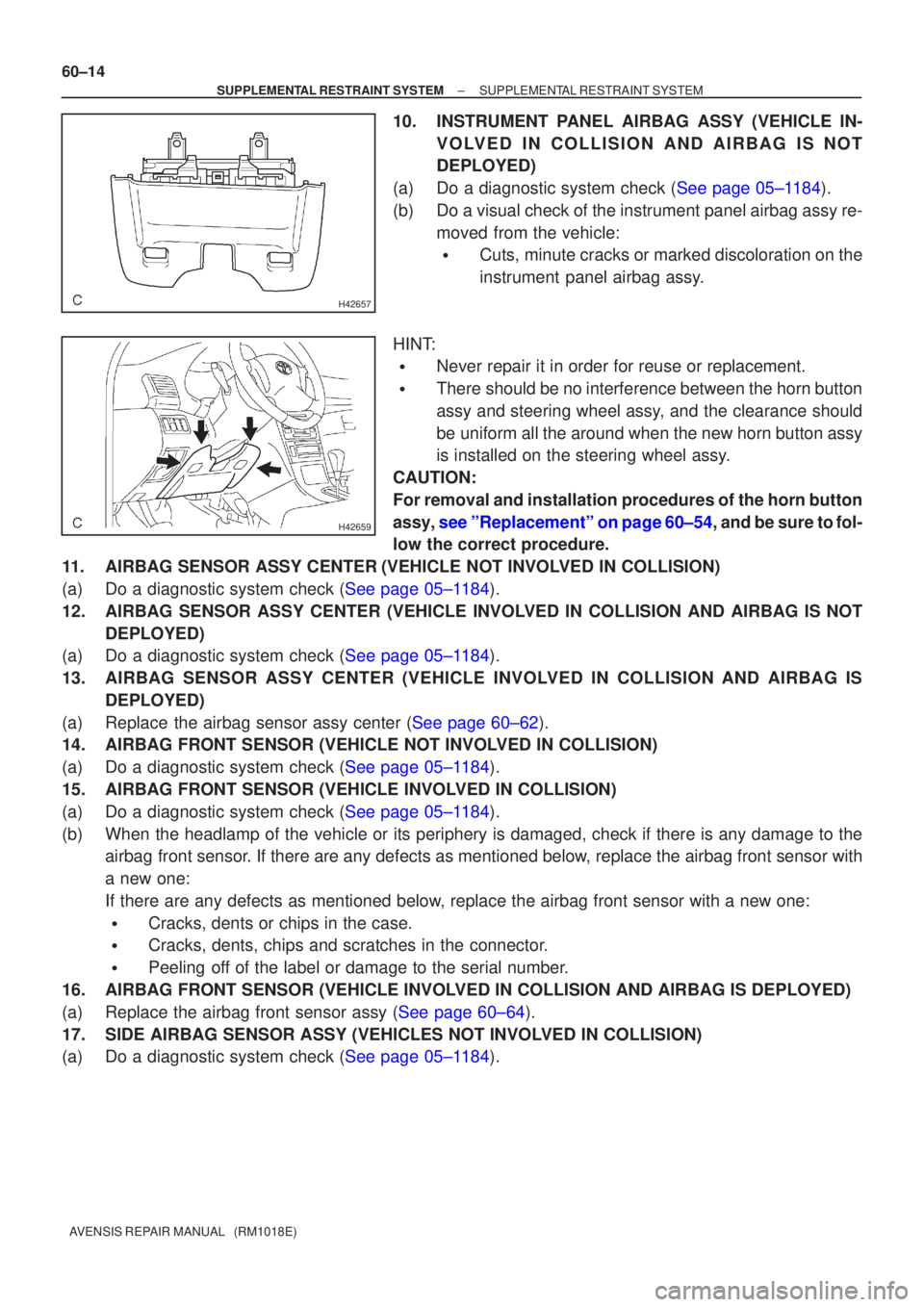

10. INSTRUMENT PANEL AIRBAG ASSY (VEHICLE IN- VOLVED IN COLLISION AND AIRBAG IS NOT
DEPLOYED)
(a)Do a diagnostic system check (See page 05±1184).
(b) Do a visual check of the instrument panel airbag assy re- moved from the vehicle:
Cuts, minute cracks or marked discoloration on the
instrument panel airbag assy.
HINT:
Never repair it in order for reuse or replacement.
There should be no interference between the horn button
assy and steering wheel assy, and the clearance should
be uniform all the around when the new horn button assy
is installed on the steering wheel assy.
CAUTION:
For removal and installation procedures of the horn button
assy, see ºReplacementº on page 60±54, and be sure to fol-
low the correct procedure.
11. AIRBAG SENSOR ASSY CENTER (VEHICLE NOT INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
12. AIRBAG SENSOR ASSY CENTER (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED)
(a)Do a diagnostic system check (See page 05±1184).
13. AIRBAG SENSOR ASSY CENTER (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS
DEPLOYED)
(a)Replace the airbag sensor assy center (See page 60±62).
14. AIRBAG FRONT SENSOR (VEHICLE NOT INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
15. AIRBAG FRONT SENSOR (VEHICLE INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
(b) When the headlamp of the vehicle or its periphery is damaged, check if t\
here is any damage to the airbag front sensor. If there are any defects as mentioned below, replace the airbag front sensor with
a new one:
If there are any defects as mentioned below, replace the airbag front sensor with a new one:
Cracks, dents or chips in the case.
Cracks, dents, chips and scratches in the connector.
Peeling off of the label or damage to the serial number.
16. AIRBAG FRONT SENSOR (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS DEPLOYED)
(a)Replace the airbag front sensor assy (See page 60±64).
17. SIDE AIRBAG SENSOR ASSY (VEHICLES NOT INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
Page 2986 of 5135
±
SUPPLEMENTAL RESTRAINT SYSTEM SUPPLEMENTAL RESTRAINT SYSTEM
60±15
AVENSIS REPAIR MANUAL (RM1018E)

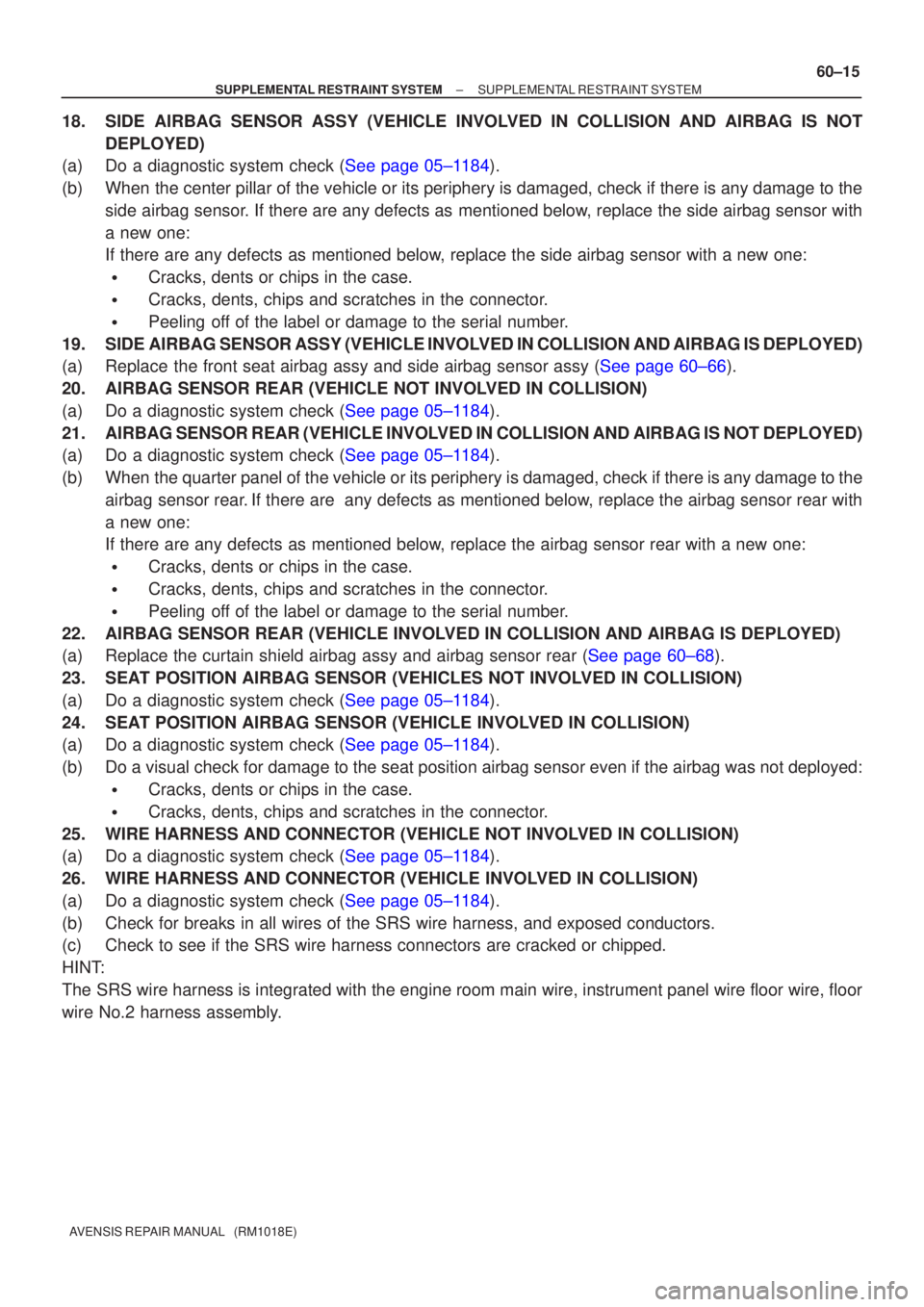

18. SIDE AIRBAG SENSOR ASSY (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT
DEPLOYED)
(a)Do a diagnostic system check (See page 05±1184).
(b) When the center pillar of the vehicle or its periphery is damaged, check if \
there is any damage to the
side airbag sensor. If there are any defects as mentioned below, replace the side airbag sensor with
a new one:
If there are any defects as mentioned below, replace the side airbag sensor with a new one:
Cracks, dents or chips in the case.
Cracks, dents, chips and scratches in the connector.
Peeling off of the label or damage to the serial number.
19. SIDE AIRBAG SENSOR ASSY (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS DEPLOYED)
(a)Replace the front seat airbag assy and side airbag sensor assy (See page 60±66).
20. AIRBAG SENSOR REAR (VEHICLE NOT INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
21. AIRBAG SENSOR REAR (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED)
(a)Do a diagnostic system check (See page 05±1184).
(b) When the quarter panel of the vehicle or its periphery is damaged, check if \
there is any damage to the airbag sensor rear. If there are any defects as mentioned below, replace the airbag sensor rear with
a new one:
If there are any defects as mentioned below, replace the airbag sensor rear with a new one:
Cracks, dents or chips in the case.
Cracks, dents, chips and scratches in the connector.
Peeling off of the label or damage to the serial number.
22. AIRBAG SENSOR REAR (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS DEPLOYED)
(a)Replace the curtain shield airbag assy and airbag sensor rear (See page 60±68).
23. SEAT POSITION AIRBAG SENSOR (VEHICLES NOT INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
24. SEAT POSITION AIRBAG SENSOR (VEHICLE INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
(b) Do a visual check for damage to the seat position airbag sensor even if th\
e airbag was not deployed:
Cracks, dents or chips in the case.
Cracks, dents, chips and scratches in the connector.
25. WIRE HARNESS AND CONNECTOR (VEHICLE NOT INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
26. WIRE HARNESS AND CONNECTOR (VEHICLE INVOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
(b) Check for breaks in all wires of the SRS wire harness, and exposed condu\
ctors.
(c) Check to see if the SRS wire harness connectors are cracked or chipped.
HINT:
The SRS wire harness is integrated with the engine room main wire, instrume\
nt panel wire floor wire, floor
wire No.2 harness assembly.
Page 2987 of 5135
600JU±01
±
SUPPLEMENTAL RESTRAINT SYSTEM SUPPLEMENTAL RESTRAINT SYSTEM
60±1
AVENSIS REPAIR MANUAL (RM1018E)

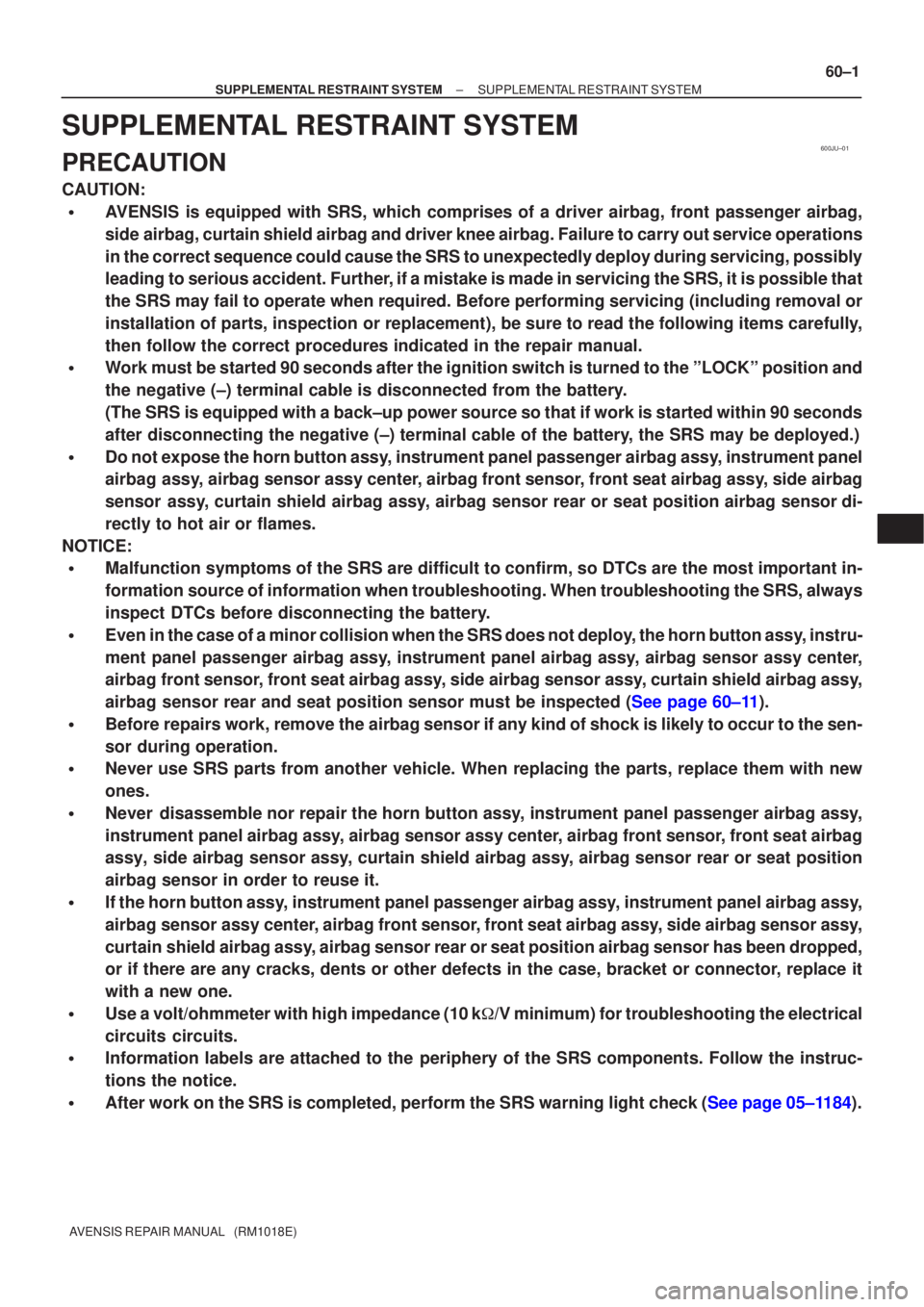

SUPPLEMENTAL RESTRAINT SYSTEM
PRECAUTION
CAUTION:
AVENSIS is equipped with SRS, which comprises of a driver airbag, front passeng\
er airbag,
side airbag, curtain shield airbag and driver knee airbag. Failure to carry \
out service operations
in the correct sequence could cause the SRS to unexpectedly deploy during \
servicing, possibly
leading to serious accident. Further, if a mistake is made in servicing the SRS, it is possible that
the SRS may fail to operate when required. Before performing servicing (in\
cluding removal or
installation of parts, inspection or replacement), be sure to read the \
following items carefully,
then follow the correct procedures indicated in the repair manual.
Work must be started 90 seconds after the ignition switch is turned to the º\
LOCKº position and
the negative (±) terminal cable is disconnected from the battery.
(The SRS is equipped with a back±up power source so that if work is started wi\
thin 90 seconds
after disconnecting the negative (±) terminal cable of the battery, the SRS may be deployed.)
Do not expose the horn button assy, instrument panel passenger airbag assy, instrument panel
airbag assy, airbag sensor assy center, airbag front sensor, front seat airbag assy, side airbag
sensor assy, curtain shield airbag assy, airbag sensor rear or seat position airbag sensor di-
rectly to hot air or flames.
NOTICE:
Malfunction symptoms of the SRS are difficult to confirm, so DTCs are th\
e most important in-
formation source of information when troubleshooting. When troubleshooting the SRS, always
inspect DTCs before disconnecting the battery.
Even in the case of a minor collision when the SRS does not deploy, the horn button assy, instru-
ment panel passenger airbag assy, instrument panel airbag assy, airbag sensor assy center,
airbag front sensor, front seat airbag assy, side airbag sensor assy, curtain shield airbag assy,
airbag sensor rear and seat position sensor must be inspected (See page 60±11).
Before repairs work, remove the airbag sensor if any kind of shock is likely to occur to the sen-
sor during operation.
Never use SRS parts from another vehicle. When replacing the parts, repl\
ace them with new
ones.
Never disassemble nor repair the horn button assy, instrument panel passenger airbag assy,
instrument panel airbag assy, airbag sensor assy center, airbag front sensor, front seat airbag
assy, side airbag sensor assy, curtain shield airbag assy, airbag sensor rear or seat position
airbag sensor in order to reuse it.
If the horn button assy, instrument panel passenger airbag assy, instrument panel airbag assy,
airbag sensor assy center, airbag front sensor, front seat airbag assy, side airbag sensor assy,
curtain shield airbag assy, airbag sensor rear or seat position airbag sensor has been dropped,
or if there are any cracks, dents or other defects in the case, bracket \
or connector, replace it
with a new one.
Use a volt/ohmmeter with high impedance (10 k /V minimum) for troubleshooting the electrical
circuits circuits.
Information labels are attached to the periphery of the SRS components. Follow the instruc-
tions the notice.
After work on the SRS is completed, perform the SRS warning light check \
(See page 05±1184).
Page 2988 of 5135
60±2
± SUPPLEMENTAL RESTRAINT SYSTEMSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

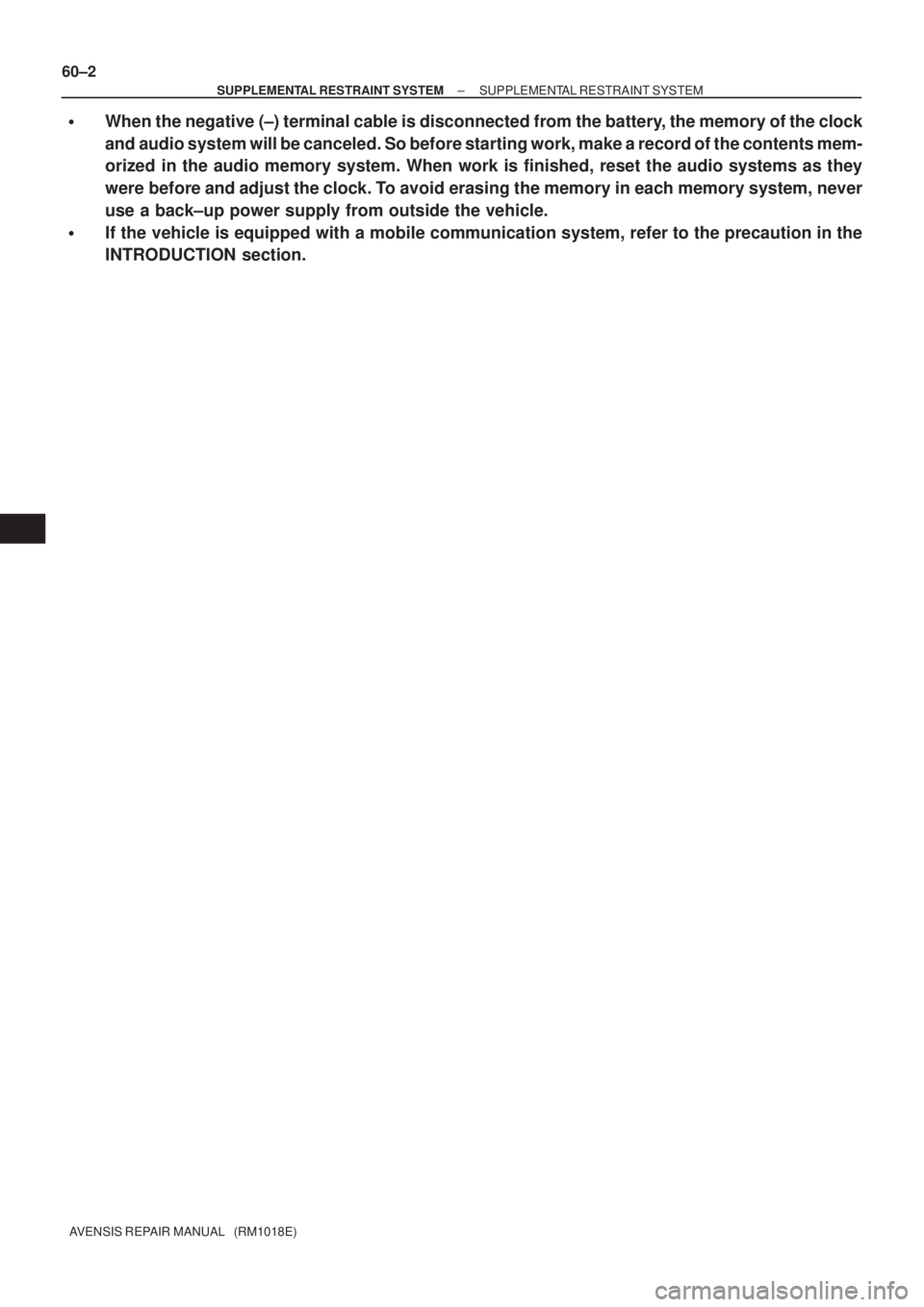

When the negative (±) terminal cable is disconnected from the battery, the memory of the clock
and audio system will be canceled. So before starting work, make a record of the contents mem-
orized in the audio memory system. When work is finished, reset the audio systems as they
were before and adjust the clock. To avoid erasing the memory in each memory system, never
use a back±up power supply from outside the vehicle.
If the vehicle is equipped with a mobile communication system, refer to the precaution in the
INTRODUCTION section.
Page 2989 of 5135
H42671
Side Airbag
Sensor Assy RH
Airbag Front
RH Sensor
Airbag Sensor
Assy Center
Airbag Sensor
Front LH
Side Airbag
Sensor Assy LH
Airbag Sensor
Rear LH (*1)
Seat Position
Airbag Sensor
(*2)Horn Button Assy
(Squib) Instrument Panel
Passenger Airbag
Assy (Squib)Front Seat Outer
Belt Assy RH
(Squib)
Front Seat
Airbag Assy RH
(Squib)
Front Seat
Airbag Assy
LH (Squib)
Curtain Shield
Airbag Assy LH
(Squib) (*1) Airbag Sensor
Rear RH (*1)Curtain Shield
Airbag Assy RH
(Squib) (*1)
Front Seat Outer
Belt Assy LH
(Squib) Seat Position
Airbag Sensor
(*3)
Instrument Panel
Airbag Assy (Squib)
Spiral Cable
Sub±assy 7
15 8
16
513
614 3 11
412
19
210
23
24 2129
2230
1927
2028
17 25
1826
34 5
6
78
11
12 9
1025
26
27
28
29
30
*1: w/ Curtain Shield Airbag
*2: LHD
*3: RHD
*4: Knee Airbag
± SUPPLEMENTAL RESTRAINT SYSTEMSUPPLEMENTAL RESTRAINT SYSTEM
60±3
AVENSIS REPAIR MANUAL (RM1018E)

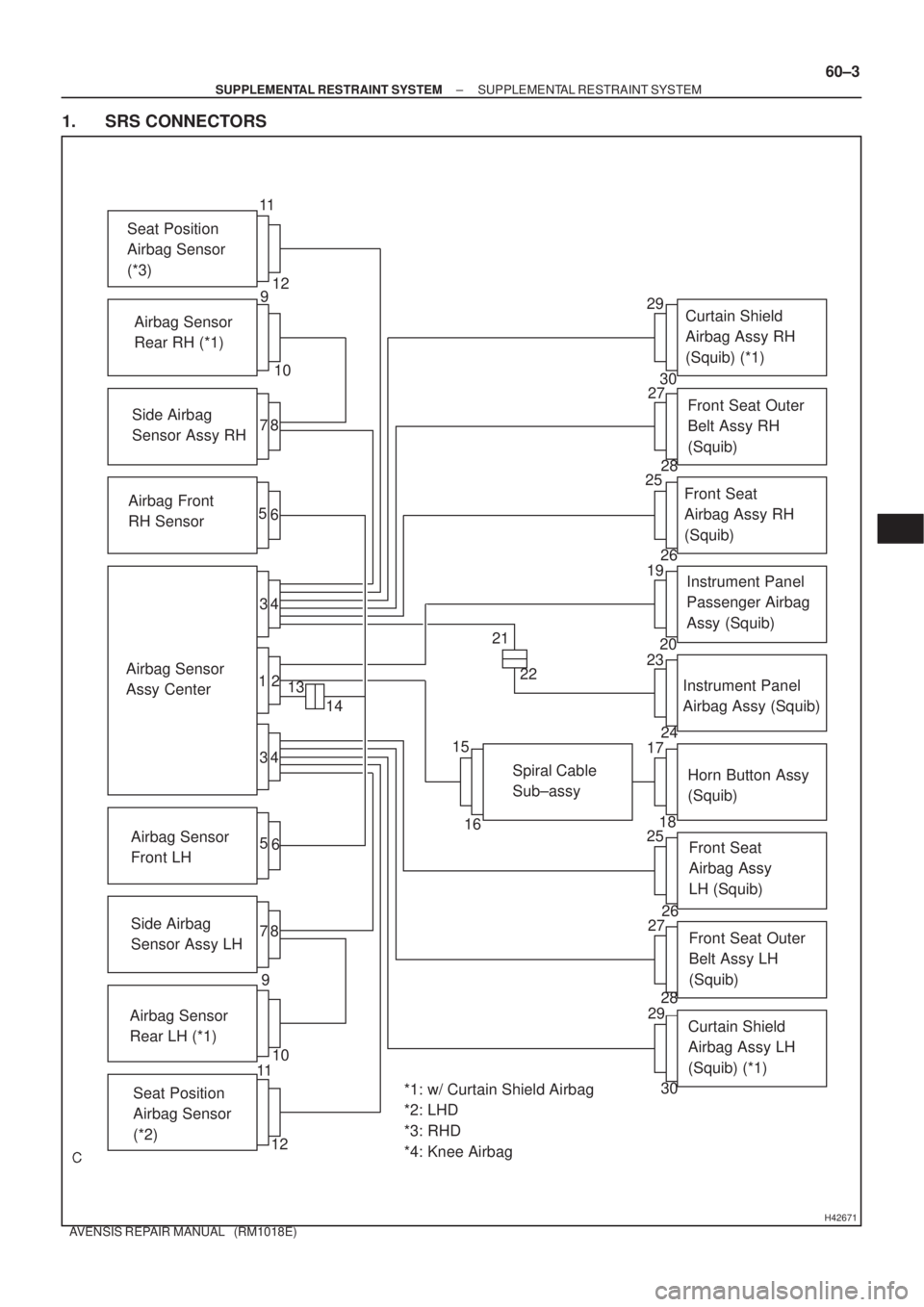

1. SRS CONNECTORS
Page 2990 of 5135
Z05953
Spacer
Housing
Female Male
R10587
When Connector is Connected When Connector is Disconnected
Short Spring Plate
Housing
Housing
Terminal
ConnectorsShort Spring PlateSquib
Closed CircuitSquib Short Spring Plate ONContacting Male Terminal Short Spring Plate
60±4
± SUPPLEMENTAL RESTRAINT SYSTEMSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)No.
ItemApplication
(1)Terminal Twin±Lock MechanismConnectors 2, 4, 6, 8, 10, 12, 13, 14, 15, 19, 21, 22, 25
(2)Activation Prevention MechanismConnectors 2, 4, 16, 18, 20, 22, 24, 26, 28, 30
(3)Electrical Connection Check MechanismConnectors 1, 2, 3, 4
(4)Half Connection Prevention MechanismConnectors 6, 8, 10, 14, 15, 19, 21, 25
(5)Connector Lock MechanismConnectors 17, 23, 27, 29

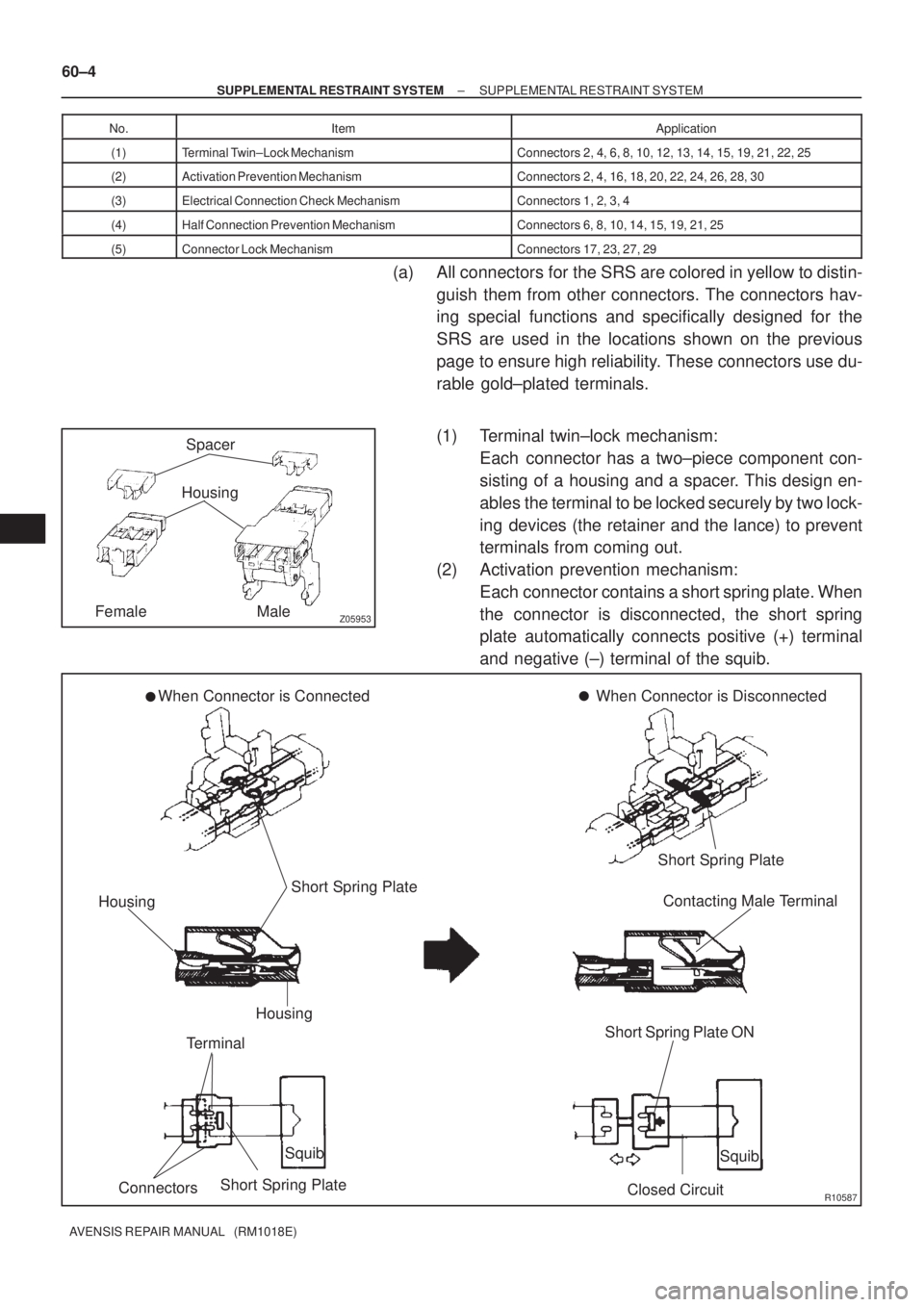

(a) All connectors for the SRS are colored in yellow to distin-
guish them from other connectors. The connectors hav-
ing special functions and specifically designed for the
SRS are used in the locations shown on the previous
page to ensure high reliability. These connectors use du-
rable gold±plated terminals.
(1) Terminal twin±lock mechanism:
Each connector has a two±piece component con-
sisting of a housing and a spacer. This design en-
ables the terminal to be locked securely by two lock-
ing devices (the retainer and the lance) to prevent
terminals from coming out.
(2) Activation prevention mechanism:
Each connector contains a short spring plate. When
the connector is disconnected, the short spring
plate automatically connects positive (+) terminal
and negative (±) terminal of the squib.
Page 2991 of 5135
H41646
Disconnection
Detection
Pin
Airbag Sensor Assy Center
H01315
Terminal for Diagnosis
Disconnection Detection Pin Half ConnectionComplete Connection
Terminal for
Diagnosis
H40180
Stopper
Locking PartSpring
Slider
Locking Arm
Rebounded by Slider
(Spring)Stopper
± SUPPLEMENTAL RESTRAINT SYSTEMSUPPLEMENTAL RESTRAINT SYSTEM
60±5
AVENSIS REPAIR MANUAL (RM1018E)
HINT:
The type of connector is shown in the diagram on the previous
page.

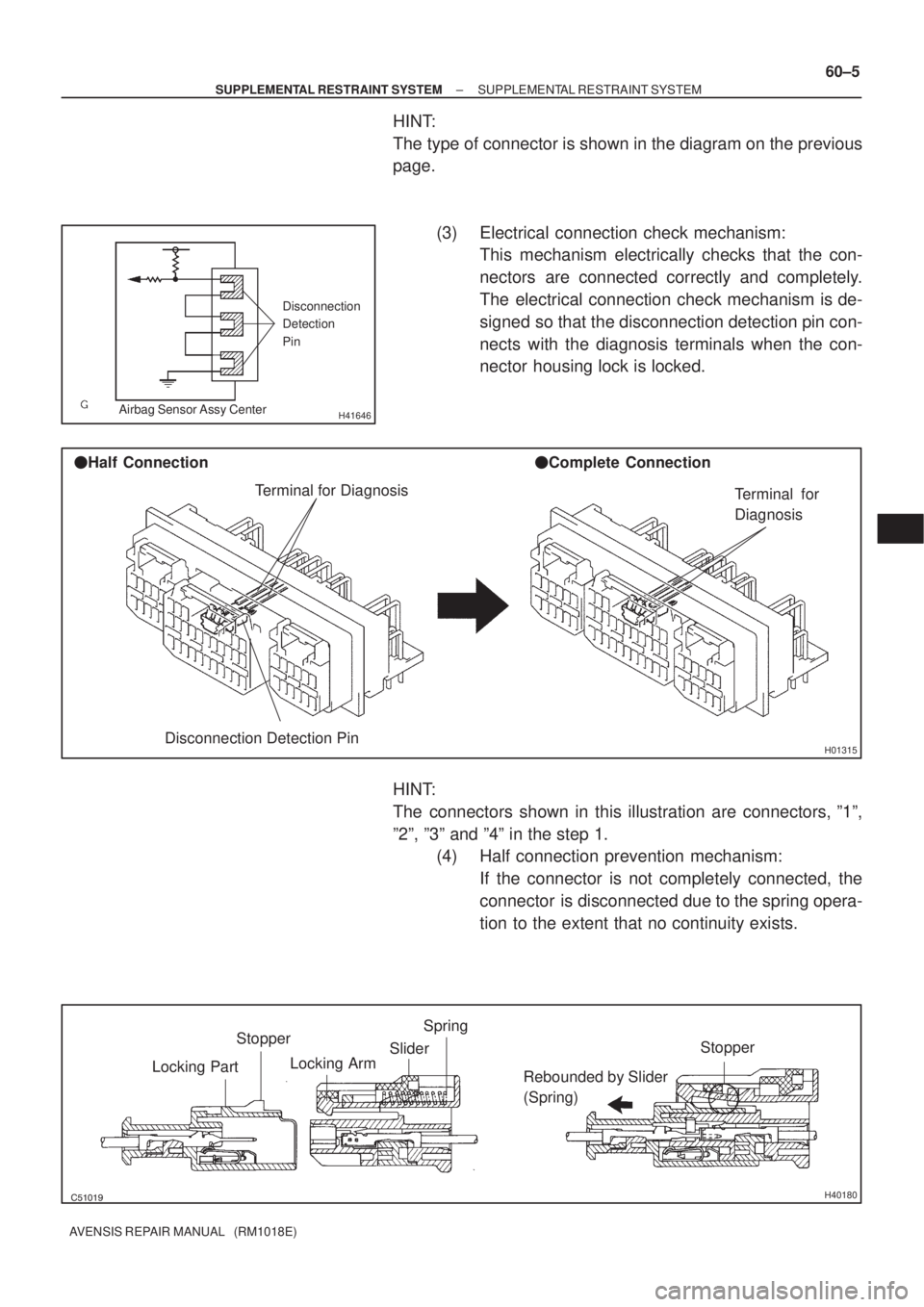

(3) Electrical connection check mechanism:
This mechanism electrically checks that the con-
nectors are connected correctly and completely.
The electrical connection check mechanism is de-
signed so that the disconnection detection pin con-
nects with the diagnosis terminals when the con-
nector housing lock is locked.
HINT:
The connectors shown in this illustration are connectors, º1º,
º2º, º3º and º4º in the step 1.
(4) Half connection prevention mechanism:
If the connector is not completely connected, the
connector is disconnected due to the spring opera-
tion to the extent that no continuity exists.
Page 2992 of 5135
H40181
Claw
Groove
H42905
Fig.1
Fig.2
Power Source
Safing
Sensor
Squibs
Deceleration
Sensor 60±6
± SUPPLEMENTAL RESTRAINT SYSTEMSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
(5) Connector lock mechanism:
Locking the connector lock button connects the
connector securely.
(b) When the vehicle is involved in a frontal collision in the
hatched area (Fig. 1) and the shock is larger than the pre-
determined level, the SRS is activated automatically. The
safing sensor is designed to go on at a smaller decelera-
tion rate than the airbag sensor. As illustrated in the Fig.
2, ignition is caused when current flows to the squib,
which happens when the safing sensor and the decelera-
tion sensor go on simultaneously. When a deceleration
force acts on the sensors, 3 squibs in the driver airbag,
front passenger airbag and knee airbag ignite and gener-
ate gas. The gas discharging into the driver airbag, front
passenger airbag and knee airbag rapidly increases the
pressure inside the bags, breaking the horn button assy
and instrument panel. The inflation of the bag then ends,
and the bags deflate as the gas is discharged through dis-
charge holes at the bag's rear or side.
