ENGINE MECHANICAL DRIVE BELT(1CD±FTV)
14±269
AVENSIS REPAIR MANUAL (RM1018E)

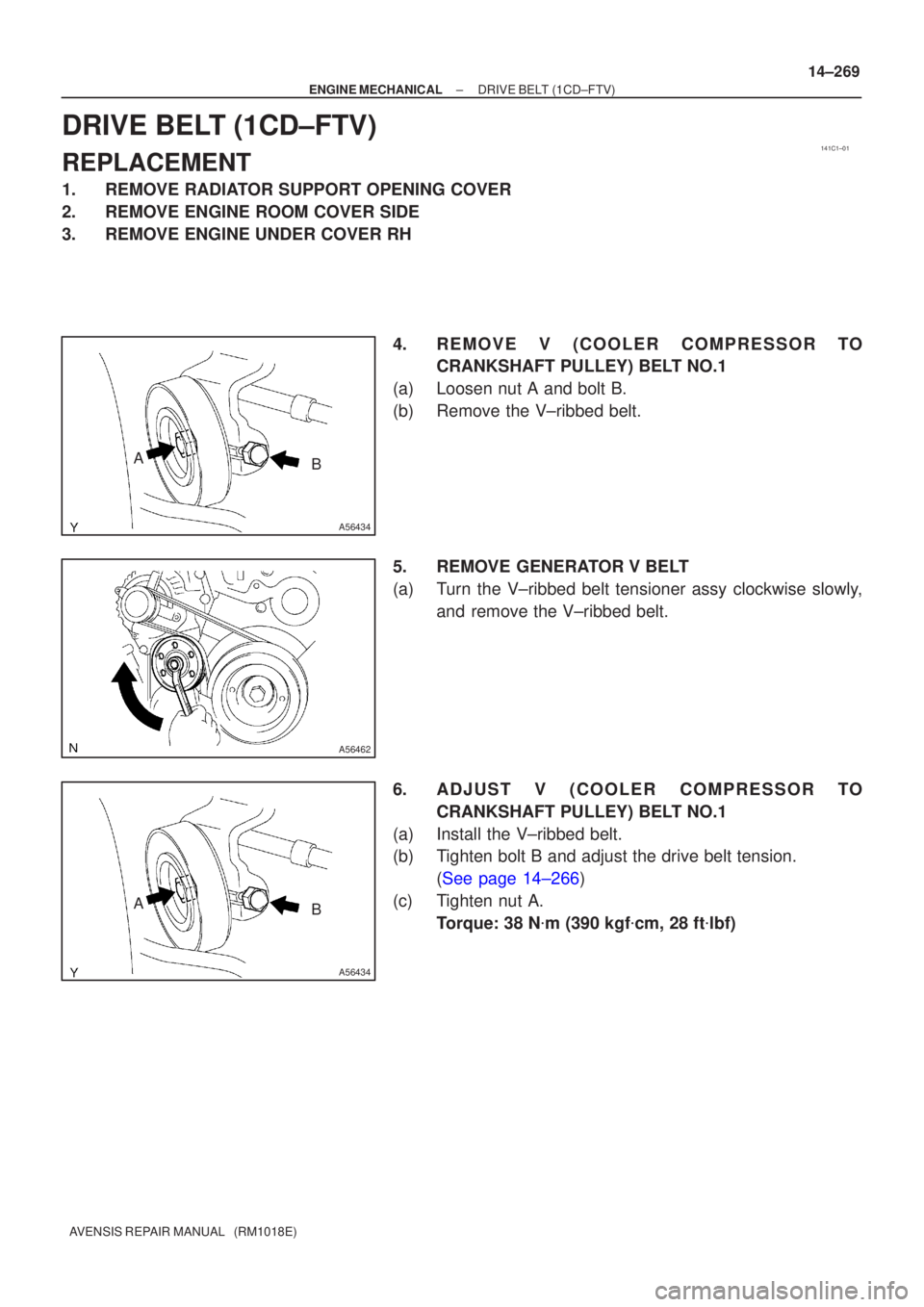

DRIVE BELT(1CD±FTV)
REPLACEMENT
1.REMOVE RADIATOR SUPPORT OPENING COVER
2.REMOVE ENGINE ROOM COVER SIDE
3.REMOVE ENGINE UNDER COVER RH
4.REMOVE V (COOLER CO MPRESSOR TO
CRANKSHAFT PULLEY) BELT NO.1
(a)Loosen nut A and bolt B.
(b)Remove the V±ribbed belt.
5.REMOVE GENERATOR V BELT
(a)Turn the V±ribbed belt tensioner assy clockwise slowly, and remove the V±ribbed belt.
6.ADJUS T V (COOLER CO MPRESSOR TO
CRANKSHAFT PULLEY) BELT NO.1
(a)Install the V±ribbed belt.
(b)Tighten bolt B and adjust the drive belt tension. (See page 14±266)
(c) Tighten nut A. Torque: 38 N m (390 kgf cm, 28 ft lbf)
Page 2250 of 5135

140DD±03
A57063
Measure Point for Belt
Deflection and Tension
Alternator
Crankshaft Compressor
P/S P/S
Alternator Crankshaft
A/C equipped
A/C not equipped
A61173
B
A
14±266
±
ENGINE MECHANICAL ENGINE(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

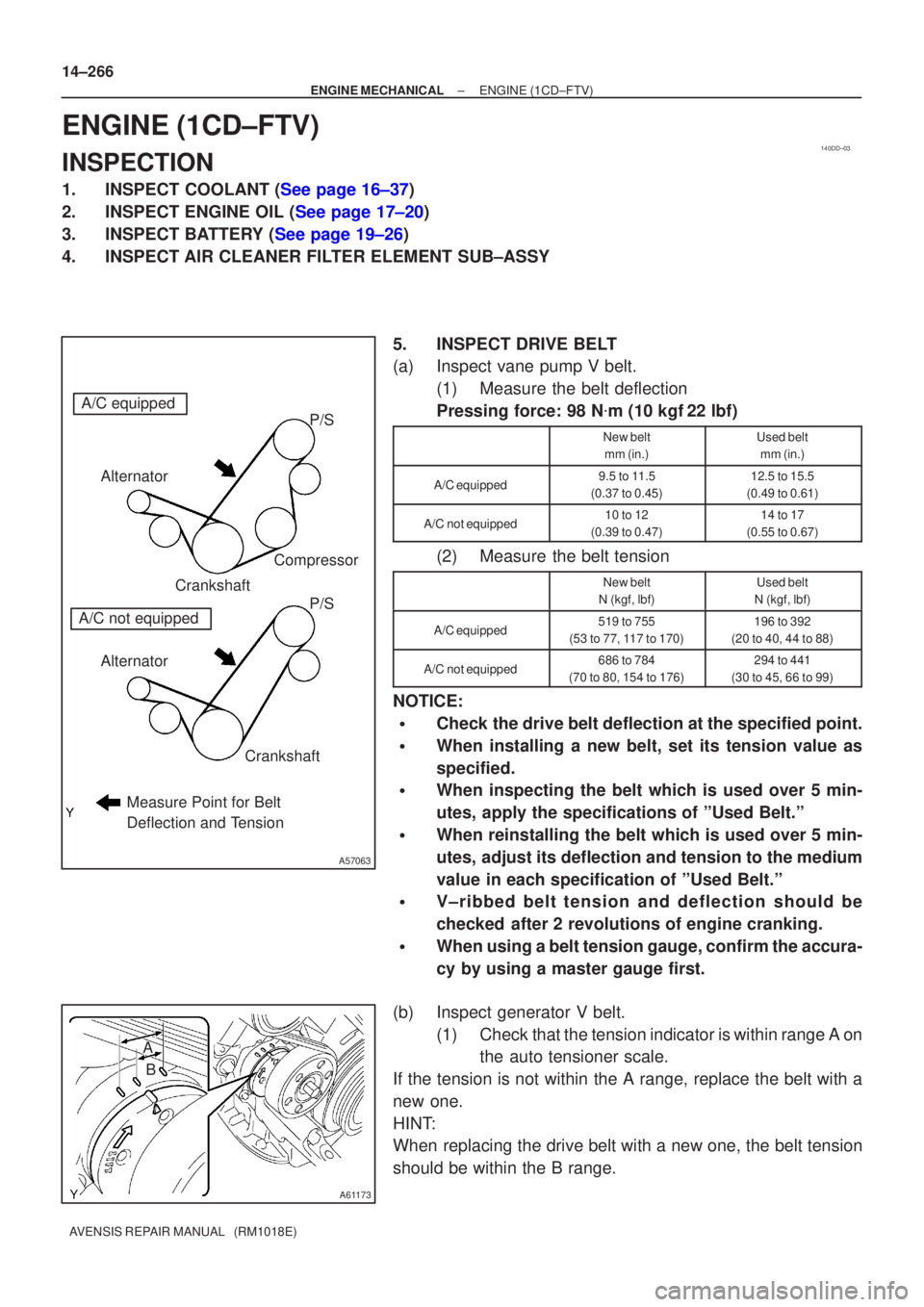

ENGINE(1CD±FTV)
INSPECTION
1.INSPECT COOLANT (See page 16±37)
2.INSPECT ENGINE OIL (See page 17±20)
3.INSPECT BATTERY (See page 19±26)
4. INSPECT AIR CLEANER FILTER ELEMENT SUB±ASSY 5. INSPECT DRIVE BELT
(a) Inspect vane pump V belt.(1) Measure the belt deflection
Pressing force: 98 N m (10 kgf 22 lbf)
New belt
mm (in.)Used belt mm (in.)
A/C equipped9.5 to 11.5
(0.37 to 0.45)12.5 to 15.5
(0.49 to 0.61)
A/C not equipped10 to 12
(0.39 to 0.47)14 to 17
(0.55 to 0.67)
(2) Measure the belt tension
New belt
N (kgf, lbf)Used belt
N (kgf, lbf)
A/C equipped519 to 755
(53 to 77, 117 to 170)196 to 392
(20 to 40, 44 to 88)
A/C not equipped686 to 784
(70 to 80, 154 to 176)294 to 441
(30 to 45, 66 to 99)
NOTICE:
Check the drive belt deflection at the specified point.
When installing a new belt, set its tension value as
specified.
When inspecting the belt which is used over 5 min-
utes, apply the specifications of ºUsed Belt.º
When reinstalling the belt which is used over 5 min-
utes, adjust its deflection and tension to the medium
value in each specification of ºUsed Belt.º
V±ribbed belt tension and deflection should be
checked after 2 revolutions of engine cranking.
When using a belt tension gauge, confirm the accura-
cy by using a master gauge first.
(b) Inspect generator V belt. (1) Check that the tension indicator is within range A onthe auto tensioner scale.
If the tension is not within the A range, replace the belt with a
new one.
HINT:
When replacing the drive belt with a new one, the belt tension
should be within the B range.
Page 2251 of 5135
TAC
A52006
A09593
SST
(Attachment)
±
ENGINE MECHANICAL ENGINE(1CD±FTV)
14±267
AVENSIS REPAIR MANUAL (RM1018E)

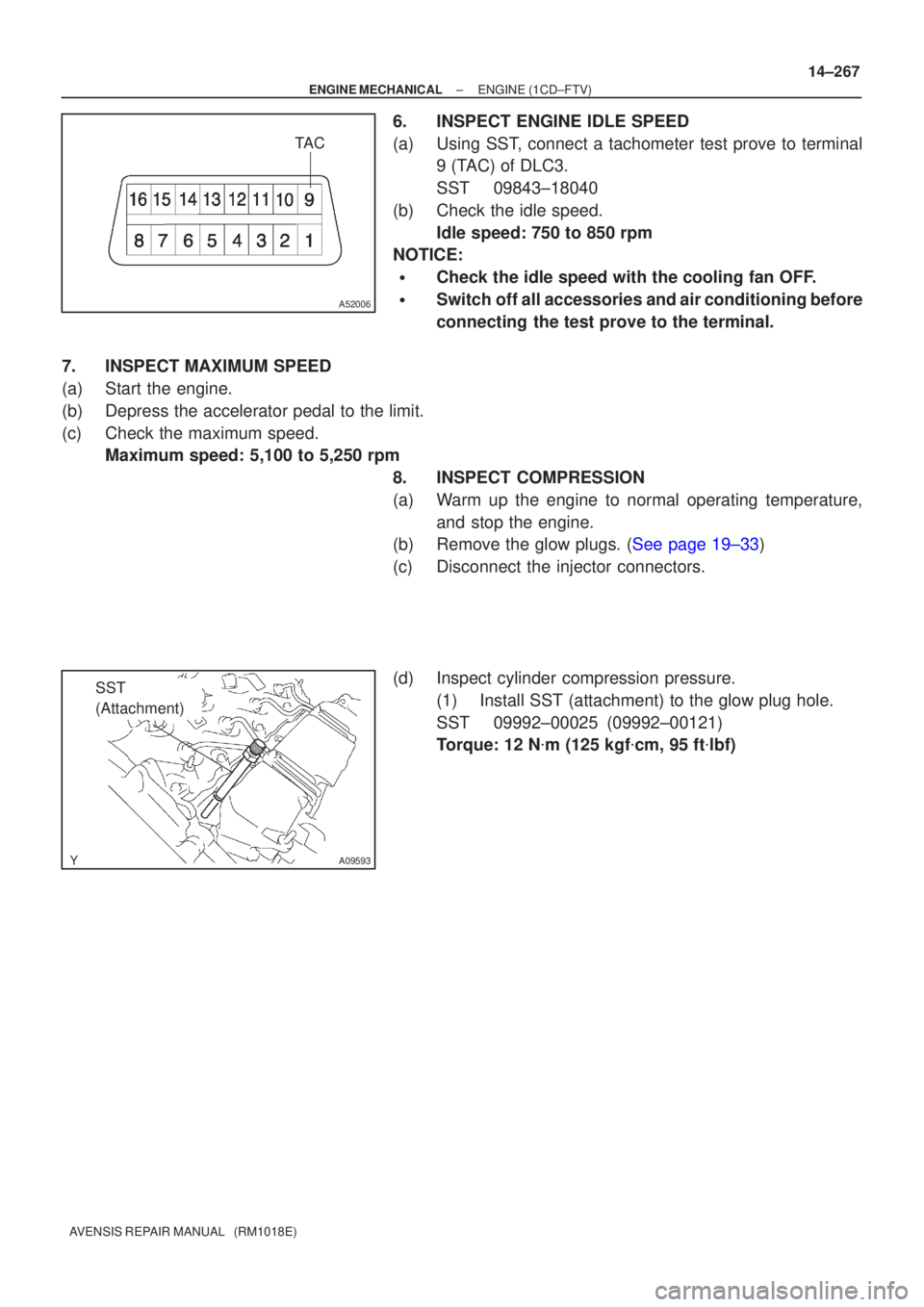

6.INSPECT ENGINE IDLE SPEED
(a)Using SST, connect a tachometer test prove to terminal
9 (TAC) of DLC3.
SST09843±18040
(b)Check the idle speed. Idle speed: 750 to 850 rpm
NOTICE:
Check the idle speed with the cooling fan OFF.
Switch off all accessories and air conditioning before
connecting the test prove to the terminal.
7.INSPECT MAXIMUM SPEED
(a)Start the engine.
(b)Depress the accelerator pedal to the limit.
(c)Check the maximum speed. Maximum speed: 5,100 to 5,250 rpm
8.INSPECT COMPRESSION
(a)Warm up the engine to normal operating temperature,and stop the engine.
(b)Remove the glow plugs. (See page 19±33)
(c) Disconnect the injector connectors.
(d) Inspect cylinder compression pressure.
(1) Install SST (attachment) to the glow plug hole.
SST 09992±00025 (09992±00121)
Torque: 12 N m (125 kgf cm, 95 ft lbf)
Page 2252 of 5135

A61174
SST
Compression Gauge
14±268
± ENGINE MECHANICALENGINE (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
(2) Connect SST (compression gauge) to the SST (at-
tachment).
SST 09992±00025 (09992±00211)
(3) Fully open the throttle valve, and start the engine.
(4) While cranking the engine, measure the compres-
sion pressure.
NOTICE:
Always use a fully charged battery to obtain engine
speed of 250 rpm or more.
Check other cylinder compression pressure in the
same way.
This measurement must be done in as short a time as
possible.
Compression pressure:
2,628 kPa (26.8 kgf/cm
2, 381 psi) or more
Minimum pressure:
2,157 kPa (22.0 kgf/cm
2, 312 psi) or more
Difference between each cylinder:
490 kPa (5.0 kgf/cm
2, 71 psi) or less
(5) If the cylinder compression is low, pour a small
amount of engine oil into the cylinder through the
glow plug hole and inspect again.
HINT:
If adding oil raises the compression, there are chances of
the piston rings and/or cylinder bore wear or damage.
If pressure stays low, a valve may be sticking or seating
improperly, or there may be leakage past the gasket.
Page 2253 of 5135

141BS±01
A77421
Cut Position
A77422SST
±
ENGINE MECHANICAL ENGINE REAR OIL SEAL(1AZ±FSE)
14±265
AVENSIS REPAIR MANUAL (RM1018E)

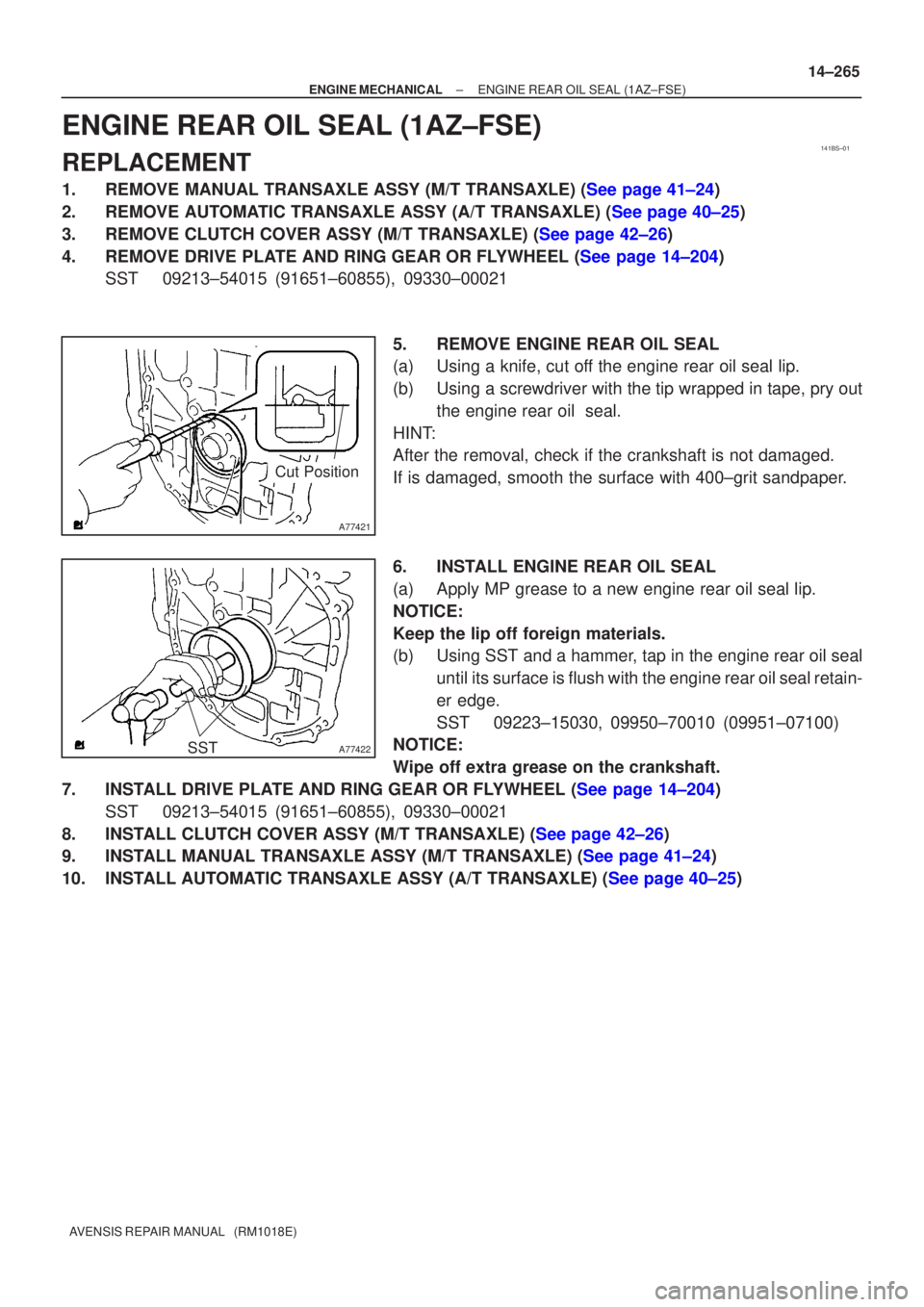

ENGINE REAR OIL SEAL(1AZ±FSE)
REPLACEMENT
1.REMOVE MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±24)
2.REMOVE AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±25)
3.REMOVE CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
4.REMOVE DRIVE PLATE AND RING GEAR OR FLYWHEEL (See page 14±204)
SST09213±54015 (91651±60855), 09330±00021
5.REMOVE ENGINE REAR OIL SEAL
(a)Using a knife, cut off the engine rear oil seal lip.
(b)Using a screwdriver with the tip wrapped in tape, pry outthe engine rear oil seal.
HINT:
After the removal, check if the crankshaft is not damaged.
If is damaged, smooth the surface with 400±grit sandpaper.
6.INSTALL ENGINE REAR OIL SEAL
(a)Apply MP grease to a new engine rear oil seal lip.
NOTICE:
Keep the lip off foreign materials.
(b)Using SST and a hammer, tap in the engine rear oil seal until its surface is flush with the engine rear oil seal retain-
er edge.
SST09223±15030, 09950±70010 (09951±07100)
NOTICE:
Wipe off extra grease on the crankshaft.
7.INSTALL DRIVE PLATE AND RING GEAR OR FLYWHEEL (See page 14±204) SST 09213±54015 (91651±60855), 09330±00021
8.INSTALL CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
9.INSTALL MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±24)
10.INSTALL AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±25)
Page 2254 of 5135
141BR±01
A77339
A13697
SST
SST
A77381
SST
±
ENGINE MECHANICAL TIMING GEAR CASE OR TIMING CHAIN CASE OIL
SEAL(1AZ±FSE)14±263
AVENSIS REPAIR MANUAL (RM1018E)

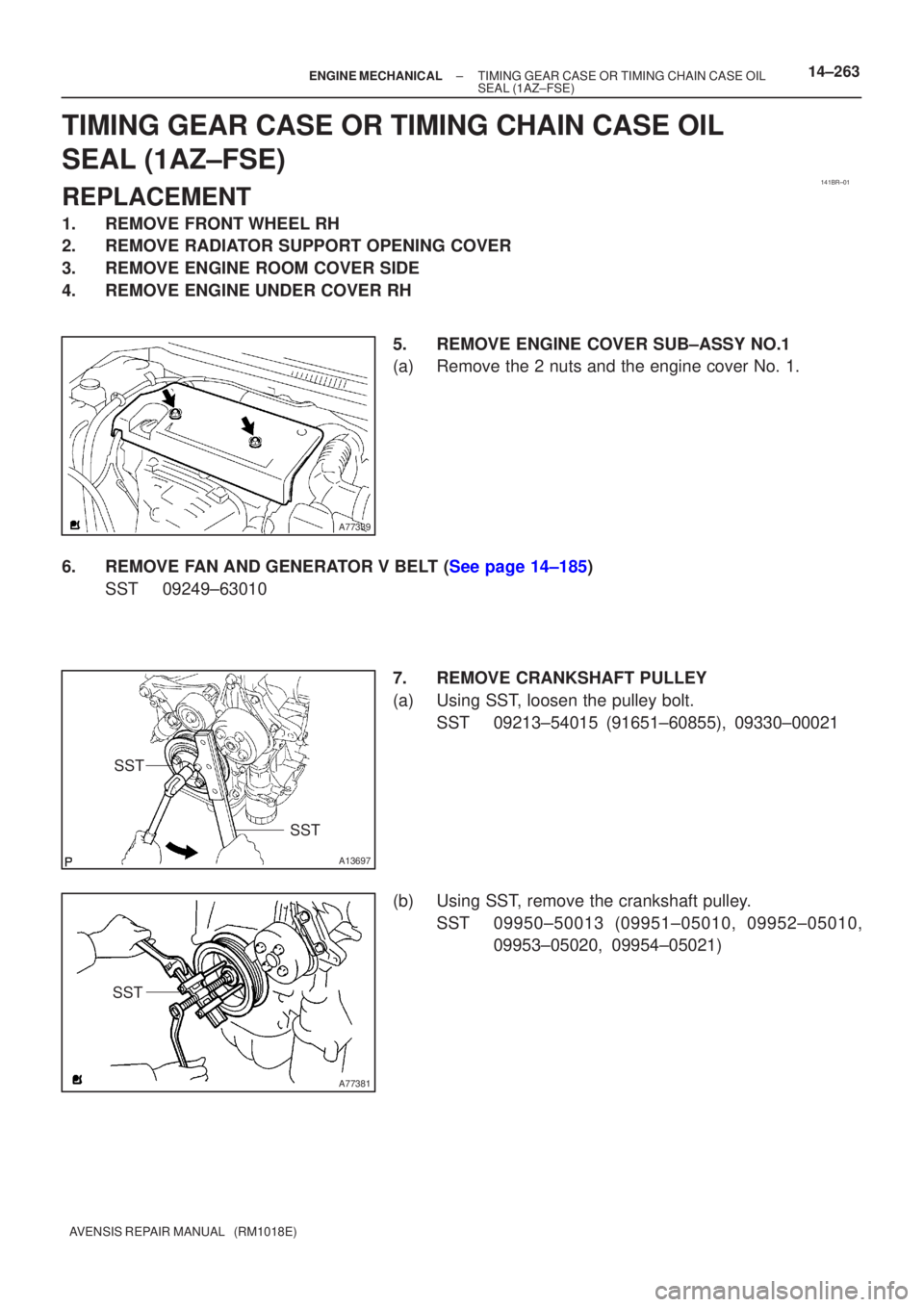

TIMING GEAR CASE OR TIMING CHAIN CASE OIL
SEAL(1AZ±FSE)
REPLACEMENT
1.REMOVE FRONT WHEEL RH
2.REMOVE RADIATOR SUPPORT OPENING COVER
3.REMOVE ENGINE ROOM COVER SIDE
4.REMOVE ENGINE UNDER COVER RH
5.REMOVE ENGINE COVER SUB±ASSY NO.1
(a)Remove the 2 nuts and the engine cover No. 1.
6.REMOVE FAN AND GENERATOR V BELT (See page 14±185) SST 09249±63010
7. REMOVE CRANKSHAFT PULLEY
(a) Using SST, loosen the pulley bolt.SST 09213±54015 (91651±60855), 09330±00021
(b) Using SST, remove the crankshaft pulley. SST 09950±50013 (09951±05010, 09952±05010, 09953±05020, 09954±05021)
Page 2255 of 5135

Cut Position
A13332
A77419
SST
A13697
SST
SST
14±264
±
ENGINE MECHANICAL TIMING GEAR CASE OR TIMING CHAIN CASE OIL
SEAL(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

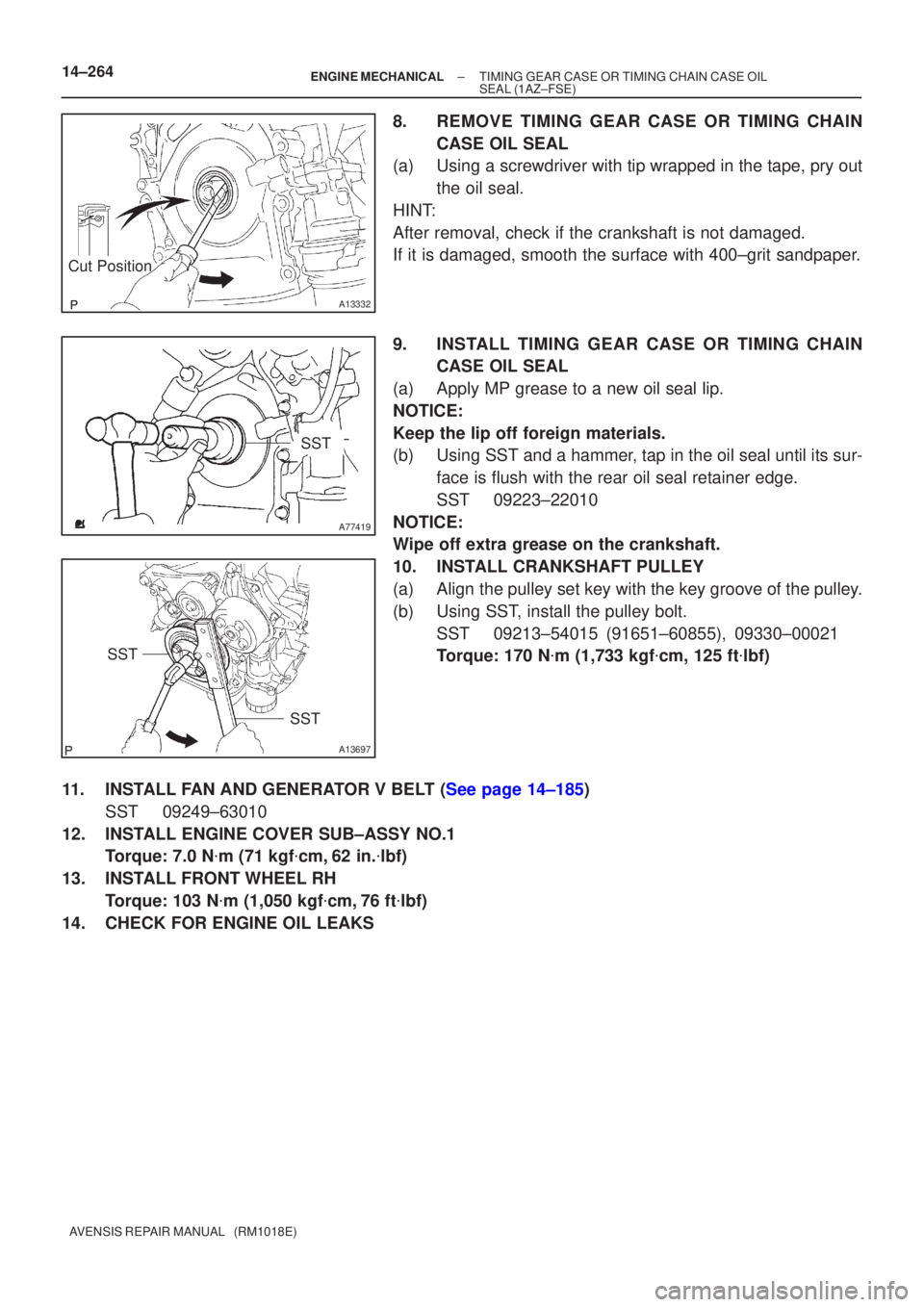

8.REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
(a)Using a screwdriver with tip wrapped in the tape, pry out
the oil seal.
HINT:
After removal, check if the crankshaft is not damaged.
If it is damaged, smooth the surface with 400±grit sandpaper.
9.INSTALL TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
(a)Apply MP grease to a new oil seal lip.
NOTICE:
Keep the lip off foreign materials.
(b)Using SST and a hammer, tap in the oil seal until its sur- face is flush with the rear oil seal retainer edge.
SST09223±22010
NOTICE:
Wipe off extra grease on the crankshaft.
10.INSTALL CRANKSHAFT PULLEY
(a)Align the pulley set key with the key groove of the pulley.
(b)Using SST, install the pulley bolt. SST09213±54015 (91651±60855), 09330±00021
Torque: 170 N m (1,733 kgf cm, 125 ft lbf)
11.INSTALL FAN AND GENERATOR V BELT (See page 14±185) SST 09249±63010
12. INSTALL ENGINE COVER SUB±ASSY NO.1 Torque: 7.0 N m (71 kgf cm, 62 in. lbf)
13. INSTALL FRONT WHEEL RH Torque: 103 N m (1,050 kgf cm, 76 ft lbf)
14. CHECK FOR ENGINE OIL LEAKS
Page 2256 of 5135

141BO±01
A77339
A77292
14±254
±
ENGINE MECHANICAL CYLINDER HEAD GASKET(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±15)
2.REMOVE FRONT WHEEL RH
3.REMOVE RADIATOR SUPPORT OPENING COVER
4.REMOVE ENGINE ROOM COVER SIDE
5.REMOVE ENGINE UNDER COVER RH
6.REMOVE ENGINE UNDER COVER LH
7.DRAIN COOLANT (See page 16±19)
8.DRAIN ENGINE OIL
(a)Install a new gasket and the drain plug after draining engine oil. Torque: 25 N m (255 kgf cm,18 ft lbf)
9.REMOVE ENGINE COVER SUB±ASSY NO.1
(a)Remove the 2 nuts and the engine cover No. 1.
10.REMOVE FUEL PRESSURE PULSATION DAMPER ASSY
11.SEPARATE FUEL TUBE SUB±ASSY (See page 11±33)
12.REMOVE FUEL PIPE SUB±ASSY NO.1 (See page 11±52) SST 09023±12900
13.REMOVE FUEL PUMP ASSY (See page 11±52)
14.REMOVE FAN AND GENERATOR V BELT (See page 14±185) SST 09249±63010
15.REMOVE GENERATOR ASSY (See page 19±20)
16.REMOVE EXHAUST PIPE ASSY FRONT (See page 15±7)
17. SEPARATE VANE PUMP ASSY
(a) Remove the 2 bolts and separate the vane pump.
18. REMOVE IGNITION COIL ASSY
(a) Remove the 4 bolts and 4 ignition coils.
