DIAGNOSTICS ABS WITH EBD SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

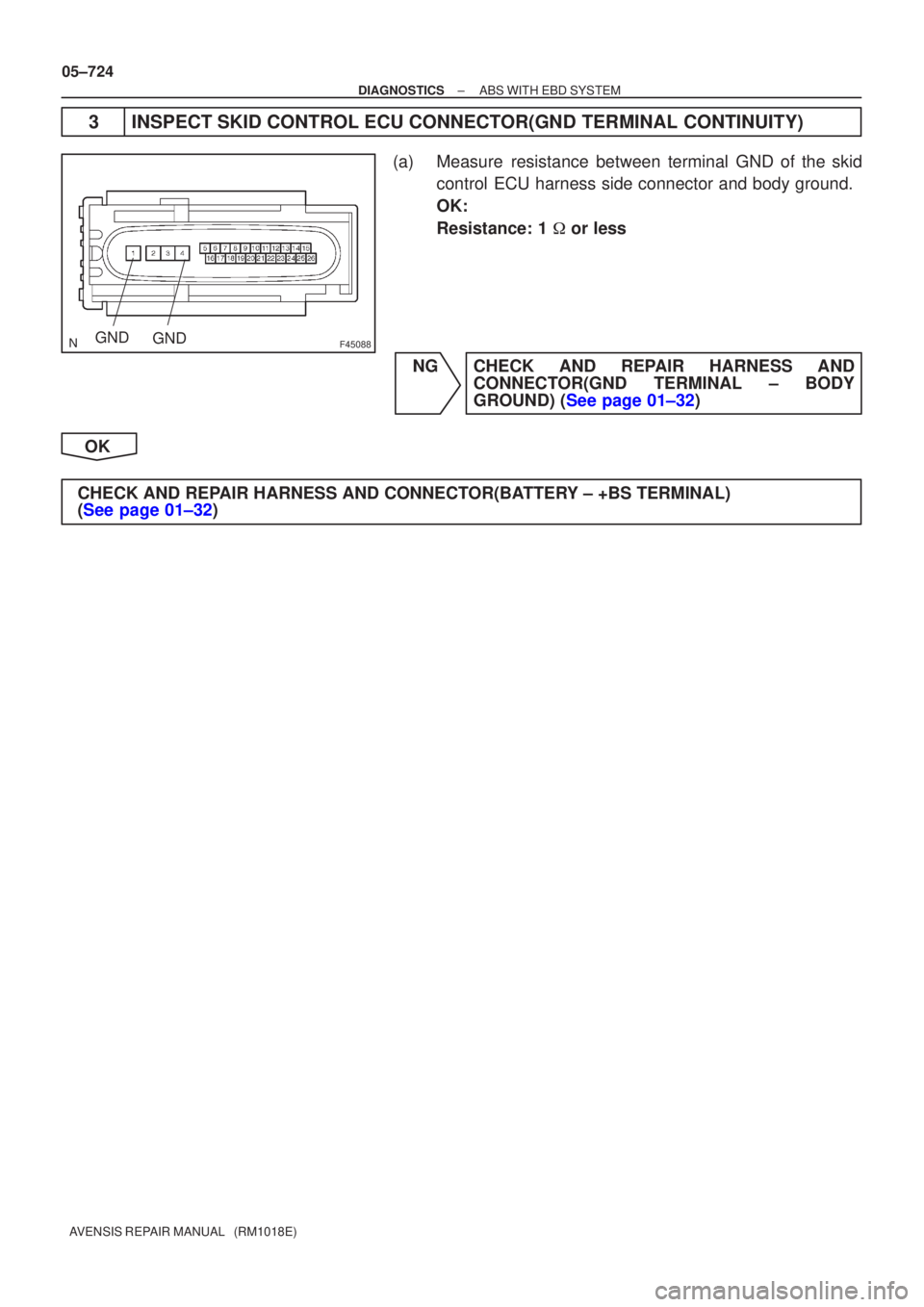

3INSPECT SKID CONTROL ECU CONNECTOR(GND TERMINAL CONTINUITY)
(a)Measure resistance between terminal GND of the skid control ECU harness side connector and body ground.
OK:
Resistance: 1 or less
NGCHECK AND REPAIR HARNESS AND CONNECTOR(GND TERMINAL ± BODY
GROUND) (See page 01±32)
OK
CHECK AND REPAIR HARNESS AND CONNECTOR(BATTERY ± +BS TERMINAL)
(See page 01±32)
Page 786 of 5135
F45132
Battery FL MAINSkid Control ECU
with Actuator
B±G (*1) L (*1)
1 ALT ABS Engine Room R/B No.4 & Engine Room J/B No.4
1
4B
W±BS2
S21 2
+BM
12
1 2
GND1 GND2
S24
W±BW±B
*1: Gasoline
*2: 1CD±FTVEA4
L (*2)
W (*2)
2 12 33 11B1ABS ALT Engine Room R/B No.3Engine Room R/B No.1 &
Engine Room J/B No.1
B (*2)
B±G (*1)
± DIAGNOSTICSABS WITH EBD SYSTEM
05±719
AVENSIS REPAIR MANUAL (RM1018E)
DTC C0273/13 OPEN OR SHORT CIRCUIT IN ABS MOTOR
RELAY CIRCUIT
CIRCUIT DESCRIPTION
The ABS motor relay supplies power to the ABS pump motor. While the ABS is activated, the ECU switches
the motor relay ON and operates the ABS pump motor.
DTC No.DTC Detecting ConditionTrouble Area
C0273/13
Detection of any conditions from 1 to 3:
1. Pump motor voltage is 2.0 V or more for 1 sec. or more
at motor relay OFF.
2. Pump motor voltage is (IG ± 4.0 V) or less for 0.1 sec. or
more at motor relay ON.
3. After the end of the actuation of the motor relay slow
down condition of motor does not meet the specification.
ABS motor relay
ABS motor relay circuit

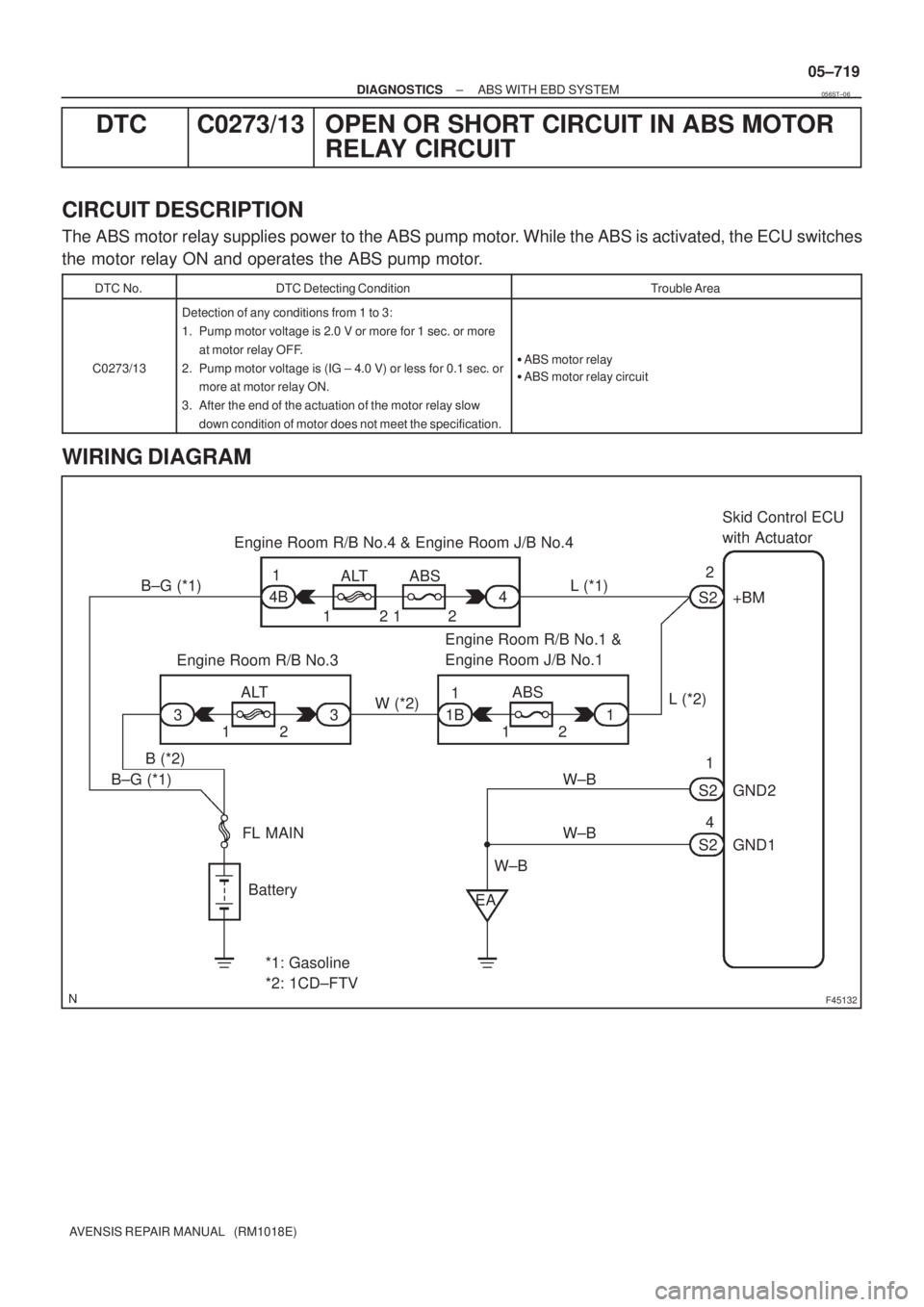

WIRING DIAGRAM
056ST±06
Page 787 of 5135
F45088GNDGND
+BM
05±720
± DIAGNOSTICSABS WITH EBD SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
HINT:
Start the inspection from step 1 if you are using the hand±held tester and start from step 2 if you are not using
the hand±held tester.
1 PERFORM ACTIVE TEST BY HAND±HELD TESTER(ABS MOTOR RELAY)
(a) Check the operation sound of the ABS motor individually when operating it with the hand±held tester.
OK:
The operation sound of the ABS motor is heard.
OK IF THE SAME CODE IS STILL OUTPUT AFTER
THE DTC IS DELETED, CHECK THE CONTACT
CONDITION OF EACH CONNECTION
NG
2 INSPECT SKID CONTROL ECU CONNECTOR(+BM TERMINAL VOLTAGE)
(a) Disconnect the skid control ECU connector.
(b) Measure the voltage between terminals +BM and GND of
the skid control ECU harness side connector.
OK:
Voltage: 10 to 14 V
OK IF THE SAME CODE IS STILL OUTPUT AFTER
THE DTC IS DELETED, CHECK THE CONTACT
CONDITION OF EACH CONNECTION
NG
Page 788 of 5135
F45087
Engine Room R/B No.4
Engine Room R/B No.1
Diesel Engine: Gasoline Engine:ABS (40 A)
ABS (40 A)
F45088GNDGND
±
DIAGNOSTICS ABS WITH EBD SYSTEM
05±721
AVENSIS REPAIR MANUAL (RM1018E)

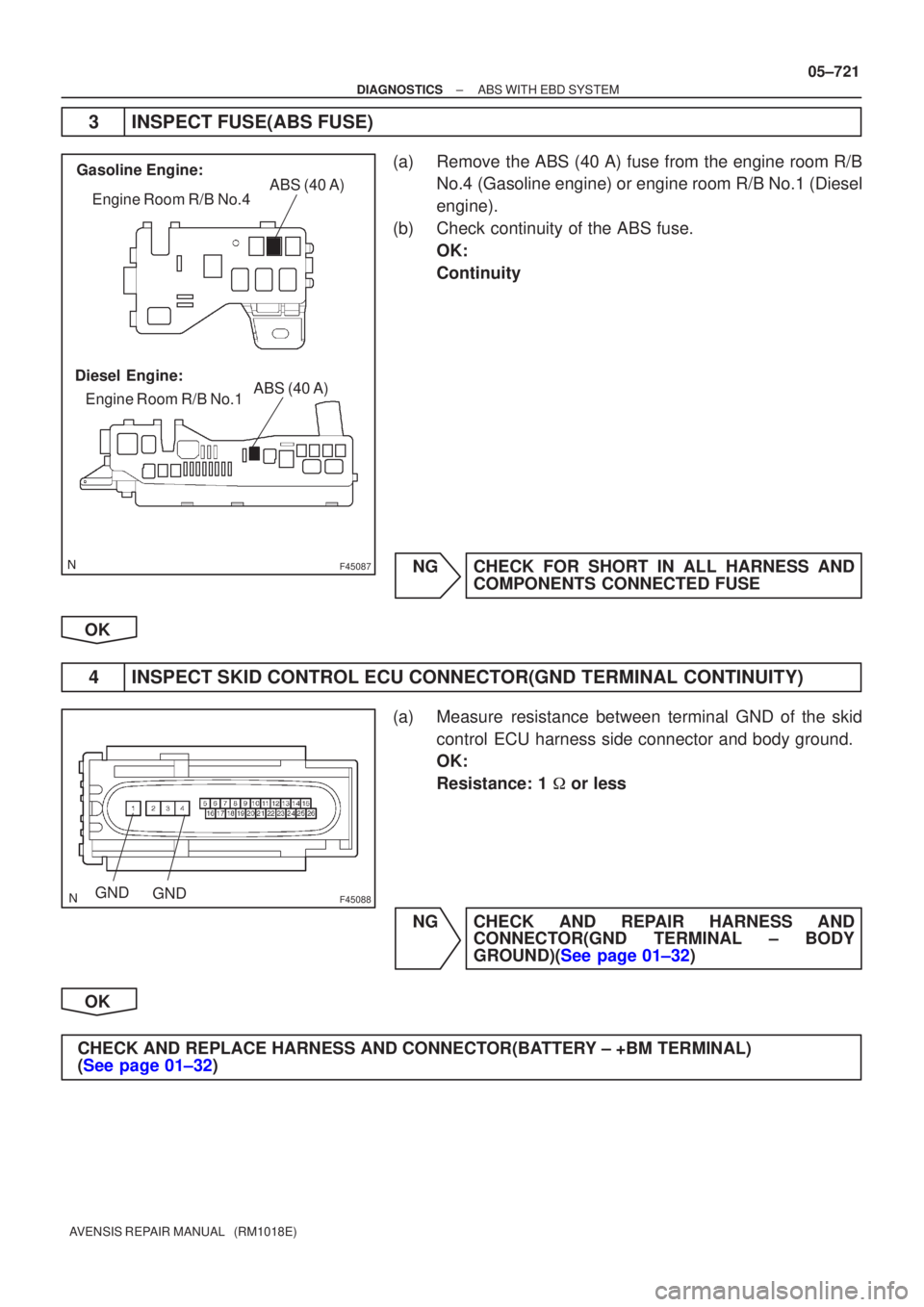

3INSPECT FUSE(ABS FUSE)
(a)Remove the ABS (40 A) fuse from the engine room R/B
No.4 (Gasoline engine) or engine room R/B No.1 (Diesel
engine).
(b)Check continuity of the ABS fuse. OK:
Continuity
NGCHECK FOR SHORT IN ALL HARNESS AND COMPONENTS CONNECTED FUSE
OK
4INSPECT SKID CONTROL ECU CONNECTOR(GND TERMINAL CONTINUITY)
(a)Measure resistance between terminal GND of the skid control ECU harness side connector and body ground.
OK:
Resistance: 1 or less
NGCHECK AND REPAIR HARNESS AND CONNECTOR(GND TERMINAL ± BODY
GROUND)(See page 01±32)
OK
CHECK AND REPLACE HARNESS AND CONNECTOR(BATTERY ± +BM TERMINAL)
(See page 01±32)
Page 789 of 5135
F45132
Battery FL MAINSkid Control ECU
with Actuator
B±G (*1) R (*1)
1 ALT ABS Engine Room R/B No.4 & Engine Room J/B No.4
1
4B
W±BS2
S21 3
+BS
12
1 2
GND1 GND2
S24
W±BW±B
*1: Gasoline
*2: 1CD±FTVEA4
R (*2)
W (*2)
2 12 33 11B1ABS ALT Engine Room R/B No.3Engine Room R/B No.1 &
Engine Room J/B No.1
B (*2)
B±G (*1)
± DIAGNOSTICSABS WITH EBD SYSTEM
05±717
AVENSIS REPAIR MANUAL (RM1018E)
DTC C0226/21 SFR SOLENOID CIRCUIT
DTC C0236/22 SFL SOLENOID CIRCUIT
DTC C0246/23 SRR SOLENOID CIRCUIT
DTC C0256/24 SRL SOLENOID CIRCUIT
CIRCUIT DESCRIPTION
This solenoid goes on when receiving signals from the ECU and controls the pressure acting on the wheel
cylinders to control the braking force.
DTC No.DTC Detecting ConditionTrouble Area
C0226/21
C0236/22
C0246/23
C0256/24
Solenoid valve signal does not match to the check result.Each solenoid circuit

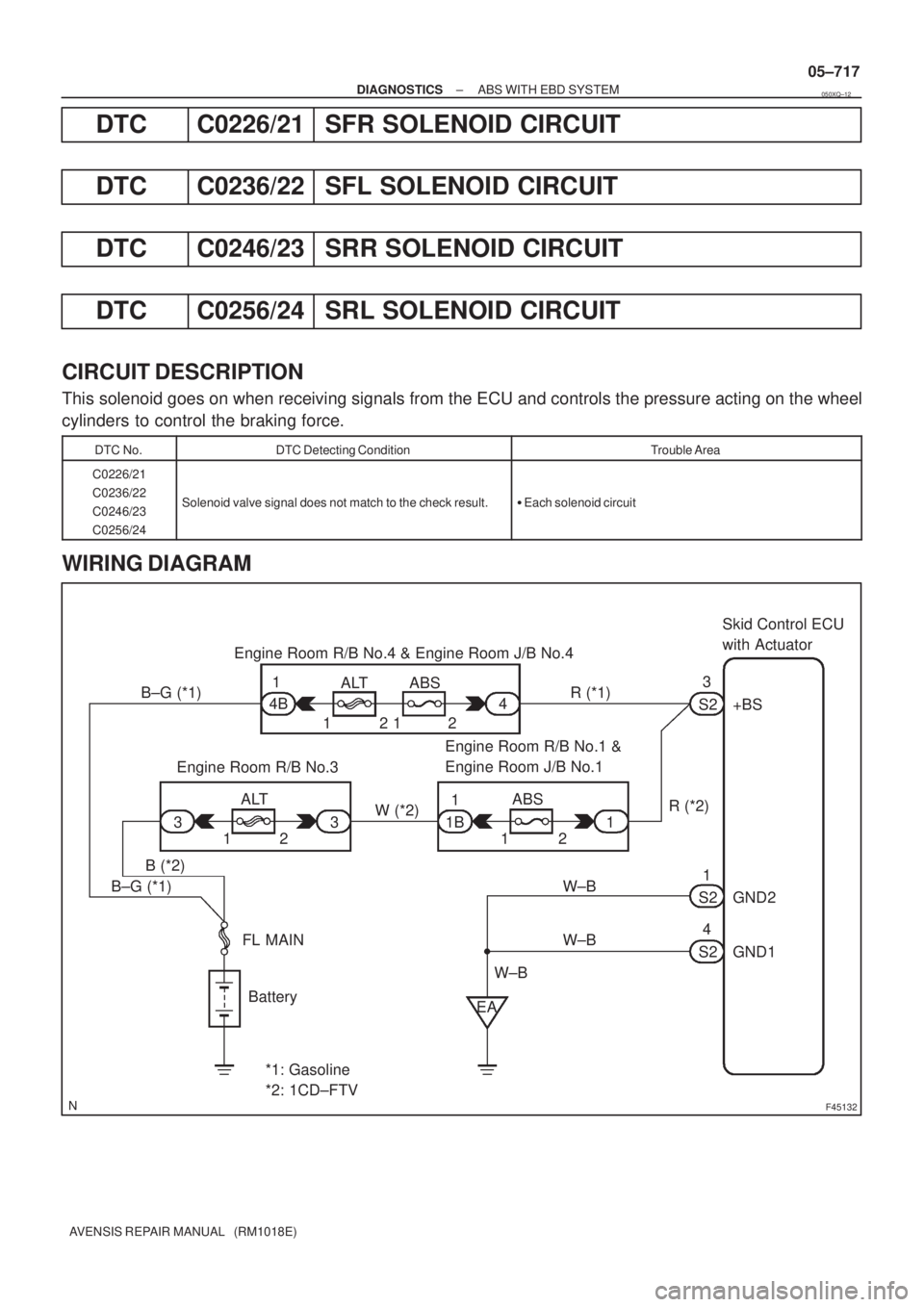

WIRING DIAGRAM
