Ignition Switch
4
6
IE4B–R
IP1 1
1(LHD)
B–R
11B–Y B–R
DHIGN
DA18 2Driver Side J/B
22
EFI
1 AM2
1
1A 1
B–GEngine Room
R/B No.1
Engine Room
J/B No.1 (RHD)
14A
14BEngine Room
J/B

Page 4938 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A18294
E1 (–)
+B (+)
ECM Connecter
E13
E9
A65743
E13
ECM Connector
E1
A18294
E1 (–)IGSW (+)
ECM Connecter
E9
E13
r
05–196
–
DIAGNOSTICS SFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
AVE

Page 4939 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A79096
Driver Side J/B:
IGN Fuse
A18294
E01 (–)MREL (+)
ECM Connecter
E13E10
A96024
Engine Room R/B No. 1:
EFI Fuse
– DIAGNOSTICSSFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
05–197
AVENSI

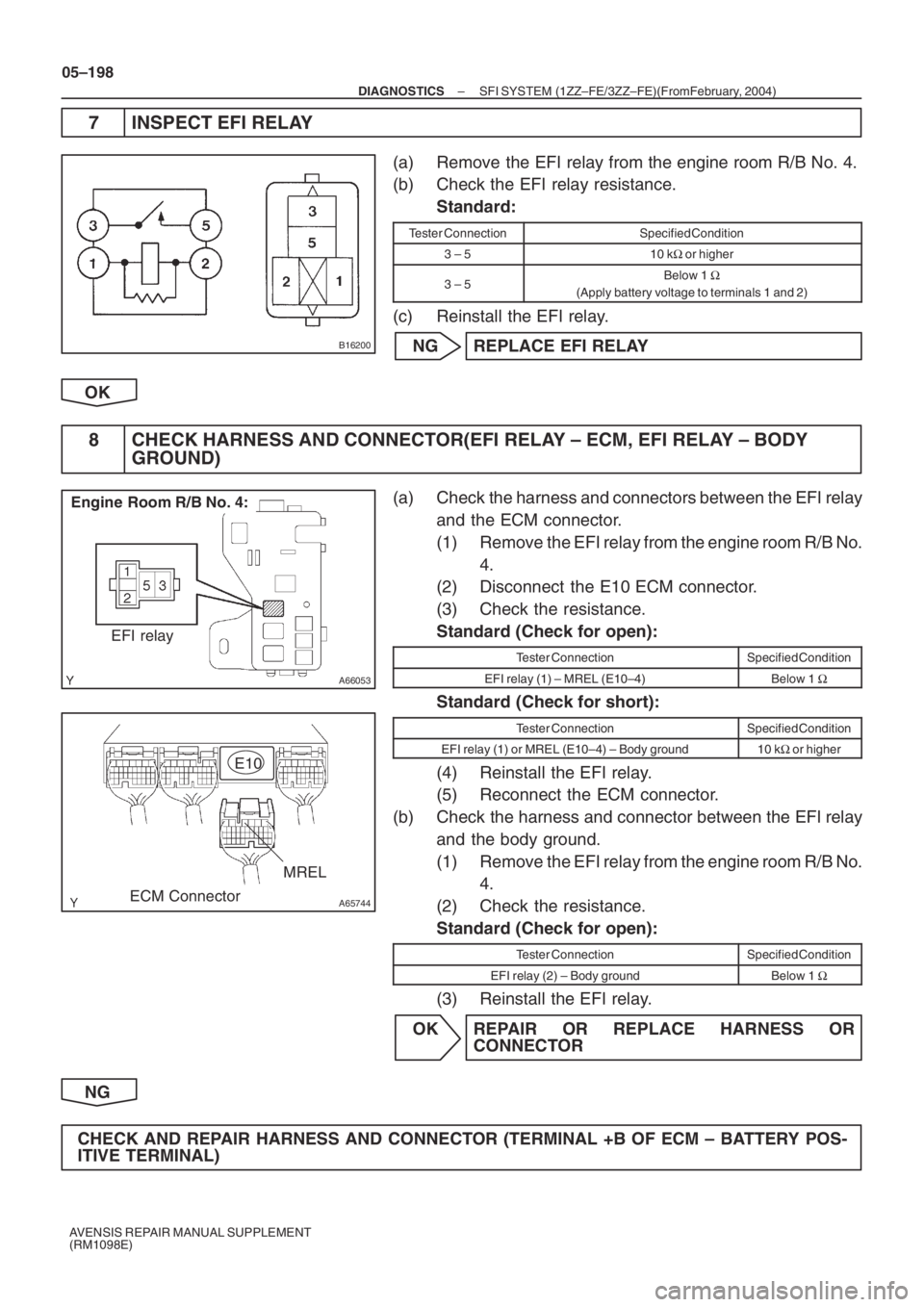

Page 4940 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B16200
A66053
Engine Room R/B No. 4:
EFI relay
A65744
MREL E10
ECM Connector
05–198
– DIAGNOSTICSSFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
7 I

Page 4941 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 05–192
–
DIAGNOSTICS SFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
DTC P2121 THROTTLE/PEDAL POSITION SENSOR/SWITCH ”D” CIRCUIT
RANGE/PERFORM

Page 4942 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A84814
VCP2EP2
EP1
VCP1
Component Side (RHD):
12
5
64
3
Accelerator Pedal Position Sensor
A84814
VCP1 EP1
EP2
VCP2
12
5
64
3
Accelerator Pedal Position Sensor
Component Side (LHD):
A66060
VPA2 (+)

Page 4943 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual A84847
EP1 EP2VPA2
VCP1 VPA1VCP2
A20
Wire Harness Side (RHD):
Front View
Accelerator Pedal Position Sensor
Connector
A84847
EP1
EP2VPA2
VCP1
VPA1
VCP2
A20
Accelerator Pedal Position Sensor
Connect

A84847
EP1 EP2VPA2
VCP1 VPA1VCP2
A20
Wire Harness Side (RHD):
Front View
Accelerator Pedal Position Sensor
Connector
A84847
EP1
EP2VPA2
VCP1
VPA1
VCP2
A20
Accelerator Pedal Position Sensor
Connector
Wire Harness Side (LHD):
Front View
A81091
E9
ECM Connector VPA
VCPA
VPA2
EPA2 VCP2EPA
05–194
–
DIAGNOSTICS SFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
3 CHECK HARNESS AND CONNECTOR(ACCELERATOR PEDAL POSITION SENSOR – ECM)
(a) Disconnect the A20 accelerator pedal position sensor
connector.
(b) Disconnect the E9 ECM connector.
(c) Check the resistance. Standard (RHD) (Check for open):
Tester ConnectionSpecified Condition
VPA1 (A20–5) – VPA (E9–22)Below 1 Ω
EP1 (A20–1) – EPA (E9–28)Below 1 Ω
VCP1 (A20–4) – VCPA (E9–26)Below 1 Ω
VPA2 (A20–2) – VPA2 (E9–23)Below 1 Ω
EP2 (A20–3) – EPA2 (E9–29)Below 1 Ω
VCP2 (A20–6) – VCP2 (E9–27)Below 1 Ω
Standard (LHD) (Check for open):
Tester ConnectionSpecified Condition
VPA1 (A20–5) – VPA (E9–22)Below 1 Ω
EP1 (A20–3) – EPA (E9–28)Below 1 Ω
VCP1 (A20–6) – VCPA (E9–26)Below 1 Ω
VPA2 (A20–2) – VPA2 (E9–23)Below 1 Ω
EP2 (A20–1) – EPA2 (E9–29)Below 1 Ω
VCP2 (A20–4) – VCP2 (E9–27)Below 1 Ω
Standard (RHD) (Check for short):
Tester ConnectionSpecified Condition
VPA1 (A20–5) or VPA (E9–22) – Body ground10 kΩ or higher
EP1 (A20–1) or EPA (E9–28) – Body ground10 k Ω or higher
VCP1 (A20–4) or VCPA (E9–26) – Body ground10 k Ω or higher
VPA2 (A20–2) or VPA2 (E9–23) – Body ground10 k Ω or higher
EP2 (A20–3) or EPA2 (E9–29) – Body ground10 k Ω or higher
VCP2 (A20–6) or VCP2 (E9–27) – Body ground10 k Ω or higher
Standard (LHD) (Check for short):
Tester ConnectionSpecified Condition
VPA1 (A20–5) or VPA (E9–22) – Body ground10 k Ω or higher
EP1 (A20–3) or EPA (E9–28) – Body ground10 k Ω or higher
VCP1 (A20–6) or VCPA (E9–26) – Body ground10 k Ω or higher
VPA2 (A20–2) or VPA2 (E9–23) – Body ground10 k Ω or higher
EP2 (A20–1) or EPA2 (E9–29) – Body ground10 k Ω or higher
VCP2 (A20–4) or VCP2 (E9–27) – Body ground10 k Ω or higher
(d) Reconnect the accelerator pedal position sensor connec-
tor.
(e) Reconnect the ECM connector.
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
OK
REPLACE ACCELER ATOR PEDAL ASSY ( See page 10–12)

Page 4944 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 05–184
– DIAGNOSTICSSFI SYSTEM (1ZZ–FE/3ZZ–FE)(From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
DTC P2120 THROTTLE/PEDAL POSITION
SENSOR/SWITCH ”D” CIRCUIT
DTC P2122 THROTTL
