Page 1225 of 5135
050YH±19
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1197
AVENSIS REPAIR MANUAL (RM1018E)

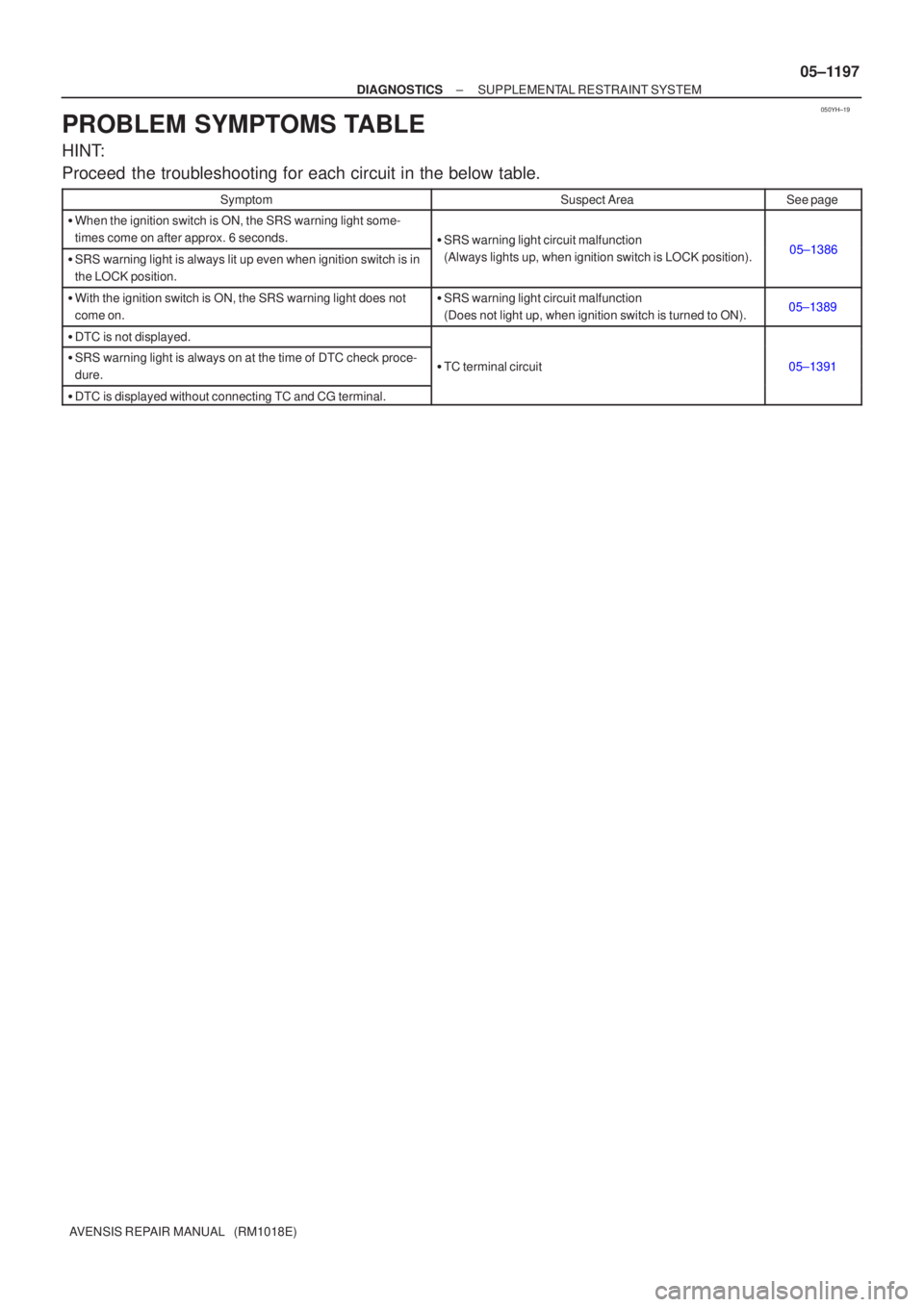

PROBLEM SYMPTOMS TABLE
HINT:
Proceed the troubleshooting for each circuit in the below table.
SymptomSuspect AreaSee page
When the ignition switch is ON, the SRS warning light some-
times come on after approx. 6 seconds.
SRS warning light circuit malfunction
SRS warning light is always lit up even when ignition switch is in
the LOCK position.
SRS warning light circuit malfunction
(Always lights up, when ignition switch is LOCK position).05±1386
With the ignition switch is ON, the SRS warning light does not
come on.SRS warning light circuit malfunction
(Does not light up, when ignition switch is turned to ON).05±1389
DTC is not displayed.
SRS warning light is always on at the time of DTC check proce-
dure.TC terminal circuit05±1391
DTC is displayed without connecting TC and CG terminal.
Page 1226 of 5135
05C5W±01
H40533
A26A27
A28
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05±1195
AVENSIS REPAIR MANUAL (RM1018E)

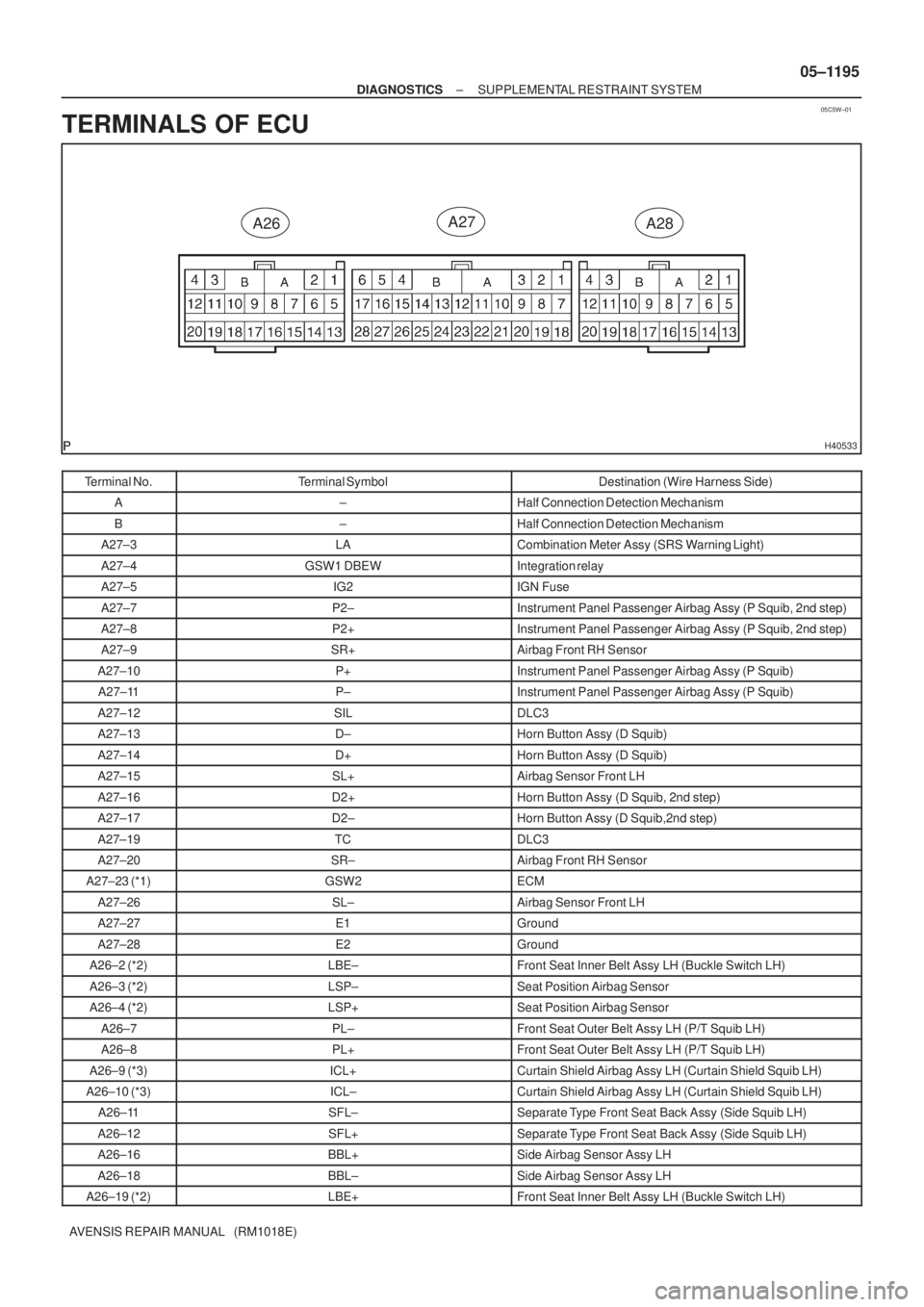

TERMINALS OF ECU
Terminal No.Terminal SymbolDestination (Wire Harness Side)
A±Half Connection Detection Mechanism
B±Half Connection Detection Mechanism
A27±3LACombination Meter Assy (SRS Warning Light)
A27±4GSW1 DBEWIntegration relay
A27±5IG2IGN Fuse
A27±7P2±Instrument Panel Passenger Airbag Assy (P Squib, 2nd step)
A27±8P2+Instrument Panel Passenger Airbag Assy (P Squib, 2nd step)
A27±9SR+Airbag Front RH Sensor
A27±10P+Instrument Panel Passenger Airbag Assy (P Squib)
A27±11P±Instrument Panel Passenger Airbag Assy (P Squib)
A27±12SILDLC3
A27±13D±Horn Button Assy (D Squib)
A27±14D+Horn Button Assy (D Squib)
A27±15SL+Airbag Sensor Front LH
A27±16D2+Horn Button Assy (D Squib, 2nd step)
A27±17D2±Horn Button Assy (D Squib,2nd step)
A27±19TCDLC3
A27±20SR±Airbag Front RH Sensor
A27±23 (*1)GSW2ECM
A27±26SL±Airbag Sensor Front LH
A27±27E1Ground
A27±28E2Ground
A26±2 (*2)LBE±Front Seat Inner Belt Assy LH (Buckle Switch LH)
A26±3 (*2)LSP±Seat Position Airbag Sensor
A26±4 (*2)LSP+Seat Position Airbag Sensor
A26±7PL±Front Seat Outer Belt Assy LH (P/T Squib LH)
A26±8PL+Front Seat Outer Belt Assy LH (P/T Squib LH)
A26±9 (*3)ICL+Curtain Shield Airbag Assy LH (Curtain Shield Squib LH)
A26±10 (*3)ICL±Curtain Shield Airbag Assy LH (Curtain Shield Squib LH)
A26±11SFL±Separate Type Front Seat Back Assy (Side Squib LH)
A26±12SFL+Separate Type Front Seat Back Assy (Side Squib LH)
A26±16BBL+Side Airbag Sensor Assy LH
A26±18BBL±Side Airbag Sensor Assy LH
A26±19 (*2)LBE+Front Seat Inner Belt Assy LH (Buckle Switch LH)
Page 1227 of 5135
05±1196
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)Terminal No.Destination (Wire Harness Side) Terminal Symbol
A28±1 (*4)RSP+Seat Position Airbag Sensor
A28±2 (*4)RSP±Seat Position Airbag Sensor
A28±3 (*4)RBE±Front Seat Inner Belt Assy RH (Buckle Switch RH)
A28±5SFR+Separate Type Front Seat Back Assy (Side Squib RH)
A28±6SFR±Separate Type Front Seat Back Assy (Side Squib RH)
A28±7 (*3)ICR±Curtain Shield Airbag Assy RH (Curtain Shield Squib RH)
A28±8 (*3)ICR+Curtain Shield Airbag Assy RH(Curtain Shield Squib RH)
A28±9PR+Front Seat Outer Belt Assy RH (P/T Squib RH)
A28±10PR±Front Seat Outer Belt Assy RH (P/T Squib RH)
A28±11DK±Instrument Panel Airbag Assy (Knee Squib)
A28±12DK+Instrument Panel Airbag Assy (Knee Squib)
A28±14 (*4)RBE+Front Seat Inner Belt Assy RH (Buckle Switch RH)
A28±15BBR±Side Airbag Sensor Assy RH
A28±17BBR+Side Airbag Sensor Assy RH
*1: Gasoline Engine
*2: LHD
*3: w/ Curtain Shield Airbag
*4: RHD
Page 1228 of 5135
050X1±21
H42508
Instrument Panel Passenger Airbag Assy
Separate Type Front Seat Back
Assy (Side Squib RH)
Side Airbag
Sensor Assy LH Airbag Sensor
Front LH
Front Seat Outer Belt Assy LHFront Seat Outer Belt Assy RH Airbag Front RH Sensor Combination Meter Assy:
Curtain Shield Airbag Assy RH (*3)
Airbag Sensor
Rear RH (*3) Seat Position
Airbag Sensor Curtain Shield
Airbag Assy LH
(*3)
Horn Button Assy
Airbag Sensor Assy Center Airbag Sensor
Rear LH (*3)Side Airbag Sensor Assy RH
Front Seat Inner Belt Assy LH (*1) Spiral Cable
Sub±assy
Separate Type
Front Seat
Back Assy
(Side Squib LH)
SRS Warning Light
Instrument
Panel
Airbag Assy
*1: LHD
*2: RHD
*3: w/ Curtain Shield Airbag 05±1194
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

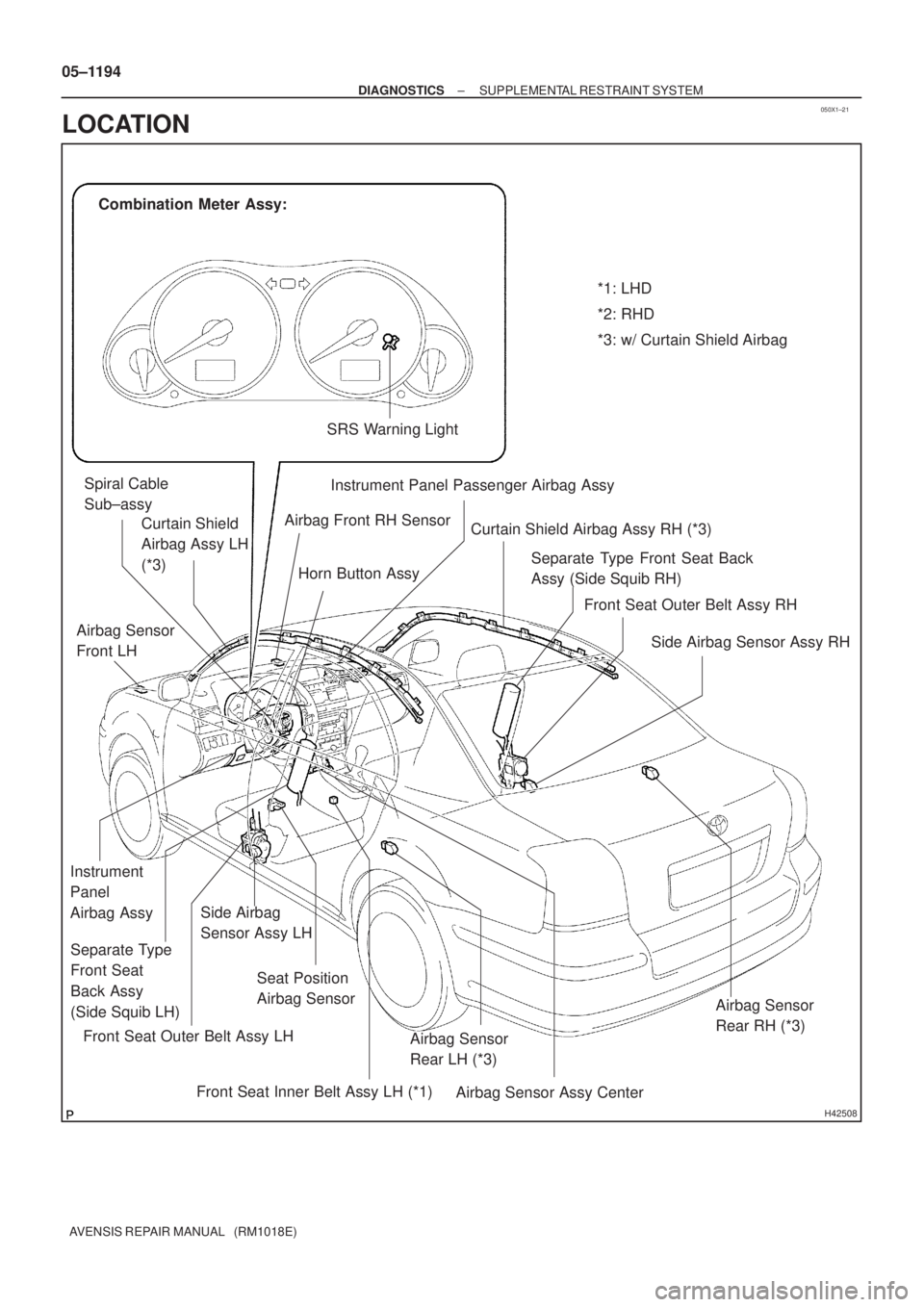

LOCATION
Page 1229 of 5135
050WZ±17
05±1190
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the DTC check, check the circuit\
listed for the code in the table below
(Proceed to the page given for that circuit).
DTC No.
(See page)Detection ItemTrouble AreaSRS
Warning Light
B0100/13
(05±1198)
Short in D squib circuitHorn button assy (squib)
Spiral cable sub±assy
Airbag sensor assy center
Instrument panel wire
ON
B0101/14
(05±1202)
Open in D squib circuitHorn button assy (squib)
Spiral cable sub±assy
Airbag sensor assy center
Instrument panel wire
ON
B0102/11
(05±1206)
Short in D squib circuit (to ground)Horn button assy (squib)
Spiral cable sub±assy
Airbag sensor assy center
Instrument panel wire
ON
B0103/12
(05±1210)
Short in D squib circuit (to B+)Horn button assy (squib)
Spiral cable sub±assy
Airbag sensor assy center
Instrument panel wire
ON
B0105/53
(05±1214) Short in P squib circuitInstrument panel passenger airbag assy (squib)
Airbag sensor assy center
Instrument panel wire
ON
B0106/54
(05±1217) Open in P squib circuitInstrument panel passenger airbag assy (squib)
Airbag sensor assy center
Instrument panel wire
ON
B0107/51
(05±1220) Short in P squib circuit (to ground)Instrument panel passenger airbag assy (squib)
Airbag sensor assy center
Instrument panel wire
ON
B0108/52
(05±1223) Short in P squib circuit (to B+)Instrument panel passenger airbag assy (squib)
Airbag sensor assy center
Instrument panel wire
ON
B0110/43
(05±1226) Short in side squib (RH) circuitSeparate type front seat back assy (squib, RH)
Airbag sensor assy center
Floor wire No.2
Blink
B0111/44
(05±1229) Open in side squib (RH) circuitSeparate type front seat back assy (squib, RH)
Airbag sensor assy center
Floor wire No.2
Blink
B0112/41
(05±1232) Short in side squib (RH) circuit
(to ground)Separate type front seat back assy (squib, RH)
Airbag sensor assy center
Floor wire No.2
Blink
B0113/42
(05±1235) Short in side squib (RH) circuit (to B+)Separate type front seat back assy (squib, RH)
Airbag sensor assy center
Floor wire No.2
Blink
B0115/47
(05±1238) Short in side squib (LH) circuitSeparate type front seat back assy (squib, LH)
Airbag sensor assy center
Floor wire
Blink
B0116/48
(05±1241) Open in side squib (LH) circuitSeparate type front seat back assy (squib, LH)
Airbag sensor assy center
Floor wire
Blink
B0117/45
(05±1244) Short in side squib (LH) circuit
(to ground)Separate type front seat back assy (squib, LH)
Airbag sensor assy center
Floor wire
Blink
B0118/46
(05±1247) Short in side squib (LH) circuit (to B+)Separate type front seat back assy (squib, LH)
Airbag sensor assy center
Floor wire
Blink

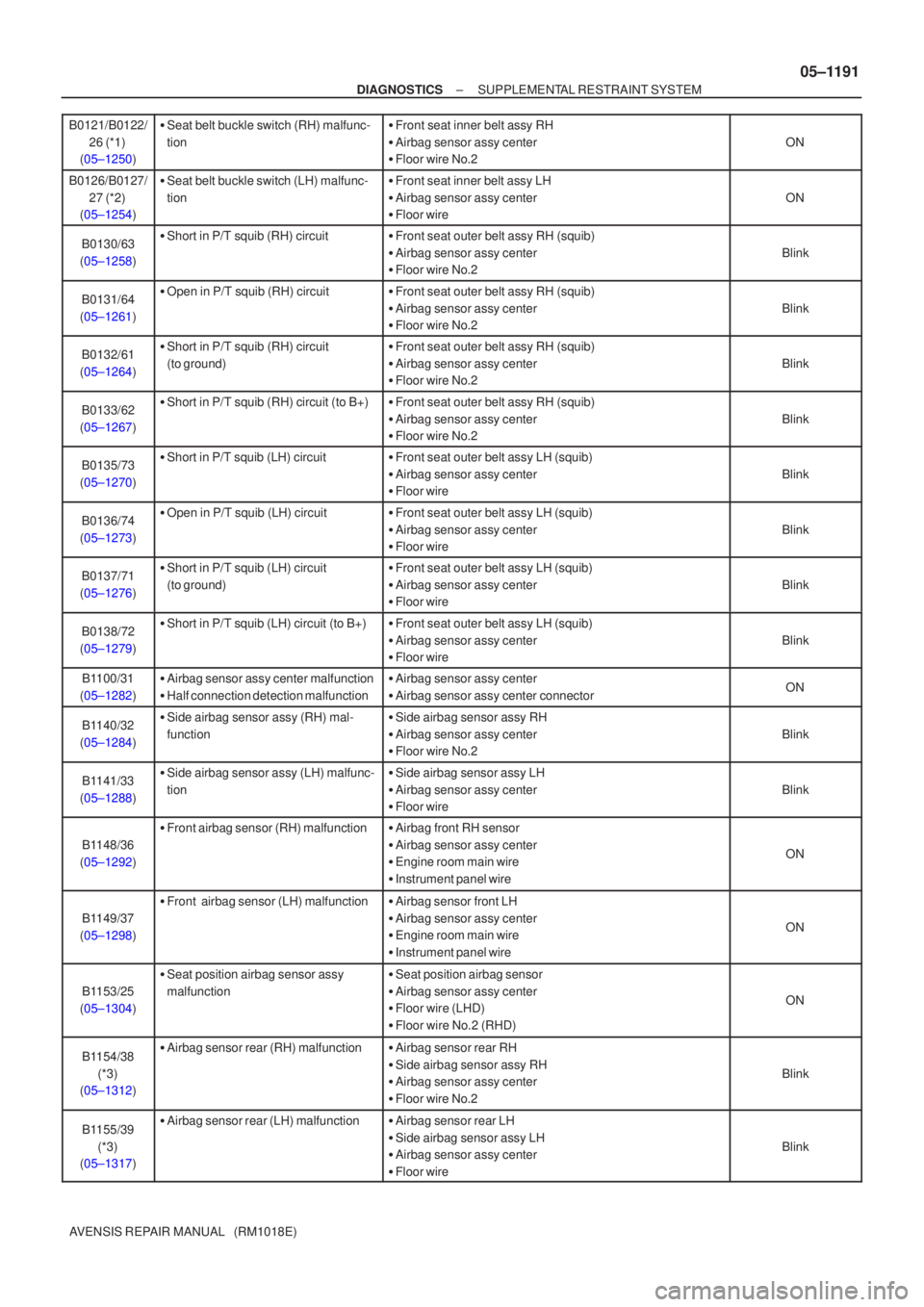

Page 1230 of 5135
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1191
AVENSIS REPAIR MANUAL (RM1018E)
B0121/B0122/
26 (*1)
(05±1250)
Seat belt buckle switch (RH) malfunc-
tionFront seat inner belt assy RH
Airbag sensor assy center
Floor wire No.2
ON
B0126/B0127/
27 (*2)
(05±1254) Seat belt buckle switch (LH) malfunc-
tionFront seat inner belt assy LH
Airbag sensor assy center
Floor wire
ON
B0130/63
(05±1258) Short in P/T squib (RH) circuitFront seat outer belt assy RH (squib)
Airbag sensor assy center
Floor wire No.2
Blink
B0131/64
(05±1261) Open in P/T squib (RH) circuitFront seat outer belt assy RH (squib)
Airbag sensor assy center
Floor wire No.2
Blink
B0132/61
(05±1264) Short in P/T squib (RH) circuit
(to ground)Front seat outer belt assy RH (squib)
Airbag sensor assy center
Floor wire No.2
Blink
B0133/62
(05±1267) Short in P/T squib (RH) circuit (to B+)Front seat outer belt assy RH (squib)
Airbag sensor assy center
Floor wire No.2
Blink
B0135/73
(05±1270) Short in P/T squib (LH) circuitFront seat outer belt assy LH (squib)
Airbag sensor assy center
Floor wire
Blink
B0136/74
(05±1273) Open in P/T squib (LH) circuitFront seat outer belt assy LH (squib)
Airbag sensor assy center
Floor wire
Blink
B0137/71
(05±1276) Short in P/T squib (LH) circuit
(to ground)Front seat outer belt assy LH (squib)
Airbag sensor assy center
Floor wire
Blink
B0138/72
(05±1279) Short in P/T squib (LH) circuit (to B+)Front seat outer belt assy LH (squib)
Airbag sensor assy center
Floor wire
Blink
B1100/31
(05±1282) Airbag sensor assy center malfunction
Half connection detection malfunctionAirbag sensor assy center
Airbag sensor assy center connectorON
B1140/32
(05±1284) Side airbag sensor assy (RH) mal-
functionSide airbag sensor assy RH
Airbag sensor assy center
Floor wire No.2
Blink
B1141/33
(05±1288) Side airbag sensor assy (LH) malfunc-
tionSide airbag sensor assy LH
Airbag sensor assy center
Floor wire
Blink
B1148/36
(05±1292)
Front airbag sensor (RH) malfunctionAirbag front RH sensor
Airbag sensor assy center
Engine room main wire
Instrument panel wire
ON
B1149/37
(05±1298)
Front airbag sensor (LH) malfunctionAirbag sensor front LH
Airbag sensor assy center
Engine room main wire
Instrument panel wire
ON
B1153/25
(05±1304)
Seat position airbag sensor assy
malfunctionSeat position airbag sensor
Airbag sensor assy center
Floor wire (LHD)
Floor wire No.2 (RHD)
ON
B1154/38
(*3)
(05±1312) Airbag sensor rear (RH) malfunctionAirbag sensor rear RH
Side airbag sensor assy RH
Airbag sensor assy center
Floor wire No.2
Blink
B1155/39
(*3)
(05±1317) Airbag sensor rear (LH) malfunctionAirbag sensor rear LH
Side airbag sensor assy LH
Airbag sensor assy center
Floor wire
Blink
Page 1231 of 5135
05±1192
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E) B1160/83
(*3)
(05±1322)
Short in curtain shield squib (RH) cir-
cuitCurtain shield airbag assy RH (squib)
Airbag sensor assy center
Floor wire No.2
Blink
B1161/84
(*3)
(05±1325) Open in curtain shield squib (RH) cir-
cuitCurtain shield airbag assy RH (squib)
Airbag sensor assy center
Floor wire No.2
Blink
B1162/81
(*3)
(05±1328) Short in curtain shield squib (RH) cir-
cuit (to ground)Curtain shield airbag assy RH (squib)
Airbag sensor assy center
Floor wire No.2
Blink
B1163/82
(*3)
(05±1331) Short in curtain shield squib (RH) cir-
cuit (to B+)Curtain shield airbag assy RH (squib)
Airbag sensor assy center
Floor wire No.2
Blink
B1165/87
(*3)
(05±1334) Short in curtain shield squib (LH) cir-
cuitCurtain shield airbag assy LH (squib)
Airbag sensor assy center
Floor wire
Blink
B1166/88
(*3)
(05±1337) Open in curtain shield squib (LH) cir-
cuitCurtain shield airbag assy LH (squib)
Airbag sensor assy center
Floor wire
Blink
B1167/85
(*3)
(05±1340) Short in curtain shield squib (LH) cir-
cuit (to ground)Curtain shield airbag assy LH (squib)
Airbag sensor assy center
Floor wire
Blink
B1168/86
(*3)
(05±1343) Short in curtain shield squib (LH) cir-
cuit (to B+)Curtain shield airbag assy LH (squib)
Airbag sensor assy center
Floor wire
Blink
B1180/17
(05±1346)
Short in D squib (2nd step) circuitHorn button assy (squib, 2nd step)
Spiral cable sub±assy
Airbag sensor assy center
Instrument panel wire
ON
B1181/18
(05±1350)
Open in D squib (2nd step) circuitHorn button assy (squib, 2nd step)
Spiral cable sub±assy
Airbag sensor assy center
Instrument panel wire
ON
B1182/19
(05±1354)
Short in D squib (2nd step) circuit (to
ground)Horn button assy (squib, 2nd step)
Spiral cable sub±assy
Airbag sensor assy center
Instrument panel wire
ON
B1183/22
(05±1358)
Short in D squib (2nd step) circuit (to
B+)Horn button assy (squib, 2nd step)
Spiral cable sub±assy
Airbag sensor assy center
Instrument panel wire
ON
B1185/57
(05±1362) Short in P squib (2nd step) circuitInstrument panel passenger airbag assy (squib, 2nd step)
Airbag sensor assy center
Instrument panel wire
ON
B1186/58
(05±1365) Open in P squib (2nd step) circuitInstrument panel passenger airbag assy (squib, 2nd step)
Airbag sensor assy center
Instrument panel wire
ON
B1187/55
(05±1368) Short in P squib (2nd step) circuit (to
ground)Instrument panel passenger airbag assy (squib, 2nd step)
Airbag sensor assy center
Instrument panel wire
ON
B1188/56
(05±1371) Short in P squib (2nd step) circuit (to
B+)Instrument panel passenger airbag assy (squib, 2nd step)
Airbag sensor assy center
Instrument panel wire
ON
B1650/B1651/
B1652/B1653/
49
(05±1374) Short in knee squib circuit
Open in knee squib circuit
Short in knee squib circuit (to ground)
Short in knee squib circuit (to B+)Instrument panel airbag assy (squib)
Instrument panel wire
Floor wire No.2
Airbag sensor assy center
ON
NormalSystem normal±OFFNormal
(05±1383) Voltage source dropBattery
Airbag sensor assy centerON
Page 1232 of 5135
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05±1193
AVENSIS REPAIR MANUAL (RM1018E)
*1: RHD, *2: LHD, *3: w/ Curtain Shield Airbag
HINT:
When the SRS warning light remains on and the DTC is the normal code, a voltage source drop is sus-
pected.
This malfunction is not stored in memory by the airbag sensor assy center and if the power source
voltage returns to normal, the SRS warning light will automatically go off.
If a code not listed on the displayed chart, the airbag sensor assy center may be failed.
In the case of any malfunction concerning any open circuit, short to ground, or short to B+ due to any
squib, another malfunction code may not be detected. In this case, repair the malfunction currently
indicated and then perform malfunction diagnosis again. Another malfunction code may then be de-
tected.
