Press either LOCK or UNLOCK switch on transmitter once. 9.
Within 40 sec.
Proceed to flow chart to finish
registration.
Press the same switch again.
LOCK±UNLOCK Occurs Once
Registration of recognition code has
been completed. Response to registration completion:
T1: Approx. 1 sec. LOCK±UNLOCK Occurs Twice
Registration of recognition code has failed. 10.
LOCK
UNLOCK
T1
LOCK
UNLOCKT1 T1
Within
40 sec.
If other transmitter is to be registered. Within
3 sec.
Registration of recognition codes (add mode and rewrite mode) is completed.
Integration relay automatically performs power door LOCK±UNLOCK operation to show
whether registration has been completed correctly or not.
HINT:
4 recognition codes can be registered
at once. HINT:
If LOCK±UNLOCK operation is performed twice, registration of recognition code has
failed. Perform registration procedures by beginning once again.
Within
3 sec.
Open a door.
Insert key into ignition key cylinder. Perform either of the following.
± THEFT DETERRENT & DOOR LOCKTRANSMITTER SUB±ASSY MODULE SET DOOR
CONTROL73±25
AVENSIS REPAIR MANUAL (RM1018E)
Page 3314 of 5135
730EZ±03
I34799
±
THEFT DETERRENT & DOOR LOCK TRANSMITTER SUB±ASSY MODULE SET DOOR
CONTROL73±19
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION
1.INSPECT TRANSMITTER SUB±ASSY MODULE SET DOOR CONTROL
(a)Inspect operation of the transmitter.
(1)Remove the battery (lithium battery) from the transmitter (See page 73±17).
(2)Install a new or normal battery (lithium battery).
HINT:
When a new or normal battery is not available, connect 2 new
1.5 V batteries in a series, connect the battery positive (+) to the
battery receptacle side terminal and battery negative (±) to the
bottom terminal, then apply 3 V of voltage to the transmitter.
(3)In a location that is approx. 1 m (3.28 ft) away from the driver side ou\
tside door handle in the right direction, point the key plate of the transmitter at the vehicle and che\
ck operation of the transmit-
ter by pressing the transmission switch on the transmitter body.
Standard:
The door lock can be operated via the remote control.
The LED lights up more than once.
HINT:
The minimum operational distance differs, depending on the operator, the way the transmitter is held,
and the location.
Since the transmitter uses faint electric waves, the operational distanc\
e might be shortened if noise
or strong electric wave occurs in the area where the frequency is used.
(4)Install the battery (lithium battery).
(b)Inspect the battery capacity.
HINT:
The capacity of the battery can be determined only when the battery is inst\
alled in the transmitter. For
a lithium battery used in the transmitter, a voltage of more than 2.5 V is shown on the tester until the
energy is completely consumed, while no battery is installed in the transmitte\
r. Therefore, it is neces-
sary to measure the voltage while the battery is installed in the transmitte\
r (a resistance of 1.2 k is
applied to the battery) when checking the amount of energy left in the \
battery.
If the transmitter is faulty, the amount of energy left in the battery might not be checked correctl\
y.
(1)Remove the battery (lithium battery) from the transmitter (See page 73±17).
Page 3315 of 5135
I34797
Lead
I34798
73±20± THEFT DETERRENT & DOOR LOCKTRANSMITTER SUB±ASSY MODULE SET DOOR
CONTROL
AVENSIS REPAIR MANUAL (RM1018E)

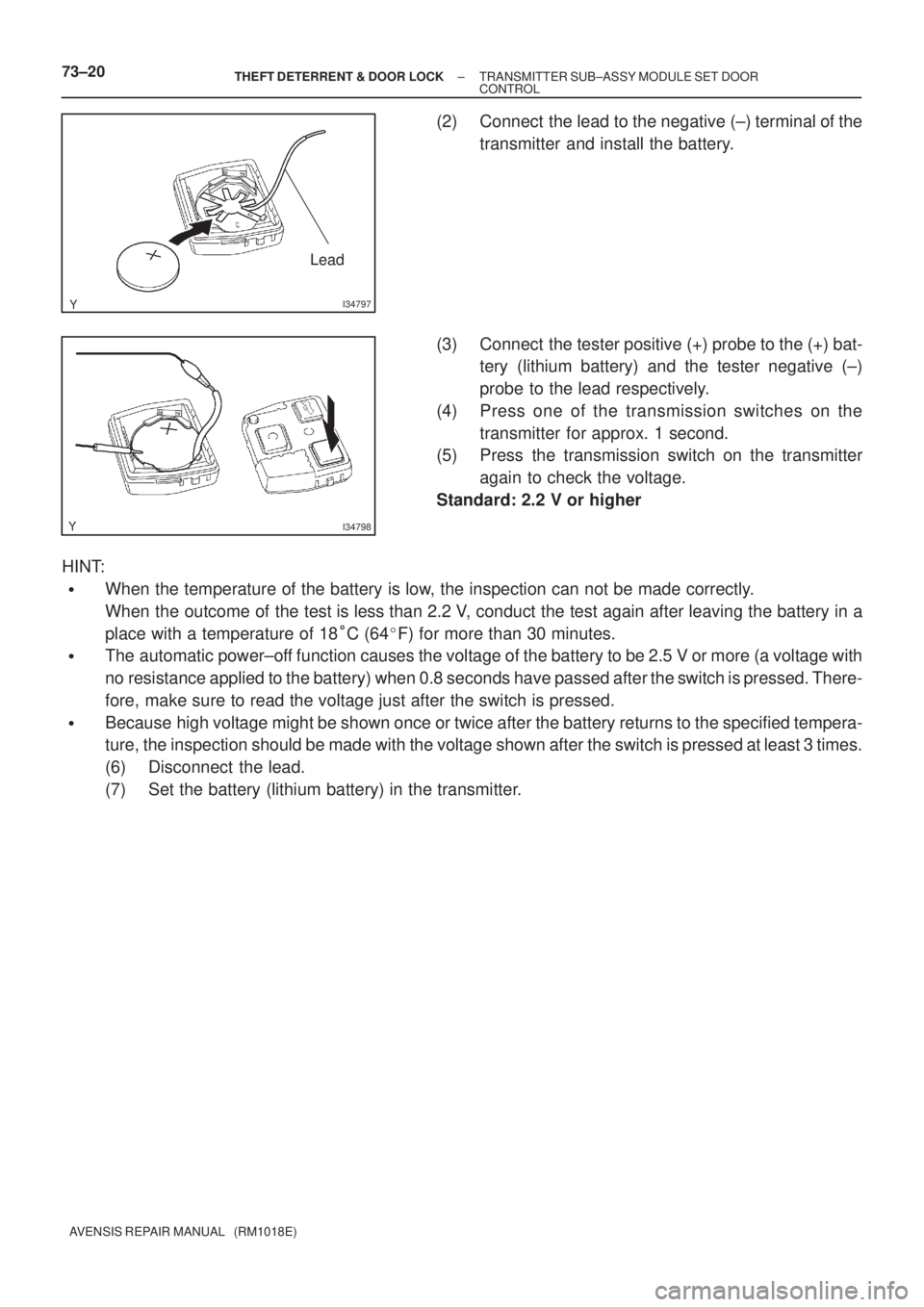

(2) Connect the lead to the negative (±) terminal of the
