Burner Motor
Glow Plug
Surface Sensor
Temp. Control Sensor
Flame Sensor13
Power
Heater
ECU
Connector BTerminal L
of AlternatorBattery
Metering Pump
Fuse (20 A)
Vehicle Side SW 14
9
12
5
6
3
4
1
2R
BR
B±R
G
L±Y
L
Y
L±W5
1
6
2
7
3
8
4W±B
R±G
R±B Connector A
IG
W±R (*1)
Y±R (*2)
R±L (*1)
R±Y (*2)
*1: TMC Made
*2: TMUK Made 55±16
± HEATER & AIR CONDITIONERCOMBUSTION TYPE POWER HEATER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
2. DESCRIPTION OF DISPLAY AND BUTTONS
(a) AF: Current Value Malfunction (Blinking at current failure)
Diag: DTC (Example: 064 Flame sensor break)
Memory Clear button: Deletion of faulty memory (Press both buttons together for longer than 2 se-
conds)
> Button: Scroll up of faulty memory (The past 5 codes can be stored.)
< Button: Scroll down of faulty memory (The past 5 codes can be stored.)
3. FAULTY MEMORY
(a) The ECU is able to store up to 5 pieces of faulty memory. If it is full, the new data is written over F5.

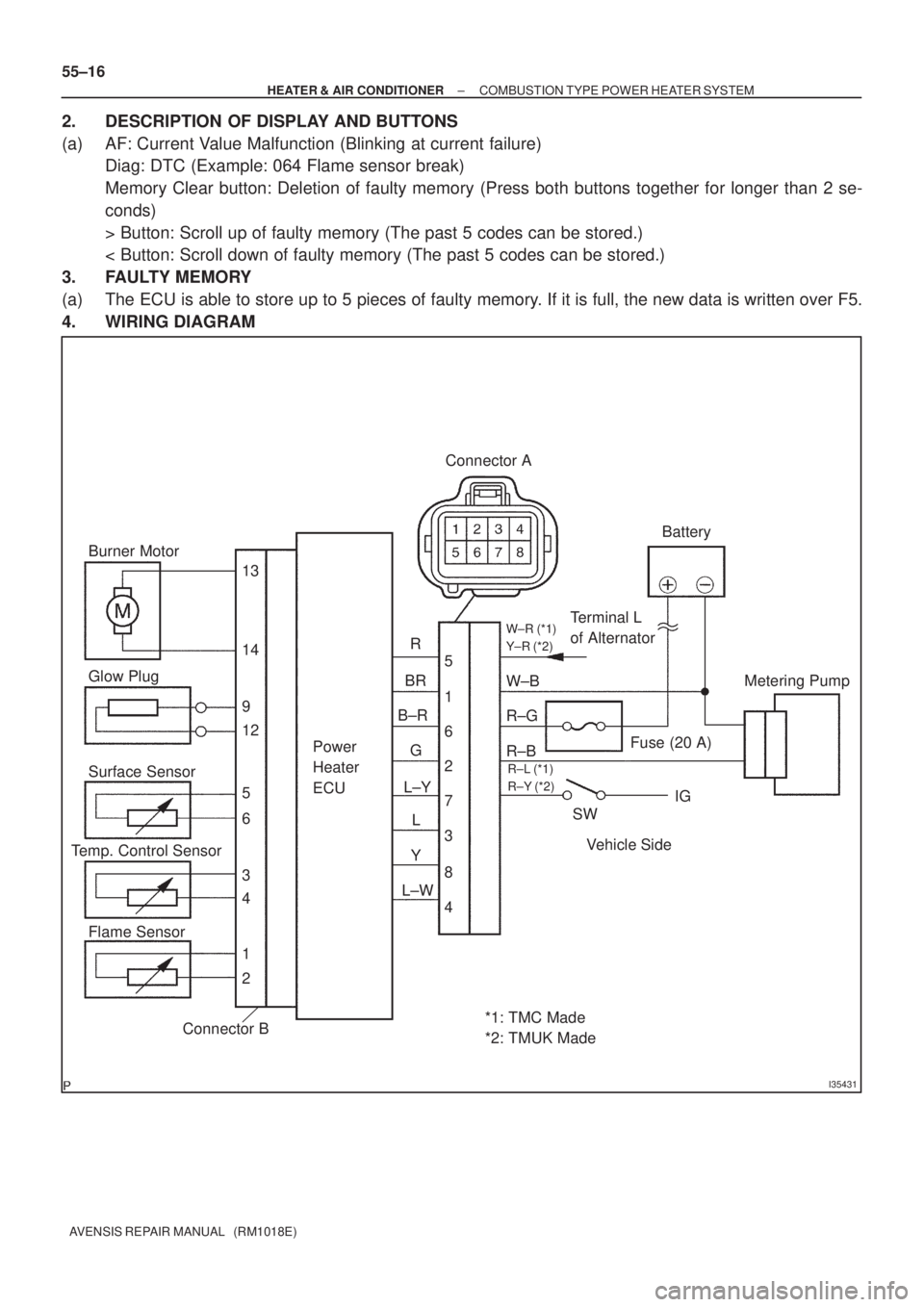

4. WIRING DIAGRAM
Page 2922 of 5135

± HEATER & AIR CONDITIONERCOMBUSTION TYPE POWER HEATER SYSTEM
55±17
AVENSIS REPAIR MANUAL (RM1018E)
5. DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the DTC check, check the circuit listed for the code in the table below
and proceed to the appropriate page.
DTC No.Description of faultComment / Remedy
000No malfunction±
010
011Overvoltage shutoff
Undervoltage shutoffVoltage between 1 and 5 at connector A > 16 V
Voltage between 1 and 5 at connector A < 10.2 V
(Voltage values must be present > 20 seconds)
Check battery, regulator and electrical leads.
012Overheating
Check temperature at temperature or overheating sensor >
125 C
Check water circuit.
014Possible overheating detected
(Hardware threshold value)
Difference of measured values at temperature sensor > 15 C
(min. 70 C water temperature and metering pump in opera-
tion);
Check temperature sensor and overheating sensor, replace if
necessary.
017Overheating detected
(Hardware threshold value)
Temperature at temperature or overheating sensor > 130 C,
emergency OFF if DTC No. 012 or 014s not applicable;
Check water circuit, temperature sensor and overheating sen-
sor, replace if necessary.
020Glow plug breakCheck glow plug, replace if necessary.
021Glow plug output overloadCheck glow plug, replace if necessary.
030Combustion air blower motor
EMF outside perm. range.Blower impeller or burner motor fammed (frozen solid, dirty,
etc.)
Remedy jam, replace burner motor if necessary.
031Combustion air blower motor breakCheck the lead to combustion air motor (burner motor) for
continuity, replace if necessary.
032Combustion air blower motor short±circuit
Check combustion air blower motor (burner motor), replace if
necessary.
Check supply lead (chafed, etc.).
047Metering pump short±circuitCheck the supply lead to metering pump for short±circuit,
check metering pump, replace if necessary.
048Metering pump breakCheck the supply lead to metering pump for continuity, remedy
break, replace metering pump if necessary.
051Cold blow time exceeded
At start, if flame sensor above 70 C, > 240 sec.;
Check exhaust gas combustion air supply, check flame sen-
sor, replace if necessary.
052Safety time exceeded
When all perm. start attempts used up;
Check the fuel delivery and fuel supply.
Check exhaust gas and combustion air ducts.
054Flame cutout, High settingCheck the fuel delivery and fuel supply.
Check exhaust gas combustion air ducts.
056Flame cutout, LOW setting
Check exhaust gas combustion air ducts.
If combustion OK Check the flame sensor, replace if neces-
sary.
060Temperature control sensor break
Check connecting leads.
Resistance value between 2 and 10 connector B > 2 M (if
break)
061Temperature control sensor short±circuit
Check connecting leads.
Resistance value between 2 and 10 at connector B < 2 M (If
short± circuit)
064Flame sensor break
Check connecting leads.
Resistance value between 7 and 14 at connector B > 3,040
(If break)
065Flame sensor short±circuit
Check connecting leads.
Resistance value between 7 and 14 at connector B > 780 (If
short±circuit)
Page 2923 of 5135
55±18
± HEATER & AIR CONDITIONERCOMBUSTION TYPE POWER HEATER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)DTC No.Comment / Remedy Description of fault
071Surface sensor break
Check connecting leads.
Resistance value between 4 and 11 at connector B > 2 (If
break)
072Surface sensor short±circuit
Check connecting leads.
Resistance value between 4 and 11 at connector B > 50 (If
short±circuit)
090
092
093Control unit detective (Internal fault / Reset)
Control unit detective (ROM error)
Control unit detective (RAM error)
Control unit malfunction due to interference voltage from ve-
hicle electrical system;
possible causes low batteries, chargers, other sources of
interference; eliminate interference voltages.
Internal faults detected in microprocessor / memory detected.
Replace control unit.
097Internal control unit faultsOther faults which cannot lead to DTC No. 90, 92 and 93,
replace control unit.
Page 2924 of 5135
550ZF±01
I32391
55±14
± HEATER & AIR CONDITIONERELECTRICAL TYPE POWER HEATER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION
1. INSPECT HEATER ASSY
(a) Check continuity.
(1) Using an ohmmeter, check for continuity between
each terminal of connector and earth wire.
If no continuity, replace the heater radiator.
Page 2925 of 5135
550ZE±01
±
HEATER & AIR CONDITIONER ELECTRICAL TYPE POWER HEATER SYSTEM
55±13
AVENSIS REPAIR MANUAL (RM1018E)

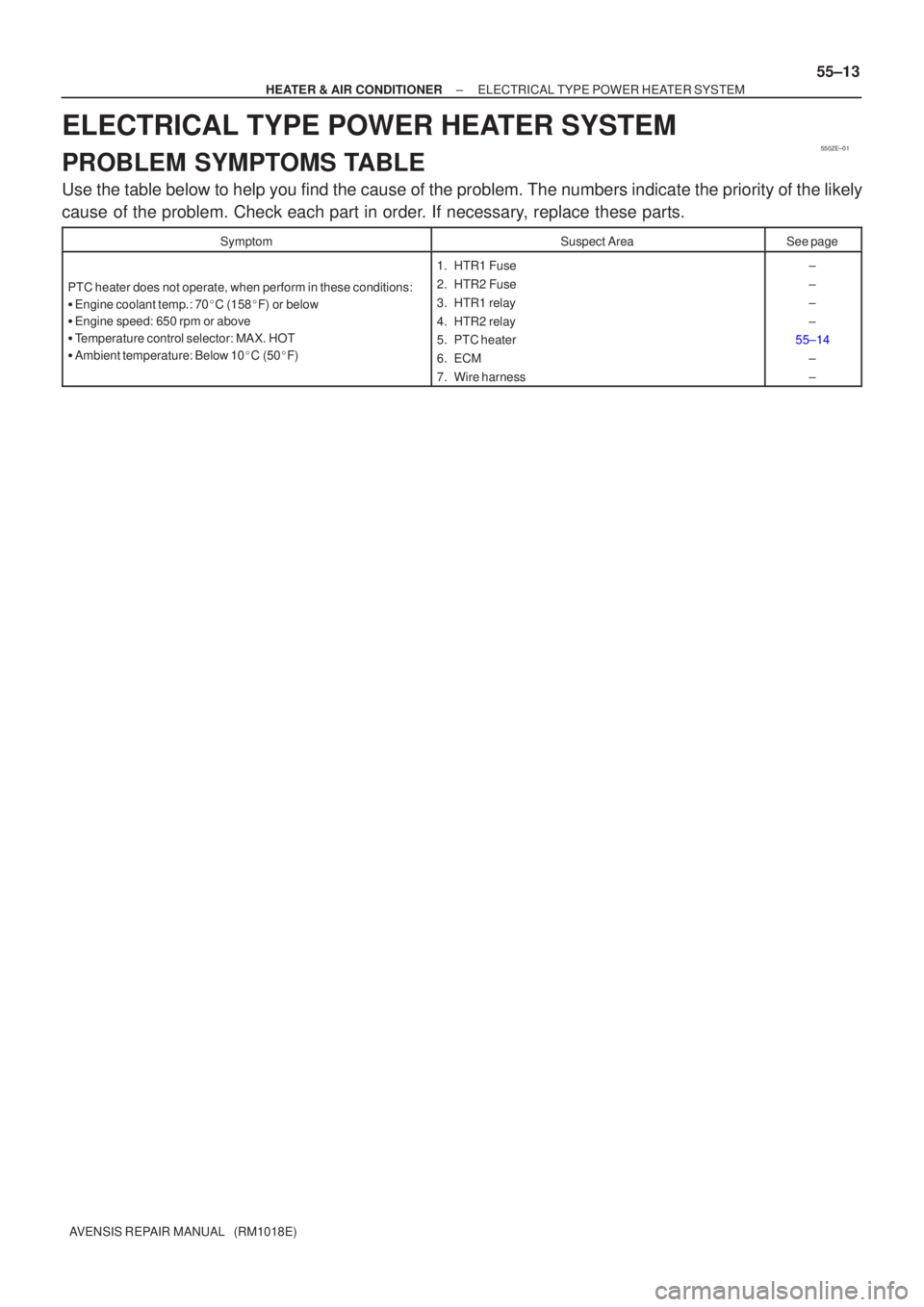

ELECTRICAL TYPE POWER HEATER SYSTEM
PROBLEM SYMPTOMS TABLE
Use the table below to help you find the cause of the problem. The numbers \
indicate the priority of the likely
cause of the problem. Check each part in order. If necessary, replace these parts.
SymptomSuspect AreaSee page
PTC heater does not operate, when perform in these conditions:
Engine coolant temp.: 70 C (158 F) or below
Engine speed: 650 rpm or above
Temperature control selector: MAX. HOT
Ambient temperature: Below 10 C (50 F)
1. HTR1 Fuse
2. HTR2 Fuse
3. HTR1 relay
4. HTR2 relay
5. PTC heater
6. ECM
7. Wire harness±
±
±
±
55±14
±
±
Page 2926 of 5135
550ZD±01
E61224
E32877
± HEATER & AIR CONDITIONERAIR CONDITIONING SYSTEM
55±7
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION
1. INSPECT COMPRESSOR (MANUAL AIR
CONDITIONING)
(a) Measure the resistance between terminals 1 and 2.
Resistance: 10 to 11 at 25C (77F)
If the resistance is not as specified, replace the compressor
assy.
2. INSPECT BLOWER RESISTOR (MANUAL AIR
CONDITIONING)
(a) Measure resistance between terminals, as shown in the
table.
Tester connectionSpecified condition
1 ± 21.404 to 1.716
1 ± 30.504 to 0.616
1 ± 43.024 to 3.696
If resistance is not as specified, replace the blower resistor.
Page 2927 of 5135
I36092
LHD Models:REC
FRS
I36094
I36093
RHD Models:
RECFRS
I36094
55±8
± HEATER & AIR CONDITIONERAIR CONDITIONING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
3. INSPECT RECIRCULATION DAMPER SERVO
SUB±ASSY (MANUAL AIR CONDITIONING)
(a) Inspect servomotor operation.
(1) Connect the positive (+) lead from the battery to ter-
minal 3 and negative (±) lead to terminal 2, then
check that the arm turns to ºFRSº side smoothly.
(2) Connect the positive (+) lead from the battery to ter-
minal 3 and negative (±) lead to terminal 1, then
check that the arm turns to ºRECº side smoothly.
If operations are not as specified, replace the mode damper
servomotor.
Page 2928 of 5135
I30157
I30162
To ºMAX HOTº
To ºMAX COOLº
± HEATER & AIR CONDITIONERAIR CONDITIONING SYSTEM
55±9
AVENSIS REPAIR MANUAL (RM1018E)
4. INSPECT AIRMIX DAMPER SERVO SUB±ASSY
(MANUAL AIR CONDITIONING)
(a) Inspect servomotor operation.
(1) Connect the positive (+) lead from the battery to ter-
minal 4 and negative (±) lead to terminal 5, then
check that the arm turns to ºMAX COOLº side
smoothly.
(2) Connect the positive (+) lead from the battery to ter-
minal 5 and negative (±) lead to terminal 4, then
check that the arm turns to ºMAX HOTº side
smoothly.
If operations are not as specified, replace the servomotor.
