Page 3065 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 610ED±01
B66569
Protrusion Part
Front
Front
Mark
Protrusion Part
±
SEAT BELT REAR SEAT BELT (SEDAN MODELS)
61±15
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
The installation is in the reve

610ED±01
B66569
Protrusion Part
Front
Front
Mark
Protrusion Part
±
SEAT BELT REAR SEAT BELT (SEDAN MODELS)
61±15
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concern-
ing the installation, it is indicated.
Use the same procedures on the LH side as on the RH side.
1.REMOVE REAR DOOR SCUFF PLATE RH (See page 76±36)
2.REMOVE REAR DOOR SCUFF PLATE LH (See page 76±36)
3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
4. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
5.REMOVE REAR SEAT ASSY (See page 72±27, 72±32)
6.REMOVE ROOF SIDE GARNISH INNER RH (See page 76±36)
7.REMOVE ROOF SIDE GARNISH INNER LH (See page 76±36)
8.REMOVE PACKAGE TRAY TRIM PANEL ASSY (See page 76±36)
9. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER
(a) Remove the bolt and belt on the floor anchor side.
(b) Remove the 2 bolts and belt on the retractor side.
10. REMOVE REAR SEAT BELT ASSY OUTER CENTER
(a) United fixed type: Remove the bolt and belt on the floor anchor side.
(b) United fixed type:
Remove the bolt and belt on the retractor side.
(c) 40/60 folding type: Remove the rear seatback board RH (See page 72±27).
(d) 40/60 folding type: Remove the rear seat shoulder belt cover (See page 72±27).
(e) 40/60 folding type: Remove the bolt on the retractor side and remove the belt completely.
(f) Remove the bolt and belt outer center on the floor anchor side.
11. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
12. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
13. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Remove the 2 bolts and anchor bracket.
14. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Install the child restraint seat anchor bracket with the 2 bolts. Torque: 31 N m (316 kgf cm, 23 ft lbf)
15. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY INNER

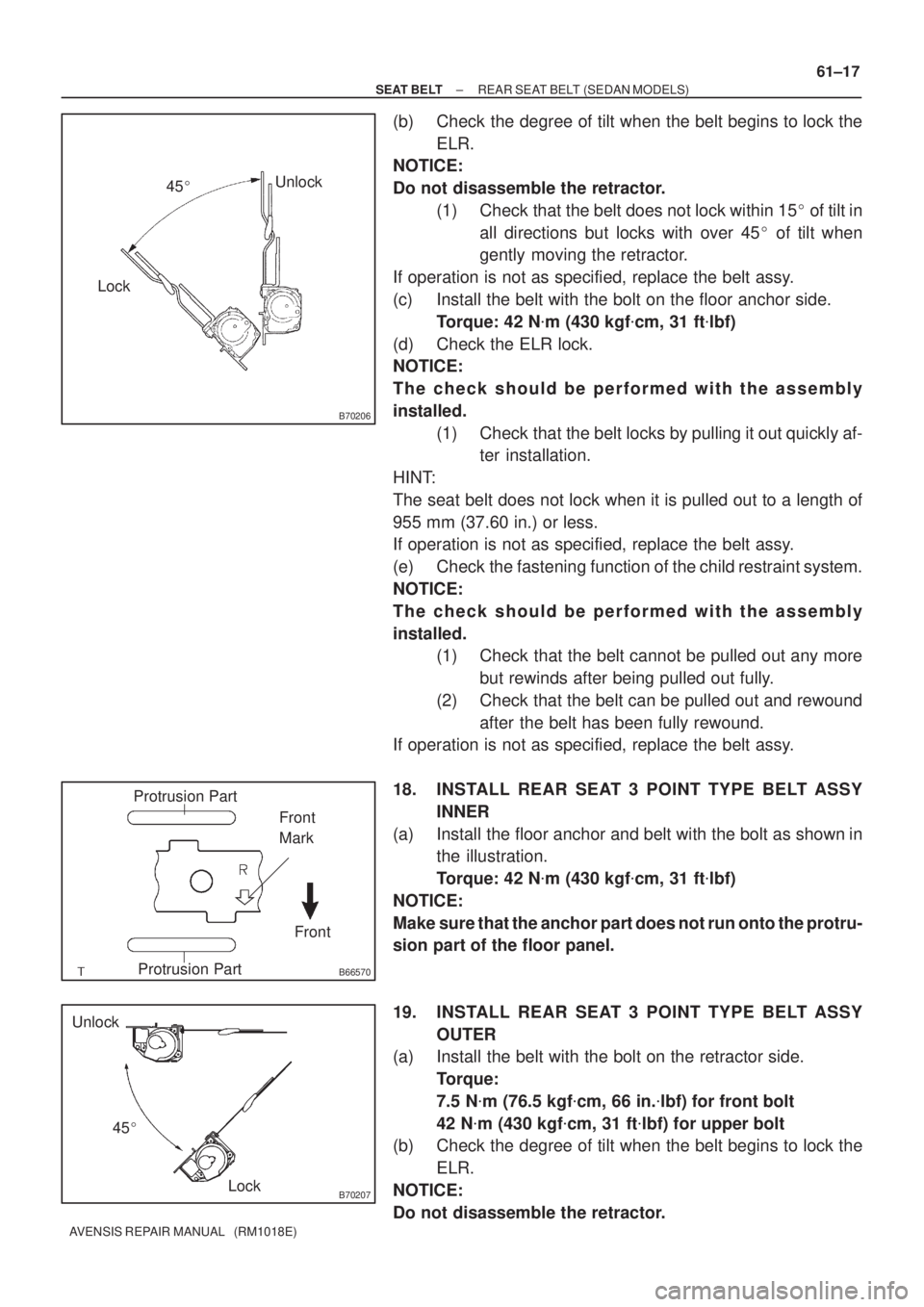

(a) Install the belt assy with the bolt as shown in the illustra-
tion.
Torque: 42 N m (430 kgf cm, 31 ft lbf)
NOTICE:
Make sure that the anchor part does not run onto the protru-
sion part of the floor panel.
16. INSTALL REAR SEAT BELT ASSY OUTER CENTER (UNITED FIXED TYPE REAR SEAT)

Page 3066 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B70205Lock Unlock
45 61±16
± SEAT BELTREAR SEAT BELT (SEDAN MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
(a) Install the belt with the bolt on the retractor side.
Torque: 42 Nm (430 kgfcm, 31 ftlbf

Page 3067 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B70206
LockUnlock
45
B66570
Protrusion Part
Front Front
Mark
Protrusion Part
B70207Lock Unlock
45
± SEAT BELTREAR SEAT BELT (SEDAN MODELS)
61±17
AVENSIS REPAIR MANUAL (RM1018E)
(b) Check the deg

Page 3068 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 61±18
±
SEAT BELT REAR SEAT BELT (SEDAN MODELS)
AVENSIS REPAIR MANUAL (RM1018E)

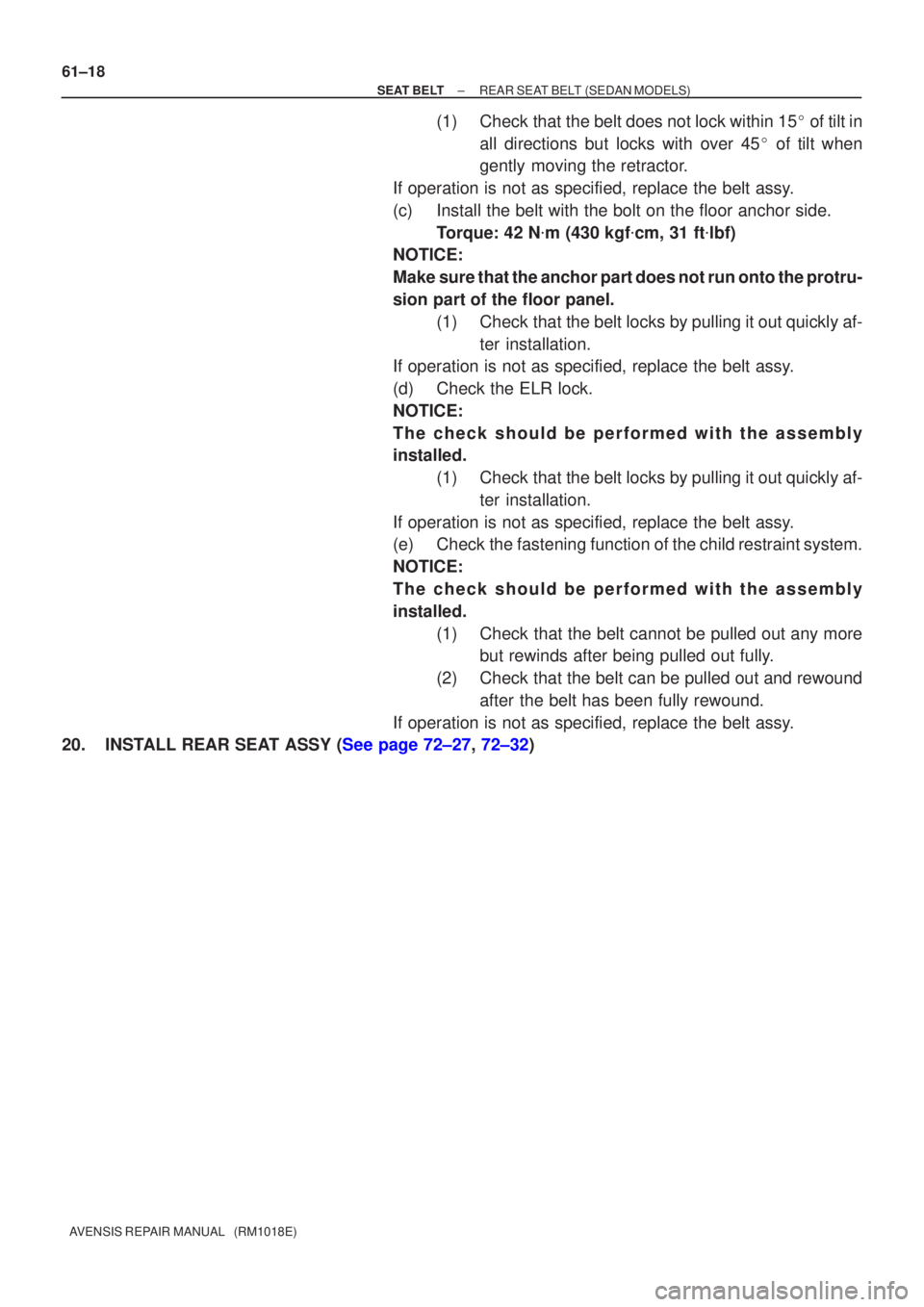

(1) Check that the belt does not lock within 15 of tilt in
all directions but locks with over 45 of tilt when
ge

Page 3069 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 610CP±02
B66567
42 (430, 31)
42 (430, 31)
Nm (kgfcm ftlbf): Specified torqueRear Seat Cushion Assy
and Rear Seatback Assy
42 (430, 31)
Rear Seat
3 Point Type
Belt Assy OuterRear Seat Belt
Assy Out

Page 3070 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 610CO±02
B50515
SST
B50511
± SEAT BELTFRONT SEAT BELT
61±9
AVENSIS REPAIR MANUAL (RM1018E)

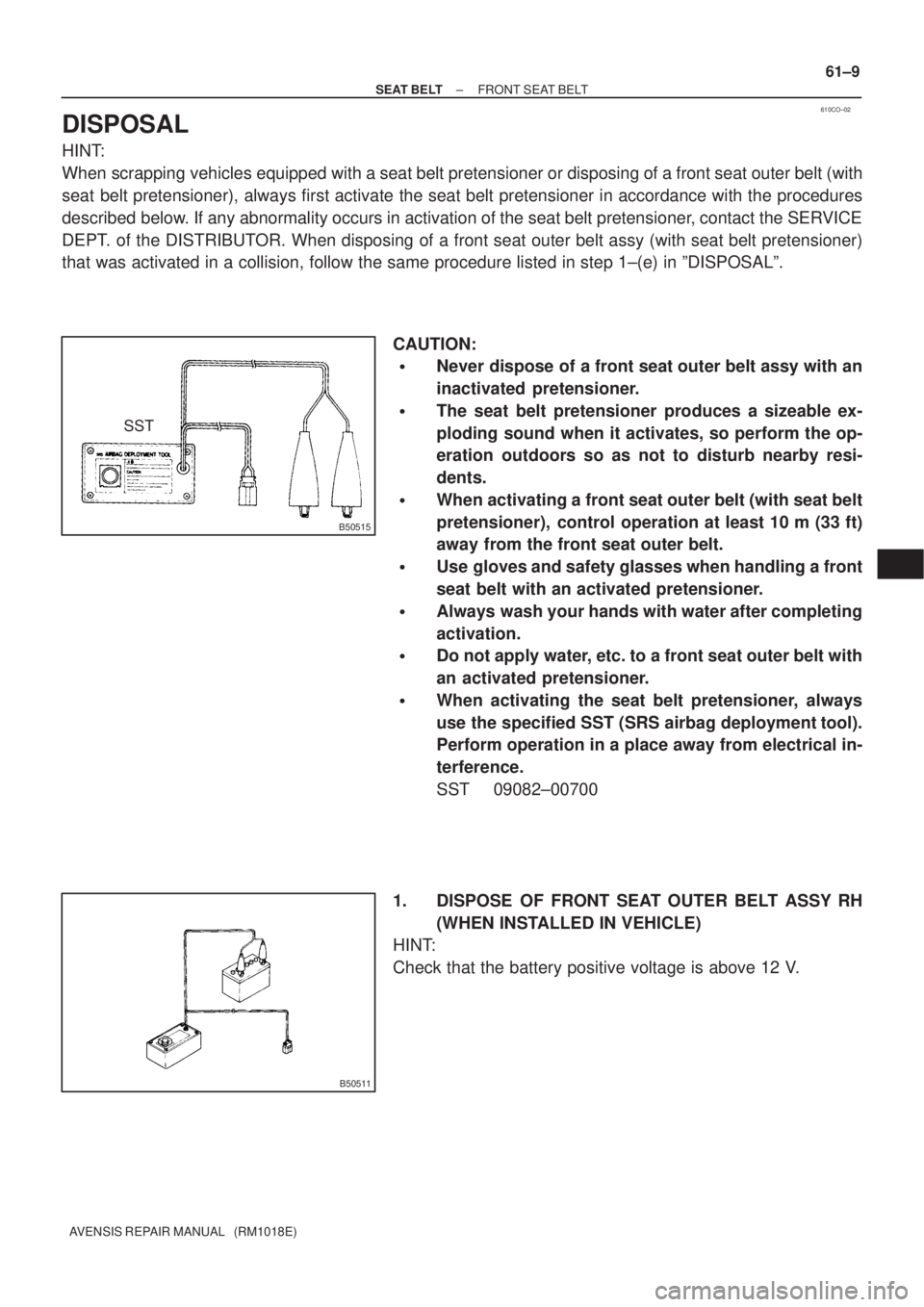

DISPOSAL
HINT:
When scrapping vehicles equipped with a seat belt pretensioner or disposing of a front se

Page 3071 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B50515
SST
B50511
SSTBattery
B50514
SST
B65506
61±10
±
SEAT BELT FRONT SEAT BELT
AVENSIS REPAIR MANUAL (RM1018E)

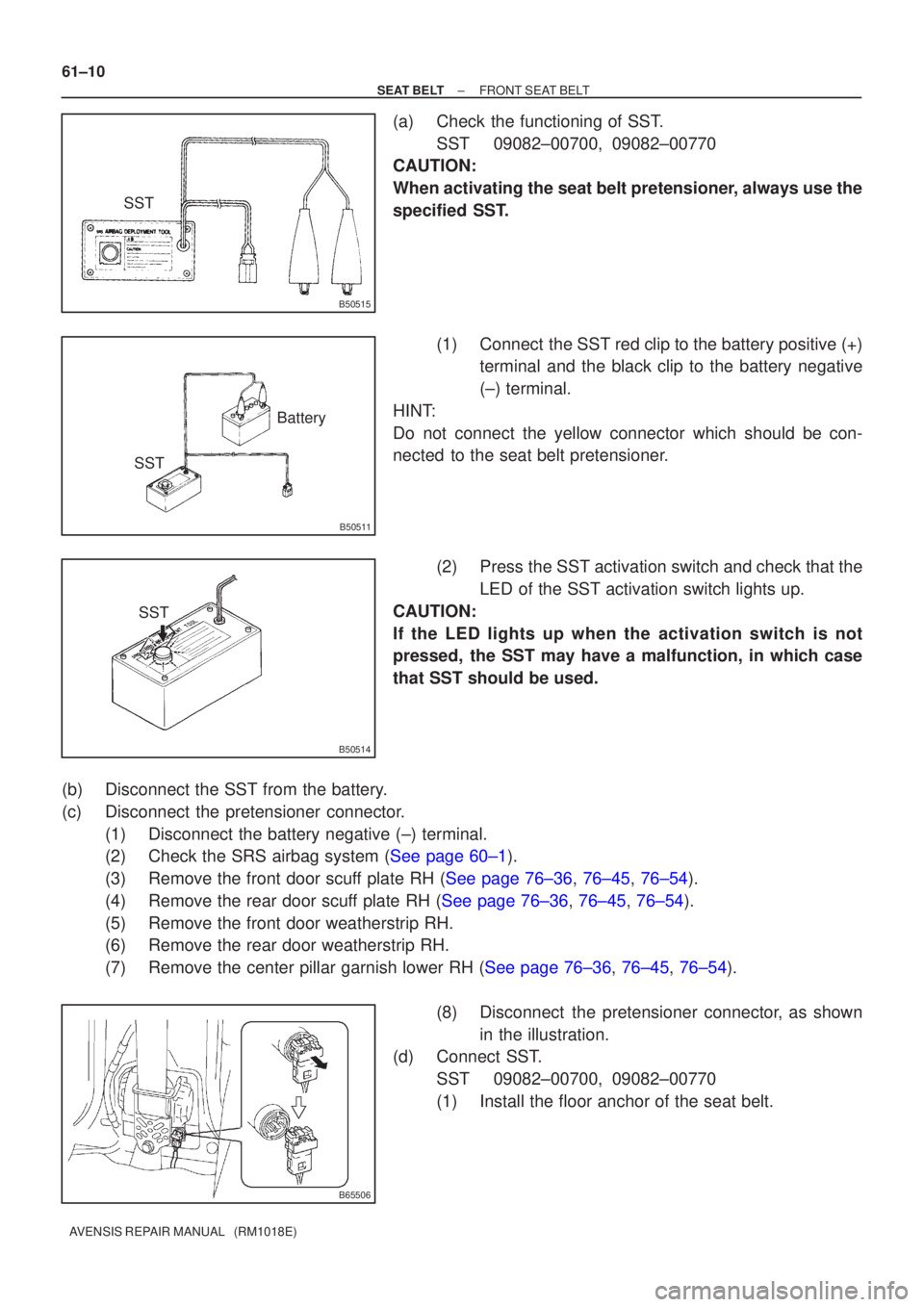

(a) Check the functioning of SST. SST 09082±00700, 09082±00770
CAUTION:
When acti

Page 3072 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B51763
SST
SST
B50513
10 m or more
±
SEAT BELT FRONT SEAT BELT
61±11
AVENSIS REPAIR MANUAL (RM1018E)

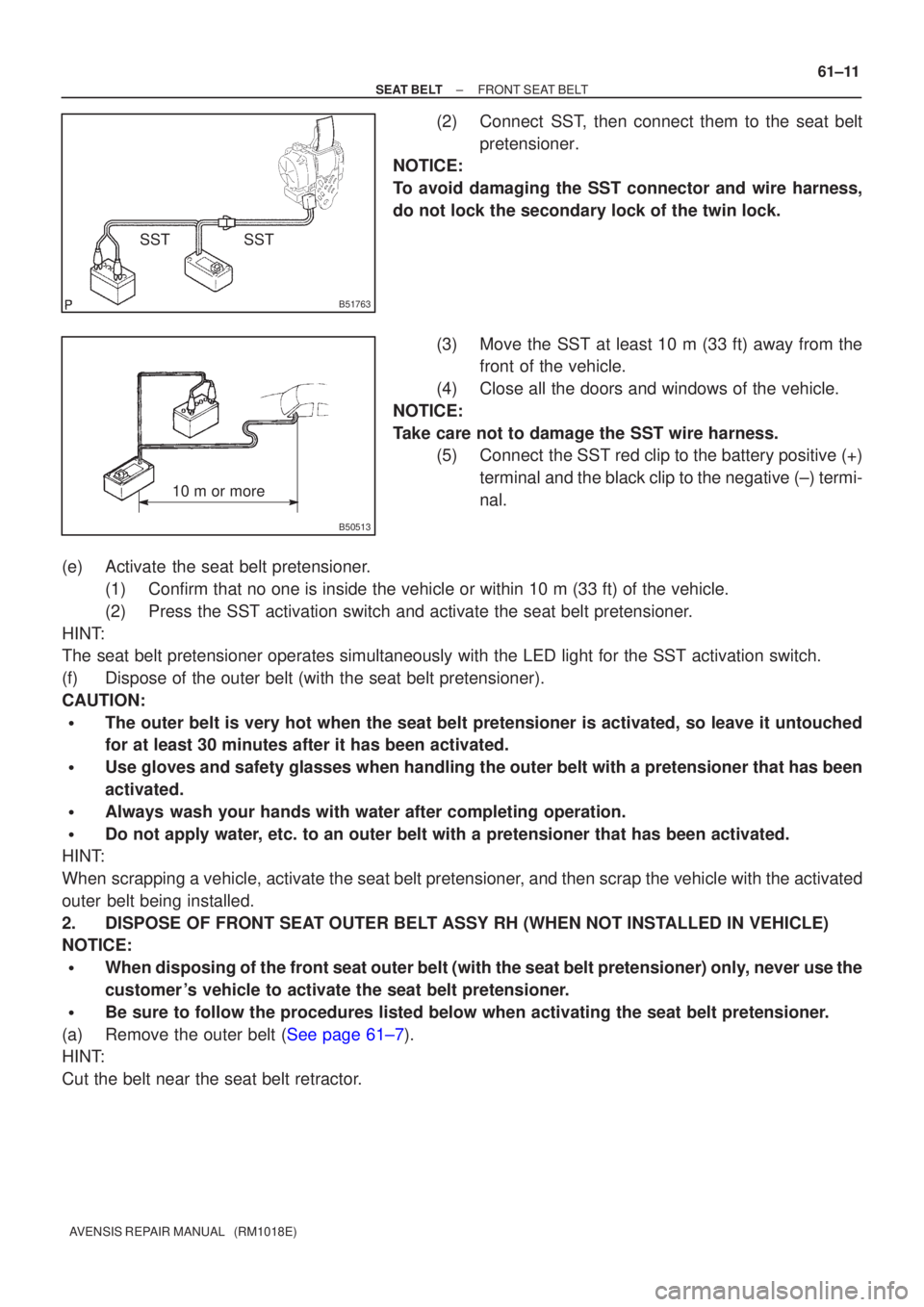

(2) Connect SST, then connect them to the seat belt
pretensioner.
NOTICE:
To avoid damaging th
