Page 3097 of 5135
650T4±01
I35240
I35240
A
B
A
±
LIGHTING HEIGHT CONTROL SENSOR SUB±ASSY REAR RH
65±29
AVENSIS REPAIR MANUAL (RM1018E)
HEIGHT CONTROL SENSOR SUB±ASSY REAR RH
REPLACEMENT
1.REMOVE HEIGHT CONTROL SENSOR SUB±ASSY
REAR RH
(a)Disconnect the connector.
(b)Remove the 2 bolts, the nut and height control sensor sub±assy rear RH.
2.INSTALL HEIGHT CONTROL SENSOR SUB±ASSY REAR RH
(a)Install the height control sensor sub±assy rear RH with the 2 bolts and the nut.
Torque:
Bolt (A): 7.9 N m (81 kgf cm, 70 in. lbf)
Nut (B): 5.8 N m (59 kgf cm, 51 in. lbf)
(b)Connect the connector.
3.HEADLIGHT AIM ONLY (See page 65±19)
Page 3098 of 5135
650T3±01
I35231
I35231
AB
A
65±28
±
LIGHTING HEIGHT CONTROL SENSOR SUB±ASSY FR RH
AVENSIS REPAIR MANUAL (RM1018E)
HEIGHT CONTROL SENSOR SUB±ASSY FR RH
REPLACEMENT
1.REMOVE HEIGHT CONTROL SENSOR SUB±ASSY FR RH
(a)Disconnect the connector.
(b)Remove the 3 nuts and height control sensor sub±assy front RH.
2.INSTALL HEIGHT CONTROL SENSOR SUB±ASSY FR RH
(a)Install the height control sensor sub±assy front RH with the 3 nuts.
Torque:
A: 7.9 N m (81 kgf cm, 70 in. lbf)
B: 5.8 N m (59 kgf cm, 51 in. lbf)
(b)Connect the connector.
3.HEADLIGHT AIM ONLY (See page 65±19)
Page 3099 of 5135
650T2±01
I35251
I35252Claw
± LIGHTINGHEADLAMP DIMMER SWITCH ASSY
65±27
AVENSIS REPAIR MANUAL (RM1018E)
HEADLAMP DIMMER SWITCH ASSY
REPLACEMENT
1. SEPARATE STEERING COLUMN COVER LWR
(a) Remove the 3 screws and steering column cover LWR.
2. REMOVE HEADLAMP DIMMER SWITCH ASSY
(a) Disconnect the connector.
(b) Release the claw and pull out the headlamp dimmer
switch assy.
Page 3100 of 5135
650T1±01
I352352Clamps
I35236
I35238
I35239
65±26
±
LIGHTING CENTER STOP LAMP ASSY
AVENSIS REPAIR MANUAL (RM1018E)
CENTER STOP LAMP ASSY
REPLACEMENT
1.REMOVE REAR SPOILER (WAGON MODELS) (See page 76±30)
2.REMOVE BACK DOOR TRIM BOARD ASSY (LIFTBACK MODELS) (See page 75±40) 3. REMOVE CENTER STOP LAMP ASSY (SEDANMODELS)
(a) Remove the center stop lamp assy as shown in the il- lustration.
(b) Disconnect the connector.
(c) Remove the center stop lamp bulb as shown in the il- lustration.
4. REMOVE CENTER STOP LAMP ASSY (WAGON MODELS)
(a) Remove the 2 screws and center stop lamp assy.
5. REMOVE CENTER STOP LAMP ASSY (LIFTBACK MODELS)
(a) Disconnect the connector.
(b) Remove the 3 screws and center stop lamp assy.
(c) Remove the center stop lamp socket and the bulb.
Page 3101 of 5135
650T0±02
E60618
±
LIGHTIN GLICENSE PL ATE LAMP ASSY
65±25
AVENSIS RE PAIR MANUAL (RM1018E)
LICENSE PL ATE LAMP ASSY
REPLACEMENT
1. REMOV E BACK DOOR TRIM BOARD ASSY ( See page LIFTBACK 75±40, W AGON 75±45 )
2. REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB±ASSY OUTSIDE (SEDAN MODELS ) ( See page 76±27 )
3. REMOVE BACK DOOR GARNISH SUB±ASSY OUTSIDE (LIFTBACK MODELS) (See page 76±28 )
4 . REMOVE BACK DOOR GARNISH SUB±ASSY OUTSIDE ( WAGON MODELS) ( See page 76±29)
5. REMOVE LICENSE PLATE LAMP ASSY
(a) Pull the license plate lamp assy to the side of vehicle as shown in the illustration and release the claw.
(b) Disconnect the connector and remove the license plate lamp assy.
(c) Remove the license plate lamp bulb.
Page 3102 of 5135
650SZ±01
I35249
Sedan:
Wagon:
Liftback: 65±24
± LIGHTINGREAR COMBINATION LAMP ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)

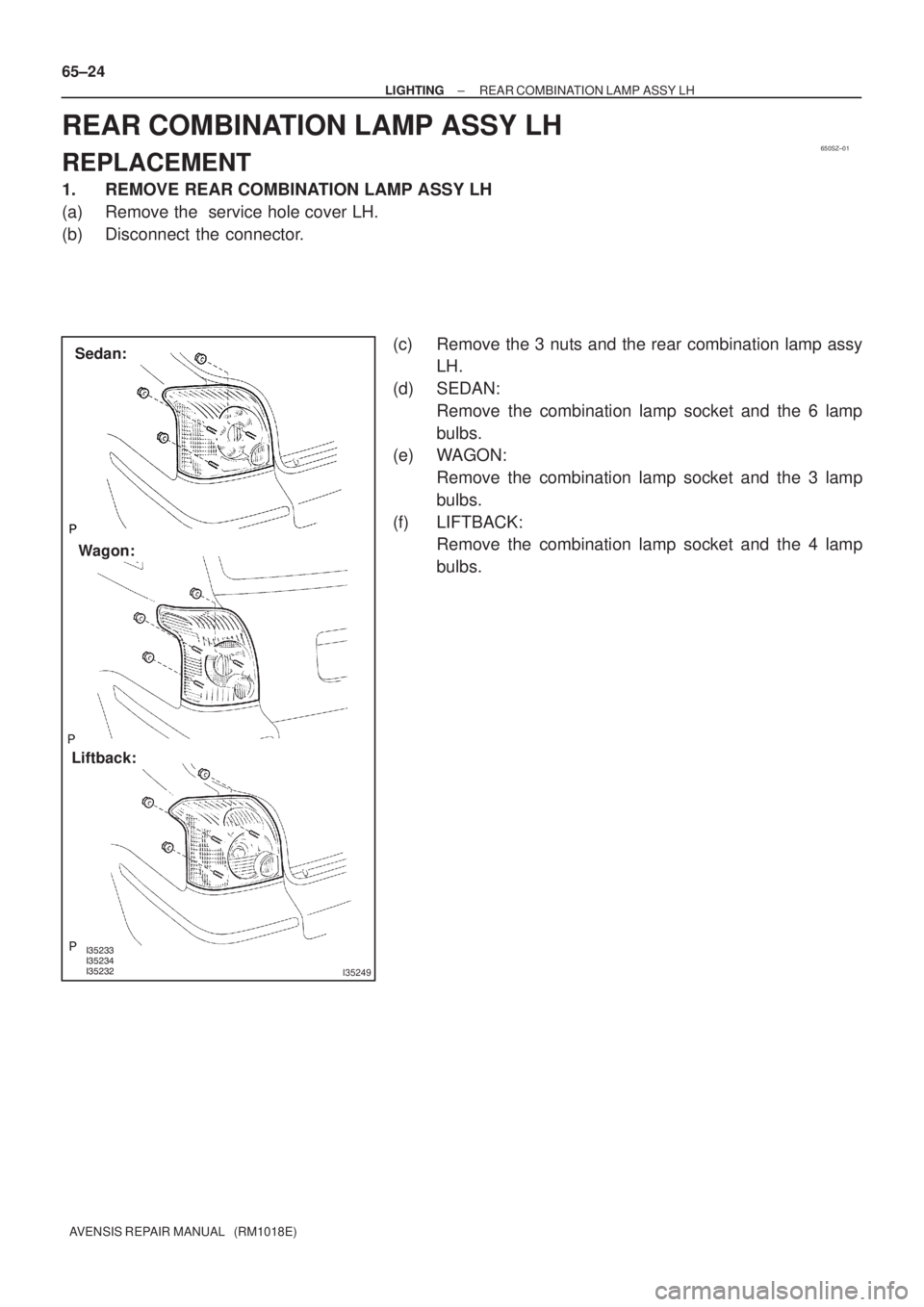

REAR COMBINATION LAMP ASSY LH
REPLACEMENT
1. REMOVE REAR COMBINATION LAMP ASSY LH
(a) Remove the service hole cover LH.
(b) Disconnect the connector.
(c) Remove the 3 nuts and the rear combination lamp assy
LH.
(d) SEDAN:
Remove the combination lamp socket and the 6 lamp
bulbs.
(e) WAGON:
Remove the combination lamp socket and the 3 lamp
bulbs.
(f) LIFTBACK:
Remove the combination lamp socket and the 4 lamp
bulbs.
Page 3103 of 5135
650SY±01
I35230
±
LIGHTING FOG LAMP ASSY LH
65±23
AVENSIS REPAIR MANUAL (RM1018E)
ADJUSTMENT
1.PUT VEHICLE THESE CONDITIONS
(a)Tire inflation pressure is within the specified value. (See page 28±1)
(b) Start the engine.
2. ADJUST FOG LIGHT AIM
(a) The fog light aim can be adjusted by turning the aimingscrew in the vertical direction.
HINT:
The optical aim moves upward when turning the screwdriver
clockwise and moves downward when turning the screwdriver
center clockwise.
3. CHECK FOG LIGHT AIM
Page 3104 of 5135
650SX±01
I35237Clamp
I35228
65±22
±
LIGHTING FOG LAMP ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)
FOG LAMP ASSY LH
REPLACEMENT
1.REMOVE FRONT BUMPER COVER (See page 76±3) 2.REMOVE FOG LAMP ASSY LH
(a)Disconnect the connector.
(b)Remove the 2 screws.
(c)Release the claw fitting, then remove the fog lamp assyLH.
(d)Remove the fog lamp bulb as shown in the illustration.
3.ADJUST FOG LIGHT AIM (See page 65±23)
4. CHECK FOG LIGHT AIM
