Page 2649 of 5135
400D7±02
D25120
OK if hot
Add if hot 40±2
± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE FLUID (ATM)
AVENSIS REPAIR MANUAL (RM1018E)
AUTOMATIC TRANSAXLE FLUID (ATM)
ON±VEHICLE INSPECTION
1. CHECK THE FLUID LEVEL
HINT:
Drive the vehicle so that the engine and transaxle are at the nor-
mal operating temperature.
Fluid temperature: 70 ± 80 C (158 ± 176 F)
(a) Park the vehicle on a level surface and set the parking
brake.
(b) With the engine idling and the brake pedal depressed,
shift the shift lever into all position from P to L position and
return to P position.
(c) Pull out the dipstick and wipe it clean.
(d) Push it back fully into the pipe.
(e) Pull it out and check that the fluid level is in the HOT posi-
tion.
If there are leaks, it is necessary to repair or replace O±rings,
FIPGs, oil seals, plugs or other parts.
Page 2650 of 5135

400D8±02
± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (ATM)
40±1
AVENSIS REPAIR MANUAL (RM1018E)
AUTOMATIC TRANSAXLE ASSY (ATM)
PRECAUTION
1. The automatic transaxle is composed of highly precision±finished parts which need careful in-
spection before reassembly because even a small nick could cause fluid leakage or affect the
performance. The instructions here are organized in order to work on only one component
group at a time. This will help avoid confusion comes from the similar±looking part of the differ-
ent sub±assemblies being on your workbench at the same time. Inspect and repair the compo-
nent groups from the converter housing side. Complete the inspection, repair and reassembly
before proceeding to the next component group. If a defect is found in a certain component
group during reassembly, inspect and repair this group immediately. If a component group can-
not be assembled because the necessary parts are being ordered, be sure to keep all the parts
of the group in a separate container while proceeding with disassembly, inspection, repair and
reassembly of the other component groups.
Recommended ATF: T±IV
2. All the disassembled parts should be washed clean and any fluid passages and holes should
be blown through with compressed air.
3. Dry all parts with compressed air. Never use shop rags to dry them.
4. Be careful of ATF or kerosene not to be squirted over your face when using compressed air.
5. The recommended automatic transaxle fluid or kerosene should be used for cleaning.
6. After cleaning, the parts should be arranged in the correct order for efficient inspection, repairs,
and reassembly.
7. When disassembling the valve body, be sure to match each valve together with the correspond-
ing spring.
8. New discs for the replacement of the brakes and clutches must be soaked in ATF for at least
15 minutes before reassembly.
9. All the oil seal rings, clutch discs, clutch plates, rotating parts, and sliding surfaces should be
coated with ATF prior to reassembly.
10. Replace all the gaskets and rubber O±rings.
11. Do not apply adhesive cements to the gaskets and similar parts.
12. Make sure that the ends of the snap ring are not aligned with one of the cutouts and are installed
in the groove correctly.
13. If a worn bushing is to be replaced, the sub±assembly containing the bushing must also be re-
placed.
14. Check the thrust bearings and races for wear or damage. Replace them as necessary.
15. Use petroleum jelly to keep the parts in place.
16. When working with FIPG material, you must follow the procedure below.
Remove all the old packing (FIPG) material from the gasket surface using a razor blade and a
gasket scraper.
Thoroughly clean all the components to remove all the loose material.
Clean both the sealing surfaces with non±residue solvent.
Parts must be reassembled within 10 minutes of application. Otherwise, the packing (FIPG) ma-
terial must be removed and reapplied.
Page 2651 of 5135

330C8±01
F45710
Contract
F06409
G22379
G22380
33±14
±
PARKING BRAKE PARKING BRAKE ASSY
AVENSIS REPAIR MANUAL (RM1018E)
OVERHAUL
HINT:
Overhaul the RH side by the same procedures as those of the LH side.
1. REMOVE REAR WHEEL
2.DISCONNECT REAR DISC BRAKE CALIPER ASSY LH (See page 30±31) 3. REMOVE REAR DISC
(a) Release the parking brake, and remove the rear disc.
HINT:
Put matchmarks on the disc and the axle hub.
If the disc cannot be removed easily, turn the shoe adjust-
er until the wheel turns freely.
4. INSPECT BRAKE DISC INSIDE DIAMETER
(a) Using a brake drum gauge or equivalent, measure the in- side diameter of the disc.
Standard inside diameter: 173 mm (6.81 in.)
Maximum inside diameter: 174 mm (6.85 in.)
5. REMOVE PARKING BRAKE ADJUSTER KIT
(a) Using needle±nose pliers, remove the shoe upper side 2 tension springs.
(b) Remove the parking brake shoe strut LH.
6. REMOVE PARKING BRAKE SHOE ADJUSTING
SCREW SET
(a) Using needle±nose pliers, remove the anchor side ten- sion spring.
(b) Remove the shoe adjusting screw set.
Page 2652 of 5135

F45077
SST
F44822
SST
R00311
BR0828
F42661
± PARKING BRAKEPARKING BRAKE ASSY
33±15
AVENSIS REPAIR MANUAL (RM1018E)

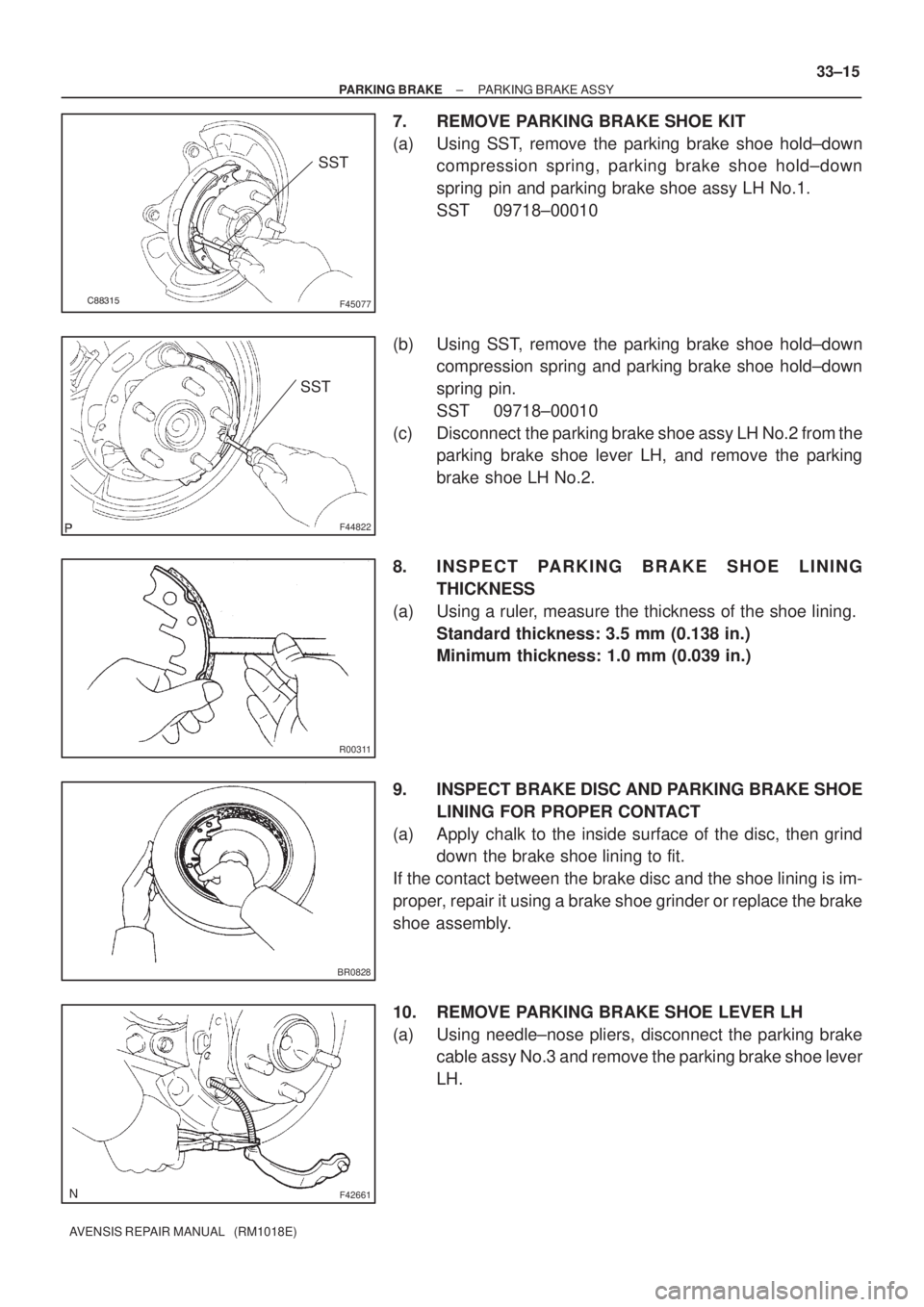

7. REMOVE PARKING BRAKE SHOE KIT
(a) Using SST, remove the parking brake shoe hold±down
compression spring, parking brake shoe hold±down
spring pin and parking brake shoe assy LH No.1.
SST 09718±00010
(b) Using SST, remove the parking brake shoe hold±down
compression spring and parking brake shoe hold±down
spring pin.
SST 09718±00010
(c) Disconnect the parking brake shoe assy LH No.2 from the
parking brake shoe lever LH, and remove the parking
brake shoe LH No.2.
8. INSPECT PARKING BRAKE SHOE LINING
THICKNESS
(a) Using a ruler, measure the thickness of the shoe lining.
Standard thickness: 3.5 mm (0.138 in.)
Minimum thickness: 1.0 mm (0.039 in.)
9. INSPECT BRAKE DISC AND PARKING BRAKE SHOE
LINING FOR PROPER CONTACT
(a) Apply chalk to the inside surface of the disc, then grind
down the brake shoe lining to fit.
If the contact between the brake disc and the shoe lining is im-
proper, repair it using a brake shoe grinder or replace the brake
shoe assembly.
10. REMOVE PARKING BRAKE SHOE LEVER LH
(a) Using needle±nose pliers, disconnect the parking brake
cable assy No.3 and remove the parking brake shoe lever
LH.
Page 2653 of 5135
F44709
F42661
C80704
F44822
SST
F44705
SST
33±16
± PARKING BRAKEPARKING BRAKE ASSY
AVENSIS REPAIR MANUAL (RM1018E)
11. APPLY HIGH TEMPERATURE GREASE
(a) Apply the high temperature grease to the shoe attached
surface of backing plate.
12. INSTALL PARKING BRAKE SHOE LEVER LH
(a) Using needle±nose pliers, connect the parking brake
cable assy No.3 to the parking brake shoe lever LH.
13. INSTALL PARKING BRAKE SHOE KIT
(a) Apply the high temperature grease to the contact part of
the parking brake shoe and parking brake shoe lever.
(b) Using SST, install the parking brake shoe LH No.2 with
the parking brake shoe hold±down compression spring
and parking brake shoe hold±down spring pin.
SST 09718±00010
(c) Using SST, install the parking brake shoe LH No.1 with
the parking brake shoe hold±down compression spring
and parking brake shoe hold±down spring pin.
SST 09718±00010
Page 2654 of 5135
C80705
G22380
C80706
G22379
± PARKING BRAKEPARKING BRAKE ASSY
33±17
AVENSIS REPAIR MANUAL (RM1018E)

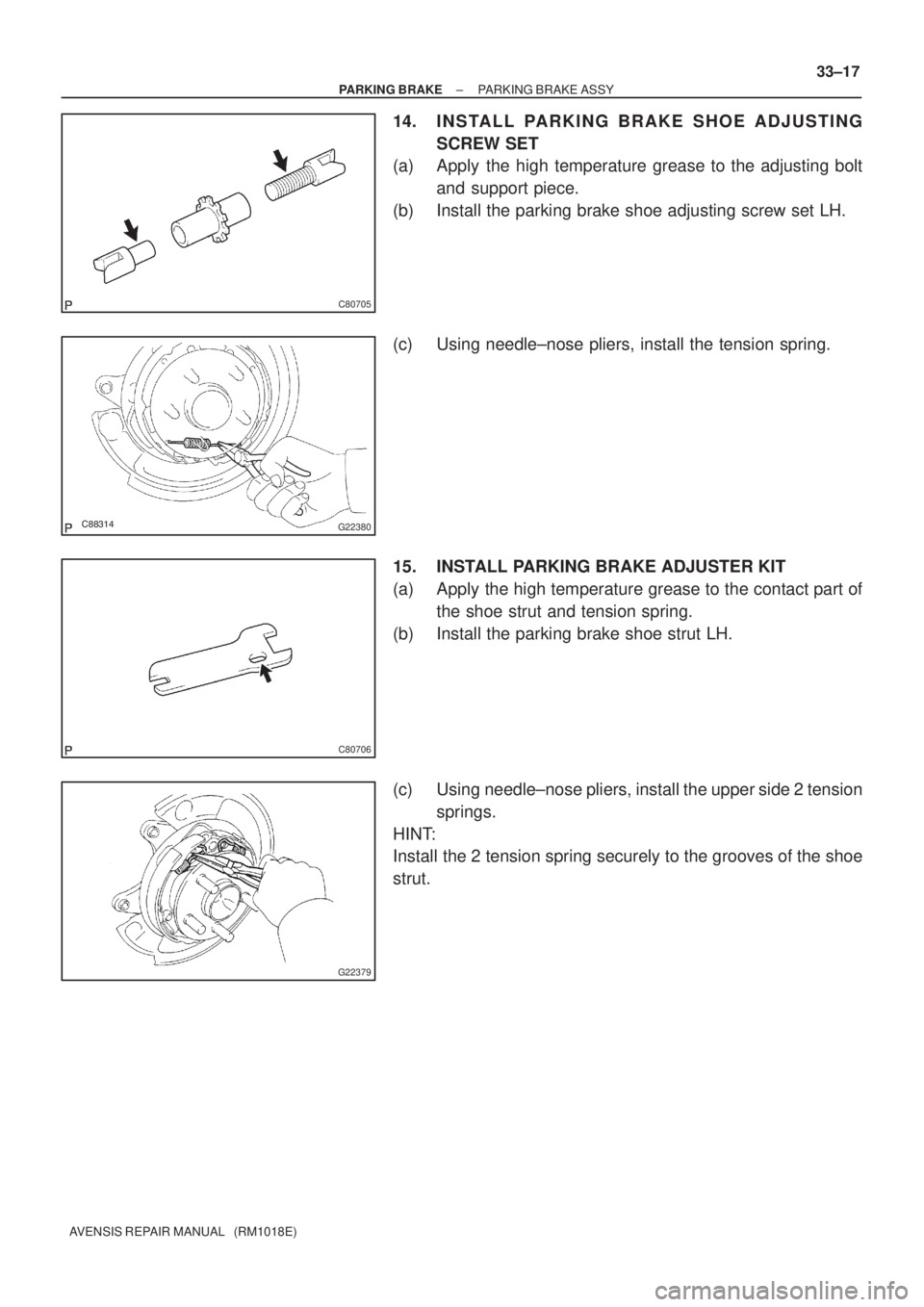

14. INSTALL PARKING BRAKE SHOE ADJUSTING
SCREW SET
(a) Apply the high temperature grease to the adjusting bolt
and support piece.
(b) Install the parking brake shoe adjusting screw set LH.
(c) Using needle±nose pliers, install the tension spring.
15. INSTALL PARKING BRAKE ADJUSTER KIT
(a) Apply the high temperature grease to the contact part of
the shoe strut and tension spring.
(b) Install the parking brake shoe strut LH.
(c) Using needle±nose pliers, install the upper side 2 tension
springs.
HINT:
Install the 2 tension spring securely to the grooves of the shoe
strut.
Page 2655 of 5135
F44823
RH
LH
Front
Front
F44708
Expand
Contract 33±18
± PARKING BRAKEPARKING BRAKE ASSY
AVENSIS REPAIR MANUAL (RM1018E)

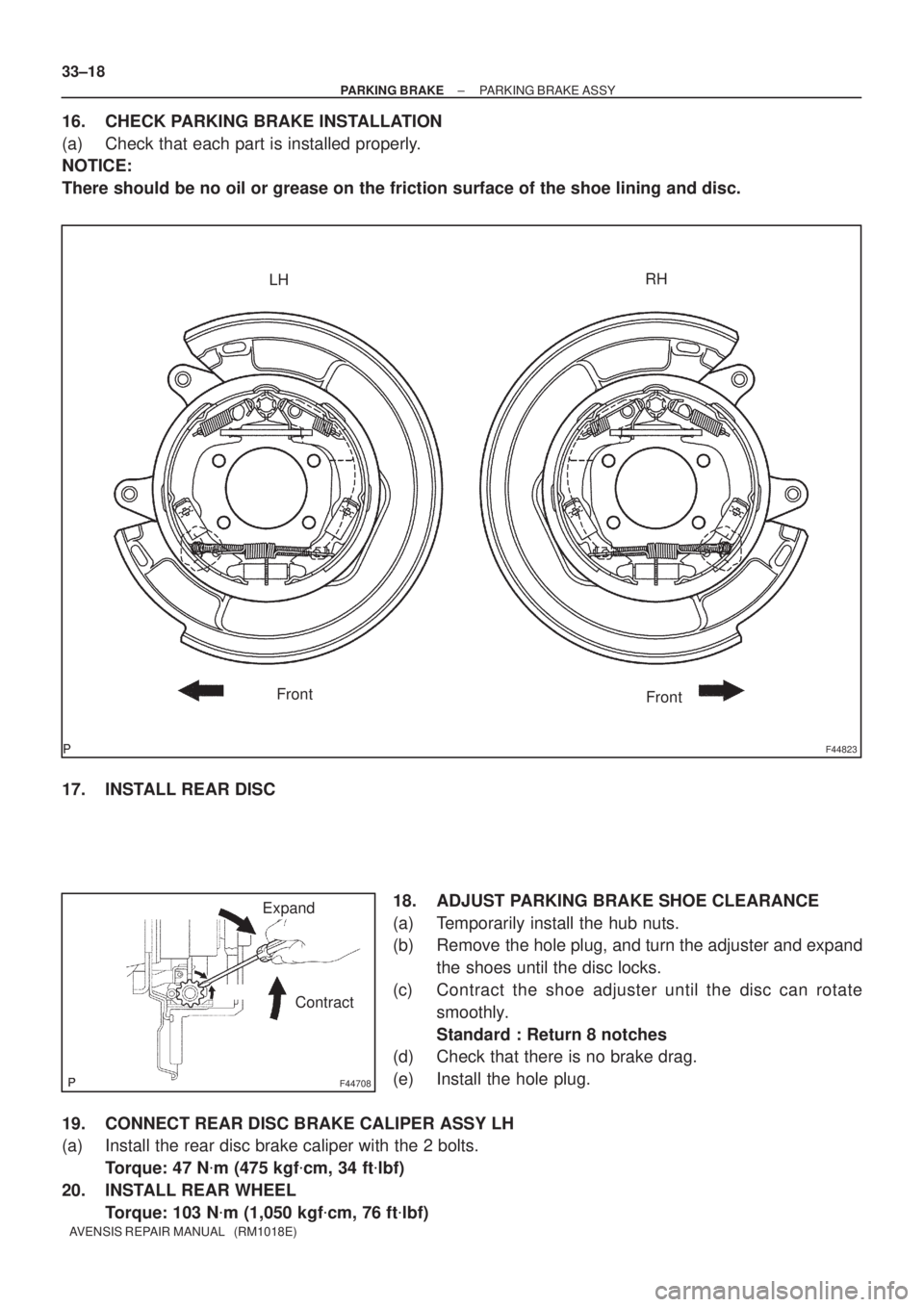

16. CHECK PARKING BRAKE INSTALLATION
(a) Check that each part is installed properly.
NOTICE:
There should be no oil or grease on the friction surface of the shoe lining and disc.
17. INSTALL REAR DISC
18. ADJUST PARKING BRAKE SHOE CLEARANCE
(a) Temporarily install the hub nuts.
(b) Remove the hole plug, and turn the adjuster and expand
the shoes until the disc locks.
(c) Contract the shoe adjuster until the disc can rotate
smoothly.
Standard : Return 8 notches
(d) Check that there is no brake drag.
(e) Install the hole plug.
19. CONNECT REAR DISC BRAKE CALIPER ASSY LH
(a) Install the rear disc brake caliper with the 2 bolts.
Torque: 47 Nm (475 kgfcm, 34 ftlbf)
20. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgfcm, 76 ftlbf)
Page 2656 of 5135
±
PARKING BRAKE PARKING BRAKE ASSY
33±19
AVENSIS REPAIR MANUAL (RM1018E)

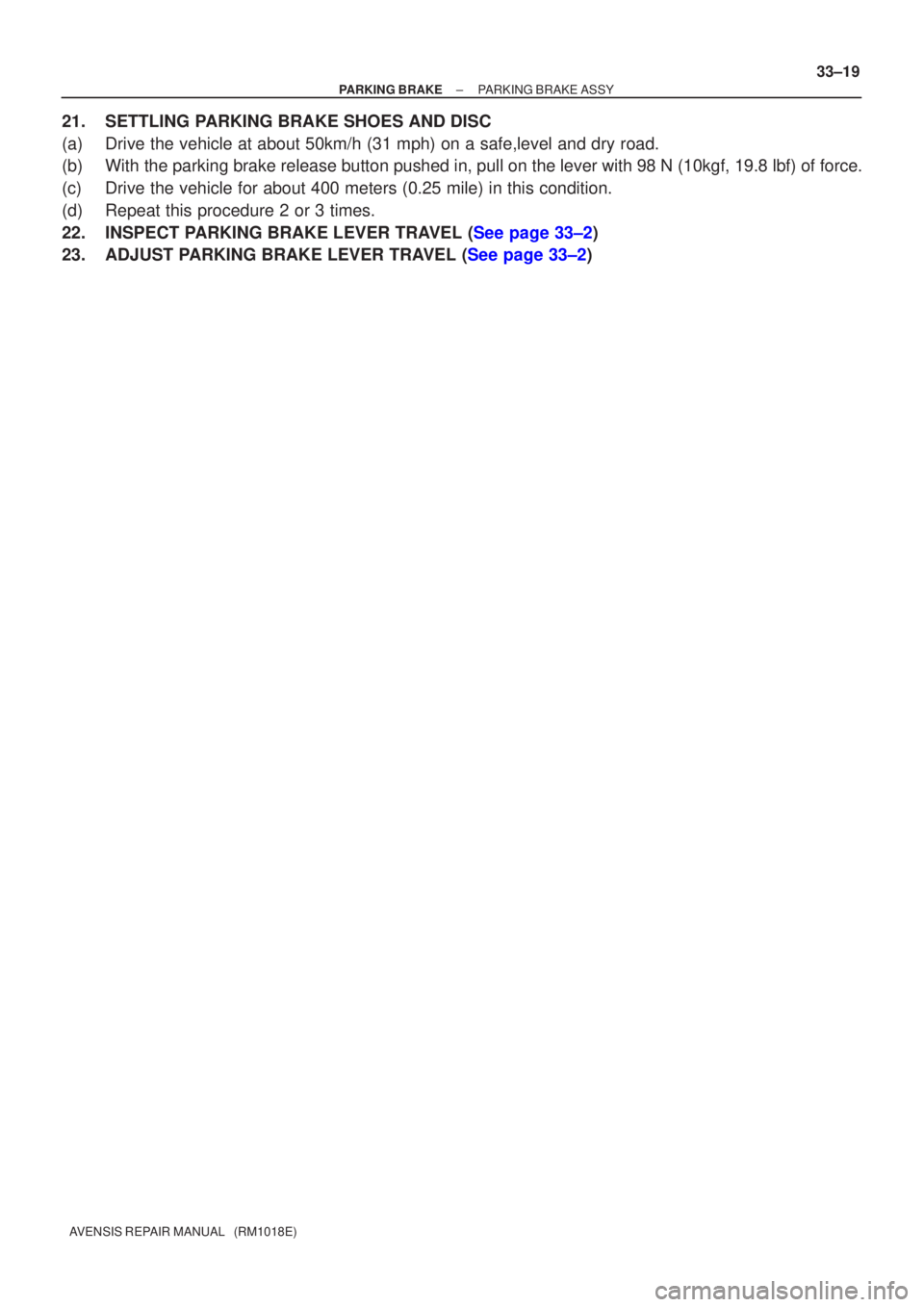

21. SETTLING PARKING BRAKE SHOES AND DISC
(a) Drive the vehicle at about 50km/h (31 mph) on a safe,level and dry roa\
d.
(b) With the parking brake release button pushed in, pull on the lever with 98 N\
(10kgf, 19.8 lbf) of force.
(c) Drive the vehicle for about 400 meters (0.25 mile) in this condition.
(d) Repeat this procedure 2 or 3 times.
22.INSPECT PARKING BRAKE LEVER TRAVEL (See page 33±2)
23.ADJUST PARKING BRAKE LEVER TRAVEL (See page 33±2)
