Page 2929 of 5135
I30157
I30116
To ºDEFº
To ºFACEº 55±10
± HEATER & AIR CONDITIONERAIR CONDITIONING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

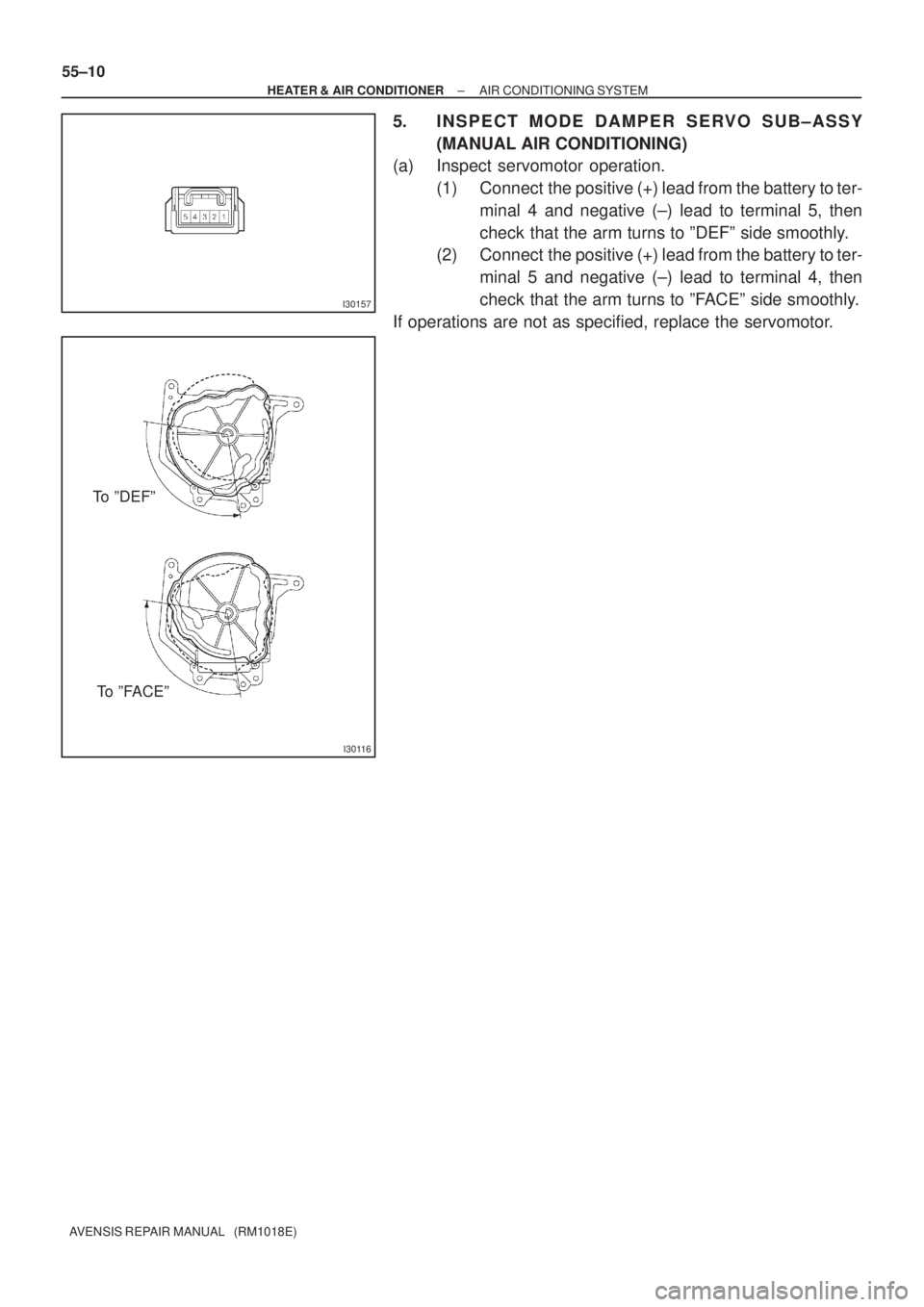

5. INSPECT MODE DAMPER SERVO SUB±ASSY
(MANUAL AIR CONDITIONING)
(a) Inspect servomotor operation.
(1) Connect the positive (+) lead from the battery to ter-
minal 4 and negative (±) lead to terminal 5, then
check that the arm turns to ºDEFº side smoothly.
(2) Connect the positive (+) lead from the battery to ter-
minal 5 and negative (±) lead to terminal 4, then
check that the arm turns to ºFACEº side smoothly.
If operations are not as specified, replace the servomotor.
Page 2930 of 5135
E50650
I30145
40
30
20
10
8
6
4
2
0
±30 ±20 ±10 0 10 20 30 50 60 70 8040 Resistance (k)
Temperature (C)
I30151
2
1
LHD
RHD
± HEATER & AIR CONDITIONERAIR CONDITIONING SYSTEM
55±11
AVENSIS REPAIR MANUAL (RM1018E)

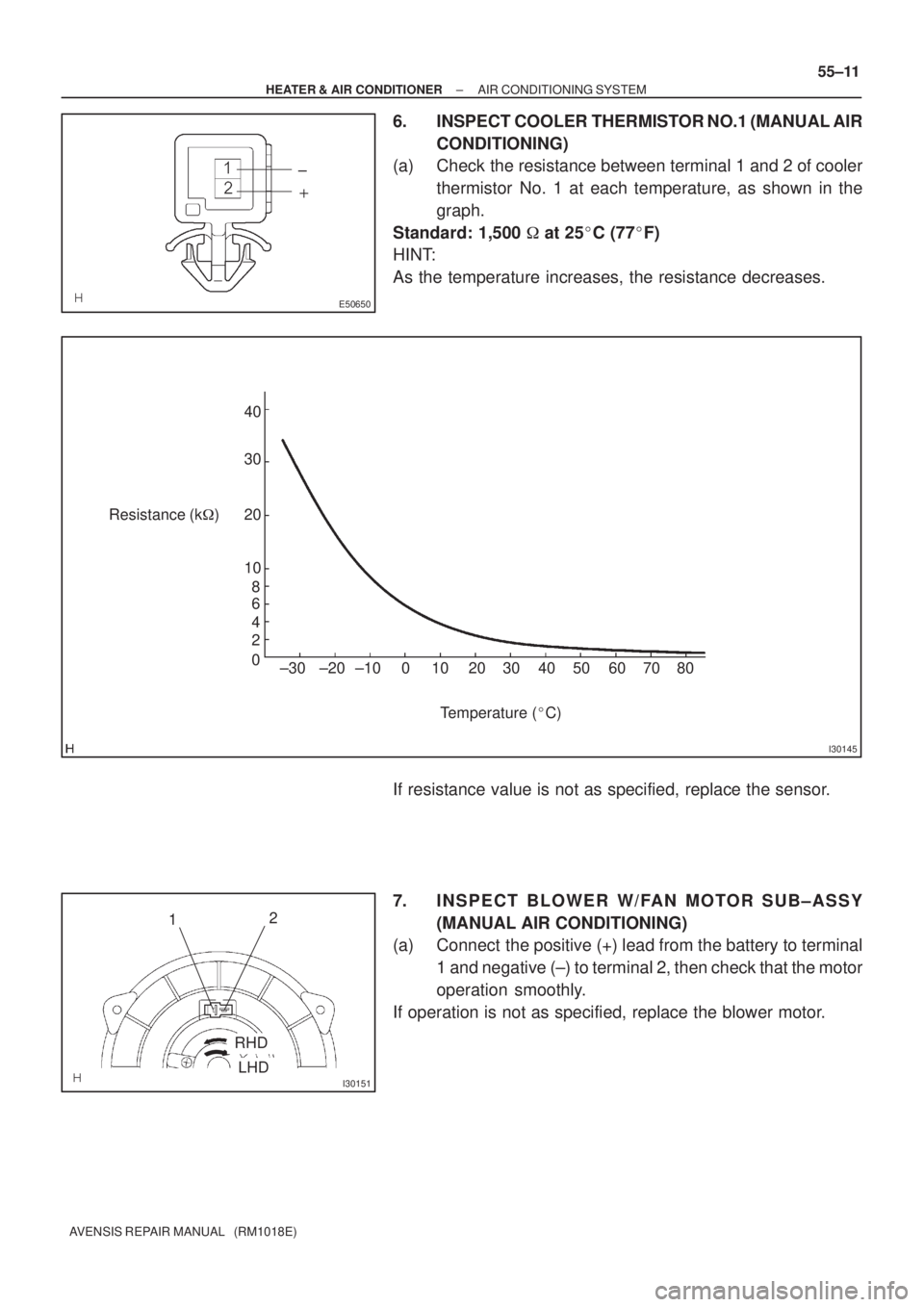

6. INSPECT COOLER THERMISTOR NO.1 (MANUAL AIR
CONDITIONING)
(a) Check the resistance between terminal 1 and 2 of cooler
thermistor No. 1 at each temperature, as shown in the
graph.
Standard: 1,500 at 25C (77F)
HINT:
As the temperature increases, the resistance decreases.
If resistance value is not as specified, replace the sensor.
7. INSPECT BLOWER W/FAN MOTOR SUB±ASSY
(MANUAL AIR CONDITIONING)
(a) Connect the positive (+) lead from the battery to terminal
1 and negative (±) to terminal 2, then check that the motor
operation smoothly.
If operation is not as specified, replace the blower motor.
Page 2931 of 5135
E32993
55±12
± HEATER & AIR CONDITIONERAIR CONDITIONING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
8. INSPECT HEATER RELAY (MANUAL AIR
CONDITIONING)
Terminal No.Specified condition
No continuity
3±5Less than 1
(When battery voltage applied to terminals 1 and 2.)
Less than 1
3±4No continuity
(When battery voltage applied to terminals 1 and 2.)
1±2Constant continuity
If continuity is not as specified, replace the rear cooler relay.
Page 2932 of 5135

550RQ±02
55±6
±
HEATER & AIR CONDITIONER AIR CONDITIONING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

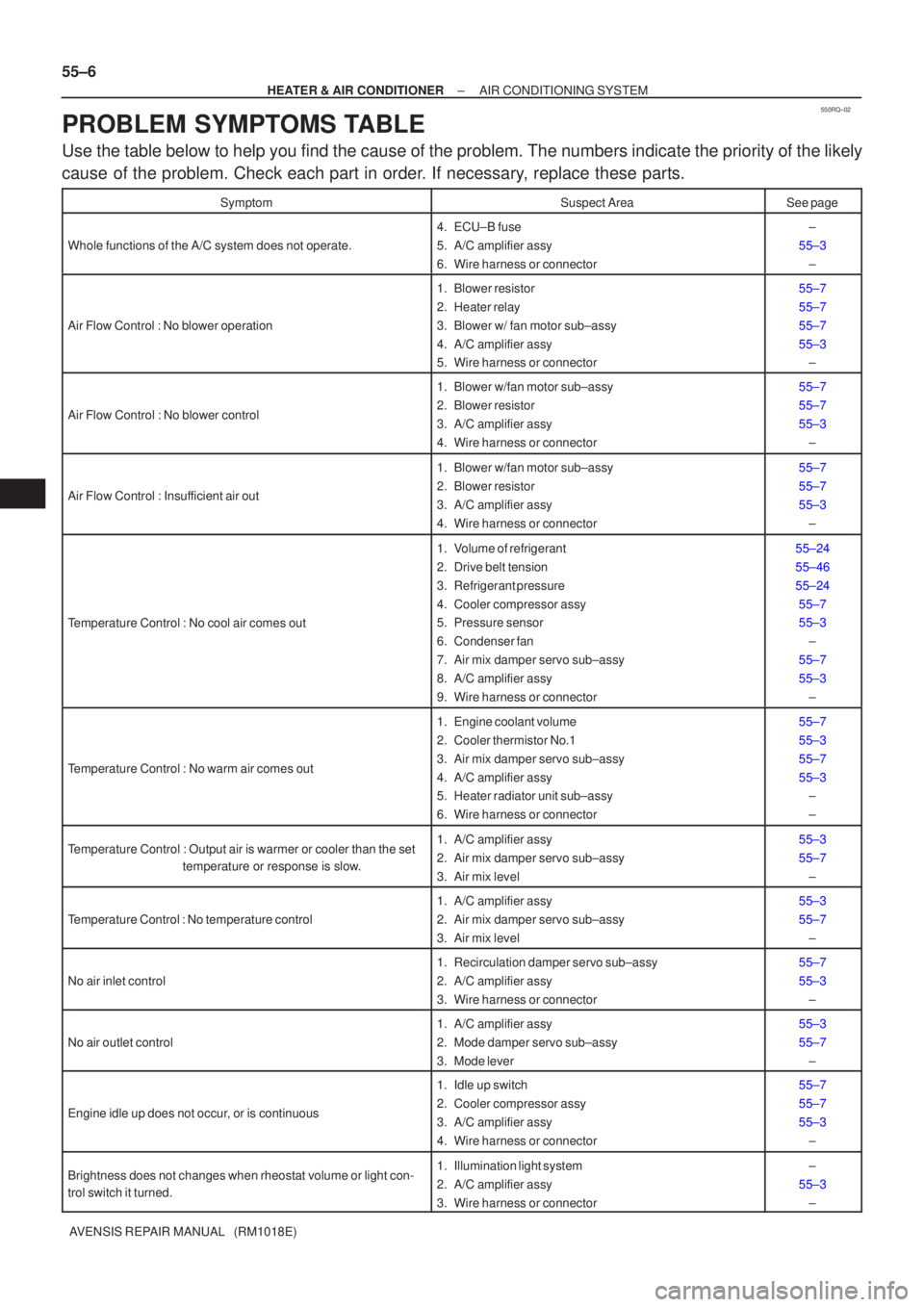

PROBLEM SYMPTOMS TABLE
Use the table below to help you find the cause of the problem. The numbers \
indicate the priority of the likely
cause of the problem. Check each part in order. If necessary, replace these parts.
SymptomSuspect AreaSee page
Whole functions of the A/C system does not operate.
4. ECU±B fuse
5. A/C amplifier assy
6. Wire harness or connector±
55±3 ±
Air Flow Control : No blower operation
1. Blower resistor
2. Heater relay
3. Blower w/ fan motor sub±assy
4. A/C amplifier assy
5. Wire harness or connector55±7
55±7
55±7
55±3±
Air Flow Control : No blower control
1. Blower w/fan motor sub±assy
2. Blower resistor
3. A/C amplifier assy
4. Wire harness or connector55±7
55±7
55±3
±
Air Flow Control : Insufficient air out
1. Blower w/fan motor sub±assy
2. Blower resistor
3. A/C amplifier assy
4. Wire harness or connector55±7
55±7
55±3±
Temperature Control : No cool air comes out
1. Volume of refrigerant
2. Drive belt tension
3. Refrigerant pressure
4. Cooler compressor assy
5. Pressure sensor
6. Condenser fan
7. Air mix damper servo sub±assy
8. A/C amplifier assy
9. Wire harness or connector55±24
55±46
55±2455±7
55±3 ±
55±7
55±3 ±
Temperature Control : No warm air comes out
1. Engine coolant volume
2. Cooler thermistor No.1
3. Air mix damper servo sub±assy
4. A/C amplifier assy
5. Heater radiator unit sub±assy
6. Wire harness or connector55±7
55±3
55±7
55±3±
±
Temperature Control : Output air is warmer or cooler than the set
temperature or response is slow.1. A/C amplifier assy
2. Air mix damper servo sub±assy
3. Air mix level55±3
55±7
±
Temperature Control : No temperature control
1. A/C amplifier assy
2. Air mix damper servo sub±assy
3. Air mix level55±3
55±7±
No air inlet control
1. Recirculation damper servo sub±assy
2. A/C amplifier assy
3. Wire harness or connector55±7
55±3±
No air outlet control
1. A/C amplifier assy
2. Mode damper servo sub±assy
3. Mode lever55±3
55±7±
Engine idle up does not occur, or is continuous
1. Idle up switch
2. Cooler compressor assy
3. A/C amplifier assy
4. Wire harness or connector55±7
55±7
55±3±
Brightness does not changes when rheostat volume or light con-
trol switch it turned.1. Illumination light system
2. A/C amplifier assy
3. Wire harness or connector±
55±3 ±
Page 2933 of 5135

550Z6±01
I35329
I35330
I35331
I35332
55±86
±
HEATER & AIR CONDITIONER W/PULLEY COMPRESSOR ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

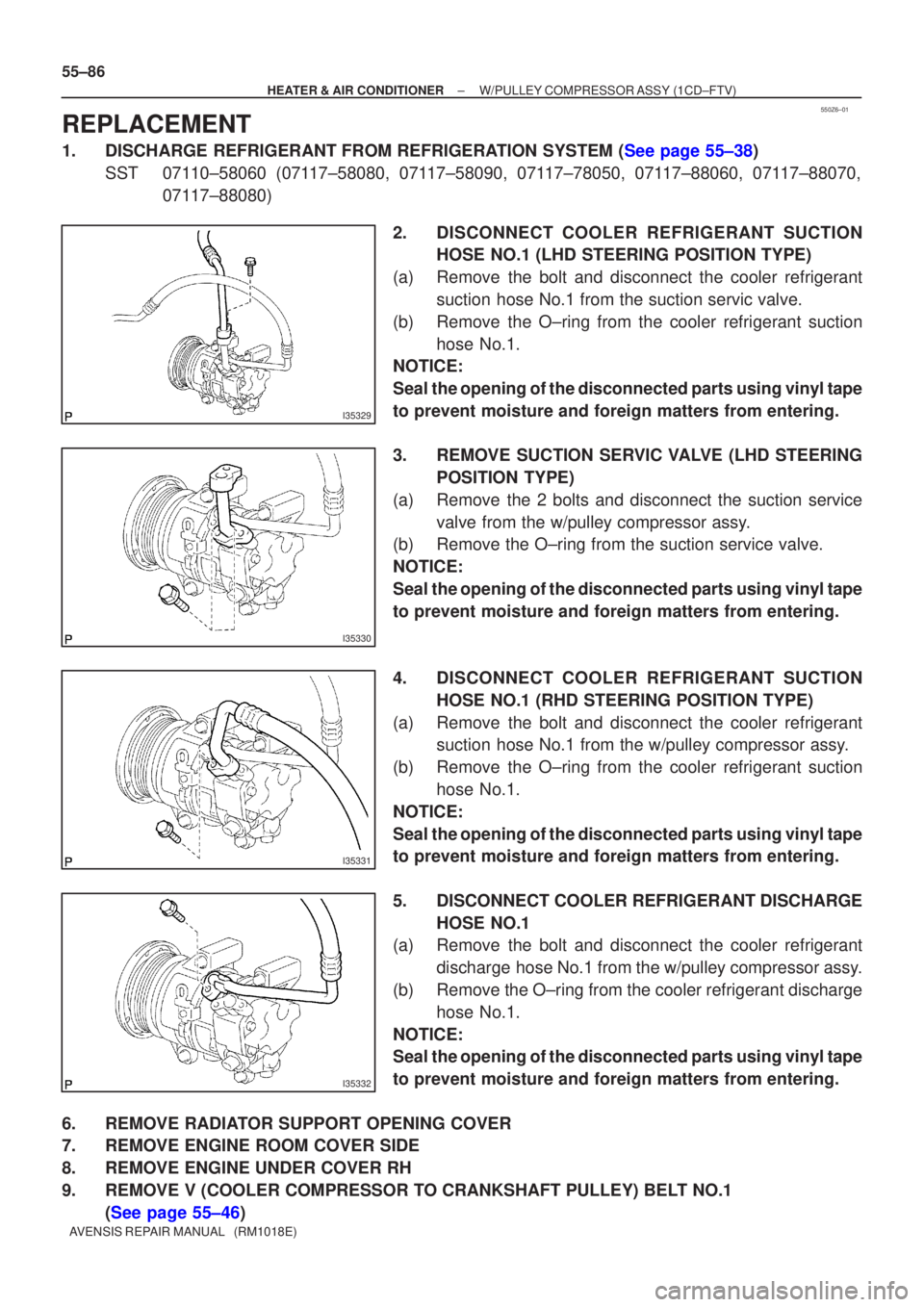

REPLACEMENT
1.DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See page 55±38) SST 07110±58060 (07117±58080, 07117±58090, 07117±78050, 07117±88060, 07117±88070, 07117±88080)
2. DISCONNECT COOLER REFRIGERANT SUCTIONHOSE NO.1 (LHD STEERING POSITION TYPE)
(a) Remove the bolt and disconnect the cooler refrigerant suction hose No.1 from the suction servic valve.
(b) Remove the O±ring from the cooler refrigerant suction hose No.1.
NOTICE:
Seal the opening of the disconnected parts using vinyl tape
to prevent moisture and foreign matters from entering.
3. REMOVE SUCTION SERVIC VALVE (LHD STEERING
POSITION TYPE)
(a) Remove the 2 bolts and disconnect the suction service valve from the w/pulley compressor assy.
(b) Remove the O±ring from the suction service valve.
NOTICE:
Seal the opening of the disconnected parts using vinyl tape
to prevent moisture and foreign matters from entering.
4. DISCONNECT COOLER REFRIGERANT SUCTION
HOSE NO.1 (RHD STEERING POSITION TYPE)
(a) Remove the bolt and disconnect the cooler refrigerant suction hose No.1 from the w/pulley compressor assy.
(b) Remove the O±ring from the cooler refrigerant suction hose No.1.
NOTICE:
Seal the opening of the disconnected parts using vinyl tape
to prevent moisture and foreign matters from entering.
5. DISCONNECT COOLER REFRIGERANT DISCHARGE HOSE NO.1
(a) Remove the bolt and disconnect the cooler refrigerant
discharge hose No.1 from the w/pulley compressor assy.
(b) Remove the O±ring from the cooler refrigerant discharge hose No.1.
NOTICE:
Seal the opening of the disconnected parts using vinyl tape
to prevent moisture and foreign matters from entering.
6. REMOVE RADIATOR SUPPORT OPENING COVER
7. REMOVE ENGINE ROOM COVER SIDE
8. REMOVE ENGINE UNDER COVER RH
9. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 55±46)
Page 2934 of 5135

I35333
I35333
(1)(2)
(3)
(4)
±
HEATER & AIR CONDITIONER W/PULLEY COMPRESSOR ASSY (1CD±FTV)
55±87
AVENSIS REPAIR MANUAL (RM1018E)
10. REMOVE W/PULLEY COMPRESSOR ASSY
(a) Disconnect the connector.
(b) Remove the 4 bolts and the w/pulley compressor assy.
11. INSPECT COMPRESSOR OIL
(a) When replacing the w/pulley compressor assy with a new one, after gradually \
removing the refrigerant gas from the service valve, drain the following amount of oil from the new w\
/pulley compressor assy
before installation.
Standard:
(Oil capacity inside new w/pulley compressor assy: 90 + 15 cc (3.0 + 0.5 fl. oz.) ) ± (Remaining
oil amount in the removed w/pulley compressor assy) = (Oil amount to be r\
emoved when replac-
ing)
NOTICE:
When checking the compressor oil level, observe the precautions on the cooler removal/inst\
al-
lation.
Since compressor oil remains in the pipes of the vehicle, if a new w/pulley c\
ompressor assy
is installed without removing some oil inside, the oil amount becomes ex\
cessive, preventing
heat exchange in the refrigerant cycle and causing refrigerant failure.
If the remaining oil in the removed w/pulley compressor assy is too smal\
l in volume, check for
oil leakage.
Be sure to use ND±OIL 8 for compressor oil.
12. INSTALL W/PULLEY COMPRESSOR ASSY
(a) Install the w/pulley compressor assy with the 4 bolts.Torque: 29 N m (300 kgf cm, 21 ft lbf)
NOTICE:
Tighten the bolts in the order shown in the illustration to
install the w/pulley compressor assy.
(b) Connect the connector.
13. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 55±46)
14. ADJUST V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
(See page 55±46)
15. FULLY TIGHTEN V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 55±46)
Page 2935 of 5135

I35332
I35330
I35331
55±88
± HEATER & AIR CONDITIONERW/PULLEY COMPRESSOR ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

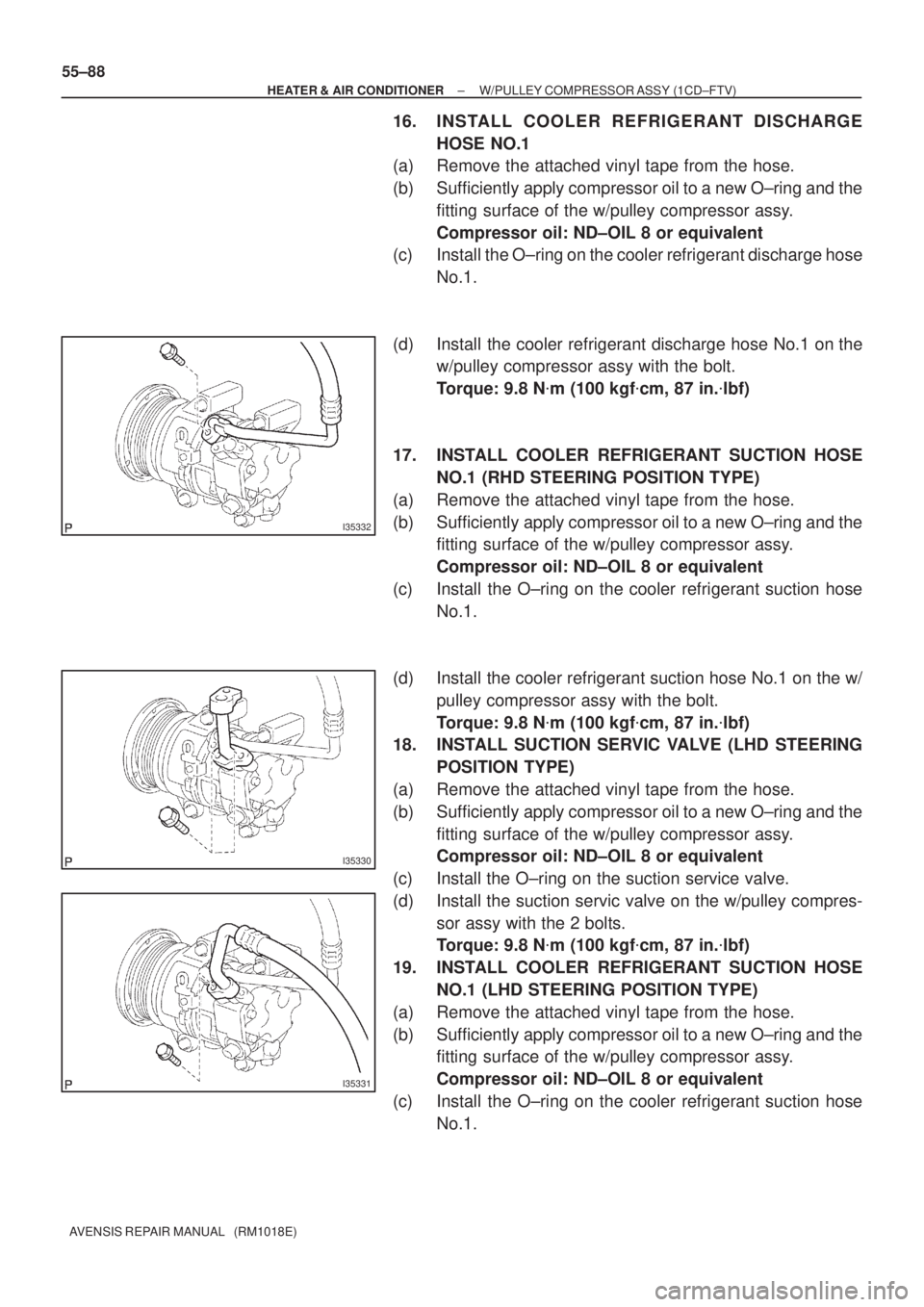

16. INSTALL COOLER REFRIGERANT DISCHARGE
HOSE NO.1
(a) Remove the attached vinyl tape from the hose.
(b) Sufficiently apply compressor oil to a new O±ring and the
fitting surface of the w/pulley compressor assy.
Compressor oil: ND±OIL 8 or equivalent
(c) Install the O±ring on the cooler refrigerant discharge hose
No.1.
(d) Install the cooler refrigerant discharge hose No.1 on the
w/pulley compressor assy with the bolt.
Torque: 9.8 Nm (100 kgfcm, 87 in.lbf)
17. INSTALL COOLER REFRIGERANT SUCTION HOSE
NO.1 (RHD STEERING POSITION TYPE)
(a) Remove the attached vinyl tape from the hose.
(b) Sufficiently apply compressor oil to a new O±ring and the
fitting surface of the w/pulley compressor assy.
Compressor oil: ND±OIL 8 or equivalent
(c) Install the O±ring on the cooler refrigerant suction hose
No.1.
(d) Install the cooler refrigerant suction hose No.1 on the w/
pulley compressor assy with the bolt.
Torque: 9.8 Nm (100 kgfcm, 87 in.lbf)
18. INSTALL SUCTION SERVIC VALVE (LHD STEERING
POSITION TYPE)
(a) Remove the attached vinyl tape from the hose.
(b) Sufficiently apply compressor oil to a new O±ring and the
fitting surface of the w/pulley compressor assy.
Compressor oil: ND±OIL 8 or equivalent
(c) Install the O±ring on the suction service valve.
(d) Install the suction servic valve on the w/pulley compres-
sor assy with the 2 bolts.
Torque: 9.8 Nm (100 kgfcm, 87 in.lbf)
19. INSTALL COOLER REFRIGERANT SUCTION HOSE
NO.1 (LHD STEERING POSITION TYPE)
(a) Remove the attached vinyl tape from the hose.
(b) Sufficiently apply compressor oil to a new O±ring and the
fitting surface of the w/pulley compressor assy.
Compressor oil: ND±OIL 8 or equivalent
(c) Install the O±ring on the cooler refrigerant suction hose
No.1.
Page 2936 of 5135
I35329
±
HEATER & AIR CONDITIONER W/PULLEY COMPRESSOR ASSY (1CD±FTV)
55±89
AVENSIS REPAIR MANUAL (RM1018E)

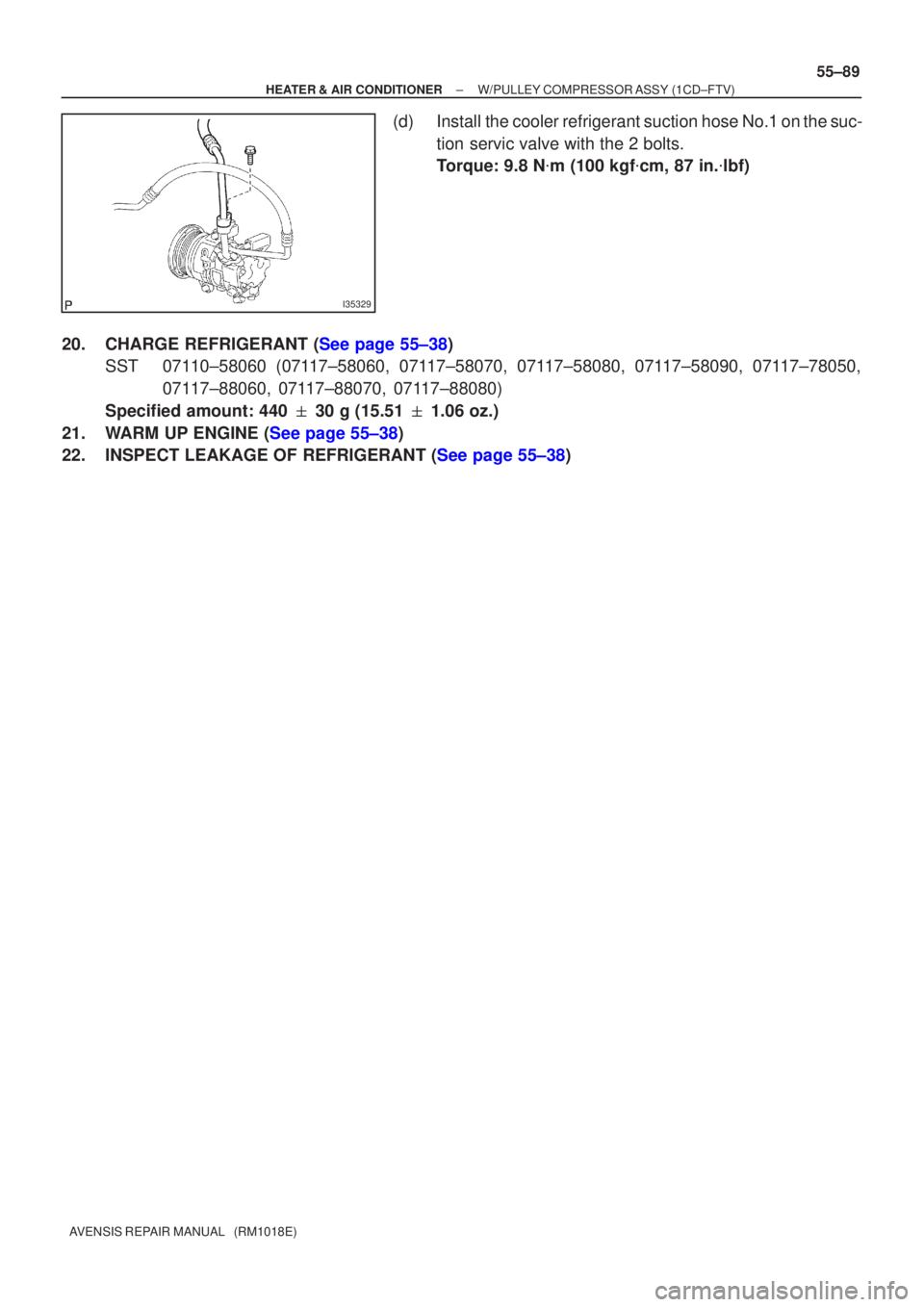

(d) Install the cooler refrigerant suction hose No.1 on the suc-
tion servic valve with the 2 bolts.
Torque: 9.8 N m (100 kgf cm, 87 in. lbf)
20.CHARGE REFRIGERANT (See page 55±38) SST 07110±58060 (07117±58060, 07117±58070, 07117±58080, 07117±58090, 07117±78050,
07117±88060, 07117±88070, 07117±88080)
Specified amount: 440 30 g (15.51 1.06 oz.)
21.WARM UP ENGINE (See page 55±38)
22.INSPECT LEAKAGE OF REFRIGERANT (See page 55±38)
